Schematic and parts book for Royal RY5500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

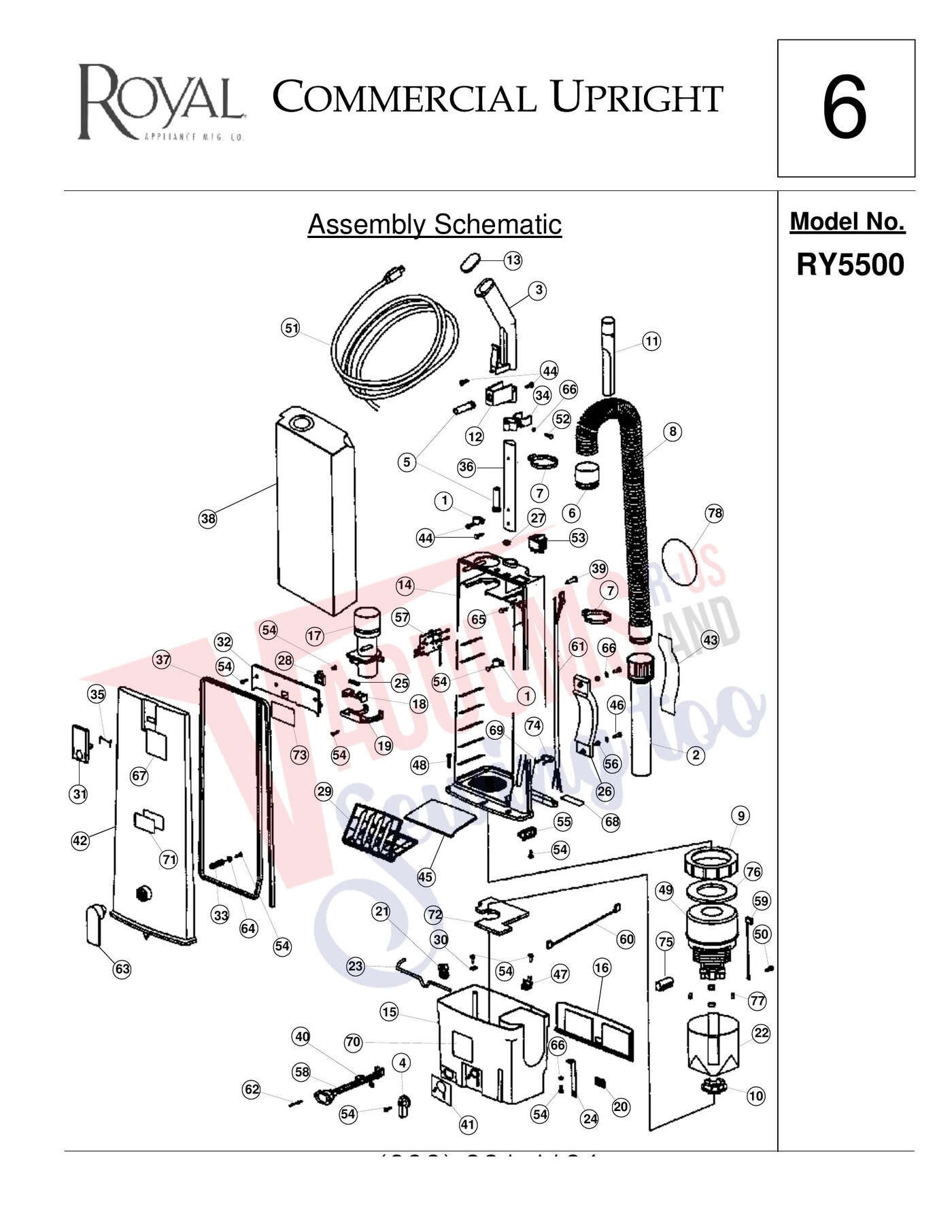

| # | Part image | Description | SKU | Price |
| 1 | Not Available | PLASTIC CLAMP 5/16 | 250039 | Not Available |
| 2 | Not Available | WAND | 370012G | Not Available |
| 3 | Not Available | UPPER HANDLE | 370014 | Not Available |
| 4 | Not Available | HOUSING RELEASE KNOB | 370019 | Not Available |
| 5 | Not Available | STRAIN RELIEF | 370026 | Not Available |
| 6 | Not Available | HOSE LOCK ADAPTOR | 370027G | Not Available |
| 7 | Not Available | HOSE LOCK RING | 370029G | Not Available |
| 8 | No Image | HOSE, RY5500 Part Number: 370036G for Royal | 370036G | $73.83Read more |
| 9 | Not Available | MOTOR GASKET | 370057 | Not Available |
| 10 | Not Available | MOTOR DAMPENER | 370072 | Not Available |
| 11 | Not Available | CREVICE TOOL | 370097 | Not Available |
| 12 | Not Available | STRAIN RELIEF HOUSING | 370137 | Not Available |
| 13 | Not Available | HANDLE CAP | 370138 | Not Available |
| 14 | Not Available | FRONT PANEL HOUSING | 370173SP | Not Available |
| 15 | Not Available | MOTOR HOUSING | 370175 | Not Available |
| 16 |  | Filter Door - Royal Ry5500 / Ry6900 Commercial For: royal | 370213 | $10.90Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | HOSE COUPLING CONNECTOR | 370177 | Not Available |
| 18 | Not Available | CLIP - BAG LATCH | 370178 | Not Available |
| 19 | Not Available | COVER - BAG LATCH | 370179 | Not Available |
| 20 | Not Available | BUTTON - FILTER COVER | 370181 | Not Available |
| 21 | Not Available | LOCK AND RELEASE CAM | 370182 | Not Available |
| 22 | Not Available | MOTOR COVER | 370183 | Not Available |
| 23 | Not Available | WIRE FORM - LOCK RELEASE | 370184 | Not Available |
| 24 | Not Available | SPRING - COVER BUTTON | 370185 | Not Available |
| 25 | Not Available | SPRING - BAG LATCH | 370186 | Not Available |
| 26 | Not Available | CARRYING HANDLE | 370187 | Not Available |
| 27 | Not Available | LENS - BAG FULL INDICATOR LIGHT | 370188 | Not Available |
| 28 | Not Available | LATCH COVER | 370189 | Not Available |
| 29 | Not Available | FILTER FRAME | 370190 | Not Available |
| 30 | Not Available | HOLD DOWN TAB | 370191 | Not Available |
| 31 |  | Latch - Royal - Ry5500 Commercial For: royal | 370192 | $12.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | COVER - ELECTRONTICS | 370193 | Not Available |
| 33 | Not Available | SPRING - CORD HOOK | 370195 | Not Available |
| 34 | Not Available | ACCESSORY TOOL CLIP | 370196G | Not Available |
| 35 | Not Available | SPRING - BAG COVER LATCH | 370197 | Not Available |
| 36 | Not Available | LOWER HANDLE | 370198 | Not Available |
| 37 | Not Available | BACK PANEL GASKET | 370199 | Not Available |
| 38 | No Image | PAPER BAG, HOSPITAL RY5500 10PK Part Number: 53638 for Royal | 53638 | $37.04Read more |
| 38 | Not Available | TYPE S BAG (10 PACK) | 370221PKG | Not Available |
| 39 | Not Available | RIVIT | 711401 | Not Available |
| 40 | Not Available | BACKER PLATE | 370204 | Not Available |
| 41 | Not Available | BASE RELEASE - DECAL | 715171 | Not Available |
| 42 | Not Available | REAR HOUSING COVER | 370206 | Not Available |
| 43 | Not Available | CARRYING HANDLE - DECAL | 715172 | Not Available |
| 44 | Not Available | SCREW 10-32 X .37 | 711168 | Not Available |
| 45 | Not Available | HOSPITAL FILTER (10 PACK) | 53660 | Not Available |
| 46 | No Image | Squeege Support Plate PFS28 PFS32 | 710130 | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | THERMODISC | 740250 | Not Available |
| 48 | Not Available | SCREW 10-32 X 1.25 | 710362 | Not Available |
| 49 |  | COVER, FILTER 5892BVZ Part Number: 74070-4 for Eureka | 740704 | $19.77Read more |
| 50 | Not Available | SCREW 10 X .37 | 711124 | Not Available |
| 51 | No Image | CORD, MAIN POWER RY5500 Part Number: 740705 for Royal | 740705 | $67.85Read more |
| 52 | Not Available | SCREW 10 X .75 | 711161 | Not Available |
| 53 |  | SWITCH, ROCKER ON-OFF RY5500 COMMERCIAL UPRIGHT Part Number: 740711 for Royal | 740711 | $13.56Read more |
| 54 | No Image | SCREW, BRUSHROLL RY5500 Part Number: 711181 for Royal | 711181 | $1.48Read more |
| 55 | Not Available | TERMINAL | 740726 | Not Available |
| 56 | Not Available | NUT 8-32 | 711372 | Not Available |
| 57 | Not Available | PC BOARD | 740734 | Not Available |
| 58 | Not Available | AC POWER RECEPTACLE | 740728 | Not Available |
| 59 | Not Available | GROUNDING WIRE ASSEMBLY | 740730 | Not Available |
| 60 | Not Available | WIRE ASSEMBLY | 740731 | Not Available |
| 61 | Not Available | WIRE HARNESS | 741011 | Not Available |
| 62 | Not Available | RIVIT POP | 410-441-9AA | Not Available |
| 63 | Not Available | CORD HOOK | 370194 | Not Available |
| 64 | Not Available | WASHER | 712320 | Not Available |
| 65 | Not Available | SCREW 10-32 X .50 | 710355 | Not Available |

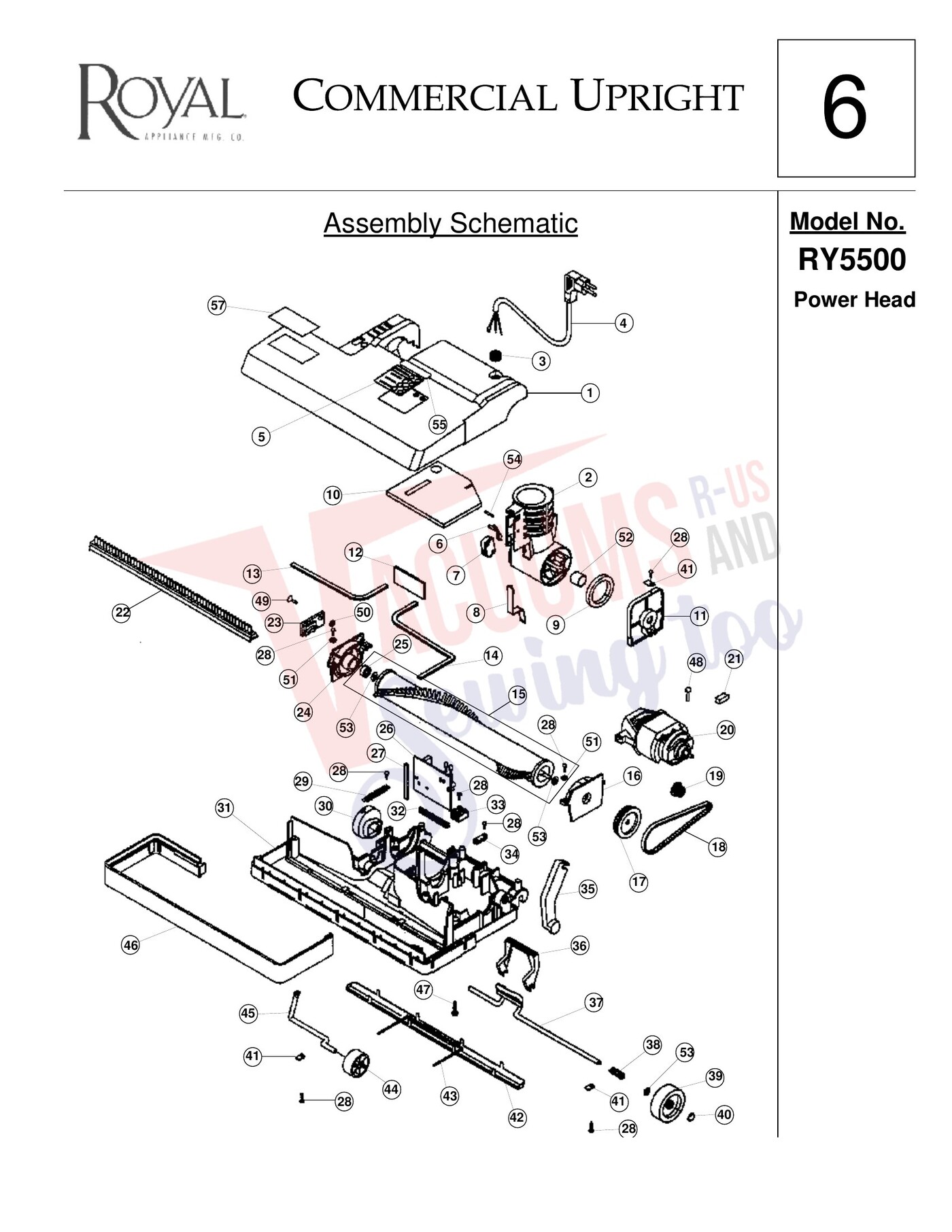

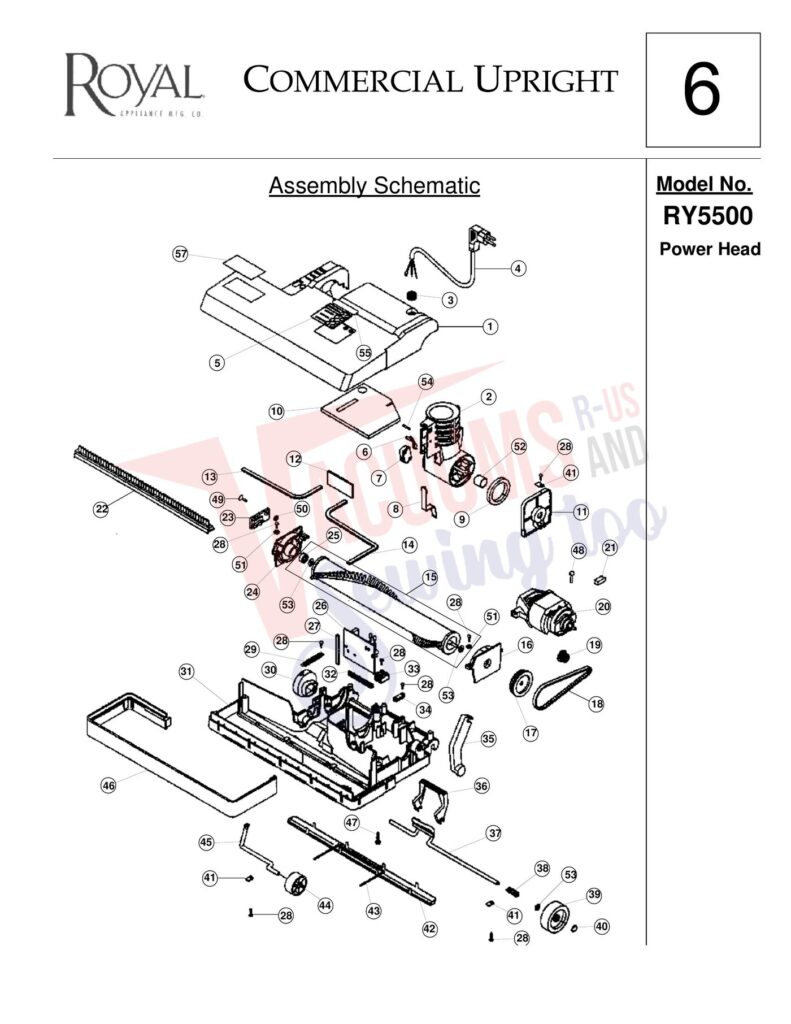

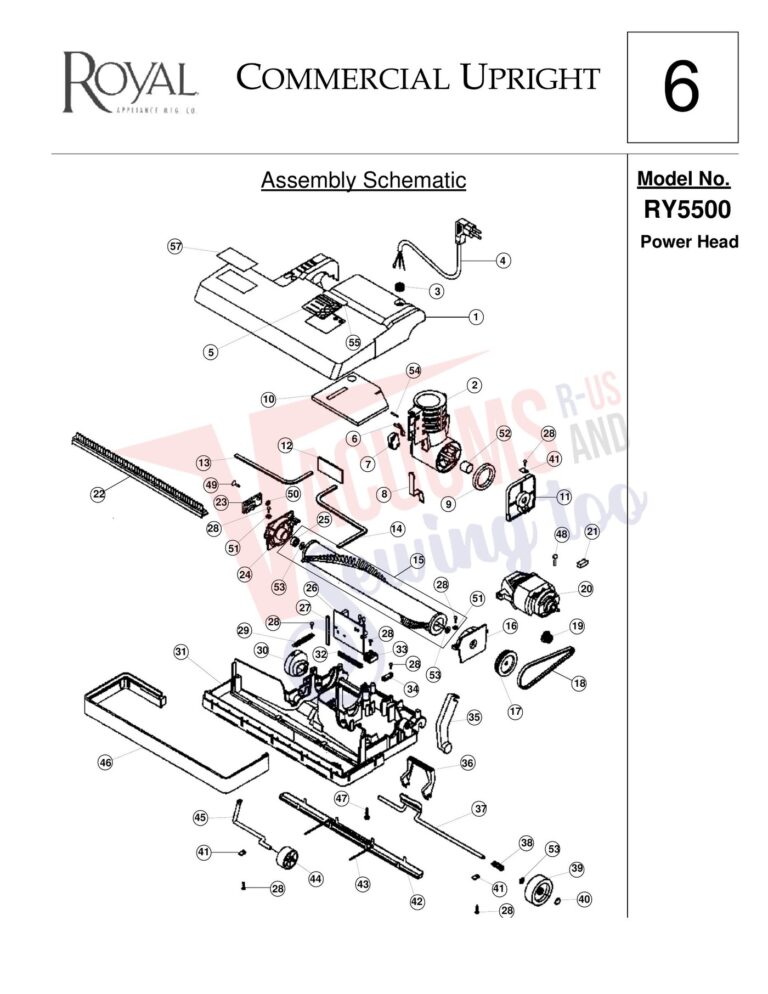

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BASE COVER ASSEMBLY | 37006SP | Not Available |
| 2 | Not Available | COUPLING PIVOT HOUSING ASSEMBLY | 370141 | Not Available |
| 3 | Not Available | GROMMET | 370088 | Not Available |
| 4 | Not Available | POWER CORD | 740729 | Not Available |
| 5 | Not Available | BRUSH MONITOR - DECAL | 715146 | Not Available |
| 6 | Not Available | SWITCH FINGER | 370030 | Not Available |
| 7 | Not Available | SWITCH | 740701 | Not Available |
| 8 | Not Available | COVER - COUPLING PIVOT SWITCH | 370059 | Not Available |
| 9 | Not Available | FELT RING FLANGE | 370203 | Not Available |
| 10 | Not Available | INSULATOR PAD | 370210 | Not Available |
| 11 | Not Available | COUPLING PIVOT PLATE | 370008 | Not Available |
| 12 | Not Available | FELT STRIP - BASE COVER | 370085 | Not Available |
| 13 | Not Available | GASKET - INTAKE COVER 8” | 370091 | Not Available |
| 14 | Not Available | GASKET - INTAKE COVER 11” | 370090 | Not Available |
| 15 |  | BRUSHROLL, RY5500 Part Number: 370277 for Royal | 370277 | $172.90Read more |
| 16 | Not Available | END PLATE/DRIVE - BRUSH | 370022 | Not Available |
| 17 | Not Available | BRUSH DRIVE PULLEY | 370052 | Not Available |
| 18 |  | Belt, Geared RY5500 Commerical Upright Part Number: 370043 for Royal | 370043 | $24.35Read more |
| 19 | Not Available | DRIVE PULLEY - MOTOR | 370209 | Not Available |
| 20 | Not Available | BRUSH MOTOR | 740700 | Not Available |
| 21 | Not Available | CARBON BRUSH | 370069 | Not Available |
| 22 |  | BRUSH STRIP, RY5500 Part Number: 370083 for Royal | 370083 | $25.44Read more |
| 23 | Not Available | BRUSH STRIP DOOR | 370044 | Not Available |
| 24 | Not Available | END PLATE/IDLE - BRUSH | 370023 | Not Available |
| 25 | Not Available | BEARING - BRUSH | 370077 | Not Available |
| 26 | Not Available | ELECTRONIC CONTROL 18” | 740719 | Not Available |
| 27 | Not Available | 3” CUSHION - C.B. | 370092 | Not Available |
| 28 | No Image | SCREW, BRUSHROLL RY5500 Part Number: 711181 for Royal | 711181 | $1.48Read more |
| 29 | Not Available | SPRING - FRONT AXLE | 370076 | Not Available |
| 30 | Not Available | HEAD CAM | 370032 | Not Available |
| 31 | Not Available | BASE ASSEMBLY | 370005 | Not Available |
| 32 | Not Available | RUBBER STRIP | 370152 | Not Available |
| 33 | Not Available | TERMINAL BLOCK | 740036 | Not Available |
| 34 | Not Available | COVER - STRAIN RELIEF | 370064 | Not Available |
| 35 | Not Available | SIDE ARM SUPPORT | 370180 | Not Available |
| 36 | Not Available | FOOT RELEASE PEDAL | 370021 | Not Available |
| 37 | Not Available | REAR AXLE | 370045 | Not Available |
| 38 | Not Available | SPRING - AXLE | 370273 | Not Available |
| 39 | Not Available | 2” WHEEL | 370009 | Not Available |
| 40 | Not Available | WHEEL HUBCAP | 370074 | Not Available |
| 41 | Not Available | AXLE RETAINER - PLATE | 370075 | Not Available |
| 42 | Not Available | BRUSH PROTECTOR/GUARD - METAL | 370047 | Not Available |
| 43 | Not Available | WIRE FORM - BRUSH PROTECTOR | 370071 | Not Available |
| 44 | Not Available | 1 1/2” WHEEL | 370031 | Not Available |
| 45 | Not Available | WHEEL AXLE | 370050 | Not Available |
| 46 | Not Available | BUMPER | 370040 | Not Available |
| 47 | Not Available | SCREW 10-32 X 1.25 | 710362 | Not Available |
| 48 | No Image | Squeege Support Plate PFS28 PFS32 | 710130 | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 |  | Deodorizer, Fresh Floor Carpet 1 LB ea Part Number: 710010 for Counter Sale | 710010 | $21.18Read more |
| 50 | Not Available | PUSHNUT BOLT RETAINER | 370084 | Not Available |
| 51 | Not Available | FLAT WASHER #8 | 711502 | Not Available |
| 52 | Not Available | BUSH BEARING COUPLING | 370172 | Not Available |
| 53 | Not Available | FLAT WASHER .25 | 711504 | Not Available |
| 54 | Not Available | STRAIGHT KNURLED PIN | 370113 | Not Available |
| 55 | Not Available | CAUTION - DECAL | 715156 | Not Available |
| 56 | Not Available | WAVEY WASHER | 711523 | Not Available |
| 57 | Not Available | ROYAL - DECAL | 715434 | Not Available |
