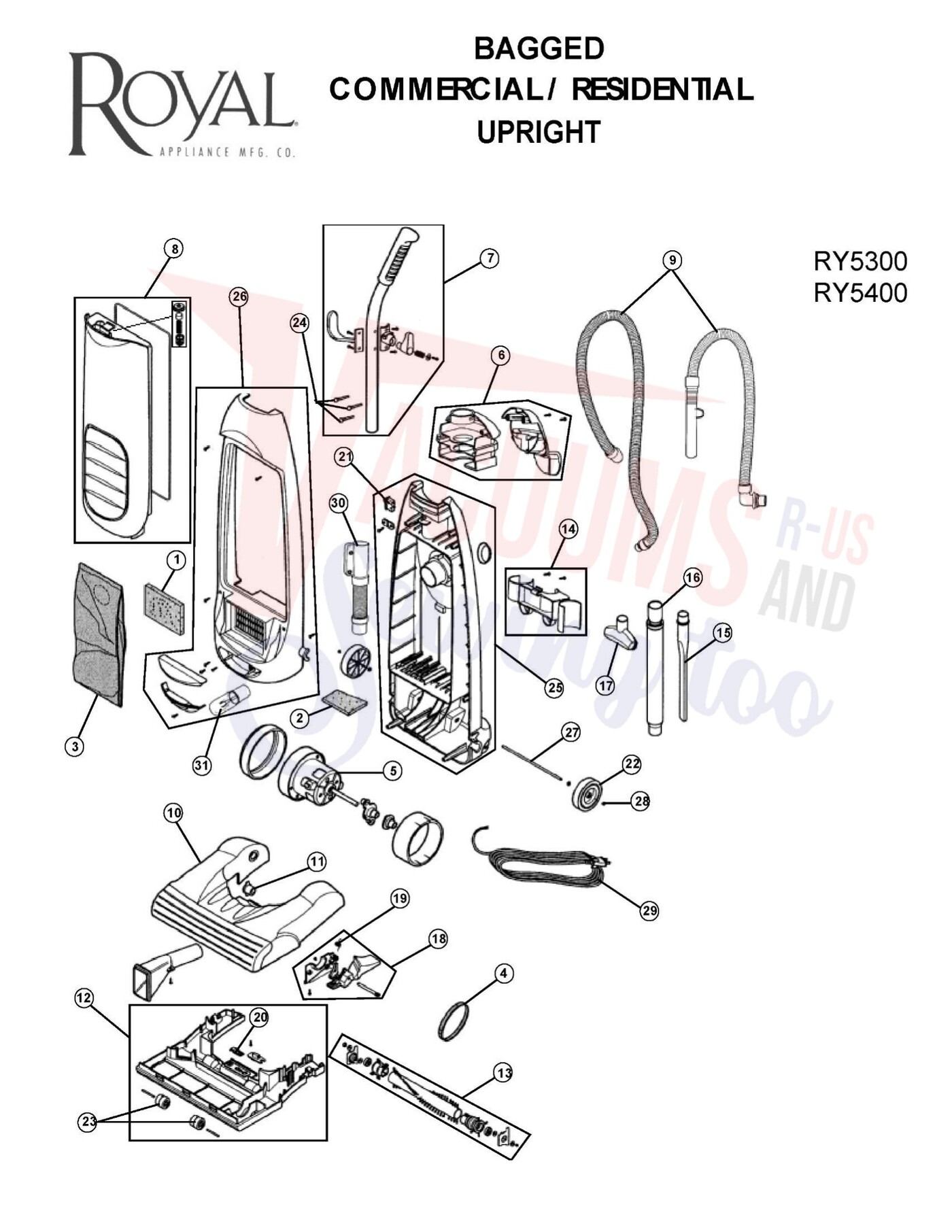

Schematic and parts book for royal ry5300, ry5400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | EXHAUST FILTER | 1231F13000 | Not Available |
| 1 | Not Available | EXHAUST FILTER - 2 PACK | 3231F13001 | Not Available |
| 2 |  | FILTER, :(SECONDARY RY5300 Part Number: 1231LG1000 for Royal | 1231LG1000 | $4.53Read more |
| 3 | Not Available | TYPE T BAG | 1423002000 | Not Available |
| 3 | Not Available | TYPE T BAG - 7 PACK | 3423002001 | Not Available |
| 4 | Not Available | STYLE 16 BELT | 4400FI3348 | Not Available |
| 5 | Not Available | MOTOR ASSEMBLY | 4681FI2460 | Not Available |
| 6 | Not Available | CARRYING HANDLE W/SCREWS - ORG | 3550FI1556 | Not Available |
| 6 | Not Available | CARRYING HANDLE W/SCREWS - blue | 3550FI15BL | Not Available |
| 7 | Not Available | HANDLE ASSEMBLY | 5201FI2449 | Not Available |
| 8 | Not Available | FRONT PANEL WITH GASKET - BLUE | 3551FI1627 | Not Available |
| 8 | Not Available | FRONT PANEL WITH GASKET - ORANGE | 3550FI1678 | Not Available |
| 9 | Not Available | FLEXIBLE HOSE ASSEMBLY | 5215FI1338 | Not Available |
| 9 | Not Available | RY5300 - REVISED FLEXIBLE QUICK DRAW HOSE | 52158I1351 | Not Available |
| 10 | Not Available | NOZZLE COVER - ORANGE | 3550FI1679 | Not Available |
| 10 | Not Available | NOZZLE COVER - BLUE | 3551FI1626 | Not Available |
| 11 | Not Available | FIXING HOLDER | 4930FI4671 | Not Available |
| 12 | Not Available | NOZZLE BASE | 3300FI1457 | Not Available |
| 12 |  | Bottomplate Royal Ry5300 Commercial For: royal | 3301FI1134 | $10.06Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | BRUSH ROLL ASSEMBLY | 5973FI1003 | Not Available |
| 14 | Not Available | TOOL HOLDER - BLUE | 30918I3001 | Not Available |
| 14 | Not Available | TOOL HOLDER | 3091FI1001 | Not Available |
| 15 | Not Available | CREVICE TOOL | 5058FI2213 | Not Available |
| 16 | Not Available | WAND ASSEMBLY | 5063FI1445 | Not Available |
| 17 |  | Dust Brush, Dirt Devil HDU600 Part Number: 5203FI3739 for Royal | 5203FI3739 | $5.35Read more |
| 18 | Not Available | HANDLE RELEASE PEDAL ASSEMBLY | 3059FI3003 | Not Available |
| 19 | No Image | SPRING, HANDLE RELEASE PEDAL Part Number: 4970FI4704 for Royal | 4970FI4704 | $8.09Read more |
| 20 | Not Available | SLIDE PIECE | 4970FI4699 | Not Available |
| 21 | No Image | SWITCH, RY5300/RY5400 Part Number: 6601FI3487 for Royal | 6601FI3487 | $9.80Read more |
| 22 | Not Available | LARGE WHEEL | 4660FI3740 | Not Available |
| 23 | Not Available | SMALL WHEEL | 4660FI4566 | Not Available |
| 24 | No Image | SCREW, HEIGHT ADJUSTMENT 086940 Part Number: 1JC0300000 for Royal | 1JC0300000 | $1.63Read more |
| 25 | Not Available | BACK PANEL - ORANGE / NON REVISED | 3040FI1531 | Not Available |
| 25 | Not Available | BACK PANEL - BLUE | 3040FI1472 | Not Available |
| 26 | No Image | COVER, FRONT BODY RY5300 Part Number: 3040FI5300 for Royal | 3040FI5300 | $36.27Read more |
| 26 | Not Available | FRONT BODY COVER - BLUE | 3551FI1498 | Not Available |
| 27 | Not Available | WHEEL SHAFT | 4370FI4598 | Not Available |
| 28 | Not Available | E-CLIP / WHEEL | 4080070A | Not Available |
| 29 | Not Available | CORD 50' / 3 WIRE - ORANGE | 1061136AU0 | Not Available |
| 29 | Not Available | CORD / 2 WIRE - BLUE | 6411FI2451 | Not Available |
| 30 | Not Available | LOWER HOSE | 52158I2002 | Not Available |
| 31 | Not Available | LIGHT BULB - 120 VOLT 15 WATT | 1880630000 | Not Available |
