Schematic and parts book for royal RY4000, RY4001 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

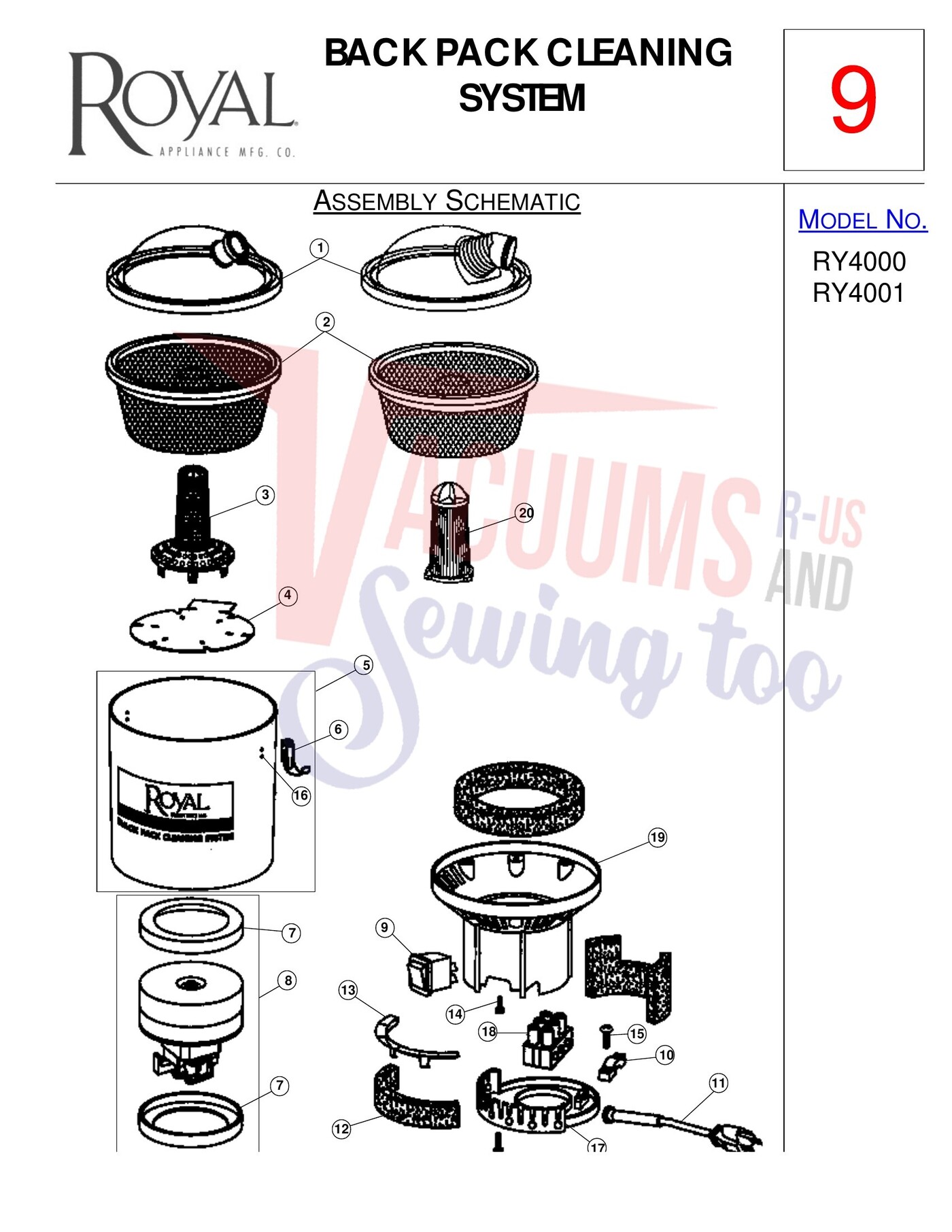

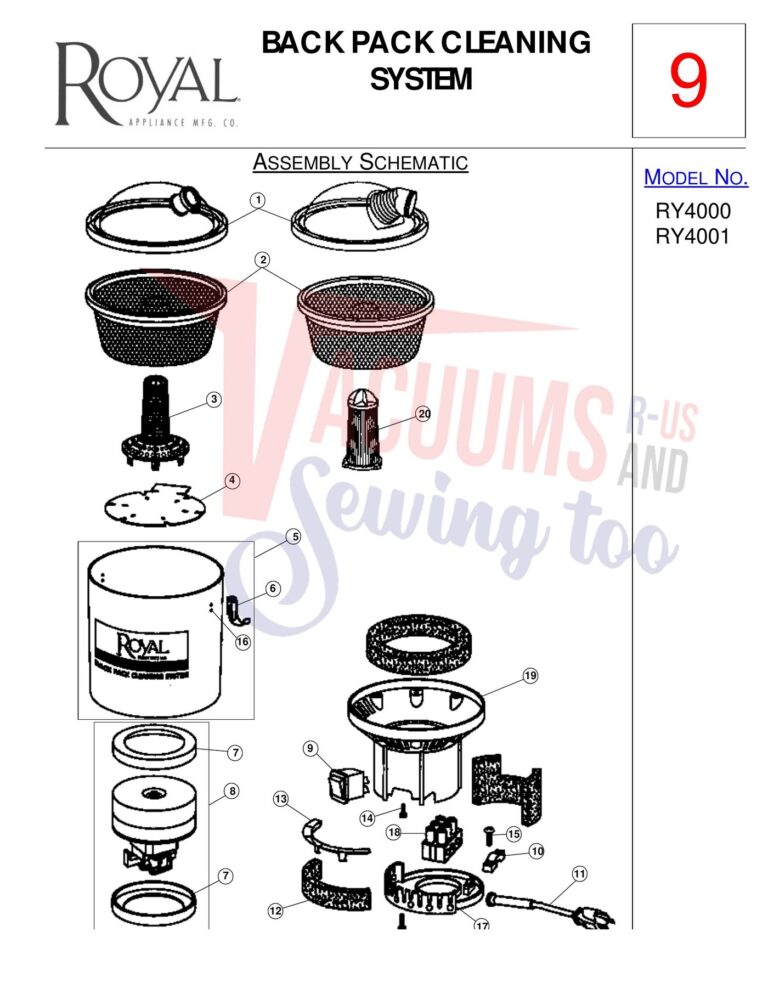

| # | Part image | Description | SKU | Price |
| 1 | Not Available | TOP DOME LID ASSEMBLY | 2KE0100Q00 | Not Available |
| 1 |  | Hoover Backpack Top Lid Cover 2KE2100000 | 2KE2100000 | $58.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Cloth Bag W/Gasket - Royal-Ry4001 Back Pack For: filter queen | 2KE2105000 | $90.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | DUST BAG W/RUBBER RING | 2KE0111000 | Not Available |
| 3 | Not Available | HYPERCONE | 1KE0112600 | Not Available |
| 4 |  | Filter, Secondary Backpack RY4000 Round Felt 5Pk Part Number: 2KE0113700 for Royal | 2KE0113700 | $22.99Read more |
| 5 | Not Available | MAIN CANISTER BODY COMPLETE | 2KE0200000 | Not Available |
| 6 | Not Available | TOGGLE LATCH | 1KE0205000 | Not Available |
| 7 | No Image | Motor Gasket - C2401 For: hoover | 1KE0210000 | $33.80Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Motor, C2401/RY4000/RY4001 Backpack Part Number: 2KE0210000 for Royal | 2KE0210000 | $273.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | ROCKER SWTICH | 1KE2140000 | Not Available |
| 9 | Not Available | ROCKER SWTICH | 1KE0235600 | Not Available |
| 10 | Not Available | CABLE CLAMP | 1KE0260600 | Not Available |
| 11 | Not Available | POWER CORD - 48’ 10 AMP | 1KE2145000 | Not Available |
| 11 | Not Available | POWER CORD - 48’ 10 AMP | 2KE0270BG0 | Not Available |
| 12 | No Image | MERGE RO-KE2155 FILTER, RY4000 BACKPACK Part Number: 1KE0290000 for Royal | 1KE0290000 | $0.00Read more |
| 12 |  | Filter, Foam Exhaust RY4001 Backpack Part Number: 1KE2155000 for Royal | 1KE2155000 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | EXTERNAL MOTOR FILTER CAGE | 1KE2150000 | Not Available |
| 13 | Not Available | EXTERNAL MOTOR FILTER CAGE | 1KE0295600 | Not Available |
| 14 | Not Available | SCREW - 5mm | 1KE0245000 | Not Available |
| 15 | Not Available | SCREW - 3mm | 1KE0255000 | Not Available |
| 16 | Not Available | RIVET | 1KE0206000 | Not Available |
| 17 | Not Available | BOTTOM CAP | 1KE0280600 | Not Available |
| 18 | Not Available | WIRING LOOM - INCLUDES THERMAL | 1KE0275000 | Not Available |
| 19 | Not Available | INTERMEDIATE HOUSING | 1KE0225BG0 | Not Available |
| 20 | Not Available | CONVERSION KIT TYPE S BAG - HEPA HYPERDOME | MRY420010209610001871075000 | Not Available |
| 20 |  | Filter, Pleated Backpack RY4001/C2401 Cone Part Number: 2KE2110000 for Royal | 2KE2110000 | $70.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | CLOTH INTERNAL BAG | 2232260400 | Not Available |
| 20 | Not Available | TYPE BP PAPER BAG - BULK TYPE BP PAPER BAG - 7 PACK | 1KE21030003KE2103000 | Not Available |

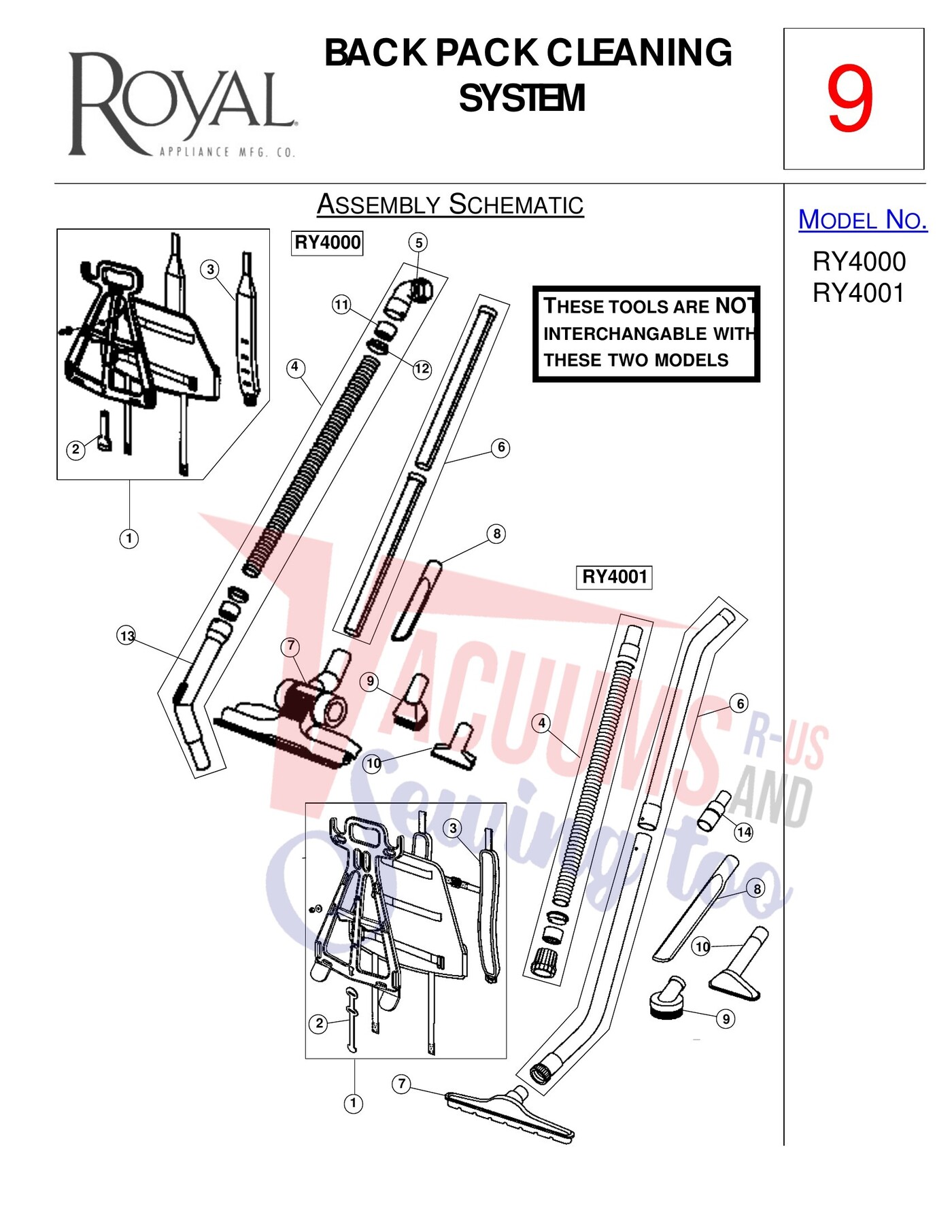

| # | Part image | Description | SKU | Price |
| 1 |  | HARNESS ASSEM,ROYAL RY4001,HOOVER C2401 BACKPACK | 2KE2185000 | $316.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | HARNESS ASSEMBLY COMPLETE | 2KE0400600 | Not Available |
| 2 | Not Available | CORD RESTRAINT | 1KE0425600 | Not Available |
| 3 | Not Available | SHOULDER STRAP | 1KE0430600 | Not Available |
| 4 |  | Hose , Black Assembly RY4001 Backpack Part Number: 2KE2200000 for Royal | 2KE2200000 | $79.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | HOSE ASSEMBLY COMPLETE | 2KE0600000 | Not Available |
| 5 |  | Connector Seal Royal Ry4000 Back Pack For: royal | 1KE0610600 | $17.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | WAND ASSEMBLY | 2KE0635600 | Not Available |
| 6 |  | Wand, 56"x 1-1/2"Curved RY4001/C2401 2 PC. Comm. Part Number: 2KE2225000 for Royal | 2KE2225000 | $184.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | FLOOR TOOL | 2KE2235000 | Not Available |
| 7 |  | Floor Tool, Flat By Wessel Part Number: 2KE0640600 for Royal | 2KE0640600 | $90.27Read more |
| 8 |  | Crevice Tool, RY4000/RY4001 1-1/4" Part Number: 1KE0645600 for Royal | 1KE0645600 | $9.94Read more |
| 8 | Not Available | CREVICE TOOL 1-1/2 | 1KE2250000 | Not Available |
| 9 |  | Dust Brush, RY4001 Part Number: 2KE2245000 for Royal | 2KE2245000 | $27.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | DUSTING BRUSH | 2KE0650600 | Not Available |
| 10 | Not Available | UPHOLSTREY TOOL | 2KE0655600 | Not Available |
| 10 |  | Upholstery Tool, :( RY4001 Part Number: 2KE2240000 for Royal | 2KE2240000 | $23.11Read more |
| 11 | Not Available | HOSE CUFF | 1KE0615600 | Not Available |
| 12 | Not Available | HOSE CLIP | 1KE0620600 | Not Available |
| 13 | Not Available | HOSE HANDLE | 2KE0605600 | Not Available |
| 14 |  | Connector, :( RY4000/RY4001/C2401 Part Number: 1KE2255000 for Royal | 1KE2255000 | $18.83Read more |
| 15 |  | KIT, TOOL RY4001 1-1/4 Part Number: M315 for Royal | M315 | $248.82Read more |
| 15 | Not Available | TURBO TOOL | 2KE8100000 | Not Available |
