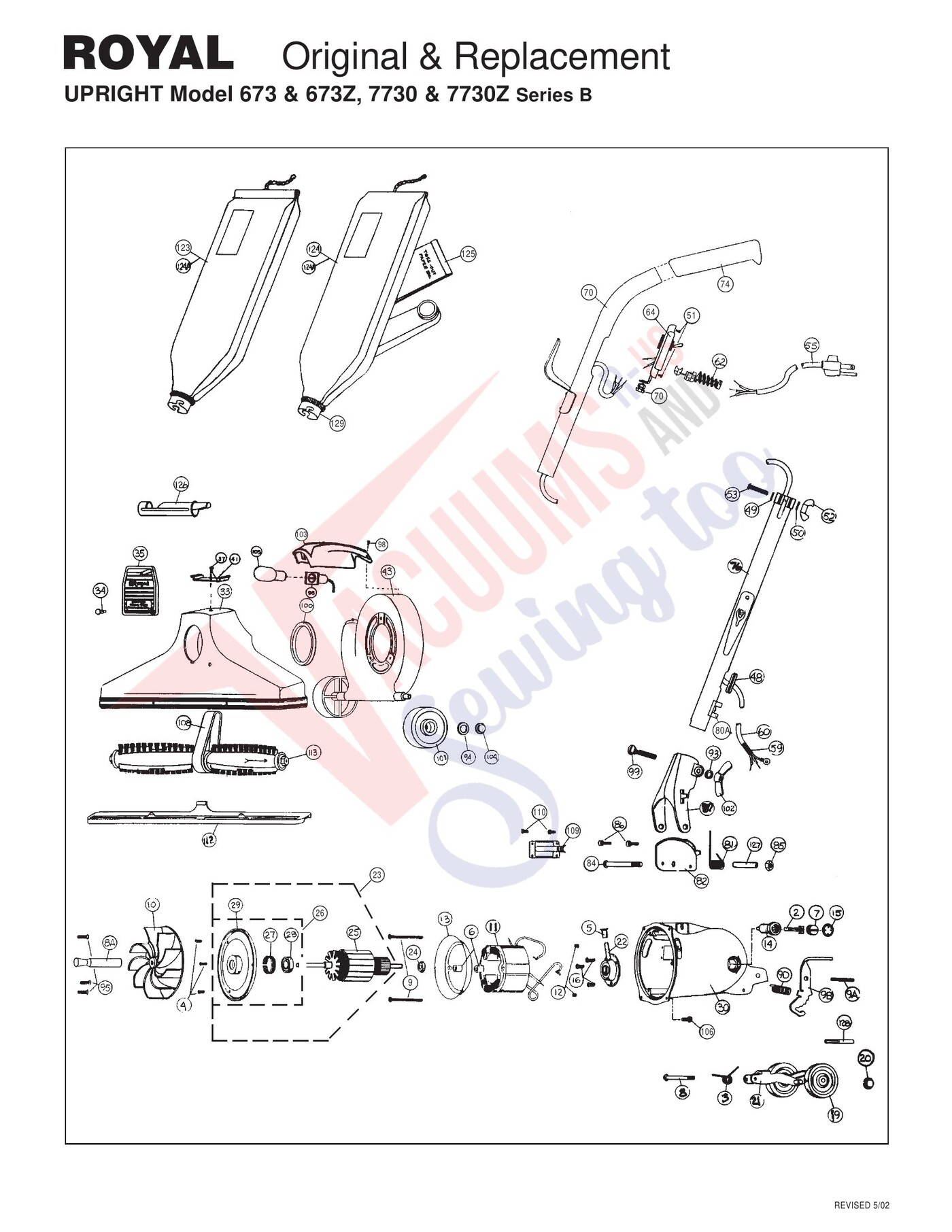

Schematic and parts book for Royal 673, 673Z, 7730, 7730Z . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Unit Ass’y | 671000 | Not Available |
| 2 | Not Available | Carbon Brush Ass’y | NLA | Not Available |
| 3 | Not Available | spring Rear Wheel Fork | 003008 | Not Available |
| 4 | Not Available | screw Motor Plate Ret. | 670013 | Not Available |
| 5 | Not Available | Oiler Cap | 065028 | Not Available |
| 6 | Not Available | spacer Baffle | 618772 | Not Available |
| 7 | Not Available | Brush Holder screw Ass’y | 672103 | Not Available |
| 8 | Not Available | screw & Washer Ass’y | 311031 | Not Available |
| 8A | Not Available | drive shaft | NLA | Not Available |
| 9 | Not Available | screw Field Retainer (Order RO-208590) | 618016 | Not Available |
| 9A | Not Available | spring Pin | 670705 | Not Available |
| 9B | Not Available | Release Pedal – incremental | 670715 | Not Available |
| 9C | Not Available | Lubriplate Grease Not shown | 671000 | Not Available |
| 9C | Not Available | Lubriplate grease Not shown | SS-8026 | Not Available |
| 10 | Not Available | Fan Heavy duty | 608005 | Not Available |
| 11 | Not Available | Field 120 volt | 780002 | Not Available |
| 12 | Not Available | set screw Brush Holder | 801014 | Not Available |
| 13 | Not Available | Baffle Plate | NLA | Not Available |
| 14 | Not Available | Brush Holder | NLA | Not Available |
| 15 | Not Available | Brush Holder Protective Cap | NLA | Not Available |
| 16 | Not Available | screw Rear Bearing Ret. | 801701 | Not Available |
| 19 | Not Available | Wheel – Wide | 671705 | Not Available |
| 20 | Not Available | Wheel Retainer | 801711 | Not Available |
| 21 | Not Available | Rear Wheel Fork & shaft | 670007 | Not Available |
| 22 | Not Available | Rear Bearing Ass’y | NLA | Not Available |
| 23 | Not Available | Motor Plate & Armature Ass’y | NLA | Not Available |
| 24 | Not Available | Washer Oil slinger | NLA | Not Available |
| 25 | Not Available | Armature 120 volt | 780001 | Not Available |
| 26 | Not Available | Motor Plate & Bearing Ass’y | NLA | Not Available |
| 27 | Not Available | Tolerance Ring | 880046 | Not Available |
| 28 | Not Available | Ball Bearing (Order Fa-6202) | NLA | Not Available |
| 29 | Not Available | Motor Plate | NLA | Not Available |
| 30 | Not Available | Motor Housing | NLA | Not Available |
| 31 | Not Available | Lockwasher Ground Lead | 006318 | Not Available |
| 32 | Not Available | screw Ground Lead | 880707 | Not Available |
| 33 | Not Available | Nozzle Ass’y | 673026 | Not Available |
| 34 | Not Available | Rivet Nozzle Plug | NLA | Not Available |
| 35 | Not Available | Nozzle Plug Black | 670744 | Not Available |
| 37 | Not Available | Rivet Headlight spring Clip | 330329 | Not Available |
| 41 | Not Available | Headlight spring Clip | 606210 | Not Available |
| 43 | Not Available | Fancase Ass’y | 021510 | Not Available |
| 48 | Not Available | Grommet | 230324 | Not Available |
| 49 | Not Available | Washer A.C.s. | 003311 | Not Available |
| 50 | Not Available | Lockwasher A.C.s. | 023311 | Not Available |
| 51 | Not Available | screw switch Plate | 801701 | Not Available |
| 52 | Not Available | Wingnut small | 801710 | Not Available |
| 53 | Not Available | Adaptor Clamp screw | 801712 | Not Available |
| 55 | Not Available | Cord 50' 3 Wire Gray | 061136 | Not Available |
| 57 | Not Available | Connector Wire | 259761 | Not Available |
| 59 | Not Available | Cord Protecting sleeve | 285328 | Not Available |
| 60 | Not Available | short Cord & Lug Ass’y | NLA | Not Available |
| 62 | Not Available | strain Relief switch Plate | 611305 | Not Available |
| 63 | Not Available | strain Relief Handle | 880304 | Not Available |
| 64 | Not Available | switch & Plate Ass’y | 060837 | Not Available |
| 70 | Not Available | Upper Handle Ass’y | 062032 | Not Available |
| 74 | Not Available | Handle Grip | 801314 | Not Available |
| 76 | Not Available | Handle Adaptor Ass’y | NLA | Not Available |
| 80A | Not Available | Cord Clip | 670844 | Not Available |
| 81 | Not Available | Handle Fork spring | 004723 | Not Available |
| 82 | Not Available | Handle stop Plate | 133714 | Not Available |
| 84 | Not Available | Bolt Handle Fork Ret. | 801708 | Not Available |
| 85 | Not Available | Nut Handle Fork Ret. | 801714 | Not Available |
| 86 | Not Available | screw Handle stop Plate | 990104 | Not Available |
| 87 | Not Available | Handle Fork & Latch Ass’y | 028590 | Not Available |
| 93 | Not Available | Washer Handle Clamp screw | 003311 | Not Available |
| 94 | Not Available | Washer Wheel Retainer | 005138 | Not Available |
| 95 | Not Available | screw Nozzle & Fancase | 023309 | Not Available |
| 96 | Not Available | Headlight socket & Lead Ass’y | NLA | Not Available |
| 98 | Not Available | screw Headlight & Fancase | 145734 | Not Available |
| 99 | Not Available | Carriage Bolt Handle Clamp | 230713 | Not Available |
| 100 | Not Available | Gasket Nozzle sealing | 285427 | Not Available |
| 101 | Not Available | Front Wheel – Wide | 671705 | Not Available |
| 102 | Not Available | Wingnut Large | 285720 | Not Available |
| 103 | Not Available | Headlight Casting | NLA | Not Available |
| 104 | Not Available | Retainer Wheel | 801711 | Not Available |
| 105 | Not Available | Headlight Bulb | 880629 | Not Available |
| 105 | Not Available | headlight Bulb | FA-3500 | Not Available |
| 106 | Not Available | Machine screw Thread Forming | 980743 | Not Available |
| 108 | Not Available | Belt | 044260 | Not Available |
| 108 | Not Available | Belt | ROR-1000 | Not Available |
| 109 | Not Available | side Connections Plate | 183749 | Not Available |
| 110 | Not Available | screw side Connections Plate | 360753 | Not Available |
| 111 | Not Available | Connector Wire | 259762 | Not Available |
| 112 | Not Available | Nozzle Guard | 672270 | Not Available |
| 113 | Not Available | Brushroll | 673273 | Not Available |
| 123 | Not Available | Bag Ass’y – dump Orange | 066240 | Not Available |
| 124 | Not Available | Bag Ass’y – W/Zipper Orange | 066242 | Not Available |
| 124A | Not Available | Bag Ass’y – dump Red | 770040 | Not Available |
| 124B | Not Available | Bag Ass’y – Zipper Red | 770042 | Not Available |
| 125 |  | Paper Bag, Royal Type B Upright Top Fill 10 Pk Part Number: 2066247001 for Royal | 2066247001 | $30.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 125 |  | Aftermarket Royal Type B Paper Vacuum Bags - 3pk | 80-2425-02 | $9.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 126 | Not Available | Belt Lifter Hand | 880262 | Not Available |
| 127 | Not Available | insert – Motor Housing | 110773 | Not Available |
| 128 | Not Available | Cover Lever | 130008 | Not Available |
| 129 | Not Available | Bag Coupling Gasket | 601407 | Not Available |

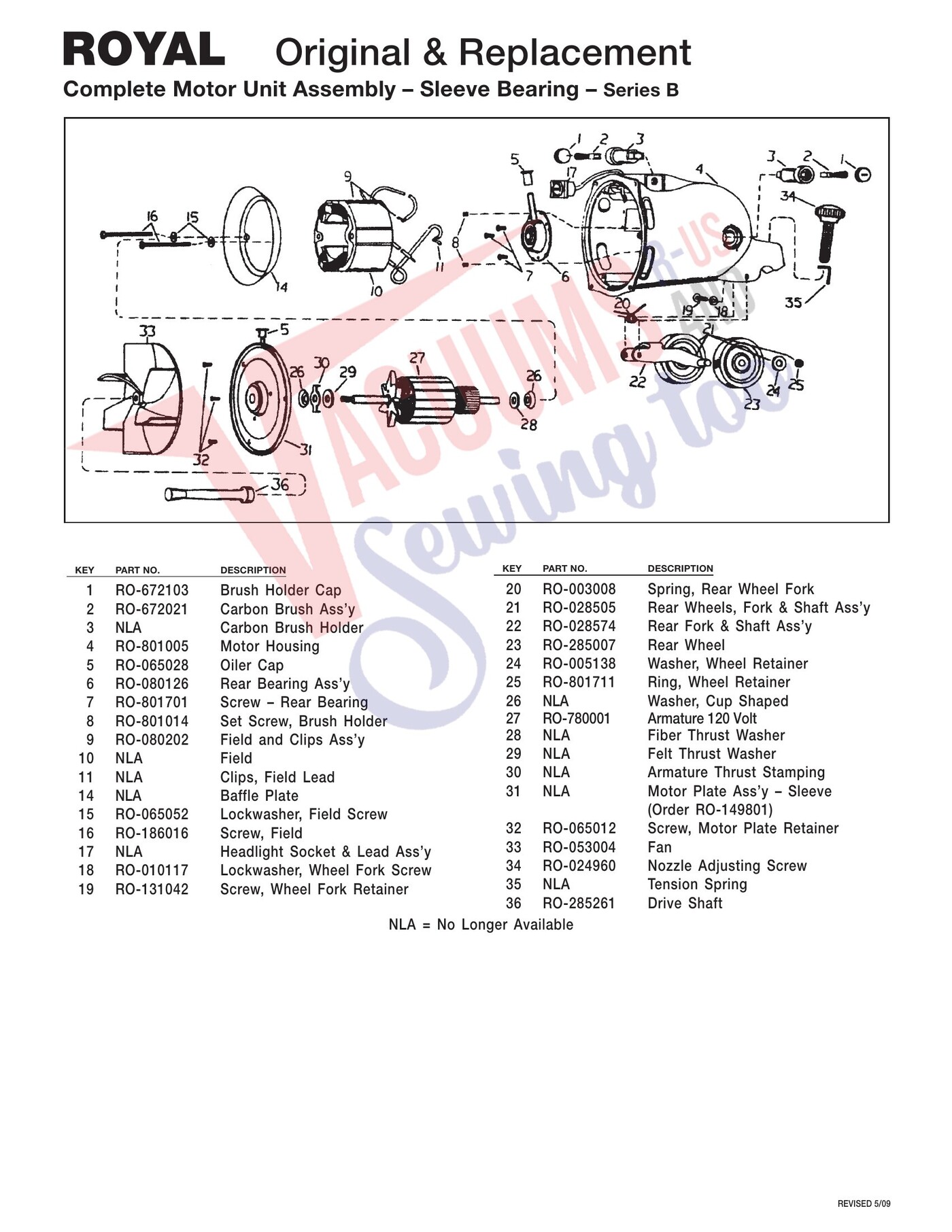

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Brush Holder Cap | 672103 | Not Available |
| 2 | Not Available | Carbon Brush Ass’y | 672021 | Not Available |
| 3 | Not Available | Carbon Brush Holder | NLA | Not Available |
| 4 | Not Available | Motor Housing | 801005 | Not Available |
| 5 | Not Available | Oiler Cap | 065028 | Not Available |
| 6 | Not Available | Rear Bearing Ass’y | 080126 | Not Available |
| 7 | Not Available | screw – Rear Bearing | 801701 | Not Available |
| 8 | Not Available | set screw Brush Holder | 801014 | Not Available |
| 9 | Not Available | Field and Clips Ass’y | 080202 | Not Available |
| 10 | Not Available | Field | NLA | Not Available |
| 11 | Not Available | Clips Field Lead | NLA | Not Available |
| 14 | Not Available | Baffle Plate | NLA | Not Available |
| 15 | Not Available | Lockwasher Field screw (Order RO-149801) | 065052 | Not Available |
| 16 | Not Available | screw Field | 186016 | Not Available |
| 17 | Not Available | Headlight socket & Lead Ass’y | NLA | Not Available |
| 18 | Not Available | Lockwasher Wheel Fork screw | 010117 | Not Available |
| 19 | Not Available | screw Wheel Fork Retainer | 131042 | Not Available |
| 20 | Not Available | spring Rear Wheel Fork | 003008 | Not Available |
| 21 | Not Available | Rear Wheels Fork & shaft Ass’y | 028505 | Not Available |
| 22 | Not Available | Rear Fork & shaft Ass’y | 028574 | Not Available |
| 23 | Not Available | Rear Wheel | 285007 | Not Available |
| 24 | Not Available | Washer Wheel Retainer | 005138 | Not Available |
| 25 | Not Available | Ring Wheel Retainer | 801711 | Not Available |
| 26 | Not Available | Washer Cup shaped | NLA | Not Available |
| 27 | Not Available | Armature 120 volt | 780001 | Not Available |
| 28 | Not Available | Fiber Thrust Washer | NLA | Not Available |
| 29 | Not Available | Felt Thrust Washer | NLA | Not Available |
| 30 | Not Available | Armature Thrust stamping | NLA | Not Available |
| 31 | Not Available | Motor Plate Ass’y – sleeve | NLA | Not Available |
| 32 | Not Available | screw Motor Plate Retainer | 065012 | Not Available |
| 33 | Not Available | Fan | 053004 | Not Available |
| 34 | Not Available | Nozzle Adjusting screw | 024960 | Not Available |
| 35 | Not Available | Tension spring | NLA | Not Available |
| 36 | Not Available | drive shaft | 285261 | Not Available |
