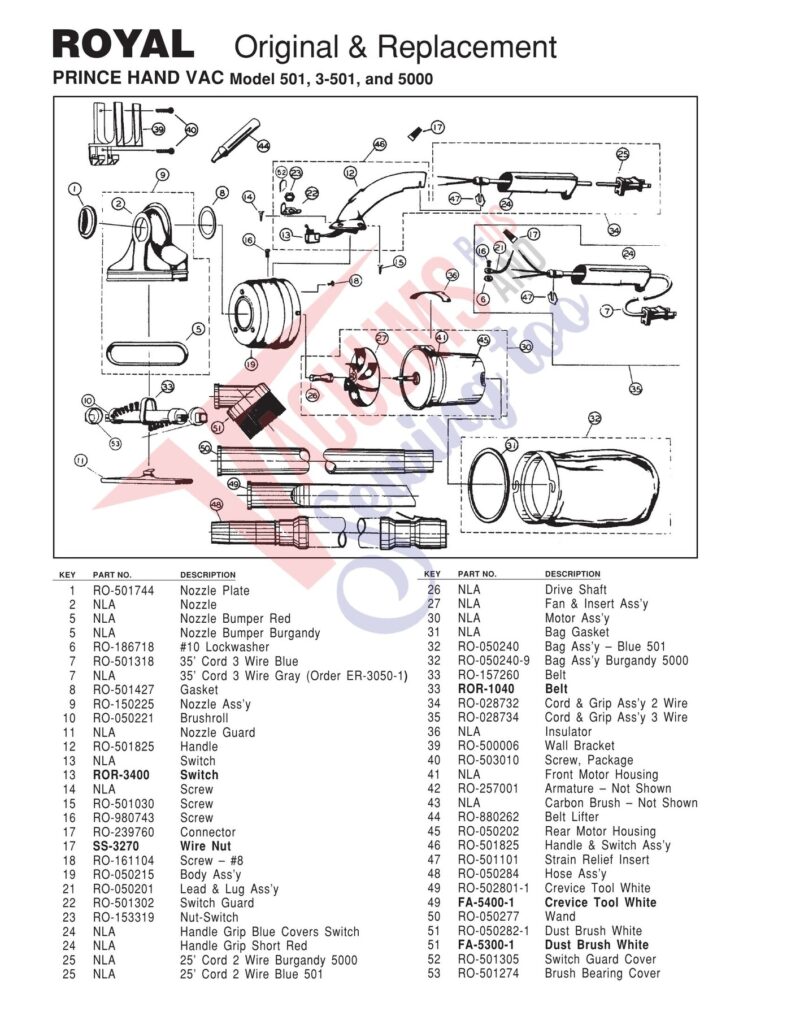

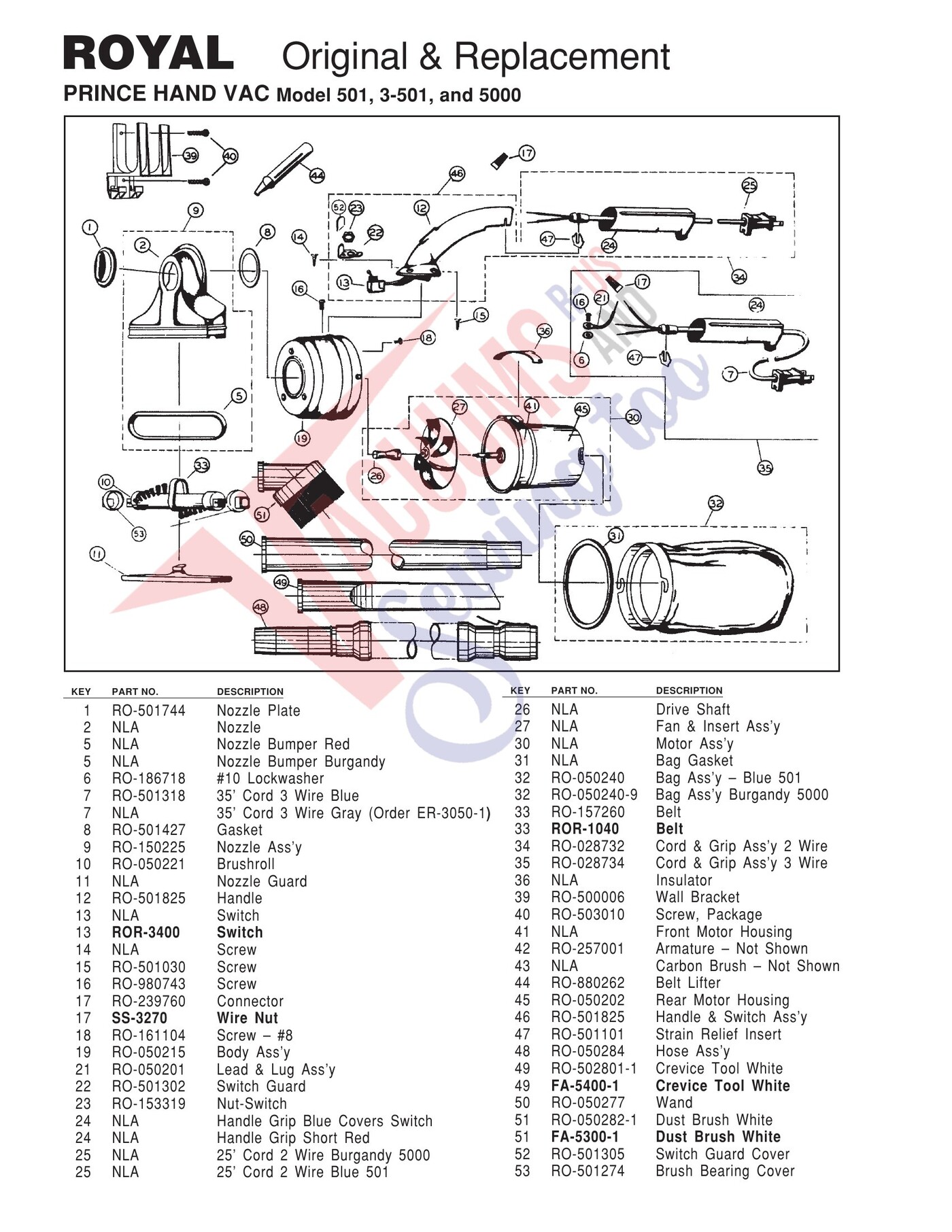

Schematic and parts book for Royal 501, 3-501, 5000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nozzle Plate | 501744 | Not Available |
| 2 | Not Available | Nozzle | NLA | Not Available |
| 5 | Not Available | Nozzle Bumper Red | NLA | Not Available |
| 5 | Not Available | Nozzle Bumper Burgandy | NLA | Not Available |
| 6 | Not Available | #10 Lockwasher | 186718 | Not Available |
| 7 | Not Available | 35’ Cord 3 Wire Blue | 501318 | Not Available |
| 7 | Not Available | 35’ Cord 3 Wire Gray (Order ER-3050-1) | NLA | Not Available |
| 8 | Not Available | Gasket | 501427 | Not Available |
| 9 | Not Available | Nozzle Ass’y | 150225 | Not Available |
| 10 | Not Available | Brushroll | 050221 | Not Available |
| 11 | Not Available | Nozzle Guard | NLA | Not Available |
| 12 | Not Available | Handle | 501825 | Not Available |
| 13 | Not Available | Switch | NLA | Not Available |
| 13 | Not Available | Switch | ROR-3400 | Not Available |
| 14 | Not Available | Screw | NLA | Not Available |
| 15 | Not Available | Screw | 501030 | Not Available |
| 16 | Not Available | Screw | 980743 | Not Available |
| 17 | Not Available | Connector | 239760 | Not Available |
| 17 | Not Available | Wire Nut | SS-3270 | Not Available |
| 18 | Not Available | Screw – #8 | 161104 | Not Available |
| 19 | Not Available | Body Ass’y | 050215 | Not Available |
| 21 | Not Available | Lead & Lug Ass’y | 050201 | Not Available |
| 22 | Not Available | Switch Guard | 501302 | Not Available |
| 23 | Not Available | Nut-Switch | 153319 | Not Available |
| 24 | Not Available | Handle Grip Blue Covers Switch | NLA | Not Available |
| 24 | Not Available | Handle Grip Short Red | NLA | Not Available |
| 25 | Not Available | 25’ Cord 2 Wire Burgandy 5000 | NLA | Not Available |
| 25 | Not Available | 25’ Cord 2 Wire Blue 501 | NLA | Not Available |
| 26 | Not Available | Drive Shaft | NLA | Not Available |
| 27 | Not Available | Fan & Insert Ass’y | NLA | Not Available |
| 30 | Not Available | Motor Ass’y | NLA | Not Available |
| 31 | Not Available | Bag Gasket | NLA | Not Available |
| 32 | Not Available | Bag Ass’y – Blue 501 | 050240 | Not Available |
| 32 | Not Available | Bag Ass’y Burgandy 5000 | 050240-9 | Not Available |
| 33 | Not Available | Belt | 157260 | Not Available |
| 33 | Not Available | Belt | ROR-1040 | Not Available |
| 34 | Not Available | Cord & Grip Ass’y 2 Wire | 028732 | Not Available |
| 35 | Not Available | Cord & Grip Ass’y 3 Wire | 028734 | Not Available |
| 36 | Not Available | Insulator | NLA | Not Available |
| 39 | Not Available | Wall Bracket | 500006 | Not Available |
| 40 | Not Available | Screw Package | 503010 | Not Available |
| 41 | Not Available | Front Motor Housing | NLA | Not Available |
| 42 | Not Available | Armature – Not Shown | 257001 | Not Available |
| 43 | Not Available | Carbon Brush – Not Shown | NLA | Not Available |
| 44 | Not Available | Belt Lifter | 880262 | Not Available |
| 45 | Not Available | Rear Motor Housing | 050202 | Not Available |
| 46 | Not Available | Handle & Switch Ass’y | 501825 | Not Available |
| 47 | Not Available | Strain Relief Insert | 501101 | Not Available |
| 48 | Not Available | Hose Ass’y | 050284 | Not Available |
| 49 | Not Available | Crevice Tool White | 502801-1 | Not Available |
| 49 | Not Available | Crevice Tool White | FA-5400-1 | Not Available |
| 50 | Not Available | Wand | 050277 | Not Available |
| 51 | Not Available | Dust Brush White | 050282-1 | Not Available |
| 51 | No Image | Dust Brush, White 1-1/4" Horse Hair Hard Vinyl | FA-53001 | $7.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | Not Available | Switch Guard Cover | 501305 | Not Available |
| 53 | Not Available | Brush Bearing Cover | 501274 | Not Available |
