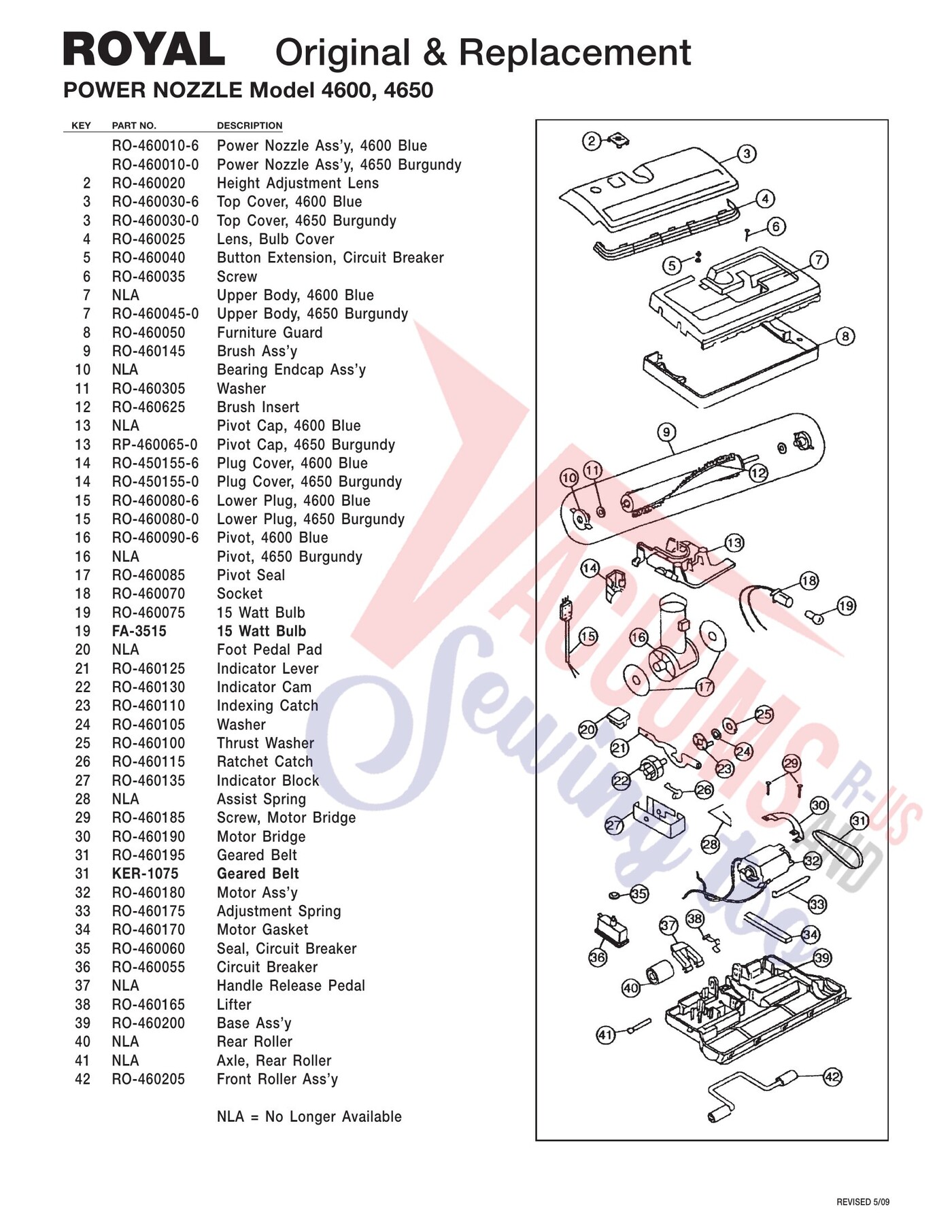

Schematic and parts book for Royal 4600, 4650 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Power Nozzle Ass’y 4600 Blue | 460010-6 | Not Available |
| XX | Not Available | Power Nozzle Ass’y 4650 Burgundy | 460010-0 | Not Available |
| 2 | Not Available | Height Adjustment Lens | 460020 | Not Available |
| 3 | Not Available | Top Cover 4600 Blue | 460030-6 | Not Available |
| 3 | Not Available | Top Cover 4650 Burgundy | 460030-0 | Not Available |
| 4 | Not Available | Lens Bulb Cover | 460025 | Not Available |
| 5 | Not Available | Button extension Circuit Breaker | 460040 | Not Available |
| 6 | Not Available | screw | 460035 | Not Available |
| 7 | Not Available | Upper Body 4600 Blue | NLA | Not Available |
| 7 | Not Available | Upper Body 4650 Burgundy | 460045-0 | Not Available |
| 8 | Not Available | Furniture Guard | 460050 | Not Available |
| 9 | Not Available | Brush Ass’y | 460145 | Not Available |
| 10 | Not Available | Bearing endcap Ass’y | NLA | Not Available |
| 11 | Not Available | Washer | 460305 | Not Available |
| 12 | Not Available | Brush insert | 460625 | Not Available |
| 13 | Not Available | Pivot Cap 4600 Blue | NLA | Not Available |
| 13 | Not Available | Pivot Cap 4650 Burgundy | RP-460065-0 | Not Available |
| 14 | Not Available | Plug Cover 4600 Blue | 450155-6 | Not Available |
| 14 | Not Available | Plug Cover 4650 Burgundy | 450155-0 | Not Available |
| 15 | Not Available | Lower Plug 4600 Blue | 460080-6 | Not Available |
| 15 | Not Available | Lower Plug 4650 Burgundy | 460080-0 | Not Available |
| 16 | Not Available | Pivot 4600 Blue | 460090-6 | Not Available |
| 16 | Not Available | Pivot 4650 Burgundy | NLA | Not Available |
| 17 | Not Available | Pivot seal | 460085 | Not Available |
| 18 | Not Available | socket | 460070 | Not Available |
| 19 | Not Available | 15 Watt Bulb | 460075 | Not Available |
| 19 | Not Available | 15 watt Bulb | FA-3515 | Not Available |
| 20 | Not Available | Foot Pedal Pad | NLA | Not Available |
| 21 | Not Available | indicator Lever | 460125 | Not Available |
| 22 | Not Available | indicator Cam | 460130 | Not Available |
| 23 | Not Available | indexing Catch | 460110 | Not Available |
| 24 | Not Available | Washer | 460105 | Not Available |
| 25 | Not Available | Thrust Washer | 460100 | Not Available |
| 26 | Not Available | Ratchet Catch | 460115 | Not Available |
| 27 | Not Available | indicator Block | 460135 | Not Available |
| 28 | Not Available | Assist spring | NLA | Not Available |
| 29 | Not Available | screw Motor Bridge | 460185 | Not Available |
| 30 | Not Available | Motor Bridge | 460190 | Not Available |
| 31 | Not Available | Geared Belt | 460195 | Not Available |
| 31 |  | Belt, Kenmore Geared Power Nozzle | KER-1075 | $6.00Add to cart |
| 32 | Not Available | Motor Ass’y | 460180 | Not Available |
| 33 | Not Available | Adjustment spring | 460175 | Not Available |
| 34 | Not Available | Motor Gasket | 460170 | Not Available |
| 35 | Not Available | seal Circuit Breaker | 460060 | Not Available |
| 36 | Not Available | Circuit Breaker | 460055 | Not Available |
| 37 | Not Available | Handle Release Pedal | NLA | Not Available |
| 38 | Not Available | Lifter | 460165 | Not Available |
| 39 | Not Available | Base Ass’y | 460200 | Not Available |
| 40 | Not Available | Rear Roller | NLA | Not Available |
| 41 | Not Available | Axle Rear Roller | NLA | Not Available |
| 42 | Not Available | Front Roller Ass’y | 460205 | Not Available |
