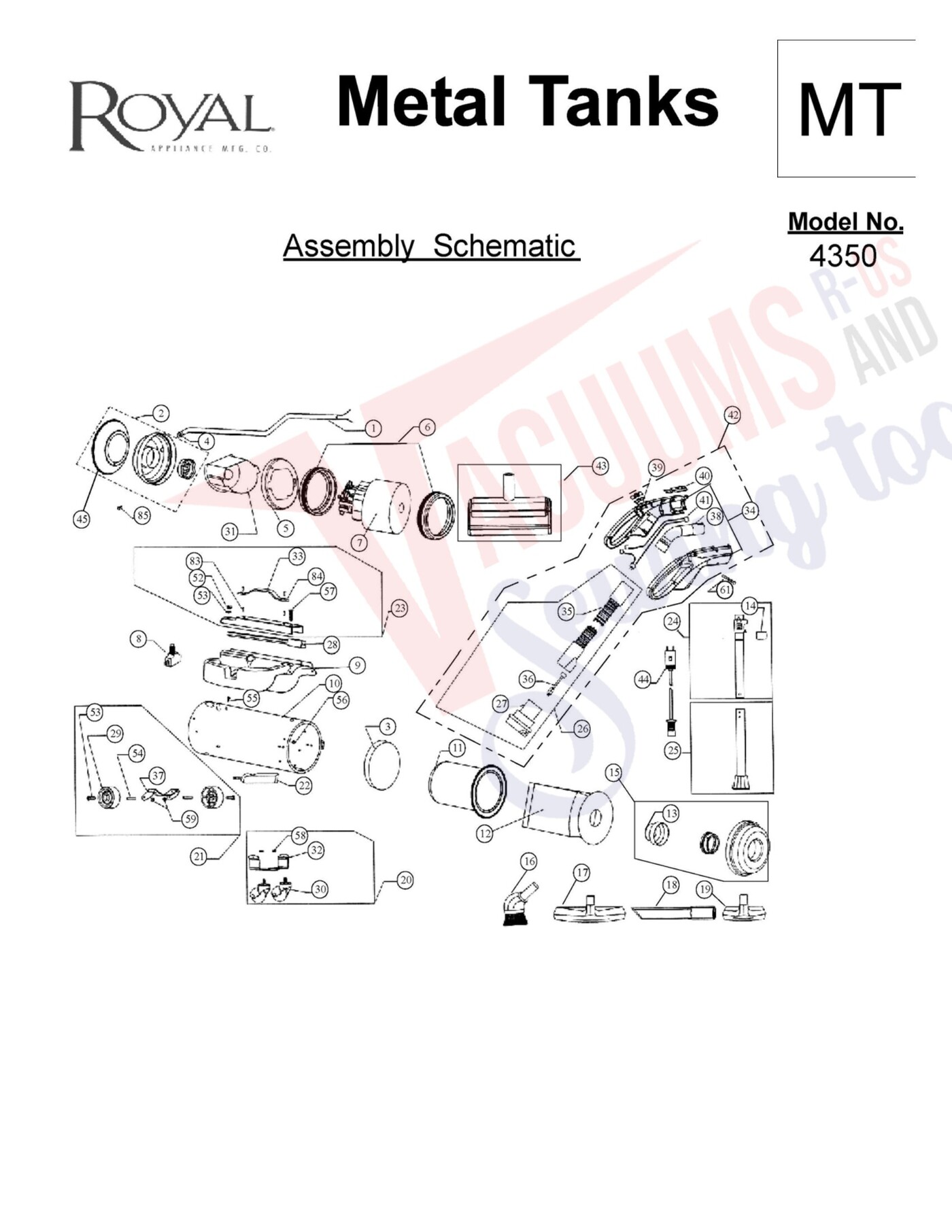

Schematic and parts book for Royal 4350 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD & PLUG ASSEMBLY BLACK | 1041437600 | Not Available |
| 2 | Not Available | REAR END BELL & CORD ASSEMBLY | 2415764A00 | Not Available |
| 3 | Not Available | MICROFRESH FILTER | 1460030001 | Not Available |
| 4 |  | Strain Relief Royal Pony Canister For: royal | 1880304000 | $0.31Read more |
| 5 | Not Available | REAR MOTOR SUPPORT | 1401062000 | Not Available |
| 6 | Not Available | RUBBER MOTOR SUPPORT | 1350060000 | Not Available |
| 7 | Not Available | MOTOR | 2116432000 | Not Available |
| 8 |  | SWITCH, PUSH PONY/TANK Part Number: 1413302000 for Royal | 1413302000 | $22.13Read more |
| 9 | Not Available | TOOL CADDY | 1411000A00 | Not Available |
| 10 | Not Available | CASING & RING ASSEMBLY | 2041162A00 | Not Available |
| 11 | Not Available | BAG ASSEMBLY | 2041140000 | Not Available |
| 12 | Not Available | TYPE J BAG 3 PACK | 3040447001 | Not Available |
| 13 | Not Available | INLET TUBE | 1775794000 | Not Available |
| 14 | Not Available | BLEED VALVE MAG BLUE | 1485858A00 | Not Available |
| 15 | Not Available | COMP. FRONT END BELL ASSEMBLY | 2040173000 | Not Available |
| 16 | Not Available | ROUND BRUSH ASSY MAG BLUE | 3097282A00 | Not Available |
| 17 | Not Available | 10" FLOOR BRUSH ASSEMBLY | 3415682A00 | Not Available |
| 18 | Not Available | CREVICE TOOL BURGUNDY | 1258801800 | Not Available |
| 19 | Not Available | 6" UPHOLSTERY TOOL | 3415582A00 | Not Available |
| 20 | Not Available | FRONT WHEELS & BRACKET | 2070275000 | Not Available |
| 21 | Not Available | REAR WHEELS & BRACKET | 2026105000 | Not Available |
| 22 | Not Available | CLAMP ASSEMBLY | 3040174A00 | Not Available |
| 23 | Not Available | HANDLE & WIRING DUCT ASSEMBLY | 2041130A00 | Not Available |
| 24 | Not Available | UPPER WAND ASSEMBLY | 2435170A00 | Not Available |
| 25 | Not Available | LOWER WAND ASSEMBLY | 2041776A00 | Not Available |
| 26 | Not Available | POWER GRIP ELECT HOSE ASSY. | 2435100A00 | Not Available |
| 27 | Not Available | COMP. HOSE CONNECT ASSY BURG | 2460780800 | Not Available |
| 28 | Not Available | FEMALE PLUG W/LEADS | 1401323000 | Not Available |
| 29 | Not Available | REAR WHEEL | 1285705000 | Not Available |
| 30 | Not Available | SWIVEL BALL CASTER | 1988440000 | Not Available |
| 31 | Not Available | AIR DEFLECTOR | 1411277000 | Not Available |
| 32 | Not Available | WHEEL BRACKET STAMPING | 1701119000 | Not Available |
| 33 | Not Available | GRIP BLACK | 1701314600 | Not Available |
| 34 | Not Available | POWER GRIP HOUSING ASSEMBLY | 2435120A00 | Not Available |
| 35 | Not Available | ELECTRIFIED HOSE 2 WIRE | 1435230A00 | Not Available |
| 36 | Not Available | PIGTAIL MALE/FEMALE PLUG | 3041328A00 | Not Available |
| 37 | Not Available | WHEEL BRACKET | 1966006000 | Not Available |
| 38 | Not Available | INSERT TUBE | 1435150000 | Not Available |
| 39 | Not Available | SWITCH | 1120303000 | Not Available |
| 40 | Not Available | RELEASE BUTTON | 1435110B00 | Not Available |
| 41 |  | Cord, 2-Wire M x F Part Number: 1435160000 for Royal | 1435160000 | $14.64Read more |
| 42 | Not Available | POWER GRIP & ELEC. HOSE ASSY | 2435100A00 | Not Available |
| 43 | Not Available | POWER NOZZLE 2 WIRE COMPLETE | 2610110A01 | Not Available |
| 44 | Not Available | POWER CORD P.N. / PISTOL GRIP | 1420061600 | Not Available |
| 45 | Not Available | STORAGE RING BUMPER | 1401201A00 | Not Available |
| 51 | Not Available | 4150 4250 4350 4600 4650 LOCKWASHER | 1153318000 | Not Available |
| 52 | Not Available | 4150 42504350 4600 4650 4700 NUT | No Longer Avail | Not Available |
| 53 | No Image | SCREW, WHEEL RETAINER TRUSS HD Part Number: 1260042000 for Royal | 1260042000 | $0.73Read more |
| 54 | Not Available | 4150 4250 4350 4600 4650 SPACER | 1260772000 | Not Available |
| 55 | Not Available | 4150 4250 4350 4600 4650 SCREW #8 X 5/16" 4700 | 1350810000 | Not Available |
| 56 | Not Available | NUT 4750 | 1411612000 | Not Available |
| 57 | Not Available | 4150 4250 4350 4600 4650 SCREW 832 X 7/8" | 1411752000 | Not Available |
| 58 | Not Available | 4150 4250 4350 4600 4650 NUT | 1413612000 | Not Available |
| 59 | Not Available | 4150 4250 4350 4600 4650 NUT | 1413709000 | Not Available |
| 60 | No Image | SCREW, GRIP 4600 Part Number: 1417080000 for Royal | 1417080000 | $0.28Read more |
| 61 | Not Available | SCREW | 1250100000 | Not Available |
| 62 | Not Available | SCREW #818 X 1 7/8 | 1460035000 | Not Available |
| 63 | Not Available | SWIVEL SEAL | 1460085000 | Not Available |
| 64 | Not Available | THRUST WASHER | 1460100000 | Not Available |
| 65 | Not Available | WASHER | 1460105000 | Not Available |
| 66 | Not Available | INDEXING CATCH | 1460110000 | Not Available |
| 67 | No Image | SPRING, 4600 PN CAM INDICATOR Part Number: 1460140000 for Royal | 1460140000 | $4.00Read more |
| 68 | Not Available | 4150 42504350 4600 4650 4700 NUT | No Longer Avail | Not Available |
| 69 | Not Available | SCREW 818 X 5/8 | 1460185000 | Not Available |
| 70 | Not Available | WASHER | 1460305000 | Not Available |
| 71 | Not Available | SCREW | 1598012000 | Not Available |
| 72 | Not Available | WHEEL SHAFT | 1598101000 | Not Available |
| 73 | No Image | SCREW, WHEEL 4250PN Part Number: 1598115000 for Royal | 1598115000 | $0.30Read more |
| 74 | Not Available | 4150 42504350 4600 4650 4700 NUT | No Longer Avail | Not Available |
| 75 | Not Available | DIRT SEAL WASHER | 1598166000 | Not Available |
| 76 | Not Available | ROLLER ARM SPRING | 1598231000 | Not Available |
| 77 | Not Available | WASHER | 1598245000 | Not Available |
| 78 | Not Available | WASHER | 1598265000 | Not Available |
| 79 | Not Available | RETAINER RING | 1598318000 | Not Available |
| 80 | Not Available | RETAINER RING | 1598711000 | Not Available |
| 81 | Not Available | RETAINER SPRING | No Longer Avail | Not Available |
| 82 | Not Available | RETAINER SCREW | 1598743000 | Not Available |
| 83 | Not Available | LATCH SPACER | 1601772000 | Not Available |
| 84 | Not Available | GRIP STAMPING | 1750725000 | Not Available |
| 85 | Not Available | SELFTAPPING SCREW | 1200707000 | Not Available |
| 86 | Not Available | SLIDE POTENT. FASTENER | 1940430000 | Not Available |
| 87 | Not Available | SLIDE POTENT. BUTTON | 1470125B00 | Not Available |

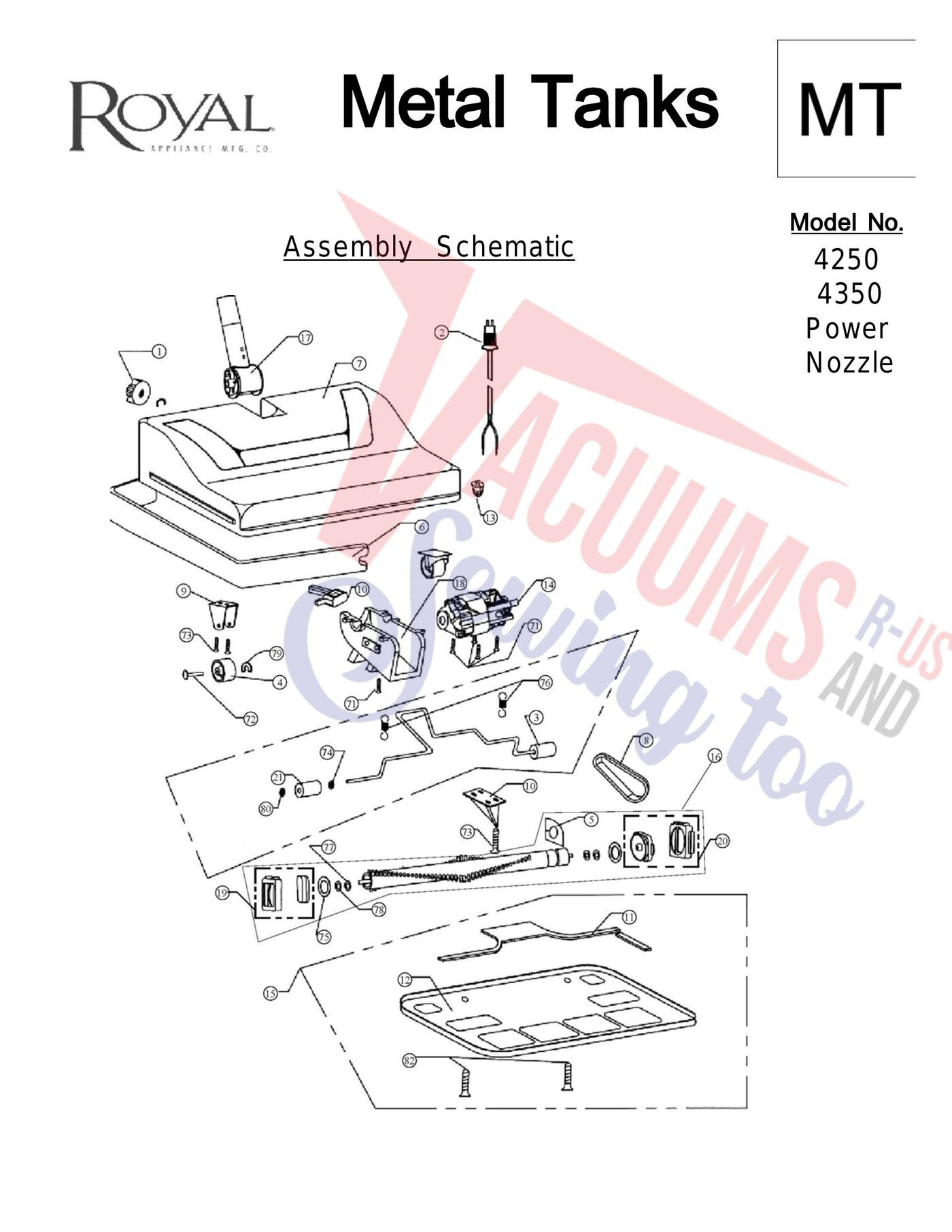

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HEIGHT CONTROL KNOB | 1400011600 | Not Available |
| 2 | Not Available | PIGTAIL 2 WIRE POWER CORD | 1435250A00 | Not Available |
| 3 | Not Available | RIGHT ROLLER | 1598007000 | Not Available |
| 4 | Not Available | WHEEL | 1598009000 | Not Available |
| 5 | Not Available | DIRT BELT SEAL | 1598056000 | Not Available |
| 6 | Not Available | BUMPER | 1598201000 | Not Available |
| 7 | Not Available | NOZZLE COVER | 1598209A00 | Not Available |
| 8 |  | Belt, Flat Royal Pony Tank Part Number: 1598260000 for Royal | 1598260000 | $1.43Read more |
| 9 | Not Available | WHEEL BRACKET | 1598407000 | Not Available |
| 10 | Not Available | CAM | 1598602000 | Not Available |
| 11 | Not Available | GASKET SEALING | 1598707000 | Not Available |
| 12 | Not Available | BOTTOM PLATE | 1598774000 | Not Available |
| 13 | | Strain Relief Royal Pony Canister For: royal | 1880304000 | $0.31Read more |
| 14 | Not Available | MOTOR | 3059800000 | Not Available |
| 15 | No Image | BOTTOM PLATE, 4250 POWER NOZZLE Part Number: 3059822000 for Royal | 3059822000 | $74.03Read more |
| 16 | No Image | BRUSHROLL, 600 SERIES PN Part Number: 3059824000 for Royal | 3059824000 | $47.10Read more |
| 17 | Not Available | PIVOT ASSEMBLY | 3059870600 | Not Available |
| 18 |  | Retainer-P/N Neck-Royal 4250 Power Unit For: royal | 3059871000 | $36.81Read more |
| 19 | Not Available | BRUSH BEARING ASSEMBLY | 3059872000 | Not Available |
| 20 | Not Available | BRUSH BEARING ASSEMBLY | 3059873000 | Not Available |
| 21 | Not Available | LEFT ROLLER | 1598008000 | Not Available |
| 51 | Not Available | LOCKWASHER | 1153318000 | Not Available |
| 52 | Not Available | NUT | No Longer Avail | Not Available |
| 53 | No Image | SCREW, WHEEL RETAINER TRUSS HD Part Number: 1260042000 for Royal | 1260042000 | $0.73Read more |
| 54 | Not Available | SPACER | 1260772000 | Not Available |
| 55 | Not Available | SCREW #8 X 5/16" | 1350810000 | Not Available |
| 56 | Not Available | NUT | 1411612000 | Not Available |
| 57 | Not Available | SCREW 832 X 7/8" | 1411752000 | Not Available |
| 58 | Not Available | NUT | 1413612000 | Not Available |
| 59 | Not Available | NUT | 1413709000 | Not Available |
| 60 | No Image | SCREW, GRIP 4600 Part Number: 1417080000 for Royal | 1417080000 | $0.28Read more |
| 61 | Not Available | SCREW | 1250100000 | Not Available |
| 62 | Not Available | SCREW #818 X 1 7/8 | 1460035000 | Not Available |
| 63 | Not Available | SWIVEL SEAL | 1460085000 | Not Available |
| 64 | Not Available | THRUST WASHER | 1460100000 | Not Available |
| 65 | Not Available | WASHER | 1460105000 | Not Available |
| 66 | Not Available | INDEXING CATCH | 1460110000 | Not Available |
| 67 | No Image | SPRING, 4600 PN CAM INDICATOR Part Number: 1460140000 for Royal | 1460140000 | $4.00Read more |
| 68 | Not Available | MOTOR ADJUST SPRING | No Longer Avail | Not Available |
| 69 | Not Available | SCREW 818 X 5/8 | 1460185000 | Not Available |
| 70 | Not Available | WASHER | 1460305000 | Not Available |
| 71 | Not Available | SCREW | 1598012000 | Not Available |
| 72 | Not Available | WHEEL SHAFT | 1598101000 | Not Available |
| 73 | No Image | SCREW, WHEEL 4250PN Part Number: 1598115000 for Royal | 1598115000 | $0.30Read more |
| 74 | Not Available | WASHER | No Longer Avail | Not Available |
| 75 | Not Available | DIRT SEAL WASHER | 1598166000 | Not Available |
| 76 | Not Available | ROLLER ARM SPRING | 1598231000 | Not Available |
| 77 | Not Available | WASHER | 1598245000 | Not Available |
| 78 | Not Available | WASHER | 1598265000 | Not Available |
| 79 | Not Available | RETAINER RING | 1598318000 | Not Available |
| 80 | Not Available | RETAINER RING | 1598711000 | Not Available |
| 81 | Not Available | RETAINER SPRING | No Longer Avail | Not Available |
| 82 | Not Available | RETAINER SCREW | 1598743000 | Not Available |
| 83 | Not Available | LATCH SPACER | 1601772000 | Not Available |
| 84 | Not Available | GRIP STAMPING | 1750725000 | Not Available |
| 85 | Not Available | SELFTAPPING SCREW | 1200707000 | Not Available |
| 86 | Not Available | SLIDE POTENT. FASTENER | 1940430000 | Not Available |
| 87 | Not Available | SLIDE POTENT. BUTTON | 1470125B00 | Not Available |
