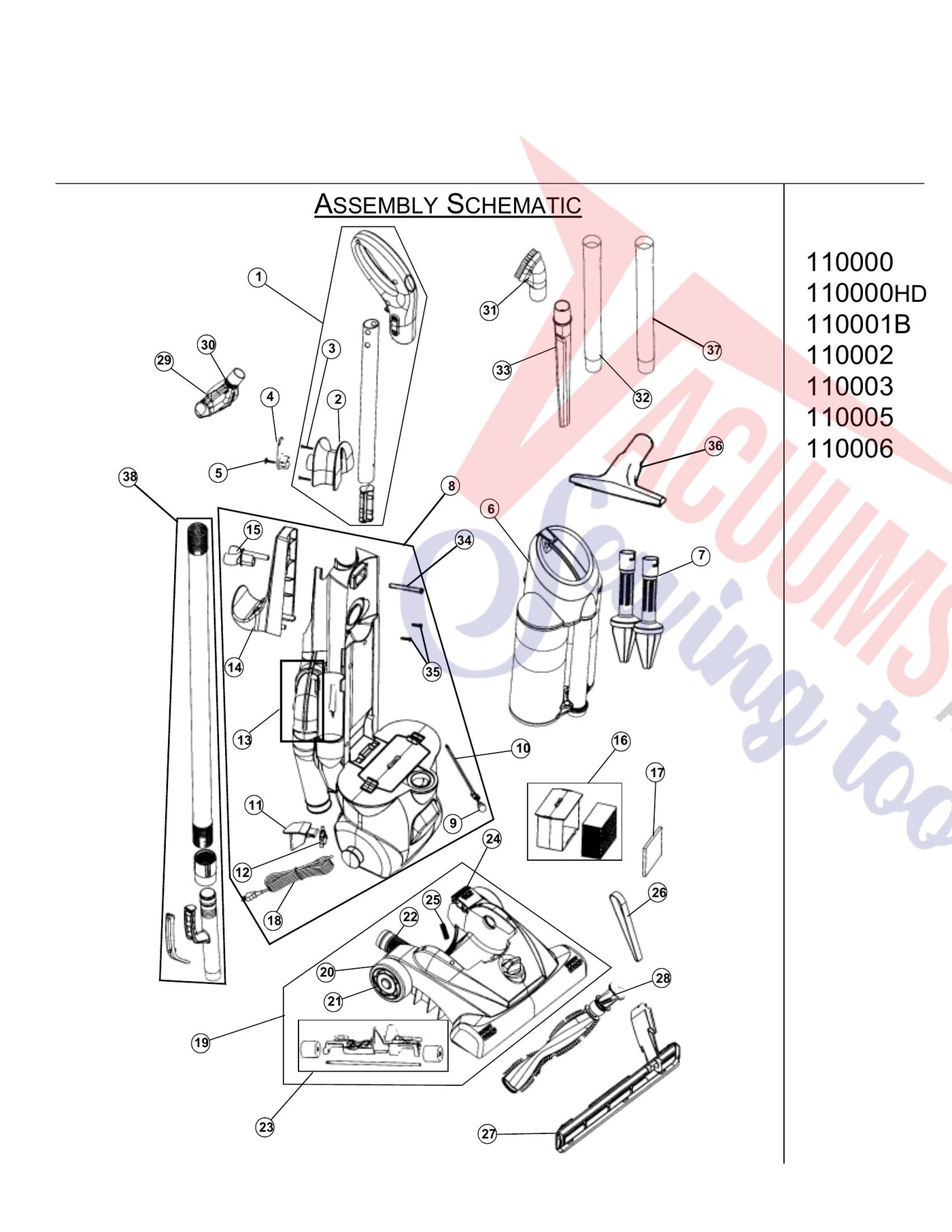

Schematic and parts book for Royal 110000;110002;110003 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASSEMBLY - RED | LK0005-0 | Not Available |
| 1 | Not Available | HANDLE ASSEMBLY - BLUE | LK0005-A | Not Available |
| 2 | Not Available | UPPER TOOL CADDY | LK0610 | Not Available |
| 3 | Not Available | BODY SCREW | 250100 | Not Available |
| 4 | Not Available | CORD HOOK - GREY | LK0620 | Not Available |
| 5 | Not Available | CORD HOOK SCREW | QC0990 | Not Available |
| 6 | Not Available | DIRT CUP ASSEMBLY - RED | LK0200 | Not Available |
| 6 | Not Available | DIRT CUP ASSEMBLY - BLUE | LK0200-B | Not Available |
| 7 | Not Available | AIR DIRECTOR | LK0215 | Not Available |
| 8 | Not Available | MAIN BODY ASSEMBLY W/MOTOR - RED | LK0901 | Not Available |
| 8 | Not Available | MAIN BODY ASSEMBLY W/MOTOR - BLUE | LK0901-A | Not Available |
| 9 | Not Available | BULB #906 | 920906 | Not Available |
| 10 | Not Available | SOCKET ASSEMBLY | JK0600 | Not Available |
| 11 | Not Available | SWITCH PEDAL | JK0115 | Not Available |
| 12 | Not Available | SWITCH | 860081 | Not Available |
| 13 | Not Available | AIR DIVERTER ASSEMBLY | LK0563 | Not Available |
| 14 | Not Available | CARRY HANDLE - RED | LK0605 | Not Available |
| 14 | Not Available | CARRY HANDLE - BLUE | LK0605 | Not Available |
| 15 | Not Available | TURBO TOOL CLIP - RED | LK0800 | Not Available |
| 15 | Not Available | TURBO TOOL CLIP - BLUE | LK0800-A | Not Available |
| 16 | Not Available | F-13 HEPA FILTER - EXHAUST | LK0540 | Not Available |
| 17 | Not Available | FOAM FILTER | LK0545 | Not Available |
| 17 | Not Available | FOAM FILTER - ANTI MICROBIAL | LK5613 | Not Available |
| 17 | Not Available | SCENTED FOAM FILTER APPLECINN (1 PER) | LK0547 | Not Available |
| 17 | Not Available | SCENTEDFOAM FILTER FRESH/CLEAN (1PER) | LK0548 | Not Available |
| 18 | Not Available | POWER CORD | 997232 | Not Available |
| 19 | Not Available | NOZZLE COVER BASE ASSEMBLY - RED | LK0902 | Not Available |
| 19 | Not Available | NOZZLE COVER BASE ASSEMBLY - BLUE | LK0902-A | Not Available |
| 20 | Not Available | REAR WHEEL 110001B | 881065 | Not Available |
| 21 | Not Available | HUB CAP | 881070 | Not Available |
| 22 | Not Available | LOWER HOSE ASSEMBLY | JI0060 | Not Available |
| 23 | Not Available | ROLLER LIFTER ASSEMBLY | JI0030 | Not Available |
| 24 | Not Available | HANDLE RELEASE PEDAL | JI0040 | Not Available |
| 25 | Not Available | HANDLE RELEASE PEDAL SPRING 110006 | JC0070 | Not Available |
| 26 | Not Available | STYLE 5 BELT | 540310 | Not Available |
| 27 | Not Available | NOZZLE GUARD - 15” 5 SLOTS(Number of openings in bottom plate) | JI0015 | Not Available |
| 27 | Not Available | NOZZLE GUARD - 15” / REVISED 6 SLOTS(Number of openings in bottom plate) | JI0015-0 | Not Available |
| 29 | Not Available | TURBO TOOL ASSEMBLY | UTT000 | Not Available |
| 29 | Not Available | BELT - TURBO TOOL | UTT020 | Not Available |
| 30 | Not Available | LOCK RING - TURBO TOOL | UTT030 | Not Available |
| 31 | Not Available | 2IN 1 BRUSH ASSEMBLY | JC0255 | Not Available |
| 32 | Not Available | EXTENSION WAND | JC0245 | Not Available |
| 33 | Not Available | CREVICE TOOL | JC0250 | Not Available |
| 34 | Not Available | SCREW - TURBO TOOL CLIP | 690325 | Not Available |
| 35 | Not Available | SCREW - TOOL CADDY | 720430 | Not Available |
| 36 | Not Available | HARD FLOOR BRUSH | 001122 | Not Available |
| 37 | Not Available | EXTENSION WAND | 590768 | Not Available |
| 38 | Not Available | UPPER HOSE ASSEMBLY | LK0700 | Not Available |
