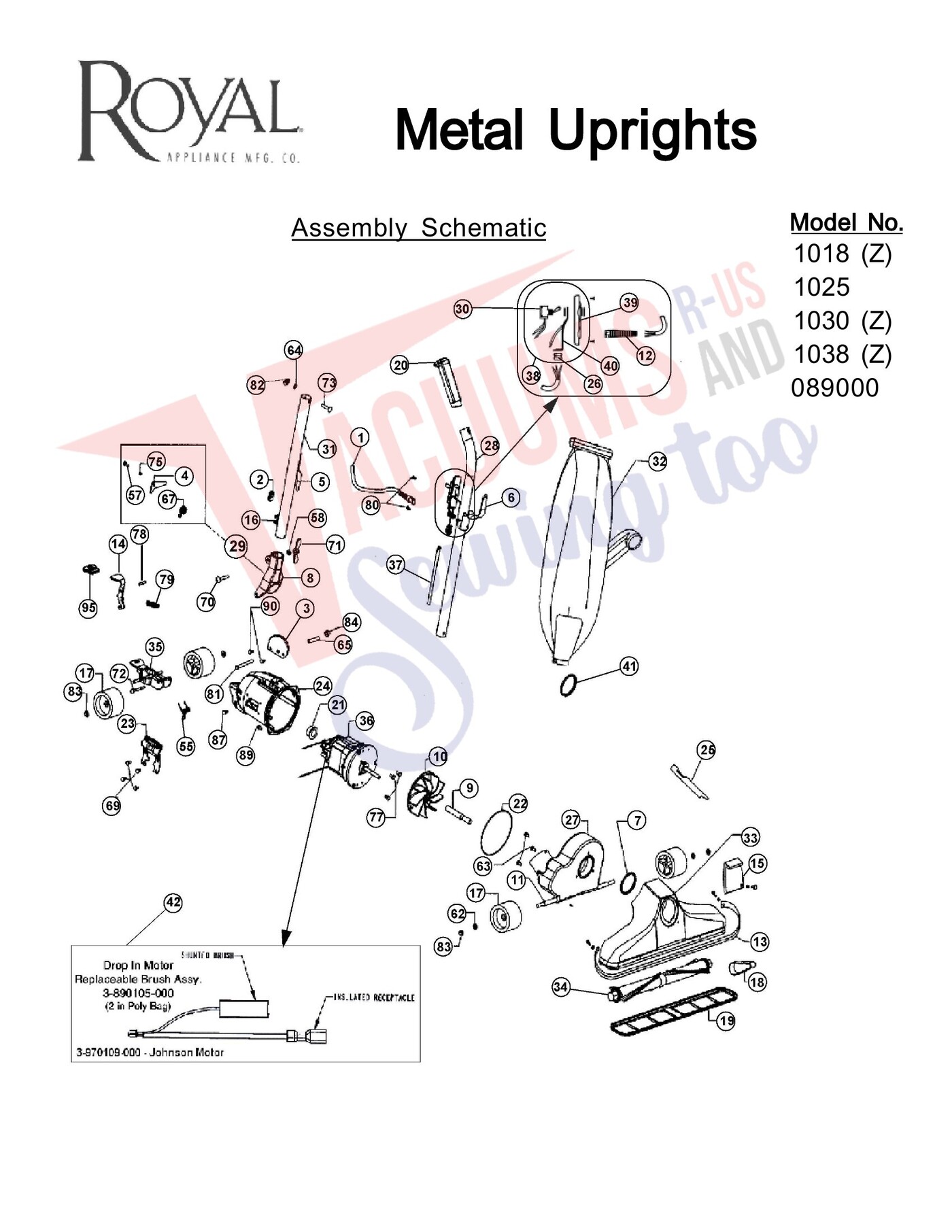

Schematic and parts book for Royal 1030, 1038, 089000 Metal upright. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD 50' | 1061136AU0 | Not Available |
| 1 | Not Available | CORD 50' GREY 1030 (Z) | 1061136B00 | Not Available |
| 2 | Not Available | GROMMET | 1230324000 | Not Available |
| 3 |  | Plate, Handle Stop 1030/1058/1059 Part Number: 1133716000 for Royal | 1133716000 | $27.48Read more |
| 4 | Not Available | HANDLE FORK LATCH | 1133737000 | Not Available |
| 5 |  | Cord Hook, :( Metal Lower Dirt Devil CR5158 Comm Part Number: 1259316000 for Royal | 1259316000 | $12.94Read more |
| 6 | Not Available | CORD HOOK UPPER | 1259317000 | Not Available |
| 7 |  | Gasket, :( Nozzle Dirt Devil Commercial Upr Part Number: 1285427000 for Royal | 1285427000 | $1.20Read more |
| 8 | Not Available | 1025 1030 1030Z 1038 HANDLE FORK POLISHED | 1285704000 | Not Available |
| 8 | Not Available | HANDLE FORK GRAY | 1285704100 | Not Available |
| 9 |  | Pulley, CR5128Z/30Z/58Z Part Number: 1380261000 for Royal | 1380261000 | $15.15Read more |
| 10 | No Image | FAN, CERTIFIED PILE BRUSH MACHINE Part Number: 1-608005-000 for Jansan | 1608005000 | $88.54Read more |
| 11 |  | Axle Stud/New Style Royal Fan Cases (As Of 8/86) For: royal | 1611101000 | $10.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | STRAIN RELIEF PWR CORD | 1611305000 | Not Available |
| 13 | Not Available | BUMPER GRAY | 1801201B00 | Not Available |
| 13 | Not Available | BUMPER BLACK | 1801201600 | Not Available |
| 14 | Not Available | RELEASE PEDAL | 1670715000 | Not Available |
| 15 |  | Cover, Black Rubber Nozzle Plug Metal Uprt. Part Number: 1670744600 for Royal | 1670744600 | $3.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | CORD CLIP | 1670844600 | Not Available |
| 17 | Not Available | WHEEL | 1671705000 | Not Available |
| 18 |  | Belt, Metal Uprights With Inside Track Part Number: 1672260001 for Royal | 1672260001 | $6.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | NOZZLE GUARD 14" | 1672270000 | Not Available |
| 20 | Not Available | HANDLE GRIP BLACK | 1880314600 | Not Available |
| 21 |  | Grommet-Royal 1038 Motor/Rear For: royal | 1870006600 | $1.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | MOTOR HOUSING ORING | 1870024600 | Not Available |
| 23 |  | Switch Plate-Royal 7710 Mtr Commercial Vac For: royal | 1870130P00 | $6.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Motor Housing Drop In Style 1870201000 For Metal Upright Model 1058Z M1058Z | 1871201000 | $65.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | MOTOR HOUSING | 1871201100 | Not Available |
| 25 |  | Belt Lifter, :( Part Number: 1880262000 for Royal | 1880262000 | $9.28Read more |
| 26 |  | Strain Relief Royal Pony Canister For: royal | 1880304000 | $0.31Read more |
| 27 |  | Fancase Assembly - Complete For: filter queen | 2670116000 | $168.10Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | FANCASE ASSEMBLY | 9670116100 | Not Available |
| 28 | Not Available | UPPER HANDLE INCL #6 & #20 | 9891053100 | Not Available |
| 28 | Not Available | UPPER HANDLE ASSEMBLY INCL #6 & #20 | 9891052000 | Not Available |
| 29 | Not Available | HANDLE FORK & LATCH ASSY. | 2028580000 | Not Available |
| 29 | Not Available | HANDLE FORK & LATCH ASSY | 2028580100 | Not Available |
| 30 | Not Available | SWITCH | 1163309000 | Not Available |
| 31 | Not Available | HDL ADAPTER ASSY INCL #5 & #16 | 2891062100 | Not Available |
| 31 | Not Available | HDL ADAPTER ASSY INCL #5 & #16 | 2891061000 | Not Available |
| 32 |  | Royal Dirt Devil Orange Shake Out Cloth Bag for models 1018, 1025, 1030, 1038,CR5128Z, CR5158Z an... | 2066248BG0 | $69.29Read more |
| 32 |  | Royal reusable royal orange outer cloth bag assembly with zipper takes type b bags for royal all ... | 2066242AU1 | $88.00Read more |
| 32 |  | ZIP BAG MICROTEX RED D/D Part Number: 2028543000 for Royal | 2028543000 | $89.98Read more |
| 33 | Not Available | NOZZLE ASSEMBLY | 2671026B00 | Not Available |
| 33 | No Image | HOUSING, NOZZLE 1018/ 1018Z Part Number: 2671027B00. for Royal | 2671027B00 | $87.10Read more |
| 34 |  | BRUSH ROLL ASSY-ROYAL 14'' BALL BEARING: NO LONGER AVAILABLE: This product has been discontinued.... | 81344905 | $54.99Read more |
| 34 | Not Available | BRUSH ASSEMBLY | 2673273000 | Not Available |
| 35 |  | Axle, Wheel Fork & For Metal/Metal Everlast Uprigh Part Number: 2670007000 for Royal | 2670007000 | $16.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | MOTOR W/REPL BRUSHES 10 AMP | 2870102000 | Not Available |
| 36 | Not Available | MOTOR W/REPL BRUSHES 7 AMP | 2970102000 | Not Available |
| 37 | No Image | CORD, JUMPER SWITCH TO MOTOR 1030Z Part Number: 3870323600 for Royal | 3870323600 | $7.21Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | SWITCH & PLATE ASSEMBLY | 2060837000 | Not Available |
| 39 |  | Switch Plate-Royal 1050 Commercial For: royal | 1608303000 | $9.61Read more |
| 40 | Not Available | STRAIN RELIEF STAMPING | 2031103000 | Not Available |
| 41 | Not Available | RUBBER INLET GASKET | 1601407000 | Not Available |
| 42 | Not Available | CARBON BRUSH PKG DROP IN MOTORS | 3890105000 | Not Available |
| 42 | Not Available | CARBON BRUSH PKG JOHNSON DROP IN MOTORS | 3970109000 | Not Available |
| 55 | No Image | Spring - Royal Rear Wheel - Upright For: royal | 1003008000 | $1.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Spring Rod Roy- 994 For: royal | 1003009000 | $0.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | Not Available | LATCH RETAINER SCREW | 1003022000 | Not Available |
| 58 | Not Available | WASHER ADAPTOR CLAMP 1030 (Z) | 1003311000 | Not Available |
| 59 | Not Available | SPRING | 1003884000 | Not Available |
| 60 | Not Available | LOCKWASHER 1058 (Z) | 1006318000 | Not Available |
| 61 | Not Available | HANDLE FORK SPRING | 1004723000 | Not Available |
| 62 | Not Available | WHEEL RETAINER WASHER | 1005138000 | Not Available |
| 63 |  | Screw, #10 x 3/4" Dirt Devil CR5158/089000/CR5158Z Part Number: 1023309000 for Royal | 1023309000 | $1.09Read more |
| 64 | Not Available | LOCKWASHER | 1074330000 | Not Available |
| 65 |  | Insert, Motor Housing Metal Everlast Uprights Part Number: 1110773000 for Royal | 1110773000 | $10.92Read more |
| 66 | Not Available | ROD ADJ. SLEEVE | 1110775000 | Not Available |
| 67 |  | Spring, Handle Latch **New Style** Part Number: 1133738000 for Royal | 1133738000 | $0.60Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | SCREW #632 X 3/8' | 1145734000 | Not Available |
| 69 | No Image | SCREW, SELF TAPPING Part Number: 1186012000 for Royal | 1186012000 | $6.17Read more |
| 70 | Not Available | CARRIAGE BOLT HANDLE | 1230713000 | Not Available |
| 71 |  | Wing Nut-Royal Upt. Hndl. Fork For: royal | 1285720000 | $3.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | Not Available | REAR AXEL SCREW | 1311031000 | Not Available |
| 73 | Not Available | SQUARE NECK BOLT | 1074329000 | Not Available |
| 74 | Not Available | SCREW | 1597743000 | Not Available |
| 75 | Not Available | LATCH SPACER | 1601772000 | Not Available |
| 76 | Not Available | HEADLIGHT SPRING CLIP | 1606210000 | Not Available |
| 77 | Not Available | MOTOR PLATE SCREW | 1670013000 | Not Available |
| 78 |  | Pin-Release Pedal Spring/ Roy 7710 For: royal | 1670705000 | $0.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 79 |  | Spring, Release Pedal Metal Uprights Part Number: 1672009000 for Royal | 1672009000 | $0.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | Screw-Royal 690 Rear Bearing Assy For: royal | 1801701000 | $6.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 |  | Bolt, Holds ForkK To Machine EverLast Metal Uprt Part Number: 1801708000 for Royal | 1801708000 | $4.57Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 82 |  | Fork Bolt Nut-All Models For: royal | 1801715000 | $1.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | Not Available | WHEEL RETAINER CAP | 1801711000 | Not Available |
| 84 | Not Available | NUT | 1801714000 | Not Available |
| 85 | Not Available | SCREW | 1802244000 | Not Available |
| 86 | Not Available | ADJUSTER SPRING | 1870013000 | Not Available |
| 87 | Not Available | 1018 1025 1030 1038 SCREW #632 X 1/4" | 1880707000 | Not Available |
| 88 | Not Available | EYE BOLT | 1884708000 | Not Available |
| 89 |  | Screw, Nozzle Head to Main Body CR5158/5158Z Part Number: 1980743000 for Royal | 1980743000 | $10.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 90 | Not Available | SCREW #1024 X 5/8" | 1990104000 | Not Available |
| 91 | Not Available | ADJUSTER ROD 1058 (Z) | 1996011000 | Not Available |
| 92 | Not Available | RETAINING PIN | 1996101000 | Not Available |
| 93 | Not Available | E RING | 1996711000 | Not Available |
| 94 | Not Available | SCREW | 1133054000 | Not Available |
| 95 | Not Available | 1018 1025 1030 1038 FOOT ADJ. LEVER COVER | 1130008B00 | Not Available |
