Schematic and parts book for Riccar RSL5.SAND . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

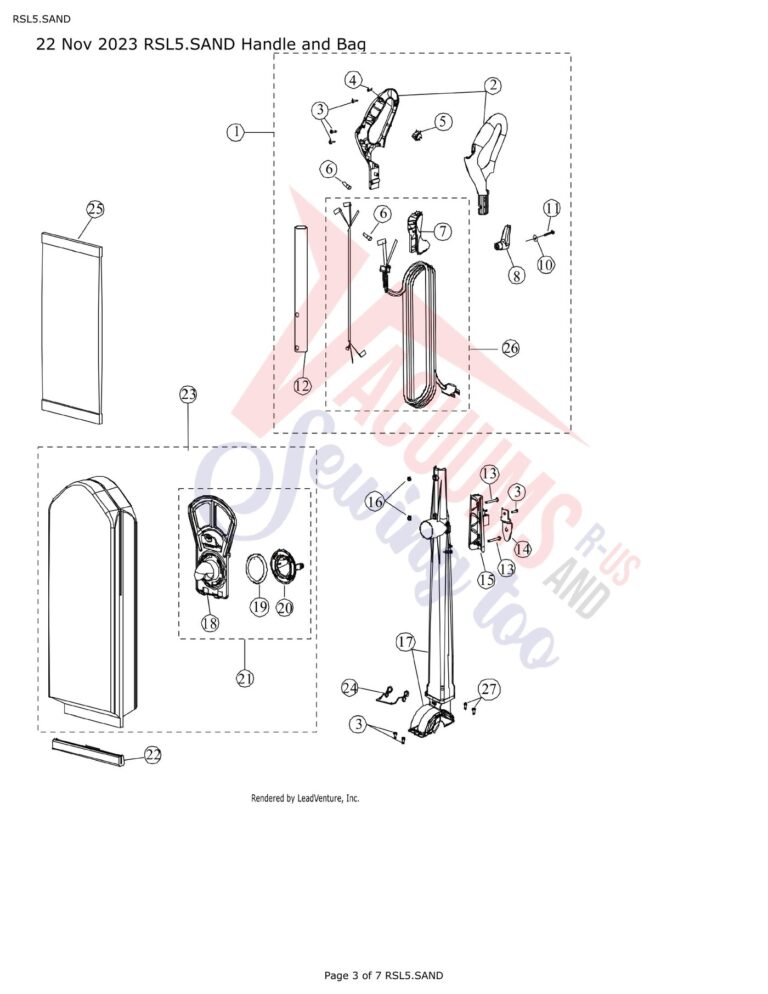

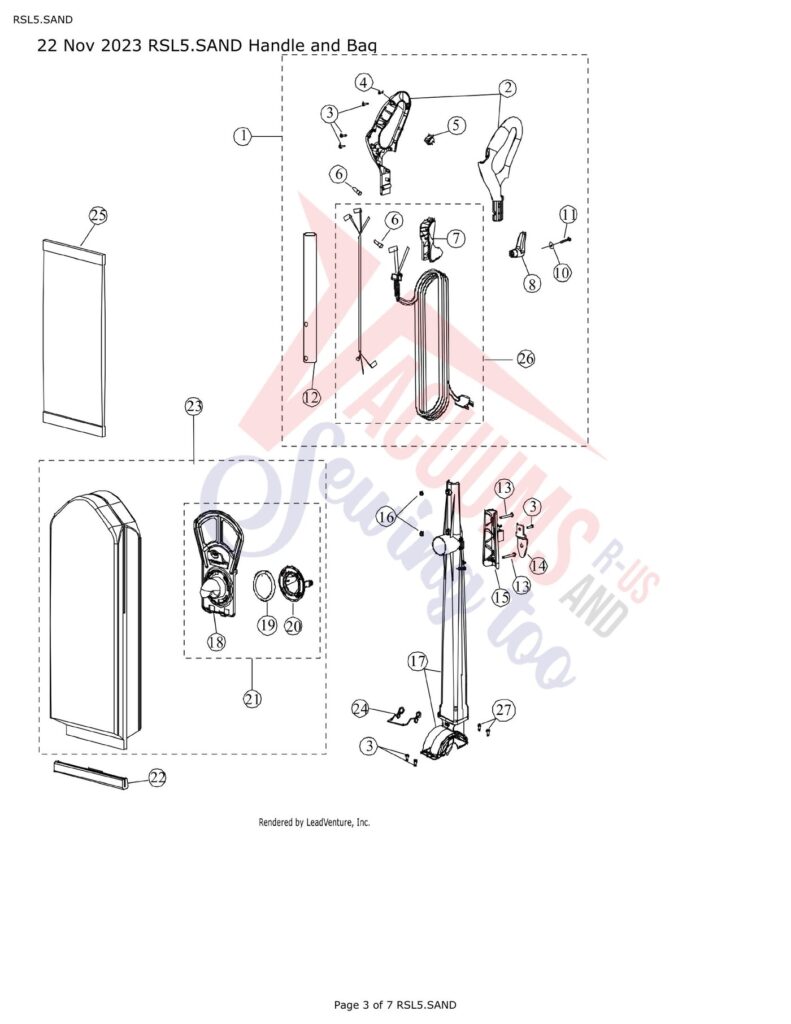

| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle Assembly for Riccar and Simplicity Freedom and Supralite w/ 2 Speed Switch | WP11850 | $114.99Add to cart |
| 2 |  | Commercial Handle Grip Assembly for Ultralight Weight Uprights | WP10644 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 4 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Main Switch | A428-2200 | Not Available |
| 6 |  | Wire Connector Md. Part Number B123-0100 for Simplicity and Cleanmax and Maytag and Riccar Models... | B1230100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tacony B431-3314C Handle Back New Strain Relief Commercial ULW Black Xenoy | WP11178 | $5.99Add to cart |
| 8 |  | Plastic Cord Hook for Simplicity 3500 and Riccar Ultra Light Weight | WP10400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | CleanMax 8-16 x 2.500 Phillips Pan Head Screw | A4300205 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Steel Handle Tube Part Number B431-3504E for Simplicity and Riccar Models F3400, F3500, F3500C, F... | B4313504E | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 14 |  | Cord Hook Part Number B430-1205 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400... | B4301205 | $4.99Add to cart |
| 15 |  | Handle Tube Bracket S10E R10e | B431-2914E | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Lower Handle Upper Fan | WP11881 | $38.49Read more |
| 18 |  | Bag Collar Bag Holder Part Number B211-3614 for Simplicity and Riccar Models F3100, F3300, F3300C... | B2113614 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Collar Gasket Part Number B211-6400 for Simplicity and Riccar Models F3100, F3300, F3300C, S1... | B2116400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Bag Collar Ring for Riccar and Simplicty R10E and S10E Vacuums | WP11950 | $3.99Add to cart |
| 21 |  | Hinged Bag Holder Kit for Riccar Ultra Light Weight | D2113614 | $13.99Add to cart |
| 22 |  | B211-1014B R10E lower bag clip, no print | WP11959 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Riccar ULW Outer Bag Upgrade Kit | WP11344 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Lower Bag Spring Part Number B211-1204 for Simplicity and Riccar Models F3100, F3300, F3300C, S10... | B2111204 | $2.99Add to cart |
| 25 | Not Available | Paper Bag (Single) | ULW-PLAIN.2 | Not Available |
| 25A |  | Riccar Ecopure Supralite Vac Bag 6Pk Riccar Filtration 24 Cs | RSL6 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25A |  | Compatible alternateAftermarket Riccar Paper Bags Type F - 6pk More Product Details | RSR-1437 | $13.84Add to cart Special order — allow 2-4 weeks. |
| 25B |  | HEPA Bag Bulk Single Part Number THB-ULW for Simplicity and Riccar Models F3100, F3300, F3300C, S... | THBULW | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25C |  | Riccar HEPA Vacuum Bags Type F for Supralite Models - 6pk | RFH6 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Power Cord Assembly House- hold Hall Sensor (F3700/ F3700.SAND) Part Number D434-1800 for Simplic... | D4341800 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Screw #5X0.5 Hi-Lo Self Threading | A7329206 | $2.99Add to cart |

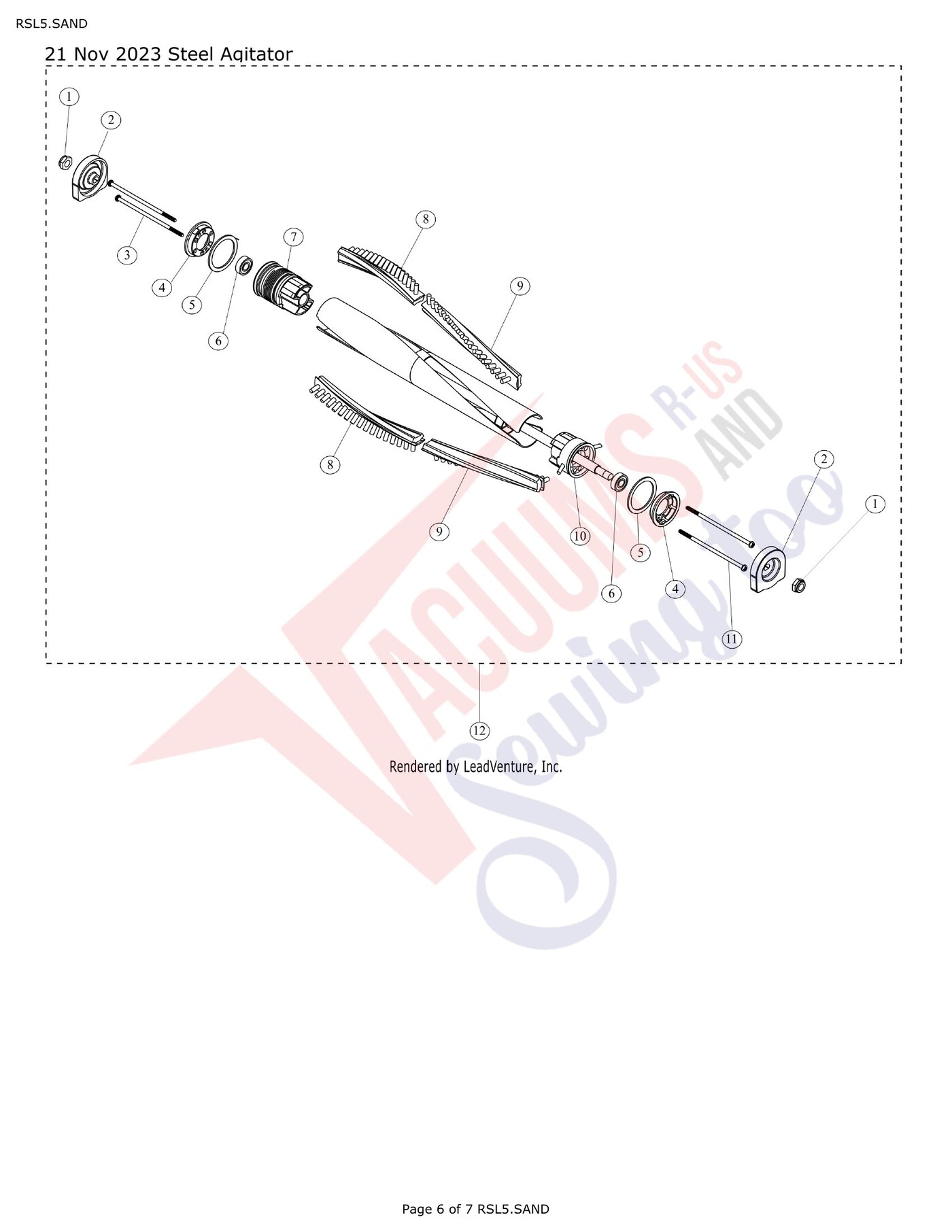

| # | Part image | Description | SKU | Price |
| 1 |  | Locking Hex Nut Part Number A3750100 for Simplicity Models SPB-400S.2 | A3750100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Metal End Cap Part Number B013-1600 for Simplicity and Riccar Models F3700, F3700.SAND, F3700C,PR... | B0131600 | $7.99Add to cart |
| 3 |  | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 |  | Agitator Bearing for Simplicity and Riccar | A3750200 | $4.99Add to cart |
| 7 |  | Pulley Non-Clamping Design for Poly V Belt Part Number C013-0800 for Simplicity and Riccar Models... | C0130800 | $10.99Add to cart |
| 7A |  | Pulley Clamping Design for Poly V Belt Part Number B013-1400 for Simplicity and Riccar Models F37... | B0131400 | $8.99Add to cart |
| 8 |  | Short nylon brush strip short metal agitator RSL5 F3700 ZM600 ULW | B0131000 | $6.99Add to cart |
| 8A |  | Short Brush Strip White Part Number B013-0301B for Simplicity and Riccar Models F3700, F3700.SAND... | B0130301B | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8B |  | Riccar and Simplicity Long Natural Brush Strips for ULW Vacuums | WP11868 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Long Nylon Brush Strip R30P R30D R30PET BRLD BRLS | B4750400B | $5.99Add to cart |
| 9A |  | Long Brush Strip White Part Number B013-0401B for Simplicity and Riccar Models F3700, F3700.SAND,... | B0130401B | $4.50Add to cart |
| 9B |  | Riccar and Simplicity Natural Brush Strips for ULW Vacuums | WP11867 | $3.99Add to cart |
| 10 |  | Agitator Bearing Holder With Edge Brushes Non-Clamping Part Number C013-0900 for Simplicity and R... | C0130900 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10A |  | Agitator Bearing Holder With Edge Brushes Clamping Design Part Number B013-1500 for Simplicity an... | B0131500 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Brushroll Agitator for ULW Uprights | D0130500 | $79.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
