Schematic and parts book for Riccar R27CV . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

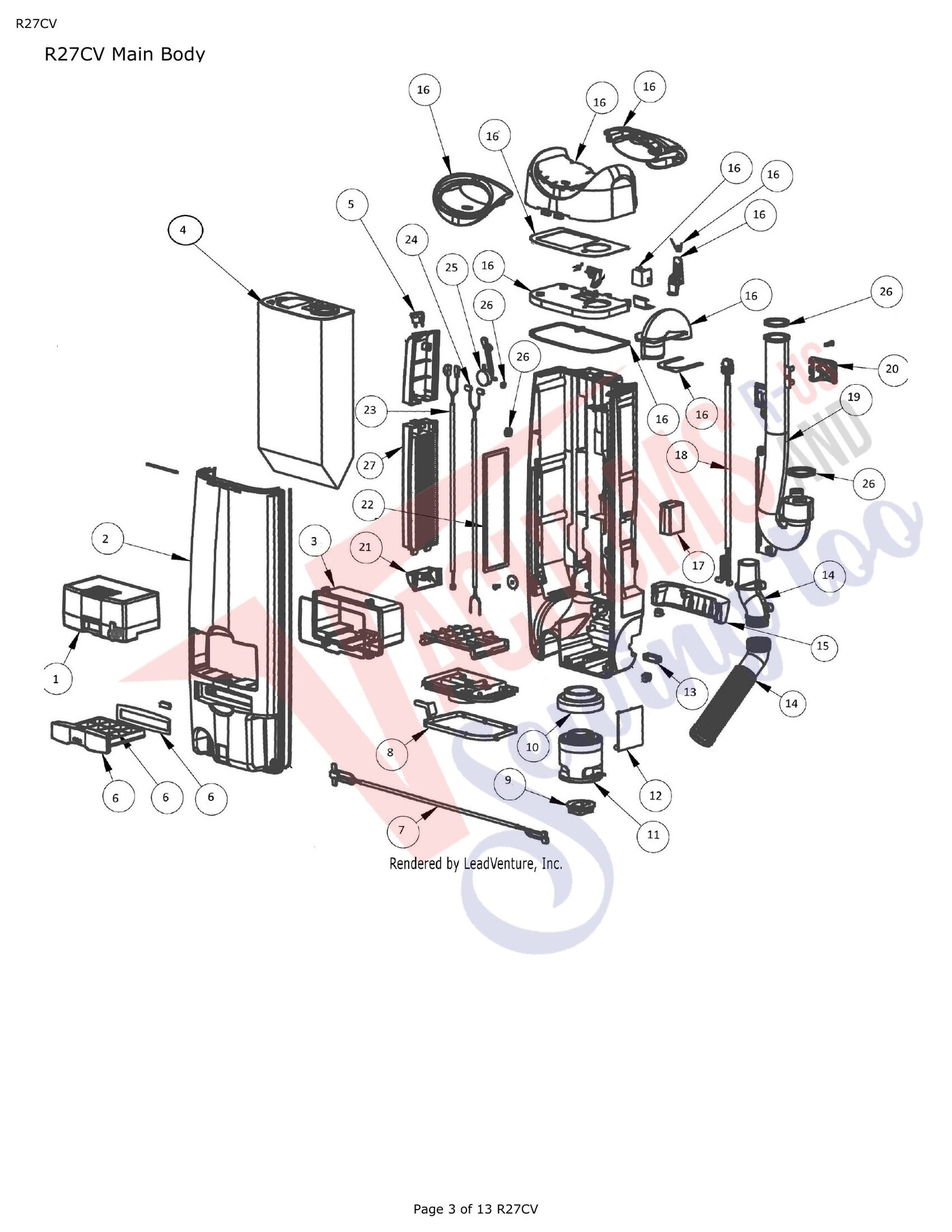

| # | Part image | Description | SKU | Price |
| C600- 3102 | No Image | Latch Assembly Bag Door R27CV | C6003102 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| R27CV2B | Not Available | R27CV SPRING EXTRA BATTERY BUNDLE | R27CV2B | Not Available |
| 1 | No Image | Riccar Clean Air Cordless Battery | C6036000 | $299.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Front Body Cover R27CV | B6008114 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Battery Housing R27CV | C6009100 | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | R27 and R25 Series Charcoal-Infused HEPA Bags 6 Pk fits all R27 and R25 models | R27HC6 | $29.99Add to cart |
| 5 |  | Full Bag Light (R25D, R25P) Part Number B603-3100 for Riccar Models R25S, R25D, R25P | B6033100 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Secondary Filter Assembly R27CV | B6002715 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Wire Harness Body to Nozzle R27CV | B6037400 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | MOTOR PLATE SEAL R27CV | B6006969 | $1.99Read more |
| 9 | No Image | VACUUM MOTOR ASSEMBLY 36V | C6037100 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | VACUUM MOTOR ASSEMBLY 36V | C6037100 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | VACUUM MOTOR ASSEMBLY 36V | C6037100 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | MAIN PCB BOARD R27CV | B6037200 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Cord Clamp Part Number B600-4514 for Riccar Models R25S, R25D, R25P,R25S, R25D, R25P | B6004514 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Nozzle Hose Assembly (R25D, R25S) Part Number C600-4400 for Riccar Models R25S, R25D, R25P | C6004400 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | AXLE HOUSING R27CV | B6001515 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Bag Door Assembly R27CV | C6004000 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Crevice Tool Mount Part Number B600-4466 for Riccar Models R25S, R25D, R25P | B6004466 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Wire Harness Body to Handle R27CV | B6037300 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | REAR AIR PATH R27CV | C6008500 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Hose Guide Part Number B600-2414 for Riccar Models R25S, R25D, R25P | B6002414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Post Filter Mount Part Number B600-2514 for Riccar Models R25S, R25D, R25P | B6002514 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Post Filter Seal Part Number B600-6500 for Riccar Models R25S, R25D, R25P | B6006500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | WIRE HARNESS BATTERY HOUSING R27CV | B6037600 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | WIRE HARNESS FULL BAG R27CV | B6037900 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | No Image | PRESSURE SENSOR R27CV | B6037800 | $5.99Read more |
| 26 | | Seal Kit (Includes Bag Door Seal, Hose Cuff Seal, Hose Cuff Pivot Seal, Airpath Top Seal) Part Nu... | B6006000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Filter Set HE Pleated HEPA Granulated Charcoal R27 44CS | RF27 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Compatible alternateUSE SKU RF27 in favor of this Riccar R25D HEPA Media and Charcoal Filter Set More Product Details | R25DF | $30.99Add to cart Special order: ships in 2 to 4 weeks |

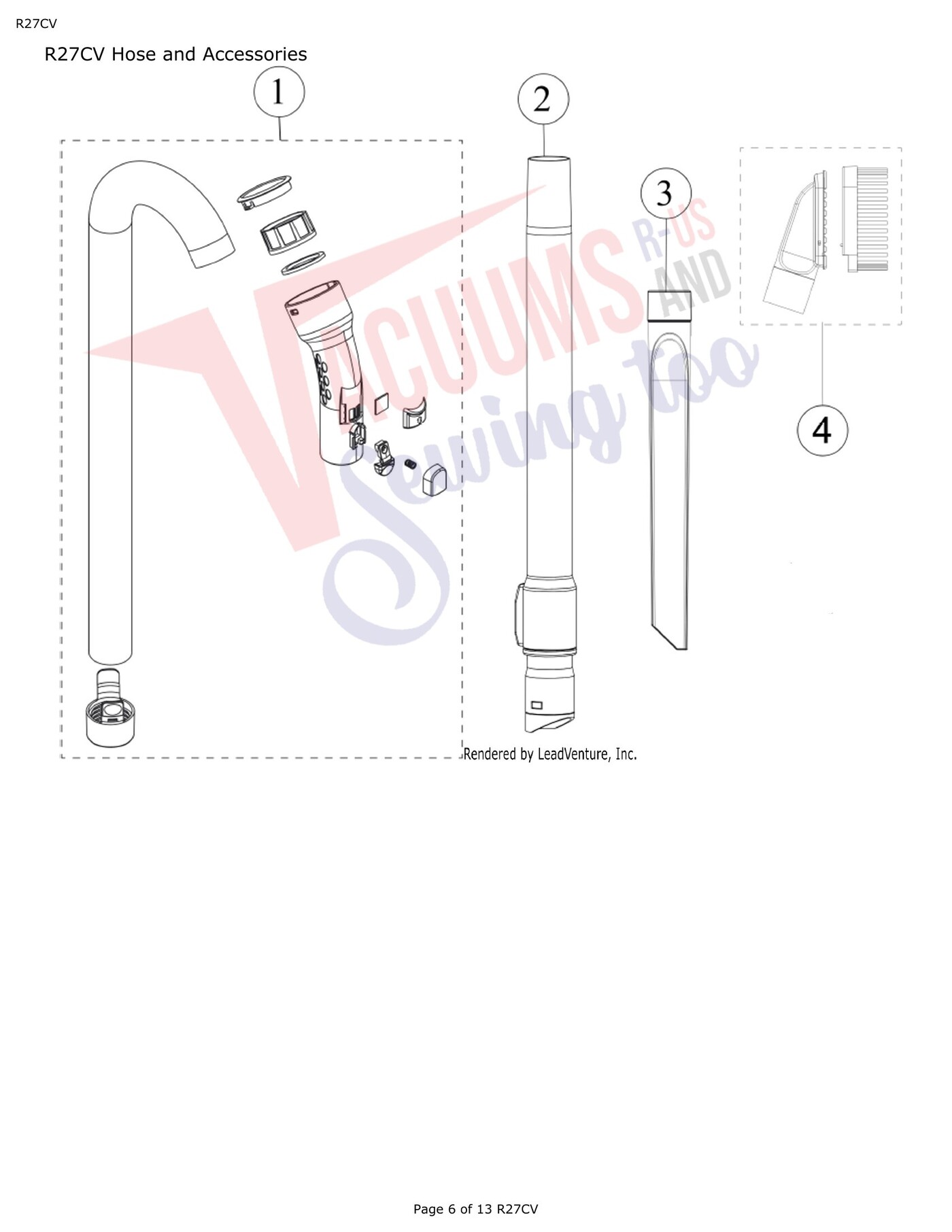

| # | Part image | Description | SKU | Price |
| C603-6200 | No Image | Riccar Clean Air Cordless Charger | C6036200 | $99.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Hose Assembly R27CV R27P | C6041001 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Quick Draw Wand R27CV,R27P,R27D,S26 | B4346400B | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Crevice Tool Part Number B604-2314 for Riccar Models R25S, R25D, R25P | B6042314 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | BRUSH DUSTING R27CV R27P | B6046214 | $4.99Add to cart Special order: ships in 2 to 4 weeks |

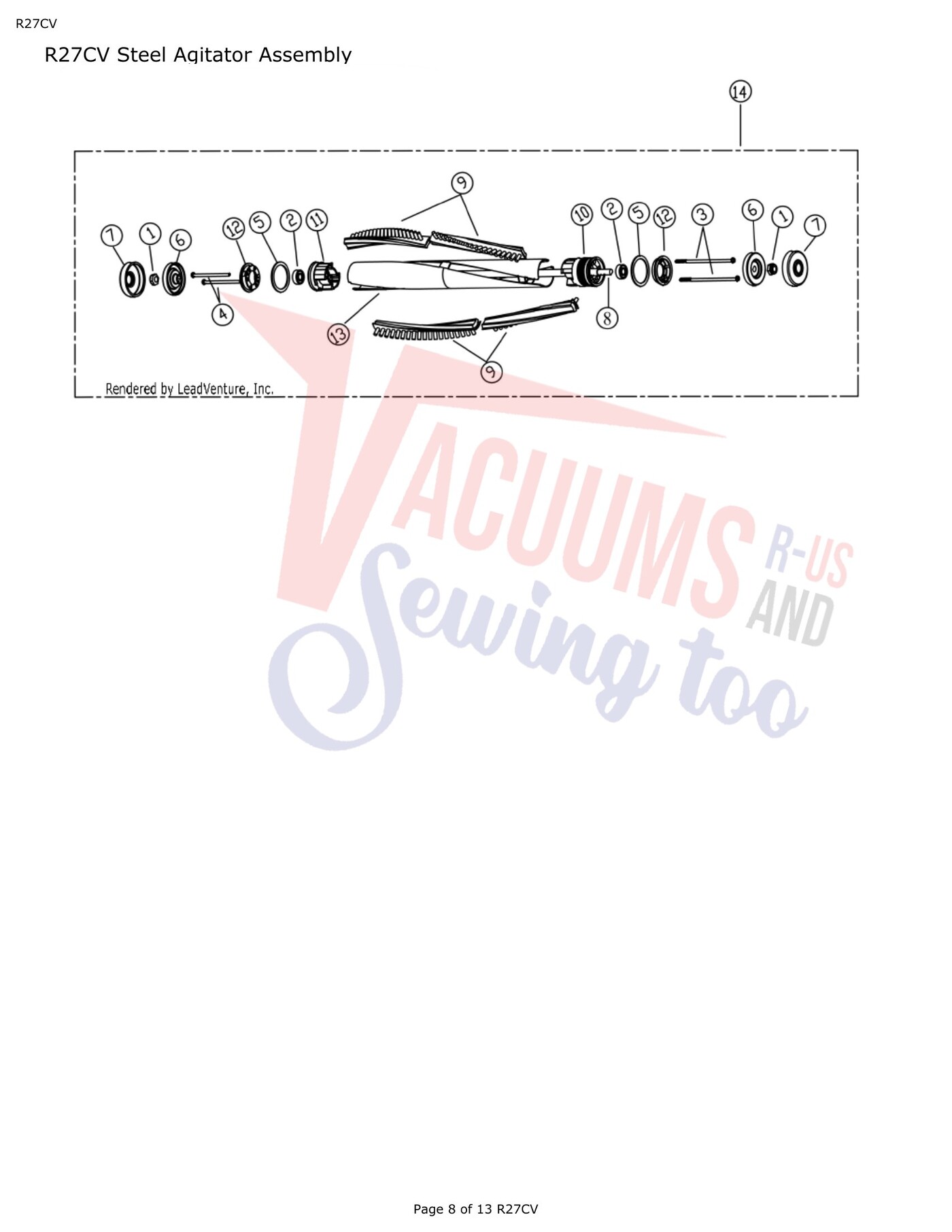

| # | Part image | Description | SKU | Price |
| 1 |  | Locking Hex Nut Part Number A3750100 for Simplicity Models SPB-400S.2 | A3750100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Agitator Bearing for Simplicity and Riccar | A3750200 | $4.99Add to cart |
| 3 | | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 |  | Steel End Caps Part Number B3753600 for Simplicity Models SPB-400S.2 | B3753600 | $3.99Read more |
| 7 |  | End Cap Cover Part Number B375-3700 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.... | B3753700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | N/A | N/A | Not Available |
| 9 |  | Single Brush Strip White Part Number B601-8000 for Riccar Models R25D R25P | B6018000 | $3.99Add to cart |
| 10 |  | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Agitator Bearing Cartridge Part Number B475-1800 for Simplicity and Maytag and Riccar Models BRLS... | B4751800 | $2.99Add to cart |
| 12 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 13 | | Agitator Steel Core (N/A) Part Number C475-0600 for Riccar and Simplicity Models R25D R25P,R30D, ... | C4750600 | $0.00Read more |
| 14 | | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Special order: ships in 2 to 4 weeks |

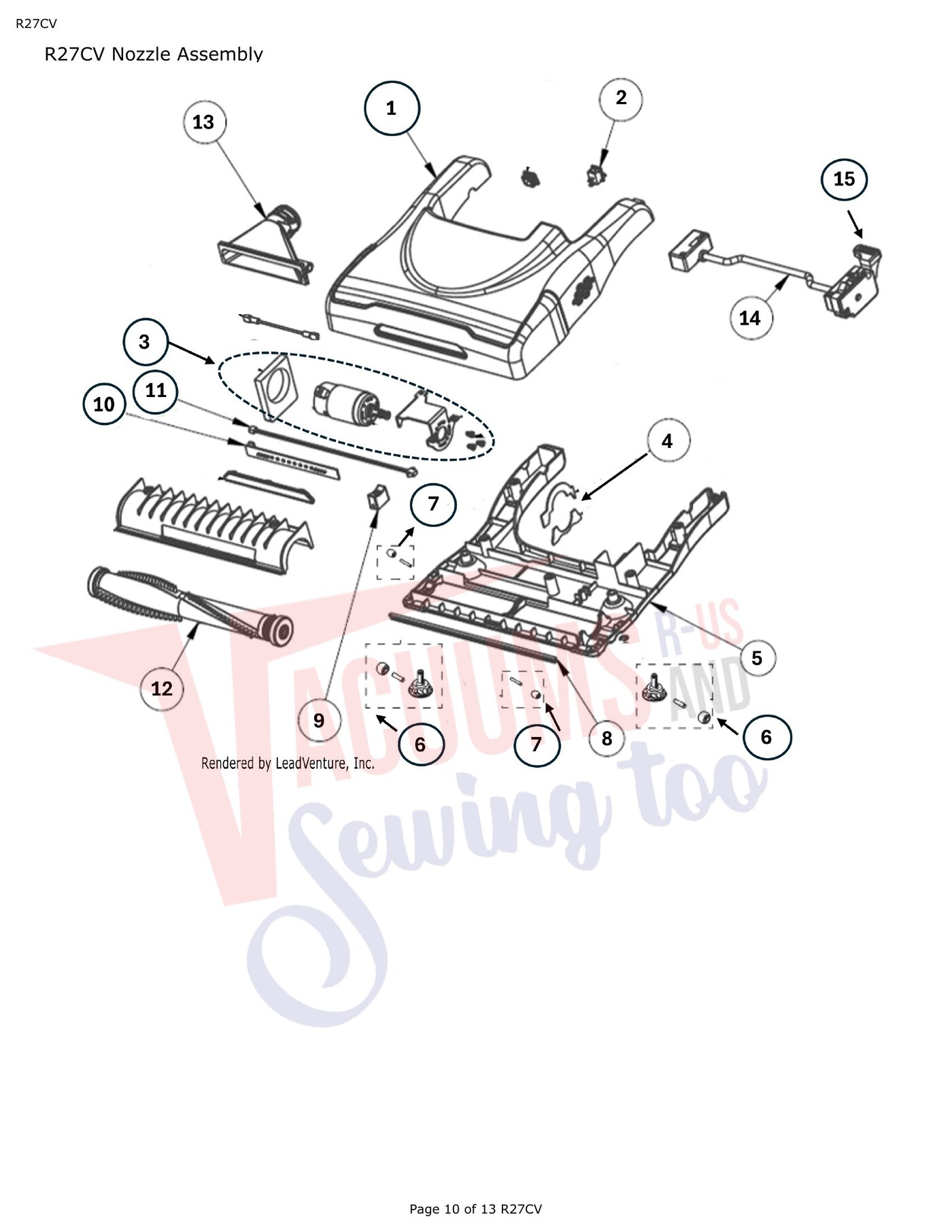

| # | Part image | Description | SKU | Price |
| Not Shown |  | Riccar R25 Series Vacuum Cleaner Belt - B601-2200 | WP11841 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Nozzle Cover R27CV | C6011244 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Upright Kill Switch Part Number B603-3400 for Riccar Models R25S, R25D, R25P | B6033400 | $3.99Add to cart |
| 3 | No Image | BRUSH MOTOR ASSEMBLY R27CV | C6031500 | $61.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Felt Seal Set Part Number C601-5300 for Riccar Models R25S, R25D, R25P | C6015300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Baseplate Part Number B601-1214 for Riccar Models R25S, R25D, R25P | B6011214 | $28.59Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Caster Wheel Assembly Part Number C601-4000 for Riccar Models R25S, R25D, R25P | C6014000 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Baseplate Wheel Assembly Part Number C601-1900 for Riccar Models R25S, R25D, R25P | C6011900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Baseplate Strip Part Number B601-1300 for Riccar Models R25S, R25D, R25P | B6011300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | | Brushroll Motor Clamp Part Number B601-6914 for Riccar Models R25S, R25D, R25P | B6016914 | $2.19Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | HEADLIGHT LED R27CV R27P R27D | B6034100 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | WIRE HARNESS HEADLIGHT R27CV | B6034300 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | Nozzle Hose Assembly (R25D, R25S) Part Number C600-4400 for Riccar Models R25S, R25D, R25P | C6004400 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Rear Wheel Assembly R27CV | C6013100 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Release Pedal R27CV | C6012200 | $1.99Add to cart Special order: ships in 2 to 4 weeks |

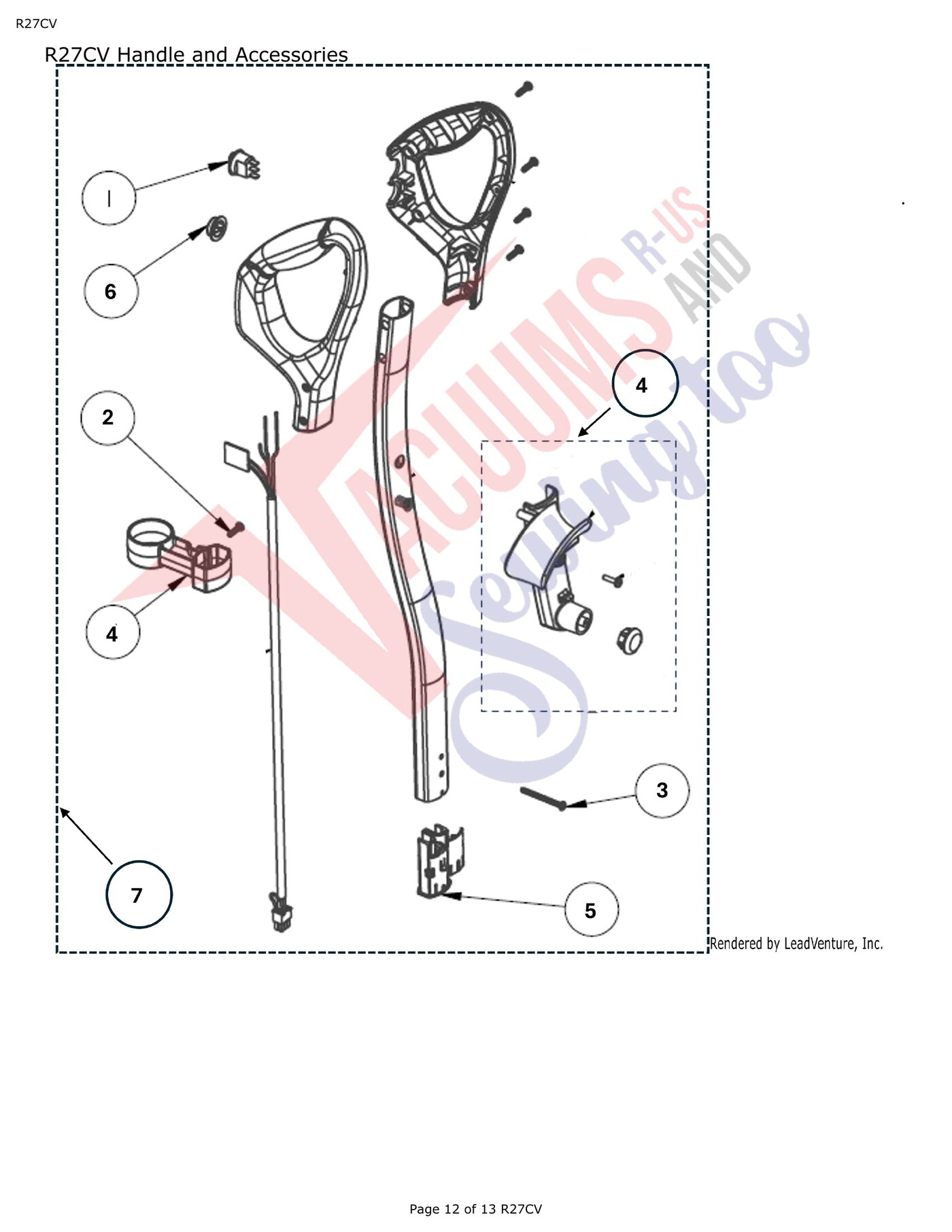

| # | Part image | Description | SKU | Price |
| 1 |  | Switch On/Off Part Number A328-1200 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.... | A3281200 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 3 | | Handle Mount Screw #8 x 1.75 Part Number A732-8700 for Riccar Models R25S, R25D, R25P | A7328700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Hose Storage R27CV | C6002615 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | R25 Handle Shim Kit Part Number D602-0001 for Riccar Models R25S, R25D, R25P | D6020001 | $19.95Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Battery | TBD | $0.00Read more |
| 7 | No Image | Handle Assembly Riccar R27CV | C6028000 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
