Schematic and parts book for Riccar R21.PLUS Spirit plus. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

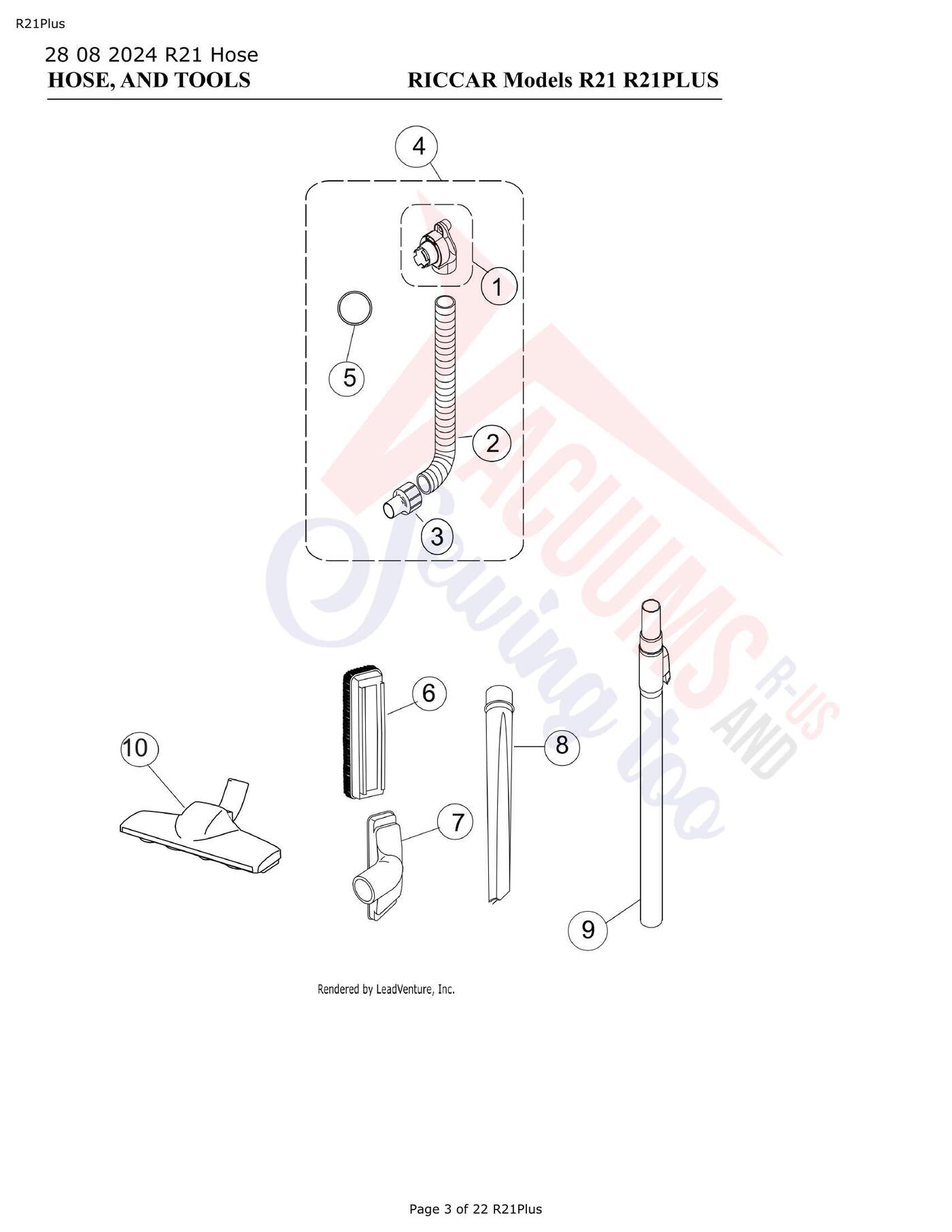

| # | Part image | Description | SKU | Price |
| 1 |  | Suction inlet black symm | WP10667 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Fast Task Stretch Hose 500mm Black Replacement For Tools Model Part Number A225-0114 for Riccar a... | A2250114 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Hose Cuff (Tool Models) Part Number B625-0314 for Simplicity and Riccar Models 7200, 7250, 7300, ... | B6250314 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Hose Assembly VibranceSymmetery W/Tools R20E,S20E | D626-0514 | $41.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Spacer Part Number B625-1014 for Simplicity and Riccar Models 6100, 6370, 6400, 6470, 6550, 6570,... | B6251014 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Slide on Upholstery Brush Natural Hair VIBP SYMP | B226-0614 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Upholstery brush riccar vibrance B226-0114 | WP11831 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Crevice Tool Black Simplicity Riccar Symmetry Vibrance Uprights | B226-0314C | $6.99Add to cart |
| 9 | No Image | Telescopic Wand Stainless Steel | C6267000 | $39.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Standard Fit-all Friction Fit 1 1/4" soft sweep Floor Tool with Microfiber Bare Floor Pads | C6265004B | $37.99Add to cart Special order: ships in 2 to 4 weeks |

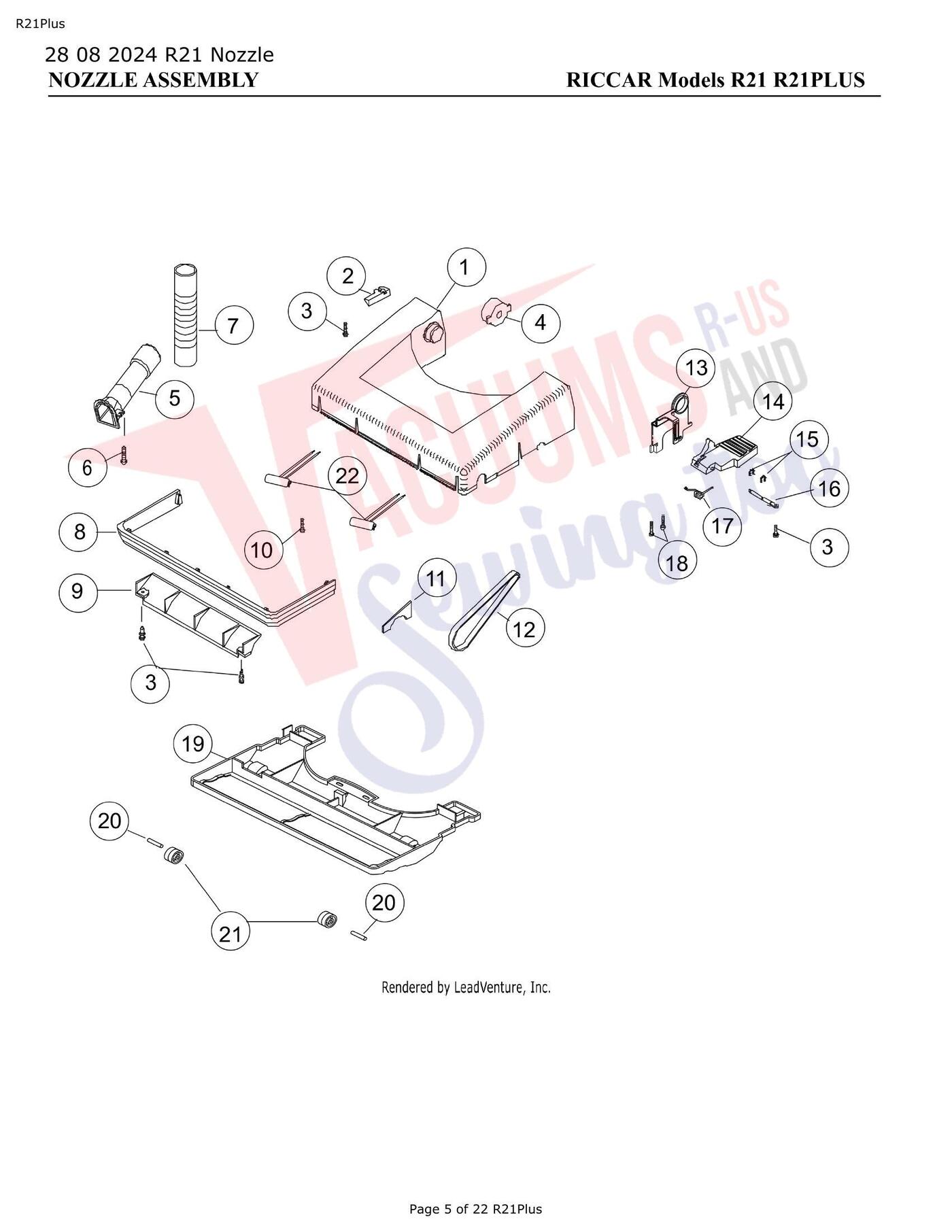

| # | Part image | Description | SKU | Price |
| 1 | No Image | Spirit Plus Nozzle Cover Fire Red Metallic | B0174925B | $21.82Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Baseplate Cover Catch For Replacement Nozzles and .4 Above Models Only Part Number B017-4400 for ... | B0174400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 4 |  | Plastic BushingPlastic BushingPlastic Bushing Part Number B017-0214 for Simplicity and Maytag and... | B0170214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Nozzle Inlet Tube Part Number B017-0213 for Simplicity and Riccar Models 6100, 6370, 6400, 6470, ... | B0170213 | $2.99Add to cart |
| 6 |  | Combination Screw M4x16 Part Number A732-5300 for Simplicity and Maytag and Riccar Models 7250, 7... | A7325300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Blow Molded Nozzle Hose New Improved Design for Vibrance and Symmetry | B225-0614 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | FURNITURE GUARD NATURAL OPAQUE - RIGEL LINE | B0170128 | $4.37Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Agitator Fillet Part Number B016-0014 for Riccar and Simplicity Models R100, R200, R300, R300C, R... | B0160014 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Base Plate Screw (7400 7450 7900 7950) Part Number A732-2300 for Simplicity and Riccar Models 720... | A7322300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Agitator Packing Seal Part Number B021-0000C for Riccar Models R100, R200, R300, R300C, R500, R60... | B0210000C | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Riccar and Simplicity Vibrance Series Single Belt - Replaces RS20-B2 sub for PR1016 | B0140714 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Foot Pedal Frame With Integrated Belt Guard (Can be used instead of #21 and #23) Part Number B020... | B0200200 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Pedal Part Number B020-1314B for Simplicity Models VIBPBP.2, VIBCBP.1 | B0201314B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Pedal Shaft Part Number B020-0300 for Riccar and Simplicity Models R100, R200, R300, R300C, R500,... | B0200300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Pedal Spring Part Number B020-0400 for Riccar and Simplicity Models R100, R200, R300, R300C, R500... | B0200400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Simplicity and Riccar Vacuum Wheel Screw for Models R20 and S20 | WP12078 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Base Plate ABS (R100 R500 4-5AE) Part Number B015-0114D for Riccar and Simplicity Models R100, R2... | B0150114D | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Base Plate Wheel Axle Vibrance, SS ULW 4000 U-912 | B0100001E | $2.99Add to cart |
| 21 |  | Front Wheel Assembly with Busing for Supralite, Wonder, and Prima Vacuums | WP11835 | $2.99Add to cart |
| 22 | No Image | Household Headlight Assembly | C0175200 | $10.99Add to cart Special order: ships in 2 to 4 weeks |

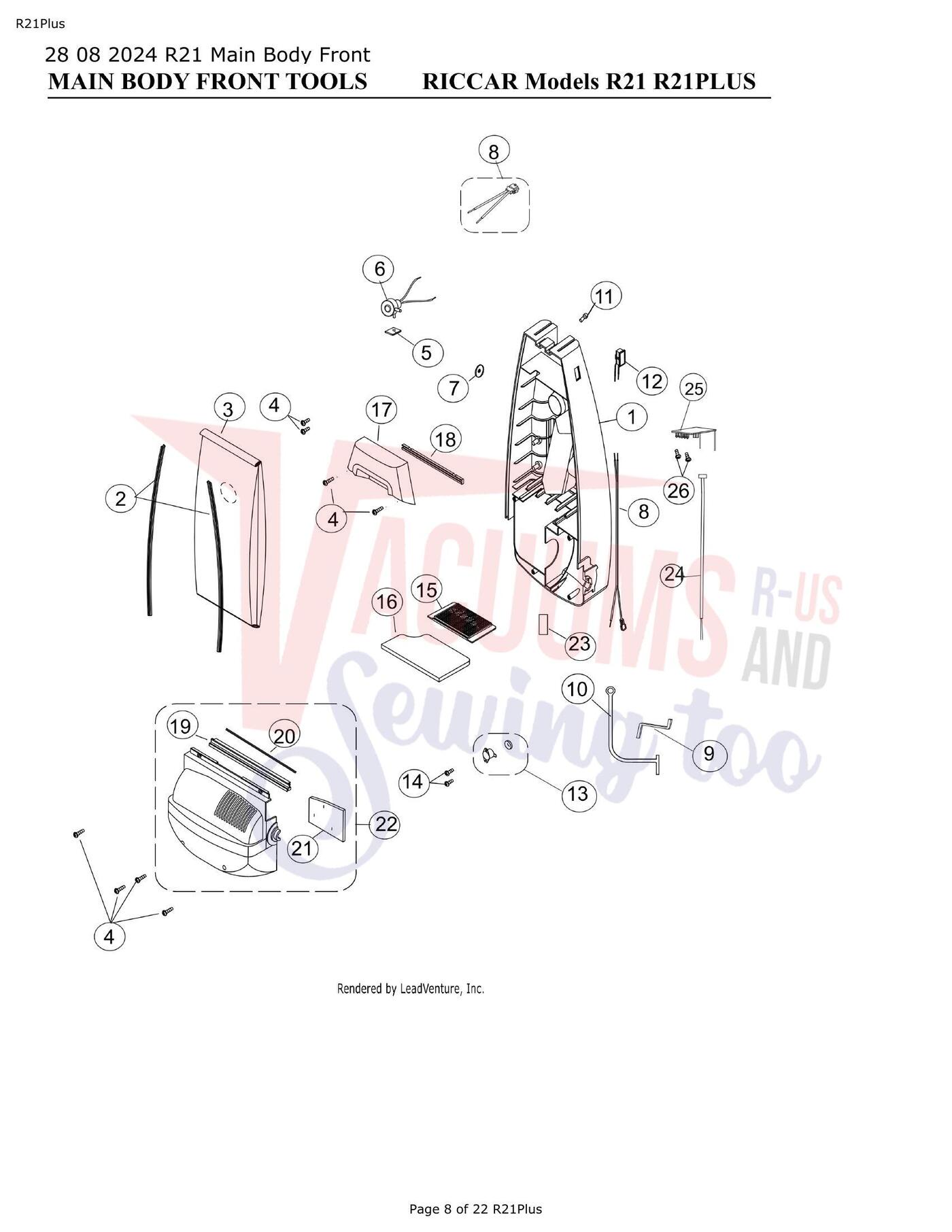

| # | Part image | Description | SKU | Price |
| 1 | No Image | DUST COMPARTMENT BLK VIBRANCE | B2240014P | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Dust Compartment Side Seal Part Number B221-0814 for Simplicity and Riccar Models 6100, 6370, 640... | B2210814 | $2.99Add to cart |
| 3 |  | HEPA Bag Part Number B211-5800 for Simplicity Models 6100, 6370, 6400, 6470, 6550, 6570, 6600, 66... | B2115800 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 5 |  | Pressure Switch Mount Part Number B227-0014 for Simplicity and Maytag and Riccar Models 7250, 735... | B2270014 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Pressure Switch Part Number B227-1200 for Simplicity and Maytag and Riccar Models 7250, 7350, 745... | B2271200 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 8 |  | Motor Cord Houshold Part Number B224-0314B for Simplicity and Riccar Models 7250, 7350, 7450, 775... | B2240314B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Motor Compartment Seal Small Part Number B221-0600 for Simplicity Models 6100, 6370, 6400, 6470, ... | B2210600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Motor Compartment Seal Large Part Number B221-0700 for Simplicity Models S20ENT, S20E, S20SC,SYMC... | B2210700 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | | Body Wire Hole Plug (SYMC SYMD SYMDL SYMP SYMS SYM.USAFS) Part Number A430-0800 for Simplicity Mo... | A4300800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Full Bag Indicator Light Part Number C227-0300B for Simplicity and Riccar Models 7250, 7350, 7450... | C2270300B | $3.99Add to cart |
| 13 |  | Thermal Switch Assembly Part Number D123-1000 for Simplicity and Riccar Models 7250, 7350, 7450, ... | D1231000 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Screw #4 X 5/16 Part Number A732-7300 for Simplicity and Cleanmax and Maytag and Riccar Models 72... | A7327300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 |  | Filter Support Screen Part Number B222-0600 for Simplicity and Maytag and Riccar Models 7250, 735... | B2220600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Secondary Filter Part Number B222-0500 for Riccar and Simplicity Models R100, R200, R300, R300C, ... | B2220500 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Switch Cover | B3240025 | $0.00Read more |
| 18 | | Switch Cover Seal Part Number B221-0013 for Riccar and Simplicity Models R100, R200, R300, R300C,... | B2210013 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Motor Cover Seal Part Number B221-0113 for Riccar and Simplicity Models R100, R200, R300, R300C, ... | B2210113 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Motor Cover Packing Seal Part Number B221-0513 for Simplicity and Riccar Models 6100, 6370, 6400,... | B2210513 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | Inner Motor Cover Foam Part Number B222-1300 for Simplicity Models VIBPBP.2, VIBCBP.1 | B2221300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Motor Cover Assembly Part Number D123-0114 for Simplicity Models VIBPBP.2, VIBCBP.1 | D1230114 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | | Wire Inlet Seal Part Number B380-8200 for Riccar and Simplicity Models R40.LE, R40, R40.2, R40P.L... | B3808200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Wire Harness (R21Plus) | B2285200 | $0.00Read more |
| 25 | No Image | PCB Main Conformal Coated | B2285000 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

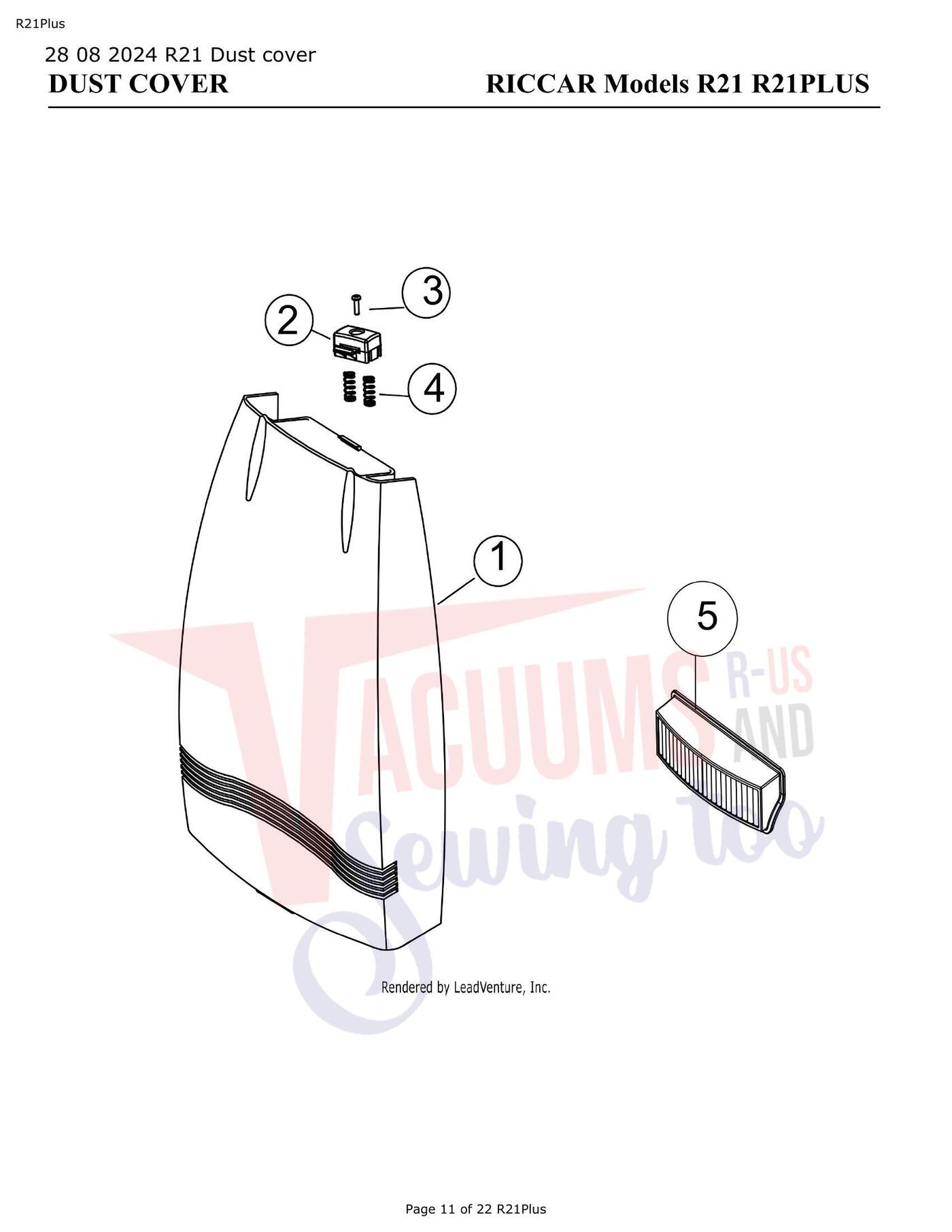

| # | Part image | Description | SKU | Price |
| 1 | No Image | Spirit Plus Dust Cover Fire Red Metallic | B2240625B | $21.99Read more |
| 2 |  | Dust Cover Latch Black Part Number B224-2714 for Riccar and Simplicity Models R100, R200, R300, R... | B2242714 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Combination Screw M4x16 Part Number A732-5300 for Simplicity and Maytag and Riccar Models 7250, 7... | A7325300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Spring Dust Cover 6000 Series 82.128 | A2240600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Riccar Vibrance Filter Set Hepa And Charcoal Vibp Vibpbp | RVPF | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Compatible alternatePremium Pleated HEPA Post Filter Bulk More Product Details | B2220700 | $7.99Add to cart Special order: ships in 2 to 4 weeks |

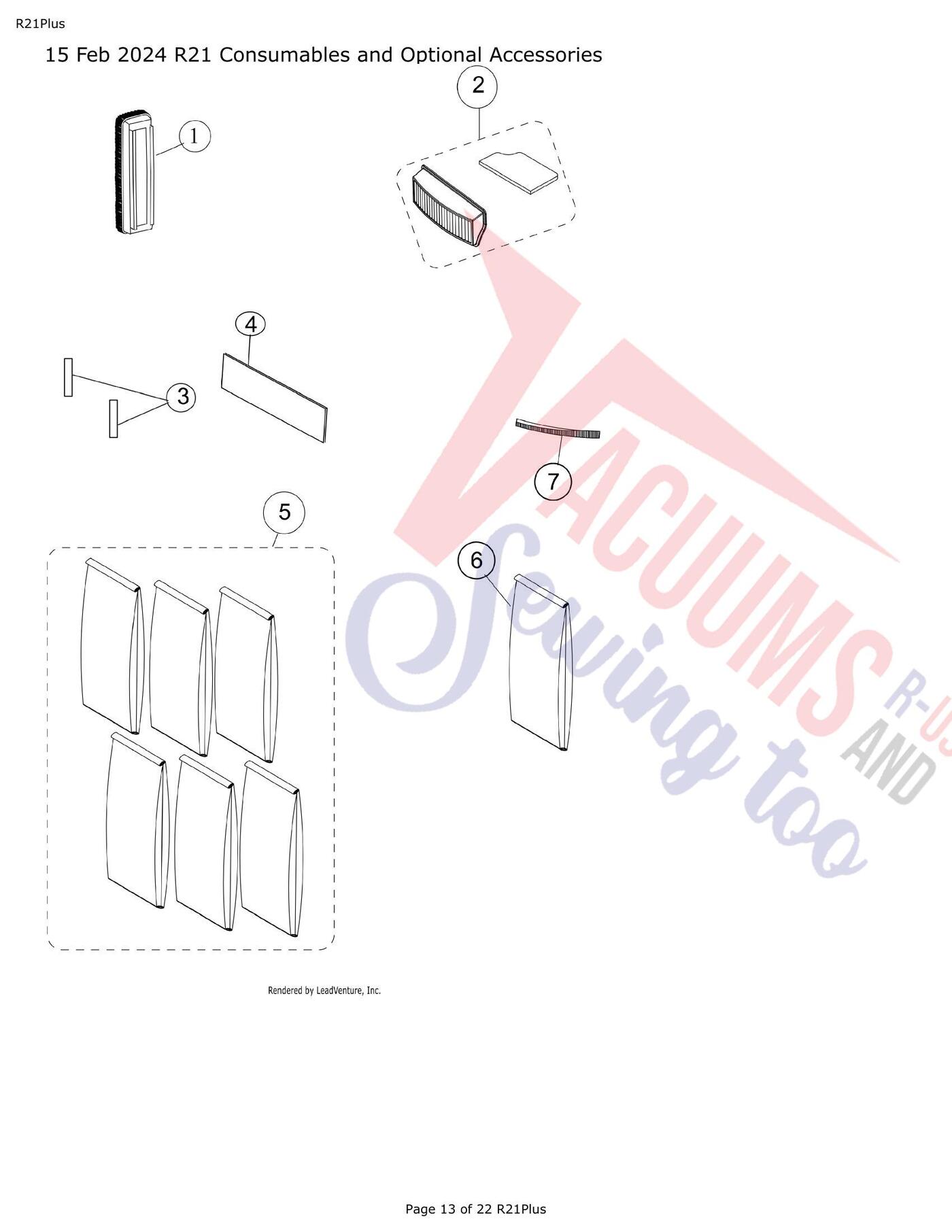

| # | Part image | Description | SKU | Price |
| 1 |  | SLIDE ON UPHOLSTERY BRUSH VIBRANCE SYMMETRY NYLON BRUSH | B226-0214 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Velcro Strip 3/16X2 Part Number A732-9800B for Simplicity and Riccar Models 6100, 6370, 6400, 647... | A7329800B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Electrostatic Post Dust Cover Filter | B222-0800 | Not Available |
| 4A |  | Foam Post Filter Used On Dust Covers .4 and Above
and the Replacement Dust Cover Assembly #1 Part... | B2221500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Sub for B012-2400B these are no longer standard and not a stock item Black and Gold Nylon 9mm Bru... | WP11413 | $5.99Add to cart Special order: ships in 2 to 4 weeks |

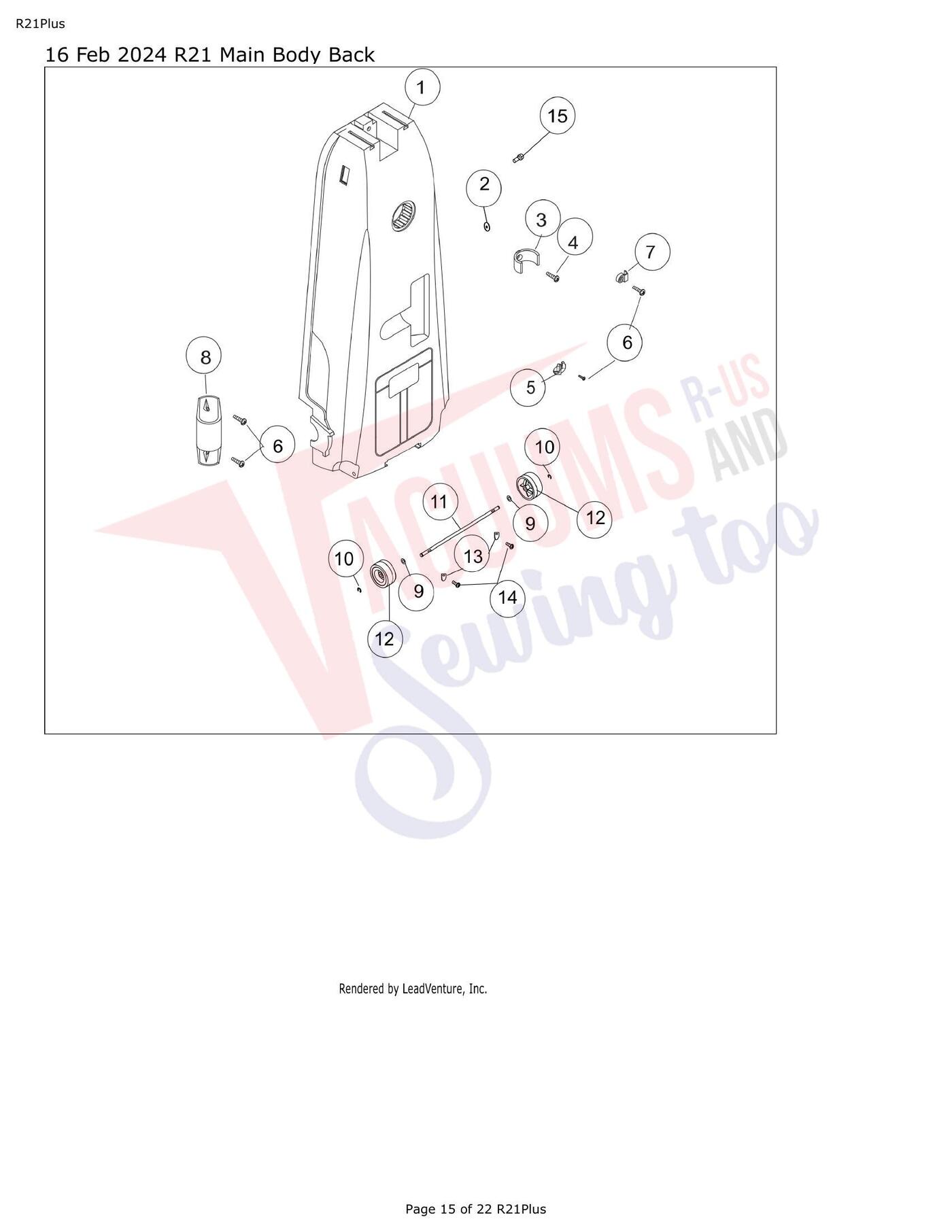

| # | Part image | Description | SKU | Price |
| 1 | No Image | DUST COMPARTMENT BLK VIBRANCE | B2240014P | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Lock Nut #6 32 X 5/16” Part Number A732-3700 for Simplicity Models VIBPBP.2, VIBCBP.1 | A7323700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Crevice Tool Clip for riccar and simplicity vibrance symmetry | B2260414 | $2.99Add to cart |
| 4 |  | Tool Clip Screw Part Number A732-0900 for Riccar and Simplicity Models R100, R200, R300, R300C, R... | A7320900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Tool Shelf Part Number B226-0514 for Simplicity Models 6100, 6370, 6400, 6470, 6550, 6570, 6600, ... | B2260514 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 7 | No Image | Retainer Clip Upholstery Tool Blk | B6261414B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Hose Connector Ready Reach for Vibrance and Symmetry Models | B2250014 | $3.99Add to cart |
| 9 |  | Rear Axle Wheel Washer Part Number A328-0100B for Cleanmax and Riccar and Simplicity Models CMPB,... | A3280100B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | E-Clip 5mm Part Number A732-0300 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Rear Wheel Axle Part Number B210-0605 for Simplicity Models VIBPBP.2, VIBCBP.1 | B2100605 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Rear Wheel 66mm Overmolded Rubber Vibrance Symmetry | B0101731 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Screw Part Number A732-8205 for Simplicity Models VIBPBP.2, VIBCBP.1 | A7328205 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | | Body Wire Hole Plug (SYMC SYMD SYMDL SYMP SYMS SYM.USAFS) Part Number A430-0800 for Simplicity Mo... | A4300800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

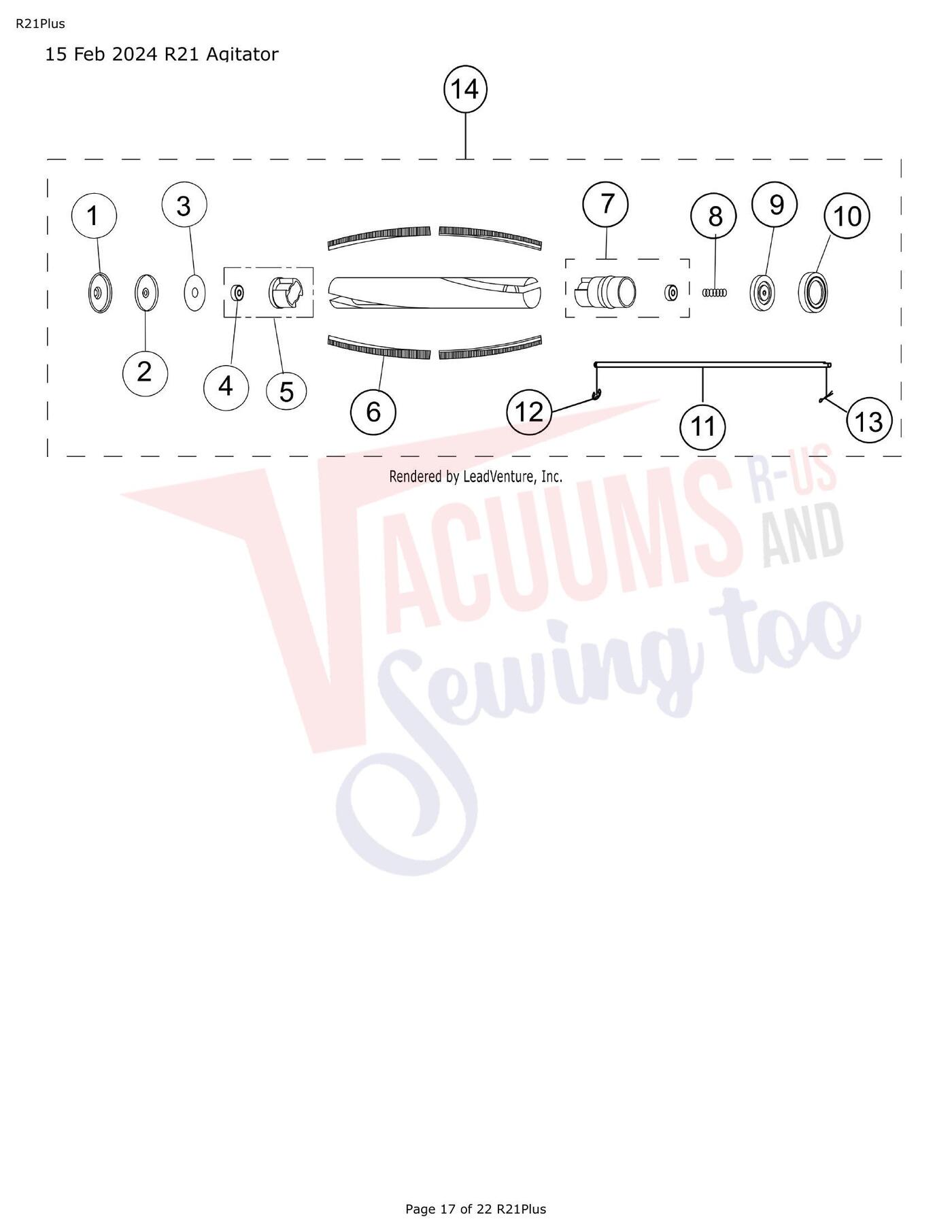

| # | Part image | Description | SKU | Price |
| 1 |  | Rubber End Cover Left Part Number B012-0214 for Simplicity and Cleanmax and Maytag and Riccar Mod... | B0120214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | End Cap Left Part Number B012-0700 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 7400... | B0120700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Riccar Simplicity Felt Cover for Brush Roll Bearings | B0120600 | $2.99Add to cart |
| 4 |  | Agitator Bearing Part Number B012-1400 for Simplicity and Cleanmax and Riccar Models 7200, 7250, ... | B0121400 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Agitator Bearing Holder Assembly for All Riccar R20 Simplicity S20 machine with metal rollers | C0121500 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Simplicity Symmetry, Riccar Vibrance Brush Strip single strip | B012-2400B | $5.99Add to cart |
| 7 |  | Agitator Pulley with Bearing Part Number C012-0914 for Simplicity and Cleanmax and Riccar Models ... | C0120914 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Spacing Spring Part Number B624-0100 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B6240100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | End Cap Right Part Number B012-0800 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 740... | B0120800 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Rubber End Cover Right Part Number B012-0114 for Simplicity and Cleanmax and Riccar Models 7200, ... | B0120114 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | Agitator Shaft Part Number B012-1000 for Simplicity and Cleanmax and Riccar Models 7200, 7250, 74... | B0121000 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | E-Clip 4mm Part Number A732-0200 for Simplicity and Cleanmax and Maytag and Riccar Models 7300, 7... | A7320200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Agitator Spring Clip Part Number A732-0400 for Simplicity and Cleanmax and Maytag and Riccar Mode... | A7320400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Agitator Assembly 10.3mm Non-Clutch Red Bristle Brush | D0122500 | $57.99Add to cart Special order: ships in 2 to 4 weeks |

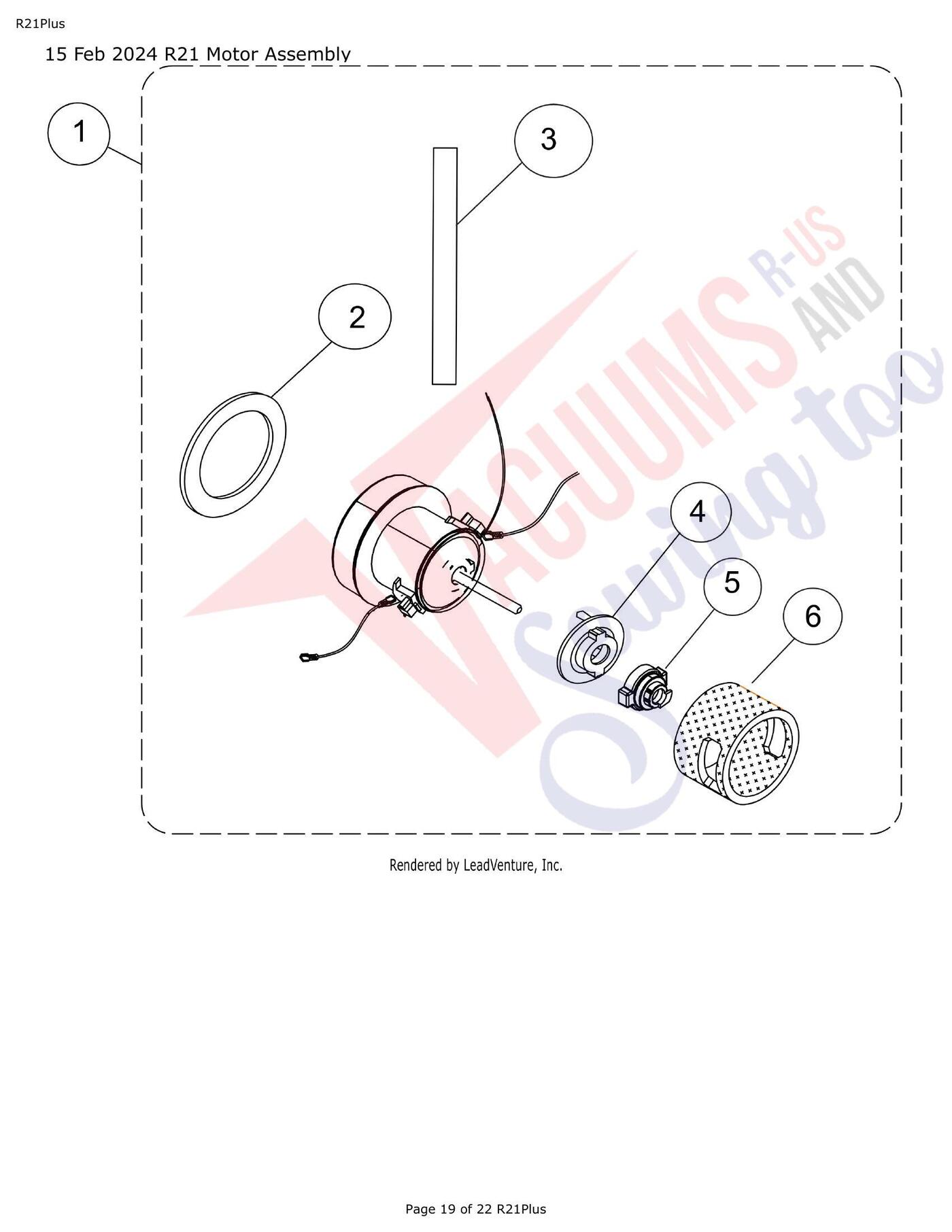

| # | Part image | Description | SKU | Price |
| 1 |  | 10 amp motor for riccar and simplicity vibrance and symmetry straight shaft for smooth belts | WP10394 | $156.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Back Motor Mount Seal Part Number B113-0700C for Simplicity and Riccar Models 7200, 7250, 7300, 7... | B1130700C | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Rear Strip Spacer Motor Part Number B113-3600 for Riccar Models R100, R200, R300, R300C, R500, R6... | B1133600 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Front Motor Mount Part Number B113-1014B for Riccar and Simplicity Models R100, R200, R300, R300C... | B1131014B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Metal Pivot Sleeve Part Number B123-1300 for Simplicity and Cleanmax and Maytag and Riccar Models... | B1231300 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Motor Sound Suppressor Part Number B123-1900 for Simplicity and Cleanmax and Maytag and Riccar Mo... | B1231900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |

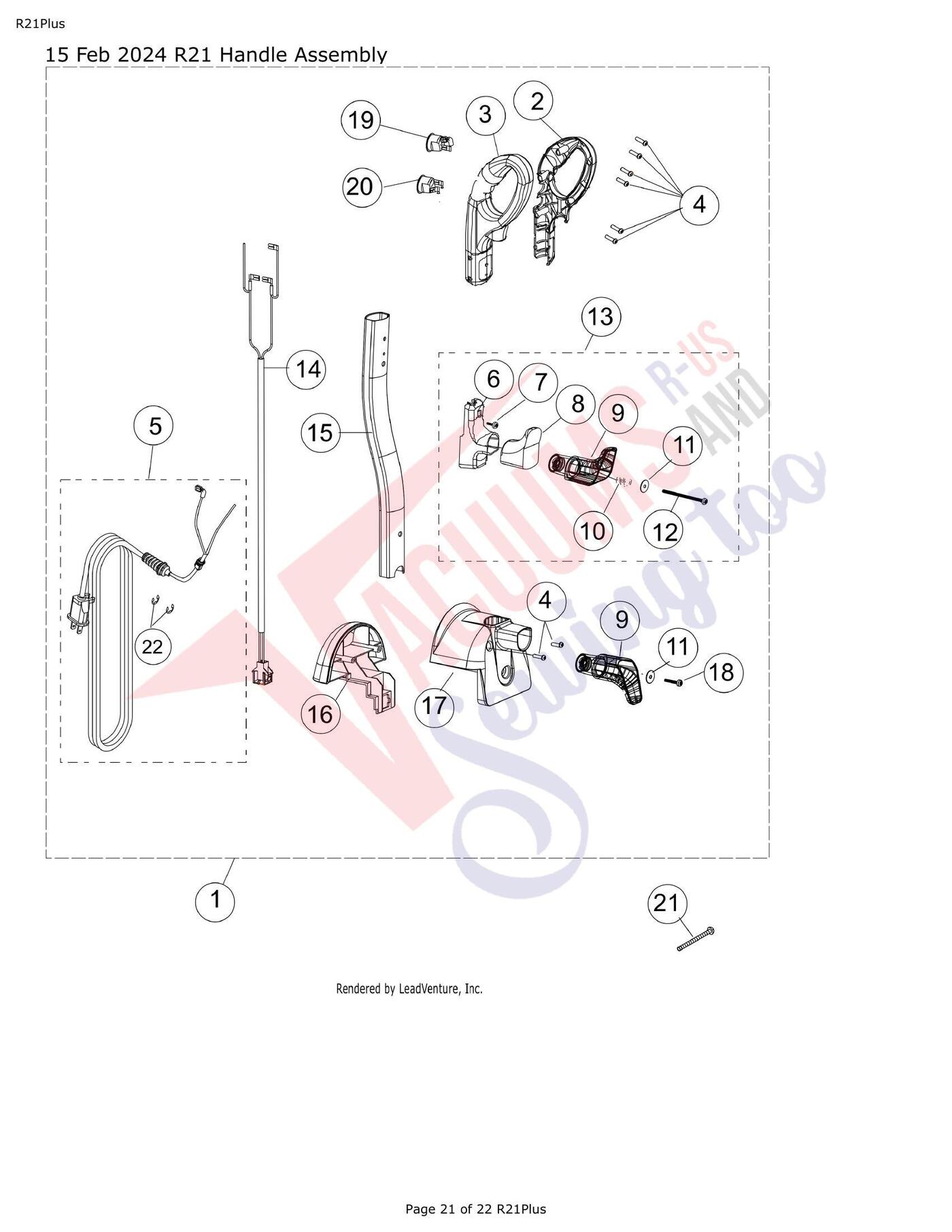

| # | Part image | Description | SKU | Price |
| 1 |  | Household Handle Assembly R21 Spirit | D4315025 | $116.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Handle Grip Assembly Right Side for Vibrance, Symmetry, Heavy Duty | WP11204 | $5.99Add to cart |
| 3 |  | Handle Grip Assembly Left Side for Vibrance, Symmetry, Heavy Duty | WP11203 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 5 |  | Power Cord 30 Ft. Household Assembly Part Number D434-1700B for Simplicity Models SYMCL, SYMCLNT,... | D4341700B | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Upper Cord Hook Mount Part Number B431-6614 for Simplicity Models SYMCL, SYMCLNT, SYMC, SYMCNT, S... | B4316614 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Screw M4X16MM Upper Cord Hook
Mount Part Number A430-0500C for Simplicity Models SYMCL, SYMCLNT, ... | A4300500C | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Hose Carrier Rplacement Black Part Number B430-0214 for Simplicity and Riccar Models 6100, 6370, ... | B4300214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Upper/Lower Cord Hook for Riccar Vibrance and Simplicity Symmetry | B430-0114 | $2.99Add to cart |
| 10 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 11 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Screw M4 X 80MM Upper Cord Hook With Tools Handle (SYMD SYMDL
SYMP SYMS SYM.USAFS) Part Number A... | A4300600C | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Upper Cord Hook Assembly with Tools for Vibrance and Symmetry | WP11256 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Handle Harness R And 6 Upgrade - This is a Handle Harness R And 6 Upgrade | B4315700 | $12.09Read more |
| 15 | No Image | Black Handle Tube | B4316914 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Front Handle Mount | B4315325 | $0.00Read more |
| 17 |  | Handle Mount Back Part Number B431-5414 for Simplicity Models VIBPBP.2,VIBCBP.1 | B4315414 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | Lower Cord Hook Screw Part Number A430-0900 for Maytag and Riccar and Simplicity Models M700,R20S... | A4300900 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | ON OFF Switch Part Number A328-1500 for Maytag and Riccar and Simplicity Models M700,R10CV, R10CV... | A3281500 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Indicator Ligh Part Number A328-1600 for Simplicity Models SYMCL, SYMCLNT, SYMC, SYMCNT, SYMCL.US... | A3281600 | $2.99Add to cart |
| 21 |  | Handle Bolt Part Number A432-0505 for Riccar and Simplicity Models R100, R200, R300, R300C, R500,... | A4320505 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | E-Clip Part Number A732-2400 for Simplicity and Riccar Models BRLS, BRLD, BRLD.USA, BRLD.LE, BRLD... | A7322400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
