Schematic and parts book for proteam 1400xp . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 2 |  | Short Leviton Keyless Candelabra Sockets | 48217 | $9.99Add to cart |
| 3 |  | Filter Queen Screw-filter Queen Pwr Nozzle Motor Mount | 48218 | $1.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | 1 50FT | PV-46953 | Not Available |
| 6 | Not Available | RIVET | 45383 | Not Available |
| 7 | Not Available | HANDLE BUSHING | 46998 | Not Available |
| 8 | Not Available | CARRY HANDLE | 47292 | Not Available |
| 10 | Not Available | NUT PLATE | 43218 | Not Available |
| 11 | Not Available | MOTOR FILTER | 43762 | Not Available |
| # | Part image | Description | SKU | Price |
| 5 | Not Available | WASHER | 13345 | Not Available |
| # | Part image | Description | SKU | Price |

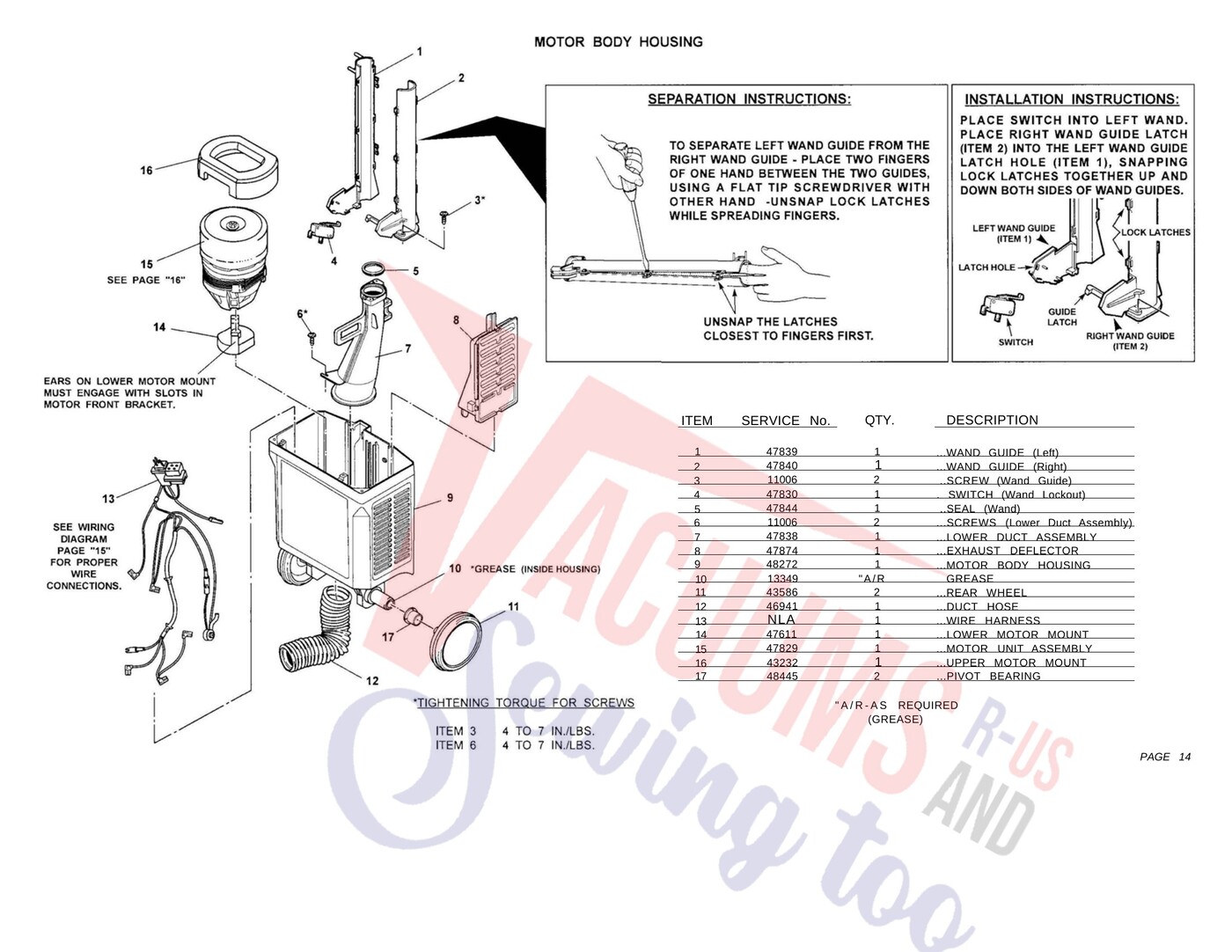

| 1 | Not Available | ...WAND GUIDE (Left) | 47839 | Not Available |
| 2 | Not Available | ...WAND GUIDE (Right) | 47840 | Not Available |
| 2 | Not Available | 2 | 11006 | Not Available |
| 4 | Not Available | . SWITCH (Wand Lockout) | 47830 | Not Available |
| 5 | Not Available | ..SEAL (Wand) | 47844 | Not Available |
| 6 | Not Available | ...SCREWS (Lower Duct Assembly) | 11006 | Not Available |
| 6 | Not Available | 1 | 47838 | Not Available |
| 8 | Not Available | ...EXHAUST DEFLECTOR | 47874 | Not Available |
| 9 | Not Available | ...MOTOR BODY HOUSING | 48272 | Not Available |
| 10 | Not Available | "A/R GREASE | 13349 | Not Available |
| 12 | Not Available | ...DUCT HOSE | 46941 | Not Available |
| 14 | Not Available | ...LOWER MOTOR MOUNT | 47611 | Not Available |
| 14 | Not Available | 1 | 47829 | Not Available |
| 16 | Not Available | ...UPPER MOTOR MOUNT | 43232 | Not Available |
| 17 | Not Available | ...PIVOT BEARING | 48445 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, CB BRACKET SUCTION MOTOR XTREME PLUS Part Number: 47872 for Electrolux | 47872 | $0.79Read more |
| 2 | Not Available | FRONT BRACKET (W/Carbon Brushes) | 47873 | Not Available |
| 3 | Not Available | CARBON BRUSH | 47857 | Not Available |
| 5 | Not Available | ARMATURE / BRACKET KIT (W/ Carbon Brushes) | 47856 | Not Available |
| 6 | No Image | SPRING, BETWEEN FIELD & BRACKET PROLUX/XTREME/+ Part Number: 43489 for Electrolux | 43489 | $1.27Read more |
| 7 | Not Available | 1 STATOR ASSEMBLY | 47858 | Not Available |
| 8 | Not Available | MOTOR BRACKET | 47871 | Not Available |
| 9 | Not Available | FAN SPACER (Short) | 45268 | Not Available |
| 10 | Not Available | WASHER | 45267 | Not Available |
| 11 | Not Available | FAN | 43252 | Not Available |
| 12 | Not Available | FAN SPACER (Long) | 45269 | Not Available |
| 13 | Not Available | FAN HOUSING ASSEMBLY | 45266 | Not Available |
| 14 | Not Available | WASHER | 13295 | Not Available |
| 15 | Not Available | NUT | 13341 | Not Available |
| 16 | Not Available | MOTOR ASSEMBLY | 47829 | Not Available |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |

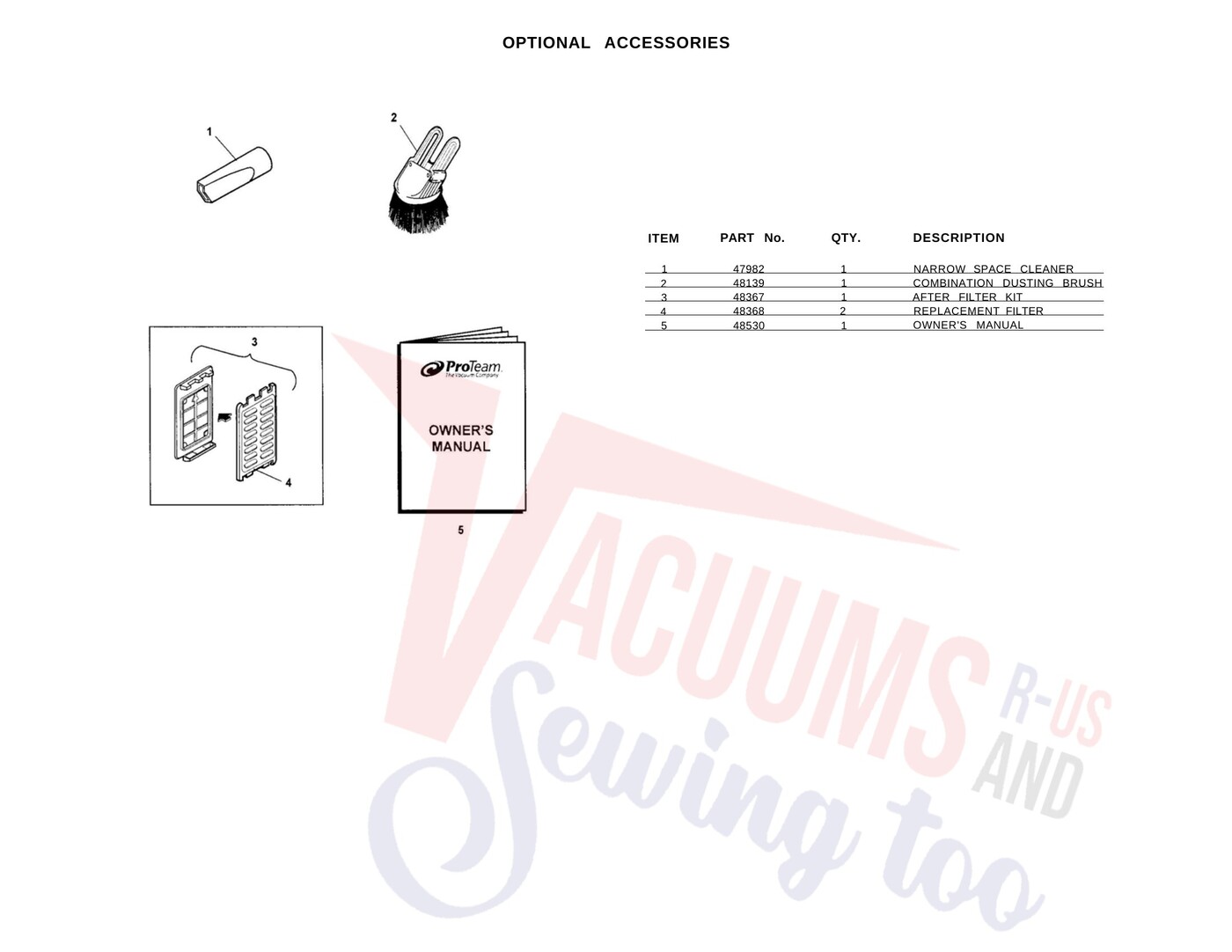

| 1 | Not Available | NARROW SPACE CLEANER | 47982 | Not Available |
| 2 | Not Available | COMBINATION DUSTING BRUSH | 48139 | Not Available |
| 3 | Not Available | AFTER FILTER KIT | 48367 | Not Available |
| 4 | Not Available | REPLACEMENT FILTER | 48368 | Not Available |
| 5 | Not Available | OWNER'S MANUAL | 48530 | Not Available |
