Schematic and parts book for PowerFlight PFX1085EAWG . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

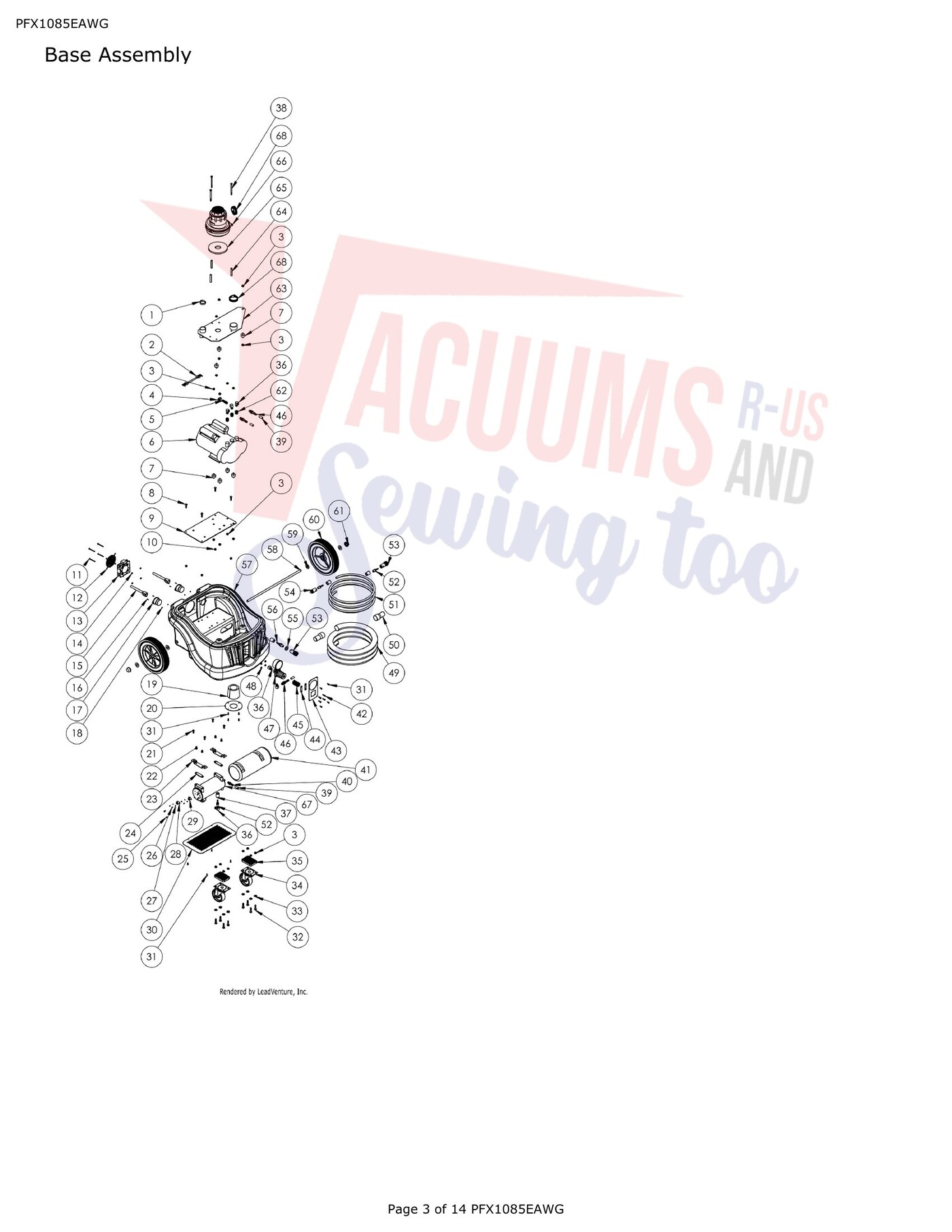

| # | Part image | Description | SKU | Price |
| 1 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Wiring Kit, PFX1350 W/ Heater | X9170 | $84.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | 1/4 X 20 FLANGED SERRATED NUT | X9528 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Barb, 1/2 Hose 1/4 NPT Male | 7AT004 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Pump Assembly,Extractor,VAC,500psi,Cat,AC Induction Motor | CP500AC | $1,266.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Motor Chock Mount 1/4 - 20 x 1/2 | 72149A | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Screw Hex Head Cap 1/4-20x1 | X8211 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Plate | X9465AW | Not Available |
| 10 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | SCREW, 8-32X2 PHIL PAN M/S ZINC BULK | 72703A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Cover Fan | 72702A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Fan Cooling 120V 92MM 35 Cfm | 72700A | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Nut 8-32 Lock with Nylon Insert | X8260 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Cord,Extractors,25ft,Yellow,12/3 SJTW | M1374 | $149.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | SCREW, No 6-32X5/8 PHIL PAN MS SS | 7DW001 | $1.99Read more |
| 17 | No Image | Receptacle, Flanged Inlet Straight Blade | X9429 | $25.99Read more |
| 18 | No Image | NUT, 6-32 LOCK W/NYLON INSERT ZINC | X8257 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | FOAM, MUFFLER MID SIZE EXTRACTOR | X9470 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Plate, Muffler Mid Size Extractor | X9471 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bracket,Extractors,Mid-Size,Heater | X9474 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | PAD INSULATION HEATER | X9255 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Screw 8-32X3/8 PHMS SS | 7DM004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | CAP SCREW 4-40X1/4 18-8 SS | X9869 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | WASHER NO 4 SPLIT LOCK 18-8 SS X9869 | X9869W | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Thermostat, Disc Manual Reset .50 250F | PX158 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Thermostat, Disc Auto Reset .50 190F | PX160 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Cover, Heater Mid Size Extractor | X9464 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Caster Assembly, Wheel 4 In., Grey, Extractors | X9153 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | SPACER, CASTER CFR MID SIZE | 72783A | $6.99Read more |
| 36 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Ferrule Hose .59 OD | PX161 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | SCREW, HHCS 1/4-20X3.5 PARTIAL THREADS ECO500 | 72862A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Ferrule, Hydraulic 3/8 Hose | X9436 | $10.99Read more |
| 40 |  | Fitiing, Hydraulic Rigid 1/4 | X9434 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Foam, Insulation for Heater | X9226 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC | X8851 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | Plate, Pressure Regulator Mid Size | 72638B | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | GASKET PAD MOUNTING REGULATOR PRO 500 / PFX 1350 | 72639A | $2.99Read more |
| 45 | No Image | SPRING SILVER 500 PSI FOR PRO 500 | 72689A | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | 1/4 Swivel Hydraulic Fitting | 5361K16 | Not Available |
| 47 | No Image | Regulator Assembly 500 PSI With Pulse Hose | X9501CP | $472.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 |  | Hose 20ft THMD Gry/Blk Insider Outside w/o Cuffs | X8550 | $86.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Cuff 1-1/2 Standard TMHD RCP SHP Gray | K1112 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Solution Hose 1500 P.S.I. | X9315 | $0.00Read more |
| 52 | No Image | Barb 1/4 X 1/4 Male Pipe Steel | X9492 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | Quick Disconnect .25 Female | PX6 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | Quick Disconnect, .25 Male/Male 2 Way Shut Off | PX5 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 |  | WASHER .400 ID 1.50 OD ZP | X8239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Barb Swivel 1/4H X 1/4M | X9316 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | Base, Mid Size Extractor 120V, Black Ral No 9017 | X1050120 | $379.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | Rear Axle, .50 Dia X 20.25 Mid Size Extractor | X9463 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 |  | WASHER, 1/2 USS FLAT 18-8 SS | 7CM007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 |  | Wheel 10-1/2bore Blk with Gray Tire Midsize Ext | X9063 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 |  | Nut, Push 1/2 | 7GL002 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | Reducer, 3/8 To 1/4 | PC20 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Vac Plate, Mid Size Air Watt Motor | X9868 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 | No Image | Spacer, Vac Motor 2.375 | 72651B | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 |  | Gasket, Flat Airwatt Motor .5 Neoprene Blend | X9696 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 |  | Motor,Extractor,120,VAC,Ametek,6.6,2 STG,Airwatt | 72855A | $360.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 |  | Heater, 1710W 120Vac Single Element 9 Ohm | X9256B | $529.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 |  | Clamp 2.5 Worm Gear SS Hex Slot Size 32 | PX215 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

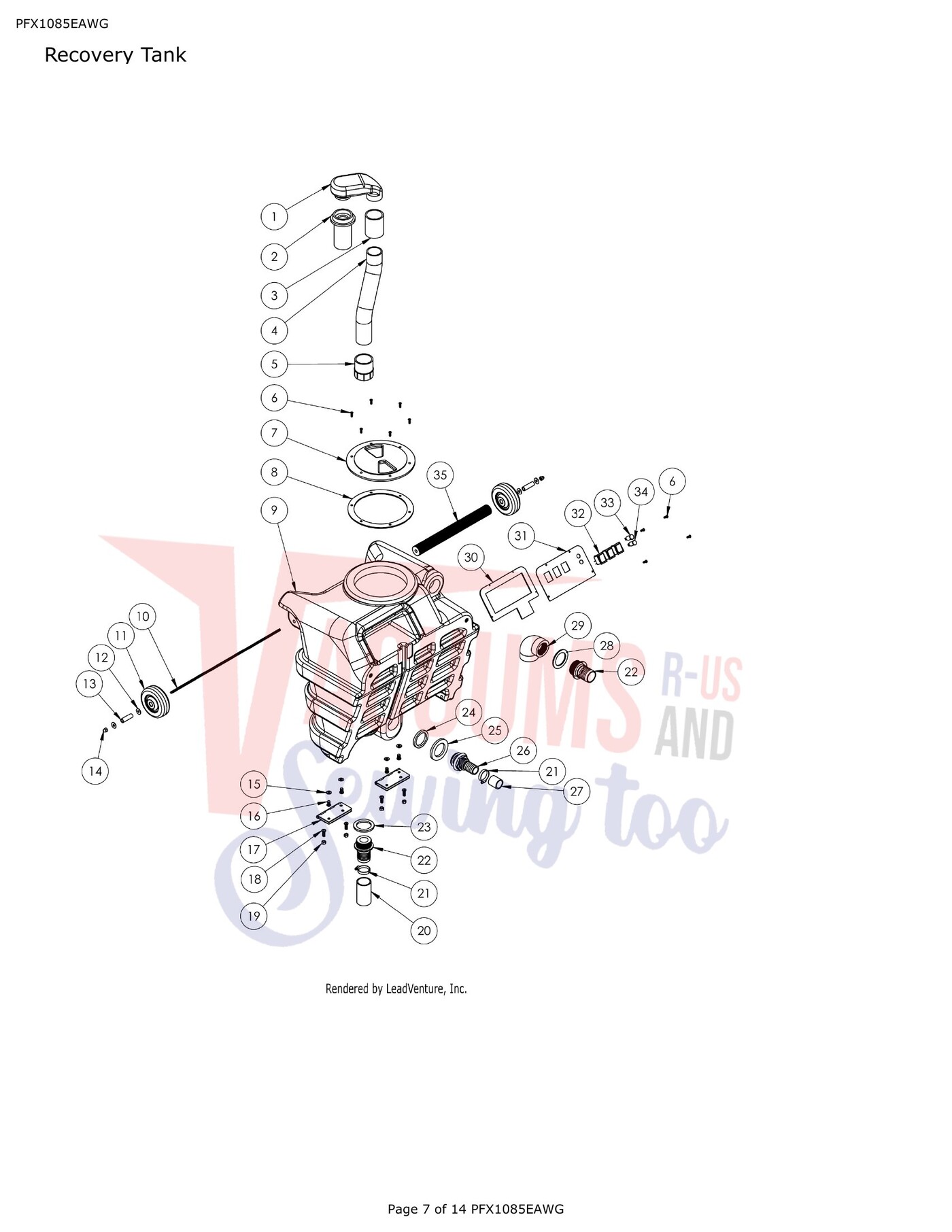

| # | Part image | Description | SKU | Price |
| 1 | No Image | Tube, Vacuum | PX33 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Float, Cage W/Heavy Ball | PX31 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | COUPLING PVC 1-1/2 SLIP X SLIP | 72615A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Standpipe, Midsize Extractor | 72628B | $64.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Coupler, Plastic 1.50 Slip X 1.50 FPT | PX63 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Screw No.8 5/8 Tapping Phil PH Blk Zinc | 72387A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Gasket LID 8 OD X 6.625 ID | PX103G | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | TANK RECOVER MD SZ EXTRACTOR BLK RAL NO 9017 | X1051BLK | $436.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | All Thread, 5/16-18 X 18.75 Zinc | X9452 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Wheel Black 4 X 1-1/4 | X8025 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Spacer 1.625 Long .50 OD .313 ID | 72486A | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | NUT, 5/16-18 CAP ZP | 72148A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | WASHER, ID.299 OD.622 THK.055 ZINC PLATED | X8858 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Tank Hinge PFX900S PFX1350 | X9014 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | Screw 1/4 20x3/4 Phil PH MS SS | 7EW001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Hose 1-1/2 Wire-Reinforced Black | 72656A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb | PX25 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Gasket, Dump Valve .1875 Thick 1.75 ID X 2.50 OD | PX14 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | GASKET DRAIN INNER 1.330 ID 1.825 OD .25 THICK | 72679A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | GASKET DRAIN OUTER 1.330 ID 2.330 OD .25 THICK | 72680A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Drain Fitting, 1 Pro Series With Nut | 72677A | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Tubing, Vinyl 1 ID 1-1/4 OD Pro Series Drain | 72678A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD | PX14A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Elbow Fitting Plastic 90 White 1.5 FPT | PX11A | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | Gasket, Switch Plate Medex | X9484 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Switch Plate, 3-Switch 2 Light Mid-Size Extractor | X1007 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Light, Neon W/ Lens 120V Amber | X8102 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Light, Indicator Green | PX86 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | Handle, Mid Size Extractor | X9453 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Standpipe Assembly w/ Deflector Plate, Midsize Extractor | X1709 | $90.99Read more |

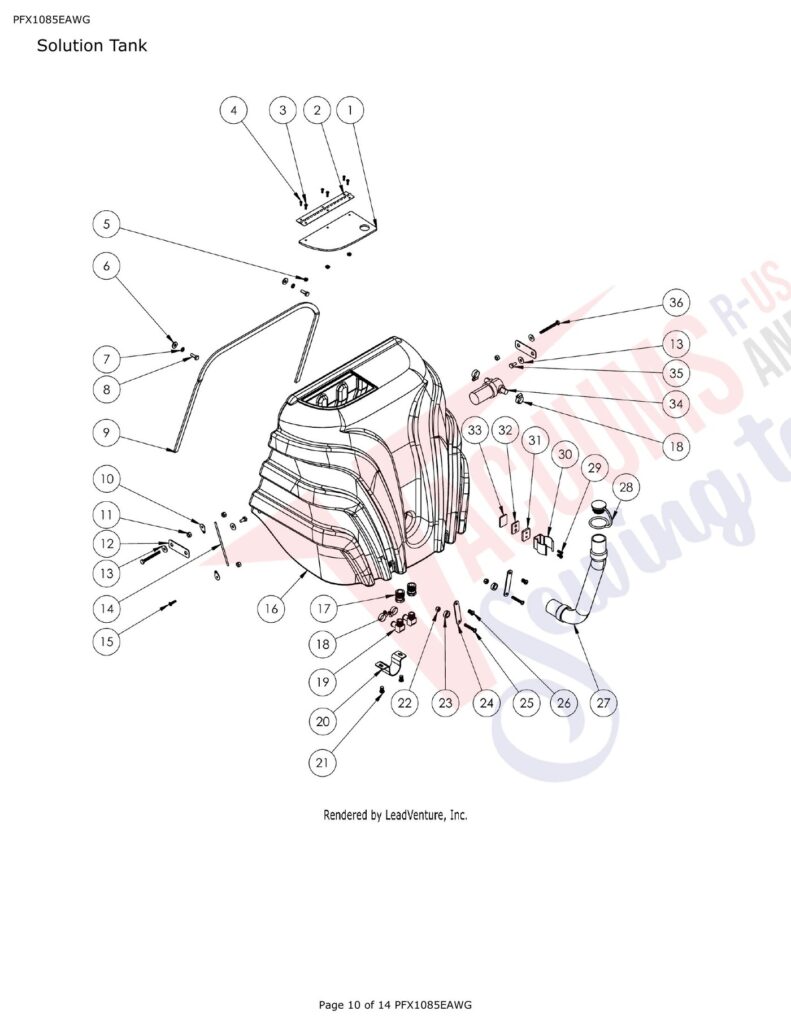

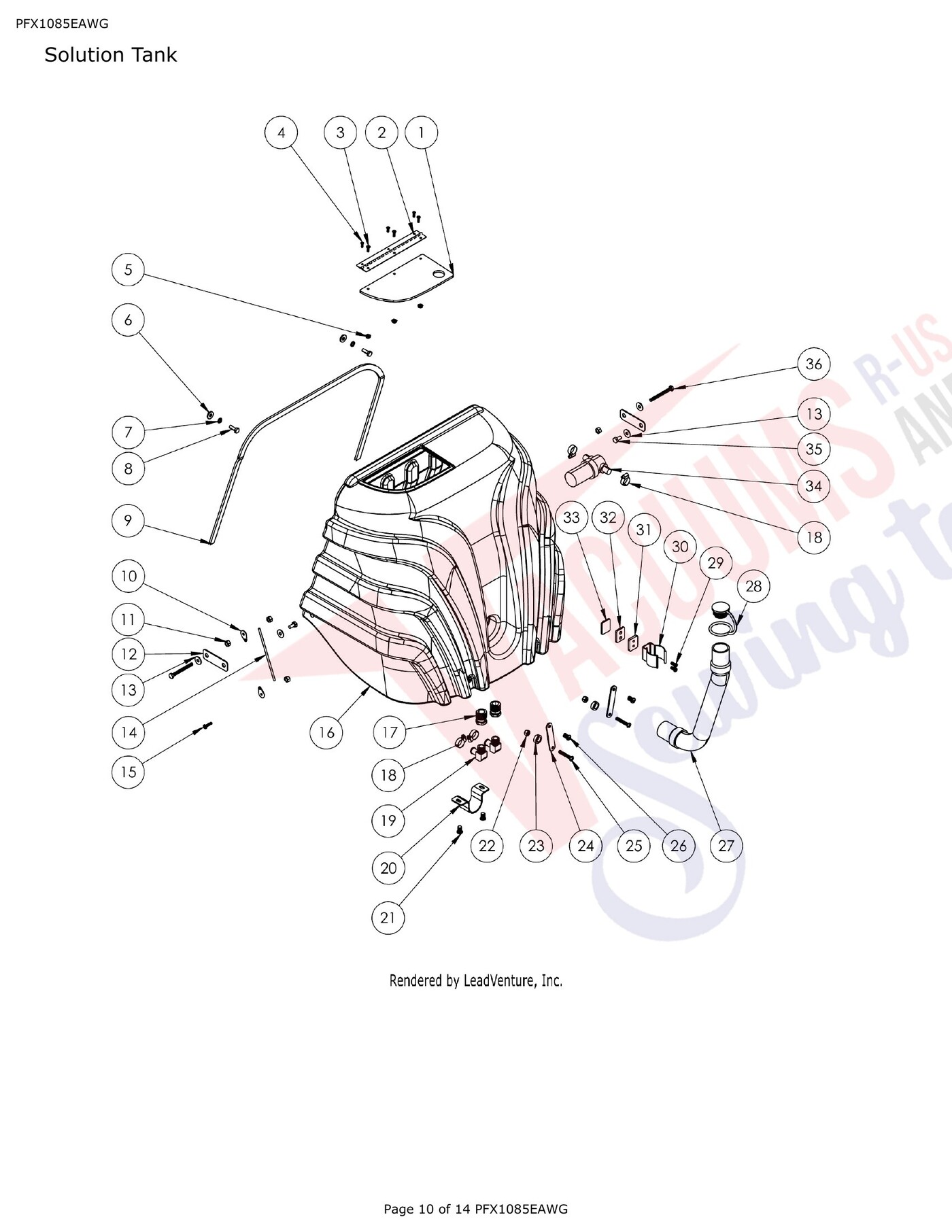

| # | Part image | Description | SKU | Price |
| 1 |  | LID SOLUTION TANK MID SIZE REV03 | X9451 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Hinge, Solution Tank Lid | X9450 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Screw 6x1/2 Pan Hd PH Blk Self Tapping | X8261 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | WASHER, RUBBER .29ID .688OD 1/8 80 DURO | 72667A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | WASHER M6 X 20 X 1.65 FENDER SS CIMEX | 0006000503 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Gasket, Strip, Tank Medex | X9483A | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | End Loop, With Two Holes 16G | X9069 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Nut KEP 1/4 - 20 Zinc | 7BF004 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Side Strap, Mid Size Extractor | X9475 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | ROPE SOLID BRAID | 72660A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC | X8851 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Solution Tank | X1052GRY | Not Available |
| 17 |  | REDUCER 1/2 TO 3/8 | PC22 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Elbow, 1/2 H - 3/8 MPT | 71507A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Bracket, Drain Hose | X9448 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Screw 1/4 20x1/2 Phil PH MS 18-8 SS | 7BS003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Nut 1/4-20 Lock Nylon Insert | X8237 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Spacer 1/2 ID X 3/4 OD X 1/4 Long | 72635A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Strap, Front, Mid Size Extractor | X9444 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | SCREW, 1/4-20 1 1/2 MACHINE | X9359 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Screw 1/4 20x1/2 Phil PH Blk 18-8 SS | 7BS003BLK | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | SCREW, 10-32X1/2 PHIL PAN MS 18-8 SS | 71651A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Clip Spring, Black | 72173A | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | PAD SPRING CLIP | 72669A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | GASKET NUT PLATE PFMA ELITE | 72175A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Clip, Nut Plate Midsize Extractor | 72170A | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Filter,Extractor,Inline,Midsize,with housing | PX303 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | BOLT, 1/4-20X2-1/2 HEX TAP18-8 SS | 71639A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

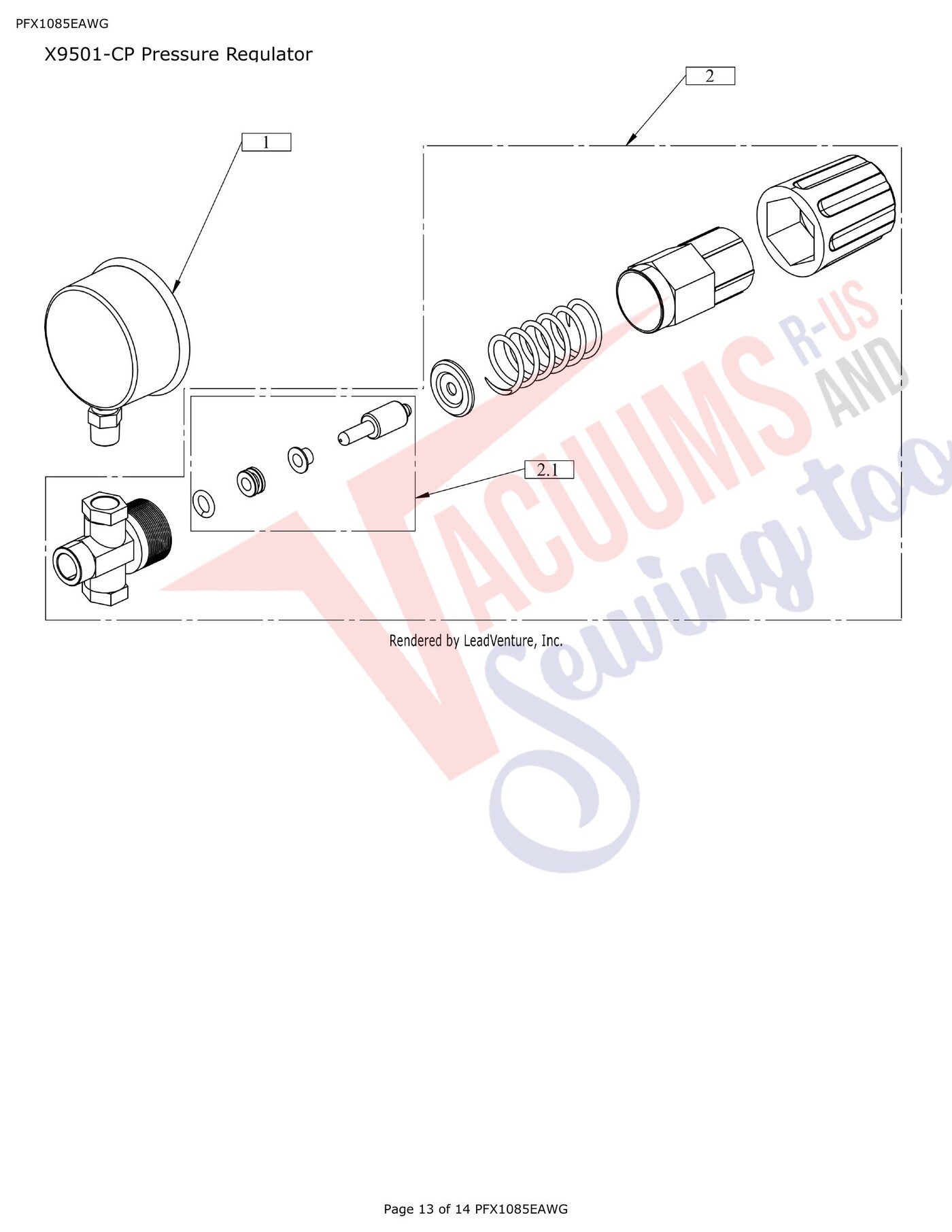

| # | Part image | Description | SKU | Price |
| 1 | No Image | GAUGE 1000 PSI BOTTOM NIPPLE | 72758A | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | PRESSURE REGULATOR FOR PRO 500 and CASCADE WITH BLACK KNOB | 72691A | $280.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2.1 | No Image | Regulator Rebuilt Kit | 10370A | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
