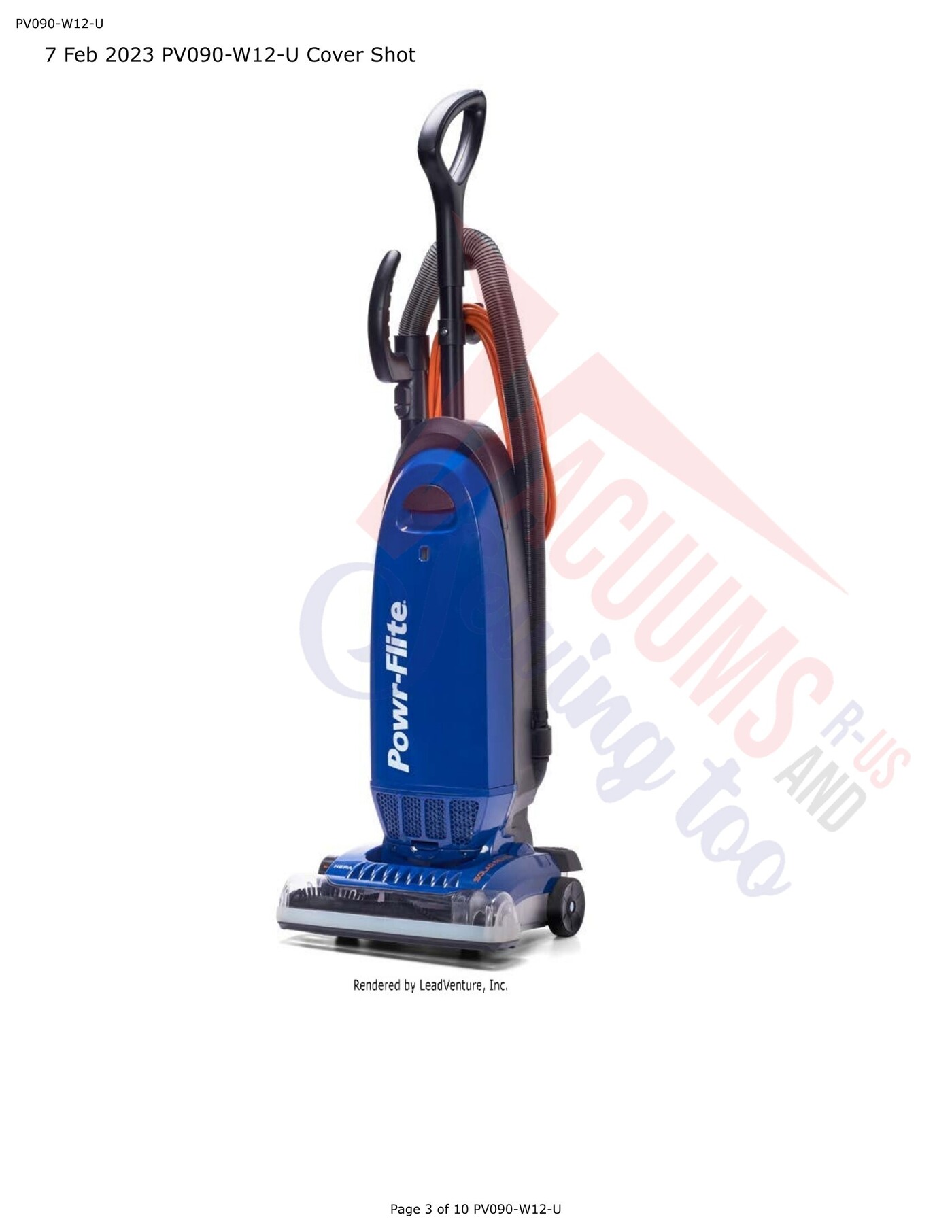

Schematic and parts book for Powr-Flite PV090-W12-U . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

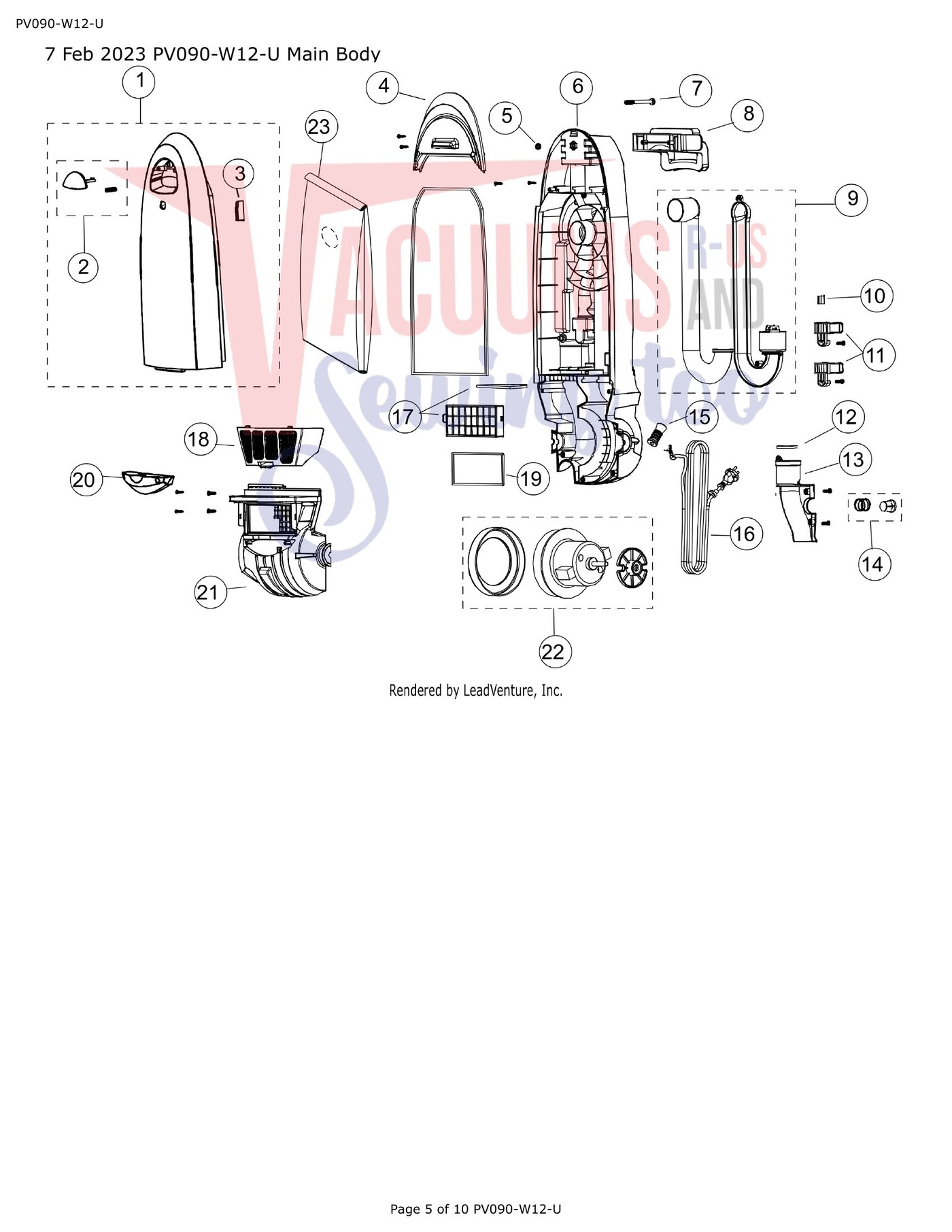

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Cover Bag Door Complete Assy Blue PV090-W12-U | X0905 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Dust Cover Latch with Spring Part Number C283-1000 for Simplicity Models S20EZM | C2831000 | $2.99Read more |
| 3 |  | Full Bag Indicator Assembly Part Number C283-2000 for Simplicity Models S20EZM | C2832000 | $2.99Read more |
| 4 |  | Cover Plate Part Number B283-1000 for Simplicity Models S20EZM | B2831000 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Handle Nut Part Number B283-4400 for Simplicity Models S20EZM | B2834400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Dust Compartment Part Number C283-2300 for Simplicity Models S20EZM | C2832300 | $71.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Bolt Part Number B283-0100 for Simplicity Models S20EZM | B2830100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Assembly for Simplicity S20EZM and S20PET and CleanMax Nitro | WP11603 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Airpath Assembly Part Number C283-2700 for Simplicity Models S20EZM | C2832700 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | | Upper Crevice Tool Clip Part Number B283-0200 for Simplicity Models S20EZM | B2830200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Lower Tool Clip Part Number B283-0300 for Simplicity Models S20EZM | B2830300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Wand Inlet Tube Seal Part Number B283-0400 for Simplicity Models S20EZM | B2830400 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Wand Inlet Tube | B283-0500 | Not Available |
| 14 |  | Pressure Relief Valve Part Number C283-2500 for Simplicity Models S20EZM | C2832500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Cord Strain Relief Part Number B283-0600 for Simplicity Models S20EZM | B2830600 | $2.99Read more |
| 16 | No Image | Cord, 35ft 18/3 SJT, Orange, PV090-W12-U | X0906 | $67.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Filter Pack, Pre and Post Filter Set, PV090-W12-U | X0909 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17a | No Image | FILTER FRAME PLASTIC BLK X0909 | X0910 | $1.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Cover, Post Filter, Blue, PV090-W12-U | X0904 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Post HEPA Filter Seal Part Number B283-0900 for Simplicity Models S20EZM | B2830900 | $2.99Read more |
| 20 | No Image | Cover, Lens, Blue, PV090-W12-U | X0908 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Cover, Motor, Blue, PV090-W12-U | X0903 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Simplicty Motor Assembly for S20EZM 12 Amp | WP10688 | $73.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bag,Vacuum,HEPA,Carton of 25 each of B211-5800 | x1999 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

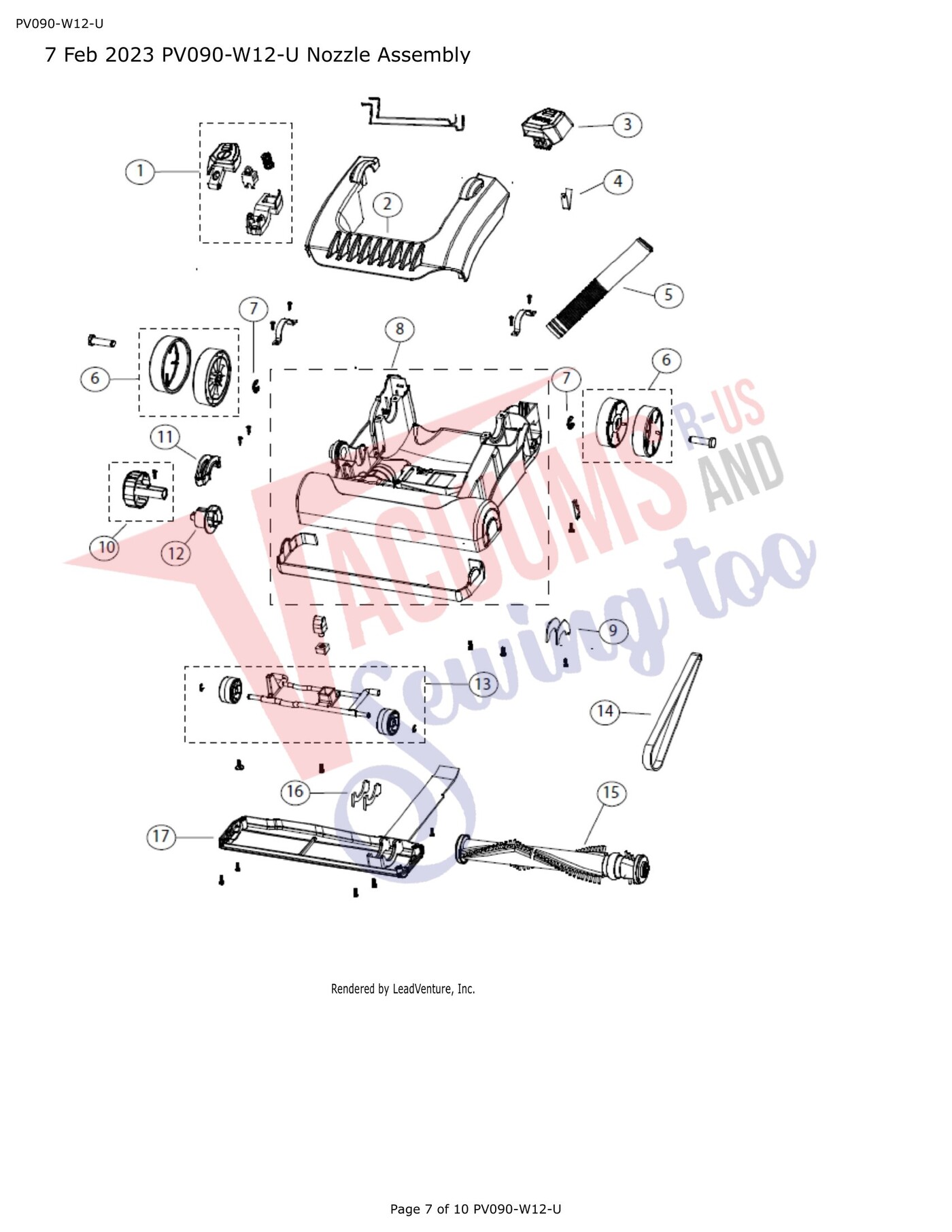

| # | Part image | Description | SKU | Price |
| Screw | Not Available | Self-Tapping Screw 4mm x 14mm | Screw | Not Available |
| 1 |  | On/Off Switch Pedal for Simplicity S20EZM, S20PET and CleanMax Nitro | WP11602 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cover, Nozzle, Blue, PV090-W12-U | X0902 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Handle Release Pedal for S20EZM, S20PET, FBJFM | WP11307 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Handle Release Spring for S20EZM CPU250 and CPU350 | B2835200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Nozzle Inlet Tube Part Number B283-1300 for Simplicity Models S20EZM,S20PET | B2831300 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Rear Wheel Assembly Part Number B283-0038 for Simplicity Models S20EZM,S20PET | B2830038 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | RING RETAINING EXT. 3/8 | 03947 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Simplicity Nozzle Base Housing Assembly for S20EZM | WP11318 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Upper Agitator Seal Part Number B283-1400 for Simplicity Models S20EZM,S20PET | B2831400 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Knob, Height Adjustment, Black, PV090-W12-U | X0901 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Height Adjust Press Plate Part Number B283-5500 for Simplicity Models S20EZM,S20PET | B2835500 | $2.99Add to cart |
| 12 |  | Height Adjust Axle Part Number B283-5600 for Simplicity Models S20EZM,S20PET | B2835600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Height Adjust Frame Assembly Part Number C283-3000 for Simplicity Models S20EZM,S20PET | C2833000 | $39.99Add to cart |
| 14 |  | Belt Bulk Black Rubber Stretch CPU250 CPU350 FBEZM CMNR-QD S20EZM | B014-6900 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Brushroll Agitator Assembly Plastic S20PET CPU-250 | C2830019B | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Lower Agitator Seal Part Number B283-1500 for Simplicity Models S20EZM,S20PET | B2831500 | $2.99Read more |
| 17 |  | Base Plate Plastic for S20PET EZM | B2830042B | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

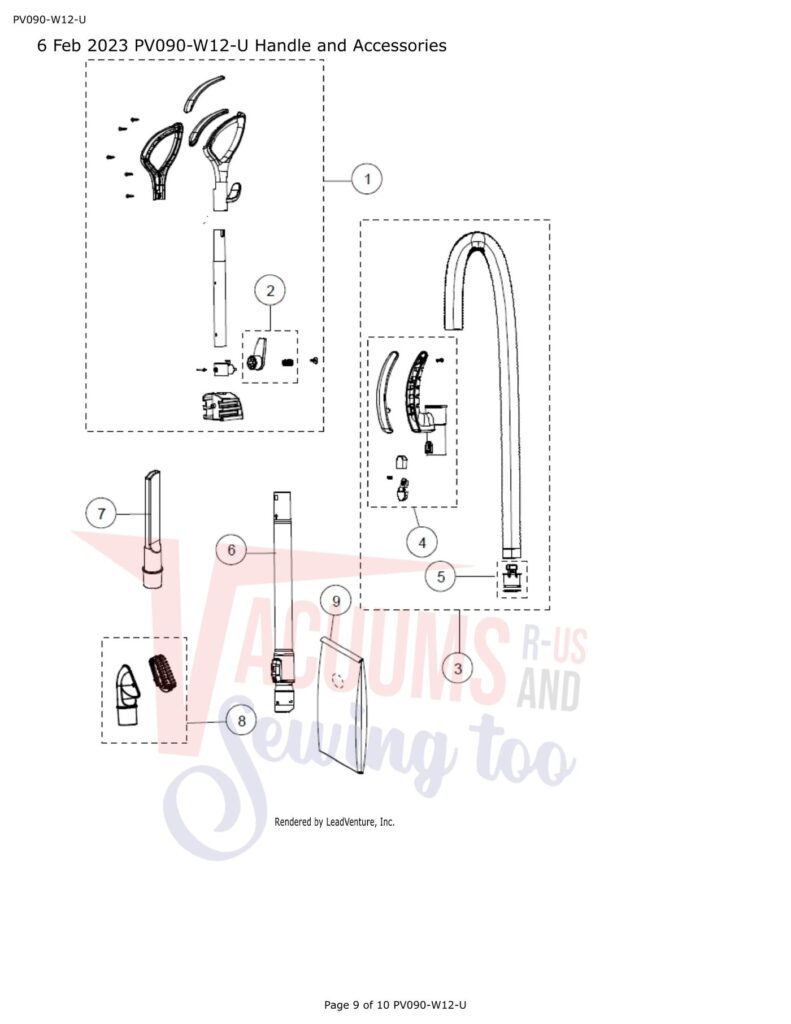

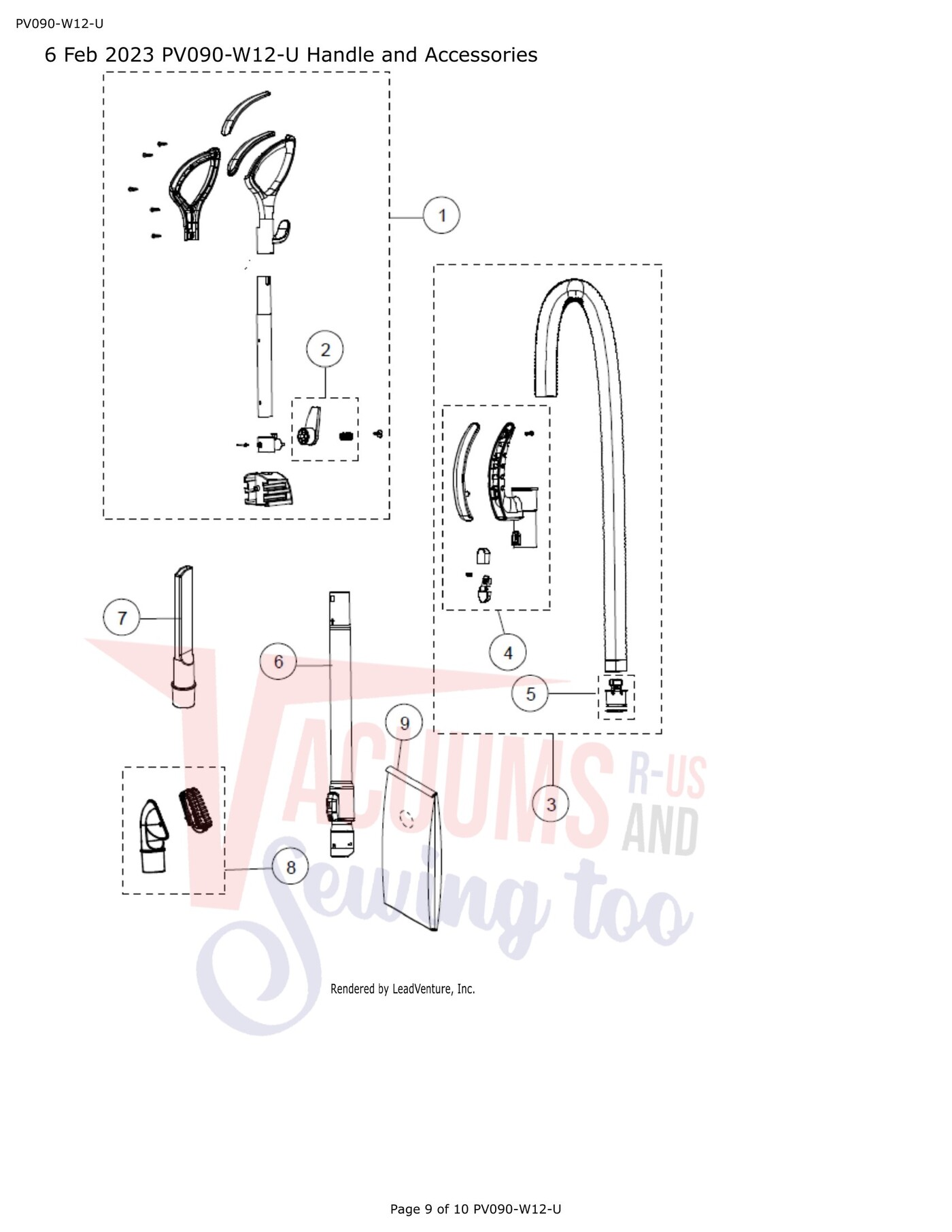

| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle Tube Assembly, Black, PV090-W12-U | X0907 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cord Hook | C2832200 | $0.00Read more |
| 3 |  | Hose Assembly for FBEZM CPU250 CPU350 CMNR | C2832800 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Hose Handle Part Number B283-4700 for Simplicity Models S20EZM | B2834700 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Hose Connector Part Number B283-4600 for Simplicity Models S20EZM | B2834600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Fuller Brush Riccar Simplicity Quickdraw Aluminum Telescopic Wand - Models S20EZM. R25D. R25P, S2... | B4345400B | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Crevice Tool Part Number B283-1200 for Simplicity Models S20EZM | B2831200 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | CARPET PRO UPHOLSTERY TOOL NYLON BRISTLE CPU250 CPU350 CMNR | C2833700 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Reusable Cloth Bag w/Clamp | CMCLOTH | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
