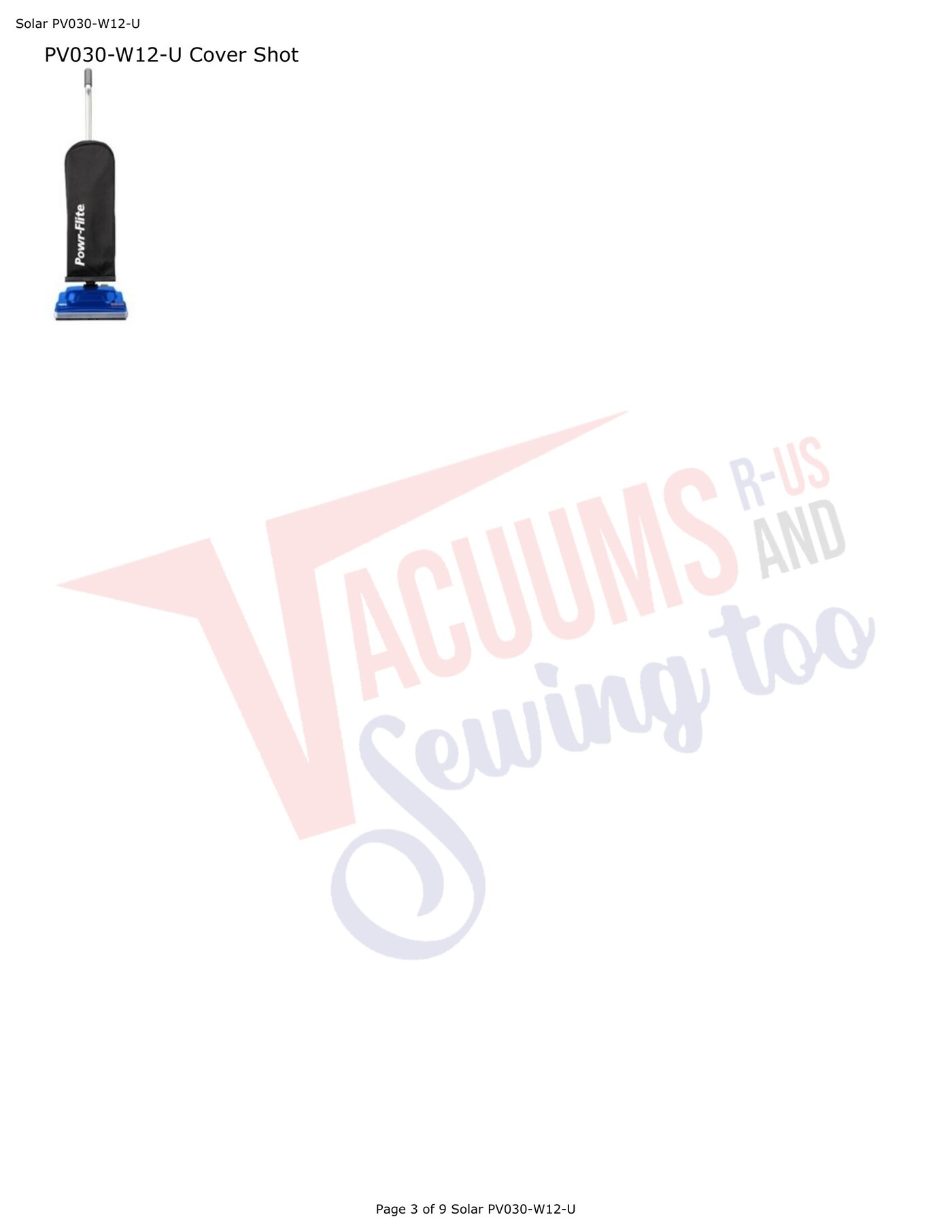

Schematic and parts book for powr-flite PV030-W12-U . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

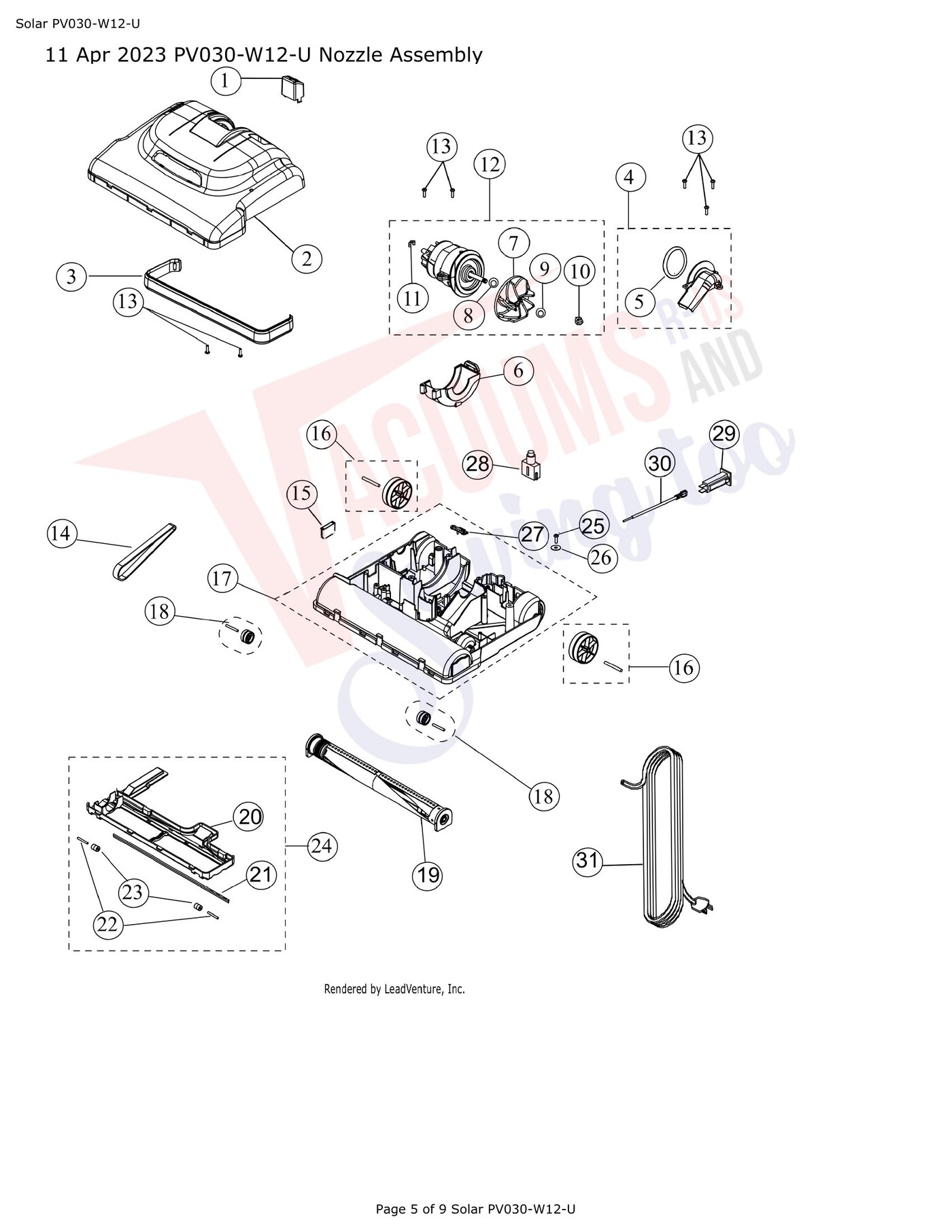

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| 1 |  | Foot Pedal On Off ULW S20 | B0280014 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | NOZZLE ULW COMMERCIAL W/O LENS W/ FOOT PEDAL POWR-FLITE SOLAR | B01737391 | $9.76Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Furniture Guard Part Number B029-0314 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E... | B0290314 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Fan Duct Cover Assembly with Seal for Ultralight Weight | D1233814 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Available ReconditionedReconditioned Fan Duct Cover Assembly with Seal for Ultralight Weight More Product Details | D1233814R | $7.99Add to cart |
| 5 |  | ULW Motor Seal Kit RSL ZM200 ZM400 ZM600 | C1210000 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | Lower Fan Housing | B123-3614 | Not Available |
| 7 | Not Available | Motor Fan | B123-3000B | Not Available |
| 8a |  | Behind Fan Washer (Ametek Motor) Part Number A732-9305 for Simplicity and Riccar Models F3400, F3... | A7329305 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8b |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Nut | A733-3200 | Not Available |
| 11 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... | A7323000 | $2.99Add to cart |
| 12 |  | Ultralight Weight Motor Assembly for Simplicity, Riccar, and CleanMax | D1131500 | $133.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 14a |  | Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums | B0140814B | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 14a |  | Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640
Also Fits Simplicity Freedom - Replacement For:... More Product Details | 17394 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 14a |  | Compatible alternateReplacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... More Product Details | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart |
| 14a |  | Compatible alternateRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk More Product Details | RBS2 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 14b | Not Available | Belt (2 Pack) | ULW-B2 | Not Available |
| 15 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... | B0161914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Large Rear Wheel and Axle Part Number D350-6631 for Simplicity and Riccar Models F3400, F3500, F3... | D3506631 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | ULW Basetray Assembly with Plastic Stop RSL1-5 F3300-3700 | D016-1114 | $42.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Available ReconditionedReconditioned ULW Basetray Assembly with Plastic Stop RSL1-5 F3300-3700 More Product Details | D016-1114R | $37.65Add to cart |
| 18 |  | Front Wheel Assembly and Axle for UltraLightWeights | WP11198 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Agitator Wood ULW Assembly S10E, R10E,F3300 | D012-2800 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Available ReconditionedReconditioned Agitator Wood ULW Assembly S10E, R10E,F3300 More Product Details | D012-2800R | $31.99Add to cart |
| 20 | Not Available | Base Plate Cover | B015-3114 | Not Available |
| 21 |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701700B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 24 |  | Baseplate Assembly w/ Squeegee for Riccar and Simplicity Ultralite Vacuums | WP11665 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | ULW UPRIGHT STOP - PLASTIC RED | B016-1230 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Foot Switch On/Off for ULW SF1 F3300 | A0280014 | $11.99Add to cart |
| 29 |  | Circuit Breaker 5 Amp for Riccar | A028-0114B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Lead Wire Yellow (F3400,
F3600) Part Number B433-0341 for Simplicity and Riccar Models F3400, F35... | B4330341 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | CORD, ORANGE 35FT DIRECT WIRE 18/3 115V | A2281300 | $36.99Add to cart Special order: ships in 2 to 4 weeks |

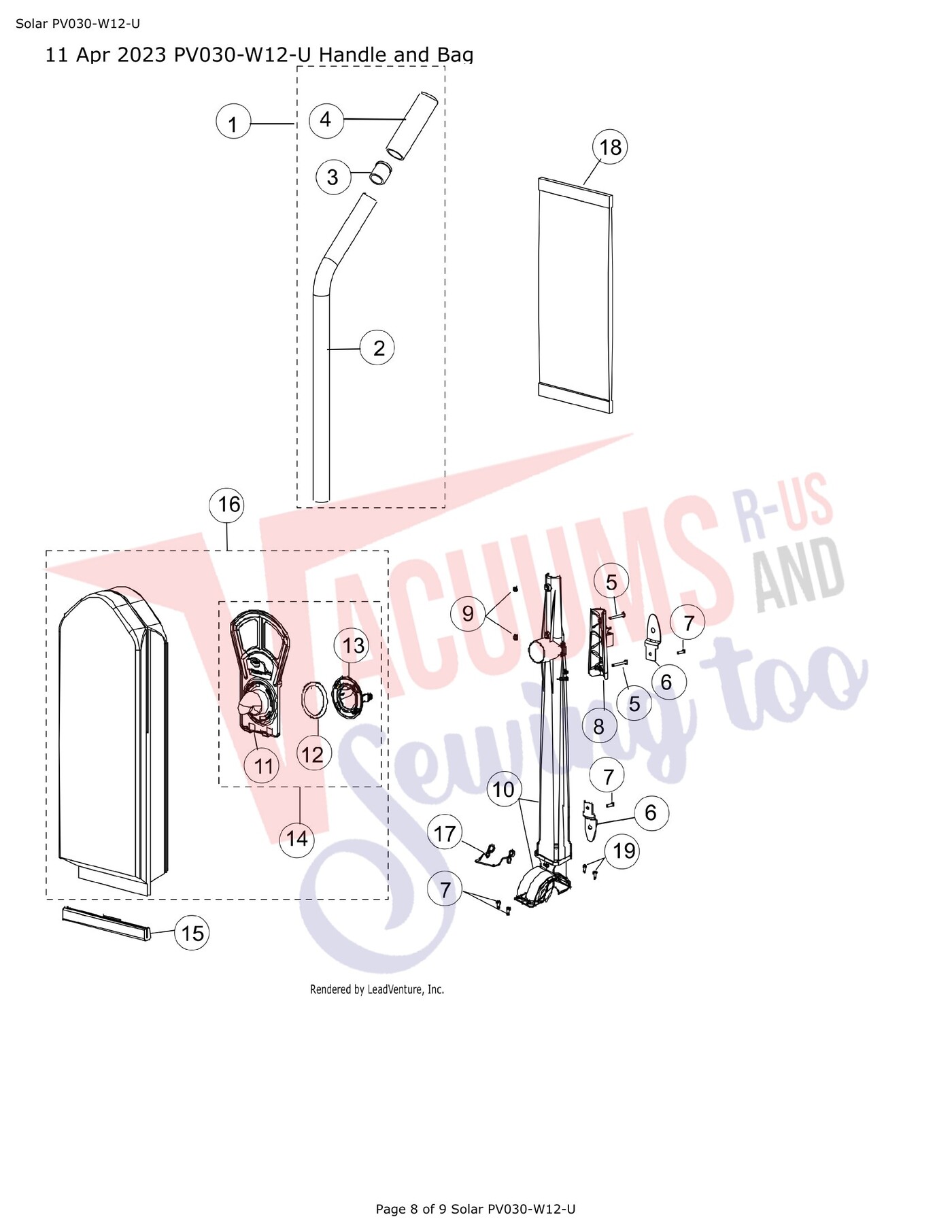

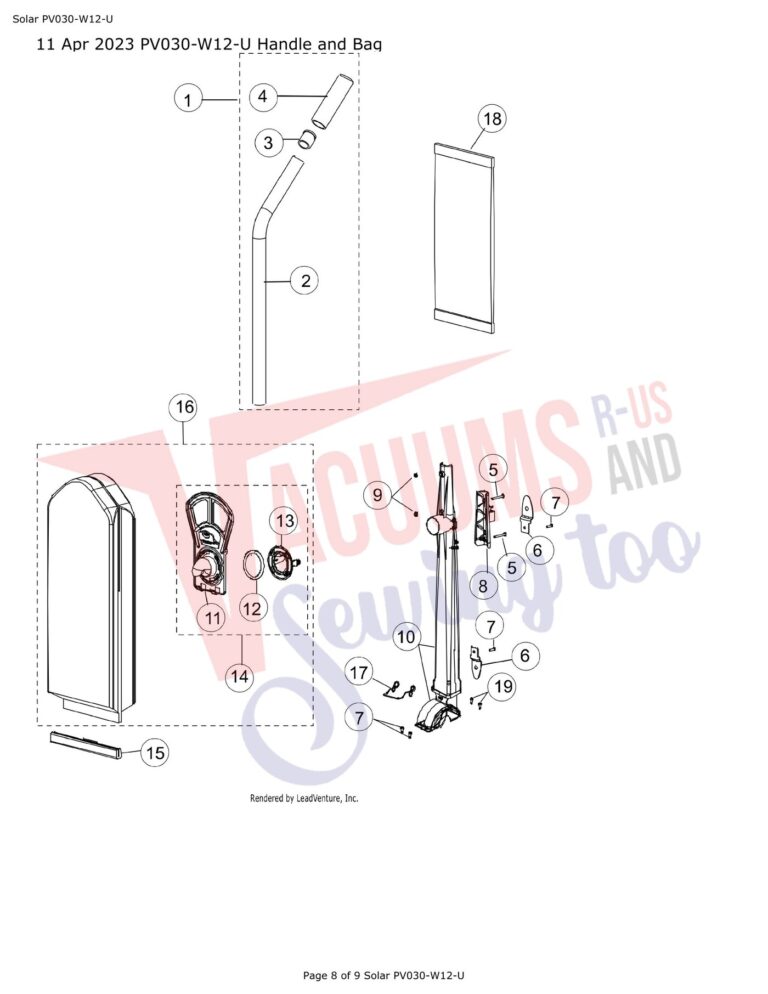

| # | Part image | Description | SKU | Price |
| 1 |  | Handle Tube W/Grip S10E R10E | D431-2406 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Handle Tube | B4312506 | $0.00Read more |
| 3 | No Image | HANDLE END CAP BLACK ULW | B4311014 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | Handle Grip | B431-2300 | Not Available |
| 5 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 6 |  | Cord Hook Part Number B430-1205 for Simplicity and Riccar Models F3100, F3300, F3300C, S10E,F3400... | B4301205 | $4.99Add to cart |
| 7 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 8 |  | Handle Tube Bracket S10E R10e | B431-2914E | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Handle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums | WP10164 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 |  | Available ReconditionedReconditioned Handle and Upper Fan Housing Assembly for Riccar Ultralite Vacuums More Product Details | WP12968 | $28.99Add to cart |
| 11 |  | Bag Collar Bag Holder Part Number B211-3614 for Simplicity and Riccar Models F3100, F3300, F3300C... | B2113614 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | Bag Collar Gasket Part Number B211-6400 for Simplicity and Riccar Models F3100, F3300, F3300C, S1... | B2116400 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Bag Collar Ring | B211-2314 | Not Available |
| 14 |  | Hinged Bag Holder Kit for Riccar Ultra Light Weight | D2113614 | $13.99Add to cart |
| 15 |  | Lower Bag Clip Commercial Print (F3300C) Part Number B211-1914F for Simplicity and Riccar Models ... | B2111914F | $5.49Add to cart |
| 16 | No Image | Cloth Bag Assembly PV030-W12-U | D21165001 | $51.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 |  | Lower Bag Spring Part Number B211-1204 for Simplicity and Riccar Models F3100, F3300, F3300C, S10... | B2111204 | $2.99Add to cart |
| 18b | No Image | Bag,Vacuum,HEPA,Carton of 25 each of THB-ULW | X1899 | $67.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Screw #5X0.5 Hi-Lo Self Threading | A7329206 | $2.99Add to cart |
