Schematic and parts book for Powr-Flite PS900BC . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

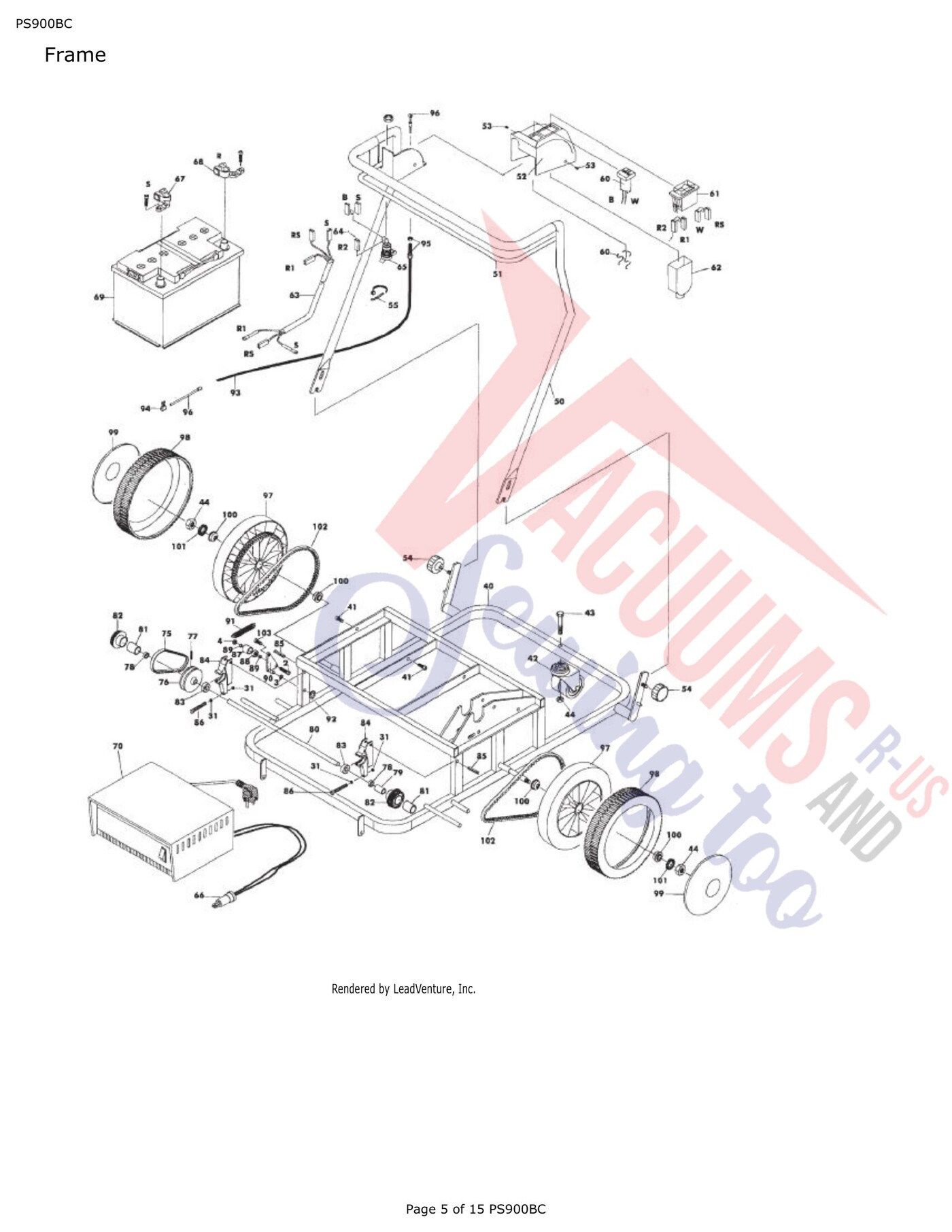

| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| XX | No Image | RATCHED WHEEL, RIGHT PS900 | PS927R | $101.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw | PS996 | Not Available |
| 4 | Not Available | Nut | PS998 | Not Available |
| 31 | Not Available | Lock Washer | PS993 | Not Available |
| 41 | Not Available | Screw | PS912 | Not Available |
| 42 | No Image | CASTER PS900 | PS914 | $48.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | Screw | PS1042 | Not Available |
| 44 | Not Available | Nut | PS243 | Not Available |
| 50 | Not Available | Handle | PS1153 | Not Available |
| 54 | Not Available | Knob | PS915 | Not Available |
| 61 | Not Available | Switch | PS916A | Not Available |
| 62 | Not Available | Switch Cover | PS917 | Not Available |
| 63 | Not Available | Cable Set | PS918 | Not Available |
| 65 | No Image | CONNECTOR RED BATTERY CHARGER PAS16 20DX 28DX 32DX | PAS59R | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 66 | No Image | CONNECTOR RED BATTERY CHARGER PAS16 20DX 28DX 32DX | PAS59R | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 67 | Not Available | Negative Battery Terminal | 102917 | Not Available |
| 68 | Not Available | Positive Battery Terminal | 102915 | Not Available |
| 69 | Not Available | Battery 12VDC 42 Ah | B22F-HC | Not Available |
| 70 | No Image | Charger Battery Sweeper 12V | EC12 | $1,543.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | No Image | Belt,Sweeper,V-Belt,10X475 | PS923 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 | Not Available | Headless Screw | PS941 | Not Available |
| 78 | No Image | SPACER PS900 | PS924 | $1.99Read more |
| 79 | No Image | SPACER PS900 | PS925 | $4.99Read more |
| 80 | No Image | SHAFT PS900 | PS1036 | $127.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 81 | Not Available | Spacer | PS926 | Not Available |
| 82 | No Image | RATCHED WHEEL, LEFT PS900 | PS927 | $117.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 83 | No Image | BEARING PS900 | PS938 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | No Image | Support for Shaft PS900 | PS928 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | No Image | TIGHTENER PS900 | PS929 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 88 | No Image | BEARING PS900 | PS930 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Spacer | PS919 | Not Available |
| 93 | Not Available | Cable | PS931 | Not Available |
| 94 | No Image | BINDING SCREW PS900 | PS932 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 95 | Not Available | Adjustment Cable | PS933 | Not Available |
| 96 | No Image | EXT SHEATHING/ INTERNAL CABLE | PS934 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 97 | No Image | COMPLETE WHEEL ASSY FOR PS900 | PS935 | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 98 | Not Available | Tire (P/O PS935) | PS936 | Not Available |
| 99 | No Image | HUB CAP PS900 | PS937 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 100 | Not Available | Bearing | PS939 | Not Available |
| 102 | No Image | Belt,Sweeper,Toothed,750MM | PS940 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 103 | Not Available | Headless Screw | PS941 | Not Available |

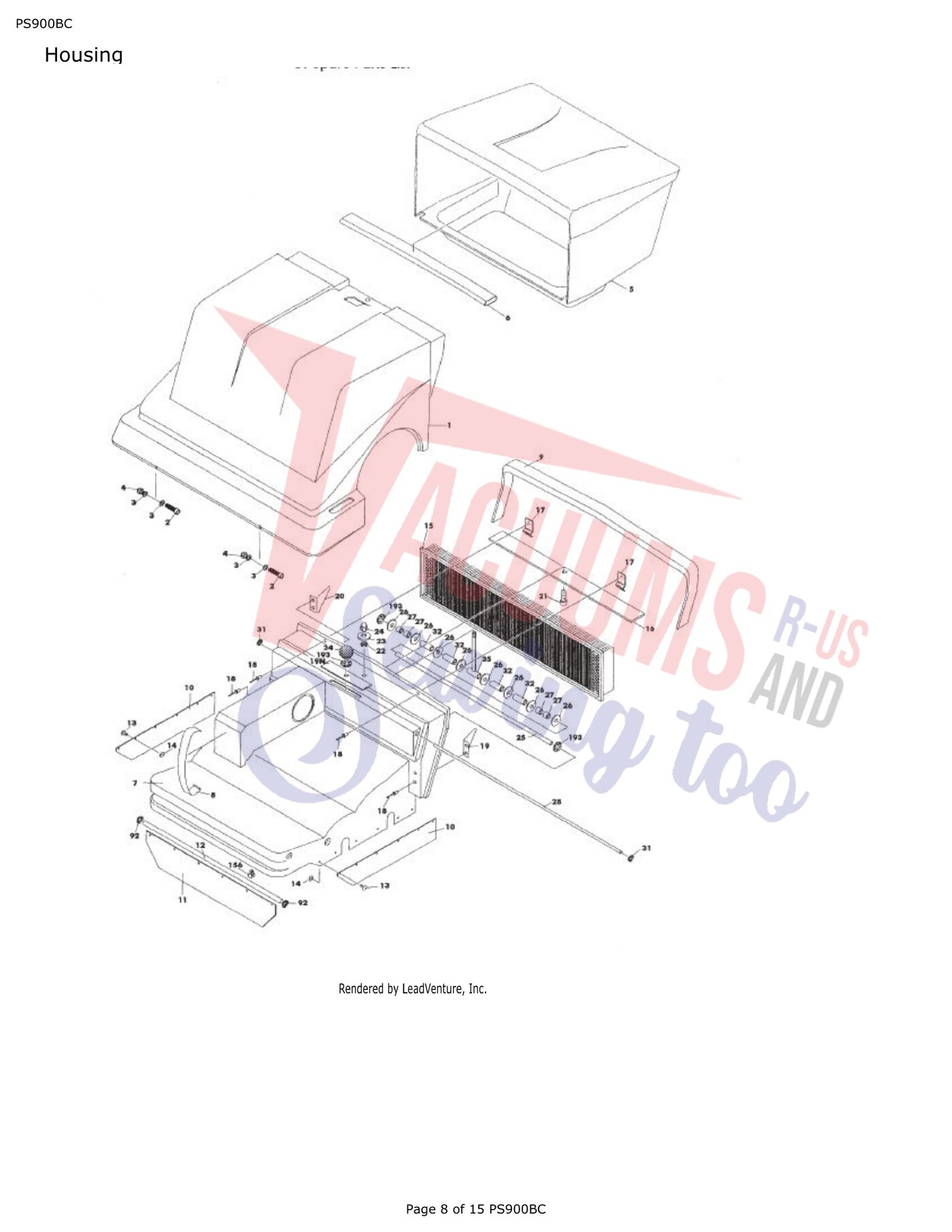

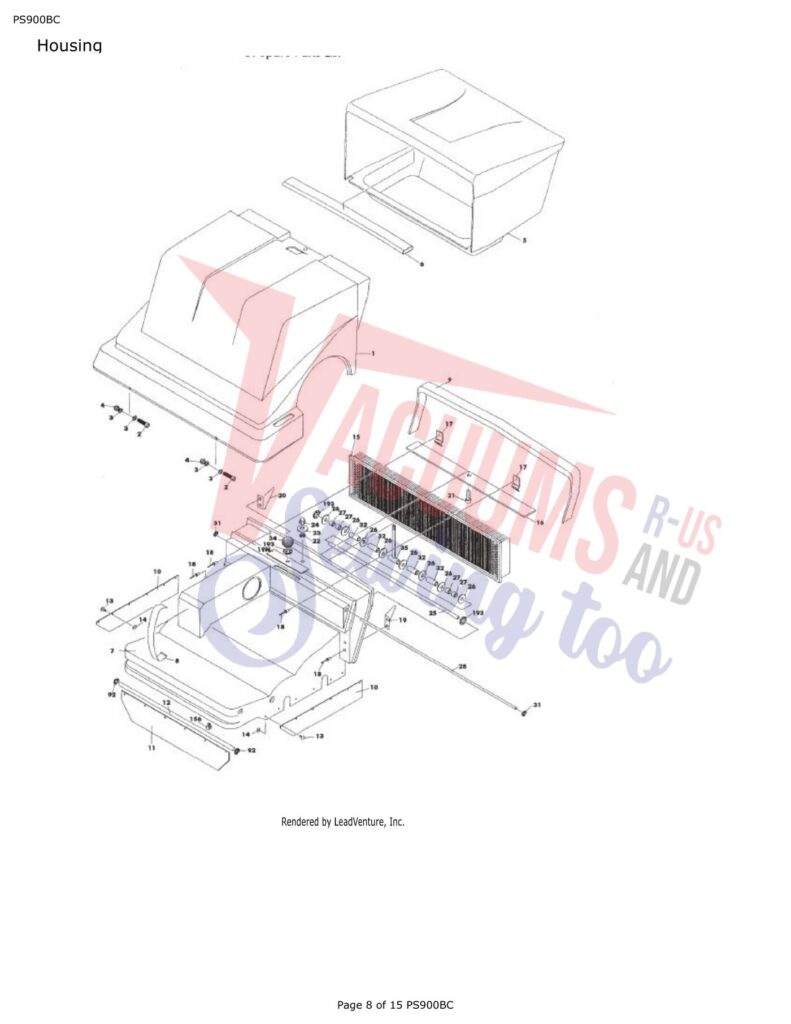

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hood | PS889 | Not Available |
| 2 | Not Available | Screw | PS996 | Not Available |
| 4 | Not Available | Nut | PS998 | Not Available |
| 5 | Not Available | Collection Bin | PS990 | Not Available |
| 6 | Not Available | Reinforcement Tube | PS909 | Not Available |
| 9 | No Image | PROFILE GASKET FOR PS900 | PS901 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | GASKET PS900 | PS902 | $22.99Read more |
| 11 | No Image | Curtian, Front PS900 | PS903 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Rivet | PS904 | Not Available |
| 15 |  | Filter,Sweeper | PS905 | $327.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Plate | PS906 | Not Available |
| 17 | No Image | SPRING PLATE KIT PS900 | PS1146 | $257.99Read more |
| 23 | Not Available | Washer | PS907 | Not Available |
| 24 | Not Available | Nut | PS908 | Not Available |
| 26 | Not Available | Reinforcement Tube | PS909 | Not Available |
| 27 | No Image | BEARING | PS910 | $7.99Read more |
| 28 | Not Available | Axle | PS1204 | Not Available |
| 31 | Not Available | Lock Washer | PS993 | Not Available |
| 34 | Not Available | Handle | PS911 | Not Available |
| 193 | Not Available | Lock Washer | 12763 | Not Available |

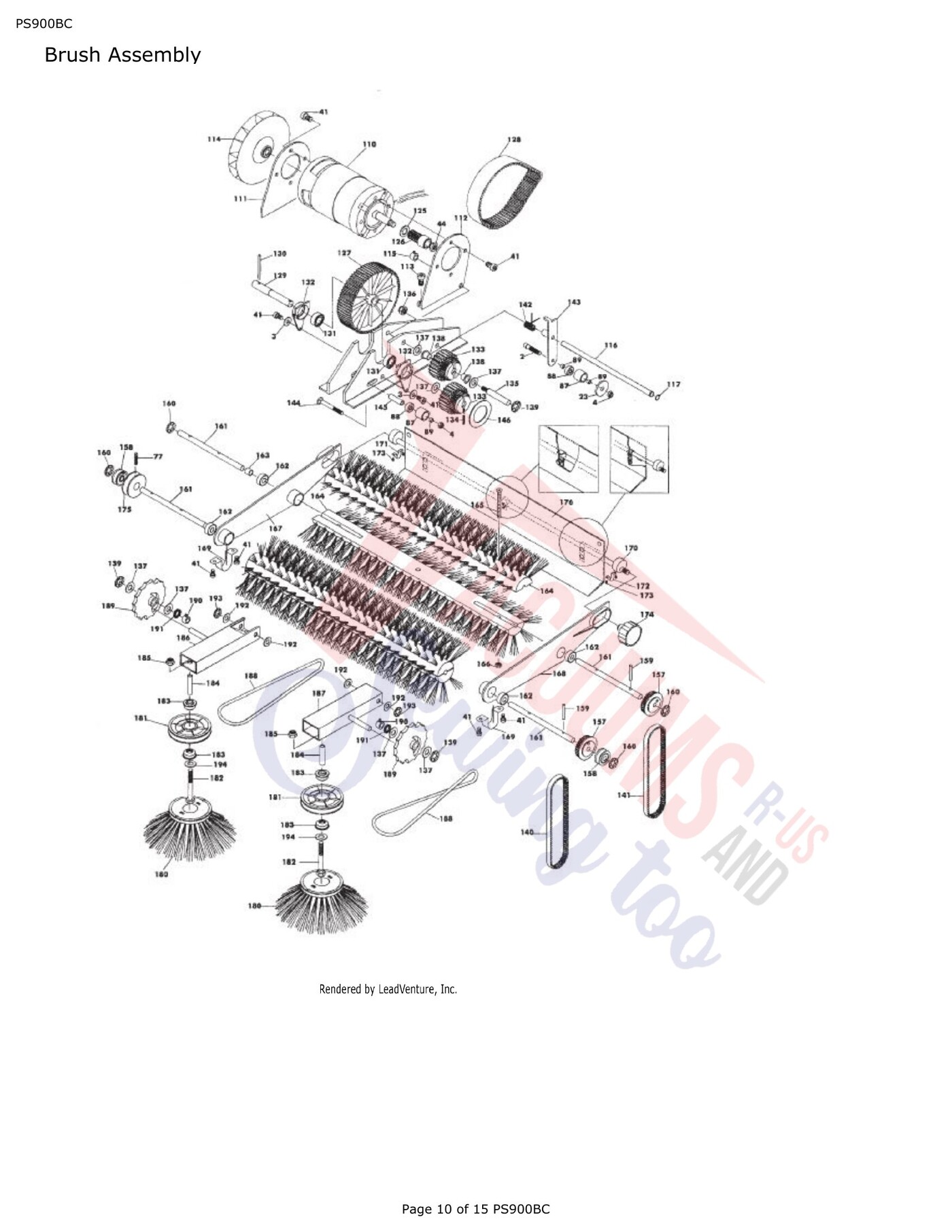

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Screw | PS996 | Not Available |
| 4 | Not Available | Nut | PS998 | Not Available |
| 23 | Not Available | Washer | PS907 | Not Available |
| 41 | Not Available | Screw | PS912 | Not Available |
| 44 | Not Available | Nut | PS243 | Not Available |
| 77 | Not Available | Headless Screw | PS941 | Not Available |
| 110 | No Image | MOTOR 12V 250W PS900 | PS942 | $927.99Read more |
| 111 | No Image | MOTOR SUPPORT RIGHT PS900 | PS943 | $33.99Read more |
| 112 | Not Available | Motor Support Left | PS944 | Not Available |
| 113 | Not Available | Screw | PS946 | Not Available |
| 114 | Not Available | Blower Wheel | PS947 | Not Available |
| 115 | Not Available | Adjustment Sleeve | PS948 | Not Available |
| 116 | Not Available | Shaft | PS949 | Not Available |
| 117 | No Image | CIRCLIP PS900 | PS950 | $4.99Read more |
| 125 | No Image | PULLEY PS900 | PS997 | $392.99Read more |
| 126 | No Image | RATCHED WHEEL 14 TEETH PS900 | PS951 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 127 | No Image | RATCHED WHEEL 98 TEETH PS900 | PS952 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 128 | No Image | Belt,Sweeper,Ratcheted,550 MM | PS953 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 129 | Not Available | Shaft | PS954 | Not Available |
| 130 | Not Available | Pin | PS955 | Not Available |
| 131 |  | BEARING PS900 | PS956 | $7.99Read more |
| 132 | Not Available | Support | PS957 | Not Available |
| 133 | No Image | RATCHED WHEEL PS900 | PS958 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 134 | No Image | DOWEL PIN 4 X 50 PS900 | PS959 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 135 | Not Available | Shaft | PS1147 | Not Available |
| 137 | No Image | PLASTIC WASHER PS900 | PS960 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 138 | No Image | SLIDE BEARING PS900 | PS961 | $7.99Read more |
| 139 | No Image | LOCKING WASHER PS900 | PS962 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 140 | No Image | Belt,Sweeper,Ratcheted,600 MM | PS963 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 141 | No Image | Belt,Sweeper,Ratcheted,635 MM,HTD | PS964 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 142 | Not Available | Spring | PS1130 | Not Available |
| 143 |  | Motor Ring Kit - Proteam Back Pack For: proteam | 106204 | $35.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 146 | No Image | WASHER RATCHET WHEEL PS900 | PS999 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 157 | No Image | RATCHED WHEEL 32 TEETH PS900 | PS965 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 158 | No Image | PULLEY SIDE BRUSH PS900 | PS966 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 159 | No Image | PIN PS900 | PS967 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 160 | No Image | LOCKING WASHER | PS968 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 161 | No Image | SHAFT PS900 | PS969 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 162 | No Image | BEARING PS900 | PS970 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 163 | Not Available | Spacer | PS971 | Not Available |
| 164 |  | BRUSH ROLL HALF PS900 | PS972 | $157.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 165 | No Image | SCREW PS900 | PS973 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 166 | Not Available | Nut | PS974 | Not Available |
| 167 | No Image | ADJUSTING PLATE RIGHT PS900 | PS975 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 168 |  | ADJUSTING PLATE LEFT PS900 | PS976 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 169 | No Image | Clip | PS977 | $0.00Read more |
| 170 | No Image | Height Adjustment | 106205 | $0.00Read more |
| 171 | Not Available | Clip Right | PS978 | Not Available |
| 172 | No Image | Clip Left | PS979 | $0.00Read more |
| 173 | No Image | Screw | PS980 | $0.00Read more |
| 174 | No Image | ADJUSTMENT HANDLE PS900 | PS981 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 175 | No Image | PULLEY | PS982 | $51.99Read more |
| 176 | No Image | Belt,Sweeper,Ratcheted,600 MM | PS963 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 180 |  | SIDE BROOM PS900 | PS988 | $61.99Read more |
| 181 | No Image | PULLEY PS900 | PS984 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 182 | No Image | Screw | PS985 | $0.00Read more |
| 183 | No Image | BEARING | PS910 | $7.99Read more |
| 184 | No Image | Spacer | PS986 | $0.00Read more |
| 185 | No Image | Nut | PS995 | $0.00Read more |
| 188 |  | Belt,Sweeper,V-Belt | PS987 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 189 | No Image | Adjustment Plate | PS991 | $0.00Read more |
| 193 | No Image | Lock Washer | 39049 | $0.00Read more |
| 194 | No Image | Rubber Washer | 103159 | $0.00Read more |

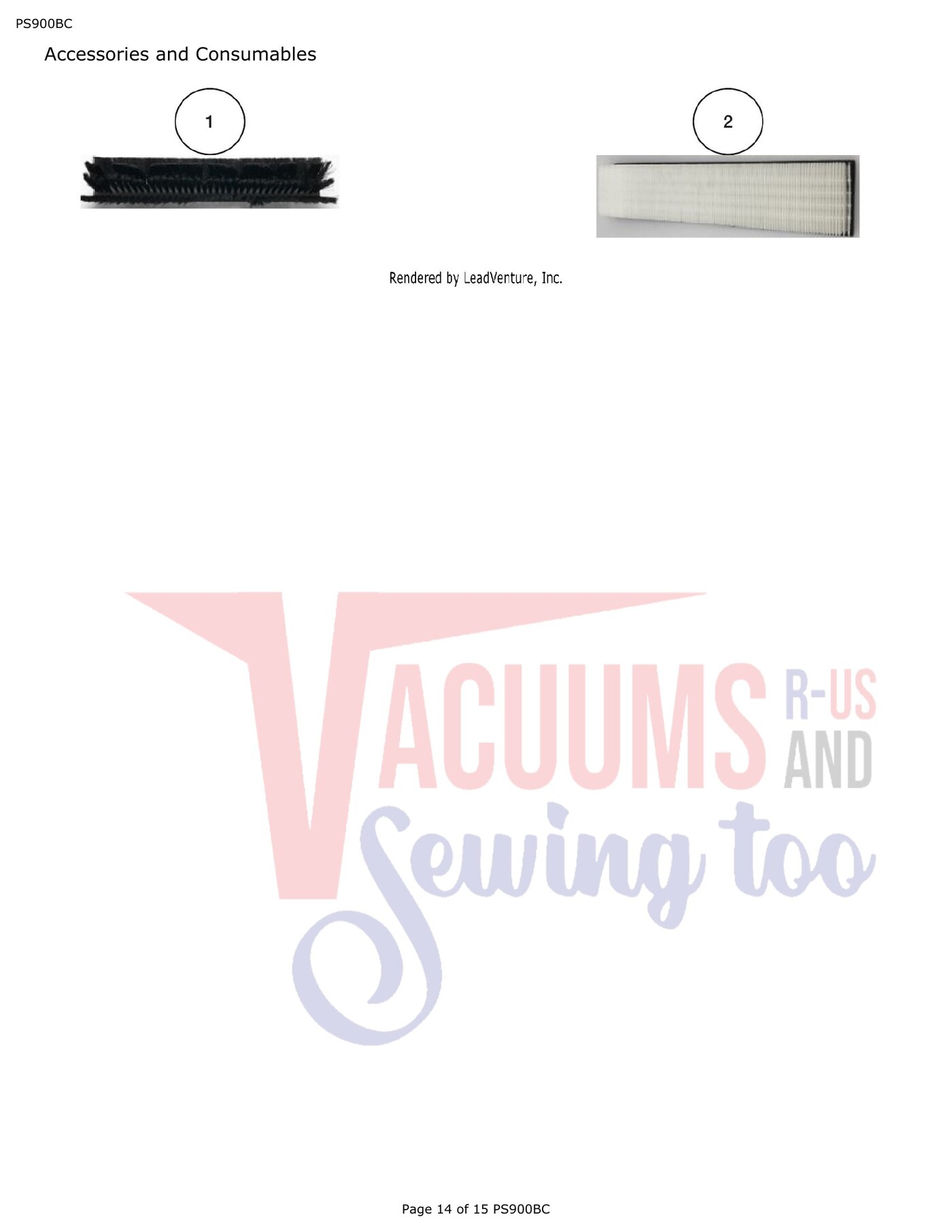

| # | Part image | Description | SKU | Price |
| 1 | | BRUSH ROLL HALF PS900 | PS972 | $157.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Filter,Sweeper | PS905 | $327.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
