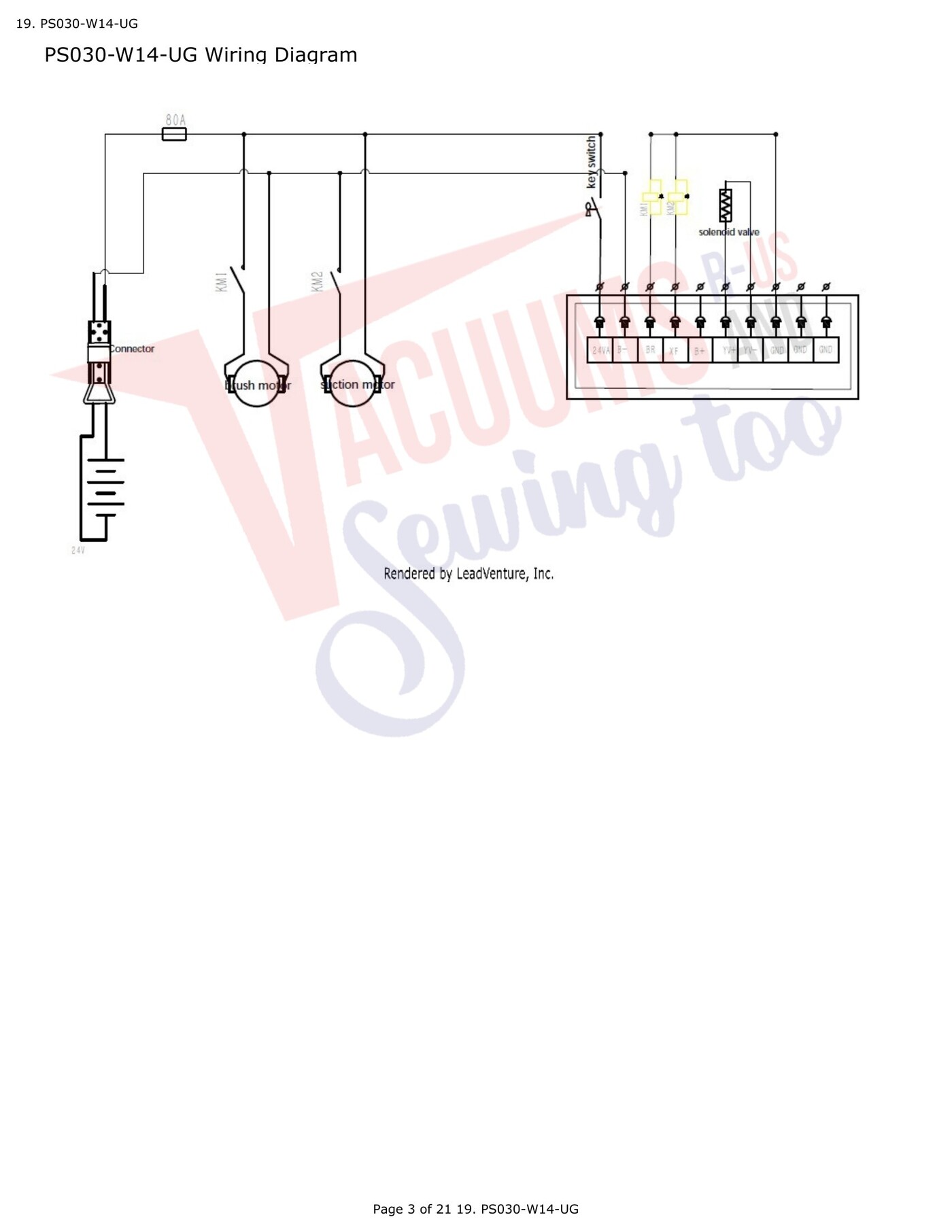

Schematic and parts book for Powr-Flight PS030-W14-UG . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |

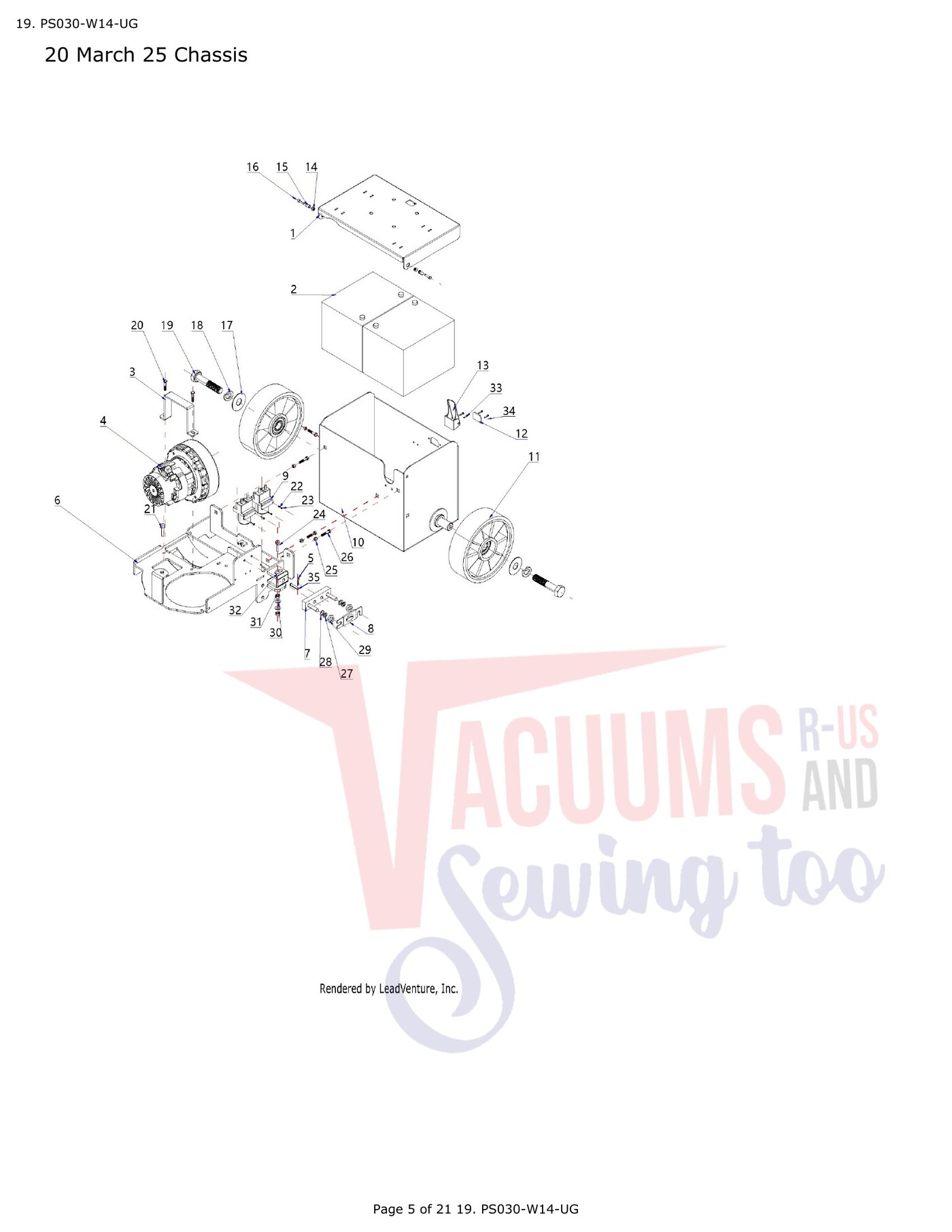

| not shown | No Image | Battery Charger PS030-W14-U | PS03105001 | $210.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Cover Battery Compartment PS030-W14-U | PS01A002031 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Battery AGM 12V 30 Ah | YIX30L | $306.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Motor clamp | X01A0-02111 | Not Available |
| 4 | No Image | Vacuum Motor PS030-W14-U | PS01A102021 | $111.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | R-type pin | X6A30-59041 | Not Available |
| 6 | Not Available | Base welding | X01A0-02001 | Not Available |
| 7 | Not Available | Fuse base | X13A1-06051 | Not Available |
| 8 | No Image | Fuse 80a, PS030-W14-U | PS49A106011 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Terminal PS030-W14-U | PS13A105031 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Battery compartment | X01A0-02021 | Not Available |
| 11 | No Image | Wheel PS030-W14-U and PS460-W22-U | PS09X013001 | $49.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Charging harness holder | X01A1-06011 | Not Available |
| 13 | No Image | Latch Battery Compartment PS030-W14-U | PS01A009111 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Bushing | X13A0-09541 | Not Available |
| 15 | Not Available | Locknut | B4223-00006 | Not Available |
| 16 | Not Available | Carriage screw | B2010-06016 | Not Available |
| 17 | No Image | Washer for Wheels PS030-W14-U | PS531008030 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Spring Washer Wheel PS030-W14-U PS460-W22-U PS530-W22-U | PS505000008 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Hex Bolt Wheel, PS030-W14-U | PS033008010 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Hex bolts | B0330-06020 | Not Available |
| 21 | Not Available | Hex bolts | B0330-08020 | Not Available |
| 22 | Not Available | Cross recessed pan head screws | B0930-04010 | Not Available |
| 23 | Not Available | Locknut | B4223-00004 | Not Available |
| 24 | Not Available | Hexagon socket head screws | B0530-08080 | Not Available |
| 25 | Not Available | Locknut | B4223-00008 | Not Available |
| 26 | Not Available | Carriage screw | B2010-08016 | Not Available |
| 27 | Not Available | Spring pad | B5050-00008 | Not Available |
| 28 | Not Available | Flat pad | B5310-00008 | Not Available |
| 29 | Not Available | Hex nuts | B4123-00008 | Not Available |
| 30 | Not Available | Large flat pad | B5310-00032 | Not Available |
| 31 | Not Available | Locknut | B4223-00008 | Not Available |
| 32 | Not Available | Hex nuts | B4123-00008 | Not Available |
| 33 | Not Available | Cross recessed pan head screws | B0930-04010 | Not Available |
| 34 | Not Available | Cross recessed pan head screws | B0930-04006 | Not Available |
| 35 | Not Available | Adjustment shaft | X01A0-12111 | Not Available |
| # | Part image | Description | SKU | Price |

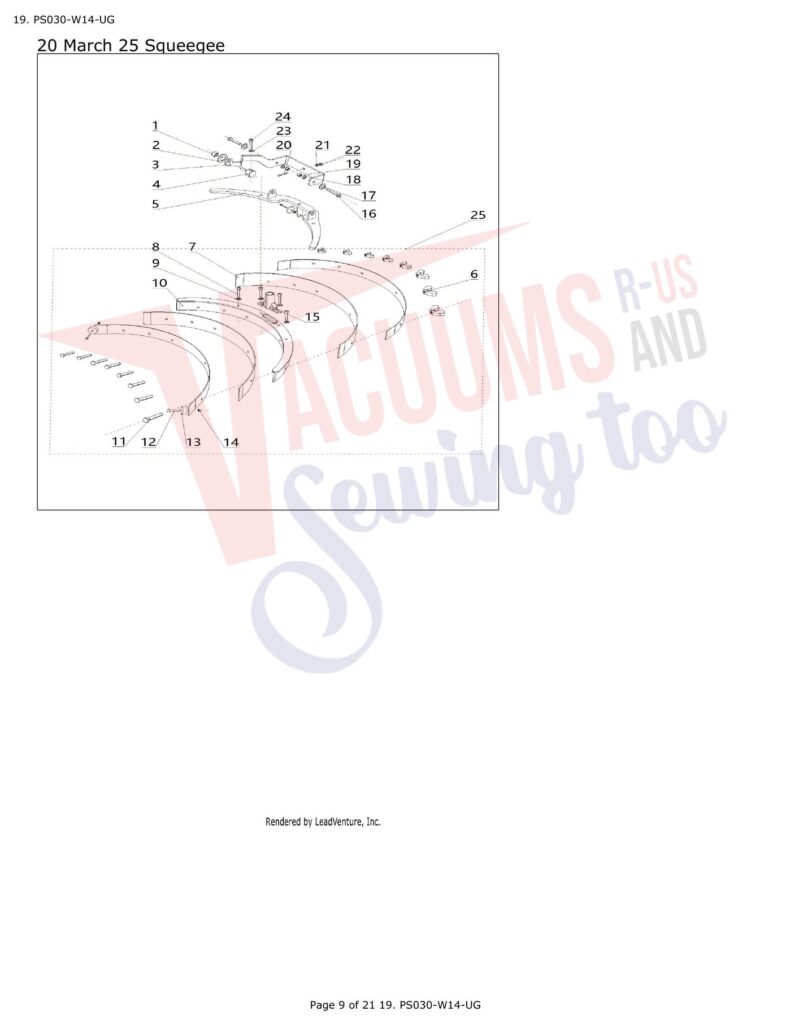

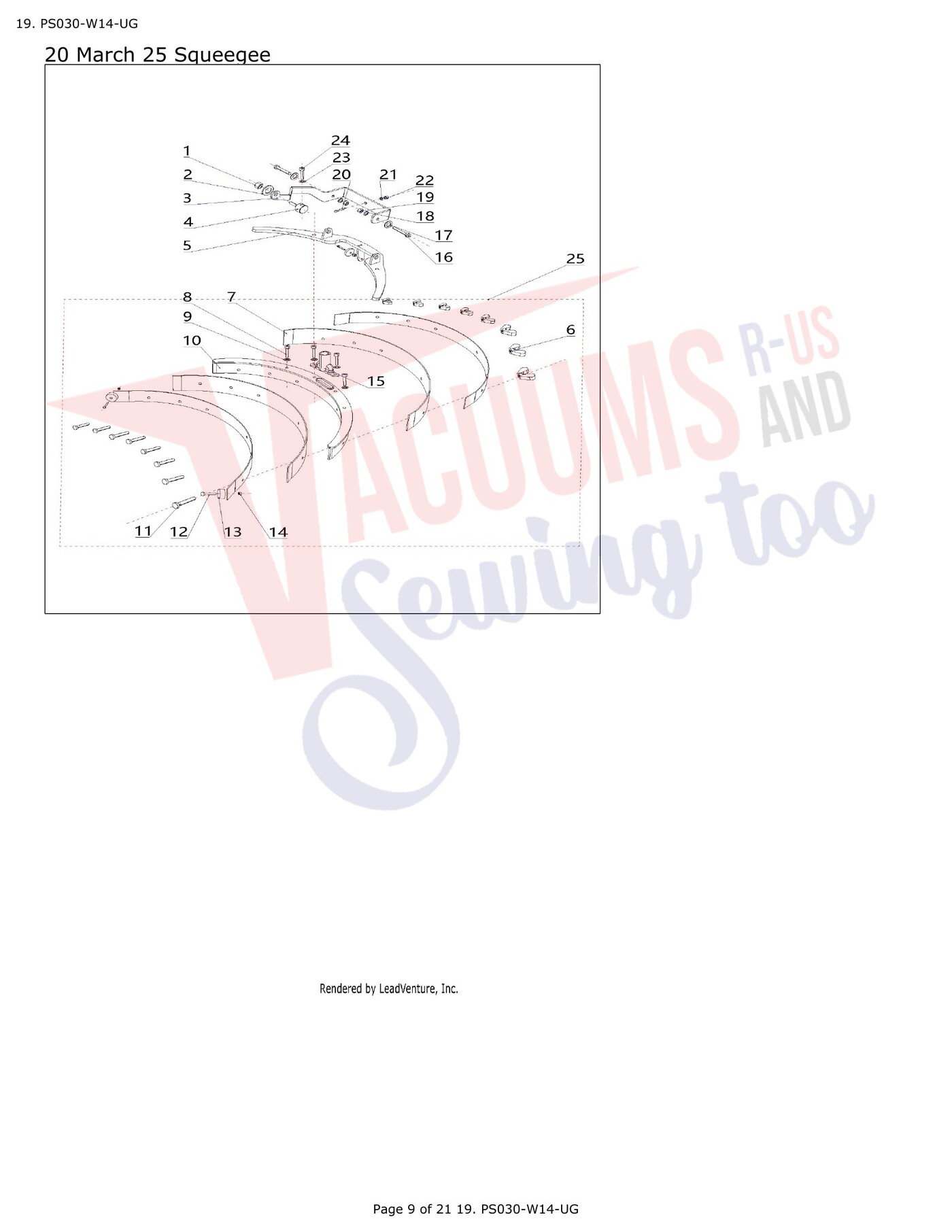

| 1 | No Image | Lock tight nut squeege wheel PS030-W14-U | PS422300005 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Flat pad | B5210-00006 | Not Available |
| 3 | No Image | Squeegee Bracket Top PS030-W14-U | PS01A002071 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Shaft | X01A0-02121 | Not Available |
| 5 | No Image | Squeegee Bracket Bottom PS030-W14-U | PS01A002061 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Wingnut Squeegee Hardware PS030-W14-U | PS462500005 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Squeegee Set Red PS030-W14-U | PS01A049011 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Hex Socket Bolt, Squeegee Mount, PS030-W14-U | PS053005020 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Flat Washer Squeege Mount PS030-W14-U | PS531006016 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Squeegee Body PS030-W14-U | PS01A044001 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Screw Squeegee Hardware PS030-W14-U | PS201005020 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw, Squeegee Wheel, PS030-W14-U | PS053005010 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Squeegee Wheel PS030-W14-U | PS01A049001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Locknut | B4223-00005 | Not Available |
| 15 | No Image | Squeegee Hose Adaptor PS030-W14-U | PS01A009021 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Hexagon socket head screws | B0530-08040 | Not Available |
| 17 | Not Available | Large flat pad | B5310-08024 | Not Available |
| 18 | Not Available | Flat pad | B5310-00008 | Not Available |
| 19 | Not Available | Locknut | B4223-00008 | Not Available |
| 20 | Not Available | Hexagon socket head screw | B0530-05016 | Not Available |
| 21 | Not Available | Flat pad | B5210-00006 | Not Available |
| 22 | Not Available | Locknut | B4223-00005 | Not Available |
| 23 | Not Available | Large flat pad | B5310-00032 | Not Available |
| 24 | Not Available | Hexagon socket head screws | B0530-06040 | Not Available |
| 25 | No Image | Squeegee Assembly PS030-W14-U | PS4A5049001 | $273.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | BRUSH SOFT SCRUB 13 IN PS030-W14-U | PS76A039040 | $288.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Standard Scrub Brush, PS030-W14-U | PS76A039041 | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | BRUSH HARD GRIT SCRUB 13 IN PS030-W14-U | PS76A039042 | $341.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

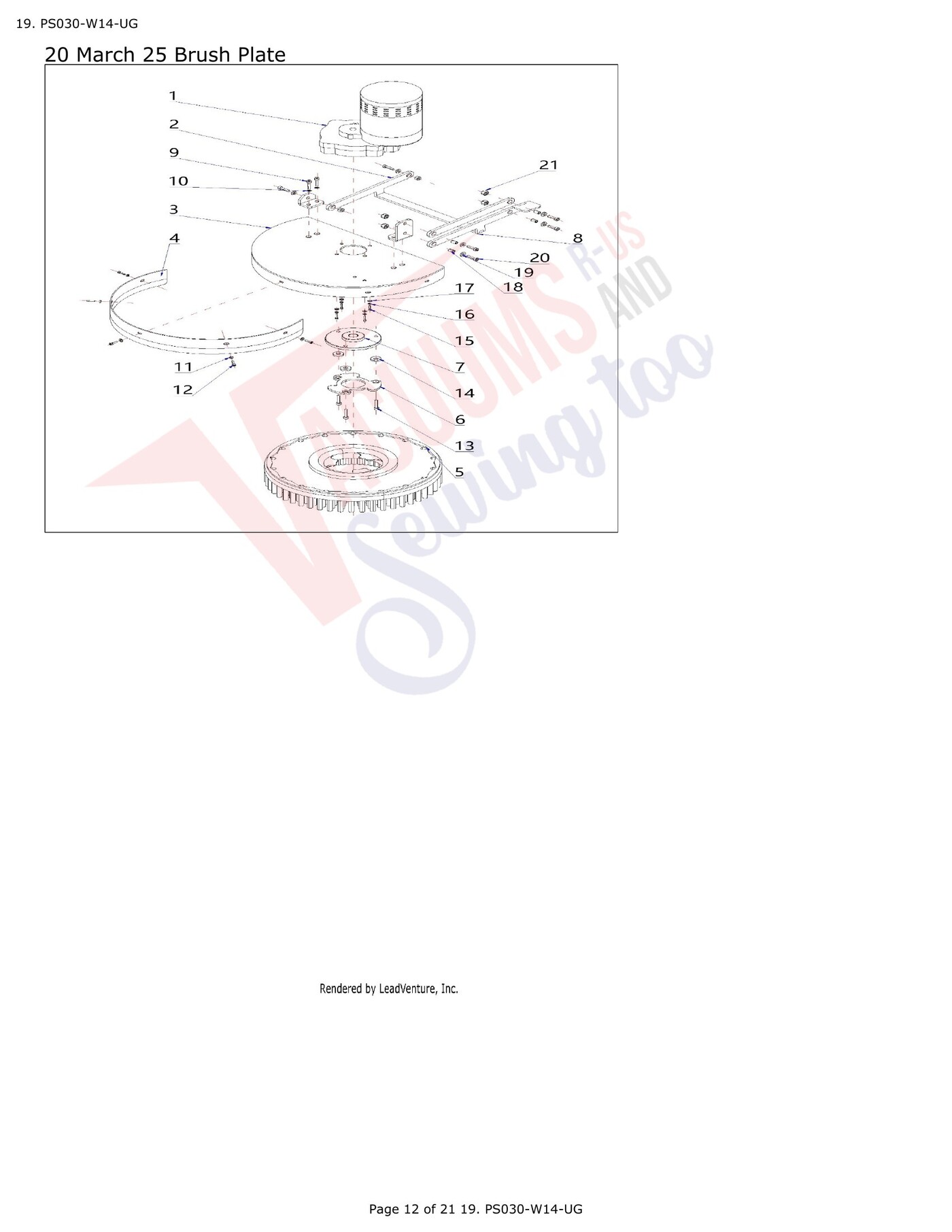

| 1 | No Image | Brush motor PS030-W14-U | PS01A102011 | $437.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Support Frame 1 Brush Base PS030-W14-U | PS01A030401 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Brush Base PS030-W14-U | PS01A030301 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Brush Skirt PS030-W14-U | PS01A009221 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Pad holder and Retainer 13in PS030-W14-U | PS76A039011 | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Flange buckle PS030-W14-U | PS20A032011 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Flange iron plate | X20A0-32001 | Not Available |
| 8 | No Image | Support Frame 2 Brush Base PS030-W14-U | PS01A032011 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hexagon socket head screws | B0530-08020 | Not Available |
| 10 | Not Available | Large flat pad | B5310-00032 | Not Available |
| 11 | No Image | Washer M5 Brush Skirt PS030-W14-U | PS5210000052 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Screw Brush Skirt PS030-W14-U | PS093005012 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Hex Socket Screw, Clutch Plate, PS030-W14-U | PS113008016 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Flat Washer for new PF Scrubbers | PS521000008 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Hexagon socket head screws | B0530-06020 | Not Available |
| 16 | Not Available | Spring pad | B5050-00006 | Not Available |
| 17 | Not Available | Flat pad | B5210-00006 | Not Available |
| 18 | Not Available | Bushing | X13A0-02161 | Not Available |
| 19 | Not Available | Large flat pad | B5310-00032 | Not Available |
| 20 | Not Available | Hexagon socket head screws | B0530-08025 | Not Available |
| 21 | Not Available | Locknut | B4223-00008 | Not Available |
| # | Part image | Description | SKU | Price |

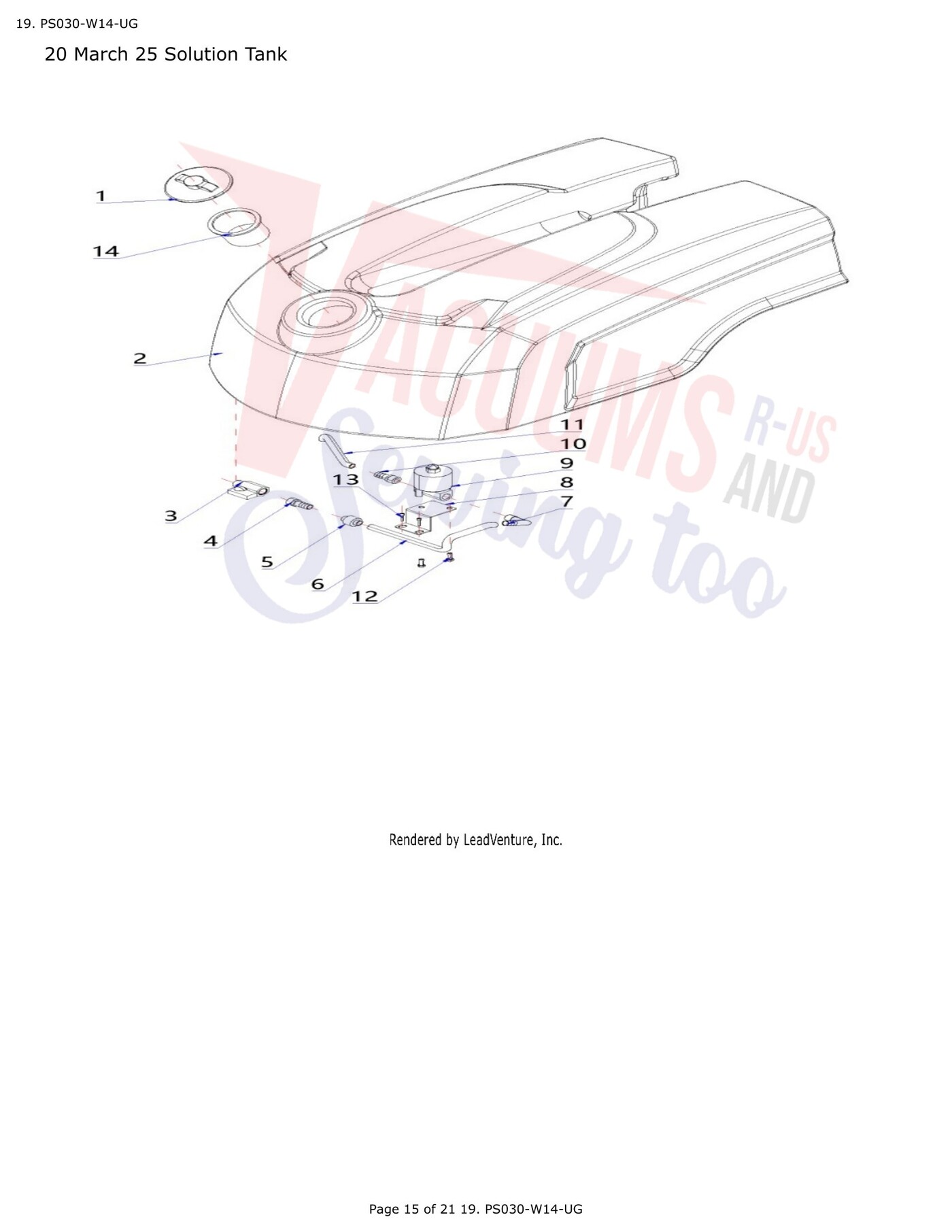

| 1 | No Image | Cap Solution Tank PS030-W14-U | PS01A004001 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Solution tank PS030-W14-U | PS04A023001 | $304.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Solution Control Valve | PS01A009151 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Straight copper joint | X01A0-09121 | Not Available |
| 5 | No Image | Filter Solution Tank PS030-W14-U | PS01A009431 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Clean water pipe | X10A0-09321 | Not Available |
| 7 | Not Available | Bent copper joint | X13A0-29021 | Not Available |
| 8 | Not Available | Solenoid valve bracket | X01A0-32001 | Not Available |
| 9 | No Image | Solenoid Valve PS030-W14-U PS460-W22-U PS530-W22-U | PS31A105061 | $41.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Straight copper joint | X01A0-09121 | Not Available |
| 11 | Not Available | Clean water pipe | X01A0-09331 | Not Available |
| 12 | Not Available | Hex bolts | B0330-05010 | Not Available |
| 13 | Not Available | Hexagon socket head screws | B0530-06010 | Not Available |
| 14 | Not Available | Solution water tank filter | X04A0-09131 | Not Available |
| # | Part image | Description | SKU | Price |

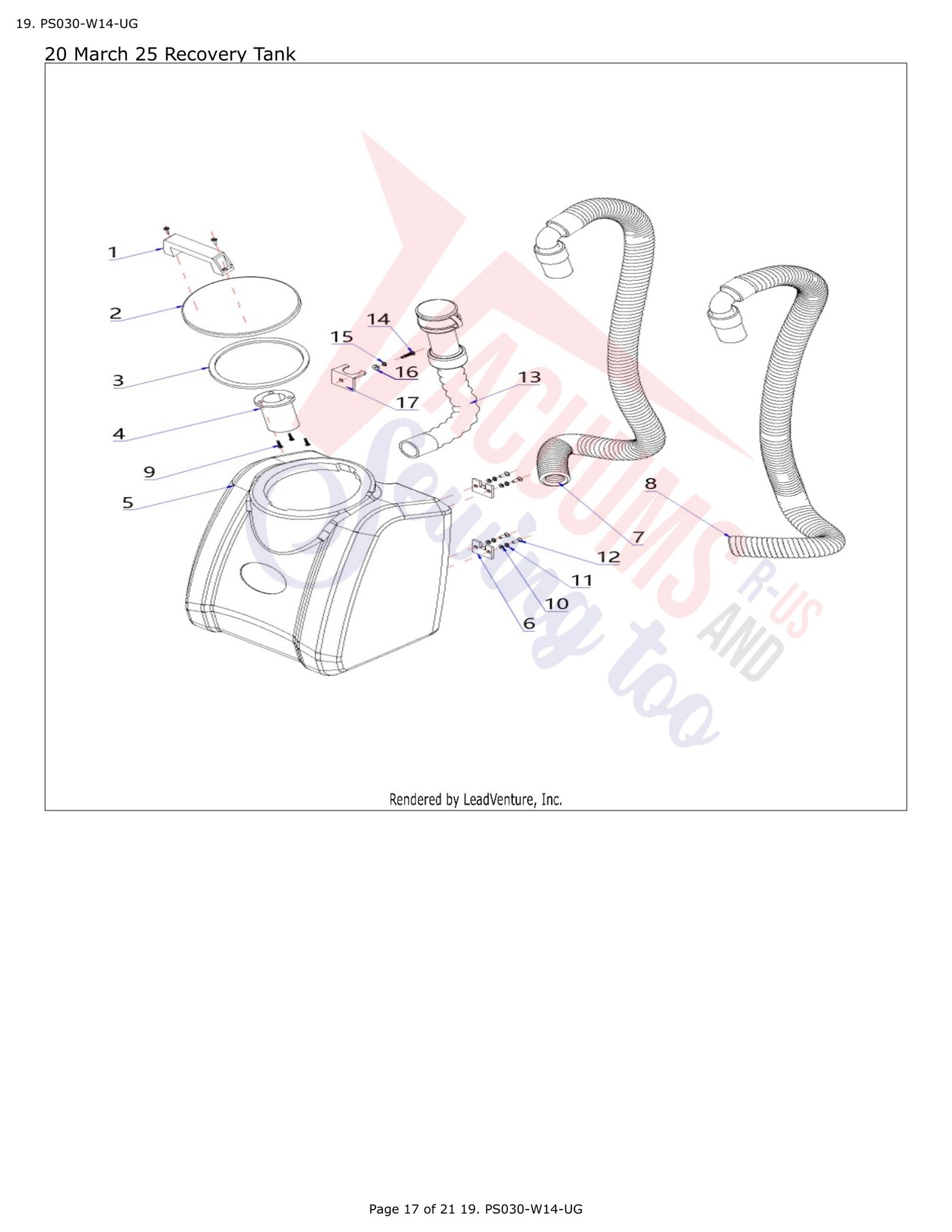

| 1 | No Image | Handle with Screws Recovery Tank PS030-W14-U | PS01A004031 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Recovery tank lid PS030-W14-U | PS01A004021 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Recovery Tank Gasket PS030-W14-U | PS01A009061 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Float cage PS030-W14-U | PS01A009051 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Recovery tank PS030-W14-U | PS01A023031 | $119.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Latch Recovery Tank PS030-W14-U | PS01A002101 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Vacuum Hose, PS030-W14-U | PS01A009071 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Squeegee Hose, PS030-W14-U | PS01A009091 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Cross recessed pan head tapping screws | B1030-04010 | Not Available |
| 10 | Not Available | Large flat pad | B5310-06018 | Not Available |
| 11 | Not Available | Spring pad | B5050-00005 | Not Available |
| 12 | Not Available | Cross recessed pan head screws | B0930-05012 | Not Available |
| 13 | No Image | Drain Hose w/Cap, PS030-W14-U | PS01A009081 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Cross pan head tapping screws | B1030-35012 | Not Available |
| 15 | Not Available | Spring pad | B5050-00005 | Not Available |
| 16 | Not Available | Large flat pad | B5310-06018 | Not Available |
| 17 | No Image | Retainer Drain Hose PS030-W14-U | PS01A002151 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

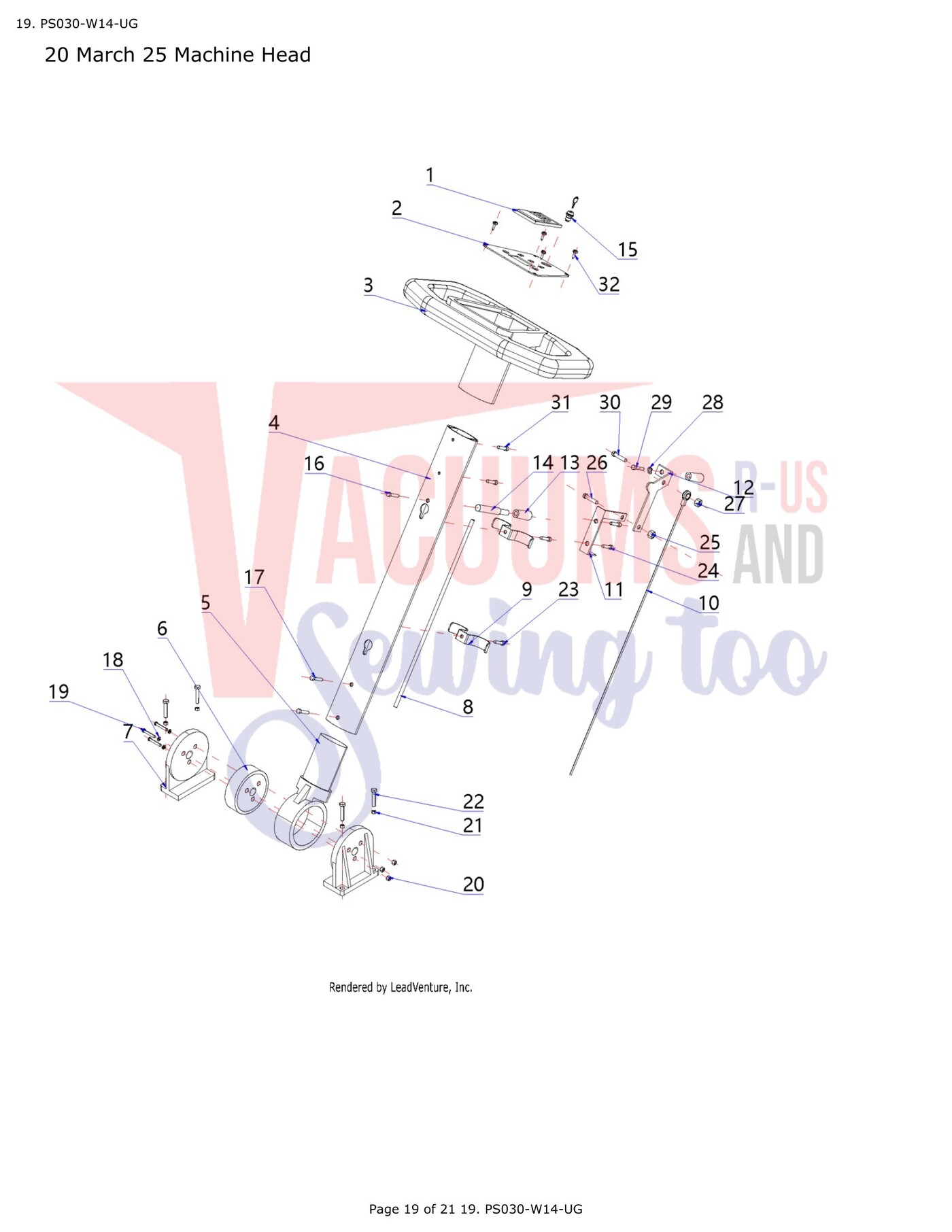

| 1 |  | PCB panel PS030-W14-U | PS15X105011 | $61.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Control Panel Plate, PS030-W14-U | PS01A022012 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Steering Handle PS030-W14-U | PS01A023021 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Steering Shaft PS030-W14-U | PS01A005011 | $51.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Aluminum cover | X01A0-05011 | Not Available |
| 6 | No Image | Toothed Pivot, Handle, PS030-W14-U | PS01A009031 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Pivot Mount Right PS030- W14-U | PS01A0-05041 | Not Available |
| 8 | Not Available | Fully threaded screw | X01A0-09231 | Not Available |
| 9 | Not Available | Bilateral riding card | X01A0-09101 | Not Available |
| 10 |  | Squeegee Cable Assembly, PS030-W14-U | PS01A009201 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Bracket,Squeegee Hose PS030-W14-U | PS01A002091 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Bracket 2 Squeegee Hose PS030-W14-U | PS01A002081 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Orange Squeegee Knob PS030-W14-U | PS13A049031 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Squeegee Handle Shaft PS030-W14-U | PS01A002131 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Key and Switch PS030-W14-U | PS15X104012 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Hex Socket Bolt Squeegee Handle PS030-W14-U | PS053006016 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Hexagon socket head screws | B0530-06010 | Not Available |
| 18 | Not Available | Flat pad | B5210-00006 | Not Available |
| 19 | No Image | Hex Socket Bolt, Handle Base, PS030-W14-U | PS053006070 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Nut, Handle Base, PS030-W14-U | PS422300006 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Lock Nut Handle Base PS030-W14-U | PS422300008 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Hex Bolt PS030-W14-U PS460-W22-UPS530-W22-U | PS033008020 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | Not Available | Hexagon socket head screws | B0530-06010 | Not Available |
| 24 | Not Available | Hexagon socket head screws | B0530-06010 | Not Available |
| 25 | Not Available | Locknut | B4223-00005 | Not Available |
| 26 | Not Available | Hexagon socket head screws | B0530-05012 | Not Available |
| 27 | Not Available | Locknut | B4223-00005 | Not Available |
| 28 | Not Available | Spring pad | B5050-00008 | Not Available |
| 29 | Not Available | Hexagon socket head screws | B0530-08016 | Not Available |
| 30 | Not Available | Hexagon socket head screw | B0530-05016 | Not Available |
| 31 | Not Available | Hexagon socket countersunk screw | B1130-06016 | Not Available |
| 32 | Not Available | Cross recessed pan head tapping screws | B1030-04010 | Not Available |
