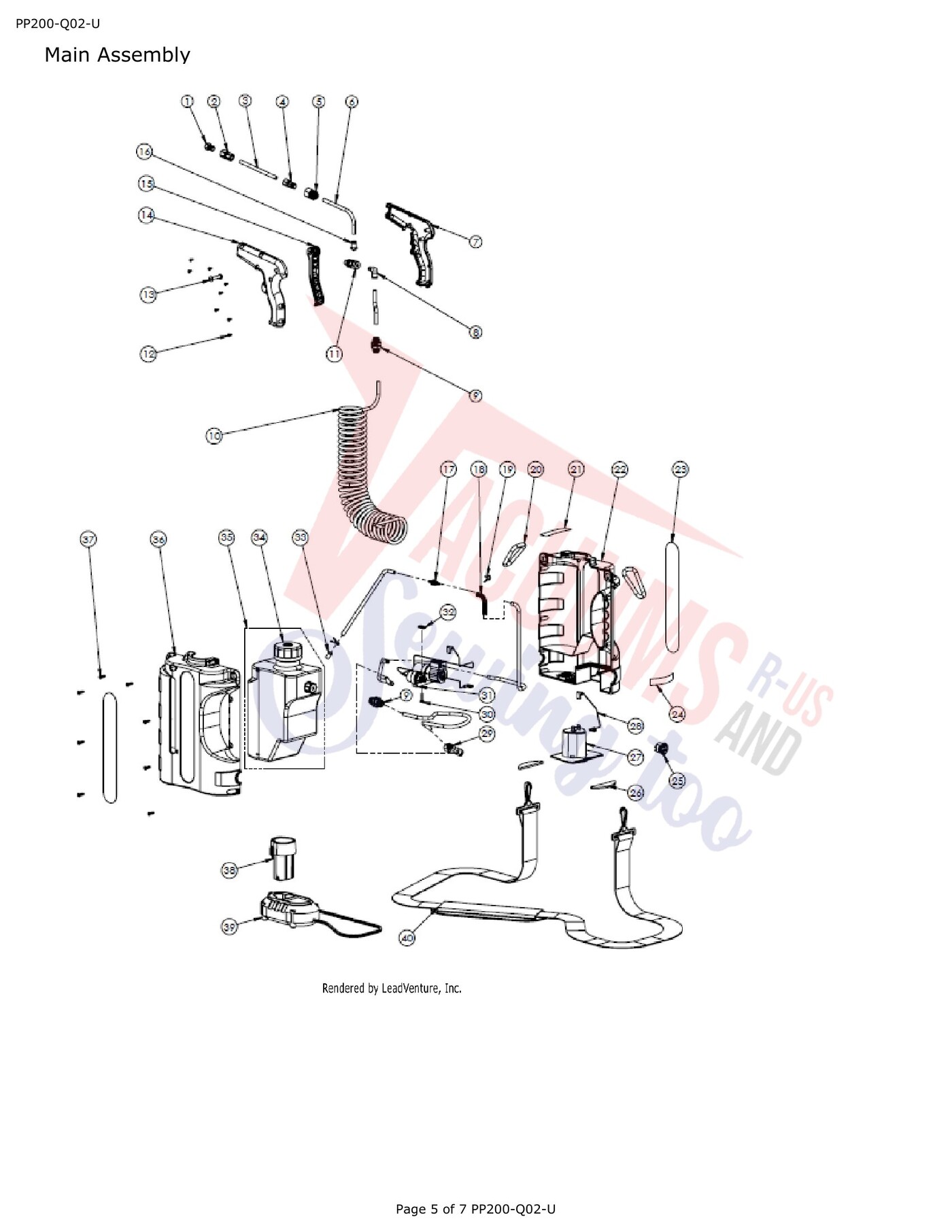

Schematic and parts book for Powr-Flight PP200-Q02-U . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Portable Mister Spray Nozzle Aftermarket Kit | X2268 | $0.00Read more |
| 1 | Not Available | Spray Nozzle | X2216 | Not Available |
| 2 | Not Available | Adapter Fitting 1/4" Tube x 1/8" FNPT | X2215 | Not Available |
| 3 | Not Available | Tubing | X2214 | Not Available |
| 4 | Not Available | Adapter Fitting 1/4" Tube x 1/8" MNPT | X2213 | Not Available |
| 5 | Not Available | Female Bulkhead 1/4" Tube x 1/8" FNPT | X2212 | Not Available |
| 6 | Not Available | Hose | X2223 | Not Available |
| 7 | Not Available | Wand Shell | X2253 | Not Available |
| 8 | Not Available | Elbow 1/4" Tube x 10-32 UNF Male | X2220 | Not Available |
| 9 | Not Available | Bulkhead 1/4" Tube | X2221 | Not Available |
| 10 |  | Hose, Coiled Pressure - fits TP200-Q02-U, PP200-Q02-U, Hydromist M2, Hydromist M2/EURO | X2209 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Valve Trigger | X2211 | $0.00Read more |
| 12 | No Image | Screw 4-20 X 5/16" | X2217 | $0.00Read more |
| 13 | No Image | Binding Post | X2218 | $0.00Read more |
| 14 | No Image | Wand Shell | X2204 | $0.00Read more |
| 15 | No Image | Wand Trigger | X2205 | $0.00Read more |
| 16 | No Image | Adapter Fitting 1/4" Tube X 10-32 Unf Male | X2219 | $0.00Read more |
| 17 | No Image | Plastic Bulkhead | X2226 | $0.00Read more |
| 18 | No Image | Spring | X2249 | $0.00Read more |
| 19 | No Image | Hose Clamp | X2250 | $0.00Read more |
| 20 | No Image | Pear Link - Fits TP200-Q02-U, PP200-Q02-U, Hydromist M2, Hydromist M2/EURO | X2229 | $1.99Read more |
| 21 | No Image | Label | X2260 | $0.00Read more |
| 22 | No Image | Right Shell | X2201 | $0.00Read more |
| 23 | No Image | Label | X2235 | $0.00Read more |
| 24 | No Image | Label | X2261 | $0.00Read more |
| 25 |  | ON OFF Switch Part Number A328-1500 for Maytag and Riccar and Simplicity Models M700,R10CV, R10CV... | A3281500 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Anti Slip Pad W/Adhesive | X2224 | $0.00Read more |
| 27 | No Image | Battery Housing | X2203 | $0.00Read more |
| 28 | No Image | Wire | X2259 | $0.00Read more |
| 29 | No Image | Swivel Tee | X2227 | $0.00Read more |
| 30 | No Image | Screw, 8-32 x 5/8 Inch FHMS UNDERCUT Stainless - Fits TP200-Q02-U, PP200-Q02-U, Hydromist M2, Hyd... | X2231 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Pump, Pressure Switch and Silicone Pump Mount Assembly - Fits TP200-Q02-U, PP200-Q02-U, Hydromist... | X2256 | $40.99Read more |
| 32 | No Image | Nut | X2264 | $0.00Read more |
| 33 | No Image | Internal Filter | X2228 | $0.00Read more |
| 34 | No Image | Cap, Solution Bottle- fits TP200-Q02-U, PP200-Q02-U, Hydromist M2, Hydromist M2/EURO | X2258 | $1.99Read more |
| 35 | No Image | Solution Bottle, Caps and Seals | X2202 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Left Shell | X2200 | $0.00Read more |
| 37 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 |  | Battery Lithium Ion 10.8v Fits TP200-Q02-U PP200-Q02-U Hydromist M2 Hydromist M2/EURO | X2207 | $89.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Charger Lithium Ion Battery Input 100-240v Output 12V DC 1.5a with US AC Cable Fits TP200-Q02-U P... | X2208 | $44.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Strap, Carry - Fits TP200-Q02-U, PP200-Q02-U, Hydromist M2, Hydromist M2/EURO | X2206 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
