Schematic and parts book for powr-flite PFX1080 cover shot

Compatible with 1 Powr-Flite model

PFX1080

Schematic and parts book for powr-flite PFX1080 cover shot. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Powr-Flite PFX1080 schematic page 1 preview

Powr-Flite PFX1080 schematic page 2 preview

Powr-Flite PFX1080 schematic page 3 preview

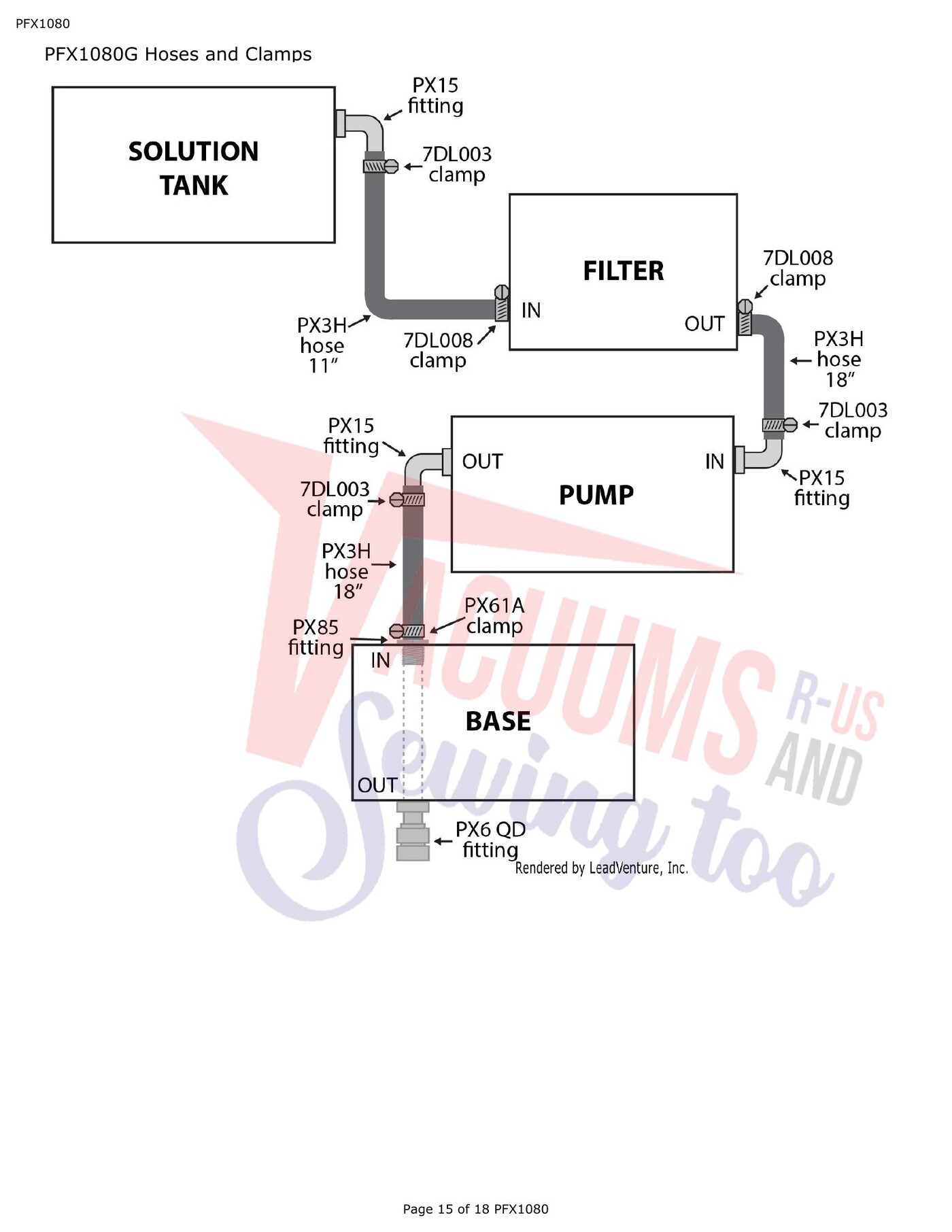

Powr-Flite PFX1080 schematic page 4 preview

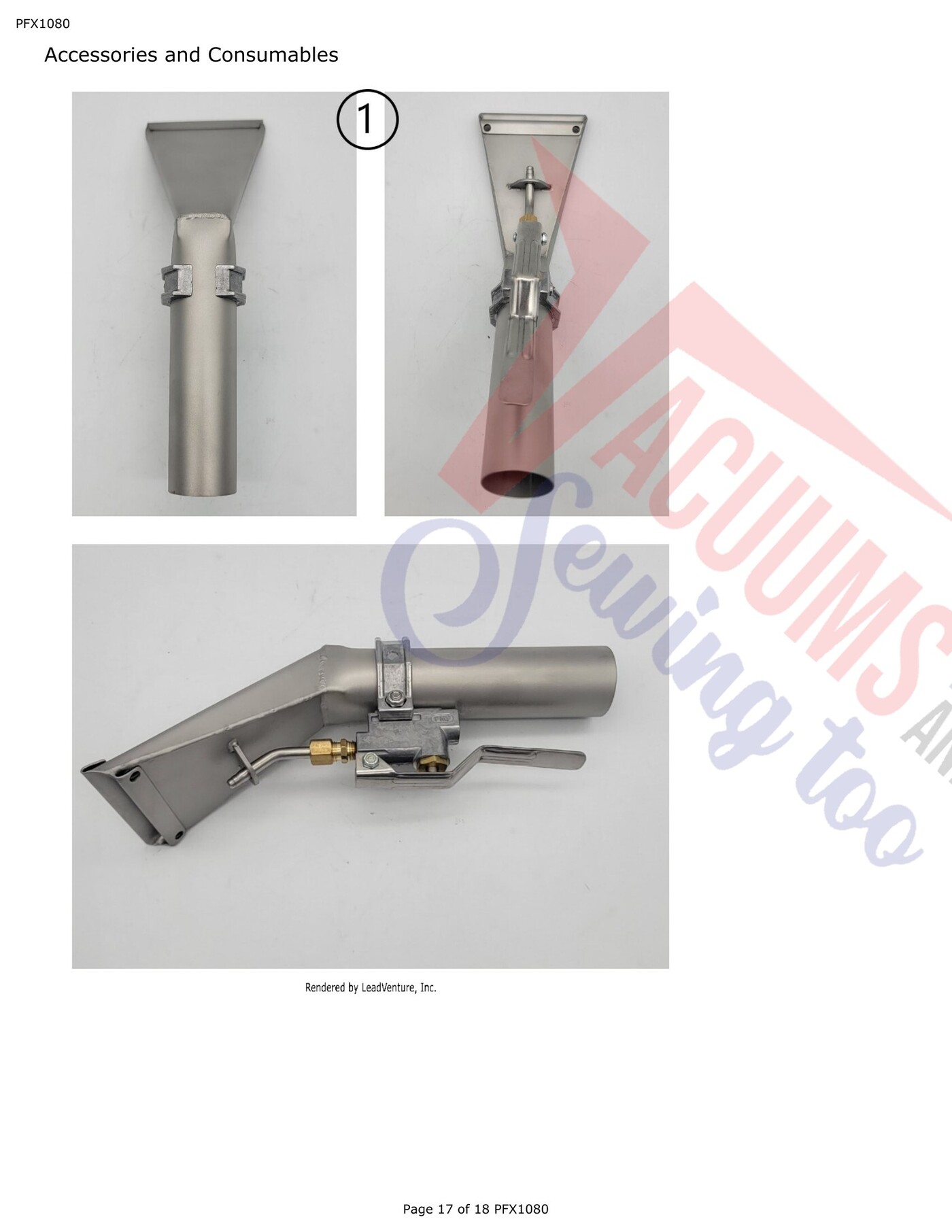

Powr-Flite PFX1080 schematic page 5 preview

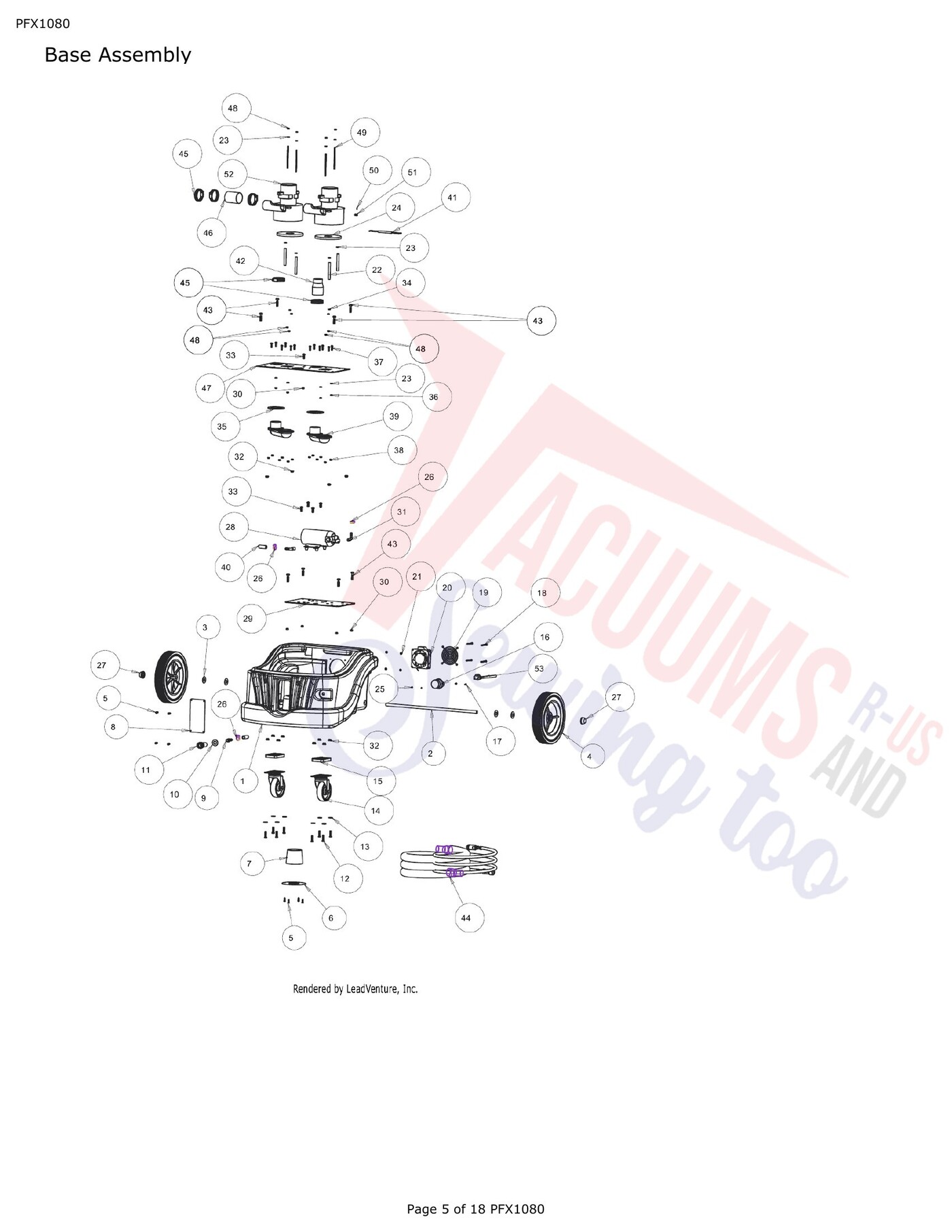

Powr-Flite PFX1080 exploded schematic diagram (page 1)

Click to enlarge

#	Part image	Description	SKU	Price
1		Base, Mid Size Extractor 120V, Black Ral No 9017 More Product Details	X1050120	$379.99Add to cart Special order: ships in 2 to 4 weeks
2		Rear Axle, .50 Dia X 20.25 Mid Size Extractor More Product Details	X9463	$19.99Add to cart Special order: ships in 2 to 4 weeks
3		WASHER, 1/2 USS FLAT 18-8 SS More Product Details	7CM007	$2.99Add to cart Special order: ships in 2 to 4 weeks
4		Wheel 10-1/2bore Blk with Gray Tire Midsize Ext More Product Details	X9063	$53.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Screw No.8 5/8 Tapping Phil PH Blk Zinc More Product Details	72387A	$2.99Add to cart Special order: ships in 2 to 4 weeks
6		Plate, Muffler Mid Size Extractor More Product Details	X9471	$3.99Add to cart Special order: ships in 2 to 4 weeks
7		FOAM, MUFFLER MID SIZE EXTRACTOR More Product Details	X9470	$5.99Add to cart Special order: ships in 2 to 4 weeks
8		Plate, Medex 100 PSI More Product Details	X9494	$10.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Barb 1/4 X 3/8 Male/Male More Product Details	PX85	$13.99Add to cart Special order: ships in 2 to 4 weeks
10		WASHER .400 ID 1.50 OD ZP More Product Details	X8239	$2.99Add to cart Special order: ships in 2 to 4 weeks
11		Quick Disconnect .25 Female More Product Details	PX6	$33.99Add to cart Special order: ships in 2 to 4 weeks
12		Screw Hex Head Cap 1/4-20x1 More Product Details	X8211	$1.99Add to cart Special order: ships in 2 to 4 weeks
13	No Image	Washer 5/16 SAE Flat Zinc More Product Details	X8218	$2.99Add to cart Special order: ships in 2 to 4 weeks
14		Caster Assembly, Wheel 4 In., Grey, Extractors More Product Details	X9153	$26.99Add to cart Special order: ships in 2 to 4 weeks
15		SPACER, CASTER CFR MID SIZE More Product Details	72783A	$6.99Read more
16	No Image	Receptacle, Flanged Inlet Straight Blade More Product Details	X9429	$25.99Read more
17		SCREW, No 6-32X5/8 PHIL PAN MS SS More Product Details	7DW001	$1.99Read more
18		SCREW, 8-32X2 PHIL PAN M/S ZINC BULK More Product Details	72703A	$2.99Add to cart Special order: ships in 2 to 4 weeks
19	No Image	Cover Fan More Product Details	72702A	$3.99Add to cart Special order: ships in 2 to 4 weeks
20	No Image	Fan Cooling 120V 92MM 35 Cfm More Product Details	72700A	$101.99Add to cart Special order: ships in 2 to 4 weeks
21	No Image	Nut 8-32 Lock with Nylon Insert More Product Details	X8260	$2.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	Spacer, Vac Motor 2.375 More Product Details	72651B	$10.99Add to cart Special order: ships in 2 to 4 weeks
23		Washer Plain no 10 ID SS More Product Details	17850	$2.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Gasket 3/8 Donut Tank Seal V1510 PVC More Product Details	X9079	$11.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	NUT, 6-32 LOCK W/NYLON INSERT ZINC More Product Details	X8257	$2.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 More Product Details	7DL003	$4.99Add to cart Special order: ships in 2 to 4 weeks
27		Nut, Push 1/2 More Product Details	7GL002	$3.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	Pump,Extractor,110,VAC,120psi,Aquatec More Product Details	AQ120	$302.99Add to cart Special order: ships in 2 to 4 weeks
29		Plate, Heater/Pump Mid Size Extractor More Product Details	X9465	$42.99Add to cart Special order: ships in 2 to 4 weeks
30	No Image	Nut KEP 1/4 - 20 Zinc More Product Details	7BF004	$2.99Add to cart Special order: ships in 2 to 4 weeks
31		Elbow, Nylon 90 Deg 3/8 NPT X 3/8 Hose Barb More Product Details	PX15	$4.99Add to cart Special order: ships in 2 to 4 weeks
32	No Image	1/4 X 20 FLANGED SERRATED NUT More Product Details	X9528	$1.99Add to cart Special order: ships in 2 to 4 weeks
33		Screw 1/4 20x3/4 Phil PH MS SS More Product Details	7EW001	$2.99Add to cart Special order: ships in 2 to 4 weeks
34	No Image	SPACER, 1/8 More Product Details	72820A	$1.99Add to cart Special order: ships in 2 to 4 weeks
35		GASKET, VACUUM CHAMBER More Product Details	X9468	$1.99Add to cart Special order: ships in 2 to 4 weeks
36		NUT, 10-24 NYLON INSERT LOCK 18-8 SS More Product Details	7BF030	$2.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC More Product Details	X8851	$2.99Add to cart Special order: ships in 2 to 4 weeks
38	No Image	NUT, 10-32 KEP ZINC More Product Details	7BF008	$2.99Add to cart Special order: ships in 2 to 4 weeks
39		Housing,Extractors,Vacuum Chamber,Self Contained More Product Details	X9467	$15.99Add to cart Special order: ships in 2 to 4 weeks
40	No Image	Hose 300PSI Solution 3/8 ID X 1/8 Wall More Product Details	PX3H	$2.99Add to cart Special order: ships in 2 to 4 weeks
41		Wiring Kit, PFX1350 W/O Heater More Product Details	X9159	$52.99Add to cart Special order: ships in 2 to 4 weeks
42		Cuff, Hose End 1.5 to 2 Wire Reinforced More Product Details	HJ7	$23.99Add to cart Special order: ships in 2 to 4 weeks
43	No Image	Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 More Product Details	X8226	$2.99Add to cart Special order: ships in 2 to 4 weeks
44	No Image	Hose THMD 1-1/2x20ft Gray Solution Line and Cuffs More Product Details	1504WDS	$163.99Read more
45		Clamp 2.5 Worm Gear SS Hex Slot Size 32 More Product Details	PX215	$8.99Add to cart Special order: ships in 2 to 4 weeks
46		Hose Vacuum 2 In Dia Bulk Grey See Cut Lengths More Product Details	7CZ001	$2.99Add to cart Special order: ships in 2 to 4 weeks
47		Plate, Vacuum More Product Details	X9466	$42.99Add to cart Special order: ships in 2 to 4 weeks
48	No Image	NUT, No 10-24 KEP ZINC More Product Details	7BF003	$2.99Add to cart Special order: ships in 2 to 4 weeks
49	No Image	Rod, 10/24 5.5 All Thread Stud 18-8 SS More Product Details	72000A	$7.99Add to cart Special order: ships in 2 to 4 weeks
50	No Image	LABEL GROUND SYMBOL More Product Details	X9214	$2.99Add to cart Special order: ships in 2 to 4 weeks
51		Screw 8-32 X 3/8 Phil Pan TCS Type F ZINC More Product Details	X8284	$2.99Add to cart Special order: ships in 2 to 4 weeks
52	No Image	1942-B Motor Kit For 10 Gallon Extractors More Product Details	1942KIT10	$0.00Read more
53	No Image	Cord,Extractors,25ft,Yellow,12/3 SJTW More Product Details	M1374	$149.99Add to cart Special order: ships in 2 to 4 weeks

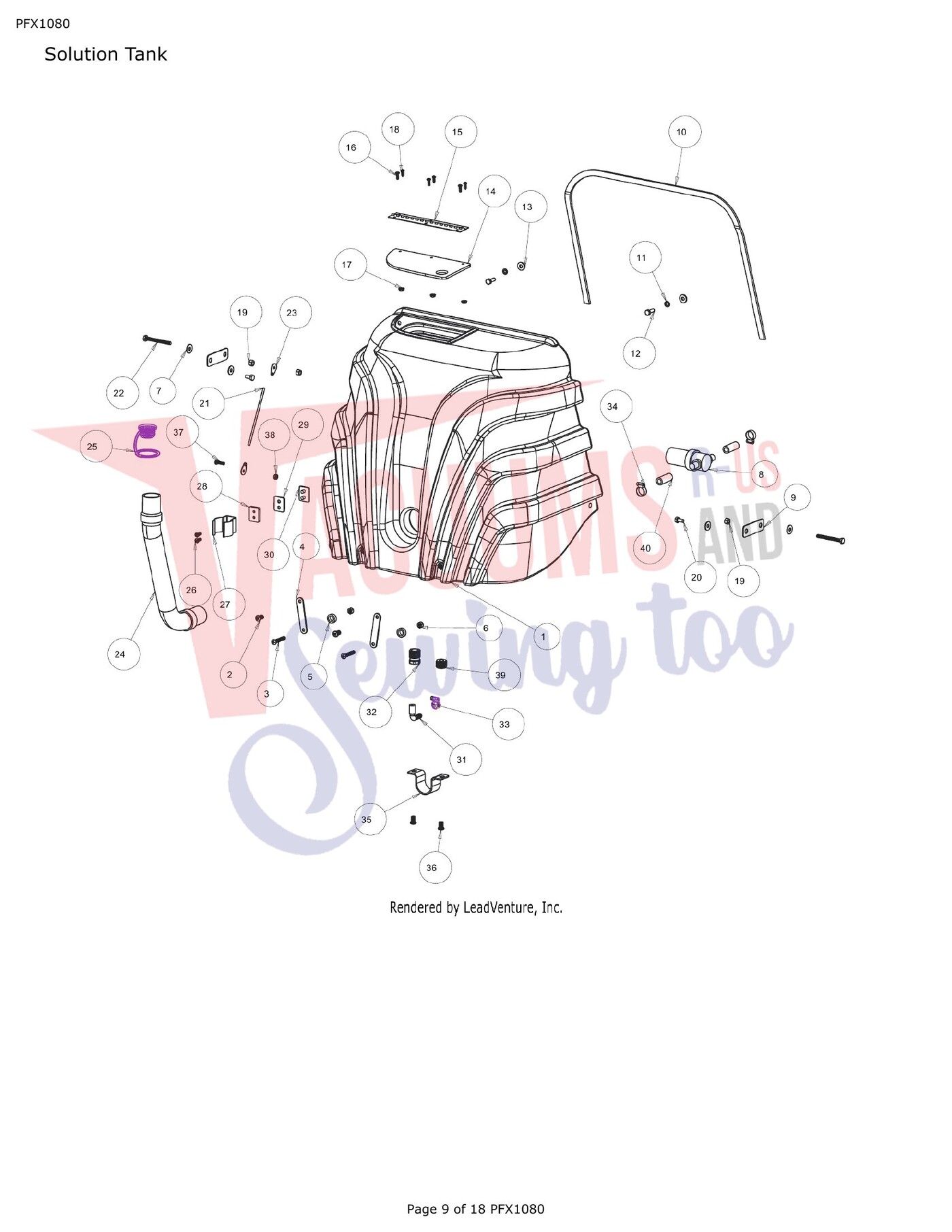

Powr-Flite PFX1080 exploded schematic diagram (page 2)

Click to enlarge

#	Part image	Description	SKU	Price
1	No Image	TANK SOLUTION MID SZ EXTRACTOR BLUE RAL NO 5005 More Product Details	X1052BLUE	$327.99Add to cart Special order: ships in 2 to 4 weeks
2	No Image	Screw 1/4 20x1/2 Phil PH Blk 18-8 SS More Product Details	7BS003BLK	$1.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	SCREW, 1/4-20 1 1/2 MACHINE More Product Details	X9359	$1.99Add to cart Special order: ships in 2 to 4 weeks
4	No Image	Strap, Front, Mid Size Extractor More Product Details	X9444	$2.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Spacer 1/2 ID X 3/4 OD X 1/4 Long More Product Details	72635A	$2.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	Nut 1/4-20 Lock Nylon Insert More Product Details	X8237	$2.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	Washer 1/4 Flat USS Zinc More Product Details	X8235	$2.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	Filter,Extractor,Inline,Midsize,with housing More Product Details	PX303	$19.99Add to cart Special order: ships in 2 to 4 weeks
9		Side Strap, Mid Size Extractor More Product Details	X9475	$2.99Add to cart Special order: ships in 2 to 4 weeks
10	No Image	Gasket, Strip, Tank Medex More Product Details	X9483A	$4.99Add to cart Special order: ships in 2 to 4 weeks
11	No Image	WASHER M6 X 20 X 1.65 FENDER SS CIMEX More Product Details	0006000503	$2.99Add to cart Special order: ships in 2 to 4 weeks
12		1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE More Product Details	17160	$2.19Add to cart Special order: ships in 2 to 4 weeks
13		WASHER, RUBBER .29ID .688OD 1/8 80 DURO More Product Details	72667A	$2.99Add to cart Special order: ships in 2 to 4 weeks
14		LID SOLUTION TANK MID SIZE REV03 More Product Details	X9451	$29.99Add to cart Special order: ships in 2 to 4 weeks
15		Hinge, Solution Tank Lid More Product Details	X9450	$5.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	Screw 8-32x1/2 Pan Hd PH Blk Zinc More Product Details	X8278	$2.99Add to cart Special order: ships in 2 to 4 weeks
17	No Image	Nut 8-32 KEPS Zinc More Product Details	X8256	$2.99Add to cart Special order: ships in 2 to 4 weeks
18	No Image	Screw 6x1/2 Pan Hd PH Blk Self Tapping More Product Details	X8261	$2.99Add to cart Special order: ships in 2 to 4 weeks
19	No Image	Nut KEP 1/4 - 20 Zinc More Product Details	7BF004	$2.99Add to cart Special order: ships in 2 to 4 weeks
20		Screw Hex HD Cap 1/4 20x1/2 SS More Product Details	19240	$1.99Add to cart Special order: ships in 2 to 4 weeks
21	No Image	ROPE SOLID BRAID More Product Details	72660A	$2.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	BOLT, 1/4-20X2-1/2 HEX TAP18-8 SS More Product Details	71639A	$2.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	End Loop, With Two Holes 16G More Product Details	X9069	$2.99Add to cart Special order: ships in 2 to 4 weeks
24	No Image	Hose Drain PFX900S Cascade PFX1350 More Product Details	PAS37	$8.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Drain Hose Plug Compatable With PAS37 Hose More Product Details	PAS36	$12.99Add to cart Special order: ships in 2 to 4 weeks
26		SCREW, 10-32X1/2 PHIL PAN MS 18-8 SS More Product Details	71651A	$2.99Add to cart Special order: ships in 2 to 4 weeks
27	No Image	Clip Spring, Black More Product Details	72173A	$7.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	PAD SPRING CLIP More Product Details	72669A	$2.99Add to cart Special order: ships in 2 to 4 weeks
29		GASKET NUT PLATE PFMA ELITE More Product Details	72175A	$2.99Add to cart Special order: ships in 2 to 4 weeks
30		Clip, Nut Plate Midsize Extractor More Product Details	72170A	$12.99Add to cart Special order: ships in 2 to 4 weeks
31		Elbow, Nylon 90 Deg 3/8 NPT X 3/8 Hose Barb More Product Details	PX15	$4.99Add to cart Special order: ships in 2 to 4 weeks
32		REDUCER 1/2 TO 3/8 More Product Details	PC22	$5.99Add to cart Special order: ships in 2 to 4 weeks
33	No Image	Clamp 1/4 Worm Gear SS Hex Slot Phil SAE Size 4 More Product Details	7DL003	$4.99Add to cart Special order: ships in 2 to 4 weeks
34	No Image	Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 More Product Details	7DL008	$4.99Add to cart Special order: ships in 2 to 4 weeks
35		Bracket, Drain Hose More Product Details	X9448	$3.99Add to cart Special order: ships in 2 to 4 weeks
36		Screw 1/4 20x1/2 Phil PH MS 18-8 SS More Product Details	7BS003	$2.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	SCREW 10-32 X 1 PHIL PAN M/S BLK ZINC More Product Details	X8851	$2.99Add to cart Special order: ships in 2 to 4 weeks
38	No Image	NUT, 10-32 KEP ZINC More Product Details	7BF008	$2.99Add to cart Special order: ships in 2 to 4 weeks
39	No Image	Plug, Counter Hex 1/2 More Product Details	7AF003	$7.99Add to cart Special order: ships in 2 to 4 weeks
40	No Image	Hose 300PSI Solution 3/8 ID X 1/8 Wall More Product Details	PX3H	$2.99Add to cart Special order: ships in 2 to 4 weeks

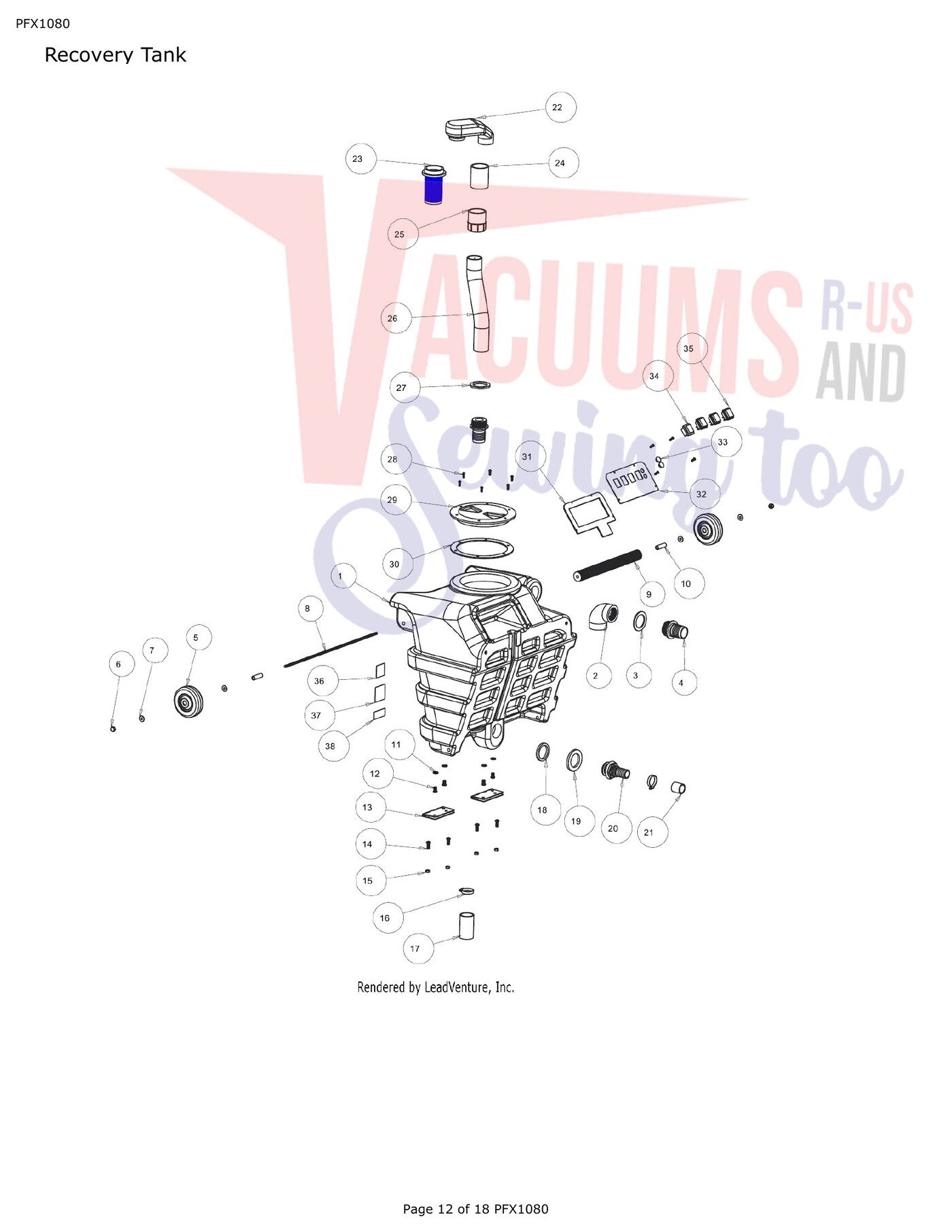

Powr-Flite PFX1080 exploded schematic diagram (page 3)

Click to enlarge

#	Part image	Description	SKU	Price
XX	No Image	Standpipe Assembly w/ Deflector Plate, Midsize Extractor More Product Details	X1709	$90.99Read more
1	No Image	TANK SOLUTION MID SZ EXTRACTOR BLUE RAL NO 5005 More Product Details	X1052BLUE	$327.99Add to cart Special order: ships in 2 to 4 weeks
2		Elbow Fitting Plastic 90 White 1.5 FPT More Product Details	PX11A	$11.99Add to cart Special order: ships in 2 to 4 weeks
3	No Image	Gasket Dump Valve .125 Thick 1.81 ID X 2.37 OD More Product Details	PX14A	$3.99Add to cart Special order: ships in 2 to 4 weeks
4		Bulkhead Plastic 1.5 NPT X 1.5 Hose Barb More Product Details	PX25	$3.99Add to cart Special order: ships in 2 to 4 weeks
5	No Image	Wheel Black 4 X 1-1/4 More Product Details	X8025	$13.99Add to cart Special order: ships in 2 to 4 weeks
6	No Image	NUT, 5/16-18 CAP ZP More Product Details	72148A	$1.99Add to cart Special order: ships in 2 to 4 weeks
7	No Image	Washer 1/4 Flat USS Zinc More Product Details	X8235	$2.99Add to cart Special order: ships in 2 to 4 weeks
8	No Image	All Thread, 5/16-18 X 18.75 Zinc More Product Details	X9452	$14.99Add to cart Special order: ships in 2 to 4 weeks
9	No Image	Handle, Mid Size Extractor More Product Details	X9453	$35.99Add to cart Special order: ships in 2 to 4 weeks
10	No Image	Spacer 1.625 Long .50 OD .313 ID More Product Details	72486A	$8.99Add to cart Special order: ships in 2 to 4 weeks
11		WASHER, ID.299 OD.622 THK.055 ZINC PLATED More Product Details	X8858	$2.99Add to cart Special order: ships in 2 to 4 weeks
12		Screw 1/4 20x1/2 Phil PH MS 18-8 SS More Product Details	7BS003	$2.99Add to cart Special order: ships in 2 to 4 weeks
13	No Image	Tank Hinge PFX900S PFX1350 More Product Details	X9014	$13.99Add to cart Special order: ships in 2 to 4 weeks
14		Screw 1/4 20x3/4 Phil PH MS SS More Product Details	7EW001	$2.99Add to cart Special order: ships in 2 to 4 weeks
15	No Image	Nut KEP 1/4 - 20 Zinc More Product Details	7BF004	$2.99Add to cart Special order: ships in 2 to 4 weeks
16	No Image	Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 More Product Details	7DL005	$8.99Add to cart Special order: ships in 2 to 4 weeks
17		Hose 1-1/2 Wire-Reinforced Black More Product Details	72656A	$1.99Add to cart Special order: ships in 2 to 4 weeks
18		GASKET DRAIN INNER 1.330 ID 1.825 OD .25 THICK More Product Details	72679A	$3.99Add to cart Special order: ships in 2 to 4 weeks
19		GASKET DRAIN OUTER 1.330 ID 2.330 OD .25 THICK More Product Details	72680A	$4.99Add to cart Special order: ships in 2 to 4 weeks
20		Drain Fitting, 1 Pro Series With Nut More Product Details	72677A	$12.99Add to cart Special order: ships in 2 to 4 weeks
21		Tubing, Vinyl 1 ID 1-1/4 OD Pro Series Drain More Product Details	72678A	$2.99Add to cart Special order: ships in 2 to 4 weeks
22	No Image	Tube, Vacuum More Product Details	PX33	$22.99Add to cart Special order: ships in 2 to 4 weeks
23	No Image	Float, Cage W/Heavy Ball More Product Details	PX31	$57.99Add to cart Special order: ships in 2 to 4 weeks
24		COUPLING PVC 1-1/2 SLIP X SLIP More Product Details	72615A	$4.99Add to cart Special order: ships in 2 to 4 weeks
25	No Image	Coupler, Plastic 1.50 Slip X 1.50 FPT More Product Details	PX63	$7.99Add to cart Special order: ships in 2 to 4 weeks
26	No Image	Standpipe, Midsize Extractor More Product Details	72628B	$64.99Add to cart Special order: ships in 2 to 4 weeks
27		Gasket, Dump Valve .1875 Thick 1.75 ID X 2.50 OD More Product Details	PX14	$4.99Add to cart Special order: ships in 2 to 4 weeks
28	No Image	Screw No.8 5/8 Tapping Phil PH Blk Zinc More Product Details	72387A	$2.99Add to cart Special order: ships in 2 to 4 weeks
29		LID, 6 Inch Clear W/Blk Ring Extractor More Product Details	PX103	$33.99Add to cart Special order: ships in 2 to 4 weeks
30		Gasket LID 8 OD X 6.625 ID More Product Details	PX103G	$11.99Add to cart Special order: ships in 2 to 4 weeks
31		Gasket, Switch Plate Medex More Product Details	X9484	$4.99Add to cart Special order: ships in 2 to 4 weeks
32		Plate, Switch Mid-Size Extractor More Product Details	X9801	$40.99Add to cart Special order: ships in 2 to 4 weeks
33	No Image	Plug, 1/2 Inch Black Nylon More Product Details	71804A	$2.99Add to cart Special order: ships in 2 to 4 weeks
34		Plug, Switch Hole PFX1350 Series More Product Details	X9173	$5.99Add to cart Special order: ships in 2 to 4 weeks
35		On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE More Product Details	32966	$10.99Add to cart Special order: ships in 2 to 4 weeks
36	No Image	Label, Qualified Made In The USA 0.8661 X 0.8661 More Product Details	X1004	$2.99Add to cart Special order: ships in 2 to 4 weeks
37	No Image	Label Serial Number 2X2 Plain More Product Details	X8459	$2.99Add to cart Special order: ships in 2 to 4 weeks
38		Warning Label Dryer and Spotter More Product Details	X8976	$1.99Add to cart Special order: ships in 2 to 4 weeks
