Schematic and parts book for powr-flite PF712VC . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | EUREKA ADJ KNOB SCREW PLASTIC BASE MODELS SANITAIRE SHOULDER | ER205 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Knob Assembly | X1795 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | MOTOR SCREW | ER325 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Wire And Terminal Assembly | X1831 | $0.00Read more |
| 11 | Not Available | Nut | ER336 | Not Available |
| 12 | No Image | HANDLE RELEASE SPRING, FOOT PEDAL EUREKA | ER3 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | | MOTOR SCREW | ER325 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | FRONT AXLE SCREW AND CLAMP ASSEMBLY EUREKA | ER332 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Base Assembly | X1823 | $132.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Base Assembly PF712DC | X1827 | $106.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | Not Available | Hood | X1796 | Not Available |
| 20 | No Image | EUREKA UPRIGHT HOOD SPRING | ER4 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | GASKET - MOTOR TO MAIN CASTING 30517 | ER35 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 |  | SCREW MOTOR TO BASE LONG EUREKA | ER305 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 |  | STRAIN RELIEF BUSHING | ER331 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Hood and Name Plate Assembly Packaged | X1824 | $141.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Base Assembly | X1797 | Not Available |
| 32 | | MOTOR SCREW | ER325 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | | STRAIN RELIEF BUSHING | ER331 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | MOTOR SCREW | ER325 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | No Image | Motor Vacuum 120VAC 7amp 1speed | ER632 | $172.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | | GASKET - MOTOR TO MAIN CASTING 30517 | ER35 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | Rear Axle Screw | ER307 | $0.00Read more |
| 40 |  | VAC HANDLE RELEASE LEVER, FOOT PEDAL EUREKA | ER2 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | Bag,Vacuum,Adapter/Retainer,Eureka,Sanitaire | ER127 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | Not Available | Nut | ER336 | Not Available |
| 43 |  | WHEEL COVER, UPRIGHT (2) EUREKA | ER333 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | No Image | Vac Fan Scroll Cover SC886 SC887 SC888 SC899 GEN | ER638 | $43.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 | No Image | VAC FAN SCROLL COVER CLEAR GEN SANITAIRE | ER644 | $31.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 2 | No Image | Screw Package | X1801 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Washer 10 pack | X1802 | Not Available |
| 4 | No Image | Spring Packaged | X1803 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Hook, Cord,Vacuum | ER251 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Screw Package | X1804 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | HOUSING SWITCH LH RED | X1805 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | Rocker Switch | X1806 | Not Available |
| 9 | No Image | Upper Cord Assembly | X1807 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | Wiring Shield | X1808 | Not Available |
| 12 | No Image | Screws Packaged | X1794 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Upper Handle Assembly Complete PF712/PF716 | X1882 | $84.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Supply Cord Assembly | X1811 | $27.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Upper Handle Assembly Complete PF712/PF716 | X1882 | $84.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Washer | ER320 | $0.00Read more |
| Not Shown |  | EUREKA REAR AXLE HUB CAP SANITAIRE | ER568 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Wheel Rear | X1800 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Front Axle | ER353 | $0.00Read more |
| 3 |  | VAC WHEEL, FRONT UPRIGHT EUREKA | ER37 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | AXLE SPRING, UPRIGHT EUREKA | ER308 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Package Bristle Strip | X1793 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | VAC BRUSHROLL BEARING VGII and RETAINER FOR 12 GEN | ER397 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | End Cap | ER392 | Not Available |
| 8 |  | VAC END CAP COVER W/HOLES RUBBER HEX EUREKA | ER390 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | VAC DISTURBULATOR TUBE ONLY VG II 12 | ER381 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | VAC BOTTOM PLATE ASSEMBLY, 12 SANITAIRE | ER214 | $37.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 |  | VAC BRUSHROLL VGII 12 HEX END W/ BALL BEARING GEN | ER395 | $54.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Shaft Disturbulator | X1826 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | EUREKA VIB 2 BEARING RETAINER | ER398 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Nyloc Nut | ER317 | Not Available |
| 17 |  | Belt Upright 1pk Round Gen Eureka | ER7B | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | FRONT AXLE SCREW AND CLAMP ASSEMBLY EUREKA | ER332 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | EUREKA QUICK KLEEN REAR AXLE | ER567 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Clear Bumper Strip | 87.035 | Not Available |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Screw Package | X1818 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 | No Image | Motor Vacuum 120VAC 7amp 1speed | ER632 | $172.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Carbon Brushes,Vacuum,110,VAC,Helwig Carbon Products Inc,assy,new style,7AMP motor | ER623 | $45.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | EUREKA ARMATURE WASHER METAL FOR ER41 | ER344 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | VAC FAN HIGH BLADE, PF712VC, PF712DC, PF716VC, PF716DC, SANITAIRE SC886 | ER66 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | MOTOR PULLEY LONG EUREKA | ER202 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 |  | VAC FAN WASHER, FIBER FOR ER17, REQ 2 | ER17A | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | VAC FAN WASHER, FIBER FOR ER17, REQ 2 | ER17A | $1.99Add to cart Special order: ships in 2 to 4 weeks |

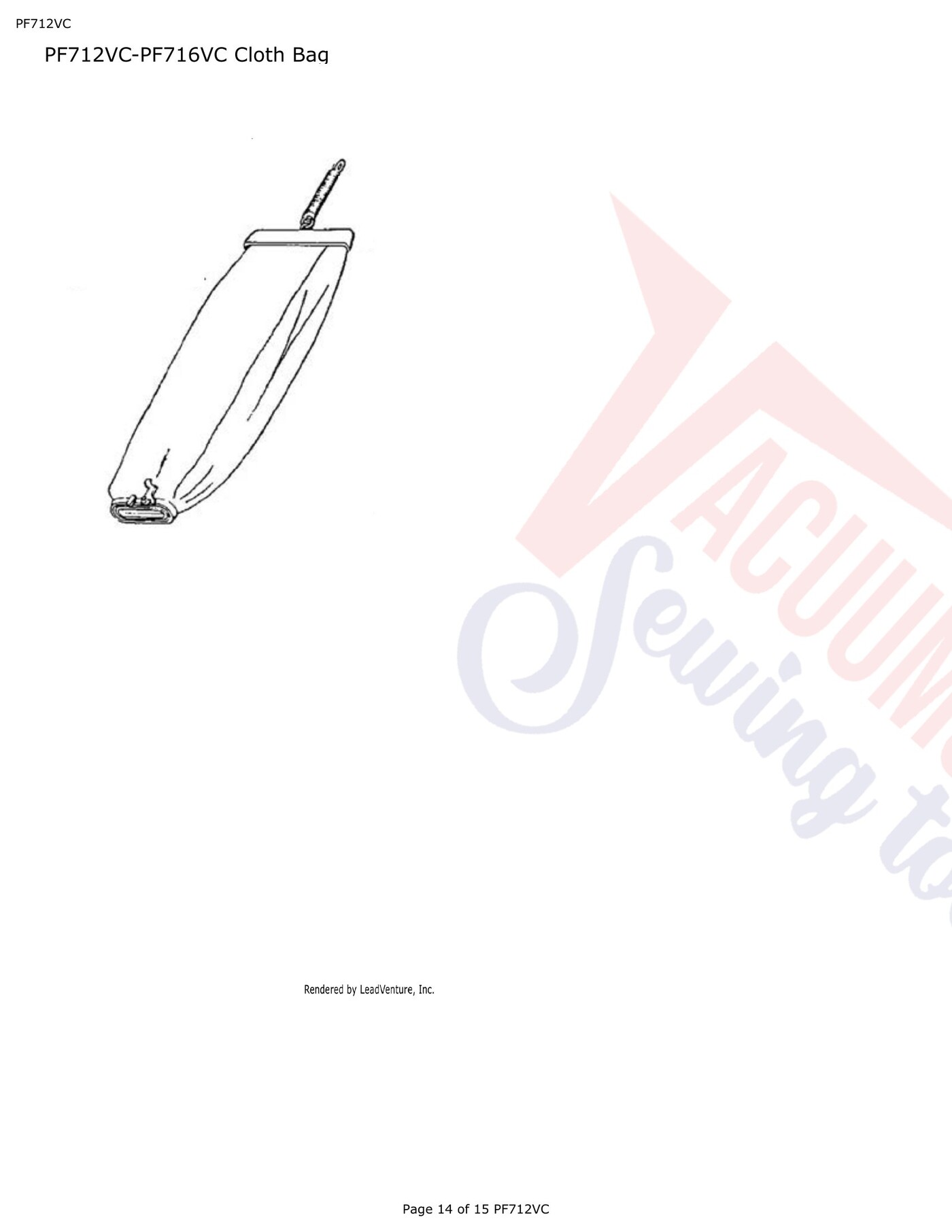

| # | Part image | Description | SKU | Price |
| 1 |  | Bag,Vacuum,Cloth,TRIPLE V W/SLIDE and SPRING BLACK | G825B | $31.99Add to cart Special order: ships in 2 to 4 weeks |
