Schematic and parts book for powr-flite PF62EC . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| Not Shown |  | BAG PAPER VACUUM 6PK | 259PB | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 1 |  | HANDLE ASMB COMPLETE BLK PROLITE PF FB-SPDM | C4314400C | $8.99Read more |
| 2 | No Image | UPPER CORD HOOK PROLITE PF | B4314814 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Main Switch | A428-2014 | Not Available |
| 4 | No Image | Hook Cord Vacuum Front | B4314914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Tube, Prolite Handle Revised | B4314700B | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | SCREW PHILLIPS PAN HEAD 10X1/2 PROLITE PF T/S | A0900200 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | CABLE CLAMP 5/16 PROLITE PF | A0900100 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | UPPER DUCT AND BAG MOUNT ASSEMBLY PROLITE PF | D4314300 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | COLLAR RUBBER PROLITE BLACK PF | B4314214 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Bag Mount, Gasket,Vacuum,Foam,Prolite,Modified | B2114414B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Bag,Vacuum,Cloth,Assembly | D4310600 | $44.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Tube, Duct Prolite PF FB-SPDM Fuller Brush Speedy | B4314000 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums | B0140814B | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640
Also Fits Simplicity Freedom - Replacement For:... More Product Details | 17394 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | Compatible alternateReplacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... More Product Details | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart |
| 13 |  | Compatible alternateRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk More Product Details | RBS2 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | Upright Stop, W/Spring Clips Prolite PF New | B0161400B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Nozzle Cover Blue W/O Labels And Spring Clips | B0173639B | $0.00Read more |
| 16 |  | LABEL NOZZLE PROLITE PF | B2067900 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | NOZZLE COVER ASSY PF62 W/LABELS and SPRING CLIPS | D0173600 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | FURNITURE GUARD NEW PROLITE PF - BLACK | B0290414B | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Brush Roll,Upright Vacuum,Speedy Maid,Agitator | B0123000 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Squeegee,Vacuum | B0152414B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | VAC WHEEL FRONT PF62EC PF | B0101414 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | SMALL AXLE PROLITE PF | B0100900 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | BASE TRAY PROLITE BLACK PF | B0161314C | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 |  | Belt,Guard,Hair Cutter,Vacuum,Upright,Prolite,PowrFlite | B0140000 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Left Pivot ProLite Black PF | B0160600 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 |  | Right Pivot ProLite Black PF | B0160400 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Lens Blank ProLite Blue PF | B0180239 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | LENS HOLDER COVER PROLITE BLUE PF | B0510639 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Motor Cover Prolite Blk PF for Longer Brushes | B0510514B | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Motor,Vacuum,110,VAC,Prolite | D1133300 | $153.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 |  | Motor Housing Assembly Prolite PF62 w/Wheels | D0510000 | $40.99Read more |
| 32 | No Image | DUCT COVER ASSEMBLY PROLITE PF | D0510400 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | CLIP LOWER CORD VAC YOKE SUPPORT | B4314114B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Universal Male Plug Prolite PF 97130 | A0280214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | FILTER VAC FOAM 4.5 X 3 IN | B0150200 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | POST FILTER COVER PROLITE BLK PF WIDER STRAP PLUG IMPROVE | B0510114C | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 |  | Cord,Vacuum,50ft,Black,18/3 SJT | A4340831 | $82.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 39 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 |  | 8 X 1 1/4 PAN COMBO T/S PROLITE PF | A0900300 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 |  | 10-24 X 1 PAN COMBO M/S PROLITE PF | A0900400 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 |  | 10-24 NYLON INSERT L/N PROLITE PF | A0900500 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | No Image | Fan, Motor Left Prolite PF Belt Side | A1130214 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | No Image | Fan, Motor Prolite Right PF | A1130114 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | 1/4-20 FIN HEX NUT PROLITE PF | A0100100 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | 3/8-24 FIN HEX NUT BELT SIDE PROLITE PF | A0100400 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 47 |  | WHEEL REAR BLACK PF PROLITE | B0102414 | $1.99Read more |
| 48 |  | REAR AXLE CAP PROLITE PF | B0102200 | $1.99Read more |
| 49 | No Image | REAR WHEEL AXLE PROLITE MODIFIED | B0102000B | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Washer, 3/8 Shoulder Powr-Flite Prolite | A0100600 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 |  | Washer, Shoulder Powr-Flite Prolite | A0100300 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | No Image | 3/8 FLAT WASHER PROLITE PF | A0100500 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 53 |  | FLAT WASHER .315 ID X .55 OD PROLITE PF | A0100200 | $1.99Add to cart Special order: ships in 2 to 4 weeks |

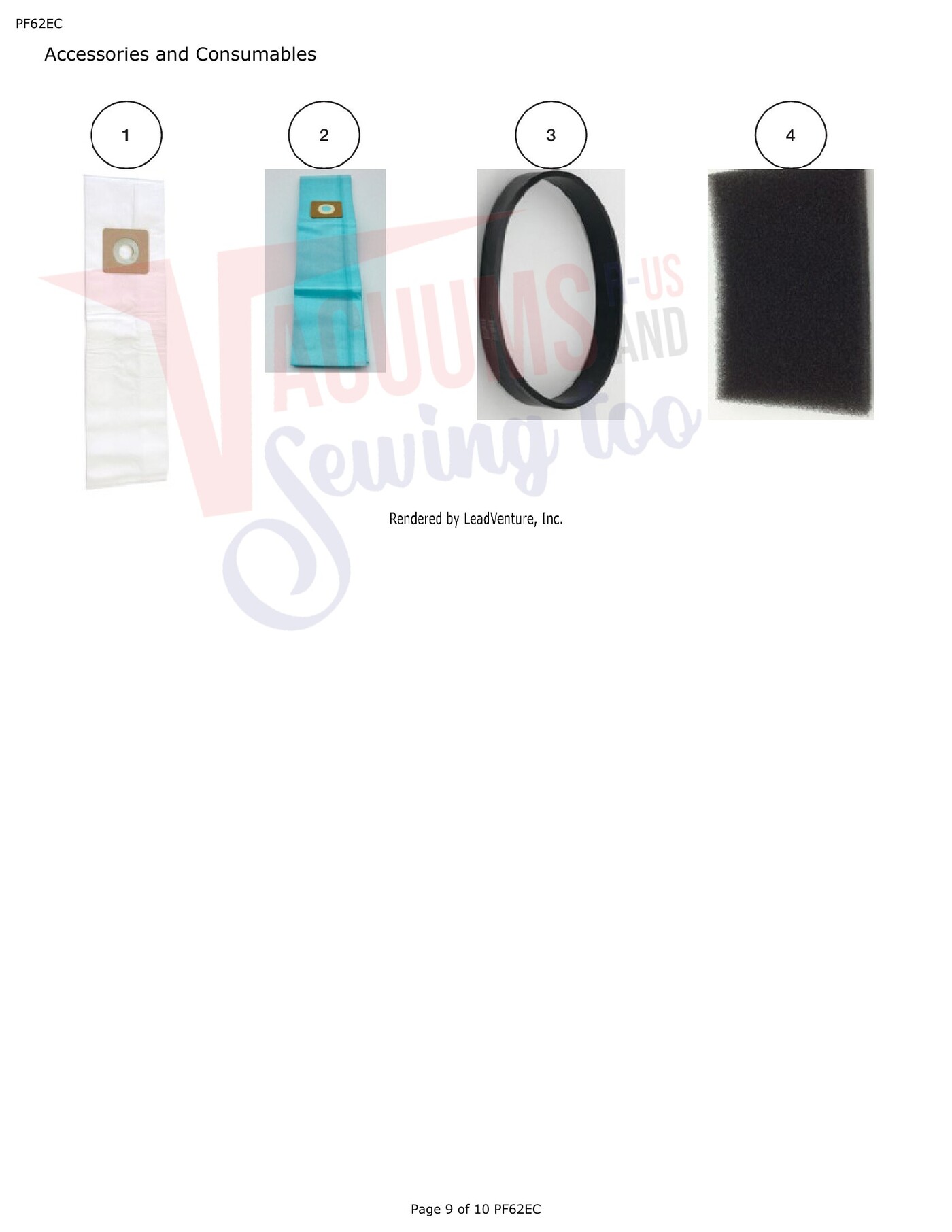

| # | Part image | Description | SKU | Price |
| 1 |  | Bag,Vacuum,HEPA,6 Pack | D2115500 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | BAG PAPER VACUUM 6PK | 259PB | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Belt,Vacuum,Upright,3-3/8 FLAT X 1/2 NEO,1 Pack | L60A | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | FILTER VAC FOAM 4.5 X 3 IN | B0150200 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
