Schematic and parts book for powr-flite PAS20E . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 80 | Not Available | Solution Tank | 501.087.1 | Not Available |
| 81 | Not Available | Plate | 501.086 | Not Available |
| 82 | No Image | Washer | ER320 | $0.00Read more |
| 83 | No Image | Bolt M6 | PAS147 | $0.00Read more |
| 84 | Not Available | Filter | PA53 | Not Available |
| 85 |  | HOSE FITTING | PAS296 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 86 | No Image | Brush Motor 115V | PAS305 | $0.00Read more |
| 87 | Not Available | Plate | 501.090 | Not Available |
| 88 | No Image | Washer | ER320 | $0.00Read more |
| 89 | No Image | BOLT M6 X 12MM SS TE PAS20 PAS32DX | PAS162 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 90 | No Image | COUPLING PAS20BA | PAS24 | $166.99Read more |
| 92 | No Image | SPIN ON CLUTCH PLATE PAS20BA | PAS23 | $73.99Add to cart Special order: ships in 2 to 4 weeks |
| 93 | No Image | COUPLING SCREW 5/16-20 X 1-3/8 | PAS111 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 94 | Not Available | Brush | 500.171 | Not Available |
| 94 | Not Available | Tynex Brush | 500.171.1 | Not Available |
| 94 | Not Available | Steel Brush | 500.171.2 | Not Available |
| 94 | Not Available | Vegetable Brush | 500.171.3 | Not Available |
| 94 | Not Available | Pad Holder | 500.178.3 | Not Available |
| 95 | No Image | KNOB | PAS11 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 96 | No Image | ROD | PAS151 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 97 | No Image | SOLUTION HOSE 4FT | PAS288 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 98 | No Image | SPLIT PIN | PAS268 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 99 | No Image | LEVER PAS28 PAS20 PAS20DX PAS28DX,32DX,32SHP | PAS269 | $19.99Add to cart Special order: ships in 2 to 4 weeks |
| 100 | Not Available | Washer | PAS270 | Not Available |
| 101 | No Image | LEVER NUT PAS28 PAS20DX PAS16 PAS20,28DX,32DX | PAS271 | $9.99Add to cart Special order: ships in 2 to 4 weeks |
| 102 | No Image | SOLUTION VALVE FITTING 3/8 W/ELBOWS | PAS12 | $121.99Add to cart Special order: ships in 2 to 4 weeks |
| 103 | No Image | NUT FOR PAS12 | PAS262 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 104 | Not Available | Hose Clamp | PX42 | Not Available |
| 105 | No Image | SOLUTION HOSE 4FT | PAS288 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 106 | No Image | UPPER LEVER PAS20 20DX 32SHP | PAS204 | $308.99Read more |
| 107 | Not Available | Washer | 410.064 | Not Available |
| 108 | Not Available | Nut | 430.117 | Not Available |
| 109 | No Image | WASHER 8 DIA PAS28R | PAS188 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 110 | No Image | SCREW TRANS SUPPORT | PAS167 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 111 | Not Available | Support | 430.119 | Not Available |
| 112 | Not Available | Lower Lever | PAS203 | Not Available |
| 113 | Not Available | Washer | 410.063 | Not Available |
| 114 | No Image | Nut | PAS466 | $0.00Read more |
| 115 |  | FOOT PEDAL COVER | PAS14 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 116 | Not Available | Pipe | 503.116 | Not Available |
| 117 | Not Available | Nyloc Nut | PAS304 | Not Available |
| 118 | Not Available | Washer | 710.166 | Not Available |
| 119 | Not Available | Cover | 503.119 | Not Available |
| 120 | Not Available | Tie Rod | 510.051 | Not Available |

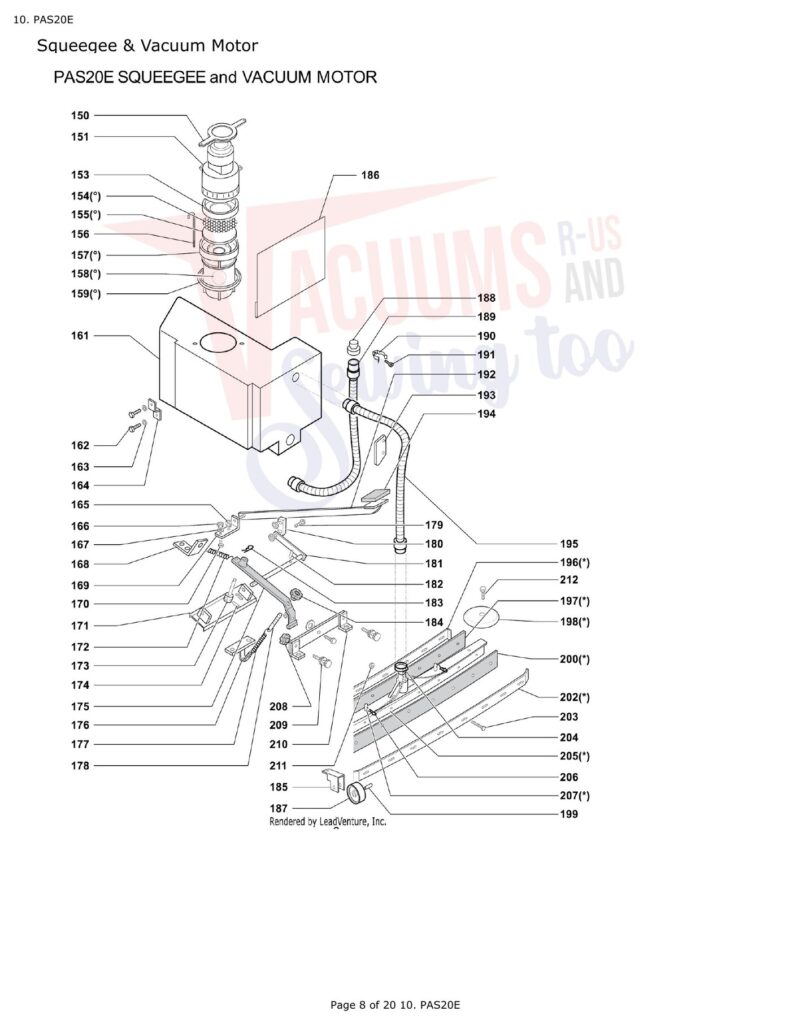

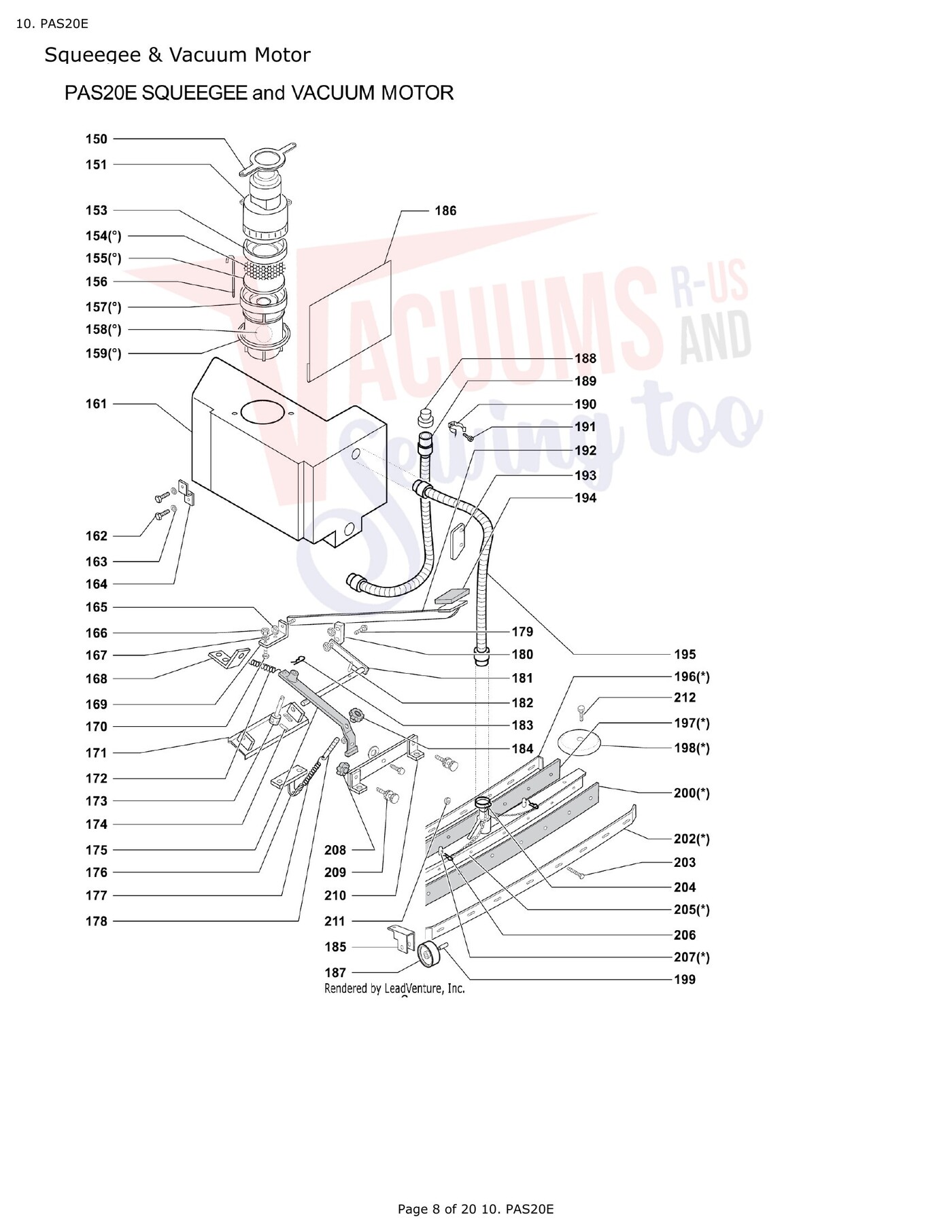

| # | Part image | Description | SKU | Price |
| (*) | Not Available | Complete Squeegee Assembly | 500.228.1 | Not Available |
| (°) | No Image | FLOAT ASSEMBLY | PAS17 | $111.99Add to cart Special order: ships in 2 to 4 weeks |
| 150 | No Image | MOTOR LOCK RING PAS20 | PAS15 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 151 |  | Vacuum Motor,AutoScrubber,120,VAC,Ametek | 1973 | $469.99Add to cart Special order: ships in 2 to 4 weeks |
| 153 |  | GASKET MOTOR | PAS102 | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 154 | Not Available | Screen | 500.070 | Not Available |
| 155 | No Image | Filter,Scrubber,Motor Support | PAS107 | $18.99Read more |
| 156 | Not Available | Tie Rod | 410.105.1 | Not Available |
| 157 | Not Available | Float Support | 500.068 | Not Available |
| 158 | Not Available | Float | 500.094 | Not Available |
| 159 | No Image | FLOAT SEAL | PAS103 | $32.99Read more |
| 161 | Not Available | Recovery Tank | 503.161 | Not Available |
| 162 | No Image | Bolt M6 | PAS147 | $0.00Read more |
| 163 | No Image | Washer | ER320 | $0.00Read more |
| 164 | Not Available | Plate | 501.086 | Not Available |
| 165 | Not Available | Nut | 501.177 | Not Available |
| 166 | No Image | 12 MM NUT CASTER NUT | PAS189 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 167 | No Image | WASHER 8 DIA PAS28R | PAS188 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 168 | Not Available | Angle Mounting | 431.248 | Not Available |
| 169 | Not Available | Angle Mounting | 501.180 | Not Available |
| 170 | No Image | SCREW TRANS SUPPORT | PAS167 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 171 | Not Available | Bracket | 501.184 | Not Available |
| 172 | No Image | Handle Spring | PAS329 | $0.00Read more |
| 173 | No Image | PIN SQUEEGEE MOUNT | PAS19 | $38.99Add to cart Special order: ships in 2 to 4 weeks |
| 174 |  | M6 X 45 HEX HEAD SCREW | PAS197 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 175 | No Image | LEVER | PAS184 | $70.99Add to cart Special order: ships in 2 to 4 weeks |
| 176 | Not Available | Bracket | PAS403 | Not Available |
| 177 | No Image | Handle Spring | PAS329 | $0.00Read more |
| 178 |  | Tie Rode Single Hole PAS16 PAS20 | PAS32 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 179 | | M6 X 45 HEX HEAD SCREW | PAS197 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 180 | Not Available | Cross Member | PAS265 | Not Available |
| 181 | No Image | Squeegee,Wet/Dry,Lever | PAS459 | $73.99Add to cart Special order: ships in 2 to 4 weeks |
| 182 | No Image | ROLL PIN 6mm X 25mm | PAS280 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 183 |  | SPLIT PIN PAS20 PAS20DX PAS28 | PAS266 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 184 |  | PRESSURE KNOB SQUEEGEE | PAS35 | $17.99Add to cart Special order: ships in 2 to 4 weeks |
| 185 | Not Available | Bracket | 510.204 | Not Available |
| 186 | Not Available | Tank Plate | PAS105 | Not Available |
| 187 | No Image | WHEEL FOR SQUEEGEE PAS28R PAS22 PAS32SHP,28DX,32DX PAS40 | PAS379 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 188 | No Image | Drain Hose Plug Compatable With PAS37 Hose | PAS36 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 189 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 190 | No Image | HOSE CLIP PAS16 20 20DX PAS28DX 32DX 28R | PAS38 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 191 | No Image | M4 SCREW PAS28DX PAS32DX | PAS507 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 192 | Not Available | Pedal | 501.21 | Not Available |
| 193 | Not Available | Cross Member | PAS259 | Not Available |
| 194 | | FOOT PEDAL COVER | PAS14 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 195 | No Image | Hose Drain PFX900S Cascade PFX1350 | PAS37 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 196 | No Image | OUTER BAR PAS20 | PAS192 | $41.99Read more |
| 197 | No Image | Squeegee,Auto Scrubber,Front,Rubber,Blade,Black,Straight Mount | PAS142 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 198 |  | BUMPER WHEEL | PAS1 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 199 | No Image | SPACER FOR PAS379 WHEEL | PAS382 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 200 | No Image | Squeegee AutoScrubber Straight Mount Blade Std | PAS116 | $26.99Add to cart Special order: ships in 2 to 4 weeks |
| 202 | No Image | OUTER BAR PAS20 | PAS196 | $35.99Add to cart Special order: ships in 2 to 4 weeks |
| 203 | | M6 X 45 HEX HEAD SCREW | PAS197 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 204 | Not Available | Hose Clamp | PAS191A | Not Available |
| 205 | No Image | Squeegee,Auto Scrubber,body | PAS194 | $220.99Add to cart Special order: ships in 2 to 4 weeks |
| 206 | | SPLIT PIN PAS20 PAS20DX PAS28 | PAS266 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 207 |  | SUPPORT STUD | PAS193 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 208 |  | Wing Nut Knob Squeegee Assembly | PAS33 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 209 | No Image | REGULATOR SQUEEGEE | PAS34 | $39.99Add to cart Special order: ships in 2 to 4 weeks |
| 210 | Not Available | Squeegee Mount | 503.210 | Not Available |
| 211 | Not Available | Nut | PAS149 | Not Available |
| 212 | No Image | SCREW M10X40 MOD PAS16 32SHP 28 28DX 32DX 28R 40R | PAS936 | $8.99Add to cart Special order: ships in 2 to 4 weeks |

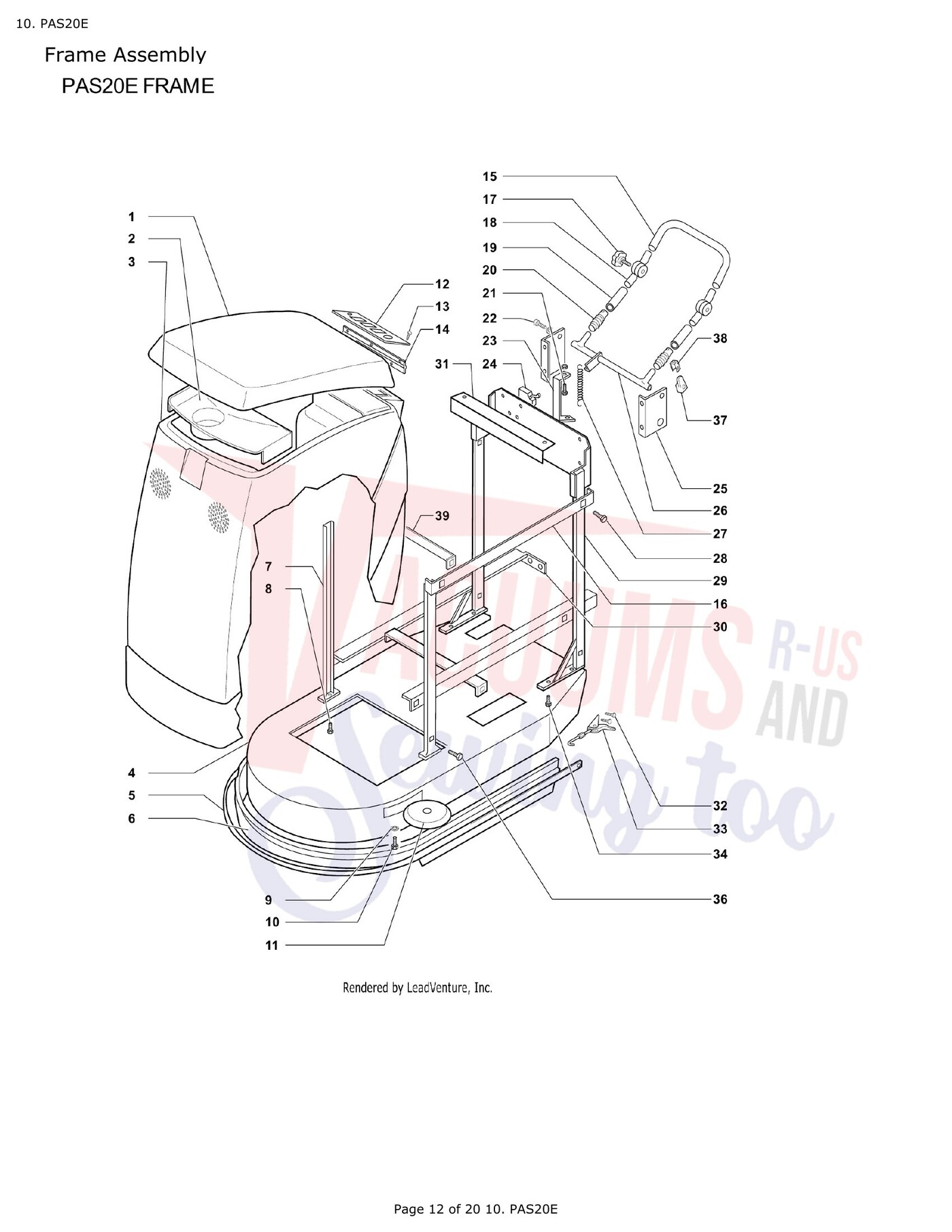

| # | Part image | Description | SKU | Price |
| 1 | No Image | LID FOR PAS20E PAS20 CLR BLUE | PAS275 | $458.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Funnel, Soultion tank PAS20E | 5010021 | $146.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | Not Available | Housing | 501.003.1 | Not Available |
| 4 | No Image | Aluminum Chassis | PAS800 | $0.00Read more |
| 5 | Not Available | Bumper Strip | 501.052 | Not Available |
| 6 |  | SPLASH GUARD FOR PAS20BA PAS20E BUMPER | PAS2BA | $124.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | Not Available | Frame Brace | 501.013 | Not Available |
| 8 | No Image | SCREW TRANS SUPPORT | PAS167 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | Washer | 430.015 | Not Available |
| 10 | Not Available | Screw | 430.016 | Not Available |
| 11 | | BUMPER WHEEL | PAS1 | $33.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Control Panel | 503.012 | Not Available |
| 13 | No Image | SCREW, HINGE STAINLESS PAS110 | PAS153 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 |  | HINGE PAS20 PAS20DX | PAS109 | $75.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | Not Available | New Style Handle | 430.323.2 | Not Available |
| 16 | Not Available | Cross Member | 501.022 | Not Available |
| 17 | No Image | HANDLE KNOB FOR PAS20 PAS20DX, PAS28,28DX,32DX | PAS337 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Coupling w/Hole PAS20 PAS20DX PAS28 28DX 32DX | PAS339 | $79.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | No Image | HANDLE FOR PAS20 PAS20DX PAS28 28DX 32DX | PAS338 | $49.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | HANDLE BELLOWS FOR PAS20 PAS28 PAS32SHP,PAS20DX,PAS28DX-32DX | PAS335 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | Not Available | Screw | 501.027 | Not Available |
| 22 | No Image | SCREW TRANS SUPPORT | PAS167 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | Not Available | Support | 501.028.1 | Not Available |
| 24 | No Image | SWITCH MICRO C32 ZN NEW TYPE PAS20DX 28DX 32DX 32SHP PAS20B | PAS56 | $78.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | Not Available | Bracket | 501.033 | Not Available |
| 26 | No Image | Handle Lever | PAS158 | $0.00Read more |
| 27 | No Image | Handle Spring | PAS329 | $0.00Read more |
| 28 | No Image | Bolt M6 | PAS147 | $0.00Read more |
| 29 | Not Available | Panel | 501.038 | Not Available |
| 30 | Not Available | Yoke | 431.042 | Not Available |
| 31 | Not Available | Support | 503.031 | Not Available |
| 32 | No Image | SCREW FOR PAS466 PAS28R PAS28DX | PAS465 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | HOOK and LATCH ASSY | PAS122 | $54.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | SCREW TRANS SUPPORT | PAS167 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Bolt M6 | PAS147 | $0.00Read more |
| 37 | No Image | Cable Swivel | PAS267 | $0.00Read more |
| 38 | Not Available | Yoke | 503.038 | Not Available |
| 39 | Not Available | Yoke | 501.023 | Not Available |

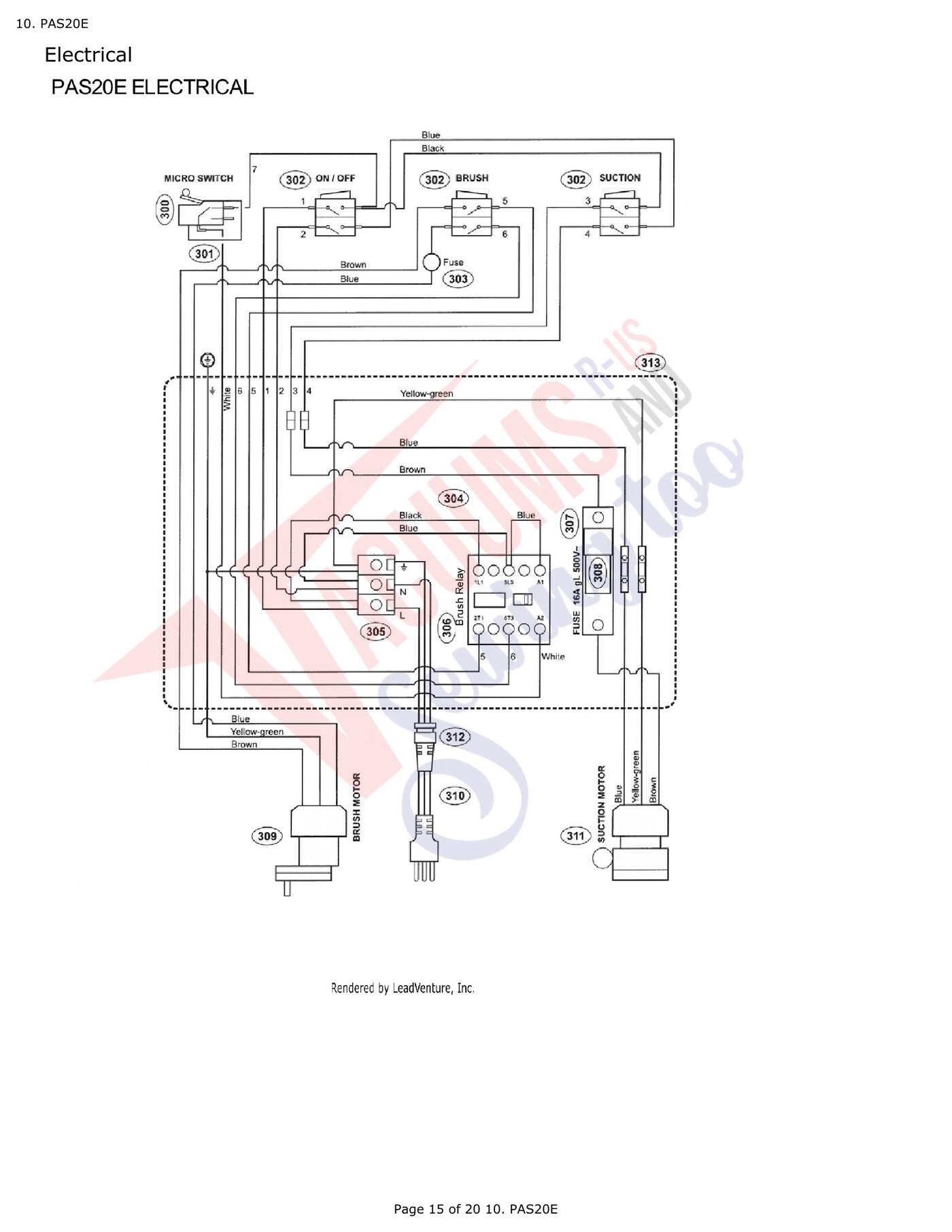

| # | Part image | Description | SKU | Price |
| XX | No Image | Holder, Fuse Panel PAS16 | PAS3502 | $13.32Add to cart Special order: ships in 2 to 4 weeks |
| 300 | No Image | SWITCH MICRO C32 ZN NEW TYPE PAS20DX 28DX 32DX 32SHP PAS20B | PAS56 | $78.99Add to cart Special order: ships in 2 to 4 weeks |
| 301 | Not Available | Micro Switch Cover | 430.318.2 | Not Available |
| 302 |  | SWITCH PAS16 | PAS125 | $29.99Add to cart Special order: ships in 2 to 4 weeks |
| 303 | Not Available | Thermal Fuse 20A | 410.188 | Not Available |
| 305 | No Image | Connecting Board | PAS309 | $0.00Read more |
| 306 | Not Available | Brush Relay | 503.306.P | Not Available |
| 307 | No Image | FUSE BOX PAS20 PAS28 PAS32SHP PAS28R PAS40R | PAS954 | $100.99Add to cart Special order: ships in 2 to 4 weeks |
| 308 | No Image | FUSE 16 AMP PAS20 and PAS28 WITH SER. ftS 05-97-01616 and BELOW | PAS117 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 309 | No Image | Brush Motor 115V | PAS305 | $0.00Read more |
| 310 |  | Cord,Burnisher,75ft,Yellow,14/3 SJTW | M1400 | $166.99Add to cart Special order: ships in 2 to 4 weeks |
| 311 | Not Available | Suction Motor 120V | 350.010.P | Not Available |
| 312 | No Image | Strain Relief | PAS245 | $0.00Read more |
| 313 | Not Available | IP55 Box | 503.313 | Not Available |

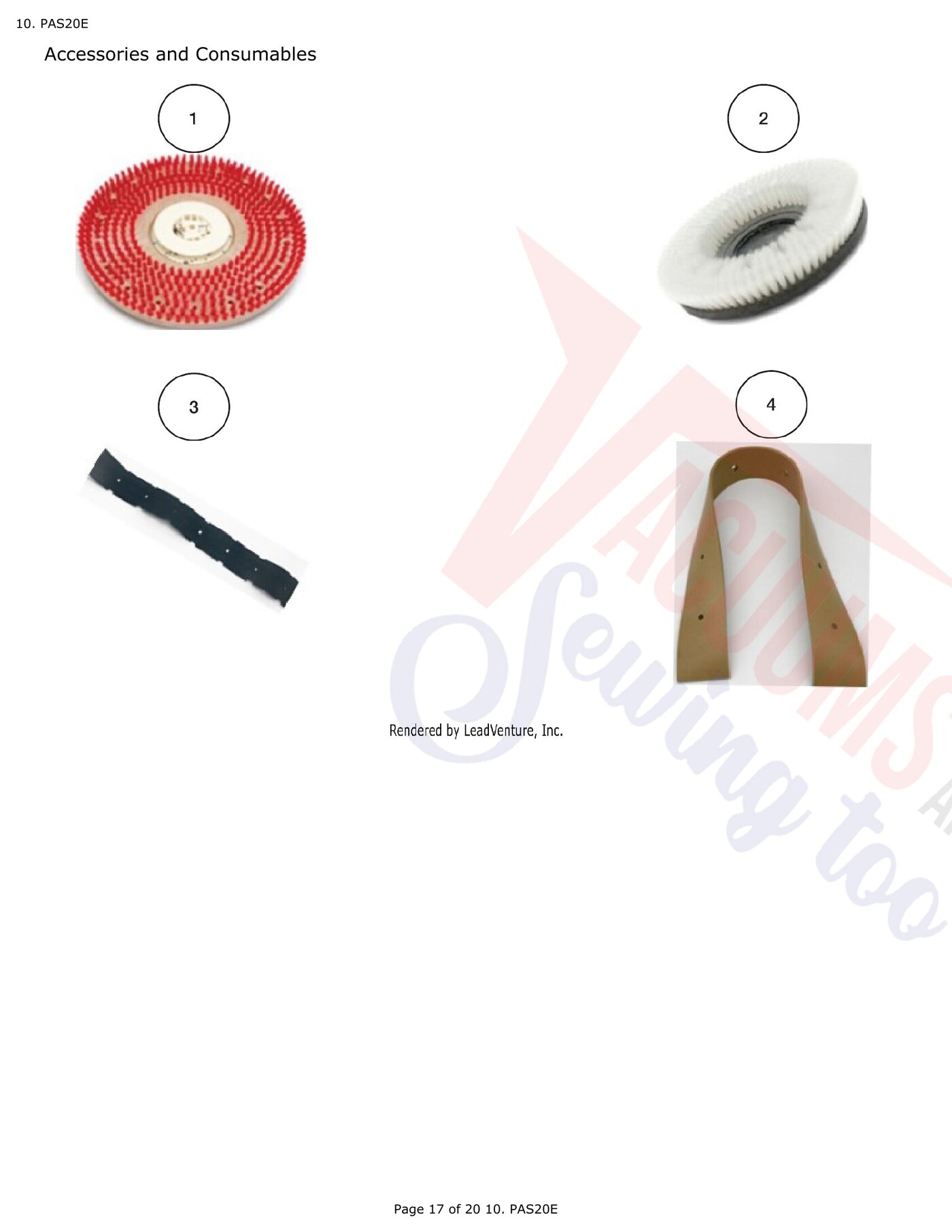

| # | Part image | Description | SKU | Price |
| 1 | No Image | Driver Pad w/Clutch Plate 19 and Riser Fits 20 | 919DP | $190.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | 19" Soft Nylon Scrub Brush W/Clutch Plate | SF719 | $0.00Read more |
| 3 | No Image | Squeegee,Auto Scrubber,Front,Rubber,Blade,Black,Straight Mount | PAS142 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Squeegee AutoScrubber Straight Mount Blade Std | PAS116 | $26.99Add to cart Special order: ships in 2 to 4 weeks |

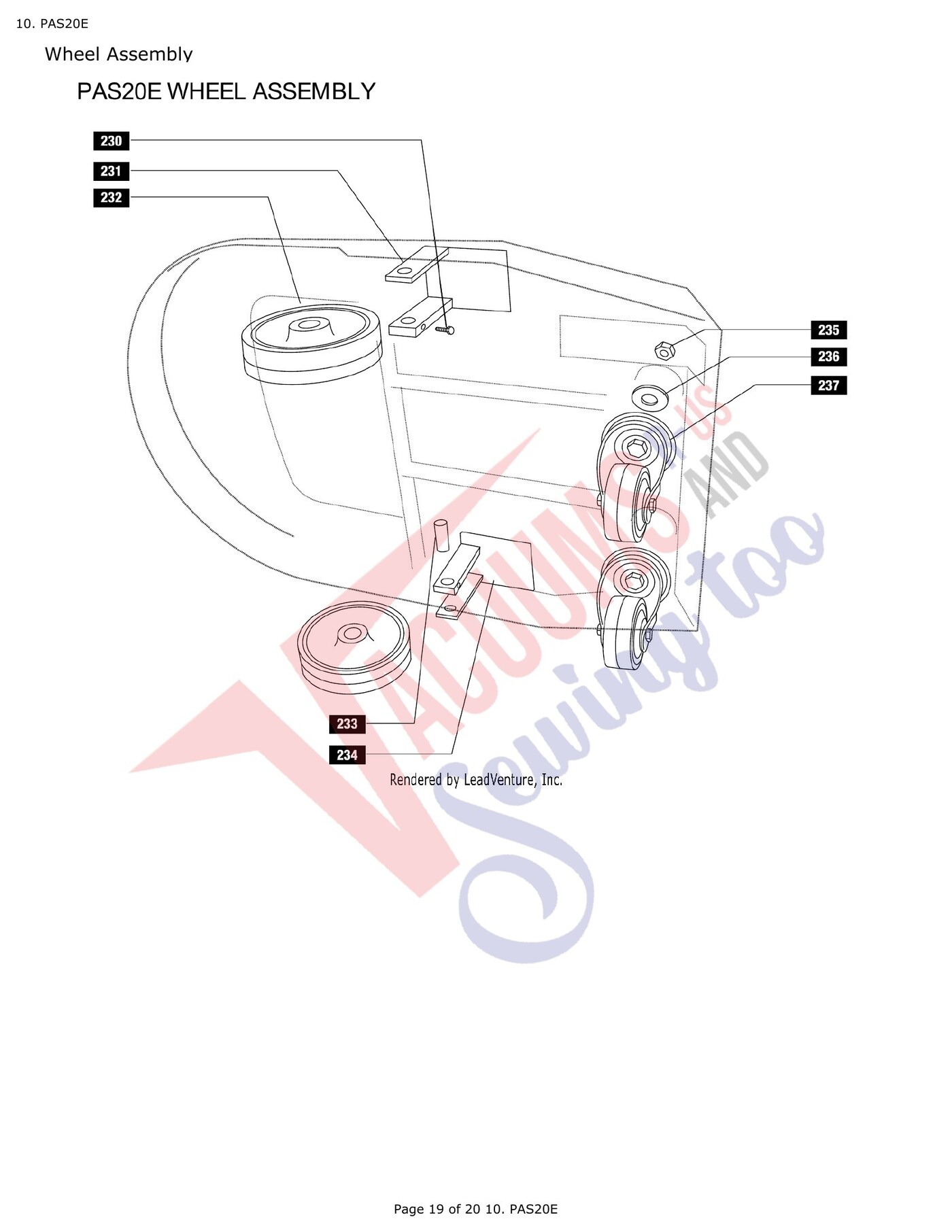

| # | Part image | Description | SKU | Price |
| 230 | No Image | SCREW STAINLESS PAS16 PAS28R | PAS243 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 231 | Not Available | Support | 503.231 | Not Available |
| 232 | Not Available | Wheel | 350.168 | Not Available |
| 233 | Not Available | Steel Wheel Pin | 503.233 | Not Available |
| 234 | No Image | RIGHT SUPPPORT PAS20BA | PAS321 | $432.99Read more |
| 235 | Not Available | Caster Nut Set (1 Large and 1 Small) | PAS207 | Not Available |
| 236 | Not Available | Washer | 431.249 | Not Available |
| 237 | No Image | Swivel Caster PAS20 PAS20BA up to SN 1702 | PAS51A | $126.99Read more |
Report errors on this page HERE
