Schematic and parts book for powr-flite NM171HD . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

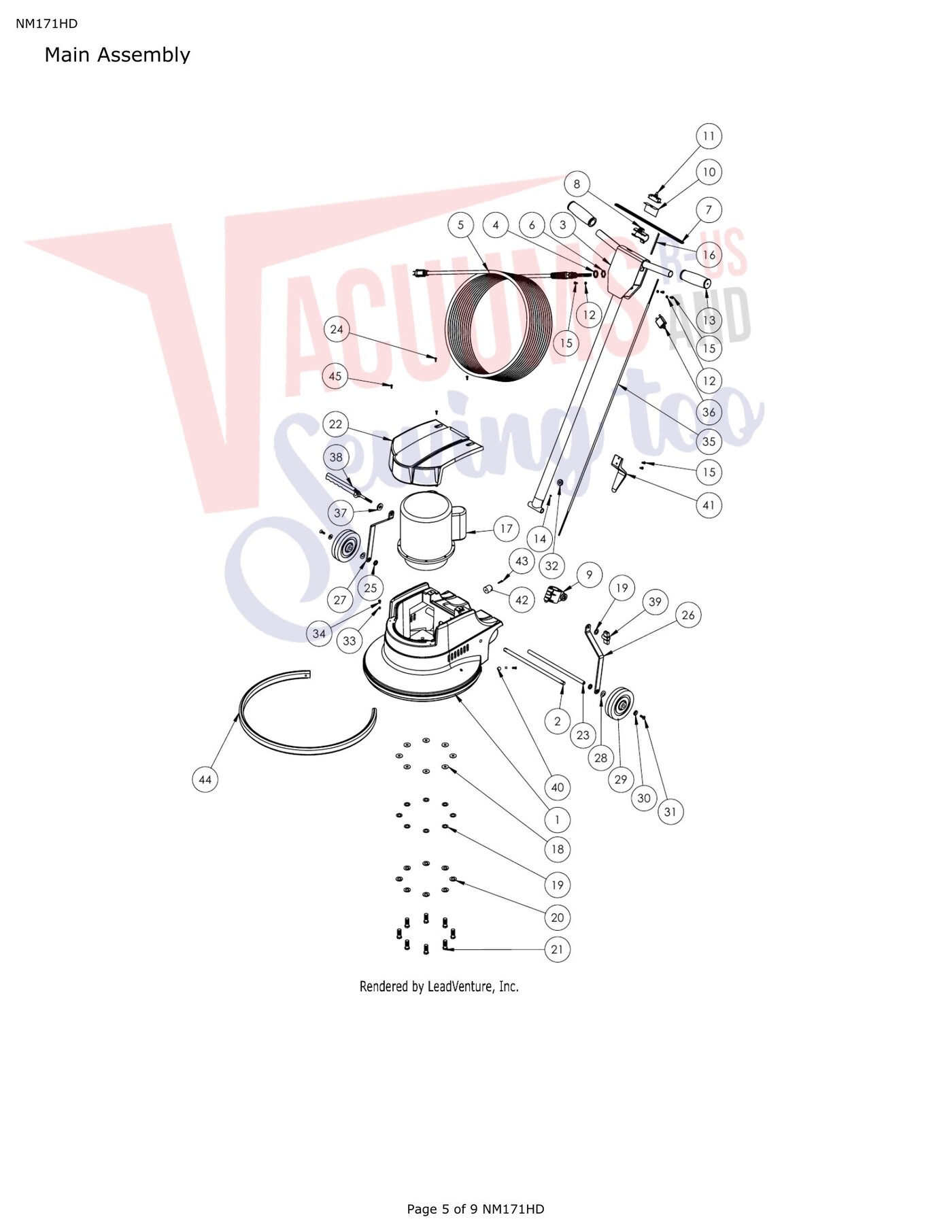

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Pad Driver RH Thread Center-Lok Blue X8862 | F44P | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Handle and Clamp Assembly | X1662 | $59.99Read more |
| 1 |  | Housing, 17 Black Base M-Series | X8053AP | $359.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Shaft, Pivot 1/2X12-7/8 M Style Floor Machine | X8809 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 5 |  | Cord 50 ft 14/3 STJW Yellow Metal Strain Relief | M1369AS | $147.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Trigger Handle | X8917 | Not Available |
| 8 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | SET SCREW 1/4-20X3/16 SOC SET FLAT PT W/LOC-TITE | X8222 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Motor Cover, Blue, NM Style Floor Machine | X1482 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Axle, Wheel 1/2 X 12 M Style Floor Machine | X8019 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | SCREW 8-32 X 1/2 TRUSS/PHIL BLK ZINC | X8272 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | WASHER NYLON .50 ID X .75 OD X .130 THICK BLACK | X8293 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Brace, Handle Left M Style With Rectangle Slot | X8807L | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Brace, Handle Right M Style With Circle Holes | X8807R | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | GROMMET, 1/16 GR - 7/16 DIA 72713A | 7BG004 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | SPACER BLK NYL NO 8 .17ID X .25OD X .25L | X8822 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | BOLT, 8-32 X 3/4 PHIL TRUSS MS BLK ZINC | X8821 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Plug, Plastic Blk 7/16 Hole | X8151B | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | BUMPER RECESSED POLYETHY 1-1/8 BASE 3/4 HGT 13/64 HOLE | X8258A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | SCREW, No 8 X 1 PHPH TYPE A | X8258AS | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Bumper, M Style Blue/Black In Inches | X8030J | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | 8-32x1 PH Pan M/S Blk Zinc | PX73 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

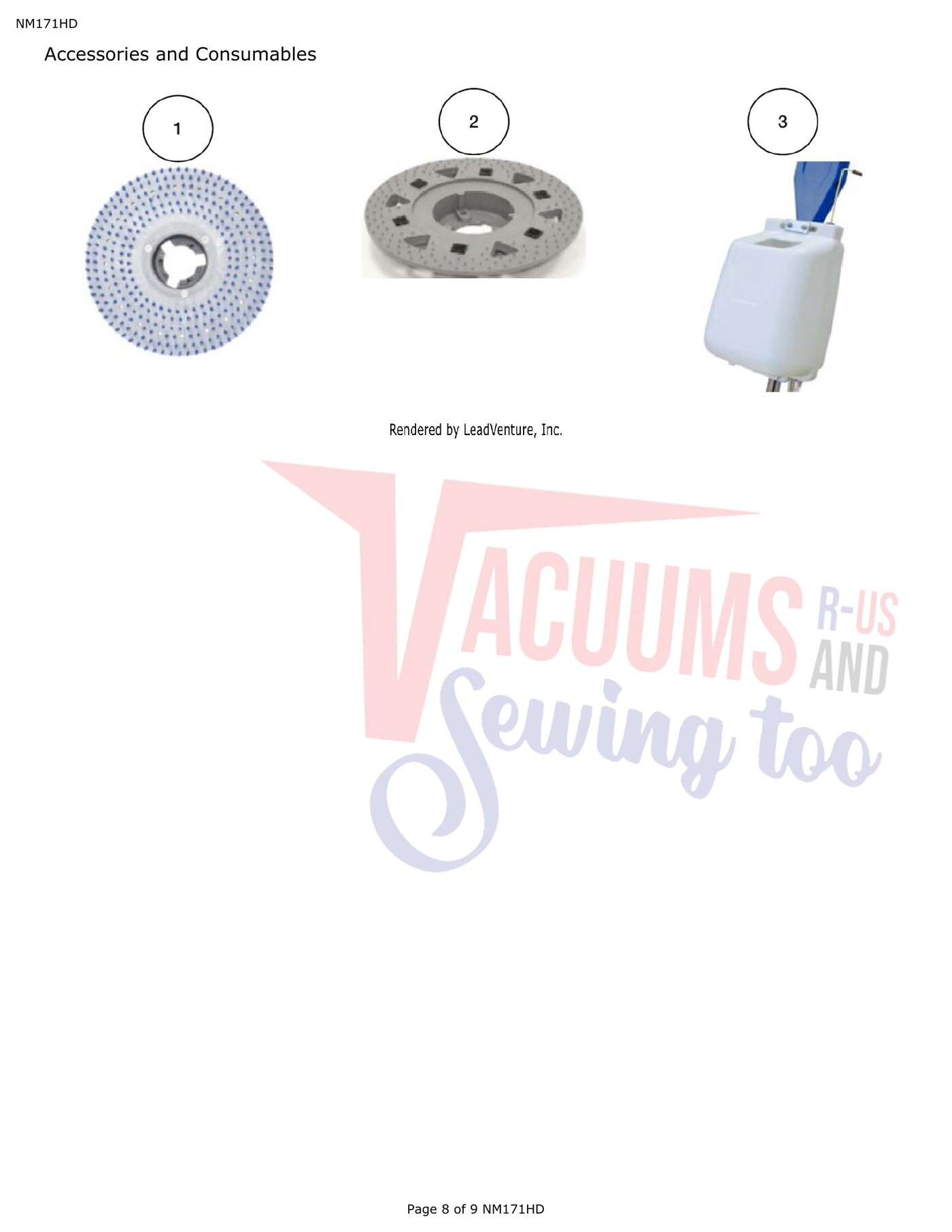

| # | Part image | Description | SKU | Price |
| XX | No Image | Floor Machine Solution Tank Mounting Hardware | FM91HW | $0.00Read more |
| 1 |  | Driver Pad w/Clutch Plate and Riser 17in Machine | 717DP | $145.99Read more |
| 2 | No Image | Driver, Pad Trilok 16 Built In Clutch Plate | TL16 | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Tank Solution Floor Machine | FM91 | $252.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
