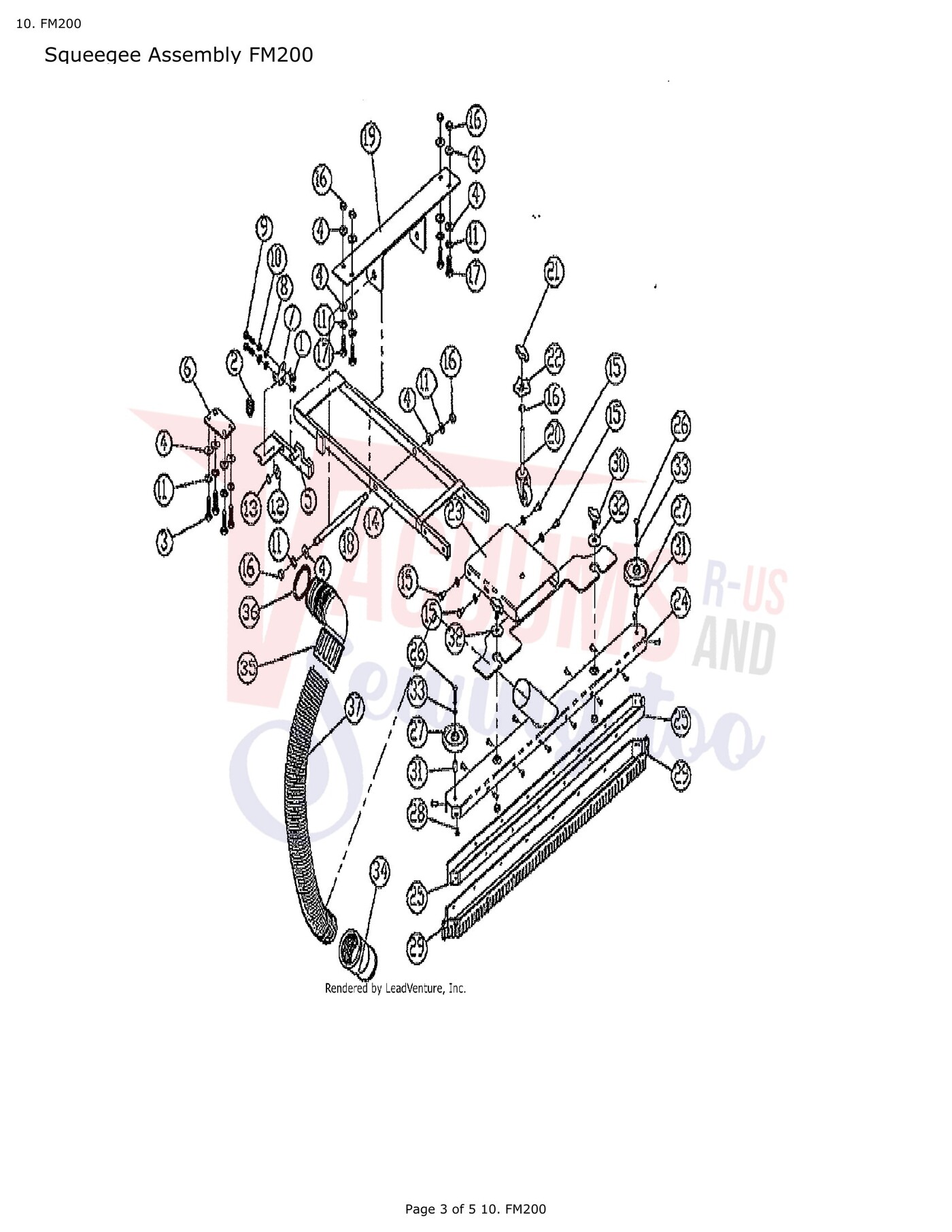

Schematic and parts book for Powr-Flight FM200 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| FM31 | Not Available | Trot Mop Squeegee Hose Assembly | FM31 | Not Available |
| 1 | Not Available | Nut | 3216DN-03 | Not Available |
| 2 | No Image | SPRING SQUEEGEE PF53 PF54 PF55 PF57 | FM12 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | SCREW M8 X30 PHIL PAN HEAD PF53,54,55,57 FM100 | FM17 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Washer | 5101DW-03 | Not Available |
| 5 | No Image | HOOK ASSY SQUEEGEE | FM22 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | PLATE FM100 | FM36 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | PLATE FM100 FM200 | FM23 | $3.99Read more |
| 8 | Not Available | Washer | 3295DW-02 | Not Available |
| 9 |  | M6 X 25 PIN FM100 FM200 | FM18 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Spring Washer | 3239DW01 | $0.00Read more |
| 11 | No Image | Lock Washer | 33600DN02 | $0.00Read more |
| 12 |  | WASHER FM100 FM200 | FM34 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | C-RING FM100 FM200 | FM35 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | PEDAL LONG SQUEEGEE | FM15 | $92.99Read more |
| 15 |  | HEX PIN SQUEEGEE PF53 PF54 PF55 PF57 | FM19 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | NUT M8 FM100 FM200 FM100H | FM20 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | PIN SQUEEGEE PF53 PF54 PF55 PF57 | FM21 | $1.99Read more |
| 18 | No Image | PIN SQUEEGEE FM100 FM200 FM100H FM200H | FM11 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | U SHAFT FM200 | FM40A | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | ADJUSTING WHEEL FM100H FM100 | WD171 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | ADJUSTING WHEEL, WINGNUT FM100H FM100 | WD169 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | KNOB-ADJUSTMENT FM100 FM200 FM100H FM200H | FM7 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | WHEEL PLATE COMPLETE FM100 FM200 FM100H FM200H | FM27 | $78.99Read more |
| 24 |  | Squeegee,Wet/Dry,body | WD174 | $59.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Squeegee Wet/Dry Metal Retainer Front Mount 2 Req | WD175 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | Screw M5x25 FM2 Wheel FM100 FM200 FM100H FM200H | FM3 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | WHEEL SQUEEGEE FM100 FM200 FM100H FM200H | FM2 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | SCREW M4X10 | 3201DS04A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | 27 in Squeegee Blade Replacement Trot Mop Pair | FM1 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 |  | BUTTON SCREW M8 X 20L FM100 FM200 FM100H FM200H | WD172 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | HOLDER FM100 FM200 FM100H FM200H | FM38 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | WASHER | 5105DW01Y | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Washer | FM42 | $0.00Read more |
| 34 | No Image | CONNECTOR FM100 FM200 FM100H FM200H | FM10 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | BEND CONNECTOR SQUEEGEE FM100 FM200 FM100H FM200H | FM24 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | CONNECTOR GASKET PF53 PF55 PF57 PF54 | WD23 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | HOSE SQUEEGEE FM100 FM200 | FM25 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
