Schematic and parts book for powr-flite C1600-3 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

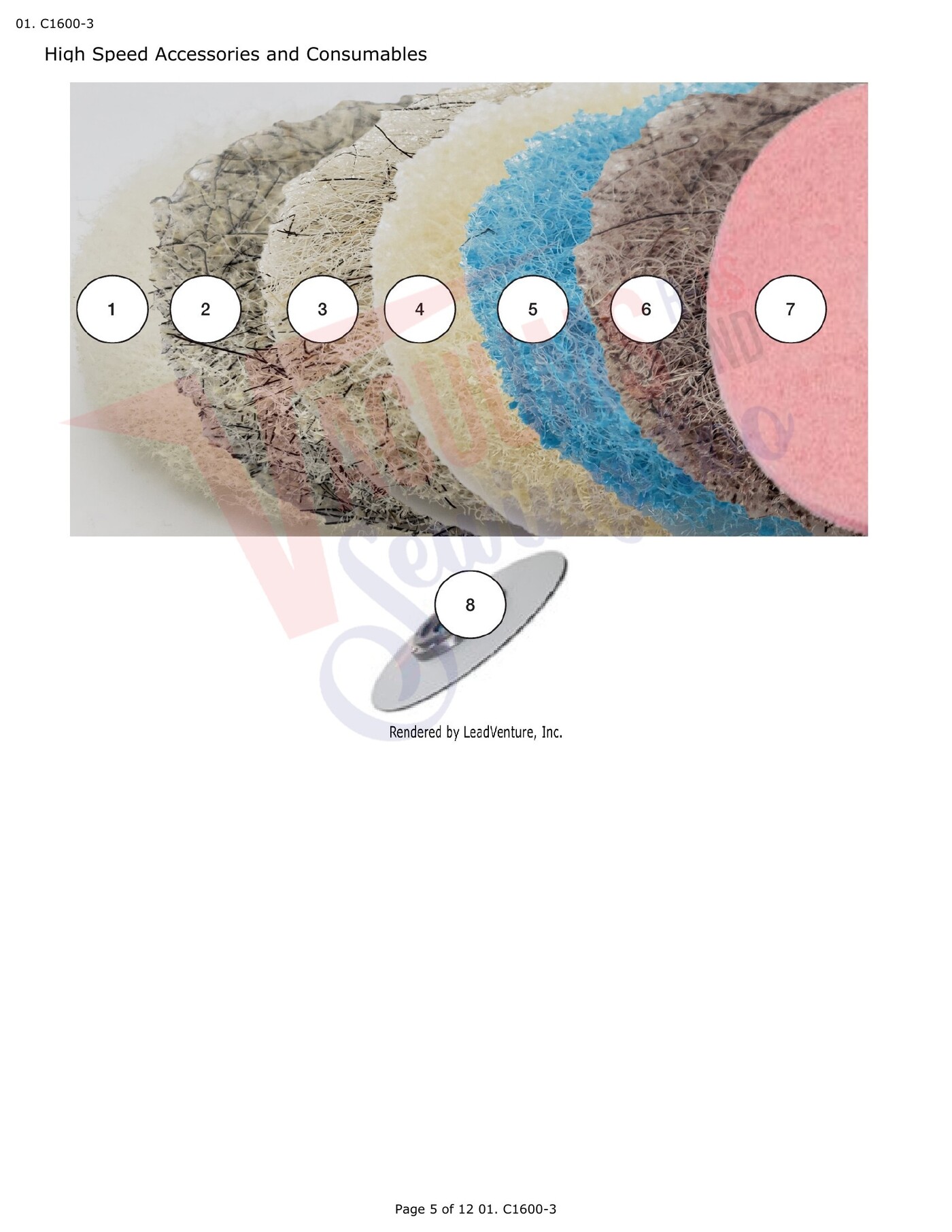

| # | Part image | Description | SKU | Price |
| 1 |  | Floor Pad Microfiber Burnishing 20in Sgl Sided 2pk | MF20 | $348.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Floor Pad Porko Plus Burnishing 20in 5/case | PP0520 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | 20" Combo Floor Pad (Case Of 5) | CB520 | $0.00Read more |
| 4 | No Image | 20" Beige Burnishing Pad Case Of 5 | IB520 | $0.00Read more |
| 5 | No Image | 20" Luster Lite Floor Pad (Case Of 5) | LL520 | $0.00Read more |
| 6 | No Image | 20" Porko Floor Pad (Case Of 5) | PK520 | $0.00Read more |
| 7 | No Image | 20" Scuff Remover Floor Pad | RP020 | $0.00Read more |
| 8 |  | Pad Driver, Flexible | X8862 | $268.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| Not Shown |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | RUBBER BUMPER 20 CLASSIC FM | X8968R | $58.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Pad Driver RH Thread Center-Lok Blue X8862 | F44P | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Chassis, Metal Burnisher Cast C1600-3 | X9271 | $301.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | BOLT, 5/16-18 X 1-1/4 HEX TAP GR 2 ZINC | X8227 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Bracket, Left Handle, Floor Machine, Circle | X9274 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Motor Screen | X9049 | $0.00Read more |
| 8 | No Image | Spring | X9050 | $0.00Read more |
| 9 |  | Motor,Burnisher,120,VAC,Imperial Electric,W/Plug | X80371C | $1,648.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Cover, Motor Metal Painted | X8965 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Screw, 8-18 X 1 PHIL ROUND TEK ZINC | X8245 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | LABEL CLASSIC BURNISHER ON BODY LABEL | X9273 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | ROUND BUMPER C1600-3 | X9405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Nut 8-32 KEPS Zinc | X8256 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Bracket, Right HandleFloor Machine, Rectangle | X9275 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Axle, 1/2X14-1/2 M Burnisher | X8816 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Screw 10-32 X 3/8" | X8205 | $0.00Read more |
| 21 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | WASHER 1/2 SAE FLAT ZINC | X8224 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Wheel, Black 4X1-1/2 | X8935 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Wheel, 6 X 1-1/16, Grey Hard Rubber | X9406 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | WASHER 1/2 SAE FLAT ZINC | X8224 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Screw 10-32 X 3/8" | X8205 | $0.00Read more |
| 29 |  | Axle, Wheel C1600-3 | X9276 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | WASHER 1/2 SAE FLAT ZINC | X8224 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | SCREW HEX HD CAP 5/16 18 X 1.00 (ZP) | 03361 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Belt Tensioner, Classic Burnisher Rev02 | X8948 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Nut 5/16-18 Hex Finish Zinc | X8231 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Screw Hex Head Cap 1/4-20x1-1/4 ZP Gr5 | X8226 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Pulley, M1600 O-Groove | X8889 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | WASHER, 5/16 1OD .075 THICK | X9374 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | SCREW, 5/16 X 3/4 HEX CAP GRADE 8 | X9327 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | Belt,Burnisher,V-Belt,40.5, Pulley | X80995 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | Gasket Spacer, Pad Driver Ring Adapter For Metal Burnisher | X9272 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | No Image | Spacer, 3/8ID 1/2OD 5.8Lbushing Pad Driver C1600-3 | X9403 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | | Pad Driver, Flexible | X8862 | $268.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | SCREW, 5/16-18X2 PHMS SS | X9402 | $1.99Read more |
| 47 | No Image | SCREW, 5/16 X 3/4 HEX CAP GRADE 8 | X9327 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | WASHER, 5/16 1OD .075 THICK | X9374 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | Bearing, Ball Rubber Sealed On Both Sides | X8098 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Pulley, Main Burnisher | X8096 | $109.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | SCREW, 3/8-16 X 3/4 HEX CAP GRADE 5 | X8223 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | WASHER, 3/8 USS FLAT ZINC | X8230 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 | No Image | Weldment, Shaft And Plate | X8091 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 |  | SCREW, 1/4-20 X 1/2 SS SHCS | X9404 | $1.99Read more |
| 57 |  | WASHER, 1/4 FLAT BRASS C1600-3 | X9401 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 |  | 20 Inch One Piece Chassis with Bumper | X8968B | $347.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Cover Switch Box Salvage from X8911 | X8912 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Fit All, Commercial Strain Relief Metal Large | SR42 | $37.20Read more |
| 12 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Cord,Burnisher,50ft,Yellow,12/3 SJTW,Blunt Cut | M1394 | $270.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Cam Lever Only (Sell X8012A) | X8014 | $0.00Read more |
| 16 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Cam Handle Stud (Sell X8012A) | X8015 | $0.00Read more |
| 18 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Handle and Clamp Assembly | X1662 | $59.99Read more |
