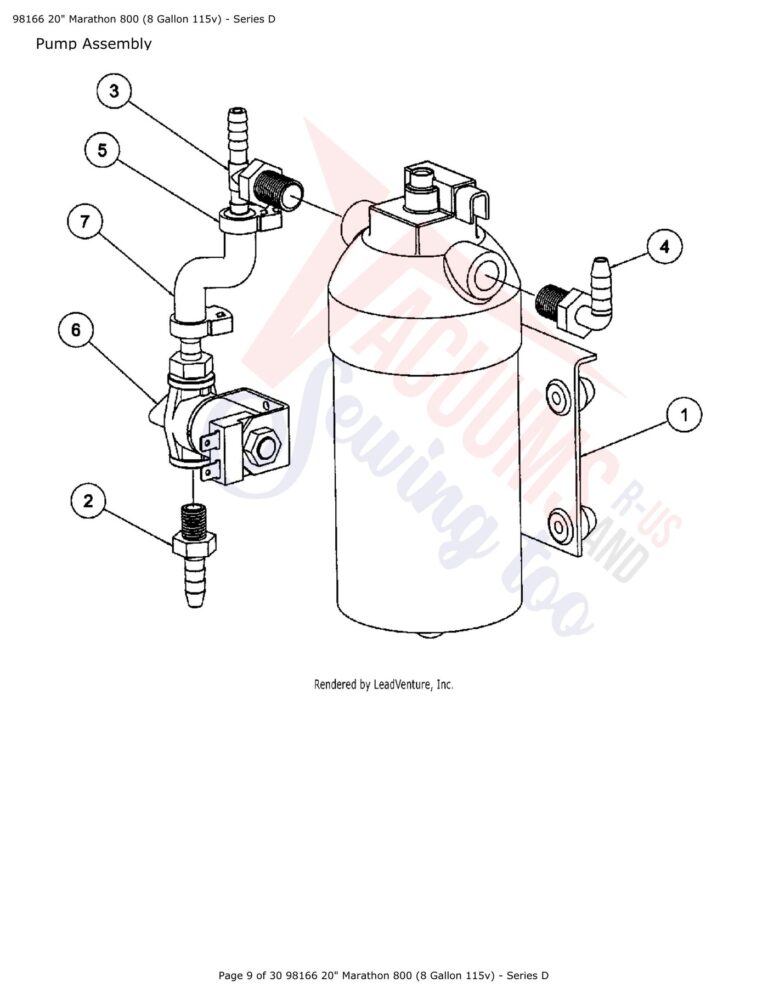

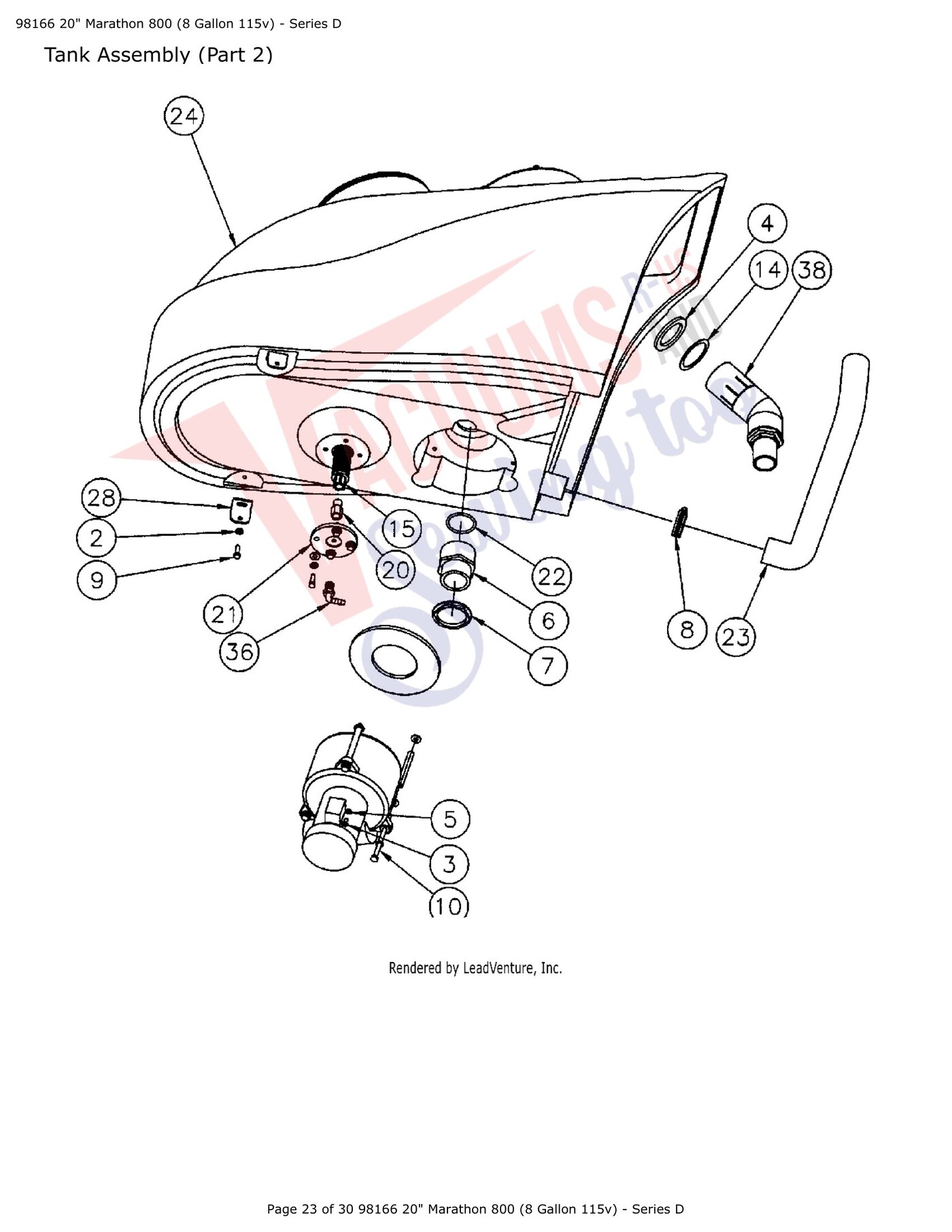

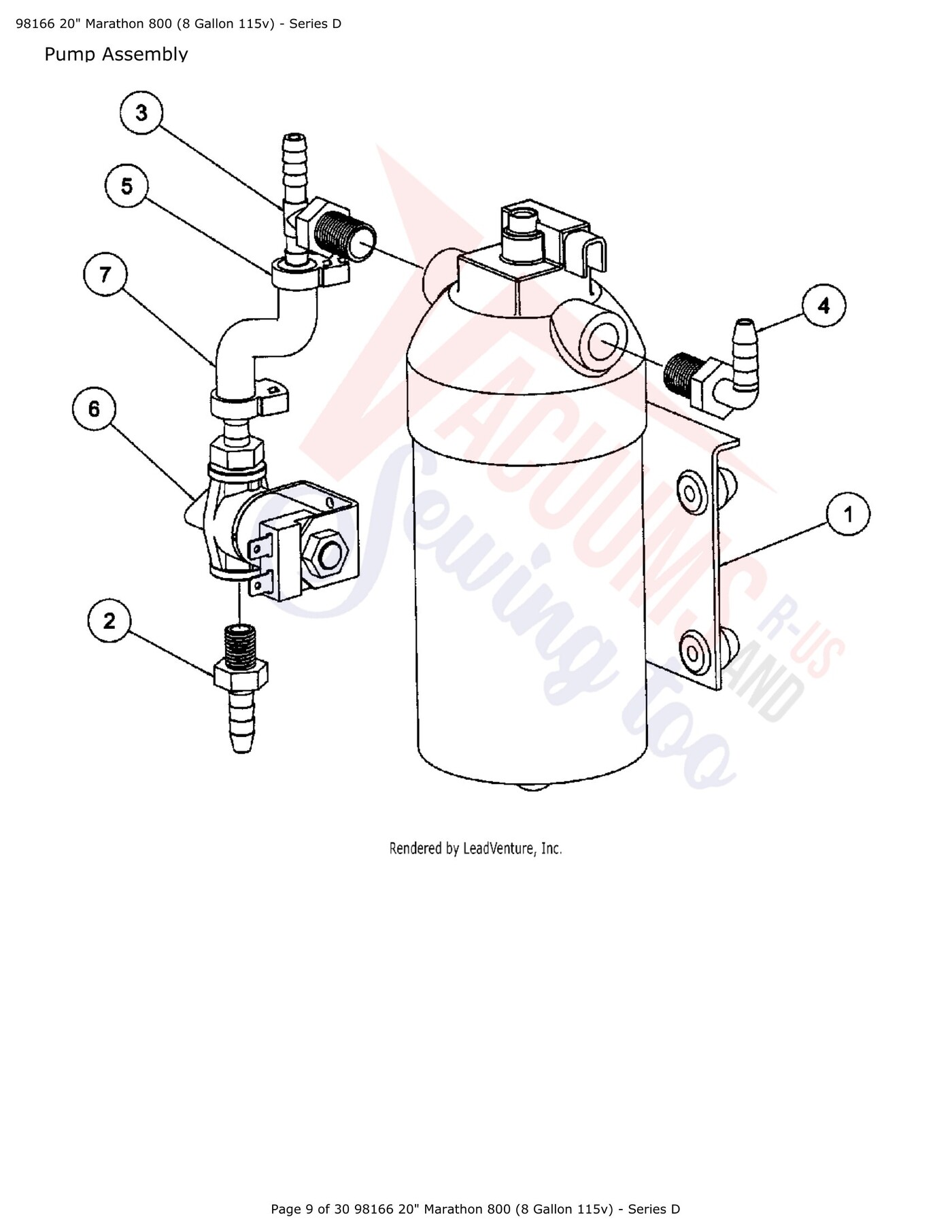

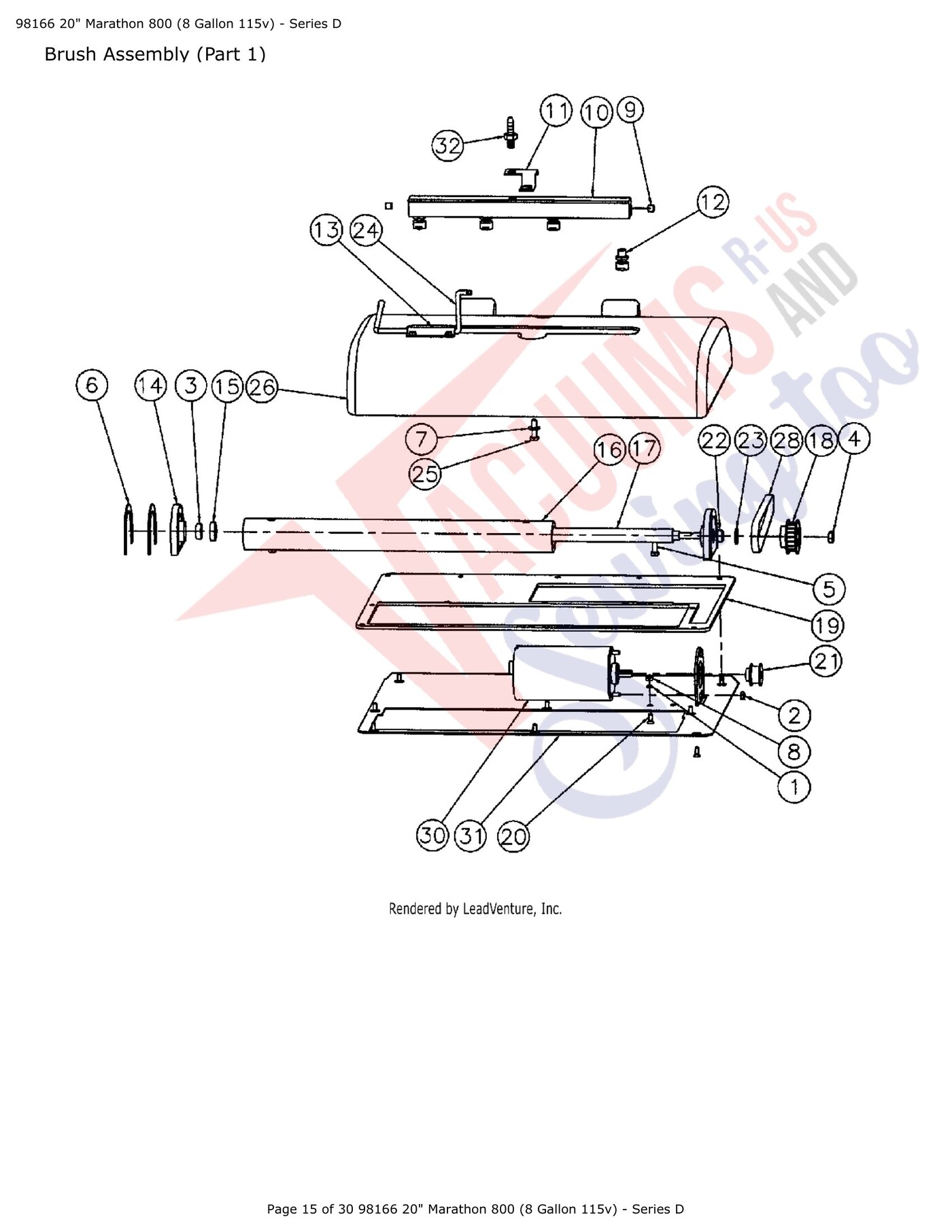

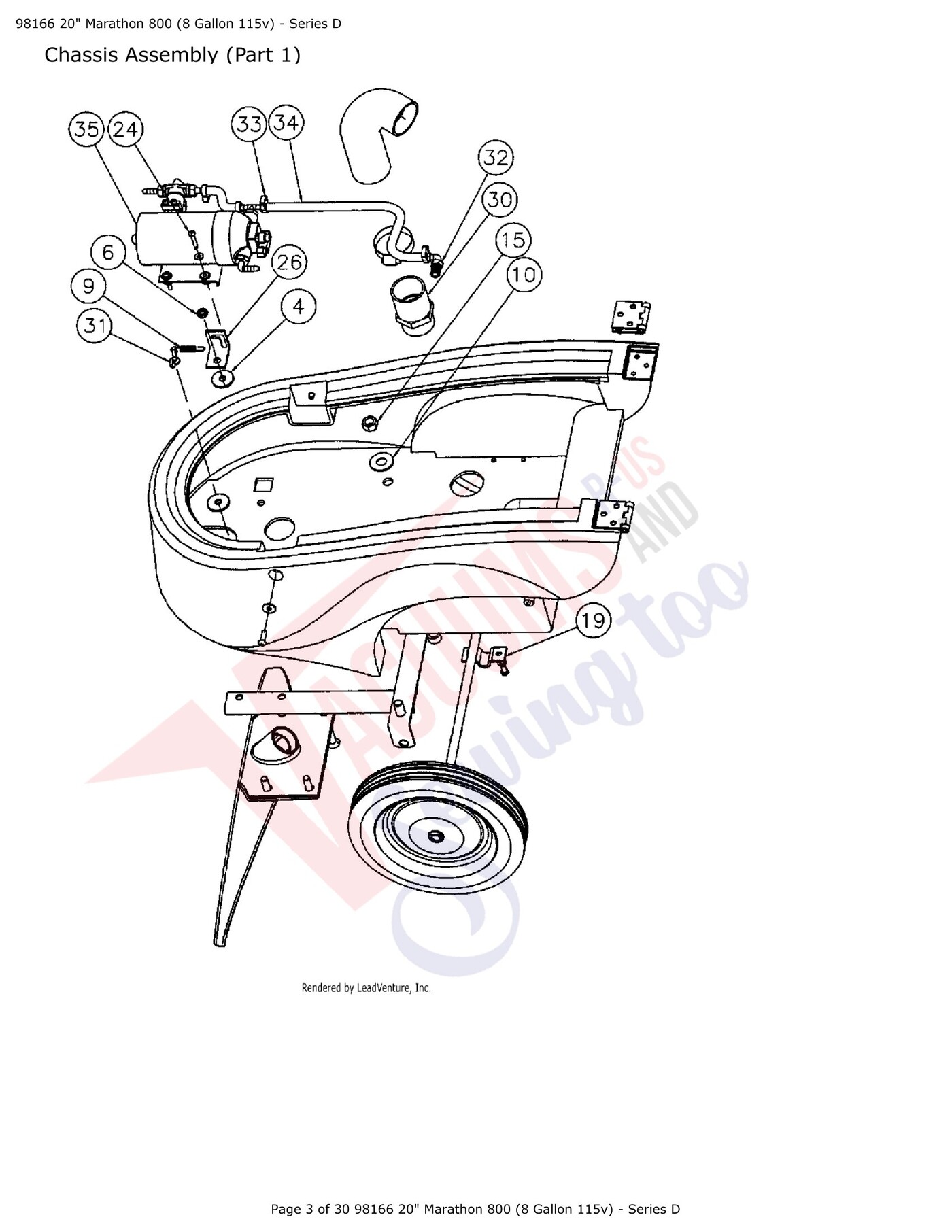

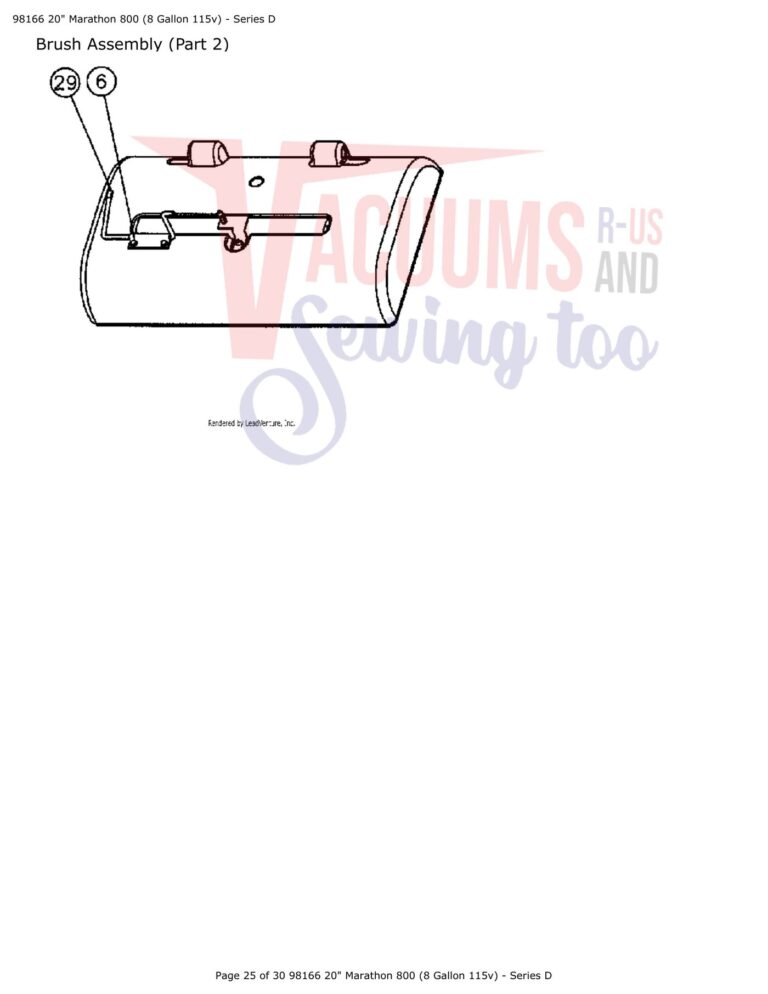

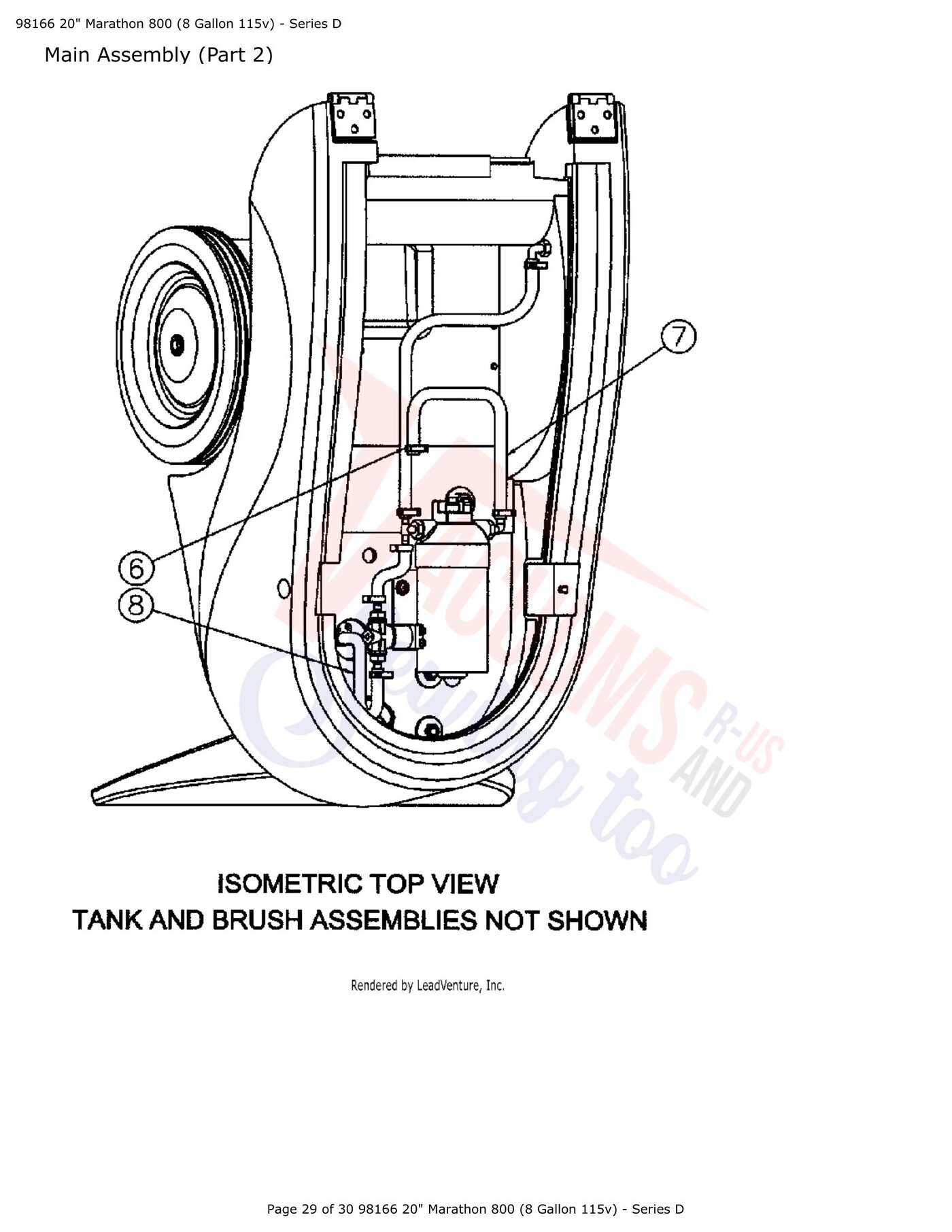

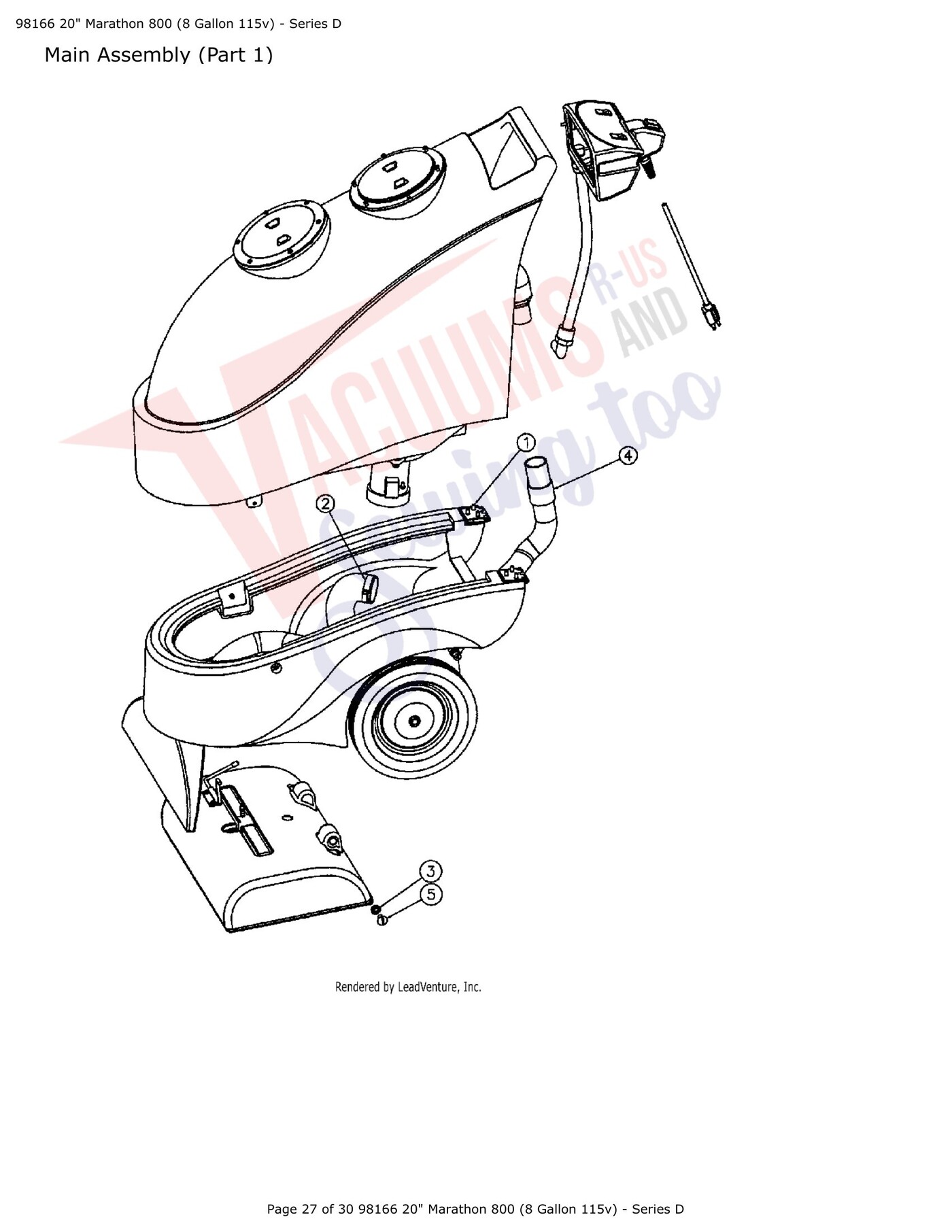

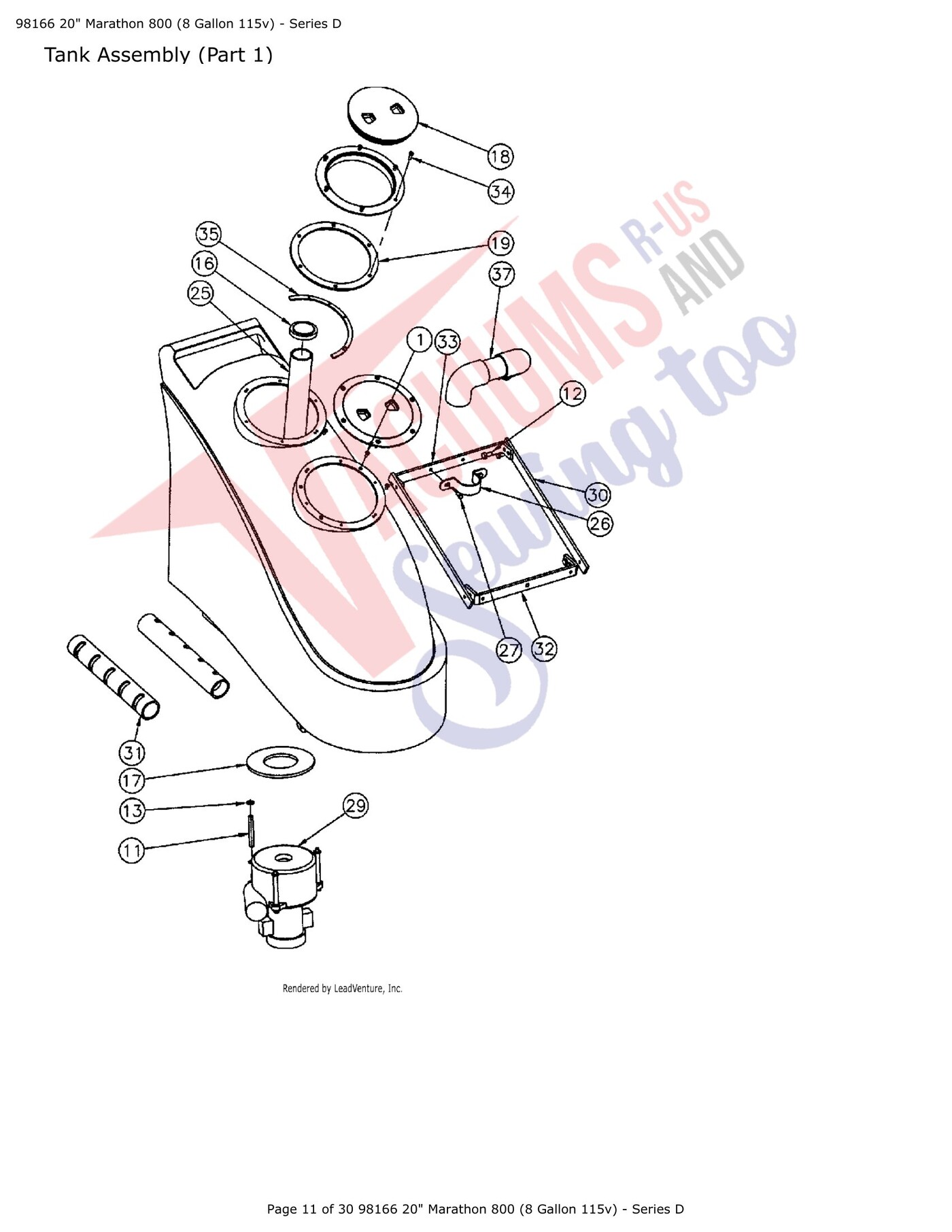

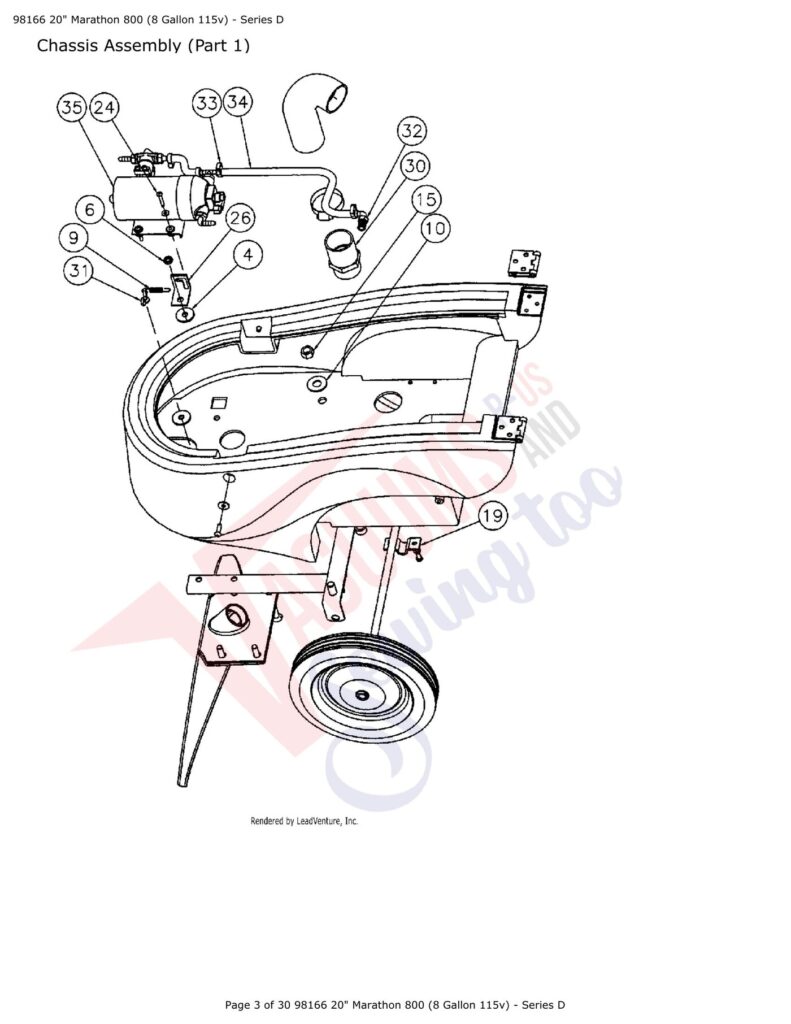

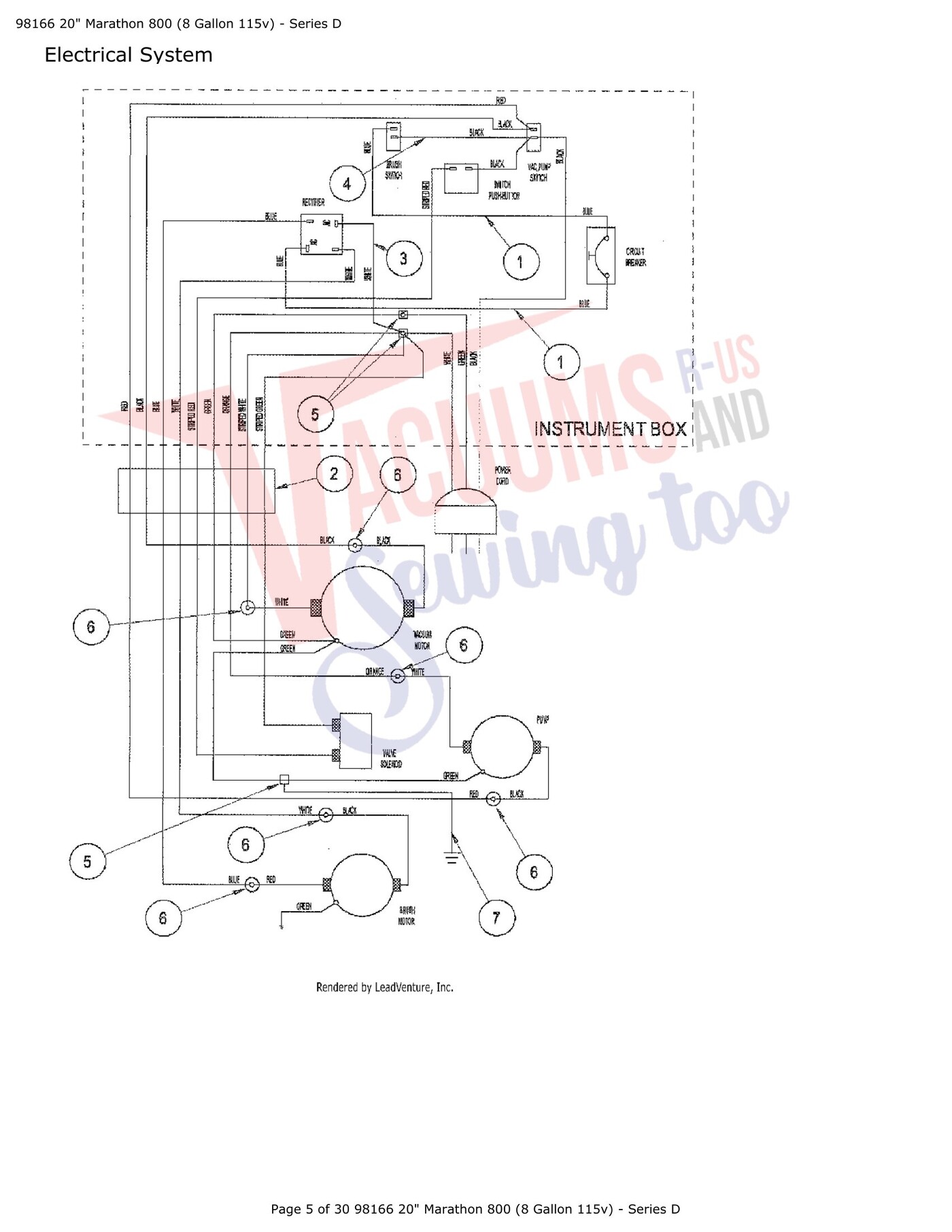

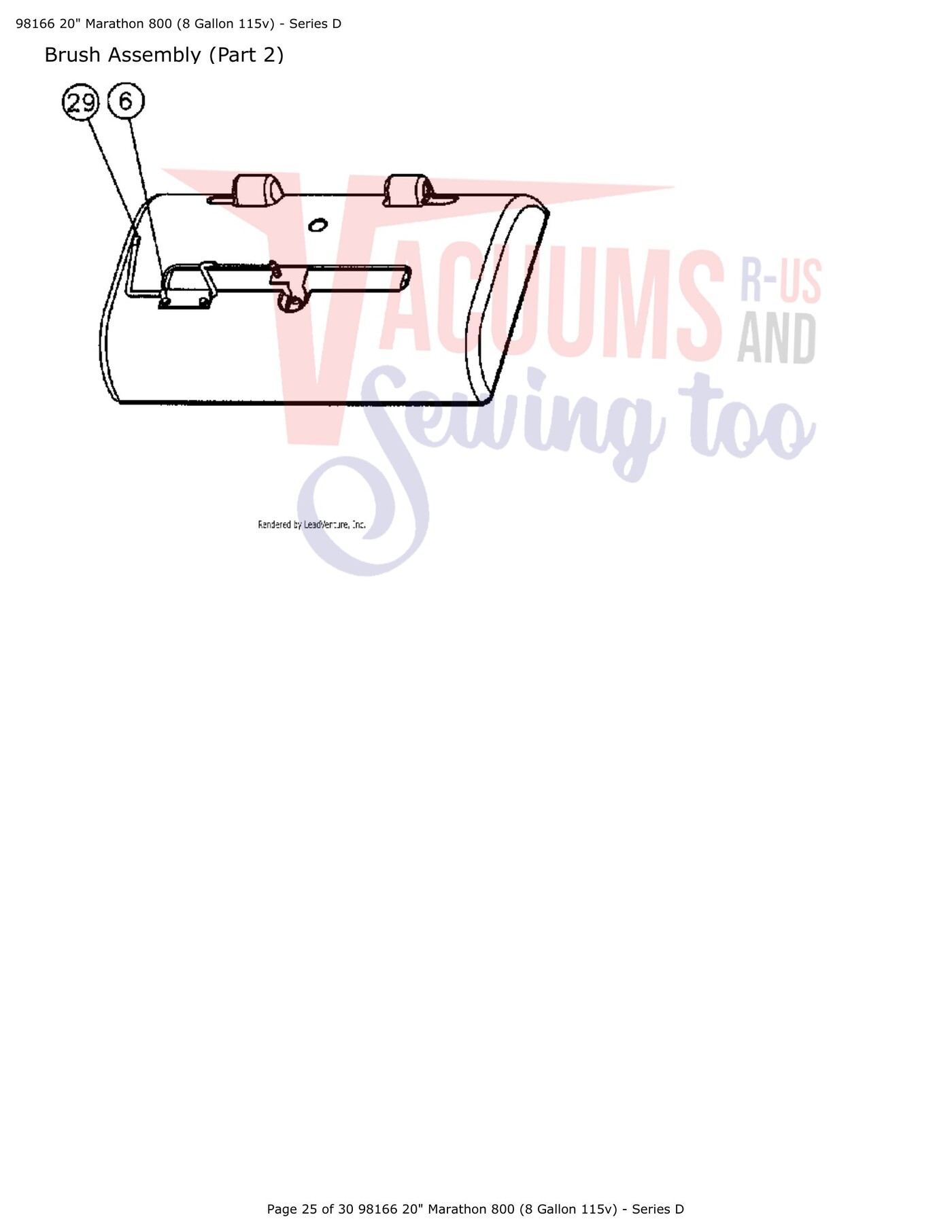

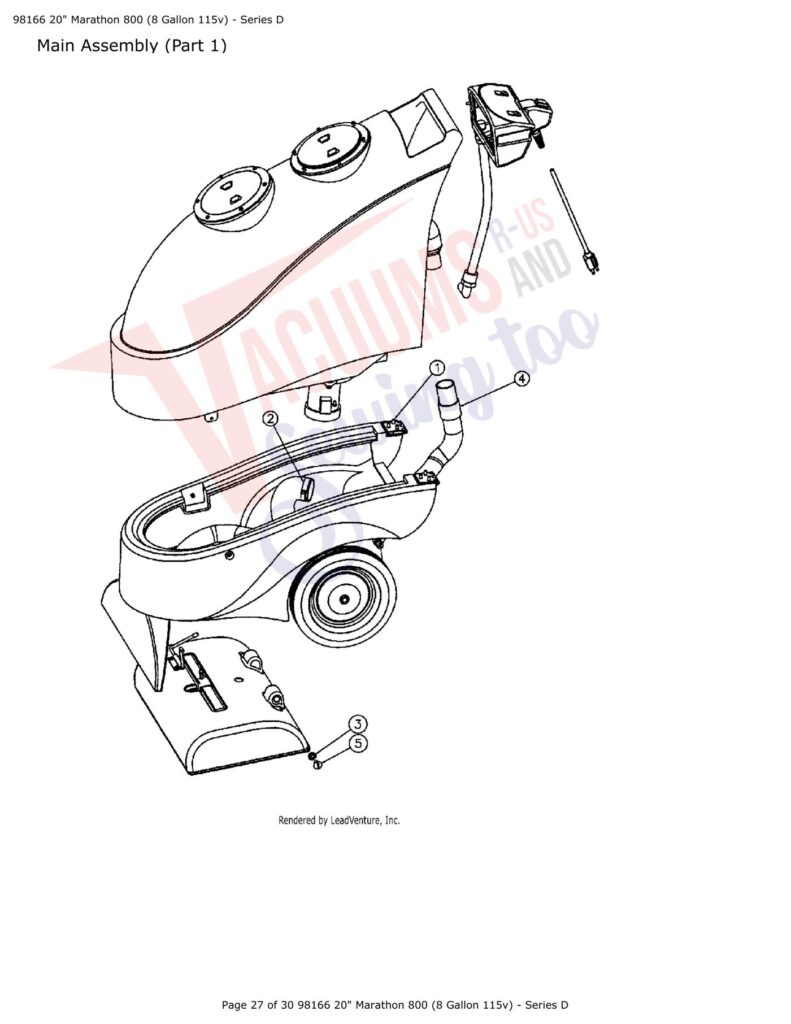

Schematic and parts book for powr-flite 98166 marathon 800. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 4 | Not Available | Washer | 03321 | Not Available |
| 6 | No Image | NUT, 3/8 16 HEX JAM LOCK NYL ZP | 03868 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Bar, Cross Spring | 10841 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | NUT FINISHED HEX 1/2 13 (SS) | 16673 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Clamp, Axle Retaining (98166 ) | 19144 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Bracket,Extractors,Marathon,Shroud Latch | 19239 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Fitting Motor Exhaust Hose Marathon | 19260 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | NUT WING 3/8 16 W/HOLES SPRING RETAINING | 19301 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Hose Clamp | 31043 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 6 | No Image | SCREW HEX HD CAP No 10 24 X 1/2 (ZP) | 17957 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | CAP SHROUD LATCH LEVER | 19275 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW SLOT. TRUSS HD 1/4 20 X 1/2 (ZP) | 10353 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | CLAMP-HOSE (SCREW) Part Number 14858 for Simplicity Models SCE | 14858 | $10.99Read more |
| 3 | No Image | Shroud, Bushing Pivot Nylon | 19153 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Hose, Steel Supported Grey 1 1/2 X 42 W/Cuffs | 31388 | $82.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | SCREW SLOT. TRUSS HD 3/8 16 X 3/4 (SS) | 19207 | $3.99Read more |
| # | Part image | Description | SKU | Price |
| 6 | No Image | Hose Clamp | 31043 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | Clip, Lead Retaining Selfadhesive | 10428 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | WIRE TIE 7 WHITE | 14560 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Lead 16 Awg X 7" Blue | 19231 | $0.00Read more |
| 2 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Lead 16 Awg X 2" White | 19303 | $0.00Read more |
| 4 | No Image | Switches Wiring Harness Assembly | 19304 | $0.00Read more |
| 5 | No Image | Closed End Crimp Terminal | 06824 | $0.00Read more |
| 6 | Not Available | Male Q.D. Terminal | 19229 | Not Available |
| 7 | No Image | Lead 18 Awg X 16" Green | 19369 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Power Cord 50' 230V EU Plug | 31070 | Not Available |
| 1 |  | Hose, Steel Supported Blk 1 1/2 X 64 W/Cuffs | 18967 | $94.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cord, Extension 14/3 X 50FT 300V Yellow | 32217 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX | No Image | Motor,Extractor,120,VAC,Ametek,3 STG,ETL | X1038 | $195.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | Not Available | Bladder (8 Gallon) | 19215 | Not Available |
| 1 | No Image | Screw #10-32 X 1/2" | 02652 | $0.00Read more |
| 11 | No Image | Spacer, Vac Motor (98190) | 30070 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | SCREW HEX HD CAP 5/16 18 X 5/8 (SS) | 18111 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Filter,Extractor,Vac Motor Intake | 19097 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Gasket 3/8 Donut Tank Seal V1510 PVC | X9079 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | LID, 6 Inch Clear W/Blk Ring Extractor | PX103 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Gasket Tank Access Cover Marathon | 31416 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Clamp, Standpipe Mounting | 19217 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Frame, Member Tank Rev B Support(Sides) | 19317 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Recovery Tank Channel | 19325 | $0.00Read more |
| 32 | No Image | Frame, Member Tank 11 In. Support(Front) | 19316 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Frame, Member Tank 12 In. Support | 19220 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | ASSY INTERN.PIP(DRAWING) (98166, 169) RECOVERY | 31050 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | Bladder, 12 Gallon (Marathon 1200) | 19264 | $658.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX | No Image | Hose High Pressure 20Ft Tornado Vacuum Solution | 95567A | $439.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | 100PSI 12 DOUBLE BEND WAND WITH 2 JETS | 98397 | $710.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | 1-1/2" X 3-1/2" Detail Tool | 98350 | $0.00Read more |
| XX |  | Crevice Tool 1-1/2in SS External Spray 120psi | AA1601 | $286.99Read more |
| XX | No Image | Metal Upholstery Tool 500 P.S.I. | 98343 | $0.00Read more |
| XX |  | Stair Tool SS 6in head 800psi | AA1921 | $515.99Read more |
| # | Part image | Description | SKU | Price |
| XX | No Image | Brush Roller Assy 17 Marathon 800/1200 98166 98168 | 31806 | $599.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | Brush Motor Extractor 120VDC .25hp 3dia SCE SMB004 | X9002 | $301.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | Not Available | Lock Washer | 01713 | Not Available |
| 2 | No Image | NUT, 10-32 KEP ZINC | 7BF008 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Bearing 608-2RS | 05209 | Not Available |
| 4 | Not Available | Nut | 05282 | Not Available |
| 5 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | SCREW HEX HD CAP No 10 24 X 1/2 (ZP) | 17957 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Washer Plain 1/4 ID SS | 18885 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 9 | | FITTING-BRS.PLUG 1/8 MPT HEX SOCKET Part Number 19149 for Simplicity Models SCE | 19149 | |
| 10 | No Image | Spray Bar Manifold | 19150 | $0.00Read more |
| 11 | No Image | Bracket, Weldment Manifold Retaining | 19152 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Minature Nozzle, And Body 1/8 NPT No 2 95 Degree SCE | X9139 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | CLAMP SHROUD LATCH LEVER | 19156 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | BEARING BLOCK-BRUSH Part Number 19157 for Simplicity Models SCE | 19157 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | BEARING SEAL Part Number 19158 for Simplicity Models SCE | 19158 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Roller, Brush 17 Carpet Scrub(Marathon) | 19159 | $255.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Shaft, Brush Rotation 18 (Marathon 800/1200) | 19160 | $300.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | | PULLEY TIMING-MOTOR Part Number 19161 for Simplicity Models SCE | 19161 | $61.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Gasket, Shroud Base Plate (Marathon 800/1200) | 19164 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | SCREW, No 10 24 X 1/2 PHIL. FLAT HD MACH SS | 19165 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | PULLEY TIMING-MOTOR Part Number 32175 for Simplicity Models SCE | 32175 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | SPACER 5/16" DELRIN Part Number 19190 for Simplicity Models SCE | 19190 | $4.39Read more |
| 23 | No Image | WASHER PLAIN .328 ID (SS) | 19191 | $1.99Read more |
| 24 | No Image | Latch, Lever Shroud | 19192 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | BOLT, 1/4-20 X 1 HEX SS | X8282 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | ASSEMBLY BRUSH WELDMENT | 31754 | $586.99Read more |
| 28 | No Image | Belt,Scrubbers,Timing,150XL X 3/8 | 19233 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Brush Plate Weldment Complete Shroud Use 31754 | 30959 | $189.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

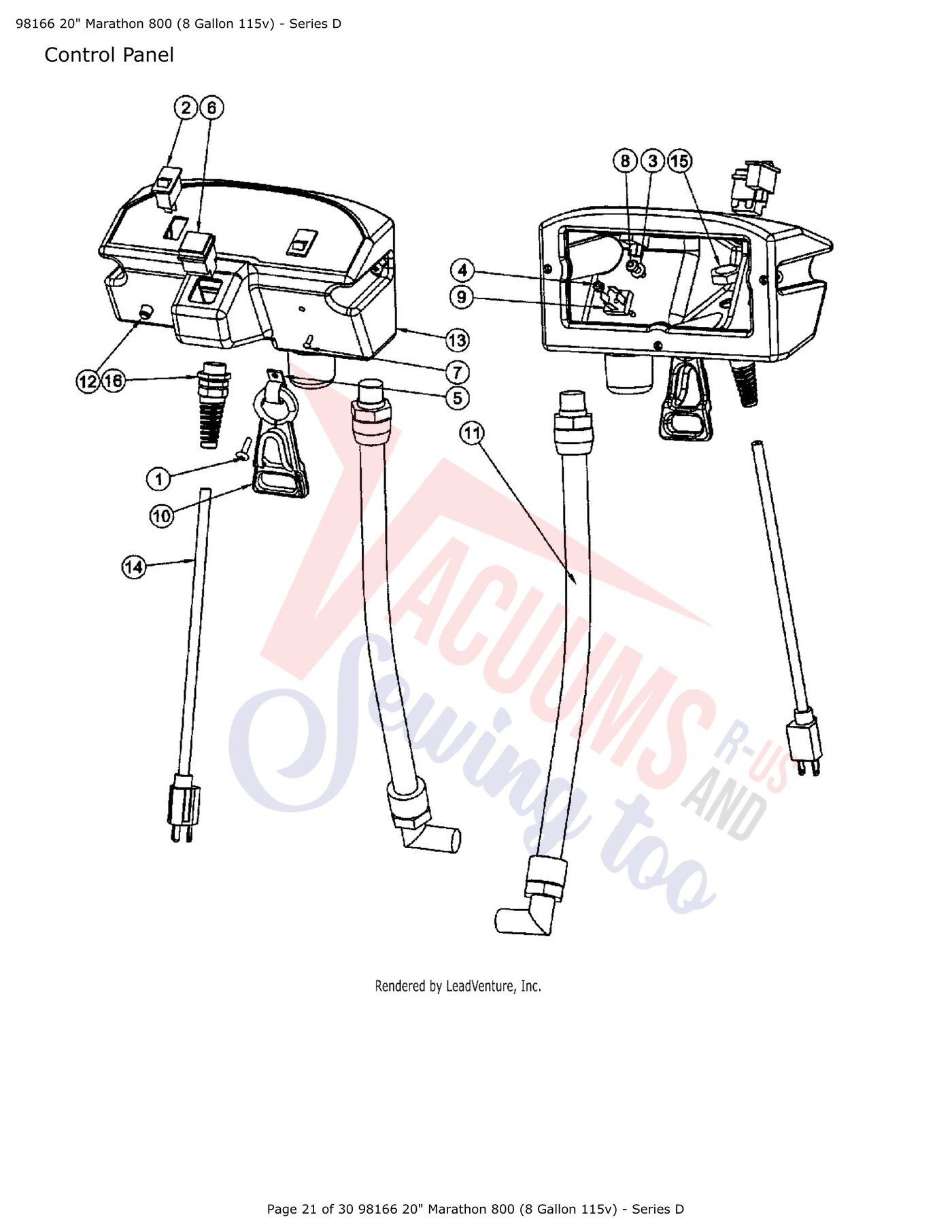

| # | Part image | Description | SKU | Price |
| XX | No Image | Module, Control 800 | 19214 | $120.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Screw Ph Truss HD No.10 24x3/4 ZP | 04735 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | SWITCH ROCKER 98164 68 | 10670 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Nut 6-32 Hex Nylon | 17883 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CLAMP CABLE(5/8DIA.) | 18717 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | SWITCH-PUSH BUTTON Part Number 19121 for Simplicity Models SCE | 19121 | $28.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | SCREW SLO. RND HD MACH No 6 32 X 3/4 (NYLON) | 19124 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 9 | No Image | Rectifier, 1000 V 35 Amp, Previously 19182 | X1193 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Cord Restraint Part Number B352-6900 for Cleanmax Models CMPS-QD, VPPB, CMPS-Q | B3526900 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Wiring Harness, Main Marathon 800/1200 | 32221 | $412.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Circuit Breaker,Extractor,2.5Amp,125V-250VAC | X1192 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Control Module | 19315 | $0.00Read more |
| 14 | No Image | Cord, Extension 14/3 X 50FT 300V Yellow | 32217 | $148.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | NUT HEX JAM 3/4 18 (ZP) SLO. | 30261 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | White Plastic Standard Candle Covers 8" | 19929 | $1.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bladder (8 Gallon) | 19215 | Not Available |
| 2 | No Image | Lock Washer | 01574 | $0.00Read more |
| 3 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 4 | No Image | Gasket 2.6 OD 1.875 ID 0.1875 Thick Rev01 | 05781 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Tooth Lock Washer Part Number 11007 for Cleanmax and Simplicity Models CM-WAV,SCE,SCE | 11007 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | PVC Male Adapter | 15088 | Not Available |
| 7 | | NUT-HEX FLANGED LOCK 1-1/2 NPT Part Number 15092 for Simplicity Models SCE | 15092 | |
| 8 | | CLAMP Part Number 16091 for Simplicity Models SCE,SCE | 16091 | $7.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | 1/4 X 3/4-20 SCREW Part Number 17160 for Simplicity Models SCE | 17160 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Screw Hex HD Cap 1/4 20x4.25 ZP | 17644 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Washer,Plain 2.00 ID SS | 18886 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Filter,Extractor,Pumps,Soloscreen,Bladder | 19096 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Brass Adaptor Fitting | 19133 | $0.00Read more |
| 21 | No Image | Bladder Mounting Plate | 19134 | $0.00Read more |
| 22 | No Image | RING O 1 5/8 DIA. (BLK) | 19140 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bellow Hose EPDM/Blk Revc 1-1/2x23-1/2 Lg Crush | 16620 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Tank, Recovery (98166) Order W/19241 | X3857 | $639.91Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Bracket Extractor Marathons Recover Tank Retaining | 19272 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Recovery Tank External Pipe Assembly | 31051 | Not Available |
| 39 | | Bladder, 12 Gallon (Marathon 1200) | 19264 | $658.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
