Schematic and parts book for Powr-Flight PF58 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

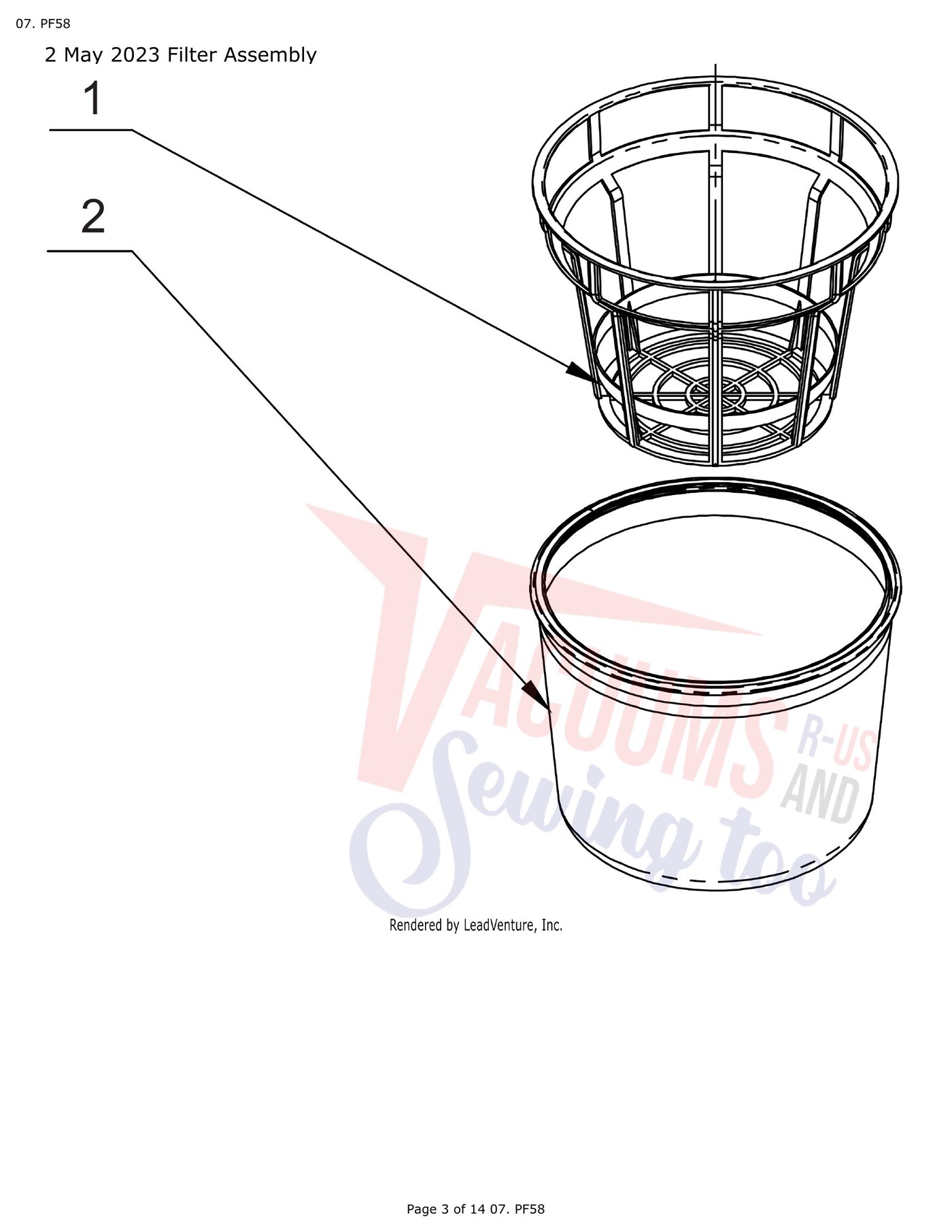

| 1 | No Image | Filter,Vacuum,Frame,15 Gal,Remove Top Ring | WD7 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Cloth Filter for PF53 PF54 PF58 | WD3 | $39.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Bag,Vacuum,Paper,20 Gallon,1 Pack | 155PB | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

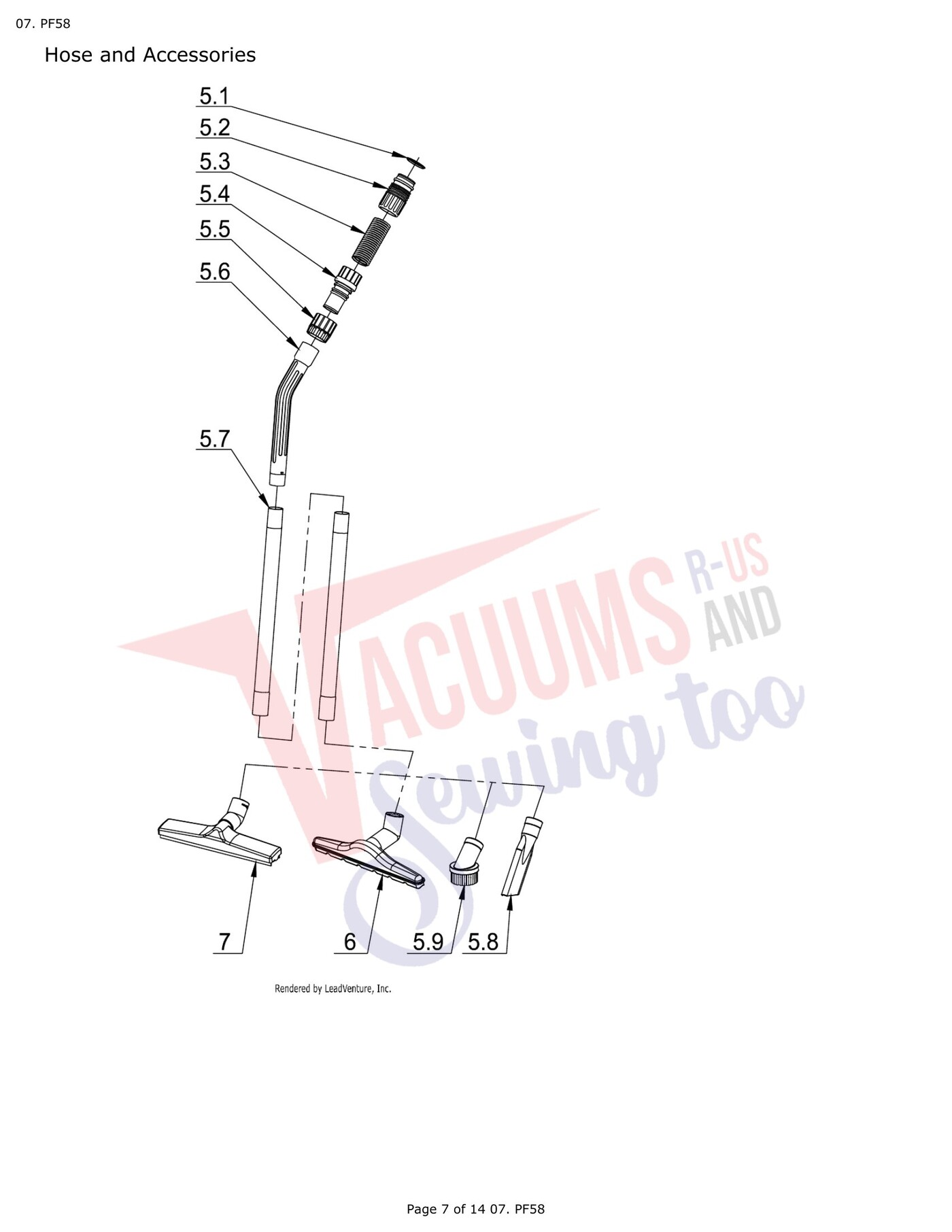

| 5.1 | No Image | CONNECTOR GASKET PF53 PF55 PF57 PF54 | WD23 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.2 | No Image | HOSE CONNECTOR PF53 PF54, PF55 PF57 | WD24 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.3 |  | Hose Wet/Dry 10ft Inc WD28 Bend Connector | WD25 | $87.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.4 | No Image | Connector PF53 PF55 PF57 PF54 | WD26 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.5 | No Image | HOLDER, WAND PF53 PF55 PF57 PF54 | WD27 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.6 | No Image | BEND CONNECTOR PF53 PF55 PF57 PF54 | WD28 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.7 | No Image | Wand Wet Dry 21in SS 2 Required | WD29 | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.8 |  | VAC TOOL CREVICE BLACK, PLASTIC PF53-57 | WD32 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5.9 |  | VAC TOOL DUST BRUSH 1-1/2 PLASTIC, BLACK PF53-57 | WD33 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | VAC TOOL SQUEEGEE 16 1-1/2 PLASTIC BLK PF50 SERIES | WD30A | $78.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | FLOOR BRUSH ASSY PF53 PF54 PF55 PF57 | WD31 | $60.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| XX |  | PF58 HEAD ASSEMBLY | 32396M0202 | $763.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.1 | No Image | HANDLE, HEAD PF55 PF57 | WD20 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.3 | No Image | Cord Protector,Wet/Dry | WD34 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.4 |  | Cord,Wet/Dry,24 Inch,Black,14/3,Pigtail | WD66C | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.5 |  | Cord,Wet/Dry,30ft,Black,16/3 SJTW | WD66 | $124.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.6 | No Image | TOP COVER PF53 PF54 | WD65 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.11 | No Image | SCREW MARA 350 | 3208DS07 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.12 | No Image | WIRE PLATE PF53 PF55 PF57 PF54 94232 | WD17 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.14 | No Image | HOUSING, MIDDLE PF53 PF55 PF57 PF54 | WD16 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.15 |  | TOP BLOCK PF53 PF54 PF57 | WD83 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.17 | No Image | Base | WD148 | $0.00Read more |
| 1.18 | No Image | BLOCKER FOR PF57 PF58 WET/DRY VACUUM | WD248 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.19 | No Image | Capacitor,Vacuum | 3215BE01 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.20 | No Image | TERMINAL BLOCK PF54 PF57 | WD207 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.26 | No Image | ROCKER SWITCH ON/OFF PF53 PF54 PF56 | WD67 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.27 | No Image | GASKET PF53 PF55 PF57 PF54 94232 | WD53 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.28 | No Image | GASKET FOR PF58 PF51 WET/DRY VACUUM | WD251 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.29 |  | Motor,Vacuum,120,VAC,Grandwill International Corp | WD15 | $213.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.30 | No Image | GASKET, VAC MOTOR PF53 PF54 LOWER GASKET | WD68 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.31 | No Image | GASKET, TRIANGLE FOAM MOTOR (3 REQ) PF50 SERIES | WD70 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.32 | No Image | GASKET, SQUARE FOAM PF54 PF53 SPONGE | WD69 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.33 | No Image | STOPPER PLATE PF53 PF55 PF57 PF54 | WD85 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.34 | No Image | SCREW | 3200DS02 | $1.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.35 | No Image | PLATE PF53,PF54,94232 | WD166 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.36 | No Image | Motor Seat | WD87 | $0.00Read more |
| 1.37 | No Image | BASE BLOCK, LOWER PF53 PF54 PF55 PF58 | WD82 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.38 |  | Gasket PF53 PF54 PF55 PF57 | WD150 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.39 | No Image | BASE COVER, MOTOR PF53 PF55 PF57 PF54 | WD10 | $23.99Read more |
| 1.40 | No Image | SCREW MARA 350 | 3238DS11 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.41 | No Image | GASKET, OUTER, HOUSING BASE PF53 PF54, 94232 | WD165 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.42 | No Image | FLOAT PF53 PF54 PF55 PF57 | WD9 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.43 | No Image | FLOAT CAGE PF53 PF54 PF55 PF57 | WD8 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.44 | No Image | Filter,Vacuum,Synthetic,Cartridge,Washable | WD36 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.45 | No Image | SPRING, FILTER PF53 PF54 PF55 PF57 | WD37 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.46 | No Image | HOOK, FILTER PF53 PF55 PF57 | WD35 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

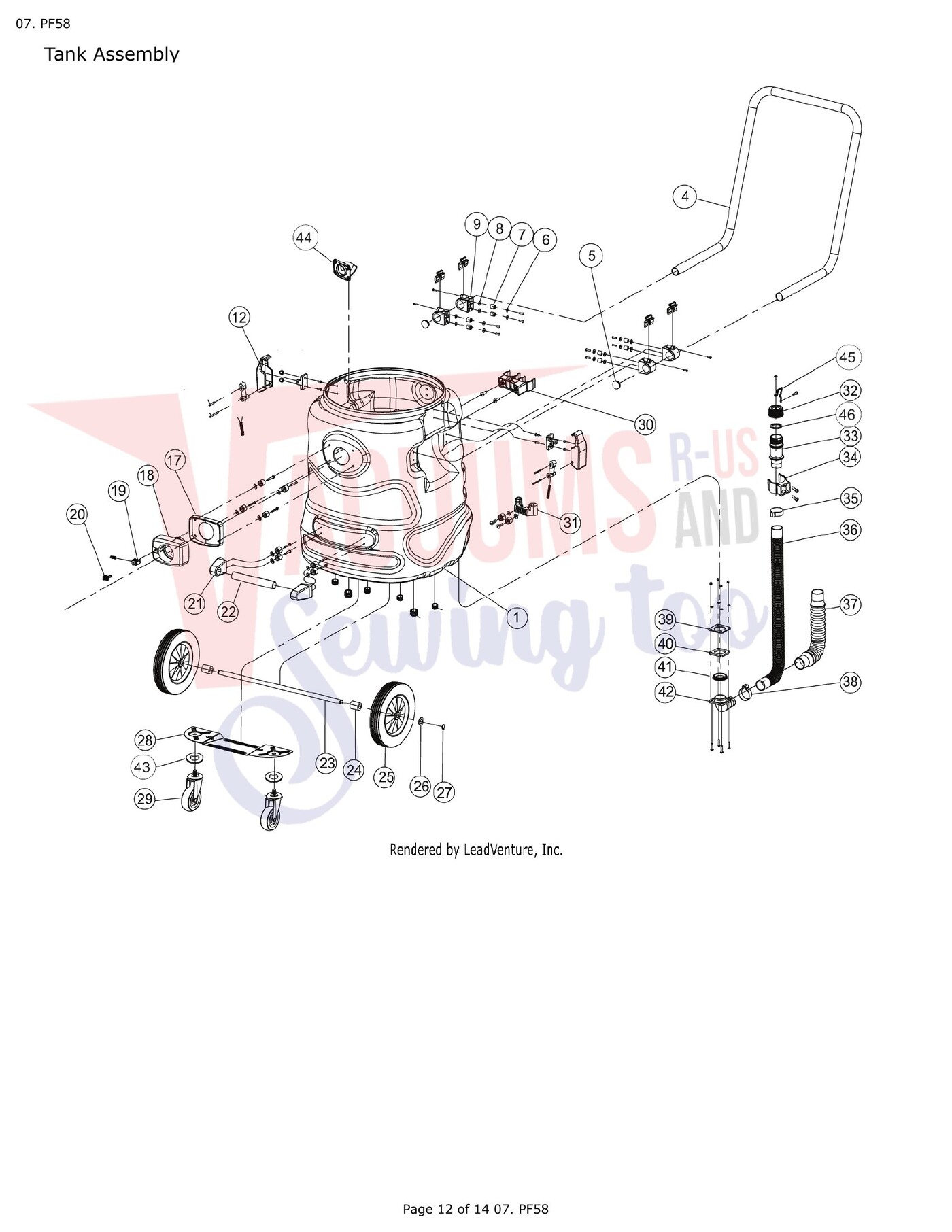

| 1 | No Image | POLY TANK PF56 PF58 | WD219 | $718.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | HANDLE PF54 AND PF56 | WD132 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | PLUG | WD133 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Washer | WD222 | Not Available |
| 7 | No Image | SPACER FOR HANDLE PF53 PF55 PF58 | WD77 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | RUBBER WASHER FOR WD77 PF53 PF55 PF57 PF54 | WD76 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | HOLDER PF54 PF55 PF57 | WD72 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | CLAMP ASSEMBLY PF55 PF57 PF53 PF56 | WD43 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | GASKET, RUBBER FOR WD45 PF53 PF55 PF57 PF54 | WD50 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | SUCTION COUPLER KIT, PF53, PF54, PF55, PF57 | WD45KIT | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | SUCTION COUPLER KIT, PF53, PF54, PF55, PF57 | WD45KIT | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | SUCTION COUPLER KIT, PF53, PF54, PF55, PF57 | WD45KIT | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | HOLDER PF56 PF57 PF58 | WD225 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Handle | WD226 | Not Available |
| 23 | Not Available | Axle | WD227 | Not Available |
| 24 | Not Available | Bushing | WD228 | Not Available |
| 25 |  | Rear Wheel, PF53, PF56, PF58 | WD61M | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | WASHER PF56 PF57 PF58 | WD229 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | E-RING, Wheel, Wet Dry Vacs | WD126 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | WHEEL MOUNT BRACKET PF54 | WD167 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | FRONT WHEEL PF56 AND PF58 | WD231M | $53.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Tool Holder | WD232 | $0.00Read more |
| 32 |  | CAP PF56 AND PF58 | WD236 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Connector | WD237 | $0.00Read more |
| 34 | No Image | HOOK PF54 | WD146 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | DUMP HOSE, CLAMP PF54 | WD190 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Hose | WD239 | $0.00Read more |
| 37 |  | PROTECTOR PF56 AND PF58 | WD240 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | No Image | Hose Clamp | WD241 | $0.00Read more |
| 39 | No Image | Seal Holder | WD242 | $0.00Read more |
| 40 |  | DUMP HOSE, TOP SEAL PF54 | WD188 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | Seal | WD243 | $0.00Read more |
| 42 | No Image | CONNECTOR PF56 AND PF58 | WD244 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | WASHER CASTER PF54 | WD256 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Deflector | 3239AA-27 | Not Available |
| 45 | No Image | CHAIN PF56 AND PF58 | WD235 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Gasket | 3527GP08 | $0.00Read more |
