Schematic and parts book for Other R27p, R27.P Riccar R27 Premium Pet. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |

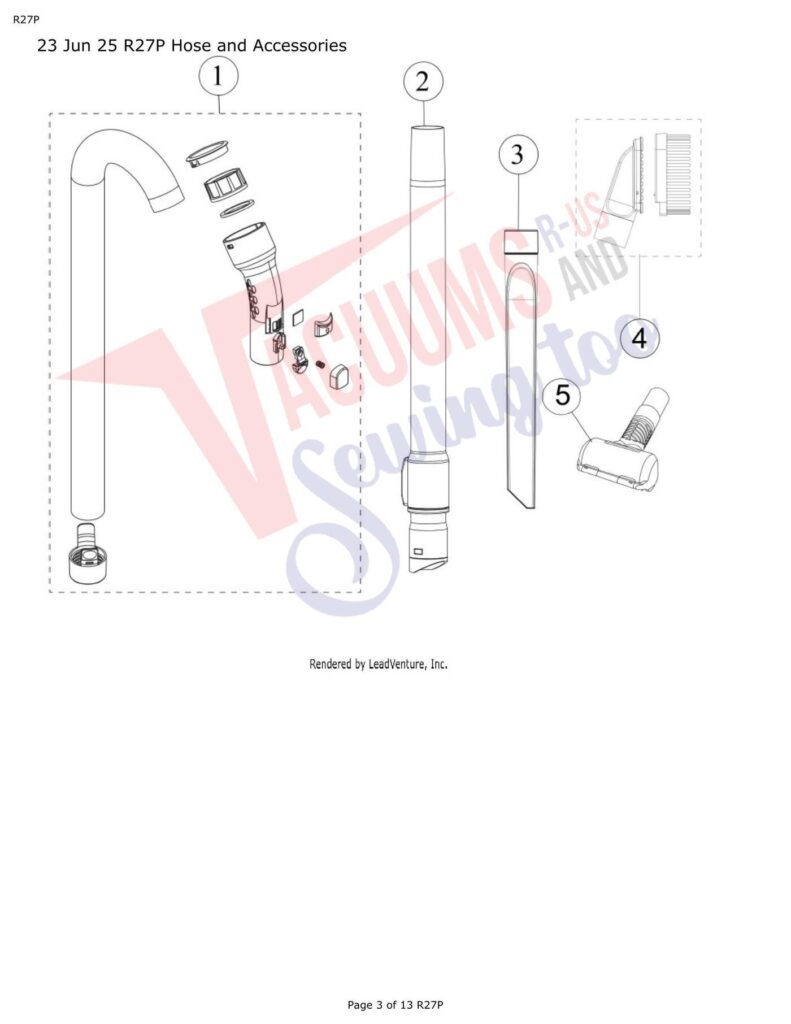

| 1 | No Image | Hose Assembly R27CV R27P | C6041001 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Quick Draw Wand R27CV,R27P,R27D,S26 | B4346400B | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Crevice Tool Part Number B604-2314 for Riccar Models R25S, R25D, R25P | B6042314 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | BRUSH DUSTING R27CV R27P | B6046214 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Riccar Fur Get It Pet Hair Remover Upholstery Tool RPETTOOL | RPETTOOL | $53.99Add to cart |
| # | Part image | Description | SKU | Price |

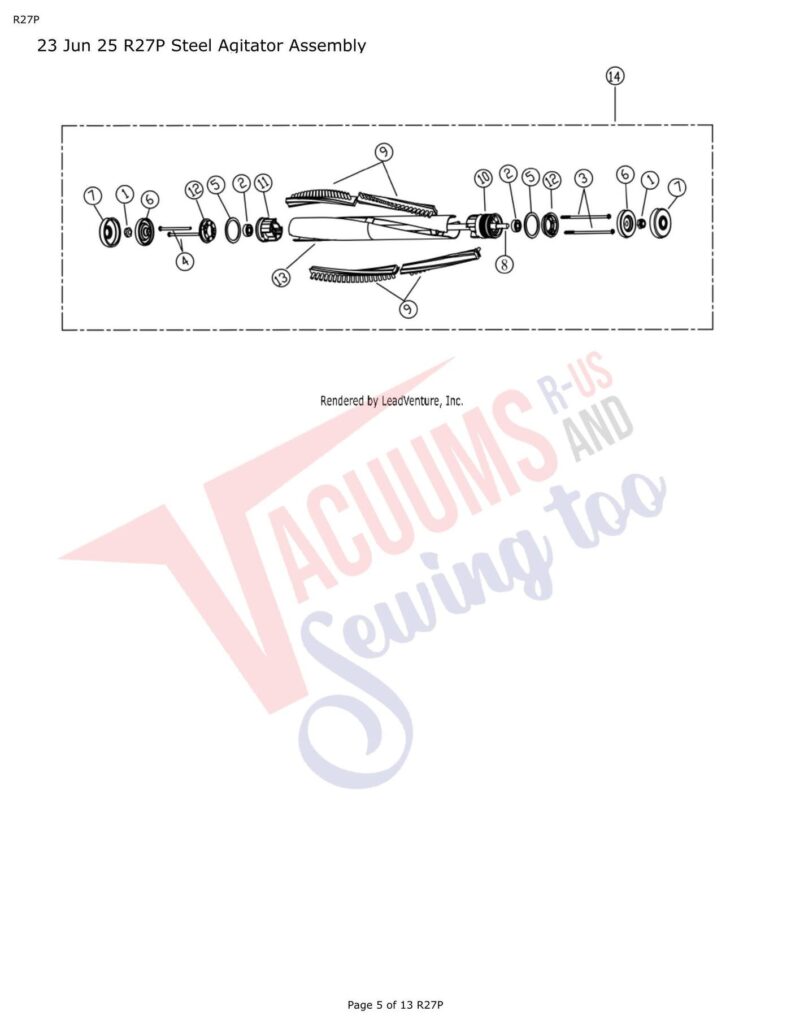

| 1 |  | Locking Hex Nut Part Number A3750100 for Simplicity Models SPB-400S.2 | A3750100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Agitator Bearing for Simplicity and Riccar | A3750200 | $4.99Add to cart |
| 3 |  | Screw 80mm Part Number A733-1810 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331810 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Screw 44mm Part Number A733-1800 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.USA... | A7331800 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Felt Seal for ULW Metal Brush Rollers | WP11569 | $3.99Add to cart |
| 6 |  | Steel End Caps Part Number B3753600 for Simplicity Models SPB-400S.2 | B3753600 | $3.99Read more |
| 7 |  | End Cap Cover Part Number B375-3700 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.... | B3753700 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Shaft (N/A) Part Number B375-1600 for Riccar and Simplicity Models R25D R25P,R30D, R30P, R30P.DS... | B3751600 | $0.00Read more |
| 9 |  | Single Brush Strip White Part Number B601-8000 for Riccar Models R25D R25P | B6018000 | $3.99Add to cart |
| 10 |  | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Agitator Bearing Cartridge Part Number B475-1800 for Simplicity and Maytag and Riccar Models BRLS... | B4751800 | $2.99Add to cart |
| 12 |  | Retainer Ring for Metal Brush Rolls Simplicity Freedom and Riccar SupraLites | WP11570 | $2.99Add to cart |
| 13 | | Agitator Steel Core (N/A) Part Number C475-0600 for Riccar and Simplicity Models R25D R25P,R30D, ... | C4750600 | $0.00Read more |
| 14 | | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

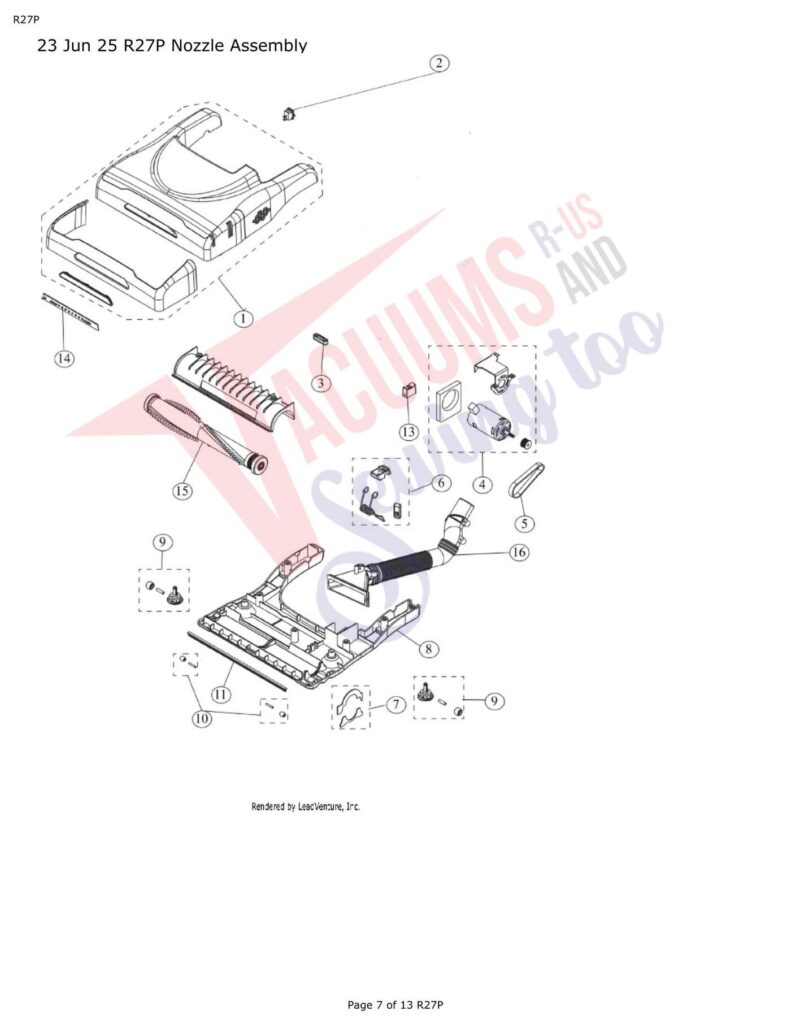

| 1 | No Image | Nozzle Cover R27D R27P | C6011444 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Upright Kill Switch Part Number B603-3400 for Riccar Models R25S, R25D, R25P | B6033400 | $3.99Add to cart |
| 3 | | Cord Clamp Part Number B600-4514 for Riccar Models R25S, R25D, R25P,R25S, R25D, R25P | B6004514 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Riccar Brushroll Motor Assembly for R25 Series - C603-1400 | WP11979 | $80.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Riccar R25 Series Vacuum Cleaner Belt - B601-2200 | WP11841 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Spring Assist Assembly Part Number C601-3000 for Riccar Models R25S, R25D, R25P,R25S, R25D, R25P | C6013000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Felt Seal Set Part Number C601-5300 for Riccar Models R25S, R25D, R25P | C6015300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Baseplate Part Number B601-1214 for Riccar Models R25S, R25D, R25P | B6011214 | $28.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Caster Wheel Assembly Part Number C601-4000 for Riccar Models R25S, R25D, R25P | C6014000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Baseplate Wheel Assembly Part Number C601-1900 for Riccar Models R25S, R25D, R25P | C6011900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Baseplate Strip Part Number B601-1300 for Riccar Models R25S, R25D, R25P | B6011300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Dirt Sensor Assembly (R25P) Part Number B603-3500 for Riccar Models R25S, R25D, R25P | B6033500 | $60.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | Brushroll Motor Clamp Part Number B601-6914 for Riccar Models R25S, R25D, R25P | B6016914 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | HEADLIGHT LED R27CV R27P R27D | B6034100 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | | Steel Agitator Assembly (R25D, R25P) Part Number D601-8000 for Riccar Models R25S, R25D, R25P,R25... | D6018000 | $76.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Nozzle Hose Assembly (R25D, R25S) Part Number C600-4400 for Riccar Models R25S, R25D, R25P | C6004400 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

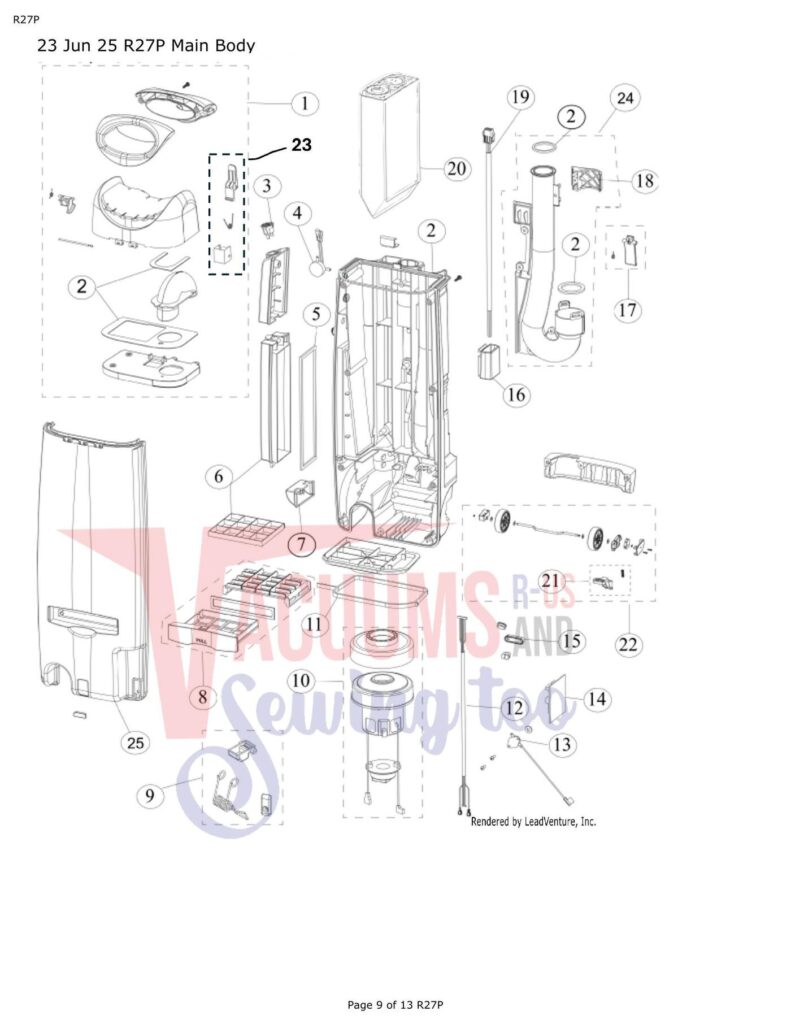

| 1 | No Image | Bag Door Assembly R27D R27P | C6006000 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | | Seal Kit (Includes Bag Door Seal, Hose Cuff Seal, Hose Cuff Pivot Seal, Airpath Top Seal) Part Nu... | B6006000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Full Bag Light (R25D, R25P) Part Number B603-3100 for Riccar Models R25S, R25D, R25P | B6033100 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Pressure Sensor (R25D, R25P) Part Number B603-2800 for Riccar Models R25S, R25D, R25P | B6032800 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Post Filter Seal Part Number B600-6500 for Riccar Models R25S, R25D, R25P | B6006500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

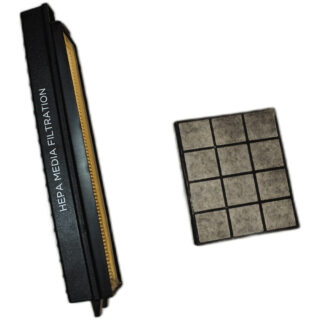

| 6 |  | Filter Set HE Pleated HEPA Granulated Charcoal R27 44CS | RF27 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Compatible alternateUSE SKU RF27 in favor of this Riccar R25D HEPA Media and Charcoal Filter Set More Product Details | R25DF | $30.99Add to cart Special order — allow 2-4 weeks. |
| 7 |  | Post Filter Mount Part Number B600-2514 for Riccar Models R25S, R25D, R25P | B6002514 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Secondary Filter Assembly R27D R27P | B6002717 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | Spring Assist Assembly Part Number C601-3000 for Riccar Models R25S, R25D, R25P,R25S, R25D, R25P | C6013000 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Clean Air Motor for Riccar R25S, R25D, and R25P | WP11858 | $91.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Motor Plate Seal Part Number B600-6314 for Riccar Models R25S, R25D, R25P | B6006314 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Wire Harness Kit- Includes #19 (R25D, R25P) Part Number B603-1200 for Riccar Models R25S, R25D, R... | B6031200 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Thermal reset R25P | B603-3300B | Not Available |
| 14 |  | Main PC Board for Riccar R25D and R25P | WP11217 | $138.99Add to cart |
| 15 | | Cord Clamp Part Number B600-4514 for Riccar Models R25S, R25D, R25P,R25S, R25D, R25P | B6004514 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | | Crevice Tool Mount Part Number B600-4466 for Riccar Models R25S, R25D, R25P | B6004466 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Lower Cord Hook Black S26 R27D R27P | B6001966 | $0.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Hose Guide Part Number B600-2414 for Riccar Models R25S, R25D, R25P | B6002414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Wire Harness Kit- Includes #19 (R25D, R25P) Part Number B603-1200 for Riccar Models R25S, R25D, R... | B6031200 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | R27 and R25 Series Charcoal-Infused HEPA Bags 6 Pk fits all R27 and R25 models | R27HC6 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Release Pedal R27D R27P S26 | C6013200 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Rear Wheel Assembly R27P R27D S26 | C6014100 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Latch Assembly Bag Door R27D R27P | C6005102 | $2.99Read more |
| 24 | | Air duct cover plate components (R25S, R25D, R25P) Part Number C600-2714 for Riccar Models R25S, ... | C6002714 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Front Body Cover R27P | B6001300 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

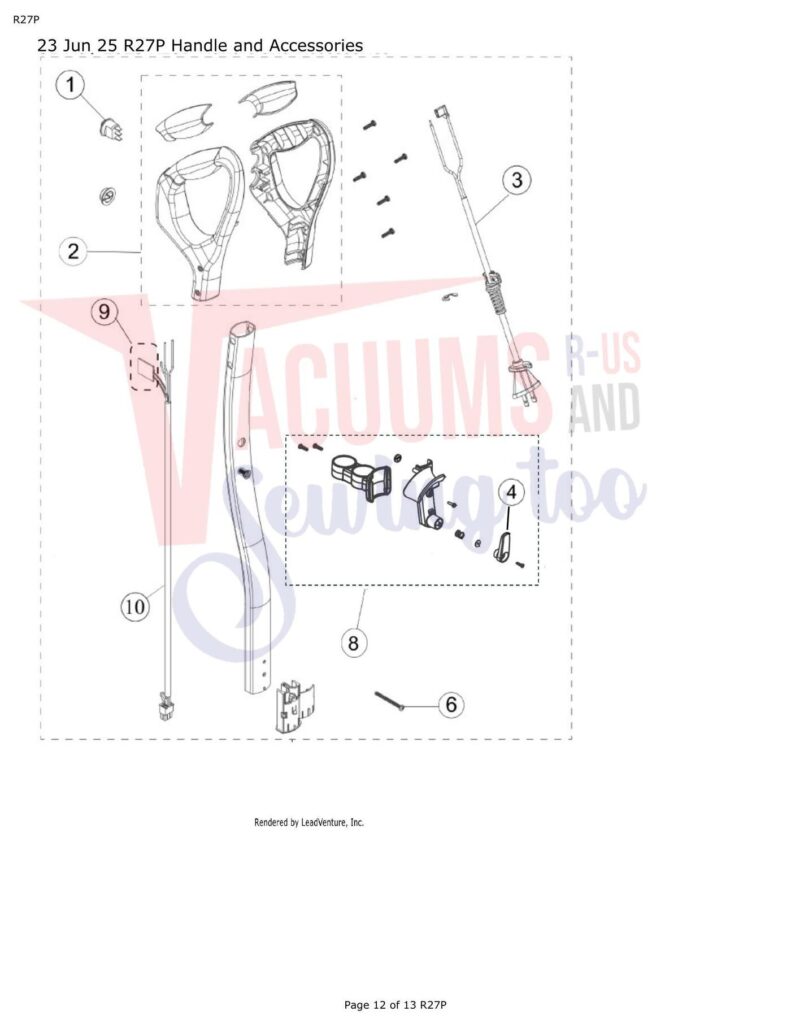

| Not Shown | | R25 Handle Shim Kit Part Number D602-0001 for Riccar Models R25S, R25D, R25P | D6020001 | $19.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | On/Off Switch (R25D, R25P) Part Number A328-1299 for Riccar Models R25S, R25D, R25P | A3281299 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Handle Grip Assembly (R25D, R25P) Part Number C602-2114 for Riccar Models R25S, R25D, R25P | C6022114 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Cord Assembly R27P R27D | C6035000 | $44.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Upper Cord Hook Black S26 R27D R27P | B6021466 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Handle Mount Screw #8 x 1.75 Part Number A732-8700 for Riccar Models R25S, R25D, R25P | A7328700 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Accessory and Hose Holder Assembly R27P | C6021600 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Handle circuit board components (R25D, R25P) Part Number B600-2700 for Riccar Models R25S, R25D, ... | B6002700 | $2.99Add to cart |
| 10 | | Handle circuit board components (R25D, R25P) Part Number B600-2700 for Riccar Models R25S, R25D, ... | B6002700 | $2.99Add to cart |
