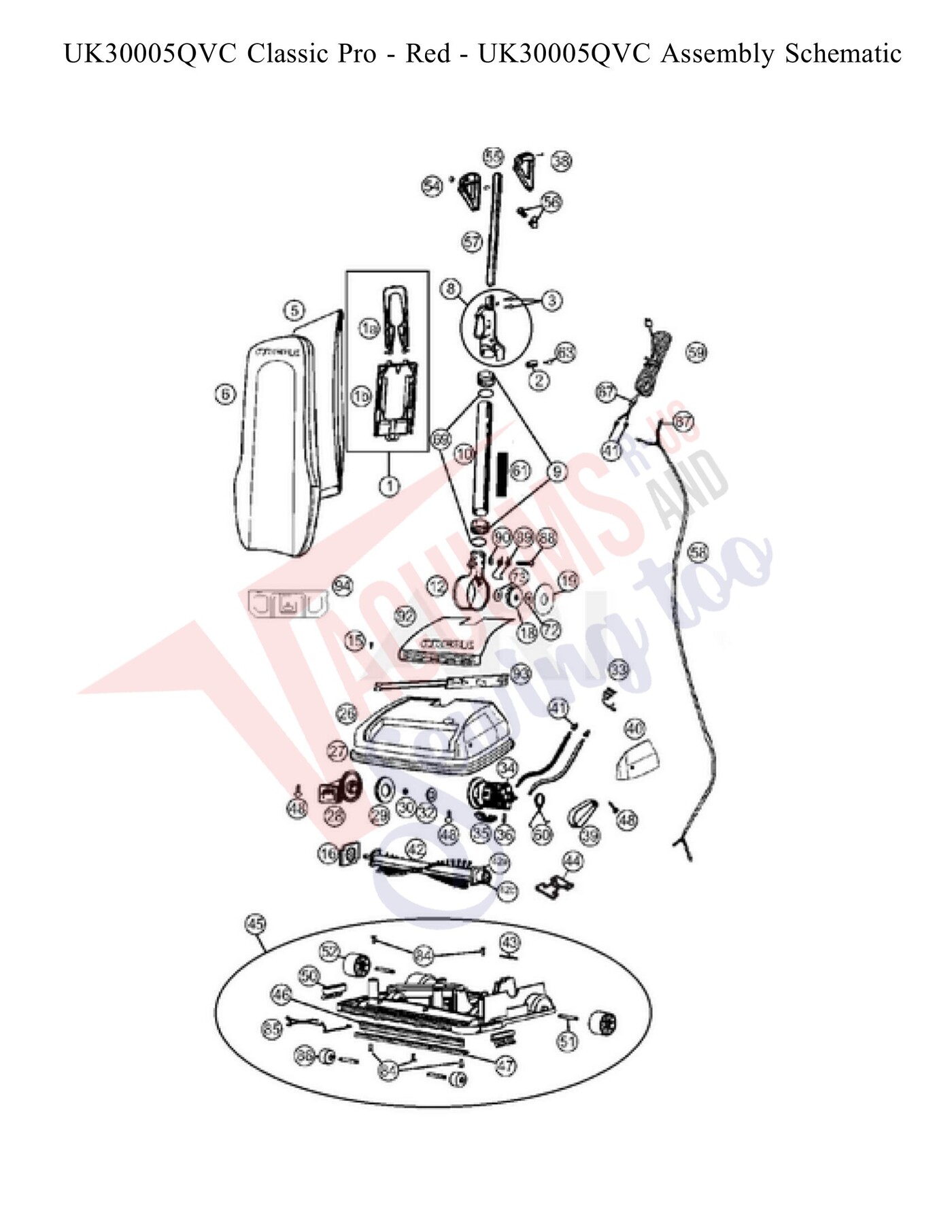

Schematic and parts book for oreck UK30005QVC . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CC STYLE | 09-75657-02 | Not Available |
| 1 | Not Available | UK30007PC | UK30005QVC | Not Available |
| 2 | Not Available | WBD CLAMP | 03-00619-01M | Not Available |
| 3 | Not Available | X .440 W/WSH | 03-00478-02M | Not Available |
| 5 | Not Available | BAG PACK 8PK | CCPK8DW | Not Available |
| 5 | Not Available | Type Cc Select | AK1CC25A | Not Available |
| 6 | No Image | Cloth Bag, Red Outer UK30005QVC Part Number: 76228-02 for Oreck | 7622802 | $90.42Read more |
| 8 | Not Available | ASSY | 09-75308-57 | Not Available |
| 9 | Not Available | COLLAR | 75199-02-0327 | Not Available |
| 10 | Not Available | TUBE LOWER | 75198-05 | Not Available |
| 12 | Not Available | HOUSING | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | METAL PULLEY | 75704-01 | Not Available |
| 18 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SEAL FAN | 75012-01 | Not Available |
| 26 | Not Available | Assembly Warm | 09-76074-02 | Not Available |
| 27 | Not Available | BUMPER CLEAR | 75765-01 | Not Available |
| 28 | Not Available | ASSEMBLY | 09-75066-02 | Not Available |
| 29 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | CHROME MC | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $2.06Read more |
| 33 | Not Available | STRAIN RELIEF | 03-00494-01 | Not Available |
| 34 | Not Available | MAGNET WIRE | 09-75886-01 | Not Available |
| 35 | Not Available | SEAL MOTOR | 75095-01 | Not Available |
| 36 | Not Available | BRUSH/SPRING 3- | 09-75514-01 | Not Available |
| 38 | Not Available | NLA #8 X .75 | 03-00476-01M | Not Available |
| 39 | Not Available | DRIVE BELT / 3 | 300604 | Not Available |
| 39 | Not Available | RIVER: NO | 75024-01 | Not Available |
| 40 | Not Available | Door Belt Warm | 76002-01-472 | Not Available |
| 41 | Not Available | WIRE NUT TAN | 03-00599-01M | Not Available |
| 42 | Not Available | Brush Roll Silver | 75104-03 | Not Available |
| 43 | Not Available | SEAL BASE | 75008-01 | Not Available |
| 44 | Not Available | SPRING DETENT | 75299-01 | Not Available |
| 45 | Not Available | ASSY BASEPLATE | 09-75901-01 | Not Available |
| 46 | Not Available | SQUEEGEE LOW | 75700-02 | Not Available |
| 47 | Not Available | CHANNEL | 75701-01 | Not Available |
| 48 | Not Available | NLA #8 X .75 | 03-00476-01M | Not Available |
| 50 | Not Available | HORSEHAIR | 75766-03 | Not Available |
| 51 | Not Available | AXLE | 03-00630-01M | Not Available |
| 52 | Not Available | ZRA 521A00093 | 75187-02-0327 | Not Available |
| 54 | Not Available | SWITCH 2-SPEED | 75585-01 | Not Available |
| 55 | Not Available | Grips Dark Cherry | 09-75576-39 | Not Available |
| 56 | Not Available | Assembly w/Post & | 09-75185-22 | Not Available |
| 57 | Not Available | NLA TUBE UPPER | 75190-03 | Not Available |
| 58 | Not Available | CORD BLACK 30' | 75896-02-327 | Not Available |
| 59 | Not Available | CORD BLACK 30' | 75896-01-327 | Not Available |
| 60 | Not Available | WBD SPRING | 75283-01 | Not Available |
| 61 | Not Available | NLA LABEL | 75087-05 | Not Available |
| 63 | Not Available | CORD BRACKET | 03-00450-01M | Not Available |
| 67 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | COLLAR O-RING | 75191-02M | Not Available |
| 71B | No Image | Powerlifter Powerbrush | 1622 | $143.80Read more |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 73 | Not Available | EXT TOOTH | 03-00480-01M | Not Available |
| 84 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | Not Available | WIREFORM 1 PC | 75698-01 | Not Available |
| 86 | Not Available | FRONT WHEEL | 75709-01 | Not Available |
| 87 | Not Available | INSULATOR - JST | 75679-01M | Not Available |
| 88 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $39.33Read more |
| 89 | Not Available | WBD BAG SPRING | 75015-01M | Not Available |
| 90 | Not Available | PUSHNUT 3/16" | 03-00636-01M | Not Available |
| 92 | Not Available | W/LENS WM | 09-76126-52 | Not Available |
| 93 | Not Available | LED NO | 75770-02 | Not Available |
| 94 | Not Available | Lower Bag Stiffener | 76061-01 | Not Available |
