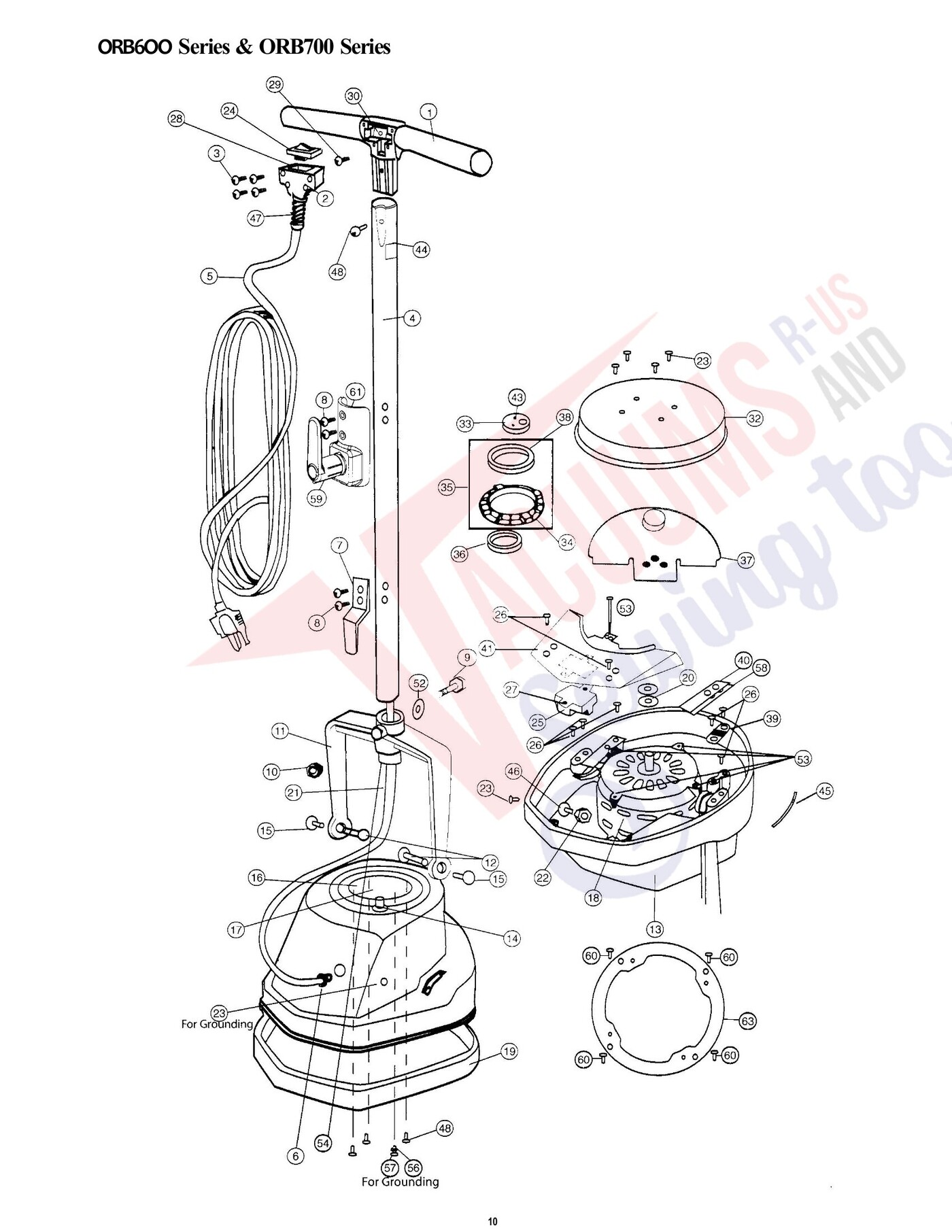

Schematic and parts book for Oreck ORB600, orb700 Orbitor. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 | Not Available | COVER SWITCH WHITE (ORB6OO SERIES) | 53258-02-453 | Not Available |
| 2 | Not Available | COVER SWITCH BLACK (ORB700 SERIES) | 53258-02-0327 | Not Available |
| 4 | Not Available | TUBE CHROME | 53141-03 | Not Available |
| 5 | Not Available | POWER CORD BLACK 30' | 53336-01-327 | Not Available |
| 6 | Not Available | STRAIN RELIEF | 03-00520-01 | Not Available |
| 7 | Not Available | CORD HOOKS CHROME | 53147-02 | Not Available |
| 11 | Not Available | YOKE WHITE (ORB6OO SERIES) | 53148-02 | Not Available |
| 11 | Not Available | YOKE BLACK (ORB700 SERIES) | 53148-03 | Not Available |
| 12 | Not Available | HANDLE PIN | 03-00529-01 | Not Available |
| 13 | Not Available | MAIN BODY HOUSING WHITE (ORB6OO SERIES) | 53149-04 | Not Available |
| 13 | Not Available | MAIN BODY HOUSING BLACK (ORB700 SERIES) | 53416-02 | Not Available |
| 14 | Not Available | RESET BUTTON RED (ORB700 SERIES) | 53150-01-451 | Not Available |
| 15 | Not Available | DELRIN BUSHING | 53237-01 | Not Available |
| 16 | Not Available | GRILL (MOTOR COVER) CHROME | 53151-05 | Not Available |
| 17 | Not Available | LABEL ROUND ORECK BLUE/WHITE (ORB6OO SERIES) | 53341-02 | Not Available |
| 17 | Not Available | LABEL ROUND ORECK ALUMINUM / BLACK (ORB700 SERIES) | 53341-03 | Not Available |
| 18 | Not Available | MOTOR KIT (ORB6OO SERIES) | 09-53340-01 | Not Available |
| 18 | Not Available | MOTOR KIT (ORB700 SERIES) | 09-53152-01 | Not Available |
| 19 | Not Available | BUMPER CLEAR BLUE (ORB6OO SERIES) | 53154-01-455 | Not Available |
| 19 | Not Available | BUMPER SMOKE (ORB700 SERIES) | 53154-01-460 | Not Available |
| 19 | Not Available | ^ PIGTAIL | 53169-01 | Not Available |
| 24 |  | NO LONGER AVAILABLE Switch, :( Black/Red Rocker 3 Leads ORB550 Part Number: 53156-01 for Oreck | 5315601 | $11.36Read more |
| 25 | Not Available | RELAY | 53157-01 | Not Available |
| 32 | Not Available | BOTTOM PAN | 53159-01-0000 | Not Available |
| 33 | Not Available | PLUG BEARING | 53160-01 | Not Available |
| 34 | Not Available | BEARING RETAINER | 53162-01 | Not Available |
| 35 | Not Available | RETAINER BEARING & BALL BEARING ASSEMBLY | 09-53266-51 | Not Available |
| 36 | Not Available | SPACER | 53163-01 | Not Available |
| 37 | Not Available | FLYWHEEL W COUNTERWEIGHT | 09-53335-02 | Not Available |
| 38 |  | Oreck Orbiter bearing | 5316101 | $43.99Read more |
| 39 | Not Available | PILLOW BLOCK (YOKE PIN HOLDER) | 53165-01 | Not Available |
| 40 | Not Available | SPRING | 53166-01 | Not Available |
| 41 | Not Available | PLATE COVER | 53167-03 | Not Available |
| 44 | Not Available | WARNING LABEL | 53172-02 | Not Available |
| 45 | Not Available | CABLE TIE | 03-00404-01 | Not Available |
| 47 | Not Available | STRAIN RELIEF | 03-00621-01 | Not Available |
| 54 | Not Available | STRAIN RELIEF | 03-00637-01 | Not Available |
| 58 | Not Available | SPRING NYLON | 53337-01 | Not Available |
| 59 | Not Available | ASSY CORD WRAP & POST GRAY | 09-75185-06 | Not Available |
| 61 | Not Available | BRACKET CORD DUMP GRAY | 53412-01-436 | Not Available |
| 61 | Not Available | fi? MOTOR PLATE (ORB6OO SERIES) | 53333-01 | Not Available |
| 61 | Not Available | LABEL CURVED ORBITER ALUMINUM / BLACK (ORB6OO SERIES) | 53342-02 | Not Available |
| 61 | Not Available | LABEL CURVED ORBITER ALUMINUM / BLACK (ORB700 SERIES) | 53342-03 | Not Available |
| 61 | Not Available | MANUAL OWNER'S | 53367-01 | Not Available |
| 61 | Not Available | flywheel counterclockwise. An Oreck Authorized Service Center should do all technical servicing. Orbiter Accessories: QRB300 QRB400 ORB48Q ORB55Q ORB6QO & QRB700 Item Order # Qty. Pk. | NOTE | Not Available |
| 61 |  | Drive Block-Plastic Less Foam-Oem Orbiter For: oreck | 53178510327 | $40.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | Not Available | POLISH PAD- | WHITE | Not Available |
| 61 | Not Available | SCRUB PAD - | BROWN | Not Available |
| 61 | Not Available | STRIP PAD - | BLACK | Not Available |
| 61 | Not Available | MARBLE POLISHING PAD - | BEIGE | Not Available |
| 61 | Not Available | SHAMPOO BRUSH - BLACK | BRISTLE | Not Available |
| 61 | Not Available | POLISHING BRUSH - UNION MIX - TAN | BRISTLES | Not Available |
| 61 | Not Available | SCRUB BRUSH - ORANGE | BRISTLES | Not Available |
| 61 | Not Available | GRIT BRUSH - GRAY | BRISTLES | Not Available |
| 61 | Not Available | LAMB WOOL | BONNET | Not Available |
| 61 | Not Available | CARPET SHAMPOO | BONNET | Not Available |
| 61 | Not Available | SAND SCREENS - USED FOR | SANDING | Not Available |
| 120 | Not Available | ORBITER SHAMPOO | TANK | Not Available |
| 120 | Not Available | ORECK DRY | SHAMPOO | Not Available |
| 120 | Not Available | SOIL RELEASE PRE-SPRAY | QUART | Not Available |
| 120 | Not Available | SOIL RELEASE PRE-SPRAY | GALLON | Not Available |
| 120 | Not Available | SOFT CARPET | BRUSH | Not Available |
| 120 | Not Available | QUICK SAND DISKS ARE NO LONGER | AVAILABLE | Not Available |
