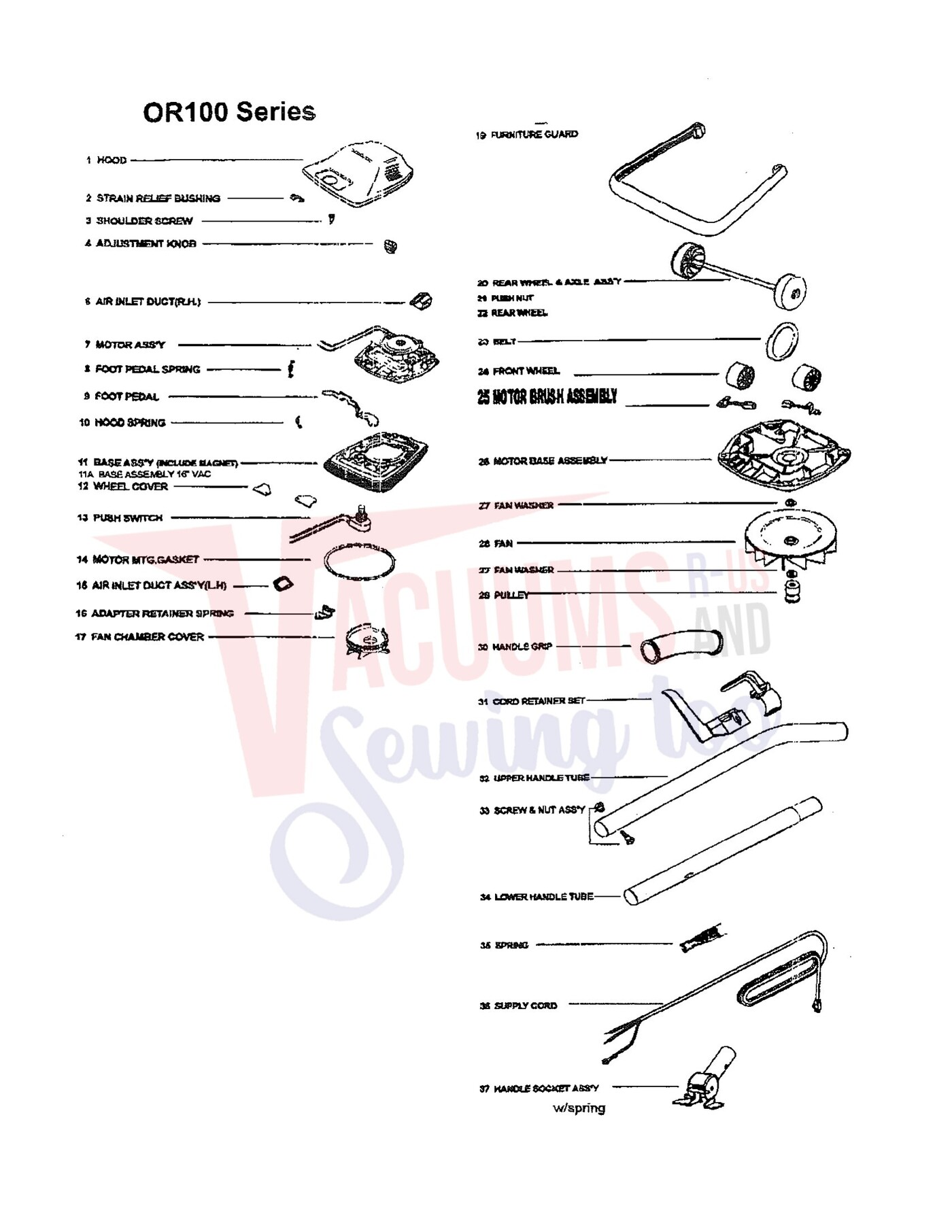

Schematic and parts book for oreck OR100 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | OR-FA1 | FrontAxle(NotShown) | Not Available |
| 5 | Not Available | OR-5 | Nameplate | Not Available |
| 6 | Not Available | OR-6 | AirInletDud(R.H.) | Not Available |
| 7 | Not Available | OR-7 | MotorAssembly | Not Available |
| 8 | Not Available | OR-8 | FootPedalSpring | Not Available |
| 9 | Not Available | OR-9 | FootPedal | Not Available |
| 10 | Not Available | OR-IO | HoodSpring | Not Available |
| 11 | Not Available | OR-11-12 | 12"BaseAssembly(deludesMagnet) | Not Available |
| 11 | Not Available | OR-11-16 | 16"BaseAssembly(IncludesMagnet) | Not Available |
| 12 | Not Available | OR-12 | WheelCover | Not Available |
| 13 | Not Available | OR-13 | On/OffPushSwitch | Not Available |
| 14 | Not Available | OR-14 | MotorMtg.Gasket | Not Available |
| 15 | Not Available | OR-15 | AirInletDudAssembly(LH.) | Not Available |
| 16 | Not Available | OR-16 | AdapterRetainerSpring | Not Available |
| 17 | Not Available | OR-17 | FanChamberCover | Not Available |
| 18 | No Image | Small Round Magnet for Oreck Brush Rolls | MAGNET | $0.00Read more |
| 19 | Not Available | OR-16-12 | FurnitureGuard12"(NonMarkingBumper) | Not Available |
| 19 | Not Available | OR-19-16 | FurnitureGuard16"(NonMarkingBumper) | Not Available |
| 20 | Not Available | OR-20 | RearWheel&AxleAssembly | Not Available |
| 21 | Not Available | OR-21 | PushNut | Not Available |
| 22 | Not Available | OR-22 | RearWheel | Not Available |
| 23 | Not Available | OR-23 | Belt | Not Available |
| 24 | Not Available | OR-24 | FrontWheel | Not Available |
| 25 | Not Available | OR-25 | MotorBrushAssembly | Not Available |
| 26 | Not Available | OR-26 | MotorBaseAssembly | Not Available |
| 27 | Not Available | OR-27 | FanWasher | Not Available |
| 28 | Not Available | OR-28 | Fan | Not Available |
| 29 | Not Available | OR-29 | Pulley | Not Available |
| 30 | Not Available | OR-3Q | HandleGrip{OR100) | Not Available |
| 30 | Not Available | OR-30-EH | ErgonomicHandle(OR101&OR102)See#32 | Not Available |
| 31 | Not Available | OR-31 | CordRetainerSet | Not Available |
| 32 | Not Available | OR-32 | UpperHandleTubewithErgonomicHandle | Not Available |
| 33 | Not Available | OR-33 | Screw&NutAssemblyforHandle | Not Available |
| 34 | Not Available | OR-34 | LowerHandleTube | Not Available |
| 35 | Not Available | OR-35 | Spring | Not Available |
| 36 | Not Available | OR-36 | PowerCord | Not Available |
| 37 | Not Available | OR-37 | HandleSocketAssembly | Not Available |
| 38 | Not Available | OR-3S-F12 | 12"BrushRollerAssembly(OR100)Fiberglass | Not Available |
| 38 | Not Available | OR-38-A12 | 12"BrushRollerAssembly(OR101)Aluminum | Not Available |
| # | Part image | Description | SKU | Price |
| 38 | Not Available | OR-38-A16 | 16"BrushRollerAssembly(OR1G2)Aluminum | Not Available |
| 39 | Not Available | OR-39 | RubberCap(Oft101) | Not Available |
| 40 | Not Available | OR-40-12 | BristleStripSet12"(OR101) | Not Available |
| 40 | Not Available | OR-40-16 | BristleStripSet16"(DR102) | Not Available |
| 41 | Not Available | OR-41 | BrushRollerCap16"(OR1Q1) | Not Available |

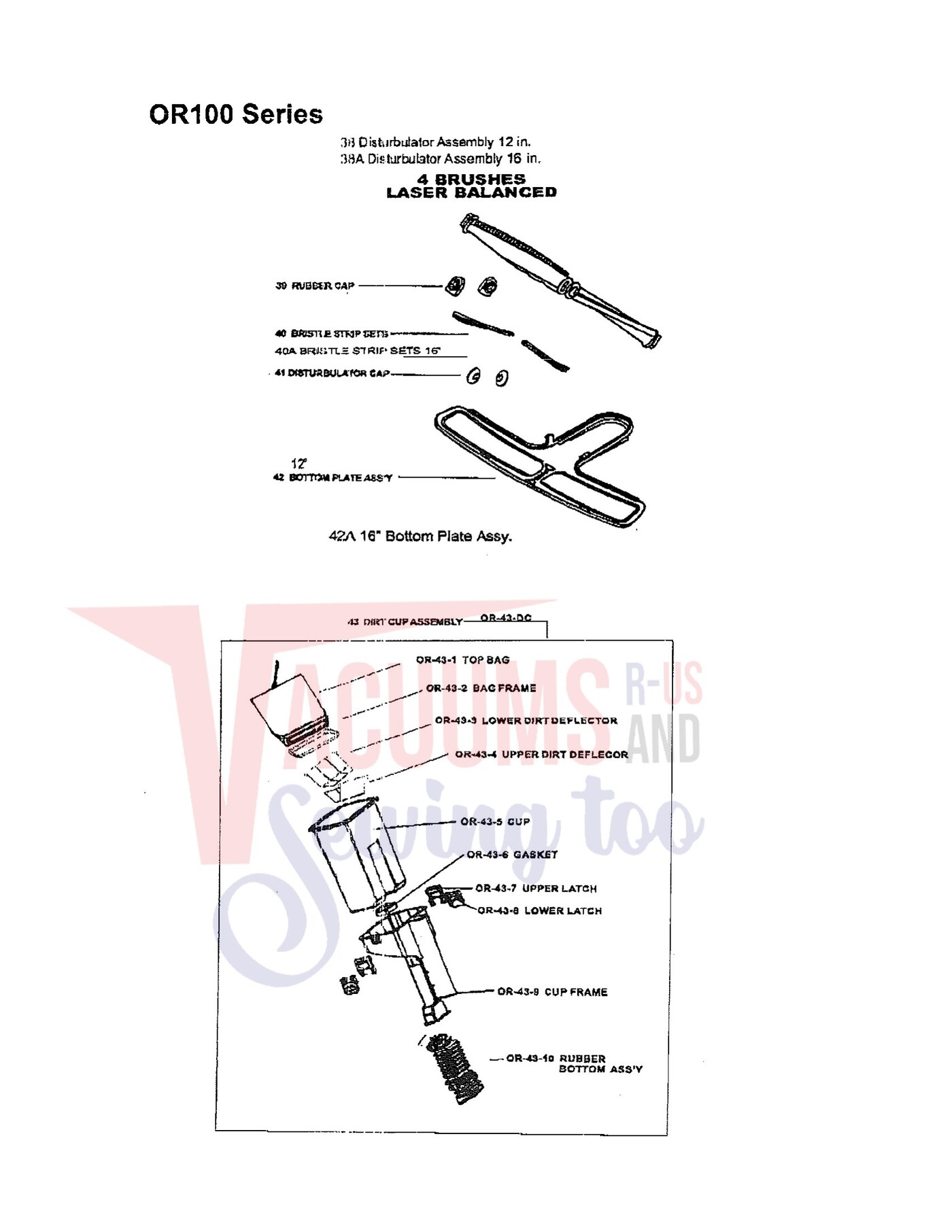

| 42 | Not Available | OR-42 | 12"BottomPlateAss&mbly(ORIOO&OR1Q1) | Not Available |
| 42 | Not Available | OR-42-16 | 16-BottomPlateAssembly(CR102) | Not Available |
| 43 | Not Available | OR-43 | TwillBagAssembly(OR100) | Not Available |
| 43 | Not Available | OR-43-TF | TeflexBagAssembly{OR1Q1&OR102) | Not Available |
| 43 | Not Available | OR-43-DC | DirtCupAssembly | Not Available |
| 43 | Not Available | OR-43-DC-1 | TopBagforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-2 | BagFrameforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-3 | LowerDirtDeflectorforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-4 | UpperDirtDeflectorforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-5 | CupforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-6 | GasketforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-7 | UpperLatchforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-8 | LowerLatchforDirtCup | Not Available |
| 43 | Not Available | OR-43-DC-9 | CupFrameforDirtCup | Not Available |
| 43 | Not Available | DR-43-D010 | RubberBottomAssemblyforDirtCup | Not Available |
| 43 | Not Available | OR-43-HOCB | TopFillHEPAOuterClothBag | Not Available |
| 44 | Not Available | OR-44 | DisposableHERAFilterBag4pack | Not Available |
