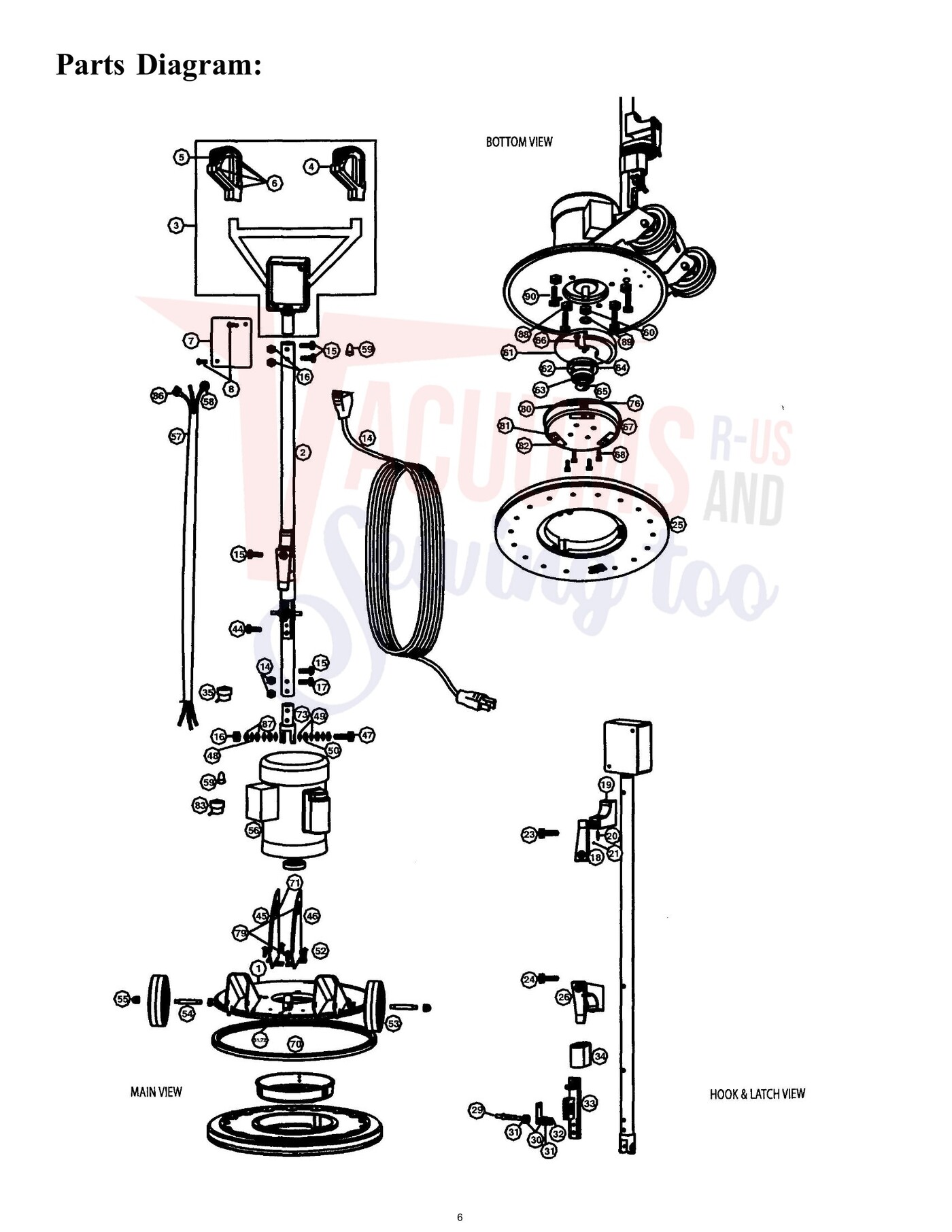

Schematic and parts book for Oreck LB8500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Housing Assembly | 53233-01 | Not Available |
| 2 | Not Available | Tube Handle | 5200301 | Not Available |
| 3 | Not Available | Upper Handle Assembly | 5200302 | Not Available |
| 4 | Not Available | Helping Hand Grip | 09-75301-02 | Not Available |
| 5 | Not Available | Switch Handle Release | 5200400 | Not Available |
| 6 | Not Available | Screw Grip | 8807027 | Not Available |
| 7 | Not Available | Cover Box | 53194-01 | Not Available |
| 8 | Not Available | Screw 6 x 1/2 Flat Head | 03-00542-01 | Not Available |
| 8 | Not Available | 9* Relay | 5200417 | Not Available |
| 8 | Not Available | 10* Socket | 5200402 | Not Available |
| 8 | Not Available | 11* Heyco 9068 | 5200116 | Not Available |
| 14 | Not Available | Cord Power | 5200403 | Not Available |
| 15 | Not Available | Bolt 1/4 x 20 x 1-1/2" | 03-00545-01 | Not Available |
| 16 | Not Available | Nut 1/4 x 20 Lock | 03-00526-01 | Not Available |
| 17 | Not Available | Bolt 1/4 x 20 x 1.25" | 03-00525-01 | Not Available |
| 18 | Not Available | Hook Upper Cord Wrap | 53196-01-436 | Not Available |
| 19 | Not Available | Body Upper Cord Wrap | 53197-01-436 | Not Available |
| 20 | Not Available | Spring Quick Release Cord Wrap | 53198-01 | Not Available |
| 21 | Not Available | Ball Delrin 1/4' Upper Cord Wrap | 53199-01-0328 | Not Available |
| 23 | Not Available | Bolt 1/4 x 20 x 1" Upper Cord Wrap Hook to Body | 03-00549-01 | Not Available |
| 24 | Not Available | Bolt 1/4 x 20 x 4 1/4" Lower Cord Wrap | 03-00550-01 | Not Available |
| 25 | Not Available | Pad Holder | 53269-01-0327 | Not Available |
| 25a | Not Available | Pad Holder Green Bristle | 53304-01 | Not Available |
| 26 | Not Available | Lower Cord Wrap & Hook | 5200320 | Not Available |
| 26 | Not Available | 27* Heyco Solenoid | 5200700 | Not Available |
| 26 | Not Available | 28* Solenoid | 5200404 | Not Available |
| 29 | Not Available | Locking Pin | 53202-01 | Not Available |
| 30 | Not Available | Washer 3/8 x 3/4 x .052 Teflon | 03-00551-01 | Not Available |
| 31 | Not Available | Washer 3/8x3/4x1/16 Flat | 03-00552-01 | Not Available |
| 32 | Not Available | Nut 3/8 x 24 Locking Bracket | 03-00553-01 | Not Available |
| 33 | Not Available | Bracket Locking Mechanism | 53203-01-0327 | Not Available |
| 34 | Not Available | Boot | 53204-01-436 | Not Available |
| 35 | Not Available | Heyco 1200 | 03-00520-01 | Not Available |
| 35 | Not Available | 36* Heyco Sensor Cable | 03-00554-01 | Not Available |
| 35 | Not Available | 37* Sensor Frame | 5200309 | Not Available |
| 35 | Not Available | 38* Sensor Circuit Board | 5200405 | Not Available |
| 35 | Not Available | 39* Heyco Snap Rivet | 5200705 | Not Available |
| 35 | Not Available | 40* Assembly Hall Sensor | 09-53297-01 | Not Available |
| 35 | Not Available | 41* Cable Holder 3/16" Sensor Pkg | 5200706 | Not Available |
| 35 | Not Available | 42* Screw 8 x 32 x 3/8" Sensor Cable Wrap | 5200115 | Not Available |
| 35 | Not Available | 43* Nut 8 x 32 Sensor Cable Wrap | 03-00533-01 | Not Available |
| 44 | Not Available | Screw 10 x 24 x 1 1/4" Sensor Mounting | 5200117 | Not Available |
| 45 | Not Available | Arc Left | 53208-01 | Not Available |
| 46 | Not Available | Arc Right | 53209-01 | Not Available |
| 47 | Not Available | Bolt 1/4 x 20 x 2 1/2" Ground | 03-00560-01 | Not Available |
| 48 | Not Available | Washer Plastic | 03-00572-01 | Not Available |
| 49 | Not Available | Washer Ground 1/4TRB411 | 03-00561-01 | Not Available |
| 50 | Not Available | Thrust Bearing 1/4 NTA411 | 03-00562-01 | Not Available |
| 51 | Not Available | Bearing Pivot | 53210-01-0327 | Not Available |
| 52 | Not Available | Screw #10 x 24 x 7/16" Patch | 03-00535-01 | Not Available |
| 53 | Not Available | Wheels | 09-53247-51 | Not Available |
| 54 | Not Available | Axle 3/8 x 2 5/8" | 03-00563-01 | Not Available |
| 55 | Not Available | Nut Axle Acorn 3/8 | 03-00564-01 | Not Available |
| 56 | Not Available | Motor Kit | 09-53212-01 | Not Available |
| 57 | Not Available | Cord Power Handle SJTO W-A | 5200408 | Not Available |
| 58 | Not Available | Closed Loop Connector #8 | 53139-01 | Not Available |
| 59 | Not Available | Wire Nut Orange | 03-00565-01 | Not Available |
| 60 | Not Available | Nut Jam 5/8x18 | 03-00566-01 | Not Available |
| 61 | Not Available | Flywheel Plate | 53214-01 | Not Available |
| 62 | Not Available | Spacer | 53163-01 | Not Available |
| 63 |  | Oreck Orbiter bearing | 5316101 | $43.99Read more |
| 64 | Not Available | Retainer Bearing | 53162-01 | Not Available |
| 65 | Not Available | Plug Bearing | 53160-01 | Not Available |
| 66 | Not Available | Cap Screws Bearing Plug Mounting | 03-00567-01 | Not Available |
| 67 | Not Available | Assembly Pan Bottom | 09-53246-51 | Not Available |
| 68 | Not Available | Screw Pan | 03-00568-01 | Not Available |
| 68 | Not Available | 69* Circuit Board Assembly | 5200414 | Not Available |
| 70 | Not Available | Bumper | 53218-01-450 | Not Available |
| 71 | Not Available | Magnets Flexible | 5200712 | Not Available |
| 72 | Not Available | Jig Latch Bolt | 53234-01 | Not Available |
| 73 | Not Available | Pivot | 53219-01 | Not Available |
| 73 | Not Available | 74* Post Circuit Board Mounting | 5200713 | Not Available |
| 73 | Not Available | 75* Support Circuit Board Mounting | 5200714 | Not Available |
| 76 | Not Available | Bracket Bottom Pan | 53220-01 | Not Available |
| 76 | Not Available | 77* 1/8" Pop Rivet Socket | 5200116 | Not Available |
| 76 | Not Available | 78* Flat Washer #6 Socket | 5200123 | Not Available |
| 79 | Not Available | CD10M 3/5" Round Magnet | 5200412 | Not Available |
| 80 | Not Available | Rivet 5/32 Bracket Mounting Pan | 03-00569-01 | Not Available |
| 81 | Not Available | Rivet 3/16 Swing Arm Mounting | 03-00570-01 | Not Available |
| 82 | Not Available | Swing Arm Bottom Pan | 53221-01 | Not Available |
| 82 | Not Available | 83* Heyco Motor Junction Box | 03-00571-01 | Not Available |
| 82 | Not Available | 84* 1/4x20 Nut 5/16 Heyco | 5200129 | Not Available |
| 85 | Not Available | Heyco 5/16" Power Cord | 5200716 | Not Available |
| 86 | Not Available | 1/4" Quick Slide | 53272-01 | Not Available |
| 87 | Not Available | Washer Plastic | 03-00573-01 | Not Available |
| 88 | Not Available | Washer Lock 3/8 | 03-00575-01 | Not Available |
| 89 | Not Available | Washer Lock Motor Shaft | 03-00578-01 | Not Available |
| 90 | Not Available | Bolt Motor | 03-00574-01 | Not Available |
| 90 | Not Available | Dust Shield | 5200037 | Not Available |
| 90 | Not Available | Owner's Manual 'Parts Not Shown | 53231-01 | Not Available |
