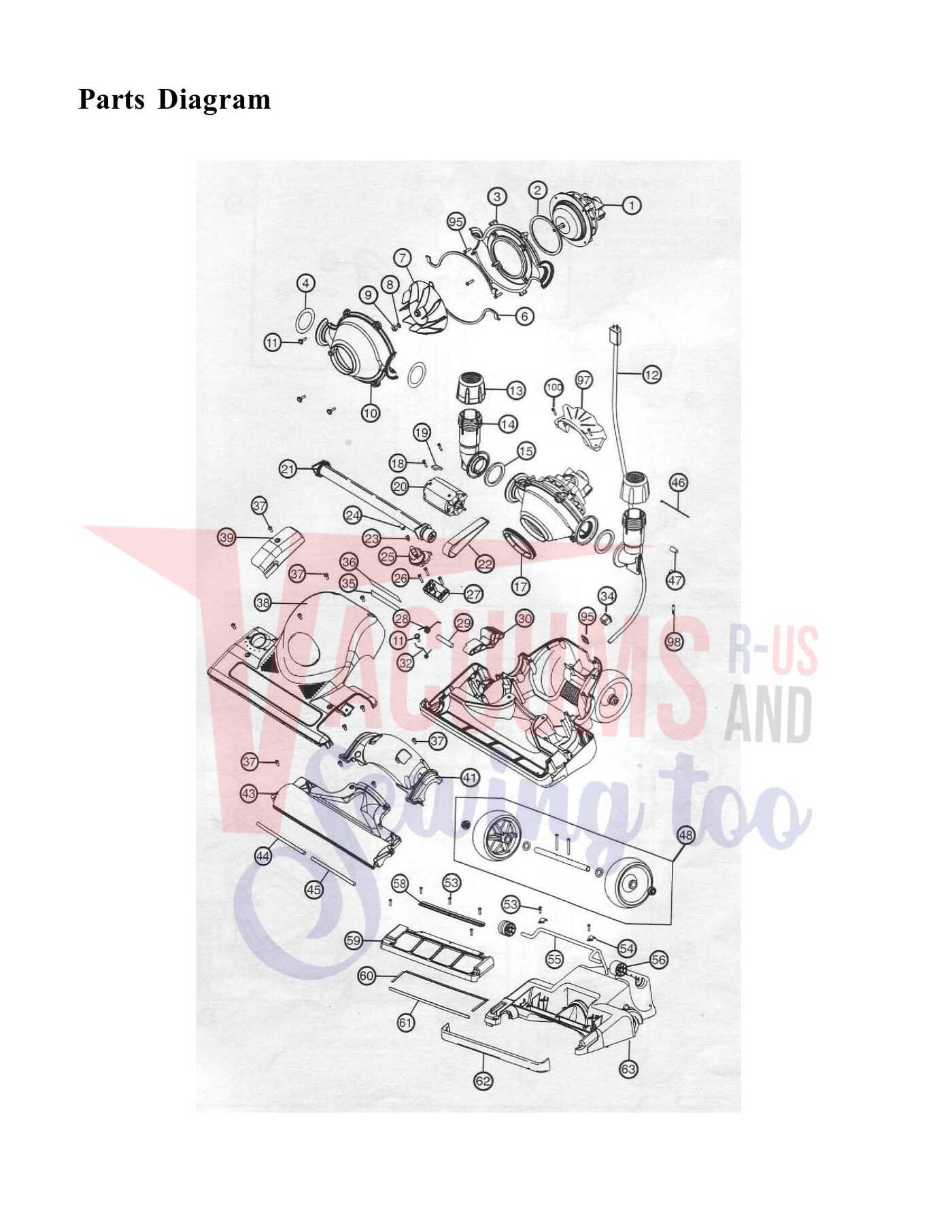

Schematic and parts book for Oreck DS1600RY, DS1600 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DS1600RY & DS1600HY: Fan Motor | 09-78036-02 | Not Available |
| 1 | Not Available | DS1605HY & DS1607HY: Fan Motor | 09-78122-01 | Not Available |
| 2 | Not Available | Motor Cap Gasket | 78000-01 | Not Available |
| 3 | Not Available | Rear Scroll Housing - Order #6 (qty 2) also | 78017-01-0327 | Not Available |
| 4 | Not Available | Scroll Liner Rinq | 78107-01 | Not Available |
| 6 | No Image | Gasket, Blk Scroll Inner Dual Stack DS1600/DS1607 Part Number: 78006-01 for Oreck | 7800601 | $2.45Read more |
| 7 | Not Available | Fan | 78004-02-0000 | Not Available |
| 10 | Not Available | Forward Scroll Housing - Order #4 also | 78016-01-0327 | Not Available |
| 12 | Not Available | DS16Q0RY & DS1600HY: Harness 3-Conductor w/Terminal | 78038-01-0327 | Not Available |
| 12 | Not Available | DS1805HY & DS1607HY: Harness 3-Conductor w/Terminal | 78118-01 | Not Available |
| 13 | Not Available | Pivot Collar | 78018-01-0327 | Not Available |
| 14 | Not Available | Pivot Assembly - Order #15 also | 78019-02-0327 | Not Available |
| 15 | No Image | GASKET, PIVOT DUAL STACK Part Number: 78011-01 for Oreck | 7801101 | $1.63Read more |
| 17 | Not Available | Scroll Outer Gasket | 78007-01-0327 | Not Available |
| 19 | Not Available | Gasket 1.OX.5 X 1.88 | 78084-01 | Not Available |
| 20 | Not Available | DS1600RY & DS1600HY: Roller Brush Motor | 09-78005-01 | Not Available |
| 20 | Not Available | DS1605HY & DS1607HY: Roller Brush Motor r | 09-78123-01 | Not Available |
| 21 | Not Available | Brush Roil Assembly >J c/c -o | 78029-01 | Not Available |
| 22 | Not Available | Brush Belt Single | 75024-01 | Not Available |
| 22 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $22.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Compatible alternateOreck Upright Vacuum Flat Stretch Belt More Product Details | OR-1000 | $5.99Add to cart |
| 22 |  | Compatible alternateBelt, Oreck Upright Replacement DVC 2Pk More Product Details | OR-1010 | $10.99Add to cart |
| 23 | Not Available | CHA Shoulder Bolt Screw | 03-00508-01 | Not Available |
| 24 | Not Available | Glamour Cap | 78109-01 | Not Available |
| 25 | Not Available | CHA Knob | 78100-01-0327 | Not Available |
| 27 | Not Available | Detent Cap Assembly | 09-78099-51 | Not Available |
| 28 | Not Available | Detent Spring | 03-00506-01 | Not Available |
| 29 | Not Available | Detent Axle | 03-00505-01 | Not Available |
| 30 | Not Available | Detent Pedal | 78093-01-0327 | Not Available |
| 32 | Not Available | CHA Spring | 03-00515-02 | Not Available |
| 34 | Not Available | Kit Plug & Square Strain Relief | 78131-01 | Not Available |
| 34 | Not Available | DS1605HY & DS1607HY: Strain Relief Bell | 03-00455-01 | Not Available |
| 35 | Not Available | Servicing Label TCO | 78114-01 | Not Available |
| 36 | Not Available | Servicing Label | 78103-01 | Not Available |
| 38 | Not Available | Top Cover Assembly w/Labels | 09-78074-01 | Not Available |
| 39 | Not Available | Belt Door | 78075-01-0384 | Not Available |
| 41 | Not Available | Cover Inner-Base Rear 16" Nozzle | 78072-01-0384 | Not Available |
| 43 | Not Available | Front Inner-Cover Assembly - Order #44 & #45 also | 09-78098-51 | Not Available |
| 44 | No Image | GASKET, INNER-BASE COVER FRONT LEFT DS1600 Part Number: 7805501 for Oreck | 7805501 | $4.72Read more |
| 45 | No Image | GASKET, INNER-BASE COVER FRONT RIGHT DS1600 Part Number: 7805601 for Oreck | 7805601 | $4.72Read more |
| 46 | Not Available | Cable Tie | 03-00404-01 | Not Available |
| 48 | Not Available | Rear Wheel Assembly | 09-78113-51 | Not Available |
| 54 | Not Available | Axle Clamp | 03-00510-01 | Not Available |
| 55 | Not Available | CHAAxle | 03-00509-01 | Not Available |
| 56 | Not Available | Front Wheel | 78101-01-0327 | Not Available |
| 58 | Not Available | Micro Sweep Blade | 78076-01 | Not Available |
| 59 | Not Available | Skid Plate. 16" Nozzle - Order #60 & #61 also | 78037-01 | Not Available |
| 60 | Not Available | Gasket 1.75 X .25 X .0625 | 78096-01 | Not Available |
| 61 | Not Available | Gasket 13.25 X .25 X .0625 | 78089-01 | Not Available |
| 62 | Not Available | Bumper 16" Nozzle | 78034-01-436 | Not Available |
| 63 | Not Available | Baseplate Assembly 16" | 09-78097-01 | Not Available |
| 64 | Not Available | Handle flight w/Overmold | 78062-01-0384 | Not Available |
| 65 | Not Available | Cord Clamp | 03-00499-01 | Not Available |
| 66 | Not Available | DS160GRY & DS1600HY: Cord 3-Conductor | 78012-01-0327 | Not Available |
| 66 | Not Available | Cord 3-Conductor | 78124-01-327 | Not Available |
| 66 | Not Available | Cord 3-Conductor | 78125-01-327 | Not Available |
| 67 | Not Available | Handle. Left w/Overmold | 78063-01-0384 | Not Available |
| 69 | Not Available | Switch | 75110-02 | Not Available |
| 70 | Not Available | Cord Dump Assembly. Post | 09-78041-01 | Not Available |
| 71 | Not Available | Handle Pipe | 78028-01 | Not Available |
| 72 | Not Available | Plenum Latch Assembly | 09-78071-51 | Not Available |
| 73 | Not Available | Gasket Tube / Plenum | 78033-01 | Not Available |
| 75 |  | Oreck DSPK25DW Dual Stack Double Wall bags- Genuine – 25 Pack | DSPK25DW | $69.99Read more |
| 75 | Not Available | Inner Filter Bag | DSPK25 | Not Available |
| 77 | Not Available | Clamp-Pipe Top Upper - Red - Order #73 also | 78022-01-441 | Not Available |
| 78 | Not Available | Outer Bag | 78027-01 | Not Available |
| 78 | Not Available | Outer Bag | 78027-02 | Not Available |
| 79 | Not Available | PoofLimiter | 78106-01 | Not Available |
| 80 | Not Available | Clamp-Pipe Top Lower - Red | 78023-01-441 | Not Available |
| 81 | Not Available | Exhaust Tube Seal | 78095-01-0327 | Not Available |
| 82 | Not Available | Exhaust Pipe - Order #88 {1 per) also | 78030-01 | Not Available |
| 83 | Not Available | Clamp Pipe Bottom. Upper | 78024-01-0384 | Not Available |
| 84 | Not Available | Clamp. Pipe Bottom Lower | 78025-01-0384 | Not Available |
| 87 | Not Available | Tube Label | 78090-01 | Not Available |
| 88 | Not Available | O-rinq. C Shape | 78102-02 | Not Available |
| 89 | Not Available | Nut Plate #8-32 | 03-00516-01 | Not Available |
| 90 | Not Available | Jumper Wire Ground | 78110-01 | Not Available |
| 92 | Not Available | Jumper Wire Ground w/ring | 78111-01 | Not Available |
| 93 | Not Available | Quick Connect | 03-00580-01 | Not Available |
| 94 | Not Available | DS1605HY & DSs1607HY: Label Ext Cord | 78085-02 | Not Available |
| 95 | Not Available | DS1605HY & DS16G7HY: Plug. Strain Relief | 78121-01-0327 | Not Available |
| 97 | Not Available | DS1605HY & DS1607HY: Motor Cover | 78119-01-0000 | Not Available |
| 98 | Not Available | DS1605HY& DS1607HY: Suppressor | 78127-01 | Not Available |
| 99 | Not Available | DS1605HY & DS1607HY: Receptacle | 78117-01 | Not Available |
| 99 | Not Available | Vacuum Cover | VACCOVERDS | Not Available |
| 99 | Not Available | Magnet Bag | MC5R | Not Available |
| 99 | Not Available | DS1600HY & DS1600RY: Manual Owner's | 78087-02 | Not Available |
| 99 | Not Available | Manual Owner's | 78130-01 | Not Available |
| 99 | Not Available | Manual Owner's | 78120-01 | Not Available |
| 101 | Not Available | DS1600RY & DS1600HY: Assembly. Handle | 09-78035-51 | Not Available |
| 101 | Not Available | Assembly Handle | 09-78035-53 | Not Available |
| 101 | Not Available | Assembly Handle | 09-78035-52 | Not Available |
