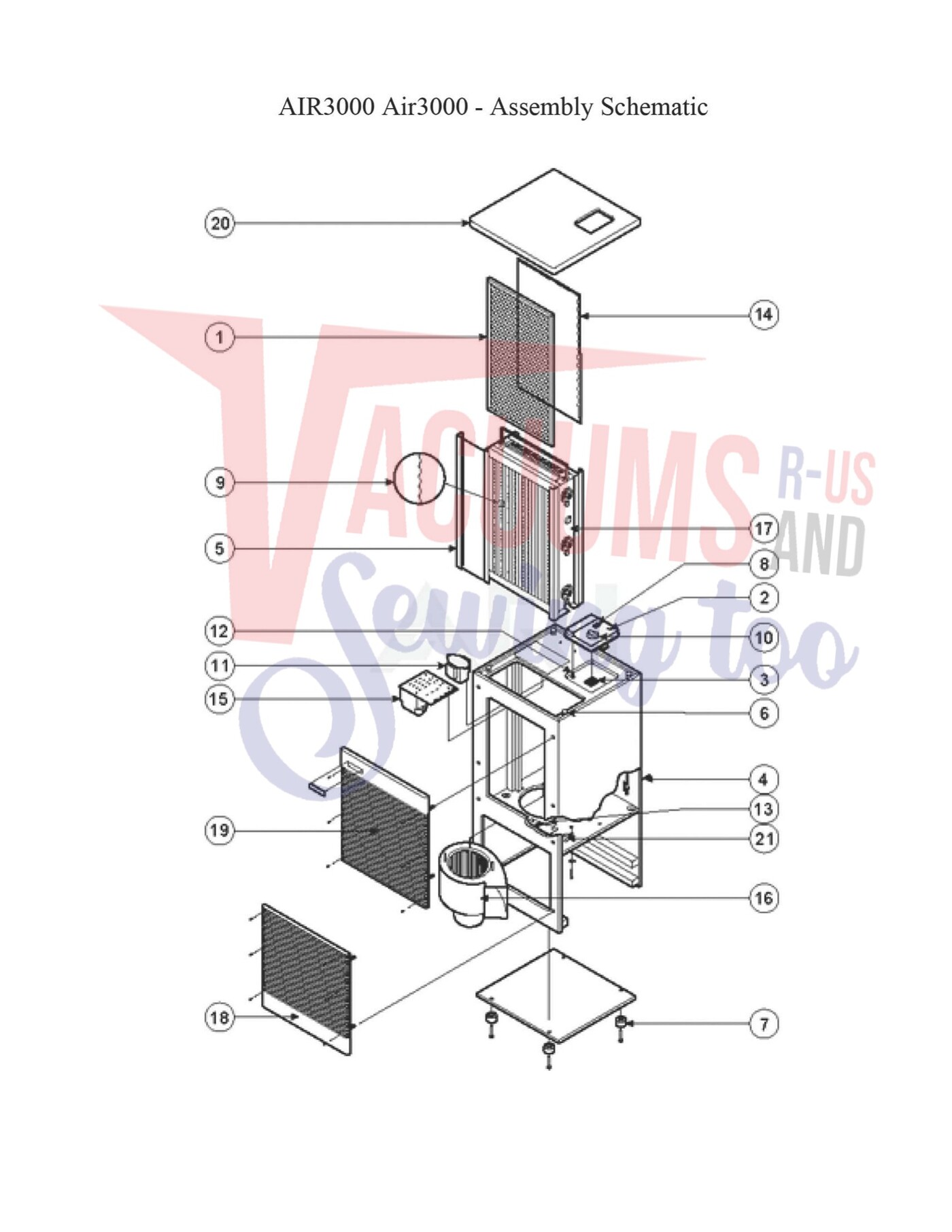

Schematic and parts book for oreck AIR3000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Metal Mesh Prefilter 1 | 123324-003 | Not Available |
| 3 | Not Available | Switch Assembly 120/60 1 | 142581-001 | Not Available |
| 4 | Not Available | Power Cord 1 | 142585-007 | Not Available |
| 6 | Not Available | Ball Joint Fasteners 1 | 142898-001 | Not Available |
| 7 | Not Available | Cabinet Foot 4 | 145151-001 | Not Available |
| 8 | Not Available | Power Boost Switch 1 | 145820-002 | Not Available |
| 9 | Not Available | IONIZER WIRE 1 | 220111-021 | Not Available |
| 10 | Not Available | 1 | 242235-001 | Not Available |
| 11 | Not Available | Transformer 120/60 1 | 242331-011 | Not Available |
| 12 | Not Available | Interlock Switch 120/60 1 | 242404-001 | Not Available |
| 13 | Not Available | Hight Voltage Contact 1 | 242986-001 | Not Available |
| 15 | Not Available | 1 | 342402-106 | Not Available |
| 16 | Not Available | 1 | 349871-001 | Not Available |
| 17 | Not Available | Collector Cell 1 | 422167-105 | Not Available |
| 18 | Not Available | Bottom Front Grill 1 | 442839-002 | Not Available |
| 19 | Not Available | Top Front Grill 1 | 442839-006 | Not Available |
| 20 | Not Available | Cabinet Top Black 1 | 444018-003 | Not Available |
| 21 | Not Available | Ground Contact 1 | 242241-001 | Not Available |
