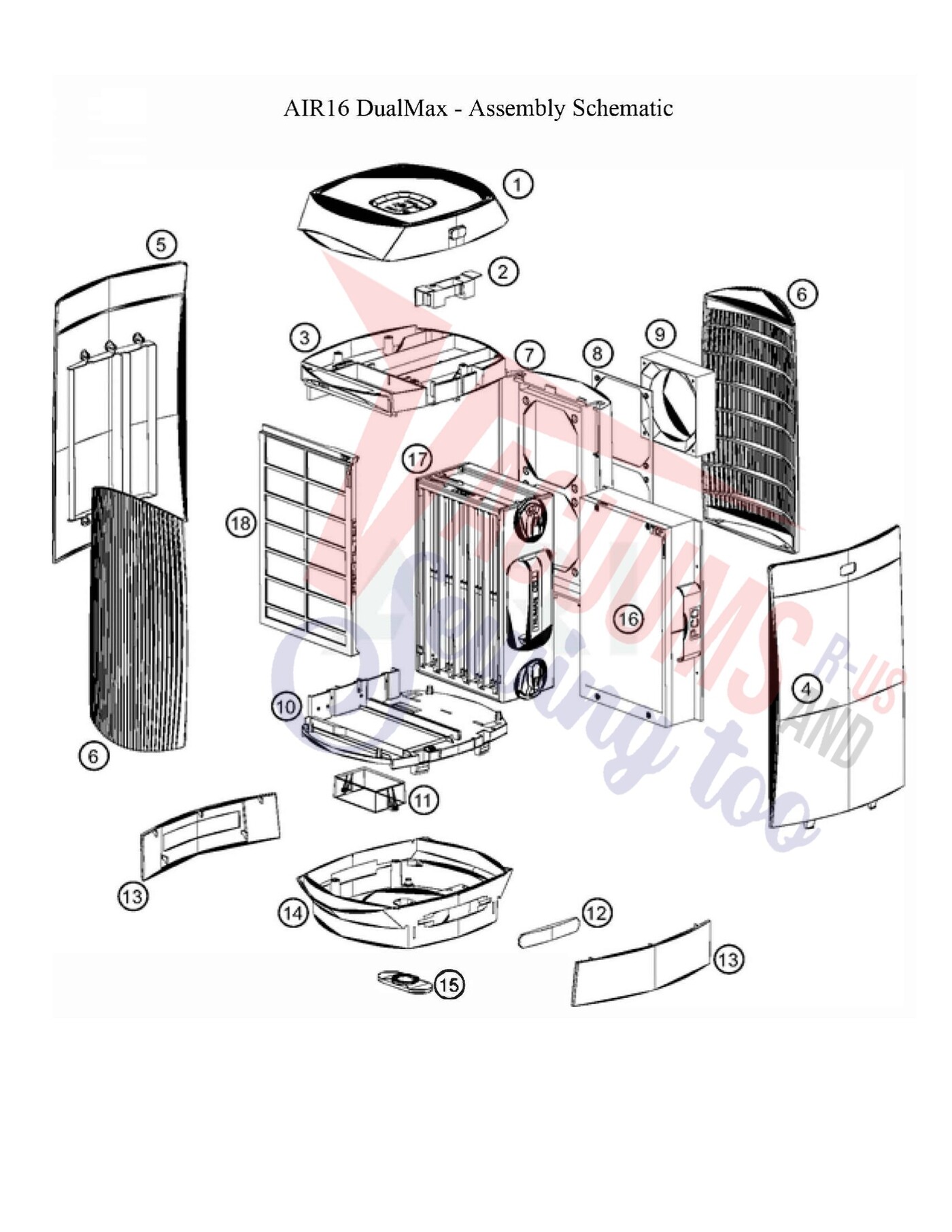

Schematic and parts book for Oreck AIR16 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | OUTER TOP HOUSING | 20260-01 | Not Available |
| 2 | Not Available | LATCH ASSY AIR16 | 20261-01 | Not Available |
| 3 | Not Available | TOP INNER HOUSING | 20262-01 | Not Available |
| 4 | Not Available | FRONT PANEL AIR16 | 20263-01 | Not Available |
| 5 | Not Available | WBD REAR PANEL | 20264-01 | Not Available |
| 6 | Not Available | GRILL AIR16 | 20265-01 | Not Available |
| 8 | Not Available | WBD FAN GASKET | 20267-01 | Not Available |
| 9 | Not Available | FAN AIR16 | 20268-01 | Not Available |
| 11 | Not Available | HVPS MODULE AIR16 | 20270-01 | Not Available |
| 13 | Not Available | ORECK LOGO LENSE | 20272-01 | Not Available |
| 14 | Not Available | BOTTOM HOUSING ASSY | 20273-01 | Not Available |
| 15 | Not Available | WBD CORD WRAP CLEAT | 20274-01 | Not Available |
| 16 | Not Available | PCO MODULE AIR16 UV | 20275-01 | Not Available |
| 17 | Not Available | EP CELL AIR16 | 20276-01 | Not Available |
| 18 | Not Available | PRE-FILTER AIR16 | 20277-01 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 18 | Not Available | 2 | AIR16 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 18 | Not Available | 1 | AIR16 | Not Available |
| 77 | Not Available | WBD FAN MOUNTING | 2200226666--0011 | Not Available |
