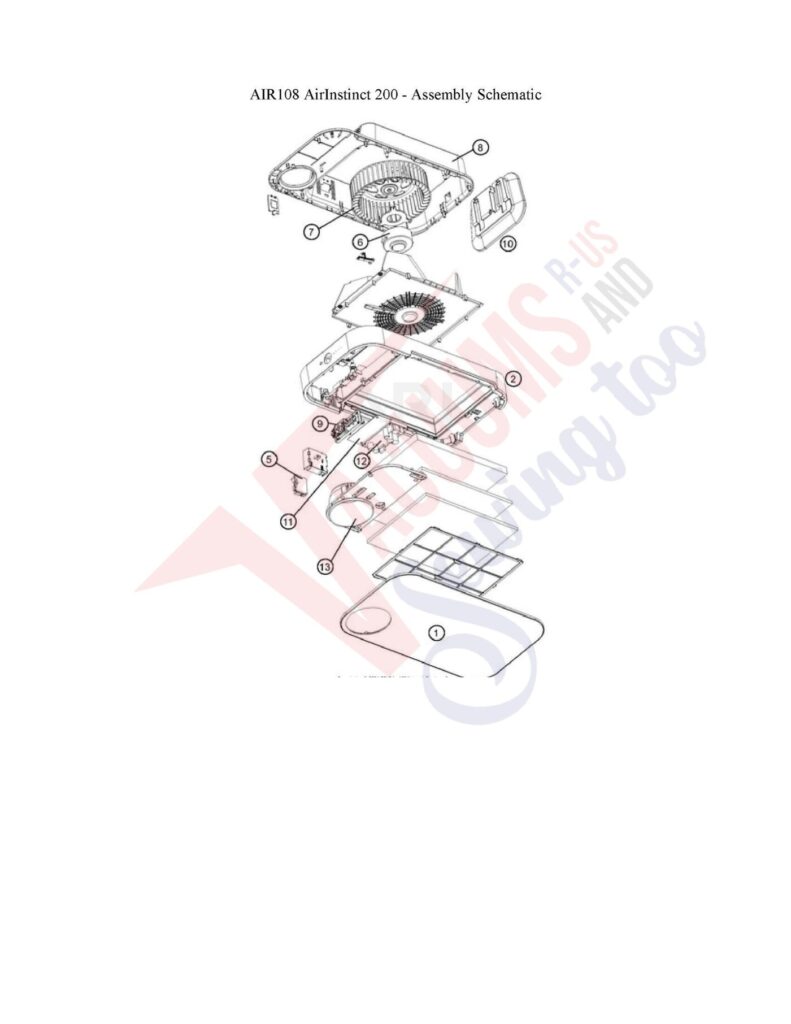

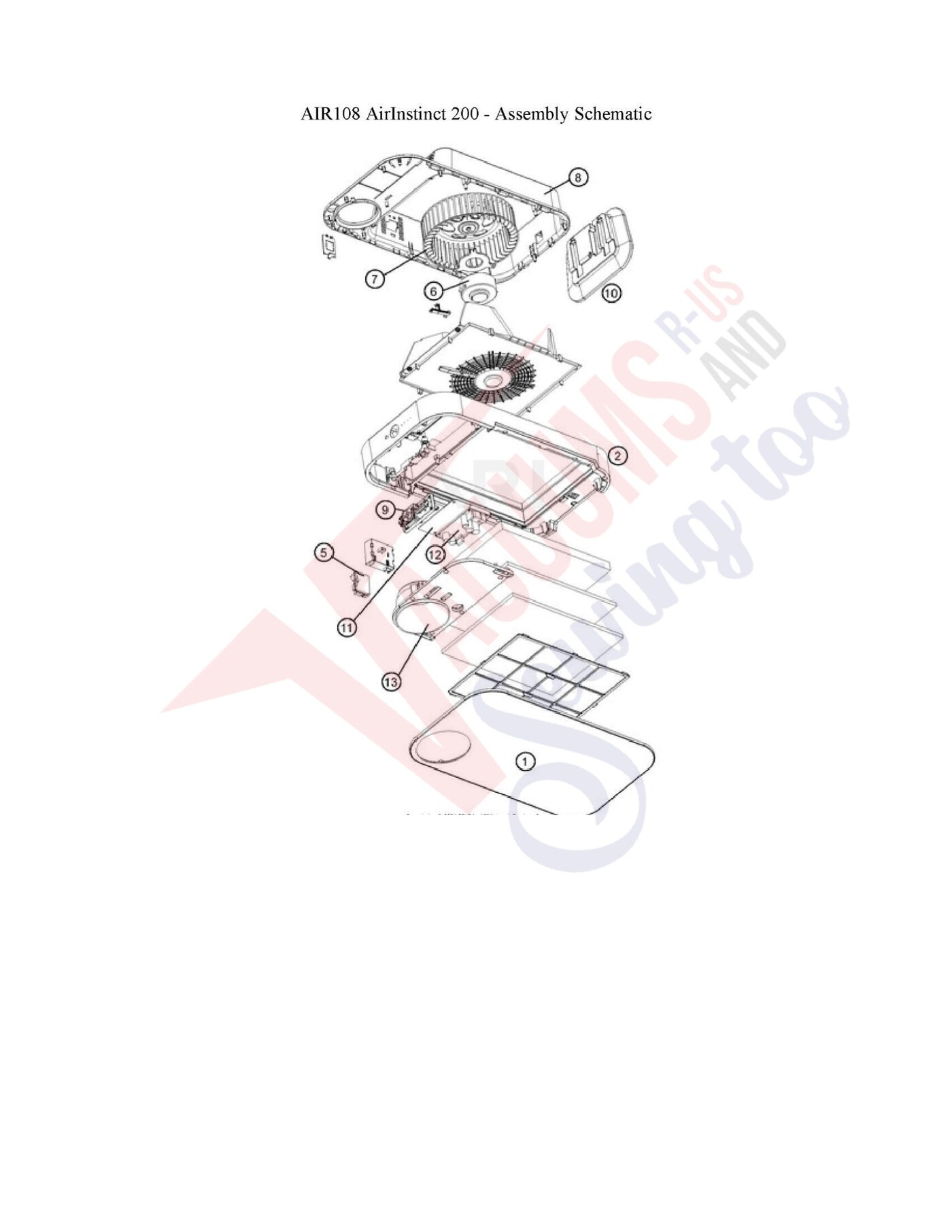

Schematic and parts book for oreck AIR108 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Cover-Front Assembly | 20313-01 | Not Available |
| 2 | Not Available | WBD GUIDE FILTER ASSY | 20314-01 | Not Available |
| 3 |  | SEPARATOR, PRIMARY DIRT CUP 59G9 UPRIGHT Part Number: 203-1501 for Bissell | 2031501 | $5.80Read more |
| 4 | No Image | Switch, Guide Micro Assy AIR108 Part Number: 20316-01 for Oreck | 2031601 | $26.37Read more |
| 5 | Not Available | SENSOR PARTICLE AIR108 | 20317-01 | Not Available |
| 6 | No Image | Motor BLDC Assy, AIr108 Part Number: 20318-01 for Oreck | 2031801 | $164.56Read more |
| 7 | No Image | Fan Assy, AIR108 Part Number: 20319-01 for Oreck | 2031901 | $34.34Read more |
| 8 | No Image | Cover, Rear AIR108 Part Number: 20320-01 for Oreck | 2032001 | $111.25Read more |
| 9 | Not Available | KNOB ASSY AIR108 | 20321-01 | Not Available |
| 10 | No Image | Base, AIR108 Part Number: 20322-01 for Oreck | 2032201 | $32.71Read more |
| 11 | Not Available | PBA-MAIN AIR108 | 20323-01 | Not Available |
| 12 |  | Tool Grout Brush Bissell repair part number: 2032401 | 2032401 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Cover, Filter Guide Upper AIR 108 Part Number: 20304-01 for Oreck | 2030401 | $85.05Read more |
| 13 | Not Available | FILTER - ODOR 1 | 1ROPK1 | Not Available |
