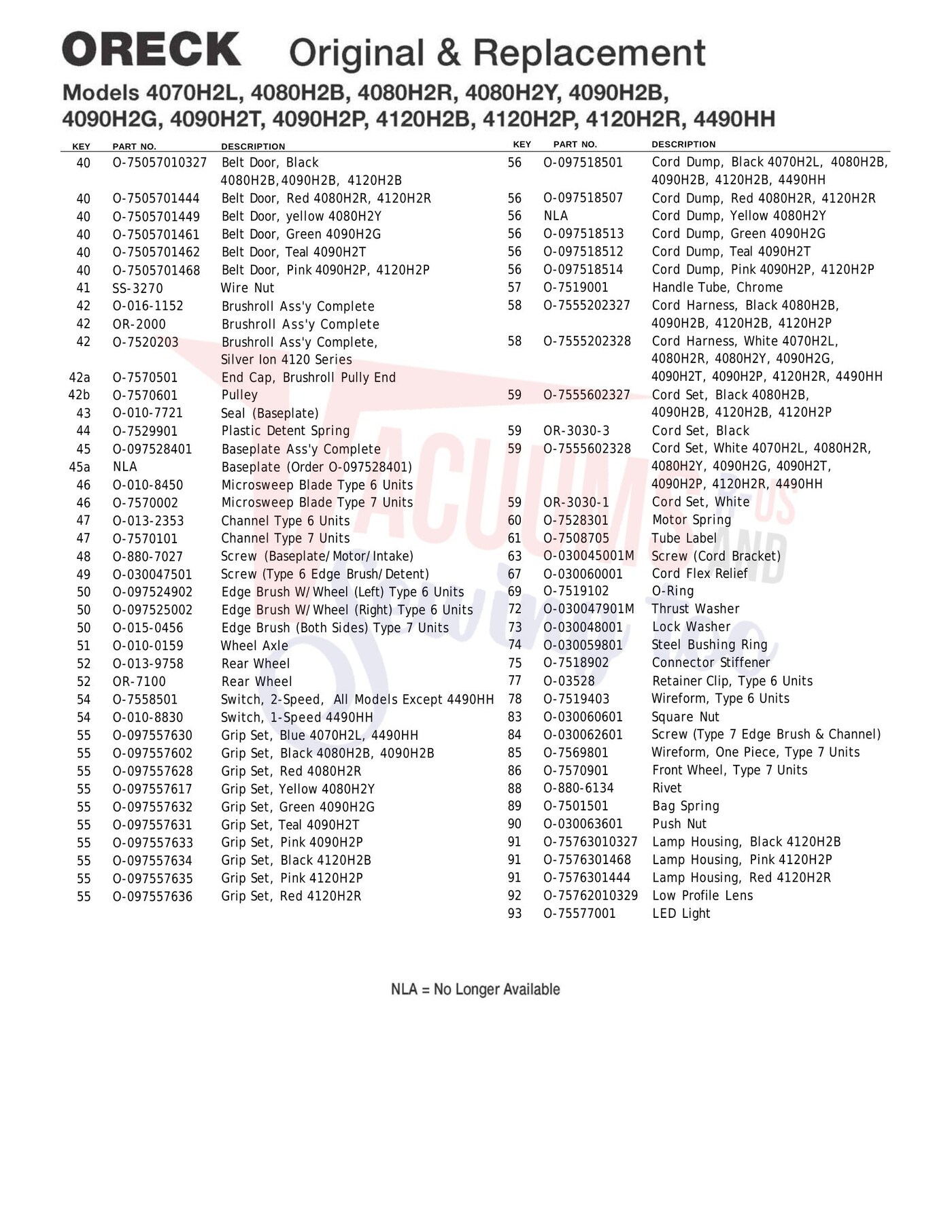

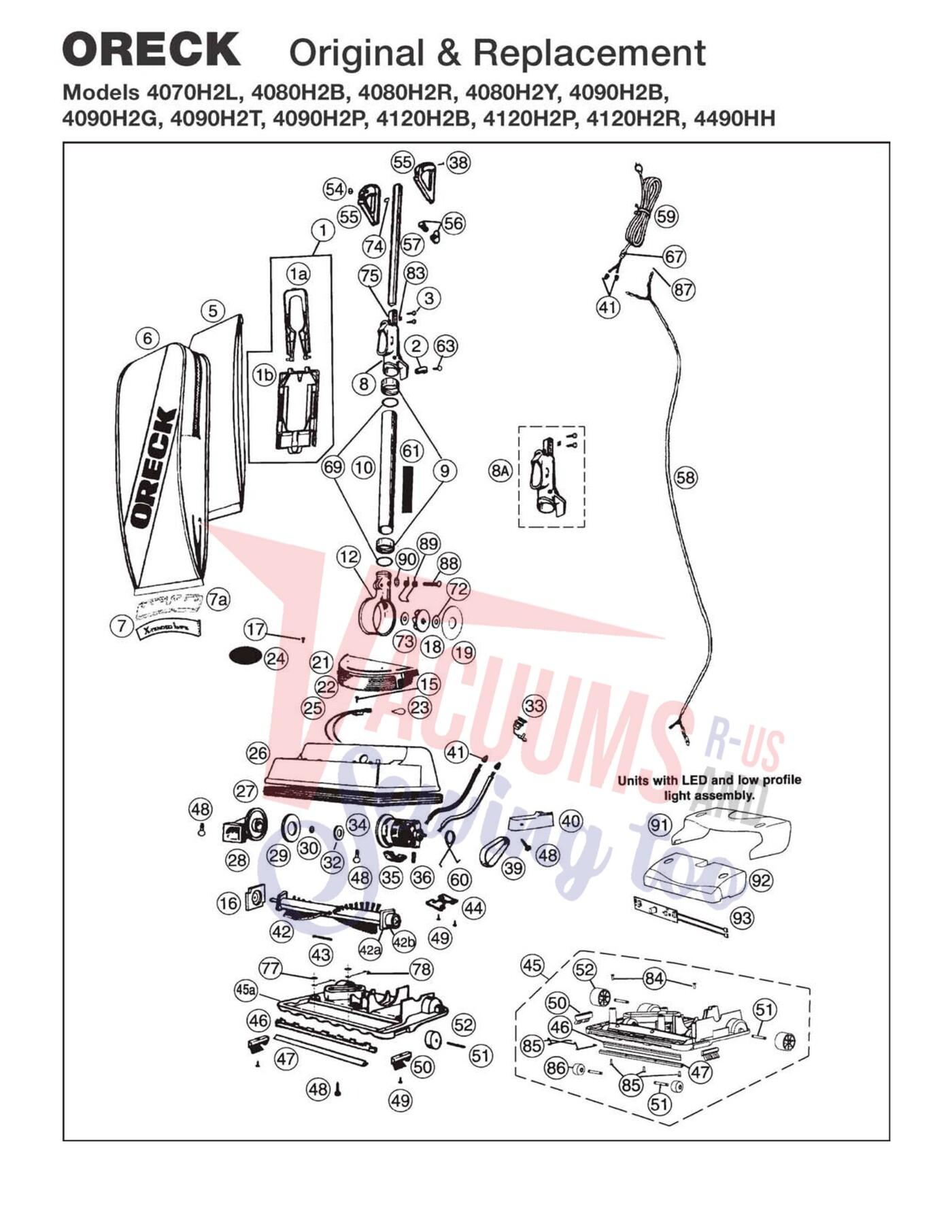

Schematic and parts book for Oreck 4070h2l, 4080h2b, 4080h2r, 4080h2y, 4090h2b, 4090h2g, 4090h2t, 4090h2p, 4120h2p, 4120h2r, 4490hh . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 |  | Bag Dock Kit CC Style | 09-75675-01 | $12.68Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Available ReconditionedPre-owned Oreck Bag Dock Kit CC Style More Product Details | 09-75675-01R | $9.99Add to cart |
| 2 | Not Available | Cord Clamp (Includes #88 89 90) | 030061901M | Not Available |
| 3 | Not Available | Screw. Handle Connector Top 12 0R-7200 Fan Housing Ass'y | 030047302M | Not Available |
| 4 | Not Available | Screw Handle Connector Bottom (Includes #88 89 90) | 030060801 | Not Available |
| 5 | Not Available | Paper Bag Type CC Hypoallergenic 8 Pk | 2008DW | Not Available |
| 5 | Not Available | Cloth Disposable Bag Type CC | CCPK80F | Not Available |
| 5 | Not Available | Paper Bag Type CC Microfiltration 18 0R-2800 Motor Fan | OR-1437 | Not Available |
| 6 | Not Available | Outer Bag 4070H2L 4490HH | 7564517 | Not Available |
| 6 | Not Available | Outer Bag 4080H2B 4070H2L 4490HH | 7564510 | Not Available |
| 6 | Not Available | Outer Bag 4080H2R | 7564508 | Not Available |
| 6 | Not Available | Outer Bag 4080H2Y 4080H2B 4090H2B | 7564509 | Not Available |
| 6 | Not Available | Outer Bag 4090H2B | 7564512 | Not Available |
| 6 | Not Available | Outer Bag 4090H2G | 7564513 | Not Available |
| 6 | Not Available | Outer Bag 4090H2T | 7564514 | Not Available |
| 6 | Not Available | Outer Bag 4090H2P | 7564515 | Not Available |
| 6 | Not Available | Outer Bag 4120H2B | 7564521 | Not Available |
| 6 | No Image | Cloth Bag, Pink Outer U4120H2P/U4140 Part Number: 75645-22 for Oreck | 7564522 | $129.69Read more |
| 6 | Not Available | Outer Bag 4120H2R | 7564523 | Not Available |
| 7 | Not Available | Bag Clip Ass'y Complete | 097507824 | Not Available |
| 7 | Not Available | Bag Clip (Front) Black | 097559402 | Not Available |
| 7 | Not Available | Bag Clip (Front) Red 4080H2R | 097559406 | Not Available |
| 7 | Not Available | Bag Clip (Front) yellow 4080H2Y | 097559404 | Not Available |
| 7 | Not Available | Bag Clip (Front) Green 4090H2G | 097559408 | Not Available |
| 7 | Not Available | Bag Clip (Front) Teal 4090H2T | 097559407 | Not Available |
| 7 | Not Available | Bag Clip (Front) Pink 4090HSP | 097559409 | Not Available |
| 7 | Not Available | Bag Clip (Front) Black 4120H2B | 097577603 | Not Available |
| 7 | Not Available | Bag Clip (Front) Pink 4120H2P | 097577604 | Not Available |
| 7 | Not Available | Bag Clip (Front) Red 4120H2R | 097577602 | Not Available |
| 8 | Not Available | Handle Connector | 097530802 | Not Available |
| 9 | Not Available | Collar | 7530902327 | Not Available |
| 10 | Not Available | Lower Handle Tube | 7519805 | Not Available |
| 12 | Not Available | Fan Housing Ass'y | 097534302 | Not Available |
| 16 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $24.69Add to cart |
| 17 | Not Available | Screw (Headlamp Cover) | 03751 | Not Available |
| 18 |  | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $13.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Fan Cup Seal Metal | 7501201 | Not Available |
| 21 | Not Available | Lamp Housing Blue | 7552101442 | Not Available |
| 21 | Not Available | Lamp Housing Black | 75521010327 | Not Available |
| 21 | Not Available | Lamp Housing Red 4080H2R | 7552101444 | Not Available |
| 21 | Not Available | Lamp Housing yellow 4080H2Y | 7552101449 | Not Available |
| 21 | Not Available | Lamp Housing Green 4090H2G | 7552101461 | Not Available |
| 21 | Not Available | Lamp Housing Teal 4090H2T | 7552101462 | Not Available |
| 21 | Not Available | Lamp Housing Pink 4090H2P | 7552101468 | Not Available |
| 22 | Not Available | Lens | 7552002455 | Not Available |
| 23 | Not Available | Bulb | 010-1177 | Not Available |
| 23 | Not Available | Bulb | HR-3500 | Not Available |
| 24 | Not Available | Badge Decal | 7302004 | Not Available |
| 25 | Not Available | Lamp Holder | 7553901 | Not Available |
| 26 | Not Available | Housing Blue 4070H2L 4490HH | 097578035 | Not Available |
| 26 | Not Available | Housing Black 4080H2B 4090H2B | 097578017 | Not Available |
| 26 | Not Available | Housing Red 4080H2R | 097578021 | Not Available |
| 26 | Not Available | Housing yellow 4082H2Y | 097578022 | Not Available |
| 26 | Not Available | Housing Green 4090H2G | 097578027 | Not Available |
| 26 | Not Available | Housing Teal 4090H2T | 097578026 | Not Available |
| 26 | Not Available | Housing Pink 4090H2P | 097578028 | Not Available |
| 26 | Not Available | Housing Black 4120H2B | 097578032 | Not Available |
| 26 | Not Available | Housing Pink 4120H2P | 097578033 | Not Available |
| 26 | Not Available | Housing Red 4120H2R | 097578031 | Not Available |
| 27 | Not Available | Bumper Clear | 7518104 | Not Available |
| 28 |  | Oreck Intake Pivot for 8000 and 9000 Series | 0136977 | $14.74Add to cart |
| 28 |  | Available ReconditionedCertified Reconditioned Oreck Intake Pivot for 8000 and 9000 Series More Product Details | 0136977R | $11.99Add to cart |
| 29 |  | Cover Frame Tayberry Red Of 3 Parking | 7506501 | $100.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Fan Nut | 880-5037 | Not Available |
| 32 | Not Available | Felt Seal (Motor Shaft) | 010-9605 | Not Available |
| 33 | Not Available | Cord Retainer | 030049401 | Not Available |
| 34 | Not Available | Motor Kit | 017-0020 | Not Available |
| 35 | Not Available | Seal (Motor Field) | 7509501 | Not Available |
| 36 | Not Available | Carbon Brush Kit | 7526301 | Not Available |
| 38 | Not Available | Screw Handle | 880-7027 | Not Available |
| 39 | Not Available | Belt | 010-0604 | Not Available |
| 40 | Not Available | Belt Door Blue 4070H2L 4490HH | 7505701442 | Not Available |
| # | Part image | Description | SKU | Price |
| 40 | Not Available | Belt Door Black | 75057010327 | Not Available |
| 40 | Not Available | Belt Door Red 4080H2R 4120H2R | 7505701444 | Not Available |
| 40 | Not Available | Belt Door yellow 4080H2Y | 7505701449 | Not Available |
| 40 | Not Available | Belt Door Green 4090H2G | 7505701461 | Not Available |
| 40 | Not Available | Belt Door Teal 4090H2T | 7505701462 | Not Available |
| 40 | Not Available | Belt Door Pink 4090H2P 4120H2P | 7505701468 | Not Available |
| 41 | Not Available | Wire Nut | SS-3270 | Not Available |
| 42 | Not Available | Brushroll Ass'y Complete | 016-1152 | Not Available |
| 42 | | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $24.69Add to cart |
| 42 | Not Available | Brushroll Ass'y Complete | 7520203 | Not Available |
| 43 | Not Available | Seal (Baseplate) 4090H2B 4120H2B 4120H2P | 010-7721 | Not Available |
| 44 | Not Available | Plastic Detent Spring | 7529901 | Not Available |
| 45 | Not Available | Baseplate Ass'y Complete | 097528401 | Not Available |
| 46 | Not Available | Microsweep Blade Type 6 Units 4090H2P 4120H2R 4490HH | 010-8450 | Not Available |
| 46 | Not Available | Microsweep Blade Type 7 Units | 7570002 | Not Available |
| 47 | Not Available | Channel Type 6 Units | 013-2353 | Not Available |
| 47 | Not Available | Channel Type 7 Units | 7570101 | Not Available |
| 48 | Not Available | Screw (Baseplate/Motor/Intake) | 880-7027 | Not Available |
| 49 | Not Available | Screw (Type 6 Edge Brush/Detent) | 030047501 | Not Available |
| 50 | Not Available | Edge Brush W/Wheel (Left) Type 6 Units | 097524902 | Not Available |
| 50 | Not Available | Edge Brush W/Wheel (Right) Type 6 Units | 097525002 | Not Available |
| 50 | Not Available | Edge Brush (Both Sides) Type 7 Units | 015-0456 | Not Available |
| 51 | Not Available | Wheel Axle | 010-0159 | Not Available |
| 52 |  | Wheel, Rear XL Series Part Number: 58-7903-65 for Oreck Replacement | 58790365 | $4.46Read more |
| 52 |  | Wheel, Rear XL100C Upright Part Number: 430000970 for Oreck | 430000970 | $9.16Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | Switch 2-Speed All Models Except 4490HH | 7558501 | Not Available |
| 54 | Not Available | Switch 1-Speed 4490HH | 010-8830 | Not Available |
| 55 | Not Available | Grip Set Blue 4070H2L 4490HH | 097557630 | Not Available |
| 55 | Not Available | Grip Set Black 4080H2B 4090H2B | 097557602 | Not Available |
| 55 | Not Available | Grip Set Red 4080H2R | 097557628 | Not Available |
| 55 | Not Available | Grip Set Yellow 4080H2Y | 097557617 | Not Available |
| 55 | Not Available | Grip Set Green 4090H2G | 097557632 | Not Available |
| 55 | Not Available | Grip Set Teal 4090H2T | 097557631 | Not Available |
| 55 | Not Available | Grip Set Pink 4090H2P | 097557633 | Not Available |
| 55 | Not Available | Grip Set Black 4120H2B | 097557634 | Not Available |
| 55 | Not Available | Grip Set Pink 4120H2P | 097557635 | Not Available |
| 55 | Not Available | Grip Set Red 4120H2R | 097557636 | Not Available |
| 56 | Not Available | Cord Dump Black 4070H2L 4080H2B | 097518501 | Not Available |
| 56 | Not Available | Cord Dump Red 4080H2R 4120H2R | 097518507 | Not Available |
| 56 | Not Available | Cord Dump Yellow 4080H2Y | NLA | Not Available |
| 56 | Not Available | Cord Dump Green 4090H2G | 097518513 | Not Available |
| 56 | Not Available | Cord Dump Teal 4090H2T | 097518512 | Not Available |
| 56 | Not Available | Cord Dump Pink 4090H2P 4120H2P | 097518514 | Not Available |
| 57 | Not Available | Handle Tube Chrome | 7519001 | Not Available |
| 58 | Not Available | Cord Harness Black 4080H2B | 7555202327 | Not Available |
| 58 | Not Available | Cord Harness White 4070H2L | 7555202328 | Not Available |
| 59 | Not Available | Cord Set Black 4080H2B | 7555602327 | Not Available |
| 59 |  | Cord, 30' White 18/2 Handle Mount Part Number: 58-5805-91 for Oreck Replacement | 58580591 | $18.96Read more |
| 59 |  | Available ReconditionedCertified Reconditioned Cord, 30' White 18/2 Handle Mount Part Number: 58-5805-91 for Oreck Repla... More Product Details | 58580591R | $13.79Add to cart |
| 59 | | Cord, 30' White 18/2 Handle Mount Part Number: 58-5805-91 for Oreck Replacement | 58580591 | $18.96Read more |
| 59 |  | Cord, 30' Black 18/2 Handle Mount Part Number: 58-5807-61 for Oreck Replacement | 58580761 | $18.96Read more |
| 59 |  | Pre owned/reconditioned Oreck short cord that goes between handle assy and motor assy. | OSHORTC | $21.99Add to cart |
| 60 | Not Available | Motor Spring | 7528301 | Not Available |
| 61 | Not Available | Tube Label | 7508705 | Not Available |
| 63 | Not Available | Screw (Cord Bracket) | 030045001M | Not Available |
| 67 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | O-Ring | 7519102 | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.30Read more |
| 73 | Not Available | Lock Washer | 030048001 | Not Available |
| 74 | Not Available | Steel Bushing Ring | 030059801 | Not Available |
| 75 | Not Available | Connector Stiffener | 7518902 | Not Available |
| 77 | Not Available | Retainer Clip Type 6 Units | 03528 | Not Available |
| 78 | Not Available | Wireform Type 6 Units | 7519403 | Not Available |
| 83 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $2.01Add to cart |
| 84 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | Not Available | Wireform One Piece Type 7 Units | 7569801 | Not Available |
| 86 | Not Available | Front Wheel Type 7 Units | 7570901 | Not Available |
| 88 | Not Available | Rivet | 880-6134 | Not Available |
| 89 | Not Available | Bag Spring | 7501501 | Not Available |
| 90 | Not Available | Push Nut | 030063601 | Not Available |
| 91 | Not Available | Lamp Housing Black 4120H2B | 75763010327 | Not Available |
| 91 | Not Available | Lamp Housing Pink 4120H2P | 7576301468 | Not Available |
| 91 | Not Available | Lamp Housing Red 4120H2R | 7576301444 | Not Available |
| 92 | Not Available | Low Profile Lens | 75762010329 | Not Available |
| 93 | Not Available | LED Light | 75577001 | Not Available |
