Schematic and parts book for Maytag U4497-9 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

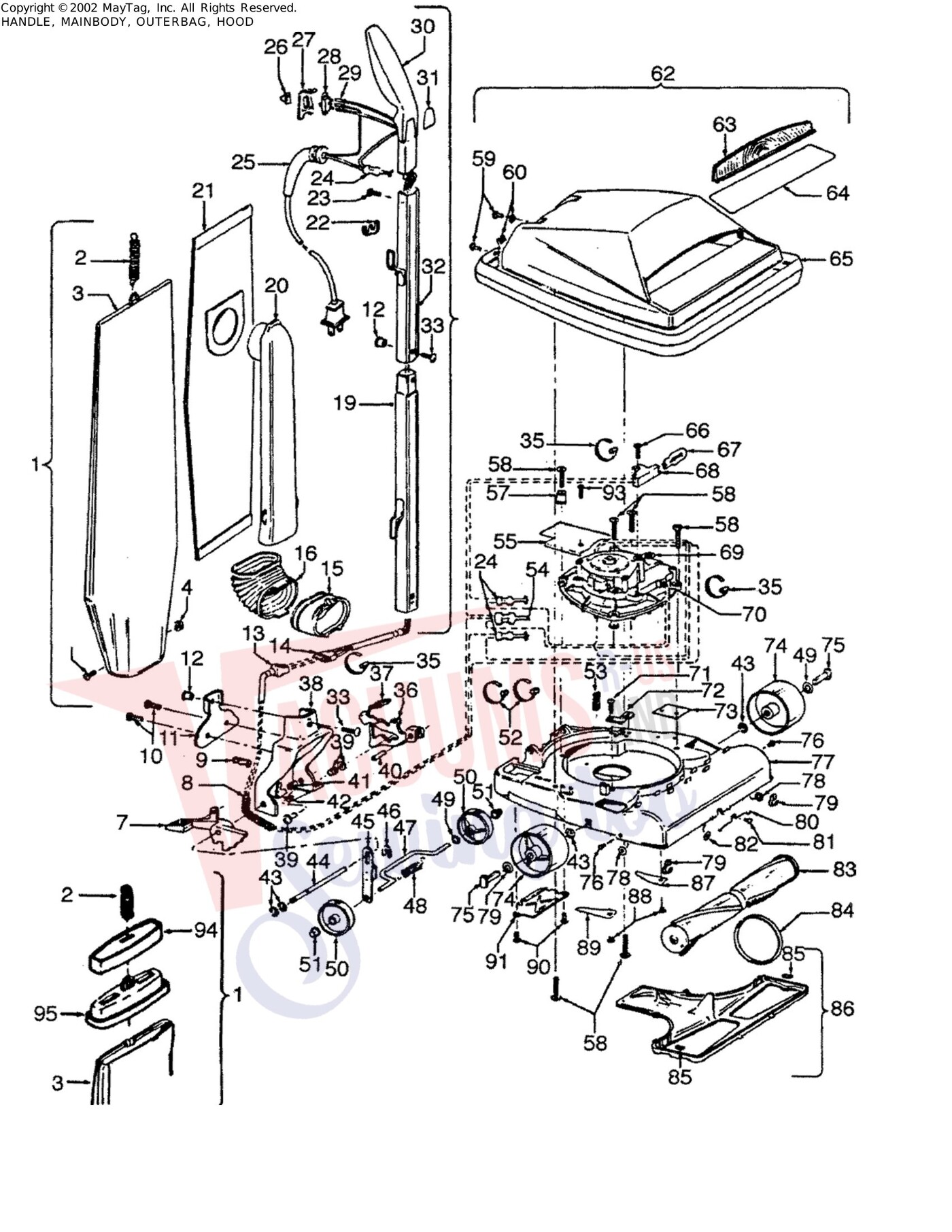

| # | Part image | Description | SKU | Price |
| 1 | Not Available | OUTER BAG COMP-DECAD | 43678333 | Not Available |
| 1 | Not Available | OUTER BAG COMPL-U449 | 43678325 | Not Available |
| 2 | Not Available | SUPPORT SPRING | 38336014 | Not Available |
| 3 | Not Available | OUTER BAG - U4497-9 | 43686020 | Not Available |
| 3 | Not Available | OUTER BAG-COM-TOP FI | 43677322 | Not Available |
| 4 | Not Available | NUT | 015854EF | Not Available |
| 5 | Not Available | SCREW | 21765159 | Not Available |
| 7 | Not Available | NOZ ADJ LEVER-AG-4 P | 38452051 | Not Available |
| 8 | Not Available | MOTOR LEAD SPRING | 38313023 | Not Available |
| 9 | Not Available | CORD CLIP-AAP-U4519 | 39442030 | Not Available |
| 10 | Not Available | SCREW-SELF TAPPING | 21465312 | Not Available |
| 11 |  | Hdl Fk Bail/Conver Plate-4100 Sr For: hoover | 34777012 | $2.01Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | HANDLE CLAMP NUT | 32277008 | Not Available |
| 13 | Not Available | CAP HOUSING/TUBING A | 46522008 | Not Available |
| 14 | Not Available | HANDLE SOCKET ASSM C | 46526012 | Not Available |
| 15 | Not Available | BAG FLANGE W/SEALANT | 41424011 | Not Available |
| 16 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $14.44Add to cart Special order: ships in 2 to 4 weeks |
| 19 | Not Available | HANDLE-LOWER-AAP-U44 | 48631162 | Not Available |
| 19 | Not Available | HANDLE-LOWER HALF-KS | 48631021 | Not Available |
| 20 | Not Available | TOP FILL TUBE | 38657004 | Not Available |
| 21 |  | Paper Bags-Hoover - A - 3Pk - Top Fill - Upright For: hoover | 4010001A | $7.24Add to cart Special order: ships in 2 to 4 weeks |
| 22 | Not Available | BAG SUPPORT-JM | 39442001 | Not Available |
| 23 | Not Available | SCREW - S3005 | 166735EF | Not Available |
| 25 | Not Available | ATTACHMENT CORD | 46363242 | Not Available |
| 26 | Not Available | SWITCH BUTTON | 38421012 | Not Available |
| 27 | Not Available | SWITCH COVER-KT-U415 | 37258015 | Not Available |
| 28 | Not Available | SWITCH - U4219 | 28179013 | Not Available |
| 29 | Not Available | TERMINAL | 27666702 | Not Available |
| 30 | Not Available | HANDLE GRIP - KE - U | 48663121 | Not Available |
| 30 | Not Available | HANDLE GRIP ASSEM-CO | 39454060 | Not Available |
| 31 | Not Available | HANDLE GRIP NAMEPLAT | 51663003 | Not Available |
| 31 | Not Available | NAMEPLATE-U4505 | 52115149 | Not Available |
| 32 | Not Available | HANDLE-UPPER HALF-KS | 48631013 | Not Available |
| 32 | Not Available | HANDLE-UPPER-AAP-U44 | 48631014 | Not Available |
| 32 | Not Available | 1 | 39454060 | Not Available |
| 33 |  | Handle Bolt-Short-N/S 4100 Hoover For: hoover | 21631301 | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | HANDLE ASSM COMP-AAP | 48655125 | Not Available |
| 35 | Not Available | CABLE TIE | 27479307 | Not Available |
| 36 |  | Lever-Hoover Handle Control For: hoover | 38456050 | $5.66Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | FOOT PAD-AG -C1E03 | 38426080 | Not Available |
| 38 | Not Available | BAIL ASSEMBLY - AAP | 41416056 | Not Available |
| 40 |  | Pivot Pin-Trip Lever-Hoover Upright For: hoover | 047450AY | $0.30Read more |
| 41 | Not Available | SPRING | 048409FW | Not Available |
| 44 |  | Bail Shaft #1070 For: hoover | 161509AY | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 45 |  | Cam Follower-Hoover Convertible Upright - 2 Position For: hoover | 43263005 | $4.95Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | YOKE | 34252005 | Not Available |
| 47 | Not Available | REAR WHEEL SHAFT | 33152003 | Not Available |
| 49 |  | Rear Wheel Washer All Convertibles For: hoover | 21312772 | $0.78Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | REAR WHEEL-AG | 38521016 | Not Available |
| 51 | Not Available | WHEEL RETAINER | 32182001 | Not Available |
| 52 | Not Available | CABLE TIE | 27479307 | Not Available |
| 53 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.74Read more |
| 55 | Not Available | MOTOR BAFFLE-U4383 | 34287022 | Not Available |
| 57 | Not Available | RETAINER | 34312011 | Not Available |
| 58 | Not Available | SCREW | 21447020 | Not Available |
| 60 | Not Available | WASHER | 168278AY | Not Available |
| 62 | Not Available | HOOD ASSEM-AAM-U4497 | 42251308 | Not Available |
| 62 | Not Available | HOOD ASSEMBLY - HR - | 42251306 | Not Available |
| 63 | Not Available | LENS-C1K01 | 39383086 | Not Available |
| 64 | Not Available | NAMEPLATE - U4453-9 | 52115139 | Not Available |
| 64 | Not Available | NAMEPLATE - U4497-9 | 52115148 | Not Available |
| 65 | Not Available | FURNITURE GUARD-U4P1 | 168497JM | Not Available |
| 65 | Not Available | FURNITURE GUARD-AAP- | 36231137 | Not Available |
| 66 | Not Available | SCREW | 017001FW | Not Available |
| 67 | Not Available | LAMP | 27313101 | Not Available |
| 68 | Not Available | LAMP SOCKET-L.V. | 36912004 | Not Available |
| 68 | Not Available | 1 | 12002663 | Not Available |
| 68 | Not Available | 2 | 012997AW | Not Available |
| 70 | Not Available | MOTOR ASSEM. COMPLET | 43574183 | Not Available |
| 71 | Not Available | SCREW | 21447003 | Not Available |
| 72 | Not Available | PIVOT PIN RETAINER | 34665007 | Not Available |
| 73 | Not Available | VENT ENCLOSURE | 34311003 | Not Available |
| 74 | Not Available | CARRIER WHEEL-AG | 38522013 | Not Available |
| 75 | Not Available | FRONTWHEEL SHAFT | 047457AY | Not Available |
| 77 | Not Available | MAIN BODY ASSM-KE-U4 | 42242230 | Not Available |
| 77 | Not Available | MAIN BODY ASSEM - AG | 42242225 | Not Available |
| 78 | Not Available | SUPPORT WASHER-UPRIG | 21312781 | Not Available |
| 79 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $1.74Read more |
| 80 |  | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.52Read more |
| 81 | No Image | Rivet-Hoover Conquest Motor For: hoover | 012503EF | $0.03Read more |
| 82 | Not Available | WASHER | 21312703 | Not Available |
| 83 | Not Available | AGITATOR ASSEM COMP- | 41435005 | Not Available |
| 85 |  | Support Pad-Hoover For: hoover | 34111001 | $1.63Add to cart Special order: ships in 2 to 4 weeks |
| 86 | Not Available | BOTTOM PLATE COMPLET | 42246008 | Not Available |
| 86 | Not Available | BOTTOM PLATE - PLAST | 37245081 | Not Available |
| 87 | Not Available | LATCH-C1K01 | 36153006 | Not Available |
| 88 | Not Available | SCREW-S2095/97/99 | 21447203 | Not Available |
| 89 | Not Available | LATCH-C1K01 | 36153006 | Not Available |
| 90 | Not Available | SCREW | 21447009 | Not Available |
| 91 | No Image | Axle Bag Flange Retainer New Models For: hoover | 35434040 | $2.10Add to cart Special order: ships in 2 to 4 weeks |
| 94 | Not Available | BAG COVER - KE - U44 | 37959057 | Not Available |
| 95 | Not Available | HANGER-U3721/29 | 37959095 | Not Available |
| 96 | Not Available | REAR SUPPORT - U4391 | 58366012 | Not Available |
| 96 | Not Available | OWNER MANUAL - U4303 | 56511132 | Not Available |
| 96 | Not Available | OWNER MANUAL - U4497 | 56511295 | Not Available |
| 96 | Not Available | FRONT SUPPORT-C1067 | 58343025 | Not Available |
| 96 | Not Available | 1 | 48414003 | Not Available |
| 96 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $16.28Add to cart Special order: ships in 2 to 4 weeks |

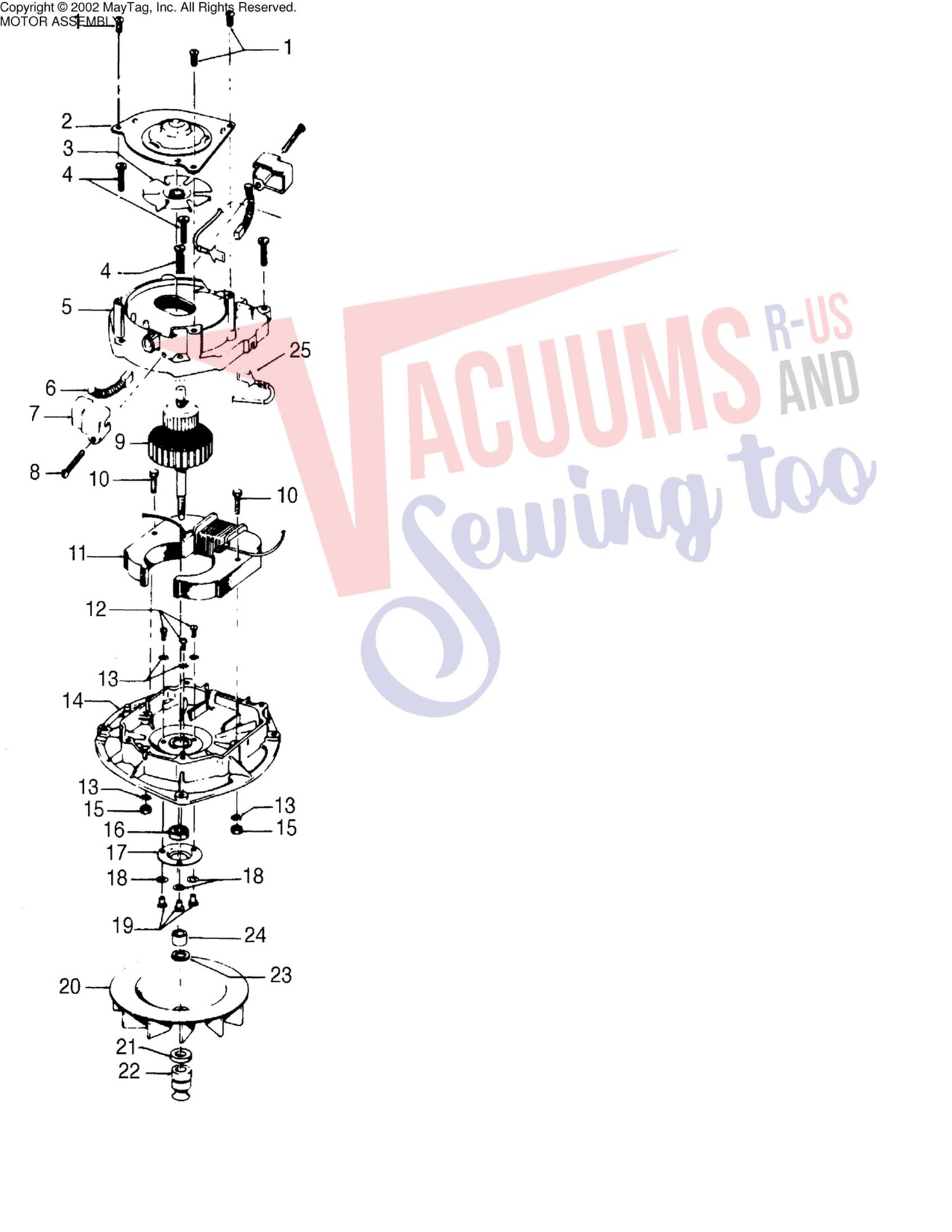

| # | Part image | Description | SKU | Price |
| 2 | Not Available | UPPER MOTOR BEARING | 42934002 | Not Available |
| 3 | Not Available | VENT FAN-PLASTIC-U44 | 38755005 | Not Available |
| 3 |  | Armature Cooling Fan #29 & 65 - 38755004 For: hoover | 38755004 | $19.99Read more |
| 5 | Not Available | UPPER MOTOR CASING-U | 42195003 | Not Available |
| 6 | Not Available | MOTOR BRUSH | 47318012 | Not Available |
| 7 | No Image | Wbd Brush Cap - U4313 For: hoover | 36315003 | $1.89Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | SCREW | 046930AZ | Not Available |
| 9 | Not Available | ARMATURE-8MM | 44765085 | Not Available |
| 11 | Not Available | FIELD COIL | 45412015 | Not Available |
| 11 | Not Available | FIELD-U4361 | 45421015 | Not Available |
| 12 | Not Available | SCREW | 21772501 | Not Available |
| 14 | Not Available | Motor Case LH | 42193006 | Not Available |
| 16 | Not Available | BEARING ASSEM COMP-8 | 43267006 | Not Available |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $17.99Read more |
| 17 | Not Available | BEARING RETAINER-8MM | 32184003 | Not Available |
| 20 | Not Available | FAN | 38755011 | Not Available |
| 21 | Not Available | WASHER-HEAT INSULATI | 31162004 | Not Available |
| 22 | Not Available | MOTOR PULLEY - U4479 | 38532015 | Not Available |
| 22 | Not Available | MOTOR PULLEY-HEAT IN | 38532009 | Not Available |
| 24 | Not Available | SPACER-U4405 | 31731006 | Not Available |
| 25 | Not Available | MOTOR | 43574133 | Not Available |
| 25 | Not Available | MOTOR ASSEM. COMPLET | 43574183 | Not Available |
| 26 |  | Spacer/Split Sleeve For 9Mm Armature/Bearing Appl. For: hoover | 40300014 | $8.40Read more |
| 26 | Not Available | 1 | 38532005 | Not Available |

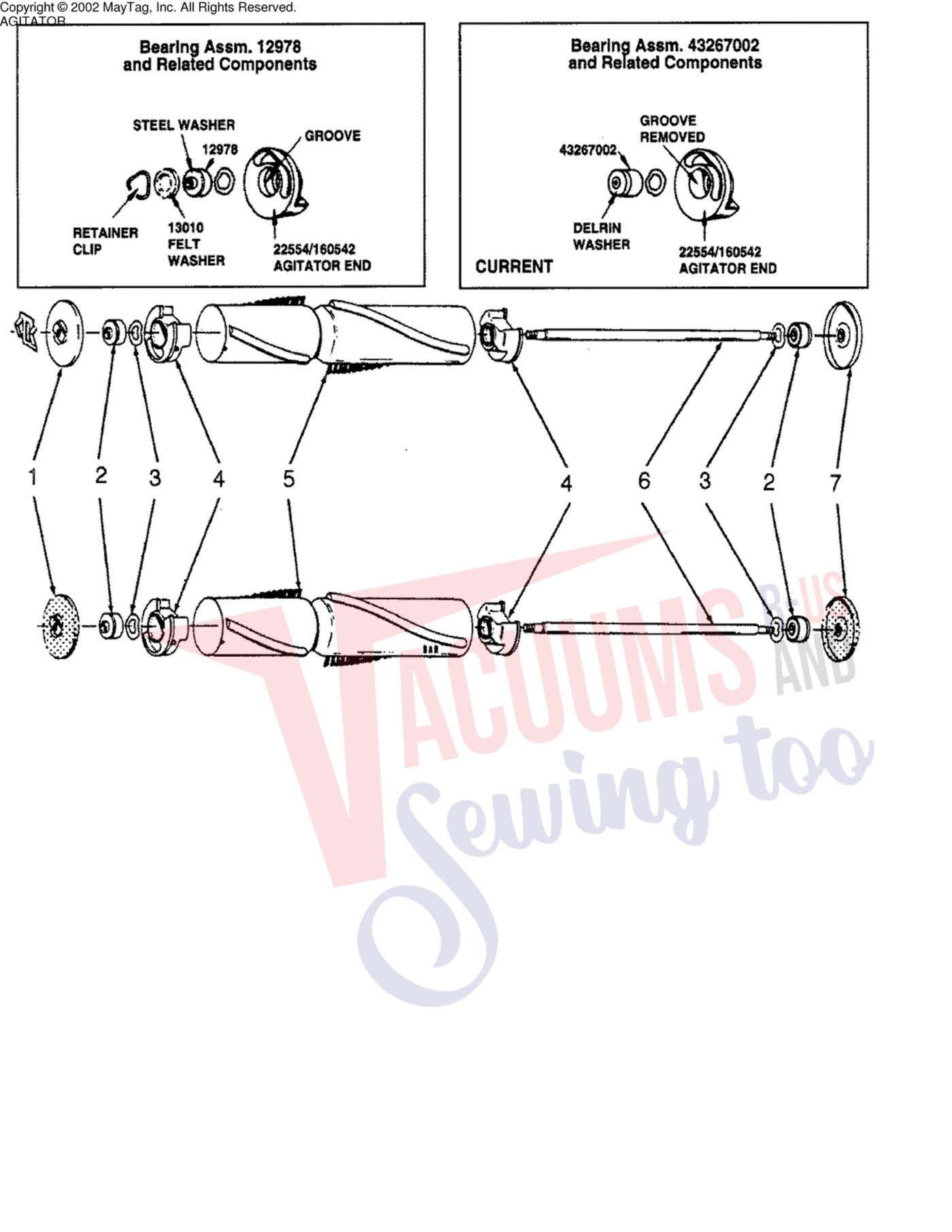

| # | Part image | Description | SKU | Price |
| 1 | Not Available | THREAD GUARD-LH | 36423003 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for ... | 43267002 | $4.81Read more |
| 3 | Not Available | CONICAL WASHER | 21347003 | Not Available |
| 4 |  | End-Hoover C1429 For: hoover | 41435070 | $12.49Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | AGITATOR BRUSH-NYLON | 012998BZ | Not Available |
| 5 |  | Brush Strip, Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover product is discontinued ... | 160646BZ | $14.29Add to cart |
| 5 | Not Available | AGITATOR BRUSH BACK | 48445001 | Not Available |
| 6 | Not Available | AGITATOR SHAFT | 32724008 | Not Available |
| 7 | Not Available | THREAD GUARD-RH | 36423007 | Not Available |
| 10 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $9.41Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | AGITATOR ASSEM COMP- | 41435005 | Not Available |
| 11 | Not Available | AGITATOR COMPLETE-CT | 169371MF | Not Available |
| 11 | Not Available | AGITATOR ASSEMBLY CO | 48414006 | Not Available |
| 11 | Not Available | AGITATOR ASSEMBLY CO | 48414007 | Not Available |
| 12 | Not Available | AGITATOR - FOUR BRUS | 48414002 | Not Available |
| 12 | Not Available | BRUSH AGITATOR | 48414003 | Not Available |
| 13 | Not Available | AGITATOR ASSEMBLY CO | 48414021 | Not Available |
| 13 | Not Available | 1 | 32724008 | Not Available |
| 13 |  | Agitator Cap-Plain-Hoover Convertible For: hoover | 012985AY | $4.29Read more |
| 13 | | Agitator Cap-Plain-Hoover Convertible For: hoover | 012985AY | $4.29Read more |
| 13 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $16.28Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | 1 | 48414003 | Not Available |
| 13 | Not Available | 1 | 48414003 | Not Available |

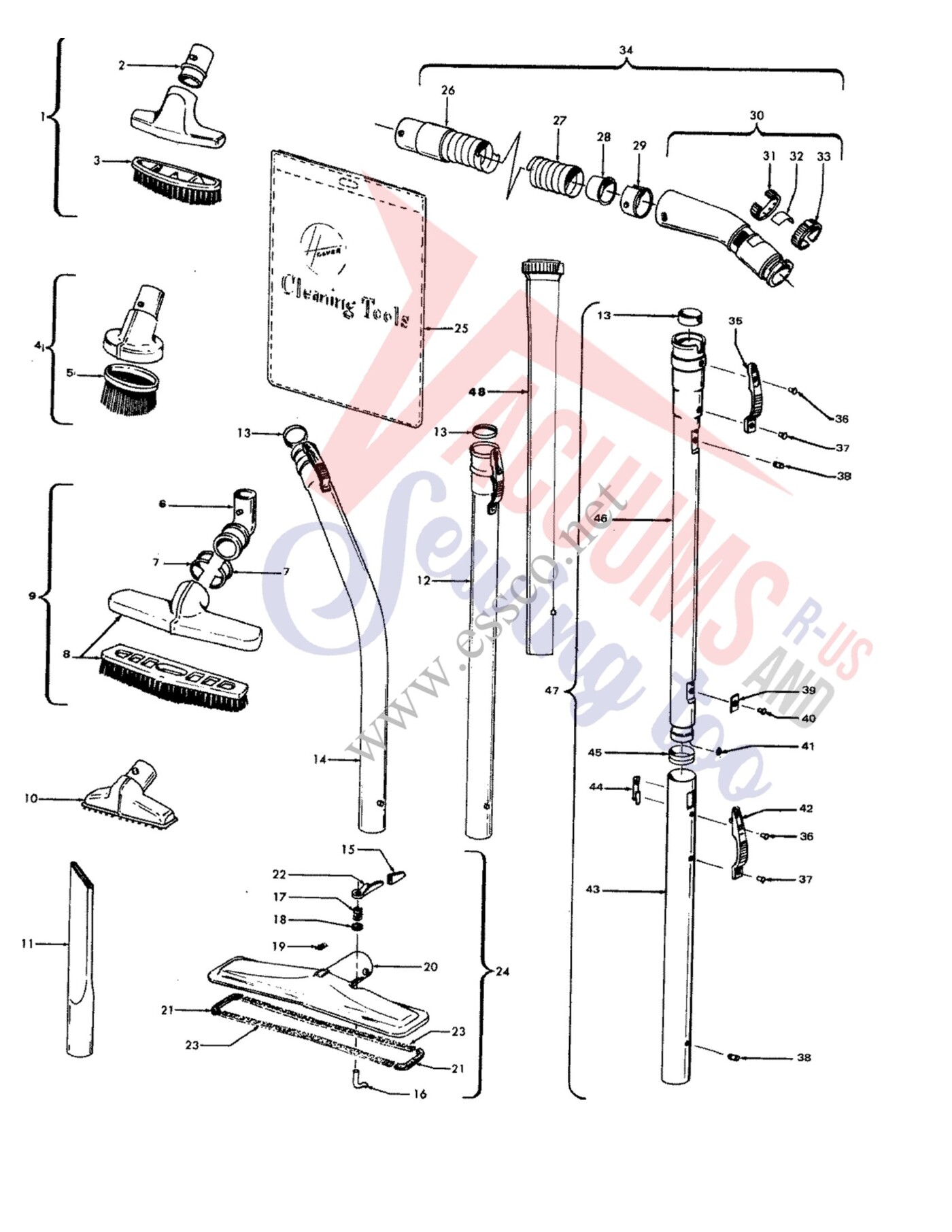

| # | Part image | Description | SKU | Price |
| 1 | Not Available | FURNITURE BRUSH-AG | 43414016 | Not Available |
| 1 | Not Available | FURNITURE BRUSH-S305 | 161852JM | Not Available |
| 1 | Not Available | 13154JM- FLOOR BRUSH SWIVEL& COLLAR | 6 | Not Available |
| 1 | Not Available | 013276-- FLOOR BRUSH SWIVEL B | 7 | Not Available |
| 1 | Not Available | WASHER | 18161549 | Not Available |
| 1 | Not Available | RIVET | 36012772 | Not Available |
| 1 | Not Available | RIVET | 37012783 | Not Available |
| 1 | Not Available | RIVET | 3812763AW | Not Available |
| 1 | Not Available | PLATE | 39012824 | Not Available |
| 1 | Not Available | RIVET | 40012600 | Not Available |
| 1 | Not Available | EXTENSION TUBE OUTER | 43012597 | Not Available |
| 1 | Not Available | TUBE GUIDE | 44012589 | Not Available |
| 1 | Not Available | EXTERNION TUBE INNER | 46012598 | Not Available |
| 2 | Not Available | NOZZLE CONNECTOR TUB | 013149JM | Not Available |
| 3 | Not Available | BRUSH BACK | 013254BZ | Not Available |
| 4 | Not Available | DUSTING BRUSH | 161851JM | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | DUSTING BRUSH | 43414145 | Not Available |
| 5 | Not Available | DUSTING BRUSH FACE | 013263BZ | Not Available |
| 6 | Not Available | SWIVEL CONNECTOR - A | 38644020 | Not Available |
| 7 | Not Available | SPLIT RING | 33712007 | Not Available |
| 8 | Not Available | FLOOR BRUSH BACK & N | 013155JM | Not Available |
| 9 | Not Available | FLOOR BRUSH | 013077JM | Not Available |
| 9 | Not Available | FLOOR BRUSH-AAP-FRIC | 43414135 | Not Available |
| 9 | Not Available | FLOOR BRUSH-AG-S3273 | 43414073 | Not Available |
| 10 |  | Upholstery Tool, With plastic bump for hoover porta power | 43414057 | $9.58Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | FURNITURE NOZZLE-AG | 38614029 | Not Available |
| 11 |  | Crevice Tool-Hoover - W/Pin - Canister - Grey
Nla 10-2023 - Please Use Alt Part Number For: hoover | 38617017 | $2.53Read more |
| 11 | Not Available | CREVICE TOOL - AG | 38617024 | Not Available |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.32Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | GASKET | 38784087 | Not Available |
| 14 | Not Available | HOSE TUBE ASSEM. - A | 43466040 | Not Available |
| 15 | Not Available | FOOT PAD - F5047 | 034207AG | Not Available |
| 16 | Not Available | LATCH-U4901-U4903 | 33126001 | Not Available |
| 17 | Not Available | SPRING | 38311006 | Not Available |
| 19 | Not Available | PADS-2910 | 34121001 | Not Available |
| 20 | Not Available | CONVERTER BODY ASSEM | 43482097 | Not Available |
| 21 | Not Available | SEAL-END-U4901-U4903 | 34253003 | Not Available |
| 22 | Not Available | LATCH LEVER-U4901-U4 | 38452026 | Not Available |
| 23 | Not Available | SEAL-SIDE-U4901-U490 | 34113005 | Not Available |
| 24 | Not Available | CONVERTER BODY ASSEM | 43482097 | Not Available |
| 25 | Not Available | TOOL BAG U3P03 | 58544004 | Not Available |
| 26 | Not Available | HOSE CONNECTOR-BMH-J | 32288003 | Not Available |
| 26 | Not Available | 1 | 43414016 | Not Available |
| 26 | Not Available | 1 | 43414016 | Not Available |
| 26 | | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $7.15Add to cart Special order: ships in 2 to 4 weeks |
| 26 | Not Available | 1 | 43414073 | Not Available |
| 26 | Not Available | 1 | 43414073 | Not Available |
| 26 | Not Available | 1 | 43414142 | Not Available |
| 26 | Not Available | HOSE CONNECTOR-SHORT | 32288007 | Not Available |
| 26 | Not Available | HOSE CONNECTOR-AAP-U | 32288004 | Not Available |
| 27 | Not Available | HOSE LESS ENDS MOLDE | 38671001 | Not Available |
| 27 | Not Available | HOSE LESS ENDS-AAP | 38671030 | Not Available |
| 27 | Not Available | HOSE ASSEM COMP - AA | 43434203 | Not Available |
| 27 | Not Available | HOSE LESS ENDS-AAP-U | 38671028 | Not Available |
| 28 | Not Available | HOSE SLEEVE - BZ | 32156010 | Not Available |
| 29 | Not Available | HOSE CONNECTOR COLLA | 36171025 | Not Available |
| 29 | Not Available | HOSE CONNECTOR COLLA | 36116006 | Not Available |
| 30 | Not Available | HOSE CONNECTOR CURVE | 43466055 | Not Available |
| 30 | Not Available | HOSE GRIP W/SC-AG-S1 | 43466068 | Not Available |
| 30 | Not Available | HOSE CONNECTOR-CURVE | 43466058 | Not Available |
| 30 | Not Available | HAND GRIP | 39454059 | Not Available |
| 31 | Not Available | SUCTION CONTROL RING | 38711014 | Not Available |
| 32 | Not Available | HOSE CONN LABEL-U490 | 51869006 | Not Available |
| 33 | Not Available | LATCH RING-AG-S3273 | 36153009 | Not Available |
| 34 | Not Available | HOSE ASSEMBLY COMP-F | 43434225 | Not Available |
| 34 | Not Available | HOSE ASSEM COMP-AAP- | 43434210 | Not Available |
| 34 | Not Available | HOSE ASSM COMP-MLD-J | 43434209 | Not Available |
| 34 | Not Available | HOSE ASSEM COMP - AA | 43434203 | Not Available |
| 35 | Not Available | TUBE LATCH | 012846AG | Not Available |
| 41 | Not Available | WASHER | 21312704 | Not Available |
| 42 | Not Available | TUBE LATCH - AAT | 36152018 | Not Available |
| 45 | Not Available | GASKET | 012844JM | Not Available |
| 47 | Not Available | EXTENSION WAND - 211 | 43458001 | Not Available |
| 48 | Not Available | EXTENSION TUBE-AG | 38634078 | Not Available |
| 48 | Not Available | EXTENSION TUBE-AG-PO | 3863801P | Not Available |
| 48 | Not Available | 1 | 012763AW | Not Available |

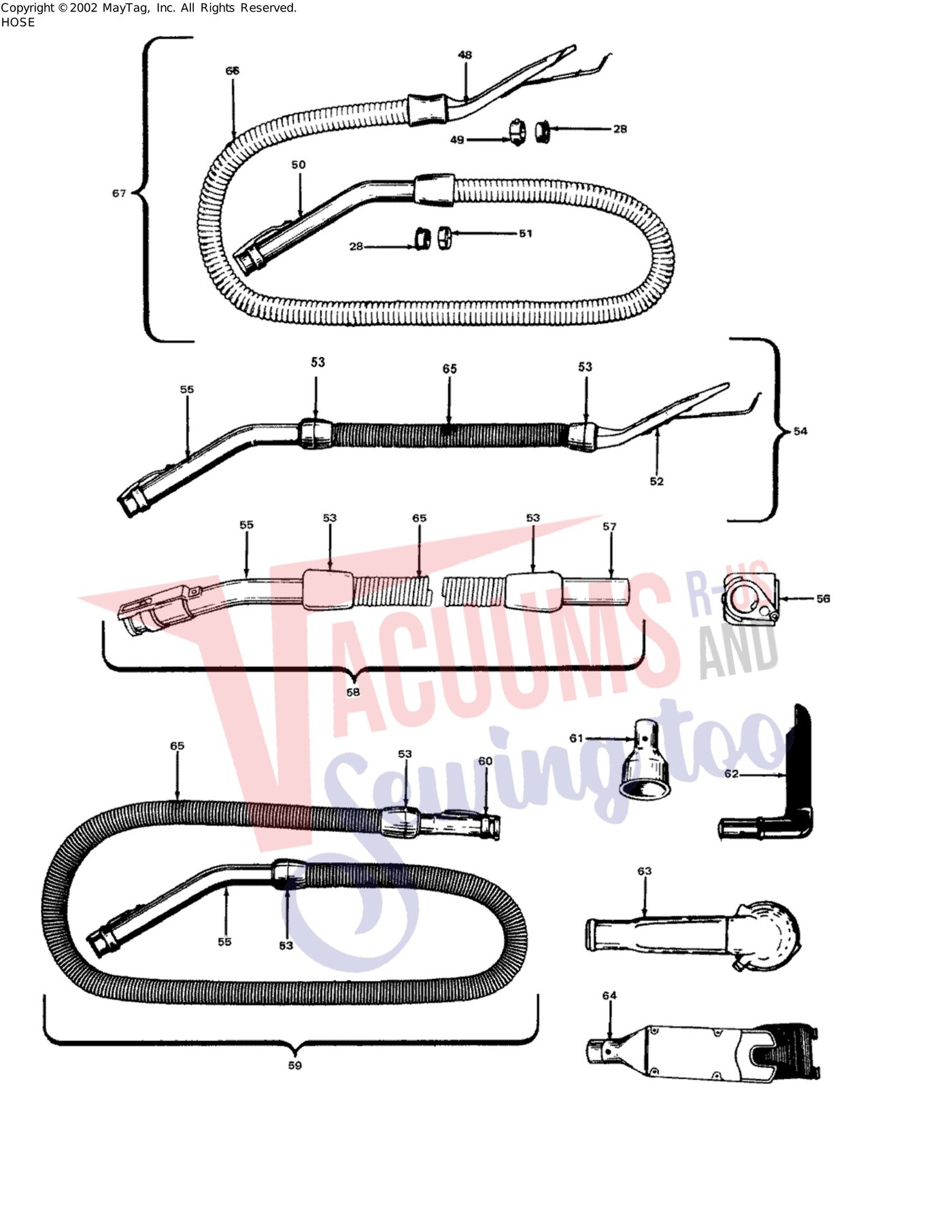

| # | Part image | Description | SKU | Price |
| 48 | Not Available | HOSE END - CONVERTER | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.13Add to cart Special order: ships in 2 to 4 weeks |
| 50 | Not Available | HOSE GRIP W/SC-AG-S1 | 43466068 | Not Available |
| 51 | Not Available | HOSE GRIP COLLAR | 012704BZ | Not Available |
| 52 | Not Available | HOSE END CONVERTER | 023473JM | Not Available |
| 54 | Not Available | HOSE ASSM COMPLETE-U | 012864JM | Not Available |
| 56 | Not Available | CONVERTER ASSM-JR CL | 43452503 | Not Available |
| 57 | Not Available | HOSE CONNECTOR TUBE | 017959-A | Not Available |
| 57 | Not Available | HOSE CONN TUBE-1341 | 641398LL | Not Available |
| 58 | Not Available | HOSE COMPLETE - 1341 | 019633JM | Not Available |
| 59 | Not Available | HOSE COMPLETE | 022671JM | Not Available |
| 59 | Not Available | HOSE-64 | 023007-A | Not Available |
| 61 | Not Available | BLOWER-65 | 034984-A | Not Available |
| 64 | Not Available | CONNECTOR | 034202JM | Not Available |
| 65 | Not Available | HOSE-LESS ENDS-ULTRA | 048617JM | Not Available |
| 66 | Not Available | HOSE COMPLETE-MV (J 43434239 | 43434213 | Not Available |
| 67 | Not Available | HOSE ASSM COMPLETE-U | 012864JM | Not Available |
| 68 | Not Available | TURBINE ROTO-POWER B | 161728LL | Not Available |
| 68 | Not Available | HOSE-ULTRAFLEX-50 FT | 169460JM | Not Available |
| 68 | Not Available | HOSE-TUFLEX-JM-50 FT | 43431011 | Not Available |
Report errors on this page HERE
