Schematic and parts book for Maytag HSCU8000BN . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

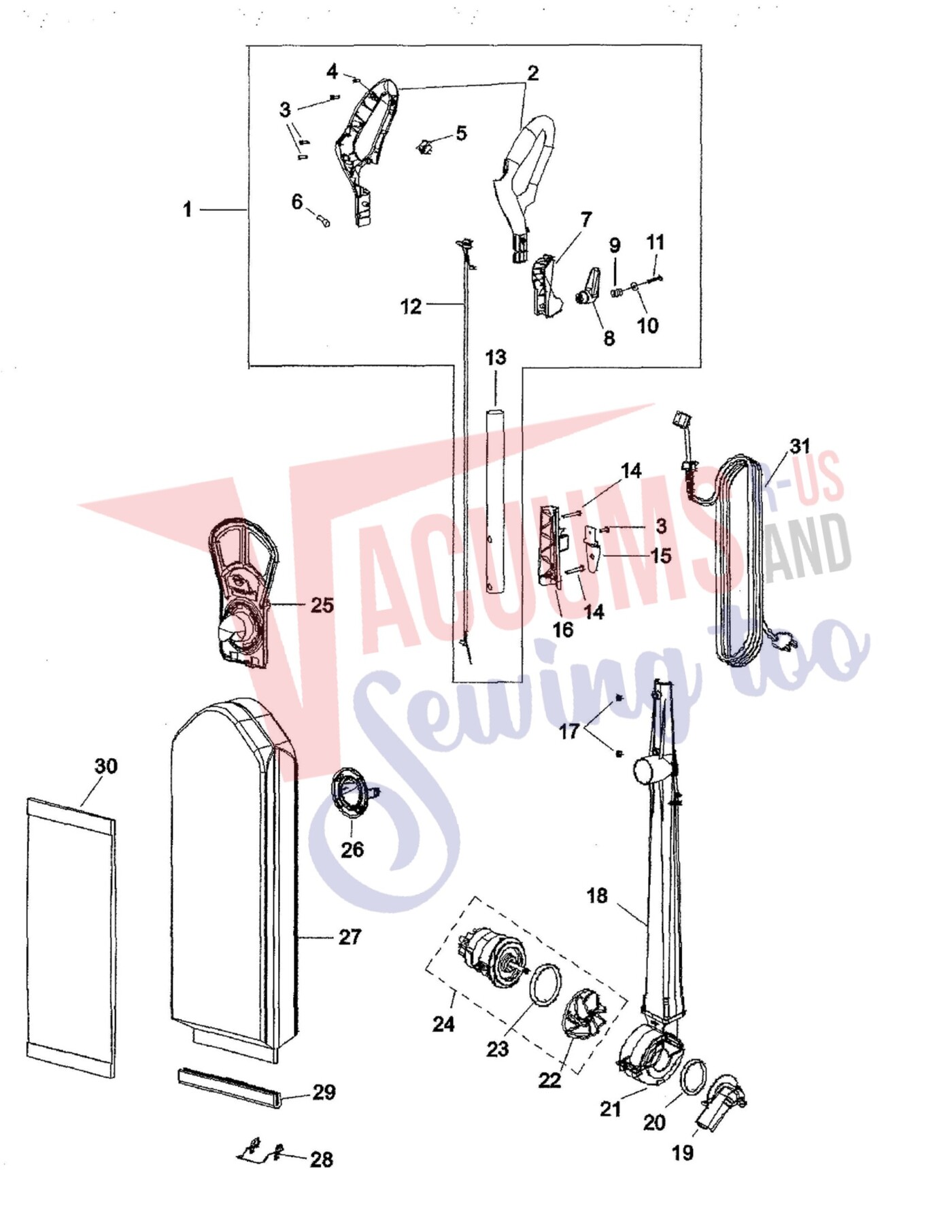

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE ASY | 93001850 | Not Available |
| 2 | Not Available | HANDLE RIGHT/LEFT ASY | 93001851 | Not Available |
| 3 | Not Available | SCREW #8 X 5/8" | 93001840 | Not Available |
| 4 | Not Available | SCREW #8X7/16" | 93001853 | Not Available |
| 5 | Not Available | MAIN SWITCH HANDLE | 93001854 | Not Available |
| 6 | Not Available | WIRE CONNECTORS MD. | 93001855 | Not Available |
| 7 | Not Available | HANDLE BACK | 93001856 | Not Available |
| 8 | Not Available | CORD HOOK SWIVEL | 93001857 | Not Available |
| 9 | Not Available | UPPER CORD HOOK SPRING | 93001858 | Not Available |
| 10 | Not Available | UPPR CORD HOOK WASHER | 93001859 | Not Available |
| 11 | Not Available | UPPER CORD HOOK SCREW | 93001860 | Not Available |
| 12 | Not Available | HANDLE CORD HARNESS | 93001861 | Not Available |
| 13 | Not Available | HANDLE TUBE | 93001862 | Not Available |
| 14 | Not Available | SCREW. #10-32X1.625 | 93001839 | Not Available |
| 15 | Not Available | METAL CORD HOOK | 93001842 | Not Available |
| 16 | Not Available | HANDLE TUBE BRACKET | 93001838 | Not Available |
| 17 | Not Available | HEX NUT | 93001843 | Not Available |
| 18 | Not Available | LWR HNDLE UPR FAN HSG ASY | 93001867 | Not Available |
| 19 | Not Available | FAN DUCT COVER | 93001868 | Not Available |
| 20 | Not Available | FAN DUCT CVR FELT RING SEAL | 93001869 | Not Available |
| 21 | Not Available | LWR FAN HSG | 93001870 | Not Available |
| 22 | Not Available | FAN | 93001871 | Not Available |
| 23 | Not Available | MTR BRACK FELT RING SEAL | 93001872 | Not Available |
| 24 | Not Available | MOTOR/FAN ASY | 93001873 | Not Available |
| 25 | Not Available | BAG COLLAR BAG HOLDER | 93001844 | Not Available |
| 26 | Not Available | BAG COLLAR BAG RING | 93001845 | Not Available |
| 27 | Not Available | CLOTH BAG | 93001876 | Not Available |
| 28 | Not Available | LOWER BAG SPRING | 93001847 | Not Available |
| 29 | Not Available | LOWER BAG CLIP | 93001848 | Not Available |
| 30 |  | Paper Bag, :( Allergn HEPA HSC Series HSCU8000BN 6 Part Number: 93001849 for Hoover | 93001849 | $40.73Read more |
| 30 |  | Compatible alternateRiccar HEPA Vacuum Bags Type F for Supralite Models - 6pk More Product Details | RFH6 | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Compatible alternateRiccar Ecopure Supralite Vac Bag 6Pk Riccar Filtration 24 Cs More Product Details | RSL6 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Compatible alternateAftermarket Riccar Paper Bags Type F - 6pk More Product Details | RSR-1437 | $13.84Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | POWER CORD | 93001880 | Not Available |

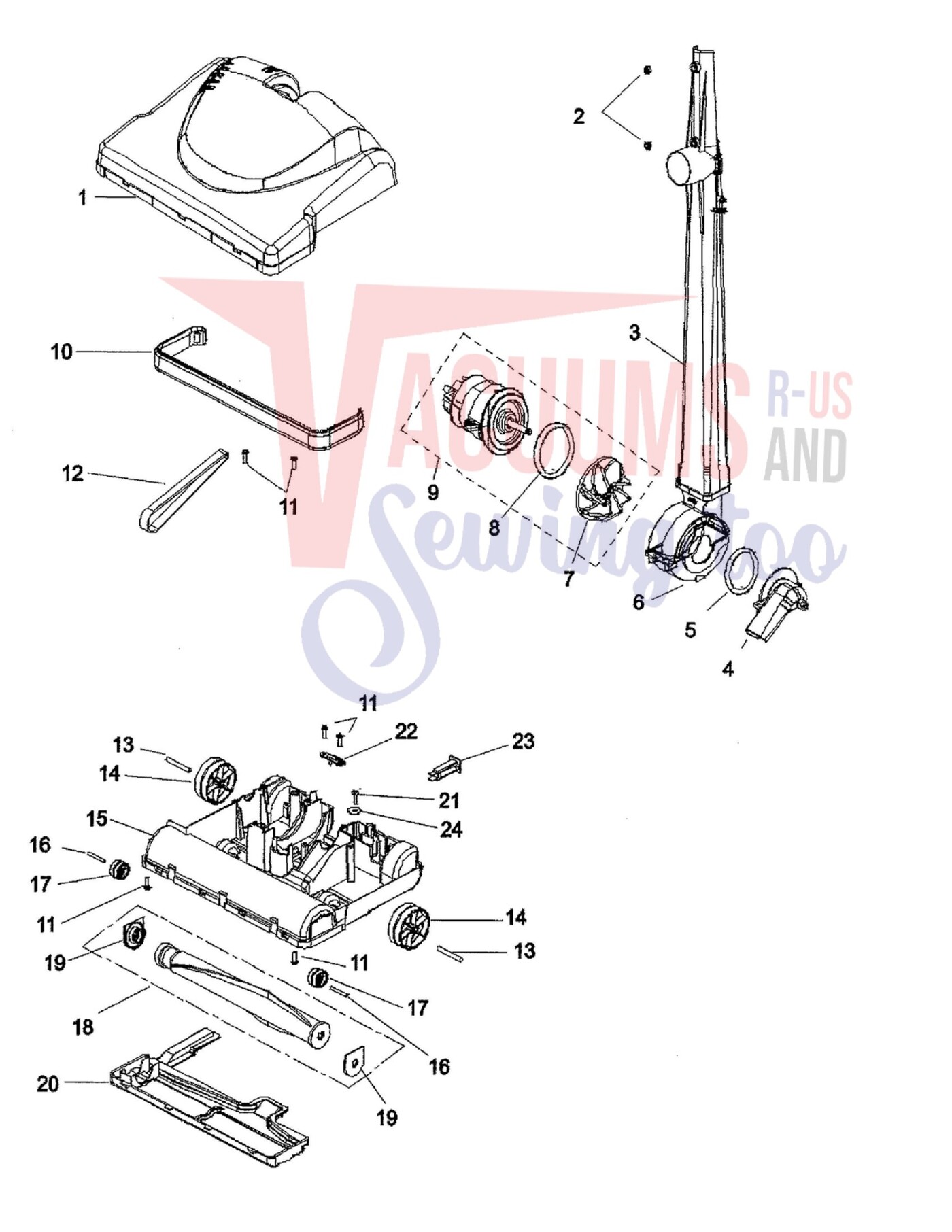

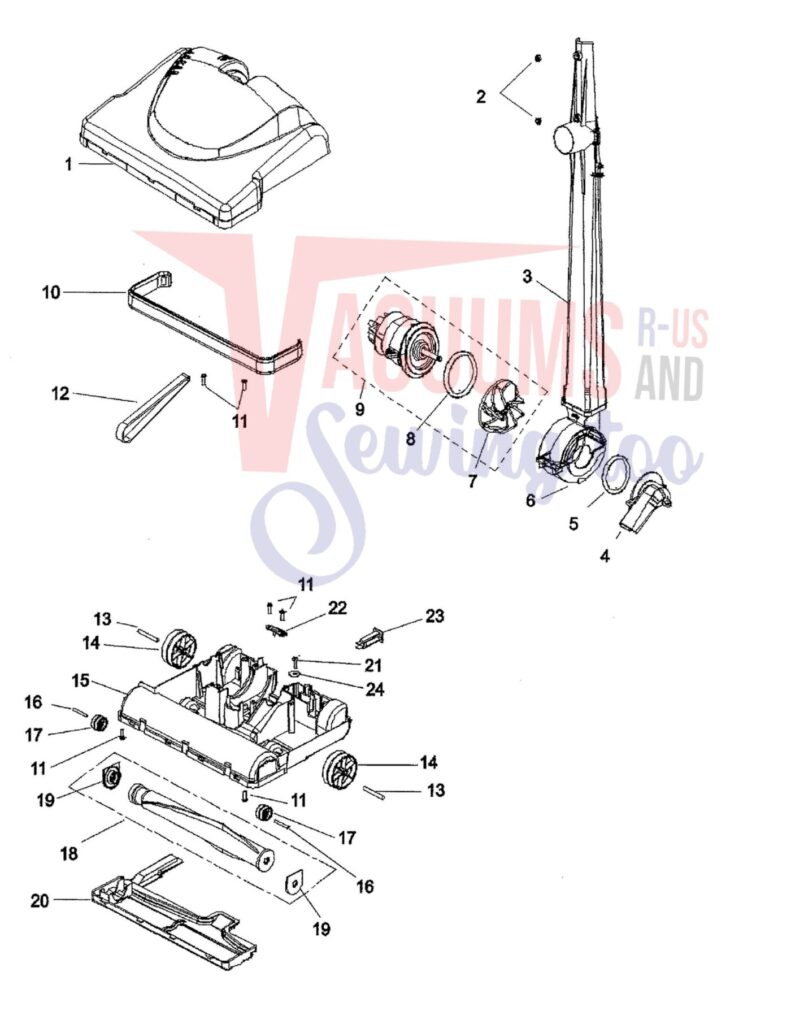

| # | Part image | Description | SKU | Price |
| 1 | Not Available | NOZZLE HOUSING | 93001903 | Not Available |
| 2 | Not Available | HEX NUT | 93001843 | Not Available |
| 3 | Not Available | LWR HNDLE UPR FAN HSG ASY | 93001867 | Not Available |
| 4 | Not Available | FAN DUCT COVER | 93001868 | Not Available |
| 5 | Not Available | FAN DUCT CVR FELT RING SEAL | 93001869 | Not Available |
| 6 | Not Available | LWR FAN HSG | 93001870 | Not Available |
| 7 | Not Available | FAN | 93001871 | Not Available |
| 8 | Not Available | MTR BRACK FELT RING SEAL | 93001872 | Not Available |
| 9 | Not Available | MOTOR/FAN ASY | 93001873 | Not Available |
| 10 | Not Available | FURNITURE GUARD | 93001886 | Not Available |
| 11 | Not Available | SCREW #8 X 5/8" | 93001840 | Not Available |
| 12 | Not Available | BELT (2 PACK) | 93001887 | Not Available |
| 13 | Not Available | LARGE WHEEL AXLE | 93001890 | Not Available |
| 14 | Not Available | WHEEL-REAR | 93001891 | Not Available |
| 15 | Not Available | BASE TRAY ASY | 93001892 | Not Available |
| 16 | Not Available | BASE PLT WHL AXLE | 93001893 | Not Available |
| 17 | Not Available | BASE PLT WHEEL | 93001894 | Not Available |
| 18 | Not Available | WOOD AGIT W/END CAPS | 93001904 | Not Available |
| 19 | Not Available | END CAP | 93001896 | Not Available |
| 20 | No Image | COVER, BASE PLATE HSCU8000SN Part Number: 93001897 for Hoover | 93001897 | $17.37Read more |
| 21 | Not Available | COMBINATION SCREW (M4 X | 93001898 | Not Available |
| 22 | Not Available | UPRIGHT STOP | 93001899 | Not Available |
| 23 | Not Available | CIRCUIT BREAKER | 93001901 | Not Available |
| 24 | Not Available | STRAIN RELIEF WASHER | 93001902 | Not Available |
| 24 | Not Available | 1 | 93001906 | Not Available |
