Schematic and parts book for Koblenz U210, U230, U310, U310Z, U510, U510Z, U530, U530Z . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

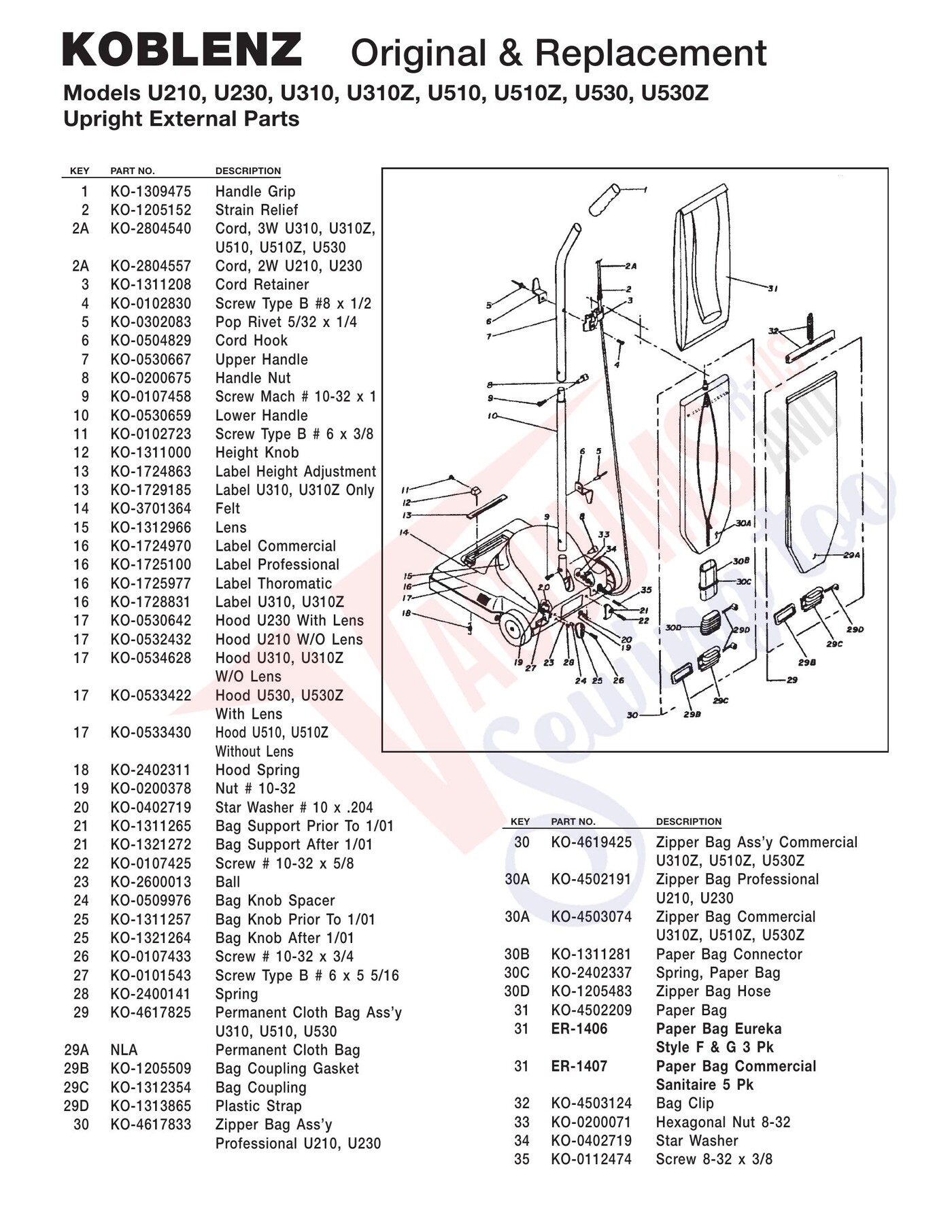

| # | Part image | Description | SKU | Price |
| 1 | Not Available | handle grip | KO-1309475 | Not Available |
| 2 | Not Available | Strain Relief | KO-1205152 | Not Available |
| 3 | Not Available | cord Retainer | KO-1311208 | Not Available |
| 4 | Not Available | Screw type B #8 x 1/2 | KO-0102830 | Not Available |
| 5 | Not Available | pop Rivet 5/32 x 1/4 | KO-0302083 | Not Available |
| 6 | Not Available | cord hook | KO-0504829 | Not Available |
| 7 | Not Available | Upper handle | KO-0530667 | Not Available |
| 8 | Not Available | handle nut | KO-0200675 | Not Available |
| 9 | Not Available | Screw mach # 10-32 x 1 | KO-0107458 | Not Available |
| 10 | Not Available | lower handle | KO-0530659 | Not Available |
| 11 | Not Available | Screw type B # 6 x 3/8 | KO-0102723 | Not Available |
| 12 | Not Available | height Knob | KO-1311000 | Not Available |
| 13 | Not Available | label height adjustment | KO-1724863 | Not Available |
| 13 | Not Available | label U310 U310Z Only | KO-1729185 | Not Available |
| 14 | Not Available | felt | KO-3701364 | Not Available |
| 15 | Not Available | lens | KO-1312966 | Not Available |
| 16 | Not Available | label commercial | KO-1724970 | Not Available |
| 16 | Not Available | label professional | KO-1725100 | Not Available |
| 16 | Not Available | label thoromatic | KO-1725977 | Not Available |
| 16 | Not Available | label U310 U310Z | KO-1728831 | Not Available |
| 17 | Not Available | hood U230 with lens | KO-0530642 | Not Available |
| 17 | Not Available | hood U210 w/O lens | KO-0532432 | Not Available |
| 17 | Not Available | hood U310 U310Z | KO-0534628 | Not Available |
| 17 | Not Available | hood U530 U530Z | KO-0533422 | Not Available |
| 17 | Not Available | hood U510 U510Z | KO-0533430 | Not Available |
| 18 | Not Available | hood Spring | KO-2402311 | Not Available |
| 19 | Not Available | nut # 10-32 | KO-0200378 | Not Available |
| 20 | Not Available | Star washer # 10 x .204 | KO-0402719 | Not Available |
| 21 | Not Available | Bag Support prior to 1/01 key Part no. deScrIPtIon | KO-1311265 | Not Available |
| 21 | Not Available | Bag Support after 1/01 | KO-1321272 | Not Available |
| 22 | Not Available | Screw # 10-32 x 5/8 U310Z U510Z U530Z | KO-0107425 | Not Available |
| 23 | Not Available | Ball | KO-2600013 | Not Available |
| 24 | Not Available | Bag Knob Spacer U210 U230 | KO-0509976 | Not Available |
| 25 | Not Available | Bag Knob prior to 1/01 | KO-1311257 | Not Available |
| 25 | Not Available | Bag Knob after 1/01 U310Z U510Z U530Z | KO-1321264 | Not Available |
| 26 | Not Available | Screw # 10-32 x 3/4 | KO-0107433 | Not Available |
| 27 | Not Available | Screw type B # 6 x 5 5/16 | KO-0101543 | Not Available |
| 28 | Not Available | Spring | KO-2400141 | Not Available |
| 29 | Not Available | permanent cloth Bag ass’y | KO-4617825 | Not Available |
| 29B | Not Available | Bag coupling gasket 31 er-407 Paper Bag commercial | KO-1205509 | Not Available |
| 29D | Not Available | plastic Strap | KO-1313865 | Not Available |
| 30 | Not Available | Zipper Bag ass’y commercial | KO-4619425 | Not Available |
| 30 | Not Available | Zipper Bag ass’y | KO-4617833 | Not Available |
| 30B | Not Available | paper Bag connector | KO-1311281 | Not Available |
| 30D | Not Available | Zipper Bag hose | KO-1205483 | Not Available |
| 31 | Not Available | paper Bag | KO-4502209 | Not Available |
| 32 | Not Available | Bag clip | KO-4503124 | Not Available |
| 33 | Not Available | hexagonal nut 8-32 | KO-0200071 | Not Available |
| 34 | Not Available | Star washer | KO-0402719 | Not Available |
| 35 | Not Available | Screw 8-32 x 3/8 | KO-0112474 | Not Available |

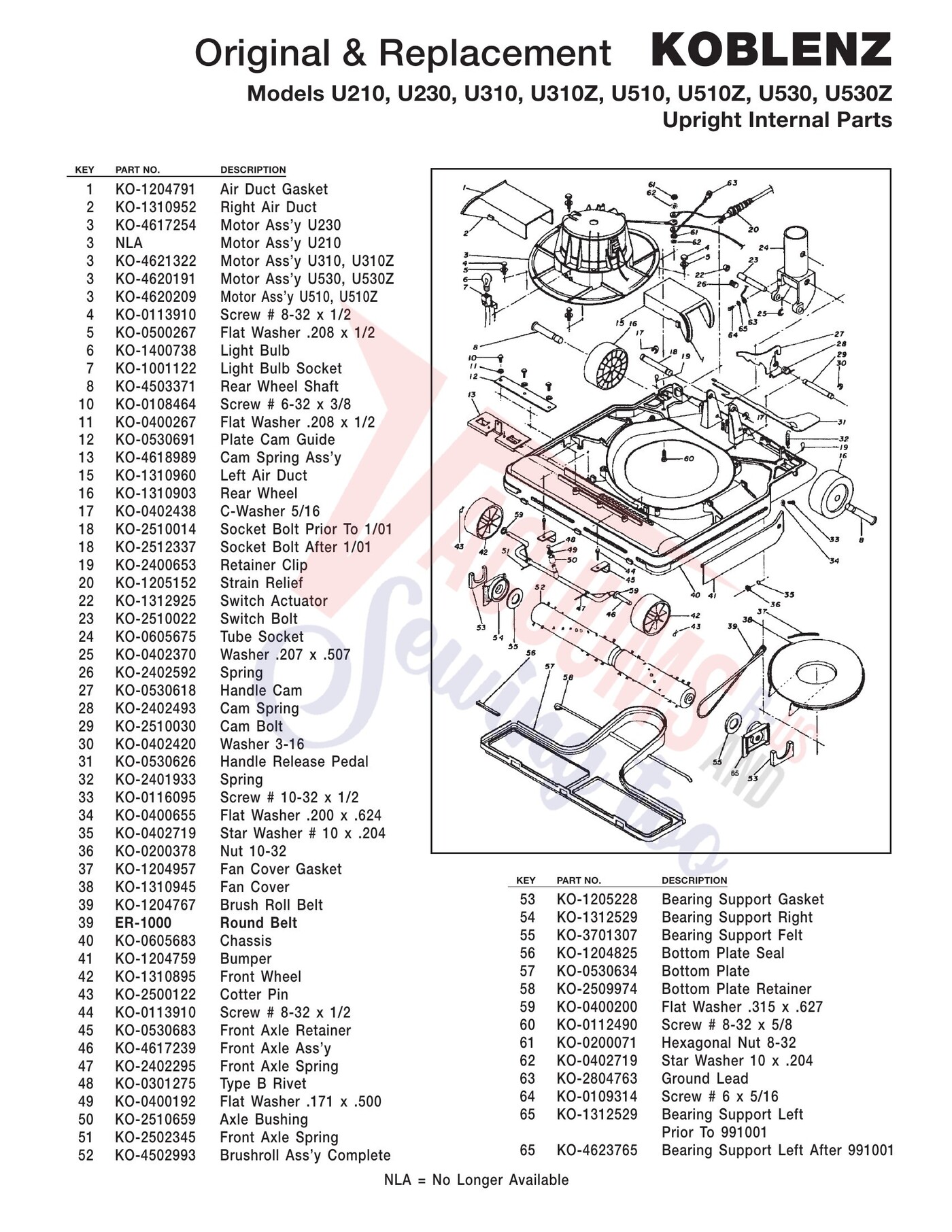

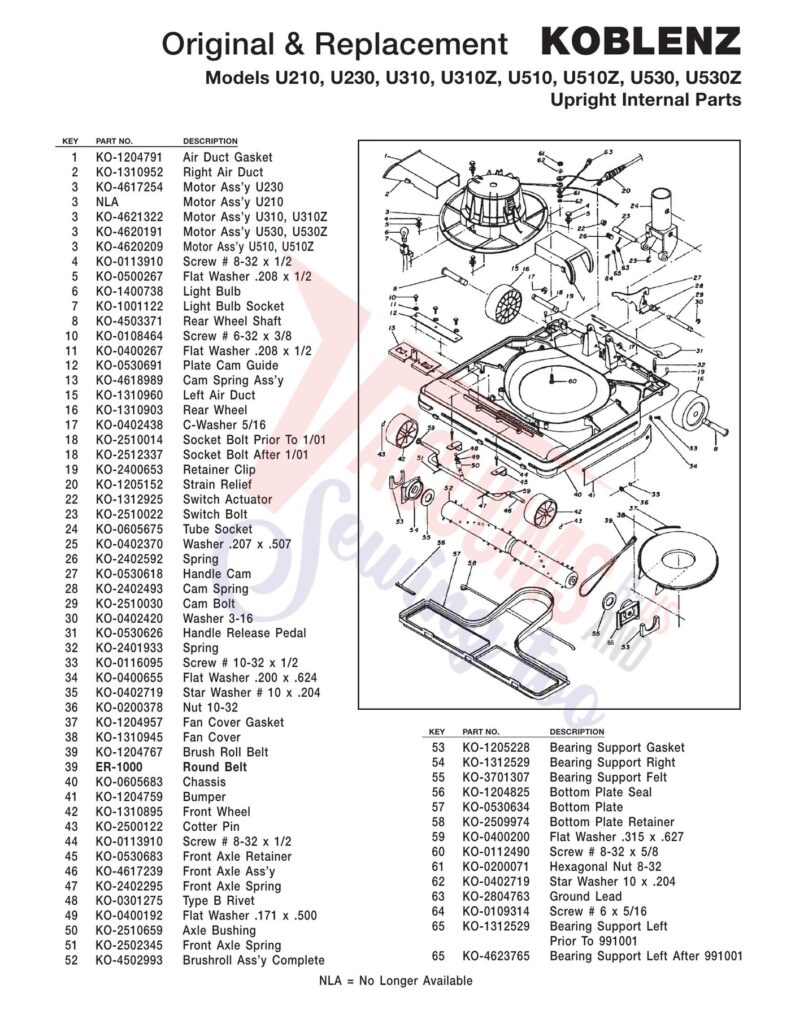

| # | Part image | Description | SKU | Price |
| 1 | Not Available | air Duct gasket | KO-1204791 | Not Available |
| 2 | Not Available | Right air Duct | KO-1310952 | Not Available |
| 3 | Not Available | motor ass’y U230 | KO-4617254 | Not Available |
| 3 | Not Available | motor ass’y U210 | NLA | Not Available |
| 3 | Not Available | motor ass’y U310 U310Z | KO-4621322 | Not Available |
| 3 | Not Available | motor ass’y U530 U530Z | KO-4620191 | Not Available |
| 3 | Not Available | motor ass’y U510 U510Z | KO-4620209 | Not Available |
| 4 | Not Available | Screw # 8-32 x 1/2 | KO-0113910 | Not Available |
| 5 | Not Available | flat washer .208 x 1/2 | KO-0500267 | Not Available |
| 6 | Not Available | light Bulb | KO-1400738 | Not Available |
| 7 | Not Available | light Bulb Socket | KO-1001122 | Not Available |
| 8 | Not Available | Rear wheel Shaft | KO-4503371 | Not Available |
| 10 | Not Available | Screw # 6-32 x 3/8 | KO-0108464 | Not Available |
| 11 | Not Available | flat washer .208 x 1/2 | KO-0400267 | Not Available |
| 12 | Not Available | plate cam guide | KO-0530691 | Not Available |
| 13 | Not Available | cam Spring ass’y | KO-4618989 | Not Available |
| 15 | Not Available | left air Duct | KO-1310960 | Not Available |
| 16 | Not Available | Rear wheel | KO-1310903 | Not Available |
| 17 | Not Available | c-washer 5/16 | KO-0402438 | Not Available |
| 18 | Not Available | Socket Bolt prior to 1/01 | KO-2510014 | Not Available |
| 18 | Not Available | Socket Bolt after 1/01 | KO-2512337 | Not Available |
| 19 | Not Available | Retainer clip | KO-2400653 | Not Available |
| 20 | Not Available | Strain Relief | KO-1205152 | Not Available |
| 22 | Not Available | Switch actuator | KO-1312925 | Not Available |
| 23 | Not Available | Switch Bolt | KO-2510022 | Not Available |
| 24 | Not Available | tube Socket | KO-0605675 | Not Available |
| 25 | Not Available | washer .207 x .507 | KO-0402370 | Not Available |
| 26 | Not Available | Spring | KO-2402592 | Not Available |
| 27 | Not Available | handle cam | KO-0530618 | Not Available |
| 28 | Not Available | cam Spring | KO-2402493 | Not Available |
| 29 | Not Available | cam Bolt | KO-2510030 | Not Available |
| 30 | Not Available | washer 3-16 | KO-0402420 | Not Available |
| 31 | Not Available | handle Release pedal | KO-0530626 | Not Available |
| 32 | Not Available | Spring | KO-2401933 | Not Available |
| 33 | Not Available | Screw # 10-32 x 1/2 | KO-0116095 | Not Available |
| 34 | Not Available | flat washer .200 x .624 | KO-0400655 | Not Available |
| 35 | Not Available | Star washer # 10 x .204 | KO-0402719 | Not Available |
| 36 | Not Available | nut 10-32 | KO-0200378 | Not Available |
| 37 | Not Available | fan cover gasket | KO-1204957 | Not Available |
| 38 | Not Available | fan cover key Part no. deScrIPtIon | KO-1310945 | Not Available |
| 39 | Not Available | Brush Roll Belt | KO-1204767 | Not Available |
| 40 | Not Available | chassis | KO-0605683 | Not Available |
| 41 | Not Available | Bumper | KO-1204759 | Not Available |
| 42 | Not Available | front wheel | KO-1310895 | Not Available |
| 43 | Not Available | cotter pin | KO-2500122 | Not Available |
| 44 | Not Available | Screw # 8-32 x 1/2 | KO-0113910 | Not Available |
| 45 | Not Available | front axle Retainer | KO-0530683 | Not Available |
| 46 | Not Available | front axle ass’y | KO-4617239 | Not Available |
| 47 | Not Available | front axle Spring | KO-2402295 | Not Available |
| 48 | Not Available | type B Rivet | KO-0301275 | Not Available |
| 49 | Not Available | flat washer .171 x .500 | KO-0400192 | Not Available |
| 50 | Not Available | axle Bushing | KO-2510659 | Not Available |
| 51 | Not Available | front axle Spring | KO-2502345 | Not Available |
| 52 | Not Available | Brushroll ass’y complete | KO-4502993 | Not Available |
| 53 | Not Available | Bearing Support gasket | KO-1205228 | Not Available |
| 54 | Not Available | Bearing Support Right | KO-1312529 | Not Available |
| 55 | Not Available | Bearing Support felt | KO-3701307 | Not Available |
| 56 | Not Available | Bottom plate Seal | KO-1204825 | Not Available |
| 57 | Not Available | Bottom plate | KO-0530634 | Not Available |
| 58 | Not Available | Bottom plate Retainer | KO-2509974 | Not Available |
| 59 | Not Available | flat washer .315 x .627 | KO-0400200 | Not Available |
| 60 | Not Available | Screw # 8-32 x 5/8 | KO-0112490 | Not Available |
| 61 | Not Available | hexagonal nut 8-32 | KO-0200071 | Not Available |
| 62 | Not Available | Star washer 10 x .204 | KO-0402719 | Not Available |
| 63 | Not Available | ground lead | KO-2804763 | Not Available |
| 64 | Not Available | Screw # 6 x 5/16 | KO-0109314 | Not Available |
| 65 | Not Available | Bearing Support left | KO-1312529 | Not Available |
| 65 | Not Available | Bearing Support left after 991001 | KO-4623765 | Not Available |

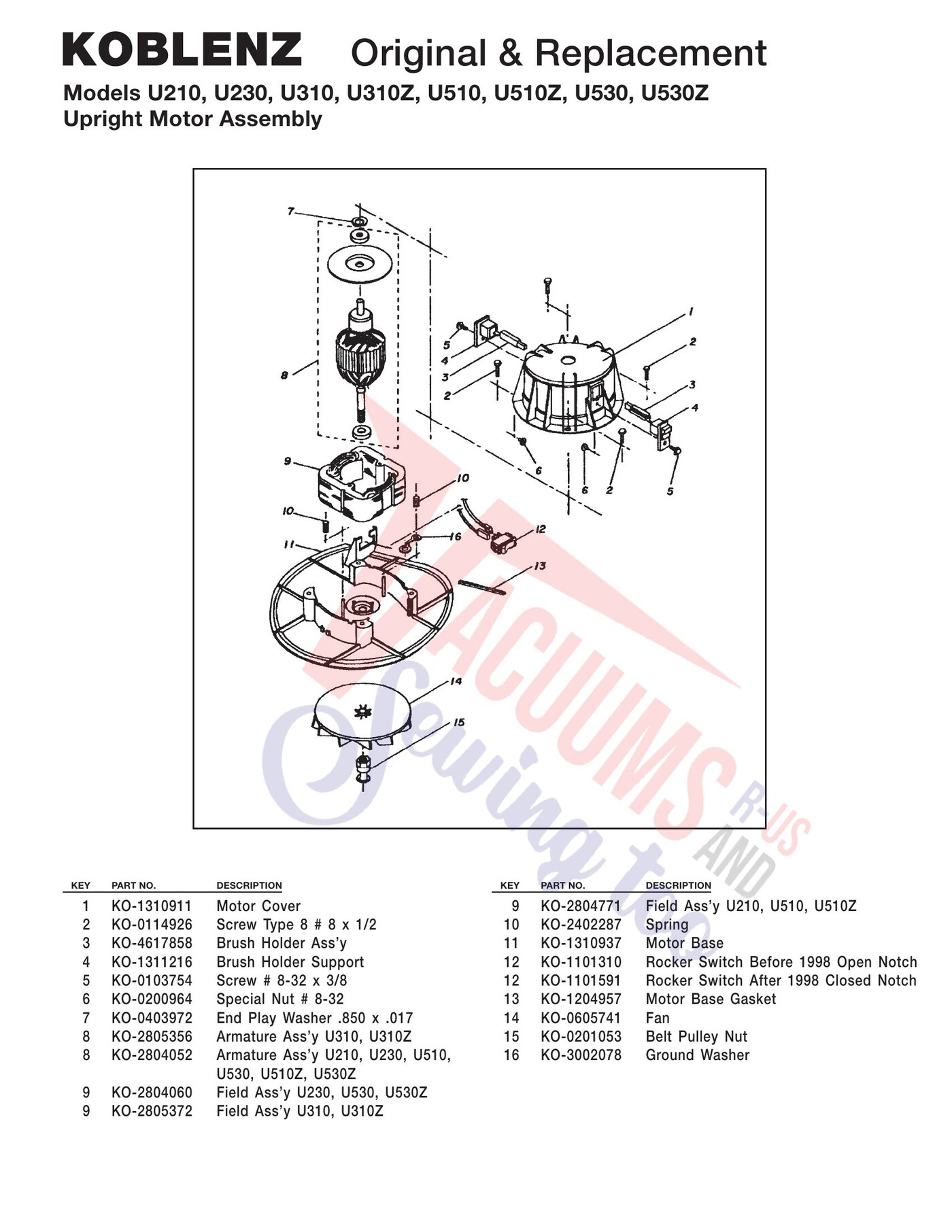

| # | Part image | Description | SKU | Price |
| 1 | Not Available | motor cover | KO-1310911 | Not Available |
| 2 | Not Available | Screw type 8 # 8 x 1/2 | KO-0114926 | Not Available |
| 3 | Not Available | Brush holder ass’y | KO-4617858 | Not Available |
| 4 | Not Available | Brush holder Support | KO-1311216 | Not Available |
| 5 | Not Available | Screw # 8-32 x 3/8 | KO-0103754 | Not Available |
| 6 | Not Available | Special nut # 8-32 | KO-0200964 | Not Available |
| 7 | Not Available | End play washer .850 x .017 | KO-0403972 | Not Available |
| 8 | Not Available | armature ass’y U310 U310Z | KO-2805356 | Not Available |
| 8 | Not Available | armature ass’y U210 U230 U510 | KO-2804052 | Not Available |
| 9 | Not Available | field ass’y U210 U510 U510Z | KO-2804771 | Not Available |
| 9 | Not Available | field ass’y U230 U530 U530Z | KO-2804060 | Not Available |
| 9 | Not Available | field ass’y U310 U310Z | KO-2805372 | Not Available |
| 10 | Not Available | Spring | KO-2402287 | Not Available |
| 11 | Not Available | motor Base | KO-1310937 | Not Available |
| 12 | Not Available | Rocker Switch Before 1998 Open notch | KO-1101310 | Not Available |
| 12 | Not Available | Rocker Switch after 1998 closed notch | KO-1101591 | Not Available |
| 13 | Not Available | motor Base gasket | KO-1204957 | Not Available |
| 14 | Not Available | fan | KO-0605741 | Not Available |
| 15 | Not Available | Belt pulley nut | KO-0201053 | Not Available |
| 16 | Not Available | ground washer | KO-3002078 | Not Available |
