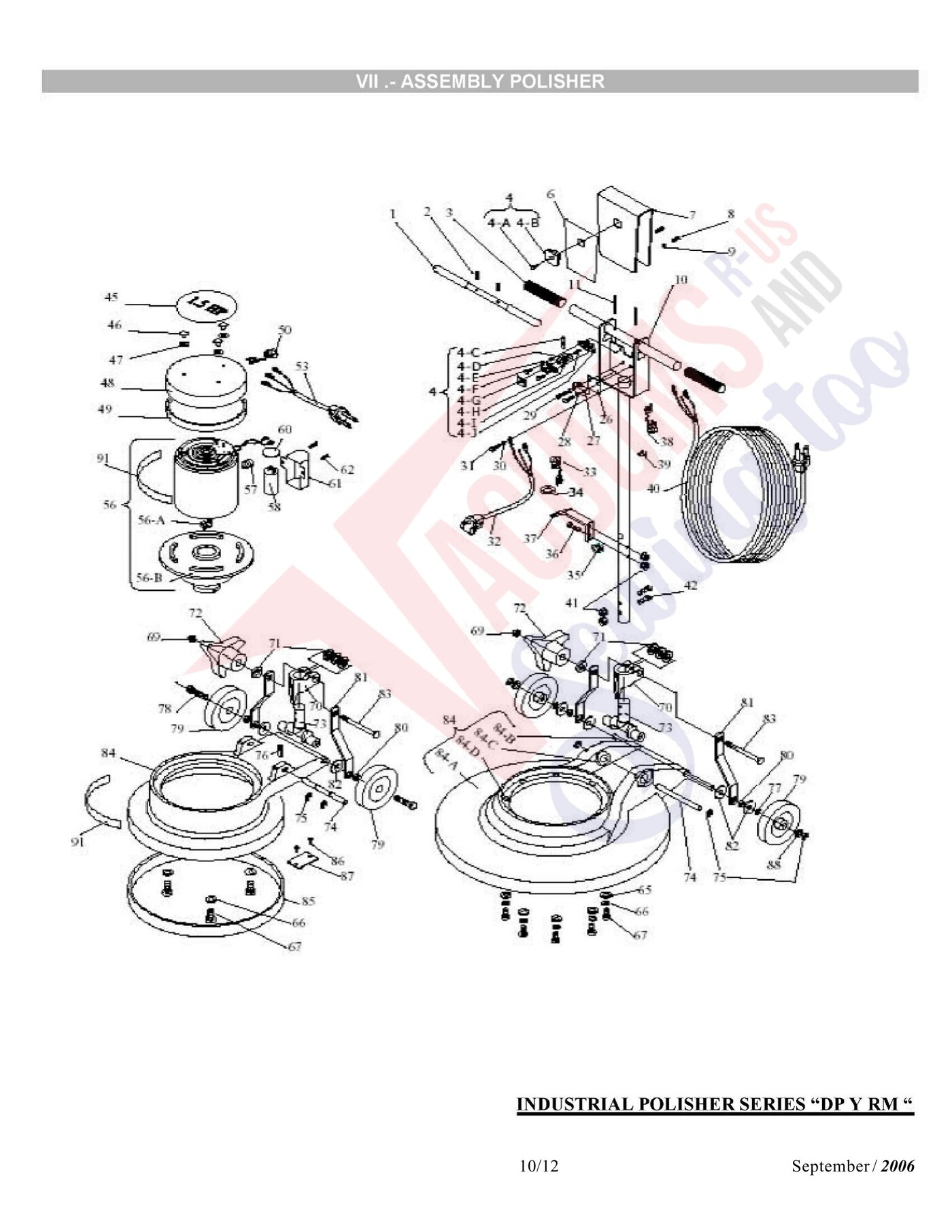

Schematic and parts book for Koblenz RM1715 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| No | Not Available | DESCRIPTION | PART | Not Available |
| No | Not Available | DESCRIPTION | PART | Not Available |
| No | Not Available | DESCRIPTION | PART | Not Available |
| 1 |  | LEVER, HANDLE B-1500-P Part Number: 05-3979-1 for Koblenz | 0539791 | $29.38Read more |
| 2 | Not Available | Spring | 24-0292-3 | Not Available |
| 3 | Not Available | handle Tube Upper | 12-0830-5 | Not Available |
| 4 | No Image | Switch, Saftey Kit B1500 Part Number: 45-0534-3 for Koblenz | 4505343 | $32.47Read more |
| 4-A | No Image | SCREW, TYPE B 6X3/8 U210 Part Number: 01-0272-3 for Koblenz | 0102723 | $1.63Read more |
| 4-B | Not Available | Sure Button | 13-2209-8 | Not Available |
| 4-C | Not Available | Piston of the Insurance | 13-2205-6 | Not Available |
| 4-D | Not Available | Sure | 13-2206-4 | Not Available |
| 4-E | Not Available | It cover Box it Guides of the insurance | 13-2208-0 | Not Available |
| 4-F | Not Available | Screw # 8-32x1/2 | 01-1732-5 | Not Available |
| 4-G | Not Available | Dust Cover | 37-0225-5 | Not Available |
| 4-H | Not Available | Tubular Separator | 05-3536-9 | Not Available |
| 4-I | Not Available | Spring | 24-0292-3 | Not Available |
| 4-J | Not Available | Box Guides Of the Insurance | 13-2207-2 | Not Available |
| 6 | Not Available | Switch Box Label Polisher | 17-3782-4 | Not Available |
| 7 | Not Available | Switch Box Cover Black | 05-3975-9 | Not Available |
| 8 | Not Available | Screw #8-32x1" | 01-1984-2 | Not Available |
| 9 | Not Available | Star Washer # | 04-0276-8 | Not Available |
| 10 | Not Available | Assemble handle | 23-0655-3 | Not Available |
| 10 | Not Available | Assemble handle | 23-0704-9 | Not Available |
| 11 | Not Available | Bolt with Head | 03-0593-8 | Not Available |
| 26 | Not Available | Insulator Switch | 08-1857-5 | Not Available |
| 27 | No Image | SWITCH, MICRO Part Number: 11-0096-5 for Koblenz | 1100965 | $69.94Read more |
| 28 | Not Available | Star Washer # | 04-0275-0 | Not Available |
| 29 | No Image | SCREW, 3/32 X 1 Part Number: 01-0851-4 for Koblenz | 0108514 | $1.60Read more |
| 30 | Not Available | Star Washer # | 04-0493-9 | Not Available |
| 31 | Not Available | Screw Hexagonal #6-32x3/8" | 01-0852-2 | Not Available |
| 32 | No Image | CORD, HANDLE Part Number: 28-0672-7 for Koblenz | 2806727 | $32.78Read more |
| 33 | Not Available | Grommet Heyco 0.062 | 12-0414-8 | Not Available |
| 34 | Not Available | Washer | 04-0036-6 | Not Available |
| 35 | Not Available | Grommet of Rubber | 12-0115-1 | Not Available |
| 36 | Not Available | Allen Screw 5/16-24x3/4" | 01-1724-2 | Not Available |
| 36 | Not Available | Screw Hexagonal /-20x3/4" | 01-0870-4 | Not Available |
| 37 | Not Available | Hook Cord | 06-0486-8 | Not Available |
| 37 | Not Available | Hook Cord | 05-4275-3 | Not Available |
| 38 | Not Available | Grommet Assembly | 45-0456-9 | Not Available |
| 38 | Not Available | Grommet Heyco 0.187 | 12-0313-2 | Not Available |
| 39 | Not Available | Connector of Pressure 2 x | 10-0140-3 | Not Available |
| 40 | Not Available | Line Cord Assembly | 28-1078-6 | Not Available |
| 41 | Not Available | Elastic Nut /-20 | 02-0092-3 | Not Available |
| 42 | Not Available | Screw Hexagonal Head | 01-1769-7 | Not Available |
| 45 | Not Available | 1.0 HP Label | 17-3035-7 | Not Available |
| 45 | Not Available | % HP Label | 17-3845-9 | Not Available |
| 45 | Not Available | 1.5 HP Label | 17-3036-5 | Not Available |
| 45 | Not Available | 2 Speed Label | 17-3882-2 | Not Available |
| 46 | Not Available | Screw ( 10-32x % " ) | 01-1731-7 | Not Available |
| 47 | Not Available | Washer | 04-0100-0 | Not Available |
| 48 | Not Available | Motor Cover Black | 05-3998-1 | Not Available |
| 48 | Not Available | Motor Cover | 05-3765-4 | Not Available |
| 48 | Not Available | Motor Cover Gray | 05-4373-6 | Not Available |
| 48 | Not Available | 2 Speed Motor Cover | 05-3981-7 | Not Available |
| 49 | Not Available | Motor Top Cover Gasket | 12-0829-7 | Not Available |
| 49 | Not Available | Motor Top Cover Gasket | 12-0692-9 | Not Available |
| 50 | Not Available | Grommet Heyco 0.062 | 12-0414-8 | Not Available |
| 51 | Not Available | Pressure Connector | 10-0140-3 | Not Available |
| 52 | Not Available | Screw | 01-1626-9 | Not Available |
| 53 | Not Available | Motor Cable / Contact Assembly | 28-0671-9 | Not Available |
| 53 | Not Available | Motor Cable /Contact Assembly 2 Speed | 28-1079-4 | Not Available |
| 54 | Not Available | Label Speed Low / High | 17-3788-1 | Not Available |
| 55 | Not Available | Switch On-Off | 11-0181-5 | Not Available |
| 56 | Not Available | Motor/Trans Gear Box 3/4 | 46-2793-1 | Not Available |
| 56 | Not Available | Motor/Trans Gear Box 1.0 HP | 46-2372-4 | Not Available |
| 56 | Not Available | Motor/Trans Gear Box 1.5 HP | 46-2373-2 | Not Available |
| 56 | Not Available | Motor/Trans Gear Box 1.5 HP 2 Speed | 44-0346-5 | Not Available |
| 56 | Not Available | Motor/Trans Gear Box 1.5 HP | 46-3114-9 | Not Available |
| 56-A |  | Shear Pin, Bonnet Scrubber TP2015 Part Number: 45-0394-2 for Koblenz | 4503942 | $6.36Read more |
| 56-B | Not Available | % reduction Assembly | 46-2887-1 | Not Available |
| 56-B | Not Available | Reduction Assembly | 46-2214-8 | Not Available |
| 56-B | Not Available | 1.5 Reduction Assembly | 46-3117-2 | Not Available |
| 57 | Not Available | Grommet | 12-0024-5 | Not Available |
| 58 | Not Available | Capacitor 540-648-MF | 15-0012-3 | Not Available |
| 58 | Not Available | Capacitor 400-480 MF | 15-0011-5 | Not Available |
| 58 | Not Available | Capacitor 590-708 MF | 15-0013-1 | Not Available |
| 59 | Not Available | Capacitor 40 MF | 15-0678-1 | Not Available |
| 60 | Not Available | Capacitor Insulator | 08-0979-8 | Not Available |
| 61 | Not Available | Capacitor Cover Black | 05-0211-2 | Not Available |
| 61 | Not Available | Capacitor Cover Chromed | 05-3567-4 | Not Available |
| 61 | Not Available | Capacitor Cover Gray | 05-3568-2 | Not Available |
| 62 | No Image | SCREW, SELF TAPPING Part Number: 01-1093-2 for Koblenz | 0110932 | $1.63Read more |
| 63 | Not Available | Motor Cover 1.5 HP | 23-0587-8 | Not Available |
| 63 | Not Available | Motor Cover 1.5 HP | 23-0588-6 | Not Available |
| 63 | Not Available | Motor Cover 2 Speed | 23-0677-7 | Not Available |
| 64 | Not Available | Fast Nut | 02-0071-7 | Not Available |
| 65 | No Image | SCREW, 8X 3/8 Part Number: 01-0068-5 for Koblenz | 0100685 | $1.60Read more |
| 66 | Not Available | Pressure Washer 5/16 | 04-0144-8 | Not Available |
| 67 | Not Available | Screw (5/16-18 x 1 1/2 " ) | 01-1777-0 | Not Available |
| 67 | Not Available | Screw (5/16-18 x 1 " ) | 01-1771-3 | Not Available |
| 68 |  | Lever, Assembly TP-2015/TP-1710/TP-1715 Part Number: 46-2231-2 for Koblenz | 4622312 | $48.22Read more |
| 68-A | Not Available | Lever Grip | 12-0617-6 | Not Available |
| 69 | Not Available | Nut Acorn | 02-0119-4 | Not Available |
| 69 | Not Available | Washer | 05-3582-3 | Not Available |
| 70 | Not Available | Tub Clamp | 06-0404-1 | Not Available |
| 71 | Not Available | Flat Washer 3/8" | 04-0073-9 | Not Available |
| 72 | Not Available | Knob butterflies | 06-0865-3 | Not Available |
| 72 |  | KNOB, ADJUSTMENT Part Number: 45-0451-0 for Koblenz | 4504510 | $35.89Read more |
| 73 | Not Available | Tube Socket | 06-0771-3 | Not Available |
| 74 | Not Available | Socket Axle | 25-0155-9 | Not Available |
| 75 | Not Available | Lock Truarc 5103-50 | 04-0352-7 | Not Available |
| 75 | Not Available | Clamp Truarc | 04-0585-2 | Not Available |
| 76 | Not Available | Oppressor Allen (3/8-16x3/8 ) | 01-1012-2 | Not Available |
| 77 | Not Available | Washer | 04-0397-2 | Not Available |
| 78 | Not Available | Screw Hexagonal Heat ^-13x3 | 01-1704-4 | Not Available |
| 79 |  | Wheel, Rear Floor Polisher TP2015/TP1334/TP1710 Part Number: 45-0396-7 for Koblenz | 4503967 | $42.38Read more |
| 79 | Not Available | Wheel Polisher | 45-0573-1 | Not Available |
| 80 | Not Available | Separator of the brace | 25-1210-1 | Not Available |
| 80 | Not Available | Separator of the brace | 25-1291-1 | Not Available |
| 81 | Not Available | Tube | 05-1975-1 | Not Available |
| 81 | Not Available | Tube | 05-4304-1 | Not Available |
| 82 | Not Available | Flat Washer | 04-0074-7 | Not Available |
| 83 | Not Available | Screw (3/8-16x5 ) | 01-1746-5 | Not Available |
| 84 | Not Available | Polisher Base 13" | 06-0843-0 | Not Available |
| 84 | Not Available | Polisher Base | 06-0732-5 | Not Available |
| 84 | Not Available | Polisher Base 17 " | 46-2995-2 | Not Available |
| 84 | No Image | BASE, 20" POLISHER Part Number: 46-2996-0 for Koblenz | 4629960 | $490.89Read more |
| 84-A | Not Available | Chassis 17" | 13-2626-3 | Not Available |
| 84-A | Not Available | Chassis 20" | 13-2627-1 | Not Available |
| 84-B | Not Available | Axis Grooved for Wheel | 25-1314-1 | Not Available |
| 84-C | Not Available | Bushing Axis Yoke | 26-0229-0 | Not Available |
| 84-D | Not Available | Separating Motor Fixation | 05-2330-0 | Not Available |
| 85 | Not Available | Molding chassis 13 " | 12-0667-1 | Not Available |
| 85 | Not Available | Assembly. Plate 17 " | 46-2540-6 | Not Available |
| 85 | Not Available | Assembly. Plate 20 "" | 46-2541-4 | Not Available |
| 85-A | No Image | PLATE, 17" Part Number: 23-0663-7 for Koblenz | 2306637 | $207.68Read more |
| 85-A | Not Available | Assembly Black plate 20 " | 23-0664-5 | Not Available |
| 85-B | Not Available | 17" Plate Gasket | 12-0807-3 | Not Available |
| 85-B | No Image | Bumper, 20" FLOOR MACHINE Part Number: 12-0808-1 for Koblenz | 1208081 | $39.61Read more |
| 86 | Not Available | U Type Rivet | 03-0119-2 | Not Available |
| 87 | Not Available | WARNING Plate | 17-3550-5 | Not Available |
| 88 | Not Available | Washer Stainless Steel | 04-0545-6 | Not Available |
| 89 | Not Available | Flat Washer | 04-0078-8 | Not Available |
| 90 | Not Available | Screw Hexagonal Heat %-20x3/4 | 01-1775-4 | Not Available |
| 91 | Not Available | KOBLENZ Label | 17-3025-8 | Not Available |
