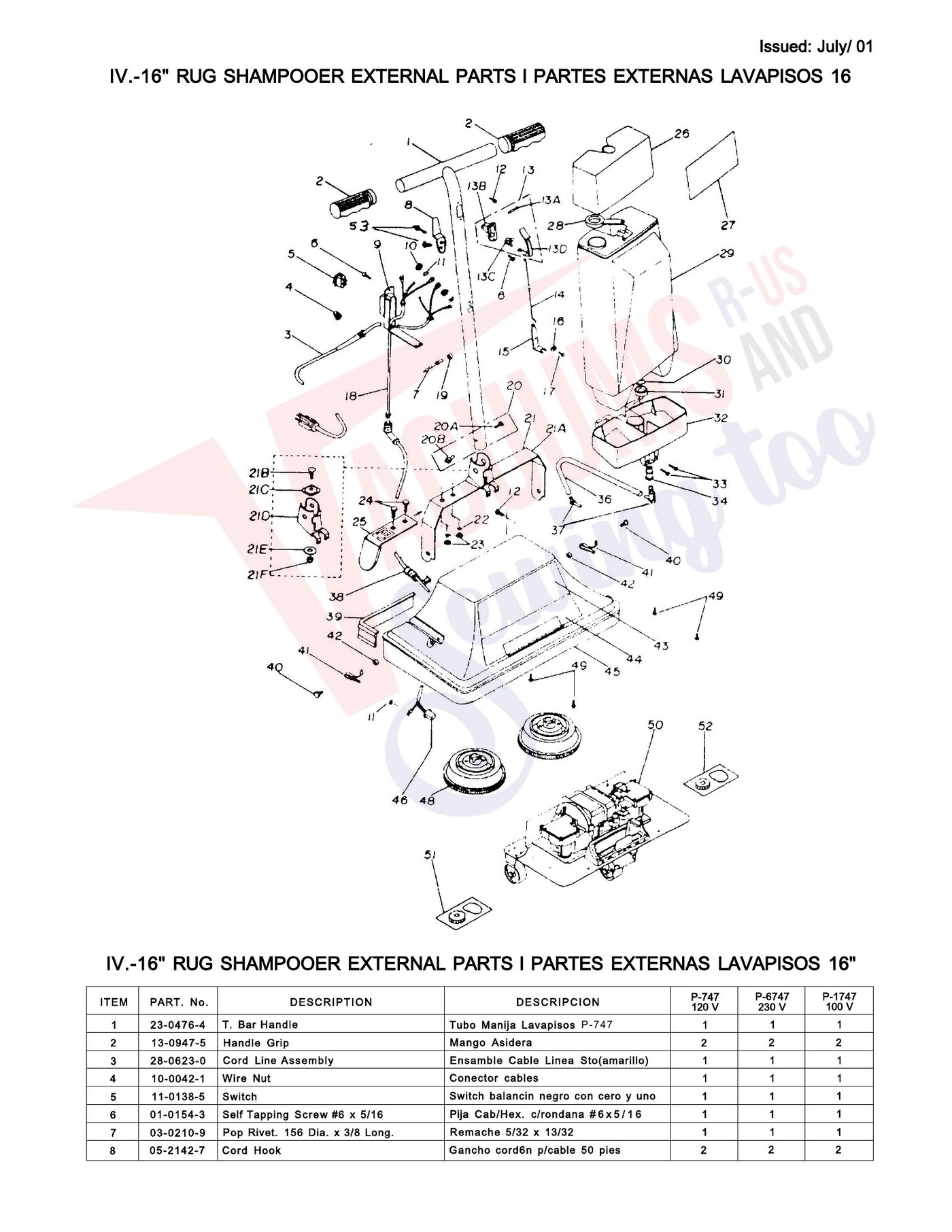

Schematic and parts book for Koblenz p747 scrubber. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | P-6747 | 747 | Not Available |
| 1 | No Image | SCREW, MOTOR MOUNT AND BOTTOM PLATE SELF TAPPING Part Number: 01-1489-2 for Koblenz | 0114892 | $1.63Read more |
| 2 | Not Available | Washer .059 x 0171 x .500 Galv. Rondana plana .059 x .171 x .500 2 2 2 | 04-0019-2 | Not Available |
| 3 | Not Available | Carbon Brush Holder Funda porta escobilla 2 2 2 | 13-1222-2 | Not Available |
| 4 | Not Available | Hexagonal Nut 3/8-24 Tuerca HExagonal 3/8" x 24 2 2 2 | 02-0016-2 | Not Available |
| 5 | Not Available | 16" gear (Fan) Engrane eje ventilador 16" K 1 1 1 | 42-0056-4 | Not Available |
| 6 | Not Available | Washer Felt Washer packing 2 2 2 | 04-0440-0 | Not Available |
| 7 | Not Available | Seal Back Rondana respaldo 2 2 2 | 05-3032-9 | Not Available |
| 8 | Not Available | Seal Rondana sello base 2 2 2 | 12-0516-0 | Not Available |
| 9 | Not Available | Box Switch Caja switch negro 1 1 1 | 13-0946-7 | Not Available |
| 9 | Not Available | Spindle key Cuna eje 2 2 2 | 25-0988-3 | Not Available |
| 10 | Not Available | Hex. Nut # 8-32 - Tuerca hexagonal 8-32 2 2 | 02-0007-1 | Not Available |
| 10 | Not Available | Spindle assembly Sub. Ens. eje casquillo 16" k 2 2 2 | 46-2046-4 | Not Available |
| 11 | Not Available | Star Washer Rondana estrella # 8 2 2 | 04-0276-8 | Not Available |
| 12 | Not Available | Screw #8-32 x 5/8 Long. Tor. cab. fijadora phillips 8-32 x 5/8 1 1 1 | 01-1249-0 | Not Available |
| 12 | Not Available | Spindle cap kit Ensamble casquillo eje 2 2 2 | 46-1808-8 | Not Available |
| 13 |  | Lever, Polish W/Support P2500A/P2600/P4000 Part Number: 46-1865-8 for Koblenz | 4618658 | $29.64Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | Fan gear cover gasket Empaque caja grasa lado ventilador 1 1 1 | 37-0108-3 | Not Available |
| 14 |  | Rod, Valve Control P747/P2600/P4000 Part Number: 09-0811-1 for Koblenz | 0908111 | $3.89Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | 16" gear cover Ens. tapa c/barrera ventilador 16" 1 1 1 | 23-0501-9 | Not Available |
| 15 | Not Available | Valve Hook Gancho valvula 1 1 1 | 05-2197-1 | Not Available |
| 15 | Not Available | Hexagonal Screw No. 6 x 1/2 Pija cab. hex. #6x1/2 tipo B ran 14 14 14 | 01-1591-5 | Not Available |
| 16 | Not Available | Valve Hook Spacer Separador tor. G valvula 1 1 1 | 05-2223-5 | Not Available |
| 16 | Not Available | Armature bearing block Reten cojinete 2 2 2 | 06-0591-5 | Not Available |
| 17 | No Image | SCREW, SELF TAPPING Part Number: 01-0154-3 for Koblenz | 0101543 | $0.86Read more |
| 17 | Not Available | Armature bearing kit (fan) Juego cojinetes lado ventilador 1 1 1 | 46-1804-7 | Not Available |
| 18 | Not Available | Motor Cord Assembly Ens. cable motor sto (amarillo) 1 1 1 | 28-0625-5 | Not Available |
| 18 | Not Available | Star washer Num 8 Rondana estrella # 8 15 15 15 | 04-0276-8 | Not Available |
| 19 | Not Available | Spacer Hold Down Separador tanque 1 1 1 | 25-0789-5 | Not Available |
| 19 | Not Available | Hexagonal Nut 8-32 Tuerca hexagonal # 8-32 14 14 14 | 02-0007-1 | Not Available |
| 20 |  | SCREW, W/NUT VALVE HOOK P2500/2600 Part Number: 45-0330-6 for Koblenz | 4503306 | $6.07Read more |
| 20 | Not Available | Connector block support Reten bloque 3 vias 1 1 1 | 05-2718-4 | Not Available |
| 21 | Not Available | Yoke Socket Assembly Ensamble yugo-socket 1 1 1 | 46-1812-0 | Not Available |
| 21 | Not Available | Block connector 3 way (female) Bloque 3 vias conector hembra 1 1 1 | 10-0053-8 | Not Available |
| 22 | Not Available | Star Washer Rondana estrella N° 10 x .204 2 2 2 | 04-0271-9 | Not Available |
| 22 | Not Available | Carbon brush and spring Ens. escobilla con resorte 2 2 2 | 46-1806-2 | Not Available |
| 23 | Not Available | Hex Nut # 10-24 Tuerca hex. 10-24 NC Acer galv. 2 & 2 | 02-0015-4 | Not Available |
| 23 | Not Available | 16" Armature 120 V Armadura lavapisos 16" 120 V 1 | 28-0457-3 | Not Available |
| 23 | Not Available | 16" Armature 230 V Armadura lavapisos 16" 230 V 1 | 28-0469-8 | Not Available |
| 23 | Not Available | 16" Armature 100 V Armadura lavapisos 16" 100 V 1 | 28-0484-7 | Not Available |
| 24 | Not Available | Screw Mach # 10-24 3/8 Long. Tornillo maq. cab hex #10-24 x 3/8 2 2 2 | 01-0861-3 | Not Available |
| 24 | Not Available | Armature bearing kit (commutator) Juego cojinete lado conmutador 1 1 1 | 46-1805-4 | Not Available |
| 25 | Not Available | Transport Handle Assembly Ensamble de manija transporte 1 1 1 | 46-1813-8 | Not Available |
| 26 | Not Available | Container Top Tapa sup. tanque c/imp. lavalfombras 16" 1 1 1 | 13-1406-1 | Not Available |
| 26 | Not Available | Locking screw ball Pelet de nylon Hanna 1 1 1 | 13-1233-9 | Not Available |
| 27 | Not Available | Container Top Label Etiqueta tapa sup. tanque 16" Koblenz 1 1 1 | 17-2476-4 | Not Available |
| 27 | Not Available | Armature thrust screw Tornillo ajuste armadura 1 1 1 | 01-1587-3 | Not Available |
| 28 | No Image | Tank Cap-Koblenz Shampooers For: koblenz | 1300649 | $1.38Add to cart Special order: ships in 2 to 4 weeks |
| 28 | Not Available | Gear cover gasket (Comm) Empaque caja grasa lado conmutador 1 1 1 | 37-0111-7 | Not Available |
| 29 |  | Tank, W/Valve Cover 144oz P-1500/P-1800 Part Number: 45-0140-9 for Koblenz | 4501409 | $44.66Add to cart Special order: ships in 2 to 4 weeks |
| 29 | Not Available | Hex screw 6 x 7/8" Pija cabeza hex 6 x 7/8 ranurada tipo B 4 4 4 | 01-1583-2 | Not Available |
| 30 |  | Washer For Fluid Dispenser For: koblenz | 0401364 | $1.14Add to cart Special order: ships in 2 to 4 weeks |
| 30 | Not Available | Motor Shroud Cubierta motor 16" Koblenz 1 1 1 | 13-1299-0 | Not Available |
| 31 |  | Cover, Off-White Plastic Valve P2000/P2500/P2600 Part Number: 13-0068-0 for Koblenz | 1300680 | $2.91Add to cart Special order: ships in 2 to 4 weeks |
| 31 | Not Available | Field Support Soporte p/campo templado 2 2 2 | 05-1085-9 | Not Available |
| 32 | No Image | Base, Black Container Shampoo/Polisher P4000 Part Number: 13-0948-3 for Koblenz | 1309483 | $25.01Read more |
| 32 | Not Available | 16" Field 1 Speed 120 V Campo lavapisos 16" 120 V 1 vel. 1 | 28-0458-1 | Not Available |
| 32 | Not Available | 16" Field 1 Speed 230 V Ens. campo 16" 230 V 1 vel. 1 | 28-0470-6 | Not Available |
| 32 | Not Available | 16" Field 1 Speed 100 V Campo lavapisos 16" 100 V 1 vel. 1 | 28-0485-4 | Not Available |
| 33 | No Image | SCREW, SELF TAPPING Part Number: 01-1093-2 for Koblenz | 0110932 | $1.63Read more |
| 33 | Not Available | 16" gear (Comm) Engrane eje conmutador 16" K 1 1 1 | 42-0057-2 | Not Available |
| 34 |  | Gasket, Circular Black Rubber Tank Support P2500A Part Number: 12-0694-5 for Koblenz | 1206945 | $2.64Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Spindle insulator cap assembly Ensamble eje cepillo 16" k 2 2 2 | 46-2062-1 | Not Available |
| 35 | Not Available | Rear wheel yoke Horquilla rueda trasera 2 2 2 | 05-3170-7 | Not Available |
| 36 | Not Available | Hose Manguera .240 .240 .240 | 13-0076-3 | Not Available |
| 36 | Not Available | Star washer Roldana estrella 6 6 6 | 04-0270-1 | Not Available |
| 37 |  | Elbow Hose Connector/Koblenz For: sanyo | 1300656 | $1.11Add to cart Special order: ships in 2 to 4 weeks |
| 37 | Not Available | Hex nut 1/4-20 Tuerca hex. 1/4-20 3 3 3 | 02-0012-1 | Not Available |
| 38 | Not Available | Pigtail Strain Relief Gromet Heyco p/cable ST & STO N° 137 1 1 1 | 12-0413-0 | Not Available |
| 38 | Not Available | Hex screw 1/4-20 x 1 1/2 Tornillo cab. hex. 1/4-20 x 1 1/2 3 3 3 | 01-0416-6 | Not Available |
| 39 | Not Available | Bumper Bisel cubierta 1 1 1 | 12-0506-1 | Not Available |
| 39 | Not Available | Hex screw 8-32 x 3/8 Tornillo maq. cabeza hex #8-32 x 3/8 18 18 18 | 01-0852-2 | Not Available |
| 40 | Not Available | Hex Head Screw 1/4-20 x 3/4 Tor. cab. hex. 1/4-20 NC x 3/4 2 2 2 | 01-0883-7 | Not Available |
| 40 | Not Available | Wheel Brushing Buje rueda (lavapisos 16") 3 3 3 | 25-1057-6 | Not Available |
| 41 | Not Available | Spring Yoke Muelle yugo 2 2 2 | 24-0144-6 | Not Available |
| 41 | No Image | WHEEL, P-747 Part Number: 12-0568-1 for Koblenz | 1205681 | $9.28Read more |
| 42 | Not Available | Spacer Yoke Pivot Separador Yugo 2 2 2 | 05-3223-4 | Not Available |
| 42 | Not Available | Cam Lever Cover Cubierta leva 1 1 1 | 13-1153-9 | Not Available |
| 43 | Not Available | Enclosure Label Etiqueta de marca 16" Koblenz 1 1 1 | 17-2473-1 | Not Available |
| 44 | Not Available | Level Position Label Etiqueta de posicion ruedas P-747 1 1 1 | 17-2755-1 | Not Available |
| 44 | Not Available | 16" Motor Housing Assembly Ens. base motor 16" Koblenz 1 1 1 | 46-1894-8 | Not Available |
| 45 | Not Available | Cover Ens. cubierta 16" c/guardas 1 1 1 | 23-0502-7 | Not Available |
| 46 | Not Available | Connection Block Bloque 3 vias conector macho 1 1 1 | 10-0054-6 | Not Available |
| 46 | Not Available | Cam Assembly Ens. leva 1 1 1 | 46-1809-6 | Not Available |
| 47 | Not Available | Cam Spacer Espaciador Leva 2 2 2 | 05-3173-1 | Not Available |
| 48 | Not Available | Shampoo Brush Ensamble cepillo alfombras 8" 2 2 2 | 45-0243-1 | Not Available |
| 48 | Not Available | Cam Bearing Cojinete Leva 2 2 2 | 26-0149-0 | Not Available |
| 49 | No Image | SCREW, MOTOR MOUNT AND BOTTOM PLATE SELF TAPPING Part Number: 01-1489-2 for Koblenz | 0114892 | $1.63Read more |
| 50 | Not Available | Motor Pack 16" 120 V =•; C'H^; ' Ensamble motor 16" 120 V 1 | 46-1996-1 | Not Available |
| 50 | Not Available | Motor Pack 16" 230 V Ensamble motor 16" 1 vel. 230 V c/supresor 1 | 46-2033-2 | Not Available |
| 50 | Not Available | Motor Pack 16" 100 V Ensamble motor pulidora 737 1 | 46-2045-6 | Not Available |
| 51 | No Image | Gear Only - Koblenz P-747 (L/H) For: koblenz | 4620233 | $56.88Add to cart Special order: ships in 2 to 4 weeks |
| 51 | Not Available | Self tapping screw #6x3/8 Pija #6x3/8 c. hex. s/ranura pavonada 5 5 5 | 01-1483-5 | Not Available |
| 52 | Not Available | Replacement Gear and Grease (COMM) ( Bolsa ref. engrane 16" derecho conm. 1 1 1 | 46-2022-5 | Not Available |
| 53 | Not Available | Screw 10x3/8 Pija cab Phillips 10 NCX 1/2 4 4 4 | 01-0291-3 | Not Available |
| 53 | Not Available | Yoke pivot retainer Tuerca rapida reten de yugo 2 2 2 | 04-0261-0 | Not Available |
| 54 | Not Available | Wheel yoke pivot Pivote Rueda 1 1 1 | 25-1028-7 | Not Available |
| 55 | Not Available | Wheel spacer Espaciador horquilla frontal 1 1 1 | 05-3175-6 | Not Available |
| 56 | Not Available | Yoke left support Soporte Horquilla izq. 1 1 1 | 05-3174-9 | Not Available |
| 57 | Not Available | Yoke front wheel spring Resorte rueda frontal 1 1 1 | 24-0238-6 | Not Available |
| 58 | Not Available | Yoke right support Soporte horquilla derecha 1 1 1 | 05-3176-4 | Not Available |
| 59 | Not Available | Base plate Placa base 1 1 1 | 05-3169-9 | Not Available |
| 60 | Not Available | Hex. screw 6 x 1/4 Pija N° 6 x 1/4 tipo B cab. Phillips pav. | 01-0061-0 | Not Available |
| 61 | Not Available | Cam wear plate Placa de desgaste leva-templado 1 1 1 | 05-3222-6 | Not Available |
| 62 | Not Available | Front wheel yoke Horquilla rueda frontal 1 1 1 | 05-3178-0 | Not Available |
| 63 | Not Available | Dispenser tray assembly Ensamble charola 1 1 1 | 45-0237-3 | Not Available |
| 64 | Not Available | Dispenser tray eyelet Ojillo charola ] 2 2 2 | 03-0515-1 | Not Available |
| 65 | No Image | SCREW, SELF TAPPING Part Number: 01-0154-3 for Koblenz | 0101543 | $0.86Read more |
