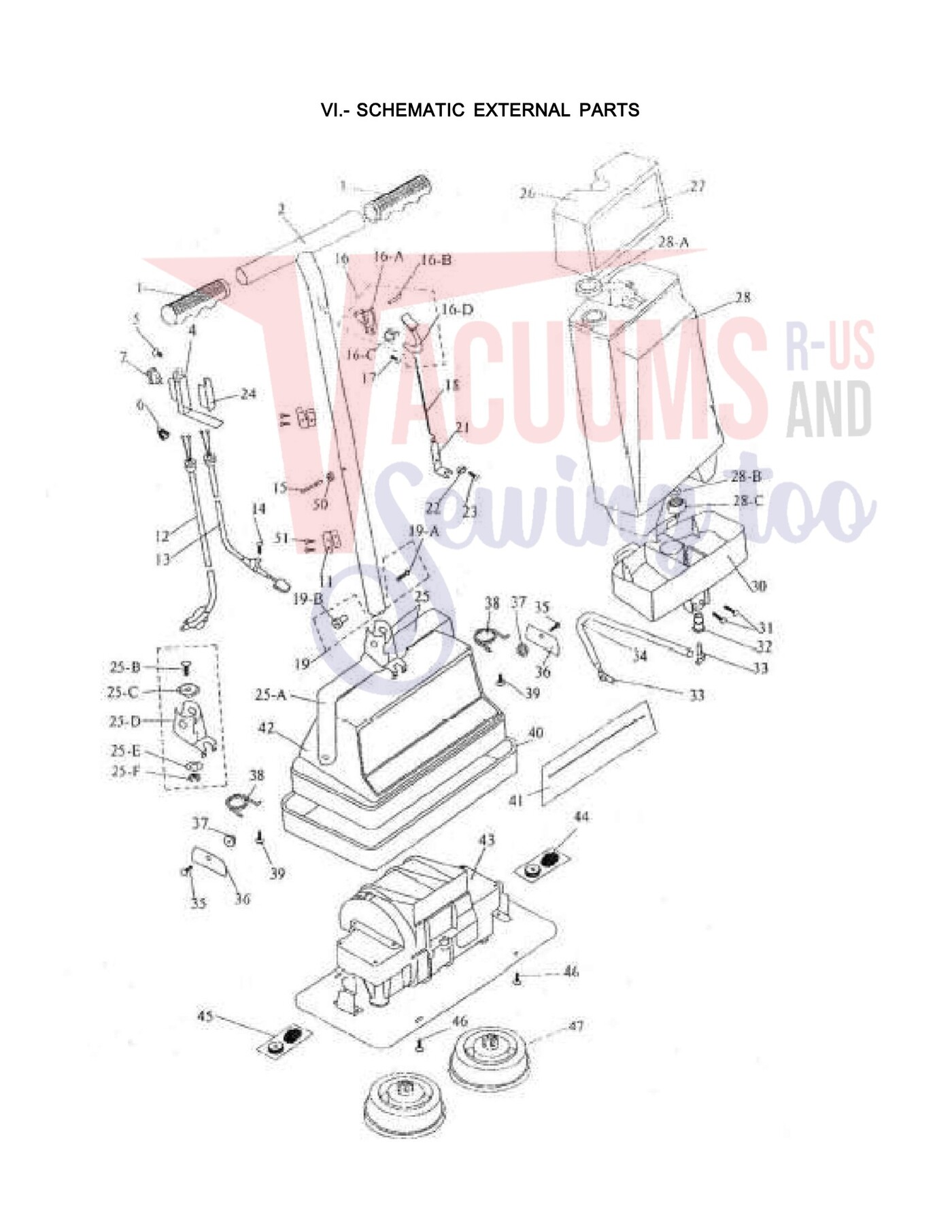

Schematic and parts book for Koblenz p4000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE GRIP 2 | 13-0947-5 | Not Available |
| 2 | Not Available | T-BAR HANDLE TUBE 1 | 23-0476-4 | Not Available |
| 2 | Not Available | SCREW | SELF-TAPPING | Not Available |
| 3 | Not Available | 1-SPEED SWITCH BOX BLACK 1 | 13-0946-7 | Not Available |
| 5 | Not Available | SCREW #6 X 3/8 2 | SELF-TAPPING | Not Available |
| 6 | Not Available | P. NOZZLE WIRE CONNECTOR 1 | 10-0042-1 | Not Available |
| 7 | Not Available | POWER NOZZLE SWITCH 1 | 11-0138-5 | Not Available |
| 8 | Not Available | SCREW #6-20 1 | SELF-TAPPING | Not Available |
| 11 | Not Available | CORD HOOK | 05-2142-7 | Not Available |
| 12 | Not Available | LINE CORD ASSEMBLY 28 FT 1 | 28-1172-7 | Not Available |
| 13 | Not Available | MOTOR CABLE ASSEMBLY 1 | 28-0108-2 | Not Available |
| 15 | Not Available | RIVET 1 | 03-0210-9 | Not Available |
| 16 |  | Lever, Polish W/Support P2500A/P2600/P4000 Part Number: 46-1865-8 for Koblenz | 4618658 | $29.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Rod, Valve Control P747/P2600/P4000 Part Number: 09-0811-1 for Koblenz | 0908111 | $3.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | SCREW, W/NUT VALVE HOOK P2500/2600 Part Number: 45-0330-6 for Koblenz | 4503306 | $6.07Read more |
| 21 | Not Available | VALVE HOOK 1 | 05-2197-1 | Not Available |
| 22 | Not Available | VALVE HOOK SPACER 1 | 05-2223-5 | Not Available |
| 23 | No Image | SCREW, SELF TAPPING Part Number: 01-0154-3 for Koblenz | 0101543 | $0.86Read more |
| 24 | Not Available | WIRING COVER 1 | 08-1825-5 | Not Available |
| 25 | Not Available | CHROME YOKE SOCKET ASSY. 1 | 23-0156-2 | Not Available |
| 26 | Not Available | CONTAINER TOP 1 | 13-1406-1 | Not Available |
| 27 | Not Available | TOP COVER INSERT 1 | 17-2492-1 | Not Available |
| 28 | Not Available | 120 OZ. TANK ASSEMBLY 1 | 45-0015-3 | Not Available |
| 30 | No Image | Base, Black Container Shampoo/Polisher P4000 Part Number: 13-0948-3 for Koblenz | 1309483 | $25.01Read more |
| 32 |  | Gasket, Circular Black Rubber Tank Support P2500A Part Number: 12-0694-5 for Koblenz | 1206945 | $2.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Elbow Hose Connector/Koblenz For: sanyo | 1300656 | $1.11Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | TUBE, HOSE CLEAR FLUID DESPENSING P800 P2000 P2500 Part Number: 13-0071-4 for Koblenz | 1300714 | $1.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | YOKE SPRING COVER CHROMED 2 | 05-3297-8 | Not Available |
| 37 | Not Available | YOKE SPACER 2 | 25-1072-5 | Not Available |
| 38 | Not Available | EXTERIOR YOKE SPRING 2 | 24-0258-4 | Not Available |
| 40 | Not Available | FURNITURE GUARD 1 | 12-0457-7 | Not Available |
| 41 | Not Available | ENCLOSURE INSERT 1 | 17-2494-7 | Not Available |
| 42 | Not Available | DIE CAST COVER PAINTED 1 | 06-0701-0 | Not Available |
| 43 | Not Available | MOTOR ASSEMBLY 1 | 46-1418-6 | Not Available |
| 44 |  | Gear, Bronze Right Hamd W/Grease Pack Part Number: 46-1717-1 for Koblenz | 4617171 | $38.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Gear Only-Koblentz Shampoo - Polisher - Lh - Bronze For: koblenz | 4617189 | $38.37Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | SHAMPOO BRUSH 8 SLOT 2 | KO-4502316 | Not Available |
| 50 | Not Available | HOLD DOWN SPACER 1 | 25-0789-5 | Not Available |

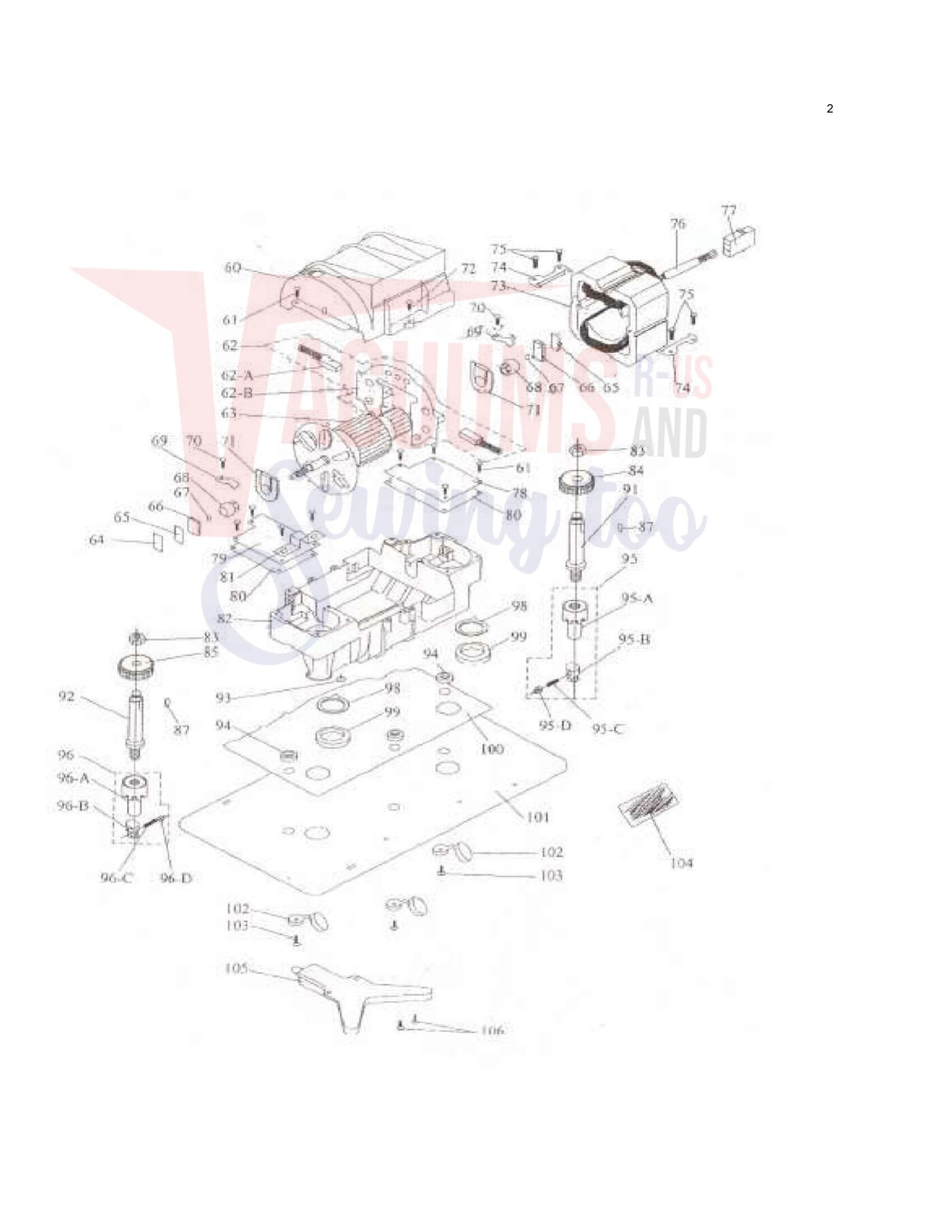

| # | Part image | Description | SKU | Price |
| 60 | No Image | COVER, MOTOR P900 Part Number: 13-1418-6 for Koblenz | 1314186 | $25.60Read more |
| 61 | Not Available | SELF-TAPPING SCREW #6 X 3/8 10 | 01-1483-5 | Not Available |
| 62 | Not Available | BRUSH HOLDER ASS 1 | 28-0324-5 | Not Available |
| 63 | Not Available | ARMATURE 1 | 28-0263-5 | Not Available |
| 64 | Not Available | THRUST PLATE 1 | 25-1063-4 | Not Available |
| 65 | Not Available | THIN PUSH PLATE 4 | 25-0060-1 | Not Available |
| 66 | Not Available | THICK PUSH PLATE 2 | 25-0059-3 | Not Available |
| 67 | Not Available | BALL ARM SHAFT/R - 30465P2 2 | 26-0001-3 | Not Available |
| 68 | Not Available | ARMATURE BEARING 2 | 26-0026-0 | Not Available |
| 69 | Not Available | BEARING CLAMP 2 | 05-0607-1 | Not Available |
| 70 | Not Available | SCREW 2 | 01-1490-0 | Not Available |
| 71 | Not Available | ARMATURE BEARING SEAL 2 | 12-0133-4 | Not Available |
| 73 | Not Available | FIELD 1 SPEED 120 V 1 | 28-0265-0 | Not Available |
| 74 | Not Available | FIELD RETAINER | 05-4244-9 | Not Available |
| 75 | No Image | SCREW, MOTOR MOUNT AND BOTTOM PLATE SELF TAPPING Part Number: 01-1489-2 for Koblenz | 0114892 | $1.63Read more |
| 76 | Not Available | FIELD SLEEVE 1 | 08-1832-8 | Not Available |
| 77 | Not Available | CONNECTOR BLOCK 3 SPEED 1 | 10-0051-2 | Not Available |
| 78 | Not Available | GEAR CASE COVER 1 | 23-0462-4 | Not Available |
| 79 | Not Available | GEAR CASE COVER 1 | 23-0461-6 | Not Available |
| 80 | Not Available | GASKET GEAR COVER | 37-0133-1 | Not Available |
| 81 | Not Available | RETAINER 1 | 05-2717-6 | Not Available |
| 82 | Not Available | MOTOR FRAME ASSEMBLY 1 | 23-0446-7 | Not Available |
| 83 | Not Available | SPINDLE NUT | 02-0016-2 | Not Available |
| 84 | Not Available | GEAR (COMM.) 1 | 42-0011-9 | Not Available |
| 85 | Not Available | GEAR (FAN) 1 | 42-0012-7 | Not Available |
| 87 | Not Available | SPINDLE KEY 1 | 25-0988-3 | Not Available |
| 91 | Not Available | COMMERCIAL SPINDLE ASSEMBLY 1 | 23-0447-5 | Not Available |
| 92 | Not Available | SPINDLE ASSEMBLY 1 | 23-0448-3 | Not Available |
| 93 | Not Available | FRAME SPACER 1 | 13-0059-9 | Not Available |
| 94 | Not Available | MOTOR SUPPORT | 13-1040-8 | Not Available |
| 95 |  | Koblenz 8 Notch Rh Coupling / Koblenz P4000 Shampooer | 4618336 | $10.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 96 | Not Available | 8-NOTCH LEFT COUPLING 1 | 46-1834-4 | Not Available |
| 98 | Not Available | WASHER SUPPORT BASE SEAL | 05-3032-9 | Not Available |
| 99 | Not Available | RUBBER SEAL | 12-0467-6 | Not Available |
| 100 | Not Available | BASE INSULATOR 1 | 13-1136-4 | Not Available |
| 101 | Not Available | BASE PLATE 1 | 05-3375-2 | Not Available |
| 102 | Not Available | SCREW INSULATOR 3 | 13-0551-5 | Not Available |
| 103 | No Image | SCREW, MOTOR MOUNT AND BOTTOM PLATE SELF TAPPING Part Number: 01-1489-2 for Koblenz | 0114892 | $1.63Read more |
| 104 | Not Available | GREASE 2 | 46-2069-6 | Not Available |
| 105 |  | Tray-Koblentz P-2000 Shampooer For: koblenz | 1312123 | $9.55Read more |
