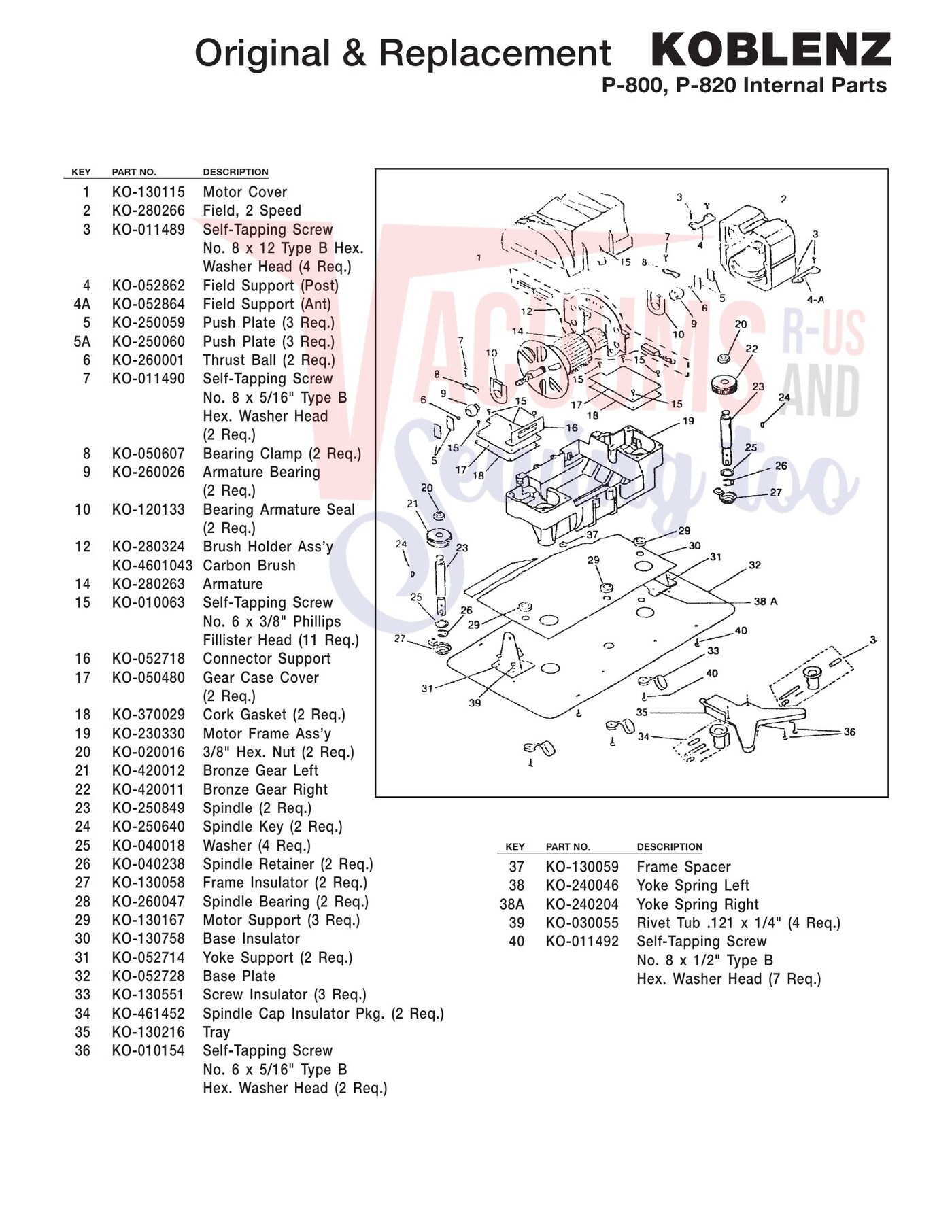

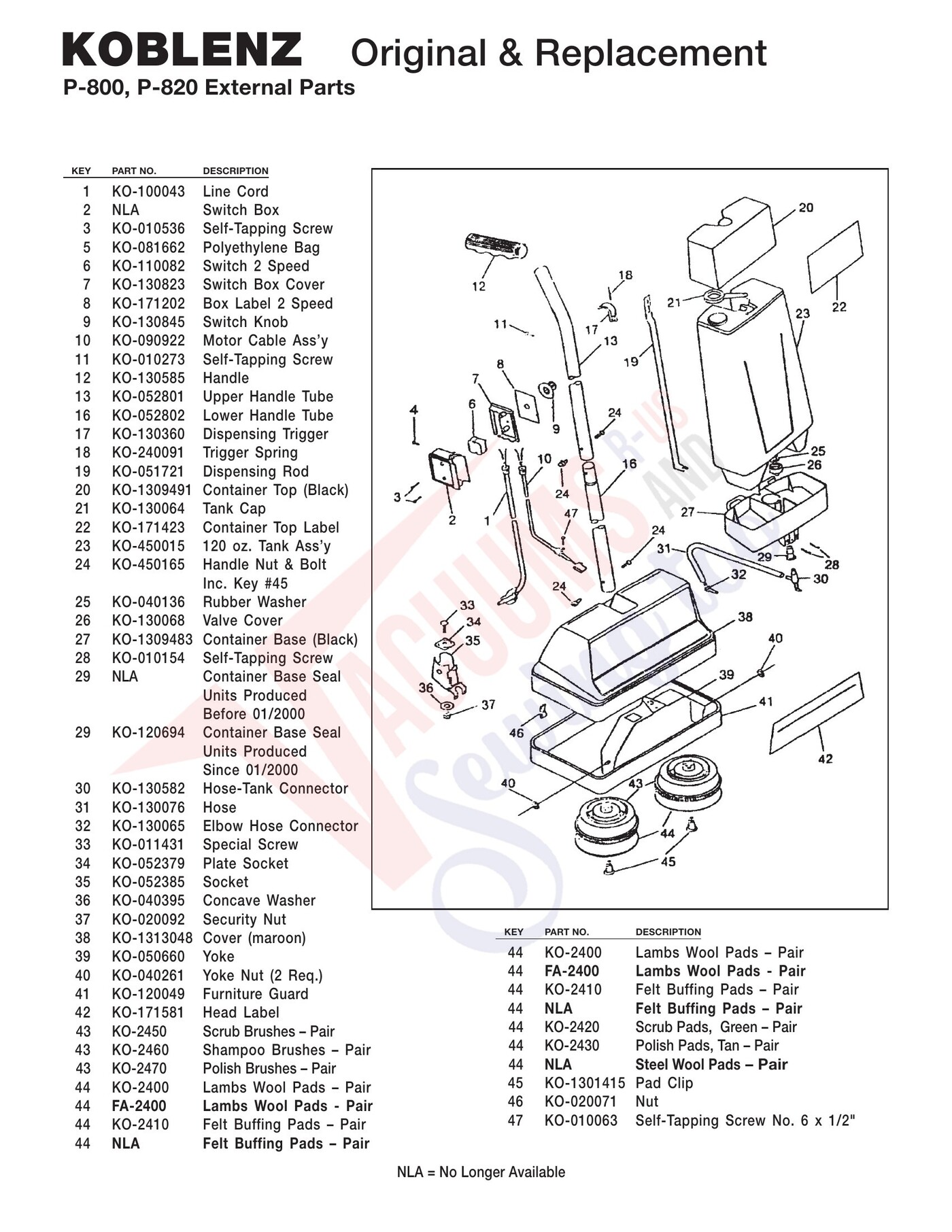

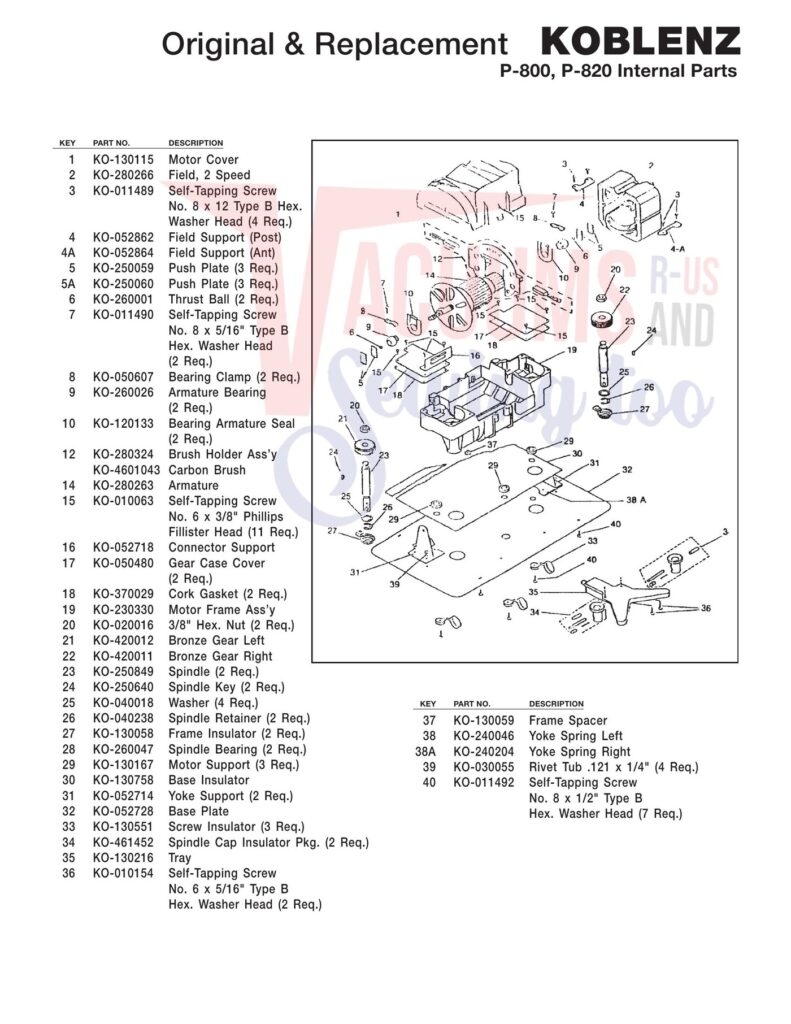

Schematic and parts book for Koblenz P-800, P-820 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | line cord | KO-100043 | Not Available |
| 2 | Not Available | Switch Box | NLA | Not Available |
| 3 | Not Available | Self-tapping Screw | KO-010536 | Not Available |
| 5 | Not Available | polyethylene Bag | KO-081662 | Not Available |
| 6 | Not Available | Switch 2 Speed | KO-110082 | Not Available |
| 7 | Not Available | Switch Box cover | KO-130823 | Not Available |
| 8 | Not Available | Box label 2 Speed | KO-171202 | Not Available |
| 9 | Not Available | Switch Knob | KO-130845 | Not Available |
| 10 | Not Available | motor cable ass’y | KO-090922 | Not Available |
| 11 | Not Available | Self-tapping Screw | KO-010273 | Not Available |
| 12 | Not Available | handle | KO-130585 | Not Available |
| 13 | Not Available | Upper handle tube | KO-052801 | Not Available |
| 16 | Not Available | lower handle tube | KO-052802 | Not Available |
| 17 | Not Available | Dispensing trigger | KO-130360 | Not Available |
| 18 | Not Available | trigger Spring | KO-240091 | Not Available |
| 19 | Not Available | Dispensing Rod | KO-051721 | Not Available |
| 20 | Not Available | container top (Black) | KO-1309491 | Not Available |
| 21 | Not Available | tank cap | KO-130064 | Not Available |
| 22 | Not Available | container top label | KO-171423 | Not Available |
| 23 | Not Available | 120 oz. tank ass’y | KO-450015 | Not Available |
| 24 | Not Available | handle nut & Bolt | KO-450165 | Not Available |
| 25 | Not Available | Rubber washer | KO-040136 | Not Available |
| 26 | Not Available | Valve cover | KO-130068 | Not Available |
| 27 | Not Available | container Base (Black) | KO-1309483 | Not Available |
| 28 | Not Available | Self-tapping Screw | KO-010154 | Not Available |
| 29 | Not Available | container Base Seal | NLA | Not Available |
| 29 | Not Available | container Base Seal | KO-120694 | Not Available |
| 30 | Not Available | hose-tank connector | KO-130582 | Not Available |
| 31 | Not Available | hose | KO-130076 | Not Available |
| 32 | Not Available | Elbow hose connector | KO-130065 | Not Available |
| 33 | Not Available | Special Screw | KO-011431 | Not Available |
| 34 | Not Available | plate Socket | KO-052379 | Not Available |
| 35 | Not Available | Socket | KO-052385 | Not Available |
| 36 | Not Available | concave washer | KO-040395 | Not Available |
| 37 | Not Available | Security nut | KO-020092 | Not Available |
| 38 | Not Available | cover (maroon) key Part no. deScrIPtIon | KO-1313048 | Not Available |
| 39 | Not Available | yoke | KO-050660 | Not Available |
| 40 | Not Available | yoke nut (2 Req.) | KO-040261 | Not Available |
| 41 | Not Available | furniture guard | KO-120049 | Not Available |
| 42 | Not Available | head label | KO-171581 | Not Available |
| 43 | Not Available | Scrub Brushes – pair | KO-2450 | Not Available |
| 43 | Not Available | Shampoo Brushes – pair | KO-2460 | Not Available |
| 43 | Not Available | polish Brushes – pair | KO-2470 | Not Available |
| 44 | Not Available | lambs wool pads – pair | KO-2400 | Not Available |
| 44 | Not Available | lambs Wool Pads - Pair | FA-2400 | Not Available |
| 44 | Not Available | felt Buffing pads – pair | KO-2410 | Not Available |
| 44 | Not Available | Felt Buffing Pads – Pair | NLA | Not Available |
| 44 | Not Available | Scrub pads green – pair | KO-2420 | Not Available |
| 44 | Not Available | polish pads tan – pair | KO-2430 | Not Available |
| 44 | Not Available | Steel Wool Pads – Pair | NLA | Not Available |
| 44 | Not Available | lambs wool pads – pair | KO-2400 | Not Available |
| 44 | Not Available | lambs Wool Pads - Pair | FA-2400 | Not Available |
| 44 | Not Available | felt Buffing pads – pair | KO-2410 | Not Available |
| 44 | Not Available | Felt Buffing Pads – Pair | NLA | Not Available |
| 45 | Not Available | pad clip | KO-1301415 | Not Available |
| 46 | Not Available | nut | KO-020071 | Not Available |
| 47 | Not Available | Self-tapping Screw no. 6 x 1/2" | KO-010063 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | carbon Brush | KO-4601043 | Not Available |
| 1 | Not Available | motor cover | KO-130115 | Not Available |
| 2 | Not Available | field 2 Speed | KO-280266 | Not Available |
| 3 | Not Available | Self-tapping Screw | KO-011489 | Not Available |
| 4 | Not Available | field Support (post) | KO-052862 | Not Available |
| 5 | Not Available | push plate (3 Req.) | KO-250059 | Not Available |
| 6 | Not Available | thrust Ball (2 Req.) | KO-260001 | Not Available |
| 7 | Not Available | Self-tapping Screw | KO-011490 | Not Available |
| 8 | Not Available | Bearing clamp (2 Req.) | KO-050607 | Not Available |
| 9 | Not Available | armature Bearing | KO-260026 | Not Available |
| 10 | Not Available | Bearing armature Seal | KO-120133 | Not Available |
| 12 | Not Available | Brush holder ass’y | KO-280324 | Not Available |
| 14 | Not Available | armature | KO-280263 | Not Available |
| 15 | Not Available | Self-tapping Screw | KO-010063 | Not Available |
| 16 | Not Available | connector Support | KO-052718 | Not Available |
| 17 | Not Available | gear case cover | KO-050480 | Not Available |
| 18 | Not Available | cork gasket (2 Req.) | KO-370029 | Not Available |
| 19 | Not Available | motor frame ass’y | KO-230330 | Not Available |
| 20 | Not Available | 3/8" hex. nut (2 Req.) | KO-020016 | Not Available |
| 21 | Not Available | Bronze gear left | KO-420012 | Not Available |
| 22 | Not Available | Bronze gear Right | KO-420011 | Not Available |
| 23 | Not Available | Spindle (2 Req.) | KO-250849 | Not Available |
| 24 | Not Available | Spindle Key (2 Req.) | KO-250640 | Not Available |
| 25 | Not Available | washer (4 Req.) key Part no. deScrIPtIon | KO-040018 | Not Available |
| 26 | Not Available | Spindle Retainer (2 Req.) | KO-040238 | Not Available |
| 27 | Not Available | frame Insulator (2 Req.) | KO-130058 | Not Available |
| 28 | Not Available | Spindle Bearing (2 Req.) | KO-260047 | Not Available |
| 29 | Not Available | motor Support (3 Req.) | KO-130167 | Not Available |
| 30 | Not Available | Base Insulator | KO-130758 | Not Available |
| 31 | Not Available | yoke Support (2 Req.) no. 8 x 1/2" type B | KO-052714 | Not Available |
| 32 | Not Available | Base plate hex. washer head (7 Req.) | KO-052728 | Not Available |
| 33 | Not Available | Screw Insulator (3 Req.) | KO-130551 | Not Available |
| 34 | Not Available | Spindle cap Insulator pkg. (2 Req.) | KO-461452 | Not Available |
| 35 | Not Available | tray | KO-130216 | Not Available |
| 36 | Not Available | Self-tapping Screw | KO-010154 | Not Available |
| 37 | Not Available | frame Spacer | KO-130059 | Not Available |
| 38 | Not Available | yoke Spring left | KO-240046 | Not Available |
| 39 | Not Available | Rivet tub .121 x 1/4" (4 Req.) | KO-030055 | Not Available |
| 40 | Not Available | Self-tapping Screw | KO-011492 | Not Available |
