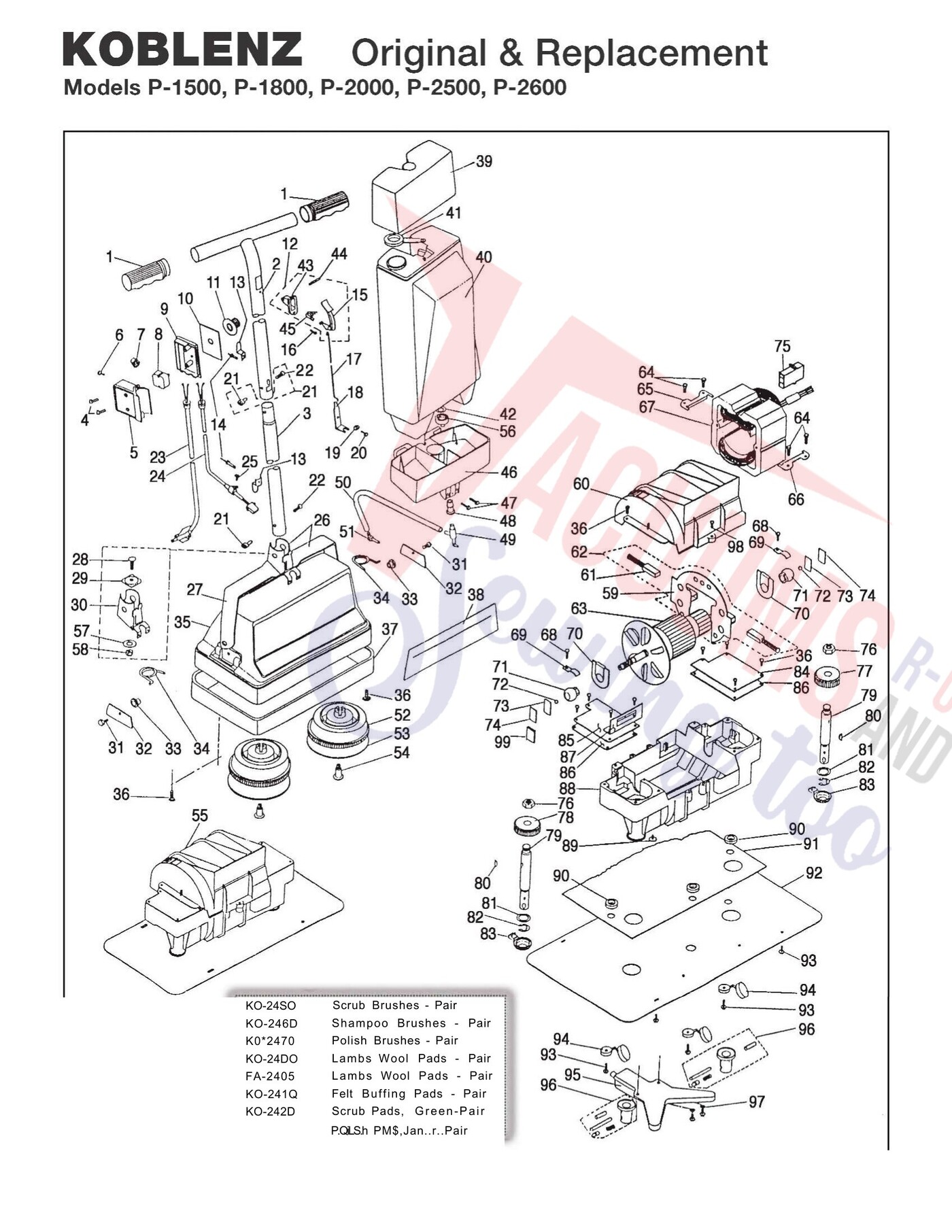

Schematic and parts book for koblenz p-1500, p-1800, p-2000, p-2600 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Grip | K0-130585 | Not Available |
| 2 | Not Available | Upper handle Tube chromed p-1500 p-1800 | K0-2303915 | Not Available |
| 2 | Not Available | Upper handle tube chromed p-2000 p-2600 | K0-2302578 | Not Available |
| 2 | Not Available | Upper handle tube painted p-2500 p-2000 p-2500 p-2600 | K0-2307056 | Not Available |
| 3 | Not Available | lower handle tube chromed p-1500 p-1800 | K0-0530402 | Not Available |
| 3 | Not Available | Lower handle tube chromed p-2000 p-2600 p-2000 p-2500 p-2600 | K0-0527101 | Not Available |
| 3 | Not Available | Lower handle tube painted p-2500 | K0-0536862 | Not Available |
| 4 | Not Available | Self tapping Screw 6" x 3/4" | K0-0105361 | Not Available |
| 5 | Not Available | Switch Box p-1500 p-2000 p-2000 p-2500 p-2600 | K0-130755 | Not Available |
| 5 | Not Available | Switch Box p-1800 p-2500 p-2600 | K0-1309509 | Not Available |
| 6 | Not Available | Self tapping Screw 6" x 5/16" | K0-010154 | Not Available |
| 7 | Not Available | Wire Nut | SS-3270 | Not Available |
| 8 | Not Available | Switch | K0-110082 | Not Available |
| 9 | Not Available | Switch Box cover | K0-1309517 | Not Available |
| 10 | Not Available | Switch Box label 1-Speed p-1500 p-2000 | K0-1720432 | Not Available |
| 10 | Not Available | Switch Box label 2-Speed p-1800 p-2500 p-2600 | K0-1720853 | Not Available |
| 11 | Not Available | Switch Knob p-1800 p-2500 p-2600 | K0-130845 | Not Available |
| 12 | Not Available | Valve lever control Ass'y P-2000 P-2500 P-2600 | K0-4618658 | Not Available |
| 13 | Not Available | cord hook p-1500 p-1800 | K0-0504829 | Not Available |
| 14 | Not Available | pop Rivet p-1500 p-1800 | K0-0302083 | Not Available |
| 15 | Not Available | Dispensing lever p-2000 p-2500 p-2600 | K0-0604645 | Not Available |
| 16 | Not Available | Self tapping Screw 6 x 3/8 | K0-0100628 | Not Available |
| 17 | Not Available | Dispensing Rod p-2000 p-2500 p-2600 | K0-0908111 | Not Available |
| 18 | Not Available | Valve hook p-2000 p-2500 p-2600 | K0-0521971 | Not Available |
| 19 | Not Available | Valve hook Spacer p-2000 p-2500 p-2600 | K0-0522235 | Not Available |
| 21 | Not Available | handle Screw | K0-0107458 | Not Available |
| 22 | Not Available | handle Screw Nut | K0-0200675 | Not Available |
| 23 | Not Available | cord | K0-1000991 | Not Available |
| 24 | Not Available | Motor cord p-1500 p-2000 | K0-2804227 | Not Available |
| 24 | Not Available | Motor cord p-1800 p-2500 p-2600 | K0-2804235 | Not Available |
| 25 | Not Available | Self tapping Screw 6" x 1/2" | K0-010063 | Not Available |
| 26 | Not Available | handle Yoke & Socket Ass'y chromed | K0-2301554 | Not Available |
| 26 | Not Available | handle yoke & Socket Ass'y chromed | K0-2301562 | Not Available |
| 26 | Not Available | handle yoke & Socket Ass'y painted p-2500 | K0-2301570 | Not Available |
| 27 | Not Available | yoke chrome p-1500 p-1800 p-2000 p-2600 | K0-0532945 | Not Available |
| 27 | Not Available | yoke painted p-2500 | K0-0532952 | Not Available |
| 28 | Not Available | Special Screw | K0-011431 | Not Available |
| 29 | Not Available | Socket plate p-1800 p-2500 p-2600 | K0-0523795 | Not Available |
| 30 | Not Available | Socket chromed p-1500 p-1800 | K0-0528869 | Not Available |
| 30 | Not Available | Socket chromed p-2000 p-2600 | K0-0523910 | Not Available |
| 30 | Not Available | Socket painted p-2500 | K0-0523928 | Not Available |
| 31 | Not Available | hex head Screw 1/4" - 20 x 3/4" | K0-0108837 | Not Available |
| 32 | Not Available | yoke Spring cover chromed | K0-0532978 | Not Available |
| 32 | Not Available | yoke Spring cover painted p-2500 | K0-0532986 | Not Available |
| 33 | Not Available | Spacer | NLA | Not Available |
| 34 | Not Available | yoke Spring | K0-240144 | Not Available |
| 35 | Not Available | cover chromed Die casting | K0-0606475 | Not Available |
| 35 | Not Available | cover painted Die casting p-2500 | K0-0606467 | Not Available |
| 36 | Not Available | Self tapping Screw 6" x 3/8" | K0-0114835 | Not Available |
| 37 | Not Available | Furniture guard p-1800 p-2500 p-2600 | K0-120054 | Not Available |
| 38 | Not Available | head label p-1500 p-1800 | K0-171434 | Not Available |
| 38 | Not Available | head Label p-2000 p-2500 p-2600 | K0-1720028 | Not Available |
| 39 | Not Available | container top p-2000 p-2500 | K0-130865 | Not Available |
| 39 | Not Available | container top p-2600 | K0-1309491 | Not Available |
| 40 | Not Available | 120 Oz. tank Ass'y p-2500 | K0-450015 | Not Available |
| 40 | Not Available | 144 Oz. tank Ass'y p-2000 p-2600 | K0-4501409 | Not Available |
| 41 | Not Available | tank cap p-2000 p-2500 p-2600 | K0-1300649 | Not Available |
| 42 | Not Available | Rubber washer p-2000 p-2500 p-2600 | K0-0401364 | Not Available |
| 43 | Not Available | Dispensing lever Support | NLA | Not Available |
| 44 | Not Available | Spiral pin p-2000 p-2500 p-2600 | K0-2506616 | Not Available |
| 45 | Not Available | Dispensing lever Spring p-2000 p-2500 p-2600 | K0-2401586 | Not Available |
| 46 | Not Available | container Base p-2600 | K0-1309483 | Not Available |
| 46 | Not Available | container Base p-2000 p-2500 | K0-1305549 | Not Available |
| 47 | Not Available | Self tapping Screw p-2000 p-2500 p-2600 | K0-0110932 | Not Available |
| 48 | Not Available | container Base Seal | K0-120694 | Not Available |
| 49 | Not Available | tank hose connector | K0-1305820 | Not Available |
| 50 | Not Available | hose p-2000 p-2500 p-2600 | K0-130076 | Not Available |
| 51 | Not Available | hose connector Elbow | K0-9410 | Not Available |
| 52 | Not Available | Shampoo Brushes 6" | K0-2460 | Not Available |
| 52 | Not Available | Scrub Brushes 6" | K0-2450 | Not Available |
| 53 | Not Available | Lambs Wool pads 6" (Includes Key #54) | K0-2400 | Not Available |
| 53 | Not Available | Lambs Wool Pads 6" (Includes Key #54) | FA-2400 | Not Available |
| 54 | Not Available | pad clips | K0-1301415 | Not Available |
| 55 | Not Available | Motor Assembly 1-Speed p-1500 p-2000 | KO-4616843 | Not Available |
| 55 | Not Available | Motor Assembly 2-Speed | KO-4618971 | Not Available |
| 56 | Not Available | Valve cover p-2000 p-2500 p-2600 | K0-1300680 | Not Available |
| 57 | Not Available | concave Washer p-2000 p-2500 p-2600 | K0-0404202 | Not Available |
| 58 | Not Available | Nut p-2000 p-2500 p-2600 | K0-0200923 | Not Available |
| 59 | Not Available | Brush Support | K0-4605903 | Not Available |
| 60 | Not Available | Motor cover | K0-1301159 | Not Available |
| 61 | Not Available | carbon Brush & Spring | K0-4601043 | Not Available |
| 62 | Not Available | Brush holder Assembly | KO-4618476 | Not Available |
| 63 | Not Available | Armature | K0-2802635 | Not Available |
| 64 | Not Available | Self tapping Screw 8" x 1/2" | K0-0114926 | Not Available |
| 65 | Not Available | Rear Field Support | K0-0528620 | Not Available |
| 66 | Not Available | Front Field Support | K0-0528646 | Not Available |
| 67 | Not Available | Field 1-Speed p-1500 p-2000 | K0-2802536 | Not Available |
| 67 | Not Available | Field 2-Speed p-1800 p-2500 p-2600 | K0-2803088 | Not Available |
| 68 | Not Available | Self tapping Screw 8" x 5/16" | K0-0114900 | Not Available |
| 69 | Not Available | Bearing clamp | K0-0506071 | Not Available |
| 70 | Not Available | Armature Bearing Seal | K0-1201334 | Not Available |
| 71 | Not Available | Armature Bearing | K0-2600260 | Not Available |
| 72 | Not Available | thrust Ball | K0-2600013 | Not Available |
| 73 | Not Available | thick thrust plate | K0-250059 | Not Available |
| 74 | Not Available | thin thrust plate | K0-2500601 | Not Available |
| 75 | Not Available | connector Block 1-Speed p-1500 p-2000 | K0-1000512 | Not Available |
| 75 | Not Available | connector Block 2-Speed | K0-1000546 | Not Available |
| 76 | Not Available | hex Nut | K0-0200162 | Not Available |
| 77 | Not Available | Bronze Gear Right | K0-420011 | Not Available |
| 78 | Not Available | Bronze Gear Left | K0-420012 | Not Available |
| 79 | Not Available | Spindle | K0-250849 | Not Available |
| 80 | Not Available | Spindle Key | K0-250640 | Not Available |
| 81 | Not Available | Washer | K0-040018 | Not Available |
| 82 | Not Available | Spindle Retainer | K0-040238 | Not Available |
| 83 | Not Available | Frame Insulator | K0-130058 | Not Available |
| 84 | Not Available | Gear case cover (comm.-End) | K0-050480 | Not Available |
| 85 | Not Available | Gear case cover (Fan-End) | K0-2304616 | Not Available |
| 86 | Not Available | cork Gasket | K0-370029 | Not Available |
| 87 | Not Available | connector Support p-1500 p-2000 | K0-0527176 | Not Available |
| 87 | Not Available | connector Support | K0-0527184 | Not Available |
| 88 | Not Available | Motor Frame Assembly | K0-2303303 | Not Available |
| 89 | Not Available | Frame Spacer | K0-1300599 | Not Available |
| 90 | Not Available | Motor Support | K0-130167 | Not Available |
| 91 | Not Available | Base Insulator | K0-130758 | Not Available |
| 92 | Not Available | Base plate | K0-0533745 | Not Available |
| 93 | Not Available | Self tapping Screw 8" x 1/2" | K0-011489 | Not Available |
| 94 | Not Available | Screw Insulator | K0-1305515 | Not Available |
| 95 | Not Available | Dispensing tray p-2000 p-2500 p-2600 | K0-130216 | Not Available |
| 96 | Not Available | Spindle cap Kit | KO-461452 | Not Available |
| 97 | Not Available | Washer | K0-0400028 | Not Available |
| 98 | Not Available | Self tapping Screw 6 x 7/8 | K0-0115832 | Not Available |
| 99 | Not Available | thin thrust plate 0.005 | K0-2510634 | Not Available |
