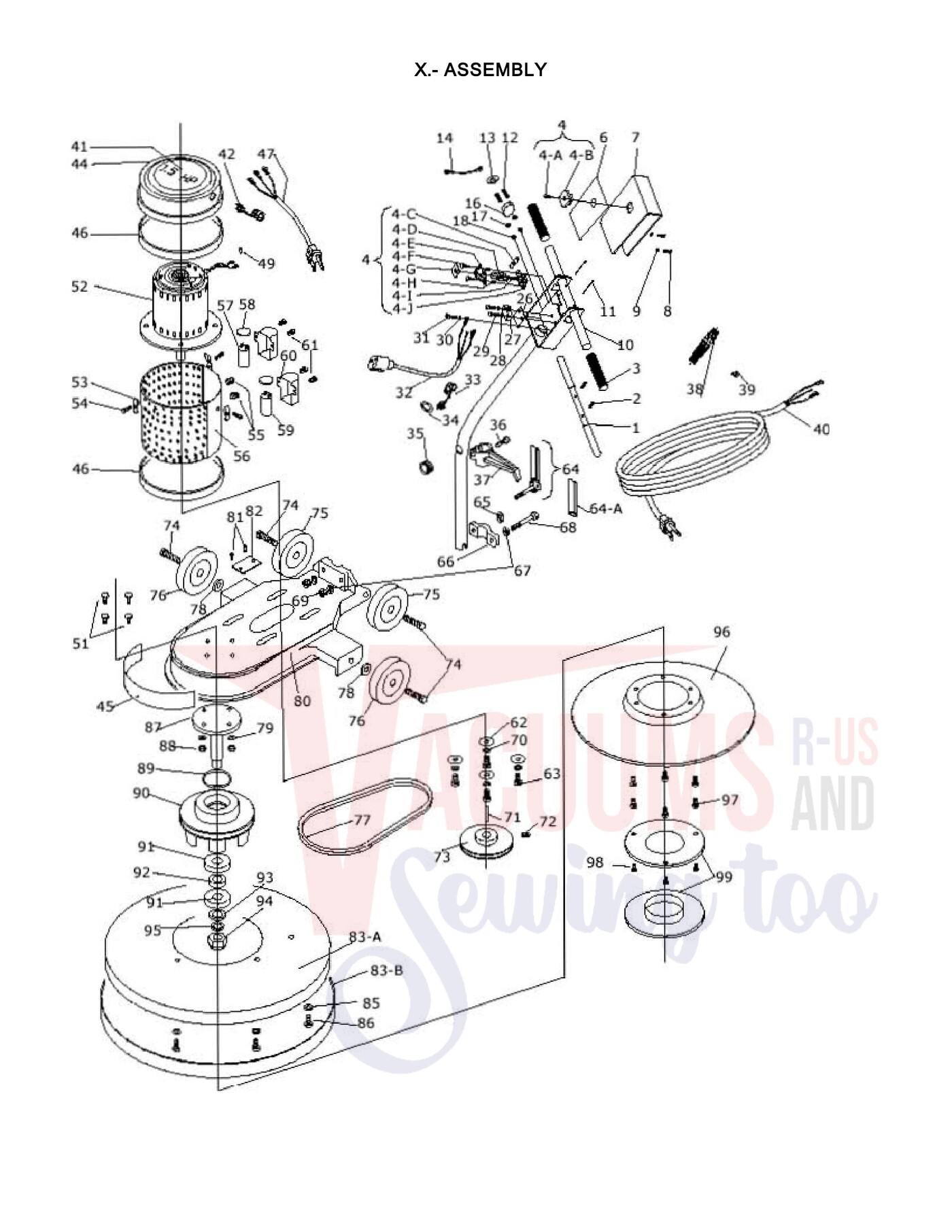

Schematic and parts book for Koblenz b-1500, b1500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | LEVER, HANDLE B-1500-P Part Number: 05-3979-1 for Koblenz | 0539791 | $29.38Read more |
| 2 | Not Available | Spring 2 2 | 24-0292-3 | Not Available |
| 3 | Not Available | Handle Tube Upper 2 2 | 12-0830-5 | Not Available |
| 4 | No Image | Switch, Saftey Kit B1500 Part Number: 45-0534-3 for Koblenz | 4505343 | $32.47Read more |
| 6 | Not Available | Switch Box Label Burnisher 1 1 | 17-3783-2 | Not Available |
| 7 | Not Available | Switch Box Cover Black 1 1 | 05-3975-9 | Not Available |
| 8 | Not Available | Screw # 8-32 x 1 " 2 2 | 01-1984-2 | Not Available |
| 9 | Not Available | Star Washer No 8 2 2 | 04-0276-8 | Not Available |
| 10 | Not Available | Assemble Handle for Switch 1 | 23-0657-9 | Not Available |
| 10 | Not Available | Assemble Handle 1 | 23-0656-1 | Not Available |
| 11 | Not Available | Bolt with Head 2 2 | 03-0593-8 | Not Available |
| 12 | Not Available | Screw Phillips 10-24 x 3/4 2 | 01-1256--5 | Not Available |
| 13 | Not Available | Label " Reset " 1 | 17-3677-6 | Not Available |
| 14 | Not Available | Switch Assy Wire 1 | 28-0958-0 | Not Available |
| 16 | Not Available | Thermal Protector 20 A 1 | 38-0338-4 | Not Available |
| 17 | Not Available | Star Washer No 10 2 | 04-0271-9 | Not Available |
| 18 | Not Available | Hexagonal Nut 10-24 2 | 02-0015-4 | Not Available |
| 26 | Not Available | Insulator Switch 1 1 | 08-1857-5 | Not Available |
| 27 | No Image | SWITCH, MICRO Part Number: 11-0096-5 for Koblenz | 1100965 | $69.94Read more |
| 28 | Not Available | Star Washer No 6 2 | 04-0275-0 | Not Available |
| 29 | No Image | SCREW, 3/32 X 1 Part Number: 01-0851-4 for Koblenz | 0108514 | $1.60Read more |
| 30 | Not Available | Star Washer No 8 1 1 | 04-0493-9 | Not Available |
| 31 | Not Available | Screw hexagonal 6-32 x 3/8 " 1 1 | 01-0852-2 | Not Available |
| 32 | Not Available | Motor Cable / Contac Assembly 1 1 | 28-0955-6 | Not Available |
| 33 | Not Available | Grommet Heyco 0.062 1 1 | 12-0414-8 | Not Available |
| 34 | Not Available | Washer 1 1 | 04-0036-6 | Not Available |
| 35 | Not Available | Grommet of Rubber 1 1 | 12-0115-1 | Not Available |
| 36 | Not Available | Allen Screw 5/16-24 x 3/4 1 1 | 01-1724-2 | Not Available |
| 37 | Not Available | Hook Cord 1 1 | 06-0486-8 | Not Available |
| 38 | Not Available | Cord Strain Relief 1 1 | 45-0456-9 | Not Available |
| 39 | Not Available | Connector of pressure 2 x 14 1 1 | 10-0140-3 | Not Available |
| 40 | Not Available | Line Cord Assembly 1 1 | 28-1078-6 | Not Available |
| 41 | Not Available | Motor Cover 1.5 H.P. Insert 1 1 | 17-3036-5 | Not Available |
| 42 | Not Available | Grommet Heyco 0.062 1 1 | 12-0414-8 | Not Available |
| 44 | Not Available | Cover Motor 1 1 | 05-3765-4 | Not Available |
| 45 | Not Available | Koblenz Insert 1 1 | 17-3025-8 | Not Available |
| 46 | Not Available | Molding Motor Cover 2 2 | 12-0692-9 | Not Available |
| 47 | Not Available | Motor Cable / Contac Assembly 1 | 28-0671-9 | Not Available |
| 47 | Not Available | Motor Cable Assembly C.D. 1 | 28-0957-2 | Not Available |
| 49 | Not Available | Screw 1 | 01-1626-9 | Not Available |
| 51 | Not Available | Screw Cab. Car 5/16-18 x 1 4 4 | 01-1745-7 | Not Available |
| 52 | Not Available | Motor Induction 1 | 00-1736-8 | Not Available |
| 52 | Not Available | Motor C.D. 1 | 44-0344-0 | Not Available |
| 53 | Not Available | Nut Fastener 3 3 | 02-0071-7 | Not Available |
| 54 | No Image | SCREW, 8X 3/8 Part Number: 01-0068-5 for Koblenz | 0100685 | $1.60Read more |
| 55 | Not Available | Grommet 2 | 12-0024-5 | Not Available |
| 56 | Not Available | Cover Motor C.D. 1 | 23-0605-8 | Not Available |
| 56 | Not Available | Cover Motor Assembly 1 | 23-0615-7 | Not Available |
| 57 | Not Available | Capacitor 40 MFD 1 | 15-0678-1 | Not Available |
| 58 | Not Available | Insulator Capacitor 2 | 08-0979-8 | Not Available |
| 59 | Not Available | Capacitor 590-708 MFD 1 | 15-0013-1 | Not Available |
| 60 | Not Available | Capacitor Cover 2 | 05-3567-4 | Not Available |
| 61 | No Image | SCREW, SELF TAPPING Part Number: 01-1093-2 for Koblenz | 0110932 | $1.63Read more |
| 62 | Not Available | Flat Washer 3/8 4 4 | 04-0366-7 | Not Available |
| 63 | Not Available | Screw Hex 3/8-16 x 1 1/4 " 4 4 | 01-1774-7 | Not Available |
| 64 | Not Available | Lever Tube Adjustment Assy 1 1 | 46-2422-7 | Not Available |
| 65 | Not Available | Washer 1 1 | 05-3582-3 | Not Available |
| 66 | Not Available | Clamp Tube 1 1 | 06-0790-3 | Not Available |
| 67 | Not Available | Flat Washer 3/8 3 3 | 04-0073-9 | Not Available |
| 68 | Not Available | Screw Hexagonal 3/8 "-16 x 2 1/2 " 1 1 | 01-1705-1 | Not Available |
| 69 | Not Available | Nut Security 3/8 " -16 2 2 | 02-0134-3 | Not Available |
| 70 | Not Available | Pressure Washer 3/8 4 4 | 04-0142-2 | Not Available |
| 71 | Not Available | Locking Pin 1 | 25-0021-3 | Not Available |
| 72 | Not Available | Allen Screw 3/8" -16 x 3/8 1 1 | 01-1012-2 | Not Available |
| 73 | Not Available | Motor Pulley 1 | 06-0760-6 | Not Available |
| 73 | Not Available | Motor Pulley C.D. 1 | 06-0835-6 | Not Available |
| 74 | Not Available | Screw Hexagonal 1/2-13 x 2 4 4 | 01-1704-4 | Not Available |
| 75 |  | Wheel, Rear Floor Polisher TP2015/TP1334/TP1710 Part Number: 45-0396-7 for Koblenz | 4503967 | $42.38Read more |
| 76 | Not Available | Wheel Assembly 2 2 | 45-0496-5 | Not Available |
| 77 | No Image | Belt, Drive B1500 Part Number: 12-0672-1 for Koblenz | 1206721 | $30.16Read more |
| 77 | Not Available | Belt Motor C.D. 1 | 12-0714-1 | Not Available |
| 78 | Not Available | Flat Washer 1/2 2 2 | 04-0074-7 | Not Available |
| 79 | Not Available | Pressure Washer 5/16 " 4 4 | 04-0144-8 | Not Available |
| 80 | Not Available | Chassis 1 1 | 06-0799-4 | Not Available |
| 81 | Not Available | U Rivet 2 2 | 03-0119-2 | Not Available |
| 82 | Not Available | "Precaution" Plate 1 1 | 17-3550-5 | Not Available |
| 85 | Not Available | Flat Washer 1/4 " 5 5 | 04-0078-8 | Not Available |
| 86 | Not Available | Screw Hexagonal 1/4-20 x 3/4 5 5 | 01-1775-4 | Not Available |
| 87 | Not Available | Pulley Axle 1 1 | 06-0757-2 | Not Available |
| 88 | Not Available | Nut Hexagonal 5/16-18 4 4 | 02-0024-6 | Not Available |
| 89 | Not Available | Locking Ring 1 1 | 04-0521-7 | Not Available |
| 90 | Not Available | Disc Pulley 1 1 | 06-0758-0 | Not Available |
| 91 | Not Available | Bearing 6204 2 2 | 26-0187-0 | Not Available |
| 92 | Not Available | Spacer 1 1 | 04-0522-5 | Not Available |
| 93 | Not Available | Flat Washer Pulley Axle 1 1 | 04-0567-0 | Not Available |
| 94 | Not Available | Security Nut 5/8-18 1 1 | 02-0136-8 | Not Available |
| 95 | Not Available | Pressure Washer 5/8 1 1 | 04-0154-7 | Not Available |
| 96 | Not Available | Flex Base 1 1 | 46-2319-5 | Not Available |
| 97 | Not Available | Flat Screw 1/4-20 x 1 6 6 | 01-1077-5 | Not Available |
| 98 | Not Available | Screw No 8x1/2 3 3 | 01-0069-3 | Not Available |
| 99 | Not Available | Pad Holder 1 1 | 13-1978-9 | Not Available |
