Schematic and parts book for Kenmore 116.39429990 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

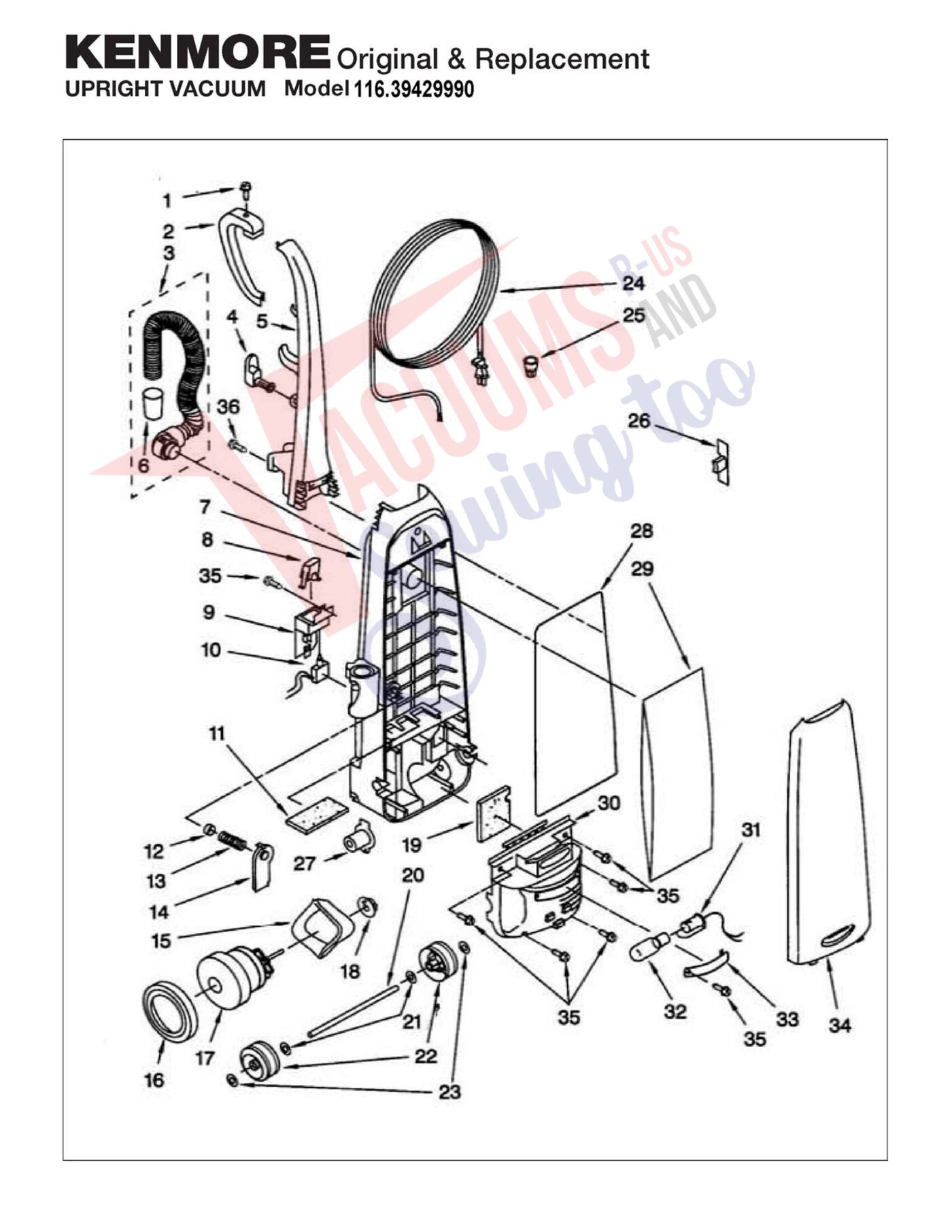

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SCREW HANDLE LOOP | 4370790 | Not Available |
| 2 | Not Available | LOOP HANDLE | 4370782 | Not Available |
| 3 | Not Available | HOSE UNIT (INCLUDES ILLUS. 6) | 4370760 | Not Available |
| 4 | Not Available | HOOK UPPER CORD STORAGE | 4370785 | Not Available |
| 5 | Not Available | HANDLE | 4370781 | Not Available |
| 6 | Not Available | INSERT AIR INLET | 4370786 | Not Available |
| 7 | Not Available | DUSTCOMPARTMENT | 4370757 | Not Available |
| 8 | Not Available | BUTTON ON-OFF | 4370764 | Not Available |
| 9 | Not Available | COVER SWITCH | 4370762 | Not Available |
| 10 |  | Switch, Blk Circular Step on 2-Leads 116.29219800 Part Number: 4370761 for Kenmore | 4370761 | $29.33Add to cart Special order: ships in 2 to 4 weeks |
| 11 | Not Available | FILTER SECONDARY | 4370765 | Not Available |
| 12 | Not Available | PROTECTOR | 4370806 | Not Available |
| 13 | Not Available | SPRING | 4370845 | Not Available |
| 14 | Not Available | COVER PROTECTOR | 4370758 | Not Available |
| 15 | Not Available | SUPPRESSOR NOISE | 4369569 | Not Available |
| 16 | Not Available | SUPPORT MOTOR FRONT | 4370404 | Not Available |
| 17 | Not Available | MOTOR FAN | 4370766 | Not Available |
| 18 | Not Available | SUPPORT MOTOR REAR | 4370265 | Not Available |
| 19 | Not Available | PACKING REARCOVER | 4370787 | Not Available |
| 20 | Not Available | SHAFT ROLLER | 4369561 | Not Available |
| 21 | Not Available | WASHER (2) | 4369562 | Not Available |
| 22 | Not Available | WHEEL (2) | 4370759 | Not Available |
| 23 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | CORD POWER | 4370763 | Not Available |
| 25 | Not Available | NUT WIRE (3) | 4368522 | Not Available |
| 26 | Not Available | PLASTIC HOLDER | 4370788 | Not Available |
| 27 | Not Available | PLASTIC SHAFT | 4369527 | Not Available |
| 28 | Not Available | PACKING DUSTCOMPARTMENT | 4370789 | Not Available |
| 29 |  | kenmore type U 3 PackDVC bags | KER1468 | $7.65Read more |
| 30 | Not Available | HOUSING MOTOR | 4370985 | Not Available |
| 31 | Not Available | SOCKET BULB | 4370771 | Not Available |
| 32 | Not Available | BULT LIGHT SEARS NO. 20-5240 | FA-3515 | Not Available |
| 33 | Not Available | WINDOW | 4370772 | Not Available |
| 34 | Not Available | DUST COVER | 4370986 | Not Available |
| 35 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 36 | Not Available | SCREW HANDLE | 4370779 | Not Available |

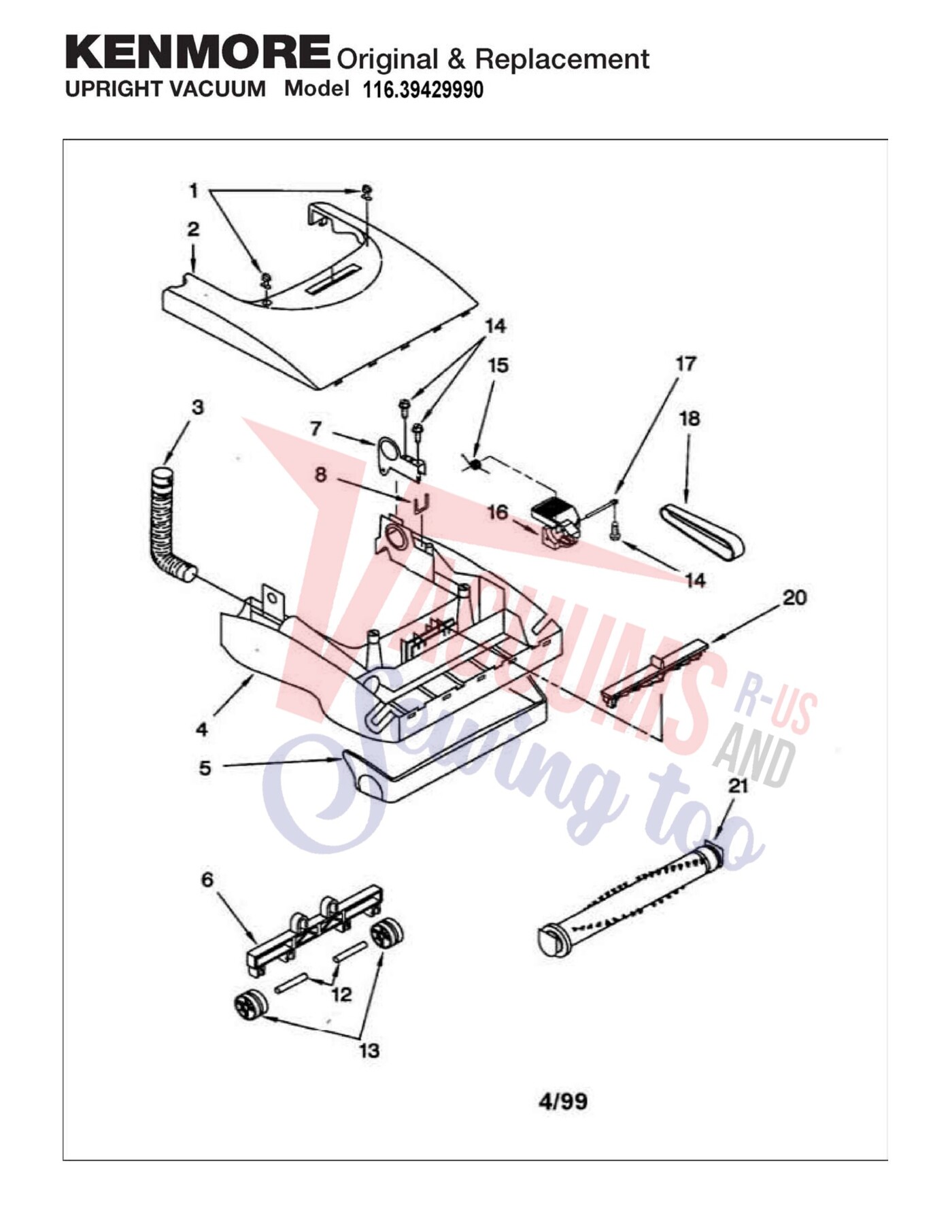

| # | Part image | Description | SKU | Price |
| 1 | Not Available | LATCH NOZZLE (2) | 4370783 | Not Available |
| 2 | Not Available | NOZZLE HOUSING | 4370984 | Not Available |
| 3 | Not Available | HOSE NOZZLE | 4370776 | Not Available |
| 4 | Not Available | LOWER PLATE | 4370767 | Not Available |
| 5 | Not Available | GUARD FURNITURE | 4370769 | Not Available |
| 6 | Not Available | CAM HEIGHTADJUSTMENT | 4370768 | Not Available |
| 7 | Not Available | FRAME | 4370784 | Not Available |
| 8 | Not Available | GUARD BELT | 4369535 | Not Available |
| 12 | Not Available | SHAFT ROLLER (2) | 4369499 | Not Available |
| 13 | No Image | WHEEL, Part Number: 4369544 for Kenmore | 4369544 | $11.89Read more |
| 14 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | SPRING, HANDLE RELEASE 116.33613300 Part Number: 4370258 for Kenmore | 4370258 | $18.42Read more |
| 16 | Not Available | PEDAL | 4370394 | Not Available |
| 17 | Not Available | PEDALSHAFT | 4370259 | Not Available |
| 18 | Not Available | BELT SEARS NO. 20-5275 | PR-1015 | Not Available |
| 20 | Not Available | SLIDING KNOB HEIGHT ADJUSTMENT | 4369542 | Not Available |
| 21 | Not Available | AGITATORASSEMBLY | 4370773 | Not Available |

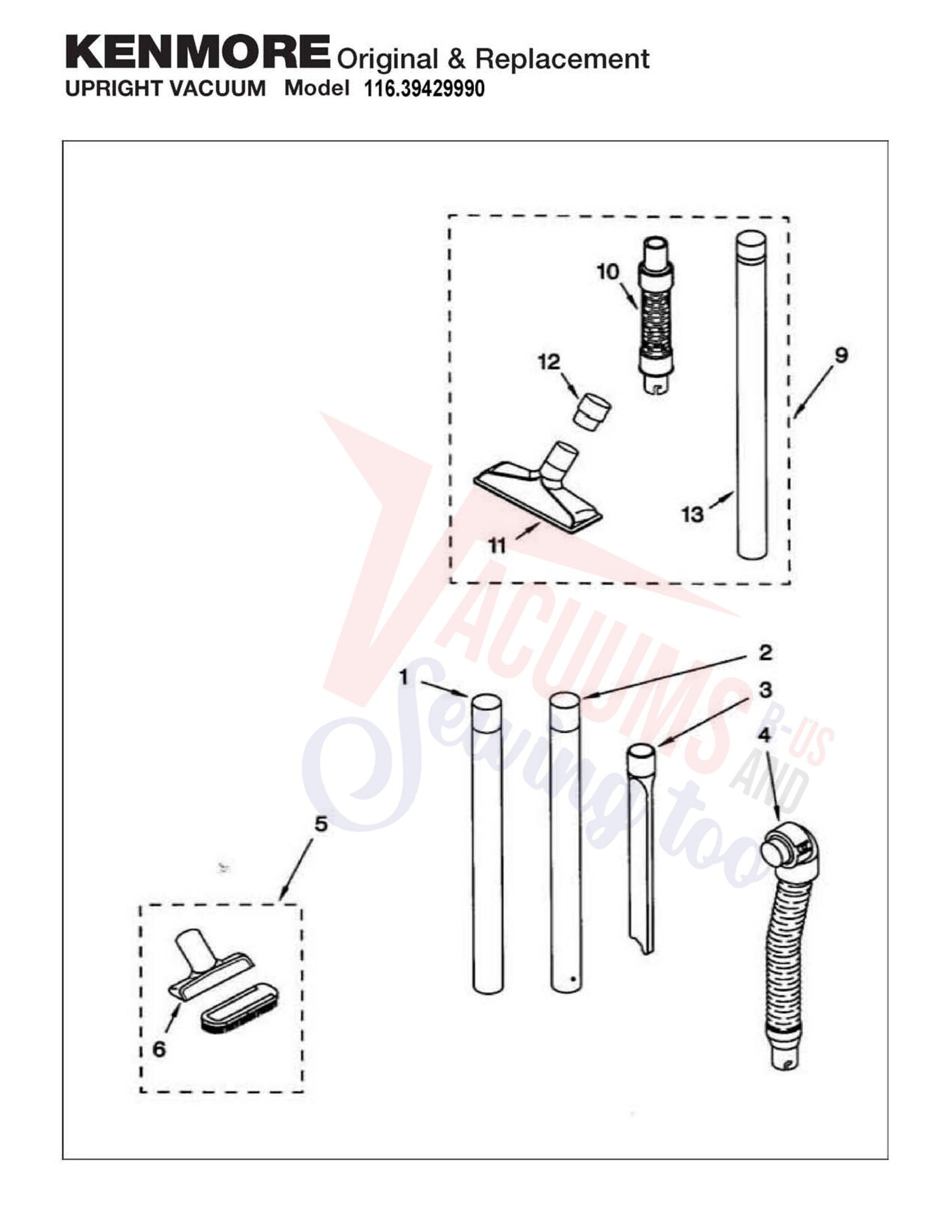

| # | Part image | Description | SKU | Price |
| 1 | Not Available | WAND EXTENSION | 4369625 | Not Available |
| 2 | Not Available | WAND EXTENSION | 4369688 | Not Available |
| 3 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 4 | Not Available | HOSE FLEXIBLE | 4370760 | Not Available |
| 5 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 6 | Not Available | HOLDER BRUSH | 4368610 | Not Available |
| 9 | Not Available | ATTACHMENT ASSEMBLY | 4370823 | Not Available |
| 10 | Not Available | HOSE UNIT | 4370824 | Not Available |
| 11 | Not Available | BRUSH FLOOR NOZZLE | 4369669 | Not Available |
| 12 | Not Available | ADAPTERTUBE | 4369670 | Not Available |
| 13 | Not Available | EXTENSION WAND | 4369688 | Not Available |
