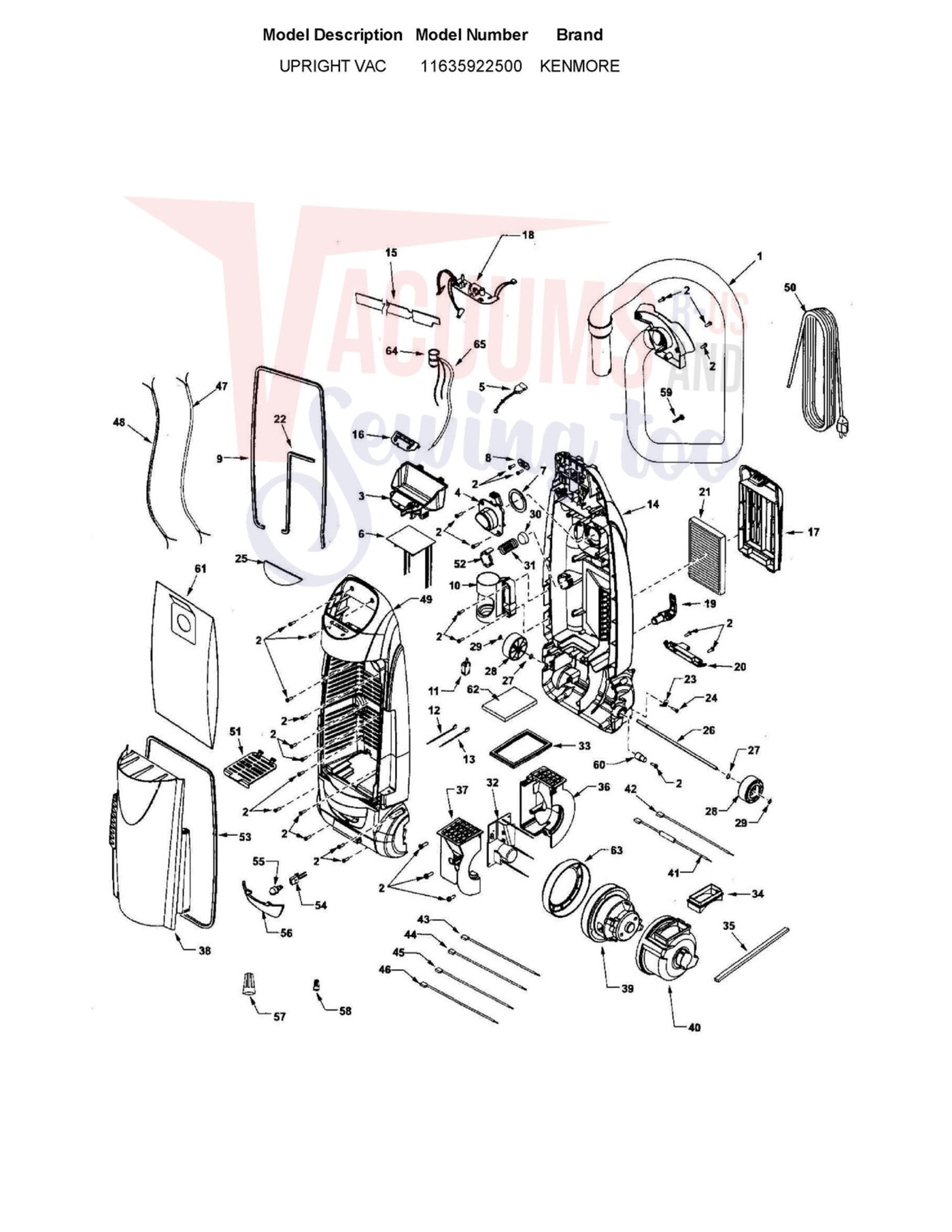

Schematic and parts book for Kenmore 116.35922500, 11635922500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOSE, 116.35922502 Part Number: KC84PCRCZV06 for Kenmore | KC84PCRCZV06 | $262.58Read more |
| 2 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | TOOL CADDY | KC66PCSRZV07 | Not Available |
| 4 | Not Available | BAG SUPPORTER | KC11KCRCZV07 | Not Available |
| 5 | Not Available | NZ000 PLUG (FEMALE) | KC68ECJ | Not Available |
| 6 | Not Available | P.C.B. MICROCONTROLLER | KC89VCSRZ000 | Not Available |
| 7 | Not Available | SUCTION INLET PACKING | 4370575 | Not Available |
| 8 | Not Available | CORD STOPPER | 4369538 | Not Available |
| 9 | Not Available | DUST COMPARTMENT PACKING | KC74KCRCZ000 | Not Available |
| 10 | Not Available | EXTENSION WAND HOLDER | KC70PCRCZV07 | Not Available |
| 11 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | LEAD WIRE WHITE | KC43GCHDZ000 | Not Available |
| 13 | Not Available | LEAD WIRE WHITE/RED | KC48GCMSZ000 | Not Available |
| 14 | Not Available | DUST CONTAINER | KC40KCRCZV07 | Not Available |
| 15 | Not Available | INDICATOR DISPLAY | KC47VCSRZ000 | Not Available |
| 16 | Not Available | INDICATOR WINDOW | KC08MCSRZ000 | Not Available |
| 17 | No Image | COVER, EXHAUST FILTER 116.35923500 UPRIGHT Part Number: KC41KCRCZV07 for Kenmore | KC41KCRCZV07 | $78.25Read more |
| 18 | Not Available | DIRT SENSOR | KC87GCSRZ000 | Not Available |
| 19 | No Image | Hose Hook For: kenmore | KC53PCHEZV06 | $12.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | HOSE HOOK | KC53PCHDZV07 | Not Available |
| 21 | Not Available | EXHAUST FILTER SEARS NO. 20.86889 (AVAILABLE | 8175062 | Not Available |
| 22 | Not Available | DUST COMPARTMENT PACKING | KC74KCSVZ000 | Not Available |
| 23 | Not Available | LOCKING CAM | 8174943 | Not Available |
| 24 | Not Available | SCREW | 8192713 | Not Available |
| 25 | Not Available | LABEL | KC21TCRCZ000 | Not Available |
| 26 | Not Available | ROLLER SHAFT | 4369561 | Not Available |
| 27 | Not Available | WASHER | 4369562 | Not Available |
| 28 | No Image | WHEEL, REAR UPRIGHT 116. 35922500 Part Number: 4370812 for Kenmore | 4370812 | $34.54Read more |
| 29 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | PROTECTOR | 4370429 | Not Available |
| 31 | Not Available | PROTECTOR SPRING | KC70KBXZZY00 | Not Available |
| 32 | Not Available | NZ000 P.C.B. B UNIT | KC85VCJ | Not Available |
| 33 |  | Air Out Pack For: kenmore | KC45LCRCZ000 | $14.41Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | AIR OUTLET GUIDE | KC28LCSRZV07 | Not Available |
| 35 | Not Available | SEAL | KC74ECSRZ000 | Not Available |
| 36 | Not Available | AIR GUIDE-RIGHT | KC55LCRCZ000 | Not Available |
| 37 | Not Available | AIR GUIDE-LEFT | KC54LCRCZ000 | Not Available |
| 38 | Not Available | DUST COVER | KC48HCRCZCU7 | Not Available |
| 39 | Not Available | NZ000 FAN MOTOR | KC92FCJ | Not Available |
| 40 | Not Available | MOTOR ENCLOSURE | KC10GCHDZ000 | Not Available |
| 41 | Not Available | LEAD ASSEMBLY | KC99WCHDZ000 | Not Available |
| 42 | Not Available | LEAD WIRE | KC43GCHEZ000 | Not Available |
| 43 | Not Available | LEAD WIRE | KC38GCMSZ000 | Not Available |
| 44 | Not Available | LEAD WIRE | KC48GCHEZ000 | Not Available |
| 45 | Not Available | LEAD WIRE | KC41GCHDZ000 | Not Available |
| 46 | Not Available | LEAD WIRE | KC48GCMTZ000 | Not Available |
| 47 | Not Available | LEAD WIRE | 8191894 | Not Available |
| 48 | Not Available | LEAD WIRE | KC38GCHEZ000 | Not Available |
| 49 | Not Available | DUST COVER | KC60KCRCZC07 | Not Available |
| 50 | No Image | CORD, POWER 116.35922500 Part Number: 8175134 for Kenmore | 8175134 | $61.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | FILTER DOOR | KC02HCRCZV07 | Not Available |
| 52 | Not Available | PROTECTOR | 4370408 | Not Available |
| 53 | Not Available | DUST COVER | KC66KCRCZ000 | Not Available |
| 54 | Not Available | BULB SOCKET | KC93HCHEZ000 | Not Available |
| 55 |  | Upright Bulb For: kenmore | 8192266 | $6.77Read more |
| 56 | Not Available | WINDOW | KC21HCHDZ000 | Not Available |
| 57 | Not Available | WIRE NUT | 4368522 | Not Available |
| 58 | Not Available | WIRE NUT | 8174824 | Not Available |
| 59 | Not Available | HANDLE SCREW | 4370779 | Not Available |
| 60 | Not Available | NOZZLE SPRING | KC13ECRCZ000 | Not Available |
| 61 | Not Available | DUST BAG | KC16KCMPZ000 | Not Available |
| 62 |  | Secondary Filter For: kenmore | 4369572 | $8.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | Not Available | NZ000 MOTOR SUPPORT | KC02FCJ | Not Available |
| 64 | No Image | SWITCH, HANDLE 116. 38912891 Part Number: 4370574 for Kenmore | 4370574 | $39.18Read more |
| 65 | Not Available | INDICATOR | KC62PAXKZ000 | Not Available |
| # | Part image | Description | SKU | Price |

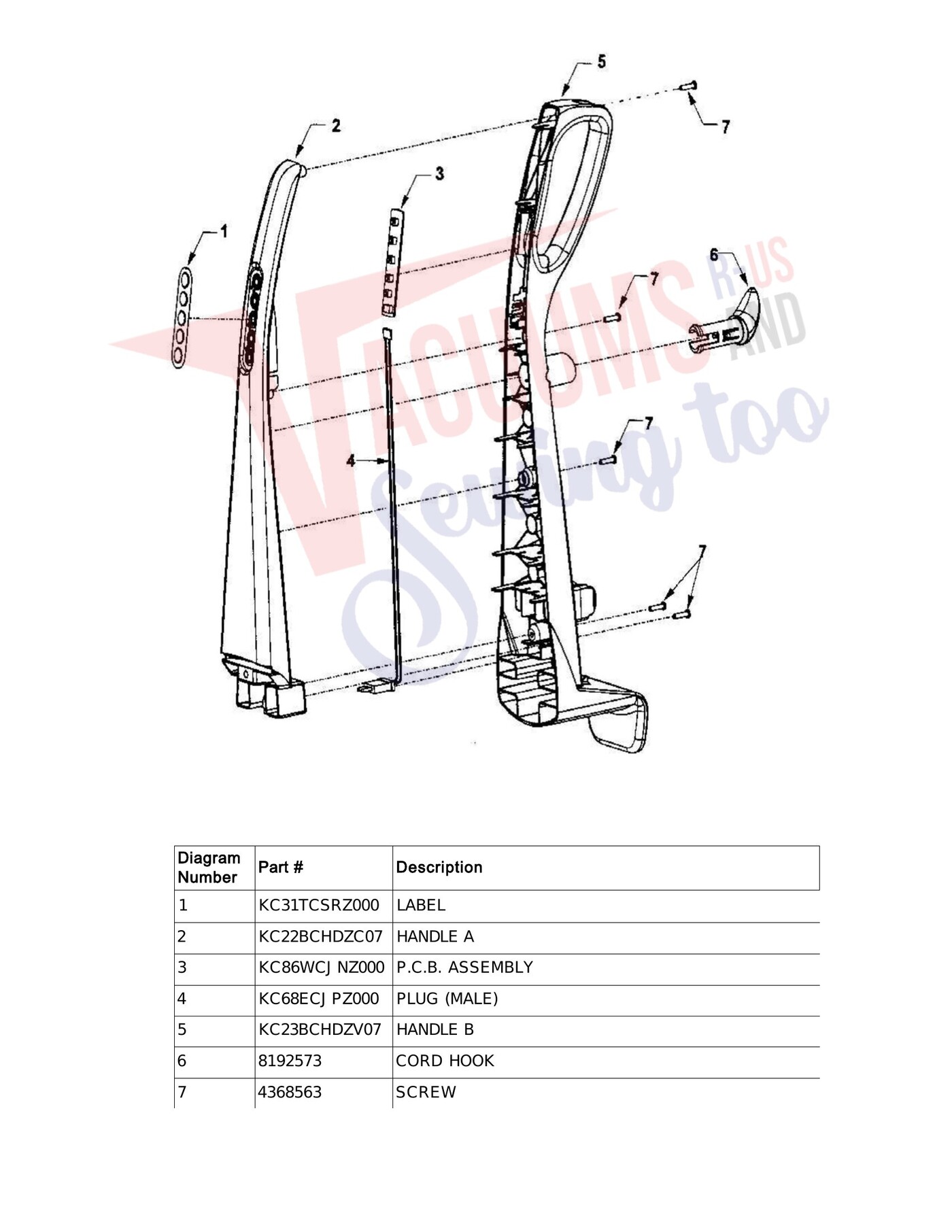

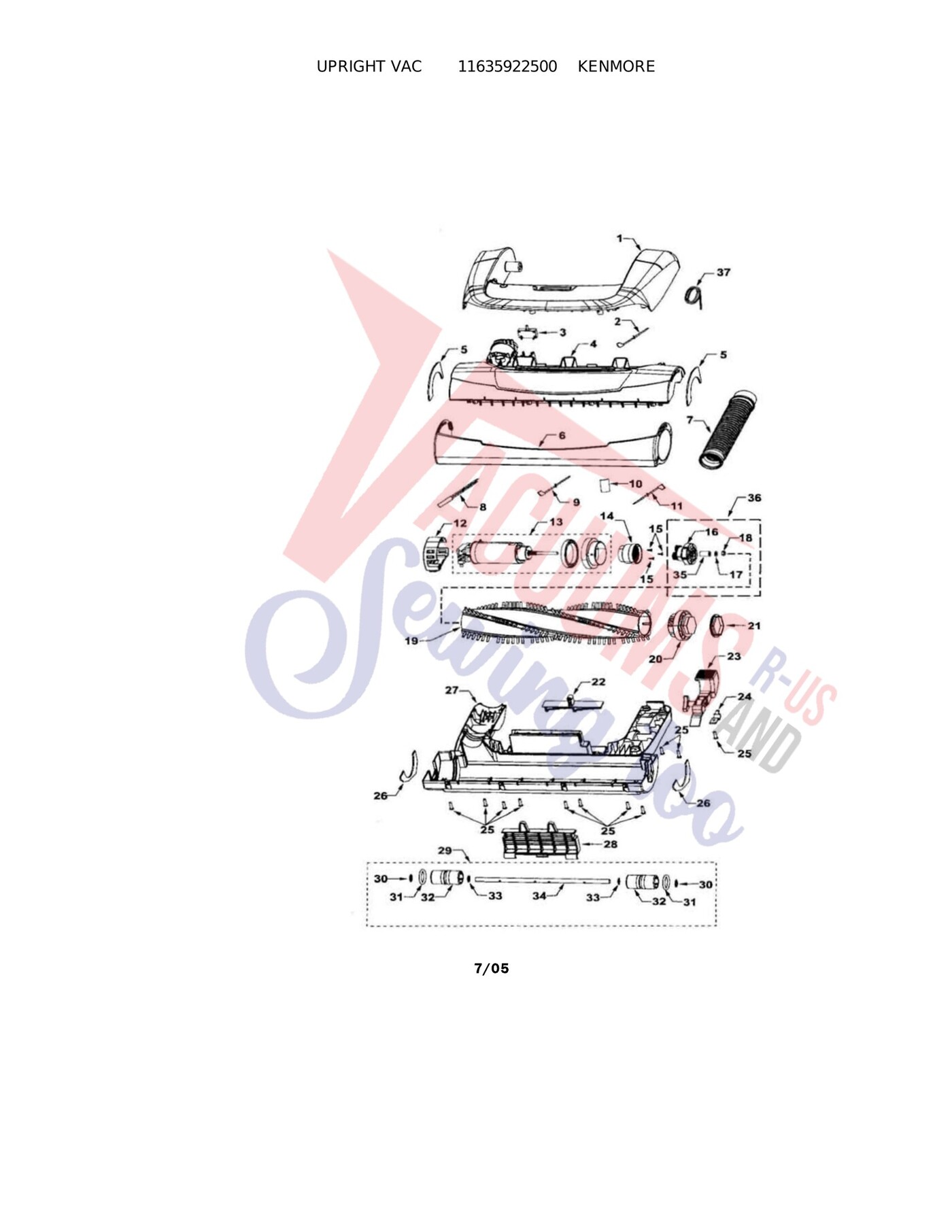

| 1 |  | DISCONTINUED NO LONGER AVAILABLE Label For: kenmore | KC31TCSRZ000 | $19.84Read more |
| 2 | Not Available | HANDLE A | KC22BCHDZC07 | Not Available |
| 3 | Not Available | NZ000 P.C.B. ASSEMBLY | KC86WCJ | Not Available |
| 4 | Not Available | PZ000 PLUG (MALE) | KC68ECJ | Not Available |
| 5 | Not Available | HANDLE B | KC23BCHDZV07 | Not Available |
| 6 | Not Available | CORD HOOK | 8192573 | Not Available |
| 7 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | HOUSING, NOZZLE 116. 35922500 Part Number: KC01ACRCZCU7 for Kenmore | KC01ACRCZCU7 | $120.96Read more |
| 2 | Not Available | LEAD | KE488887 | Not Available |
| 3 | Not Available | OVERLOAD | KC76KCJNZ000 | Not Available |
| 4 | Not Available | UPPER | KC02ACHDZVUS | Not Available |
| 5 | Not Available | FELT SEAL | KC11ACHDZ000 | Not Available |
| 6 |  | Furniture Guard For: kenmore | KC10ACHDZV06 | $56.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | HOSE, LOWER NOZZLE 116. 35922500 Part Number: KC34PCHDZV06 for Kenmore | KC34PCHDZV06 | $58.50Read more |
| 8 | Not Available | THERMAL | 8192229 | Not Available |
| 9 | Not Available | LEAD WIRE | 8192239 | Not Available |
| 10 | Not Available | FILTER | KC02LBBRZ000 | Not Available |
| 11 | Not Available | LEAD | KE8192240 | Not Available |
| 12 | Not Available | MOTOR | 8192221 | Not Available |
| 13 | No Image | MOTOR, BRUSHROLL 116. 36932503 Part Number: 8192267 for Kenmore | 8192267 | $364.50Read more |
| 14 | Not Available | INTERNAL | 8174945 | Not Available |
| 15 | Not Available | SCREW | 8174944 | Not Available |
| 16 | Not Available | GEAR UNIT | KC83CCHDZ000 | Not Available |
| 17 | Not Available | WASHER | 8174928 | Not Available |
| 18 | Not Available | NUT | 8192278 | Not Available |
| 19 |  | Pre owned Kenmore Progressive direct drive brush bar and motor pn: KC56RCRCZ000 and 8192267 8192279 | KC56RCRCZ000R | $69.99Read more |
| 20 | Not Available | END CAP | 8192279 | Not Available |
| 21 | Not Available | MOTOR | 8174908 | Not Available |
| 22 | Not Available | SLIDING | KC57HCHDZV06 | Not Available |
| 23 |  | Handle release peddle for select upright Kenmore vacuums | KC47ACRCZV07 | $9.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | PEDAL | 8174907 | Not Available |
| 25 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | FELT SEAL | KC11ACHEZ000 | Not Available |
| 27 |  | Bottom Plate, 116.35922500 Part Number: KC27ACHDZV07 for Kenmore | KC27ACHDZV07 | $81.36Read more |
| 28 | Not Available | HEIGHT | KC34HCHDZV07 | Not Available |
| 29 | No Image | WHEEL, FRONT 116.35922500 Part Number: 8192525 for Kenmore | 8192525 | $47.46Read more |
| 31 | No Image | WHEEL, CAM Part Number: 4370183 for Kenmore | 4370183 | $26.89Read more |
| 32 | Not Available | WHEEL | KC01CAVGZV06 | Not Available |
| 35 | Not Available | SPACER | KC53MCHDZ000 | Not Available |
| 36 | Not Available | GEAR ASSEMBLY | KC94UCHDZ000 | Not Available |
| 37 | Not Available | SPRING | KC40RCRCZ000 | Not Available |
| # | Part image | Description | SKU | Price |

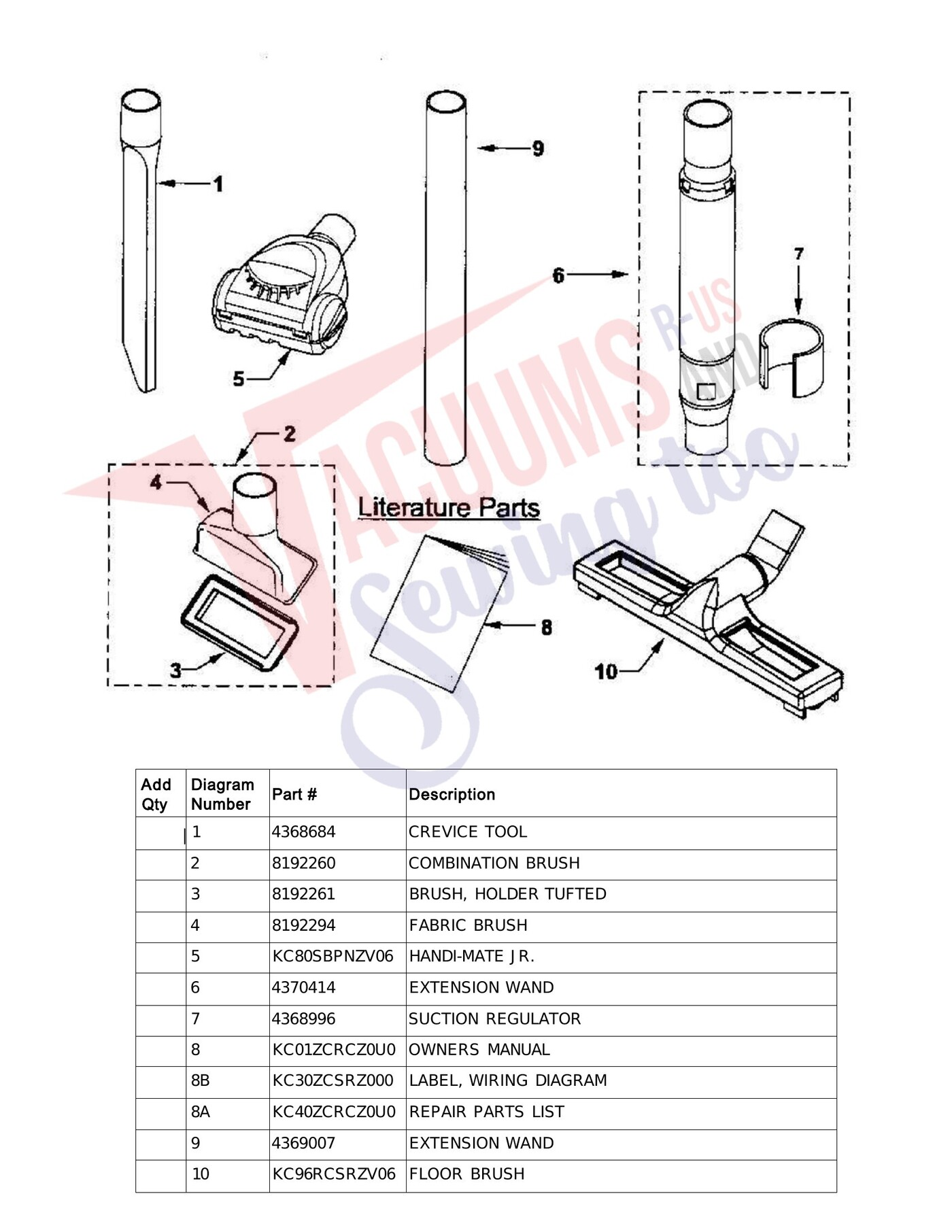

| 2 | Not Available | COMBINATION BRUSH | 8192260 | Not Available |
| 3 | Not Available | BRUSH HOLDER TUFTED | 8192261 | Not Available |
| 4 | Not Available | FABRIC BRUSH | 8192294 | Not Available |
| 5 | Not Available | HANDI-MATE JR. | KC80SBPNZV06 | Not Available |
| 6 | Not Available | EXTENSION WAND | 4370414 | Not Available |
| 7 | Not Available | SUCTION REGULATOR | 4368996 | Not Available |
| 8A | Not Available | REPAIR PARTS LIST | KC40ZCRCZ0U0 | Not Available |
| 8B | Not Available | LABEL WIRING DIAGRAM | KC30ZCSRZ000 | Not Available |
| 8 | Not Available | OWNERS MANUAL | KC01ZCRCZ0U0 | Not Available |
| 9 | No Image | WAND, PLASTIC GRAY 116. 35923500 Part Number: 4369007 for Kenmore | 4369007 | $31.80Read more |
| 10 | Not Available | FLOOR BRUSH | KC96RCSRZV06 | Not Available |
