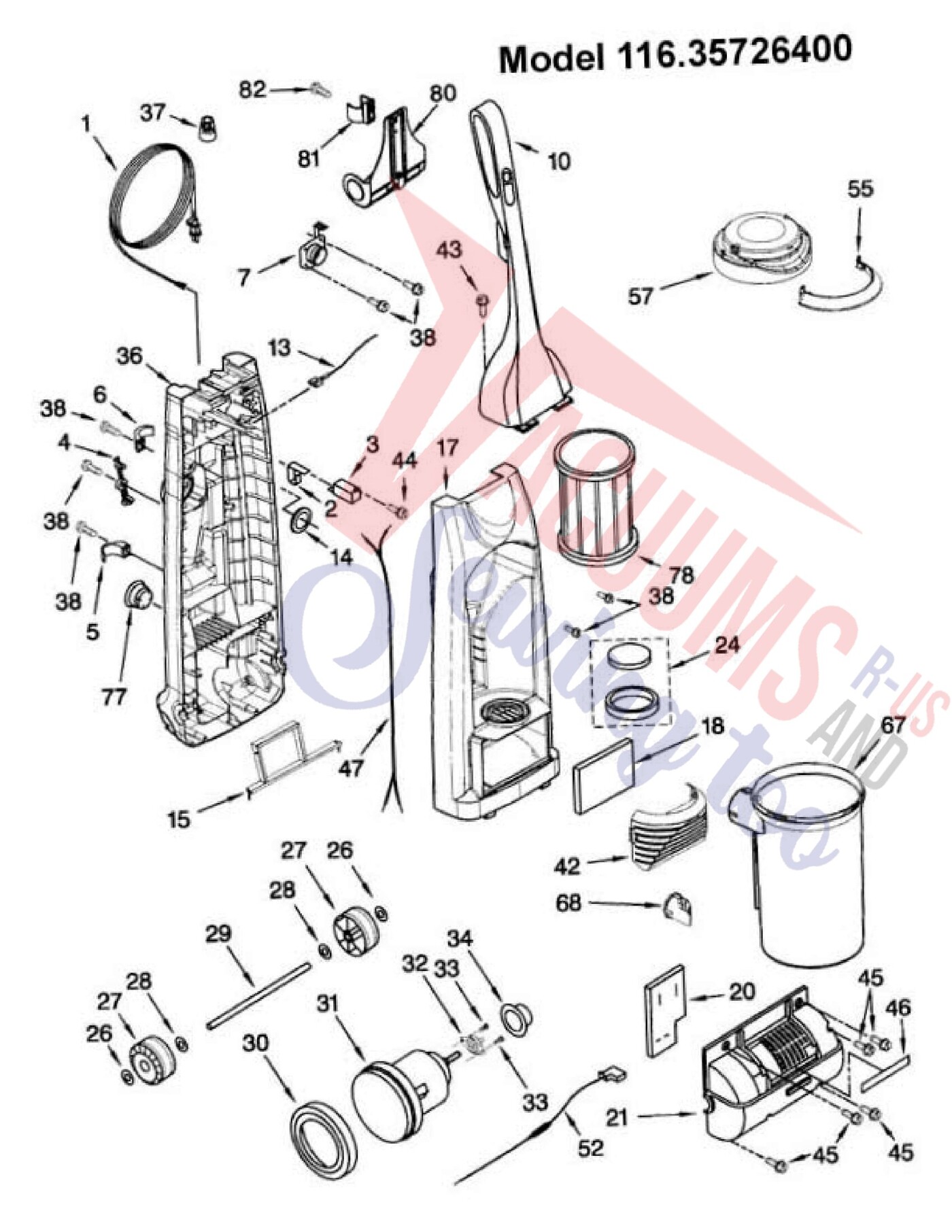

Schematic and parts book for Kenmore 116.35726400 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | CORD POWER | KC97ECDWZV06 | Not Available |
| 2 | Not Available | LEVER ON-OFF SWITCH | 4370396 | Not Available |
| 3 |  | Switch, Push Button Handle Elite 11631150310 Part Number: 4368653 for Kenmore | 4368653 | $20.95Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | HOLDER | 4370400 | Not Available |
| 5 | Not Available | HOLDER HOSE | 4370399 | Not Available |
| 6 | Not Available | HOLDER WAND | 4370392 | Not Available |
| 7 | Not Available | BAG SUPPORTER | KC10KCEPZV06 | Not Available |
| 10 | Not Available | HANDLE ASSEMBLY (COMPLETE) | KC95BCKTZR0Q | Not Available |
| 13 | Not Available | WIRE BLACK LEAD | 4370427 | Not Available |
| 14 | Not Available | SUCTION INLET PACKING | 4370575 | Not Available |
| 15 | Not Available | PACKING DUST CONTAINER | 8191575 | Not Available |
| 17 | Not Available | COVER DUST (INCLUDES ITEM 24) | KC60KBFEZR0Q | Not Available |
| 18 | Not Available | FILTER SEARS NO. 20-86889 | KER-1800 | Not Available |
| 20 | No Image | FILTER, EXHAUST 116.31722001 Part Number: 8191577 for Kenmore | 8191577 | $19.14Read more |
| 21 | Not Available | CASE MOTOR | 8191735 | Not Available |
| 24 | Not Available | FILTER ASSEMBLY | 8192460 | Not Available |
| 26 |  | Wheel Stop For: kenmore | 4369564 | $3.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | WHEEL Part Number: KC01CAMAZV07 for Kenmore | KC01CAMAZV07 | $34.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | WASHER | 4369562 | Not Available |
| 29 | Not Available | SHAFT WHEEL | 4369561 | Not Available |
| 30 | Not Available | SUPPORT RUBBER MOTOR (FRONT) | 4370404 | Not Available |
| 31 | Not Available | MOTOR FAN | 8191580 | Not Available |
| 32 | No Image | MOTOR, FLANGE 116. 34612300 Part Number: 4370266 for Kenmore | 4370266 | $74.10Read more |
| 33 | Not Available | SCREW FLANGE | 8191785 | Not Available |
| 34 | Not Available | SUPPORT RUBBER MOTOR (REAR) | 4370265 | Not Available |
| 36 | Not Available | COMPARTMENT DUST | KC40KBLDZV07 | Not Available |
| 37 | Not Available | NUT WIRE (4) | 4368522 | Not Available |
| 38 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | Not Available | COVER FILTER | 8191582 | Not Available |
| 43 | Not Available | SCREW HANDLE | 4370420 | Not Available |
| 44 | Not Available | SCREW SWITCH MOUNTING | 4370280 | Not Available |
| 45 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | PACKING MOTOR CASE (ADHESIVE BACK) | 4370430 | Not Available |
| 47 | Not Available | WIRE CORD | 4370465 | Not Available |
| 52 | Not Available | LEAD WIRE ASSEMBLY | 8191589 | Not Available |
| 55 | Not Available | HANDLE | KC64BBFEZV07 | Not Available |
| 57 | Not Available | HANDLE LID | KC14BCHFZV07 | Not Available |
| 67 | Not Available | CASE FILTER ASSEMBLY | KC26KCKVZBUU | Not Available |
| 68 | Not Available | VALVE GROMMET | 8191569 | Not Available |
| 77 | Not Available | PROTECTOR ASSEMBLY | 8191895 | Not Available |
| 78 | Not Available | FILTER UNIT | 8192124 | Not Available |
| 80 | Not Available | CADDY HANDI-MATE JR. | KC66PBPKZV06 | Not Available |
| 81 | Not Available | CLIP CADDY | KC82DCJRV06 | Not Available |
| 82 | Not Available | SCREW | 4370790 | Not Available |
| # | Part image | Description | SKU | Price |

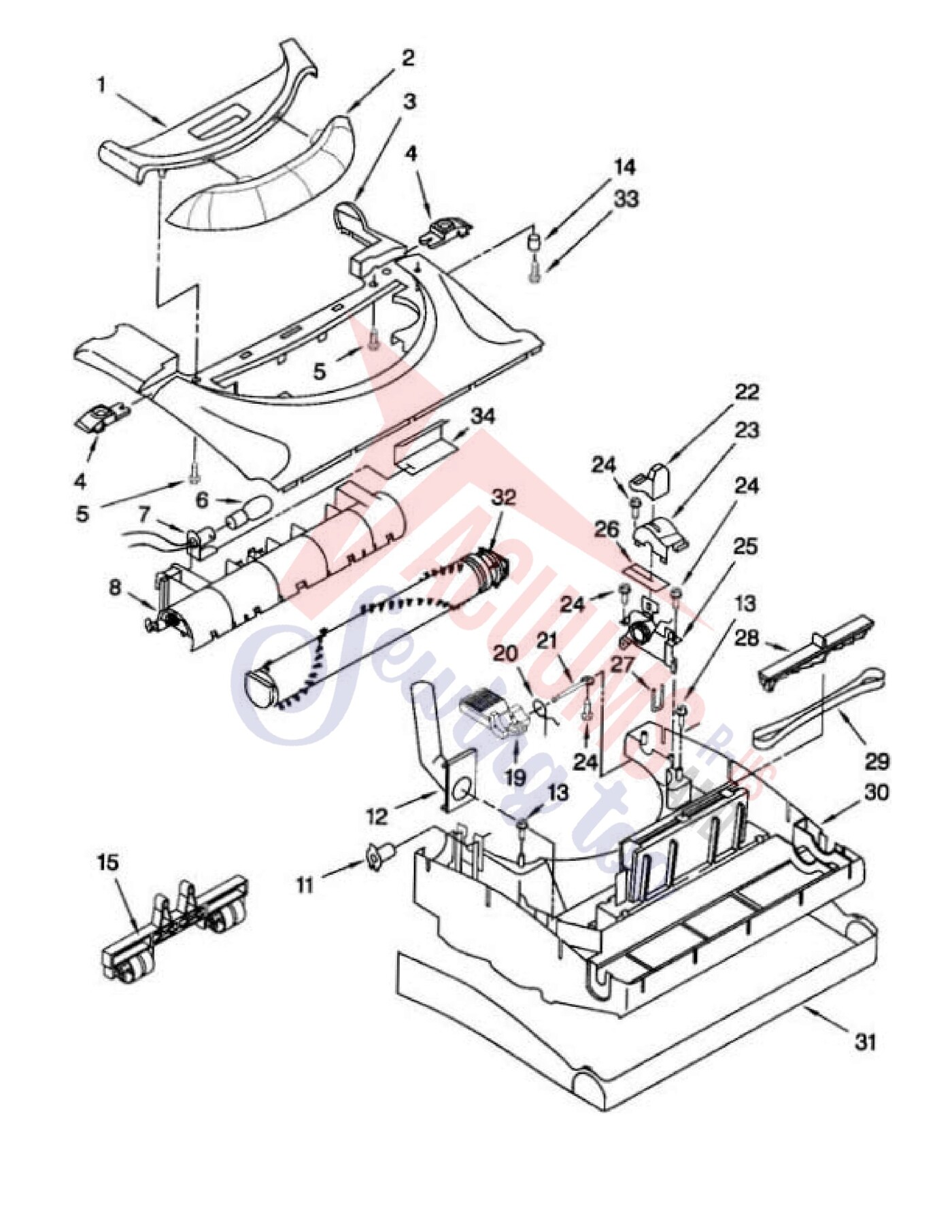

| 1 | Not Available | COVER LIGHT | 8191685 | Not Available |
| 2 | Not Available | WINDOW | 4370410 | Not Available |
| 3 | Not Available | HOUSING NOZZLE | KC01AAMAZR0Q | Not Available |
| 4 | Not Available | LATCH NOZZLE LEFT SIDE | 8191728 | Not Available |
| 4A | Not Available | LATCH NOZZLE RIGHT SIDE | 8191729 | Not Available |
| 5 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | BULB LIGHT SEARS NO.20-5240 | FA-3515 | Not Available |
| 7 | Not Available | SOCKET BULB | 4369526 | Not Available |
| 8 | No Image | COVER, 116.39512991 Part Number: 8174976 for Kenmore | 8174976 | $57.18Read more |
| 11 | Not Available | SHAFT PLASTIC | 4369527 | Not Available |
| 12 | Not Available | PIPE NOZZLE | 4370263 | Not Available |
| 13 | Not Available | SCREW RETAINING | 4369606 | Not Available |
| 14 | Not Available | GUARD BELT | 4370425 | Not Available |
| 15 | Not Available | CAM HEIGHT ADJUSTMENT | KC90HAMAZV06 | Not Available |
| 19 | Not Available | PEDAL | 4370394 | Not Available |
| 20 | No Image | SPRING, HANDLE RELEASE 116.33613300 Part Number: 4370258 for Kenmore | 4370258 | $18.42Read more |
| 21 | Not Available | SHAFT PEDAL | 4370259 | Not Available |
| 22 | Not Available | COVER PEDAL PAD | 4370260 | Not Available |
| 23 | Not Available | COVER BELT | 8191730 | Not Available |
| 24 | No Image | SCREW, PCB BOARD 116. 31912100 Part Number: 4368563 for Kenmore | 4368563 | $2.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | Not Available | SHIFTER BELT | 4370393 | Not Available |
| 26 | Not Available | NOZZLE PACKING | 4370544 | Not Available |
| 27 | Not Available | COVER BELT | 4369535 | Not Available |
| 28 | Not Available | KNOB HEIGHT ADJUSTMENT | 4369542 | Not Available |
| 29 | Not Available | BELT SEARS NO. 20-5275 | PR-1015 | Not Available |
| 30 | Not Available | LOWER PLATE ASSEMBLY | KC27AAMDZV07 | Not Available |
| 31 | Not Available | GUARD FURNITURE | 8174967 | Not Available |
| 32 | Not Available | AGITATOR ASSEMBLY | KC84RCKVZ000 | Not Available |
| 33 | Not Available | SCREW BELT GUARD | 81091810 | Not Available |
| 34 | Not Available | REFLECTOR NOZZLE | 4370433 | Not Available |
| # | Part image | Description | SKU | Price |

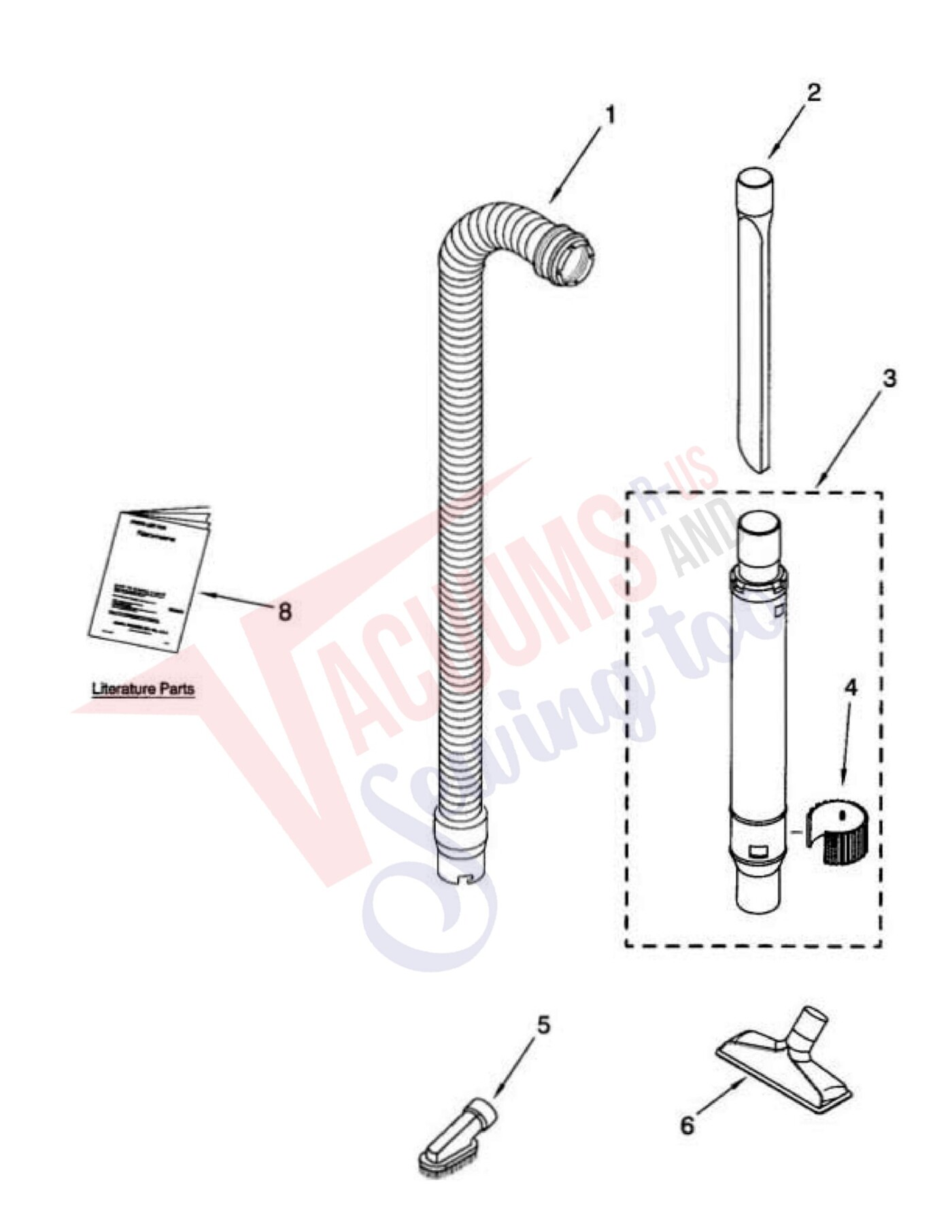

| 1 | Not Available | HOSE FLEXIBLE | 8191584 | Not Available |
| 2 |  | Crevice Tool-Kenmore Vacuum - Grey
14 1/4 Inch Long For: kenmore | 4368684 | $16.80Read more |
| 3 | Not Available | WAND TELESCOPIC | 4370414 | Not Available |
| 4 | Not Available | REGULATOR SUCTION | 4368996 | Not Available |
| 5 | Not Available | BRUSH DUSTING | 4368681 | Not Available |
| 6 | No Image | BRUSH, FLOOR 116.31913101 Part Number: 4368609 for Kenmore | 4368609 | $37.10Read more |
| 8A | Not Available | LIST REPAIR PARTS | KC40ZCKVZ0U0 | Not Available |
| 8 | Not Available | MANUAL OWNERS | KC01ZCKVZ0U0 | Not Available |
